DESCRIPTION

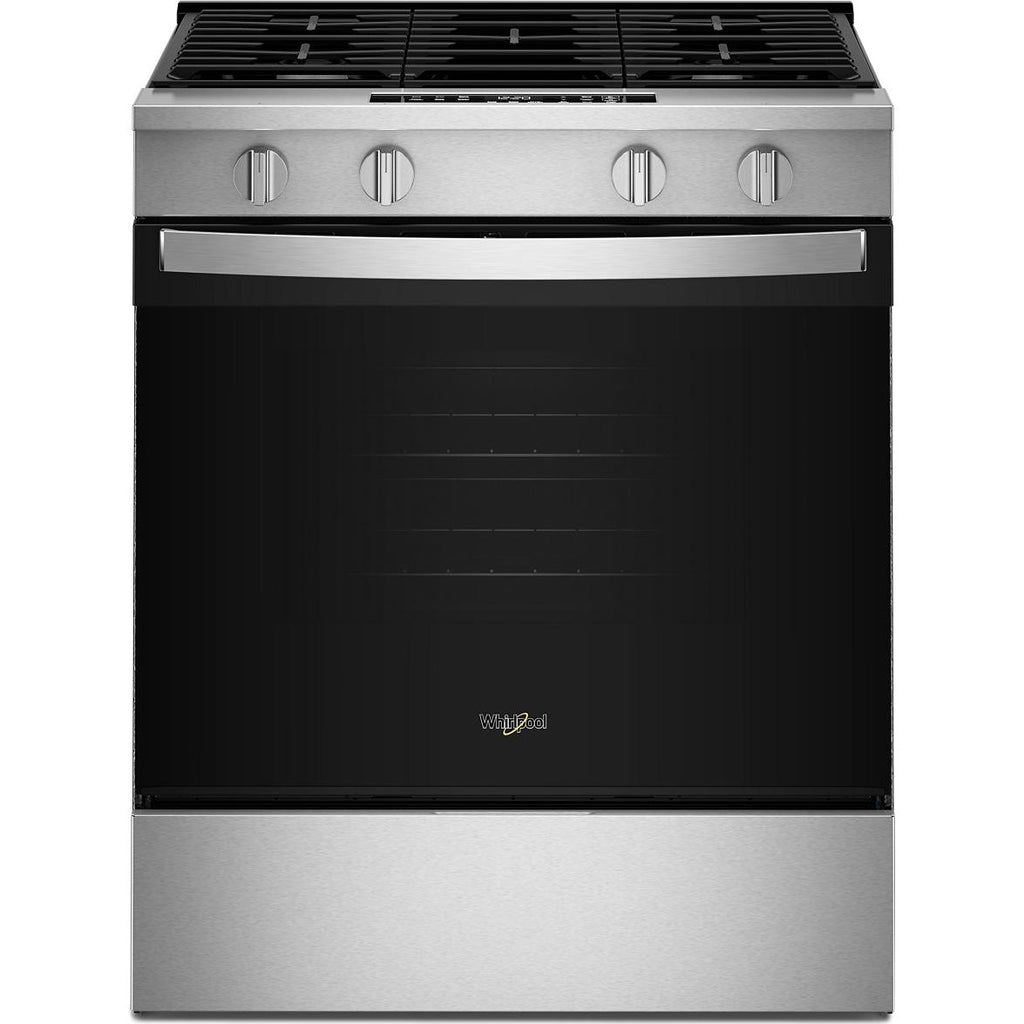

×Make the most of your time in the kitchen with this Whirlpool 30 inch gas range. Take preheating off your plate with No Preheat Mode, and heat up all day dishes with Slow Cook. Tackle your to-do list with features built for multitasking, boil 20% faster* with SpeedHeat™ Burners, and add a toasty twist or melty magic to family classics with Broil.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam Clean

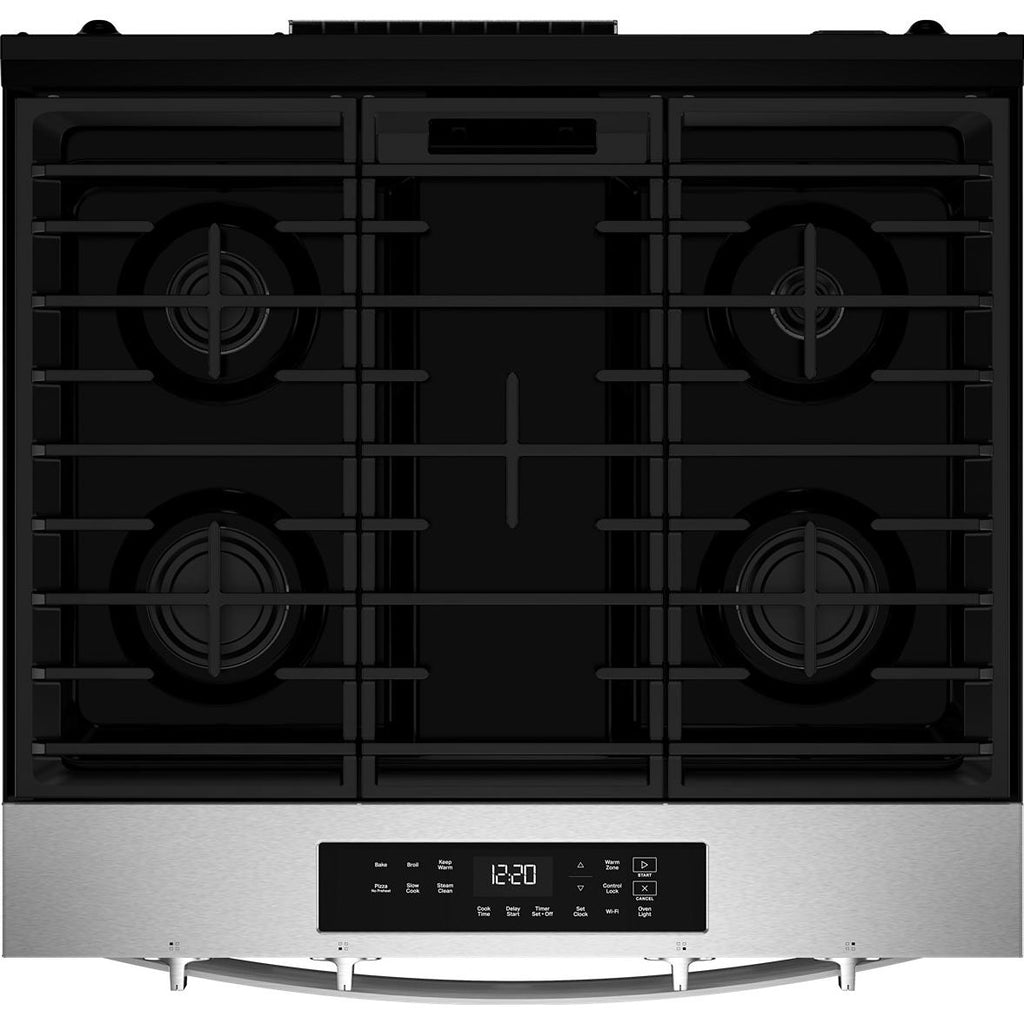

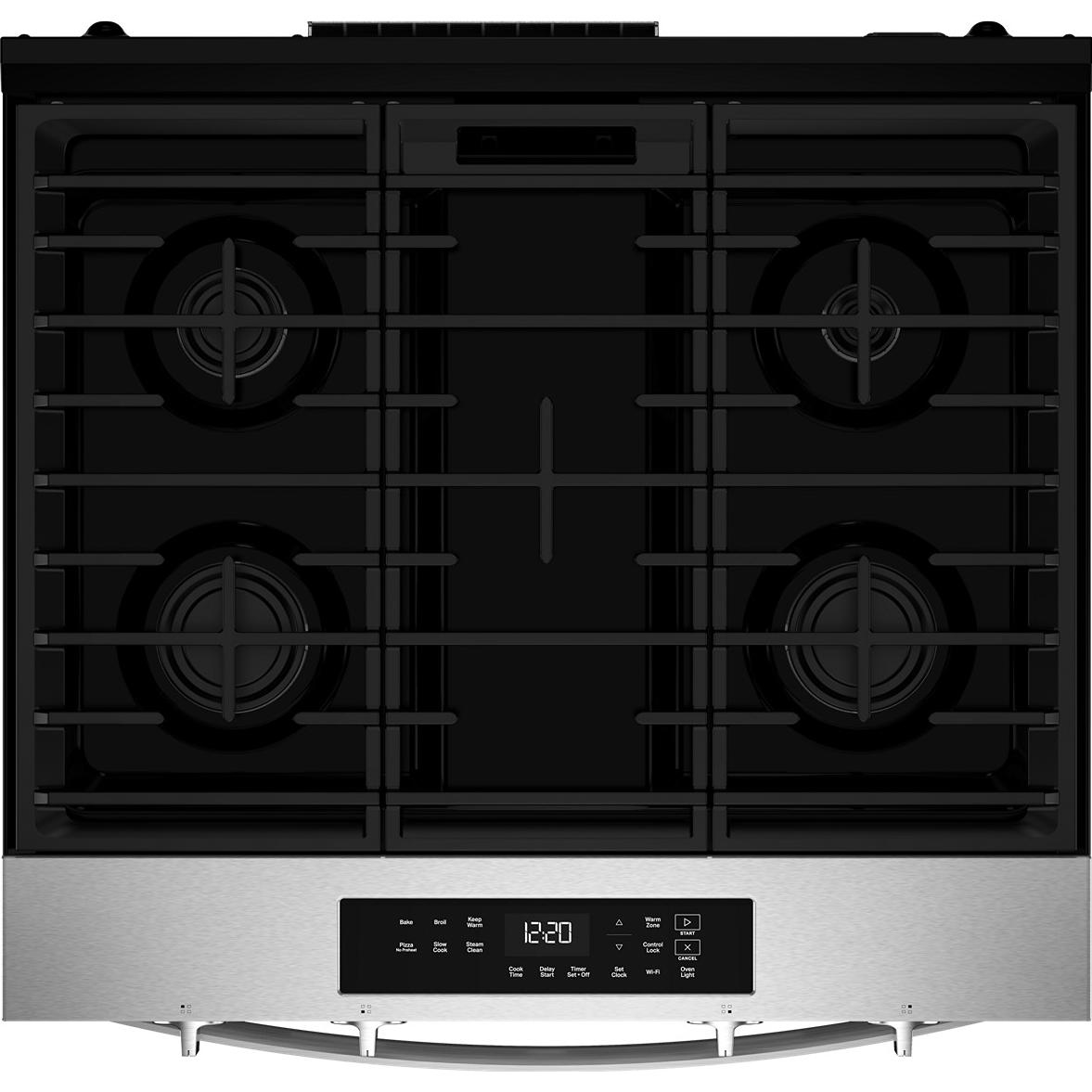

Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Rear Burner Power: 5,000 BTU
• Right Front Burner Power: 18,000 BTU
• Center Rear Burner Power: 12,000 BTU
• Left Rear Burner Power: 10,000 BTU
• Left Front Burner Power: 15,000 BTU
• Right Front Burner Power: 18,000 BTU
• Center Rear Burner Power: 12,000 BTU
• Left Rear Burner Power: 10,000 BTU
• Left Front Burner Power: 15,000 BTU
Burners
Sealed

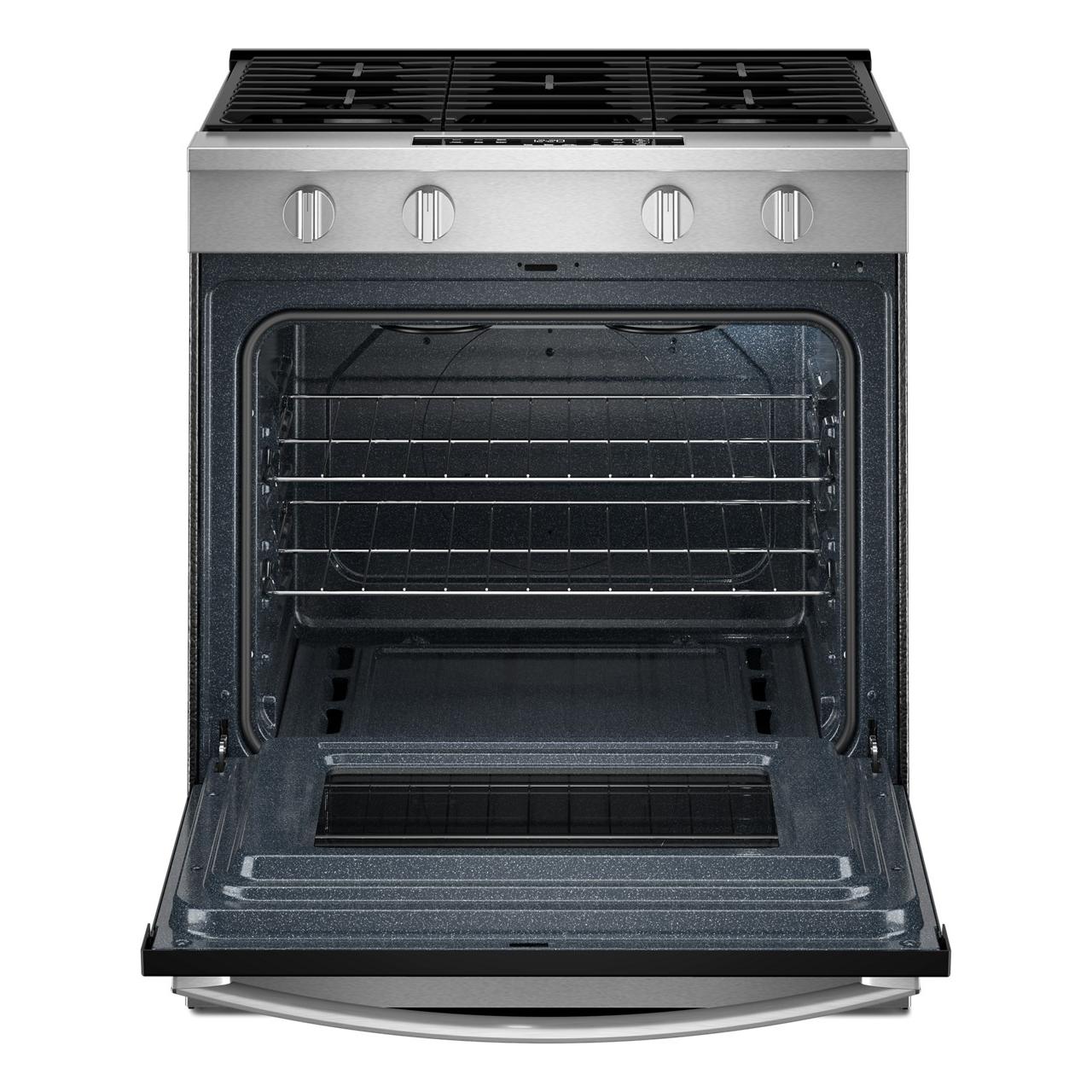

Oven
Capacity (cu. ft.)
5.0 cu. ft.
Number of Ovens
Single
Features
Technologies
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• SpeedHeat™ Burner
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• SpeedHeat™ Burner
Air Fry
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• Number of Rack Guides: 5
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Porcelain Coated Steel
• Oven Control Location: Front Control
• Broiler Element Power: 1,300 W Electric Broil
• Bake Element Power: 16,500 BTU
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Ignition Type: Direct Spark Ignition
• Grate Details: Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Porcelain Coated Steel
• Oven Control Location: Front Control
• Broiler Element Power: 1,300 W Electric Broil
• Bake Element Power: 16,500 BTU
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Ignition Type: Direct Spark Ignition
• Grate Details: Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Drawer Features
Storage
Yes
Electrical Information
Information
• Watts: 1,400 W
• Frequency: 60 Hz
• Voltage: 120 V
• Amps: 15 A
• Frequency: 60 Hz
• Voltage: 120 V
• Amps: 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
Energy Star
Accessories
Optional
4396096RB, W11692811
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
36.6 inch(es) / 92.96 cm
Depth (Without Handles)
25.4 inch(es) / 64.52 cm
Weight
189 lb(s) / 85.73 kg
Additional Dimensions
• Depth Closed Excluding Handles: 27.4"
• Depth Closed Including Handles: 29.1"
• Depth With Door Open 90°: 47.7"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Maximum Height: 38.1"
• Minimum Height: 36.6"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.0"
• Depth Closed Including Handles: 29.1"
• Depth With Door Open 90°: 47.7"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Maximum Height: 38.1"
• Minimum Height: 36.6"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.0"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
43 inch(es) / 109.22 cm
Depth
31 inch(es) / 78.74 cm
Weight
205.01 lb(s) / 92.99 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049951171
