DESCRIPTION

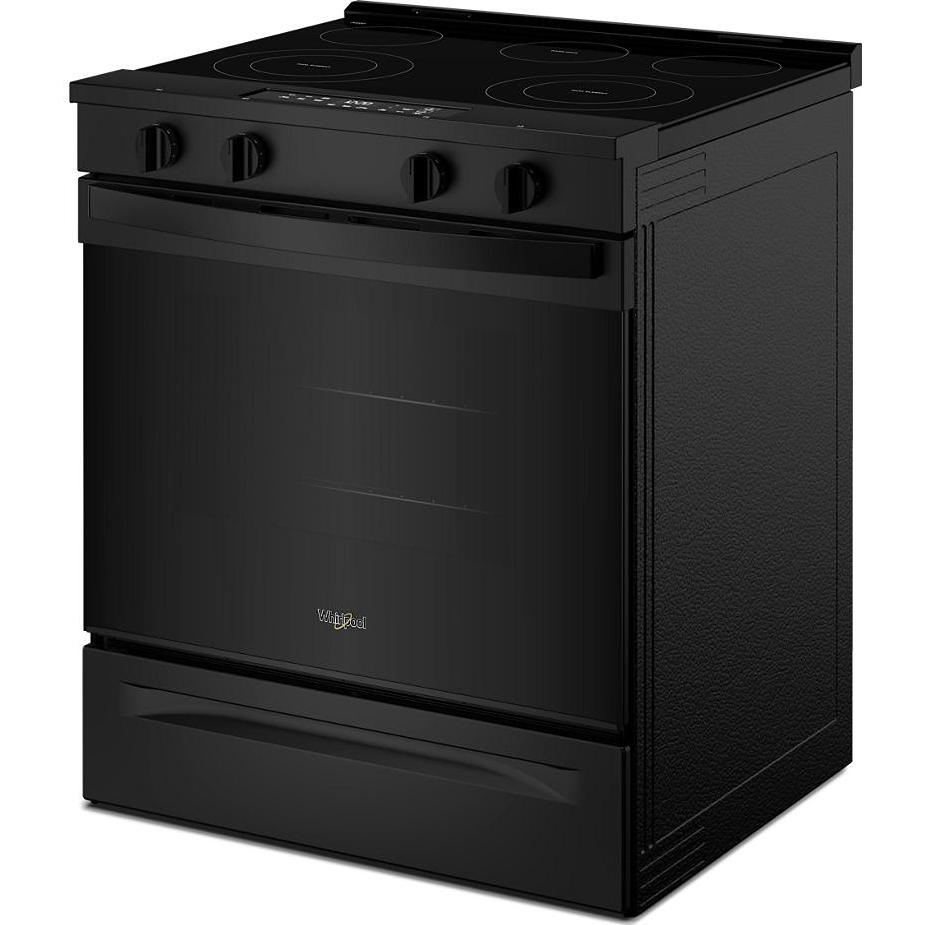

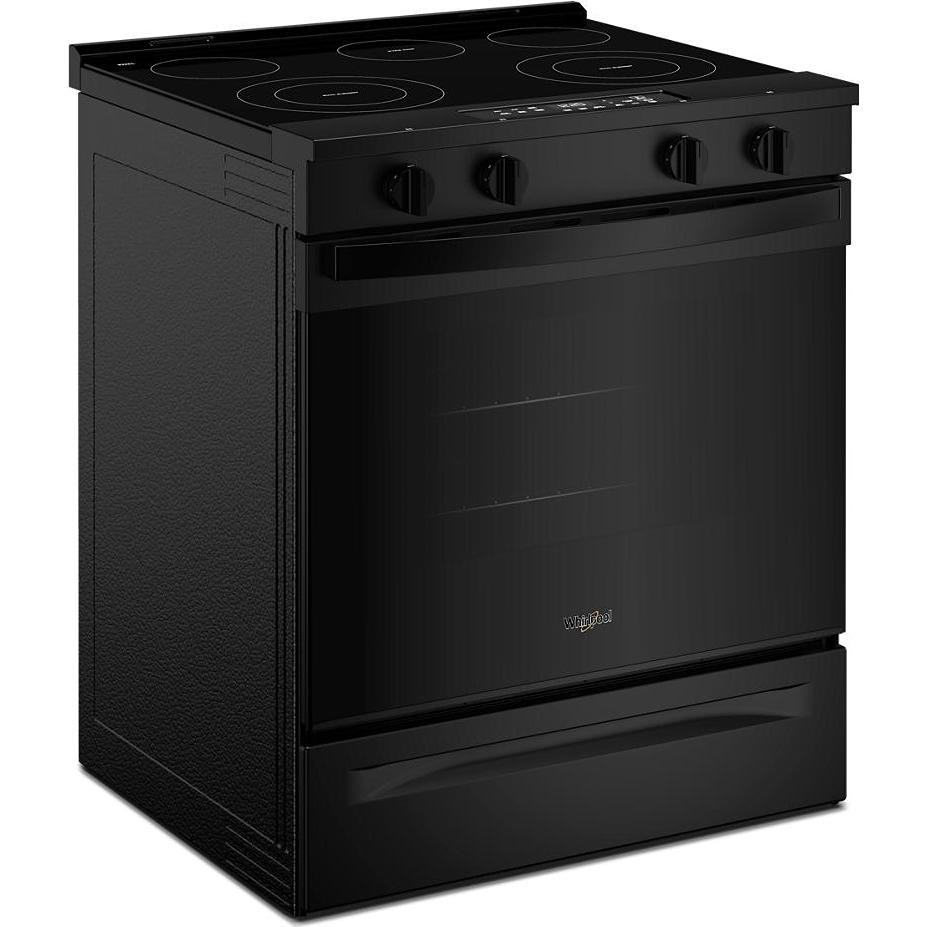

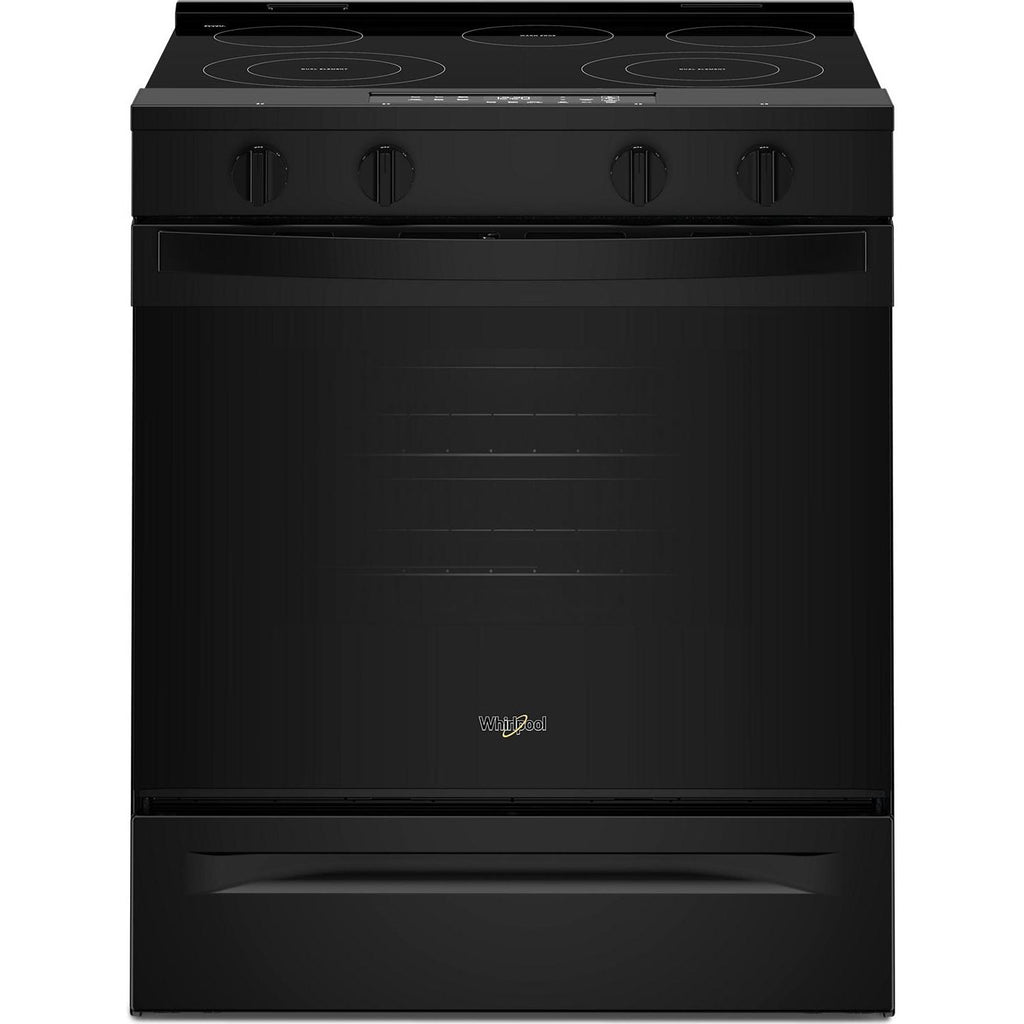

×Make the most of your time in the kitchen with this Whirlpool 30 inch electric range. Take preheating off your plate with No Preheat Mode, and heat up all day dishes with Slow Cook. Tackle your to-do list with features built for multitasking, boil 40% faster* with FlexHeat™ Dual Radiant Elements, and add a toasty twist or melty magic to family classics with Broil.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Black
Manufacturer Color
Black
Appliance Care

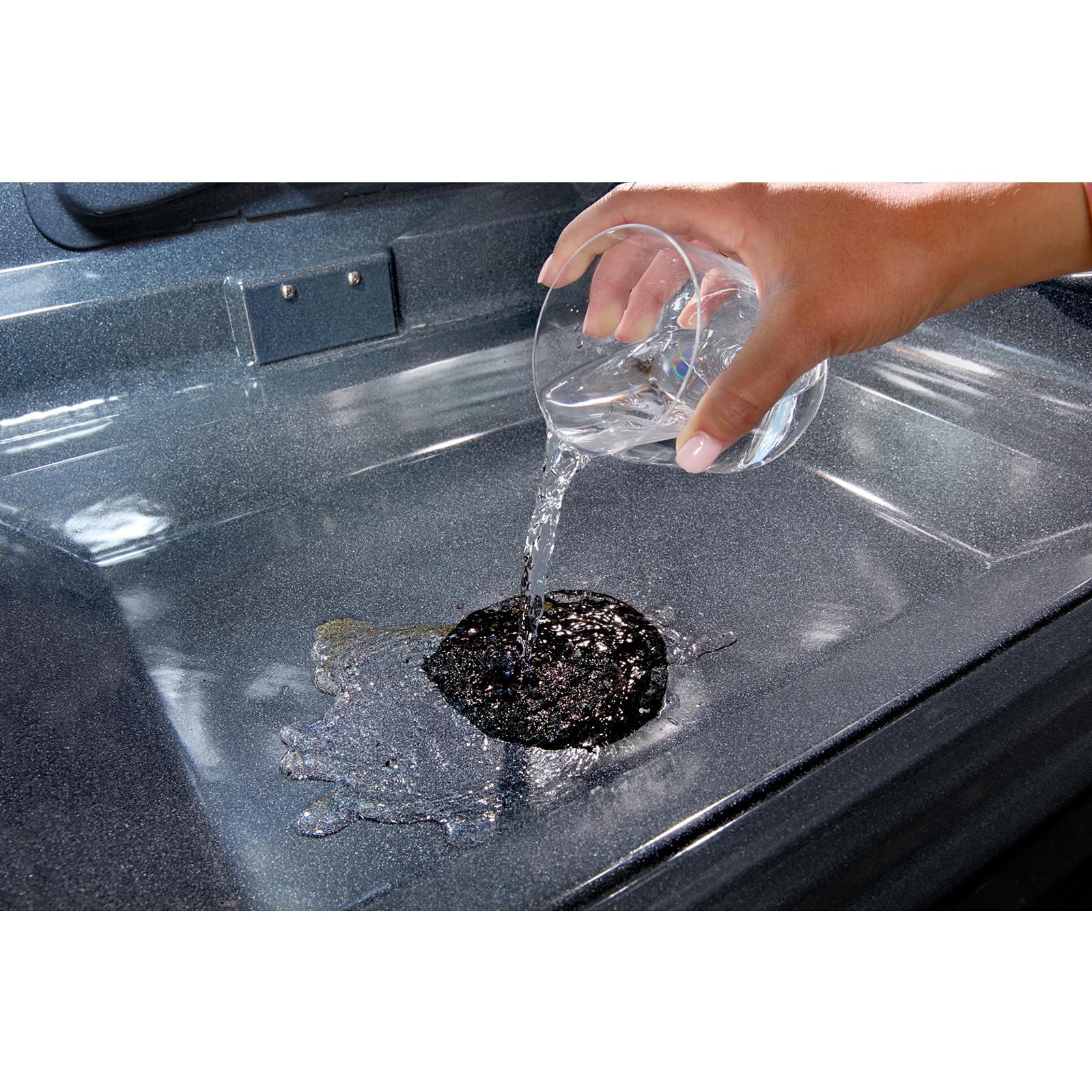

Steam Clean
Cooktop

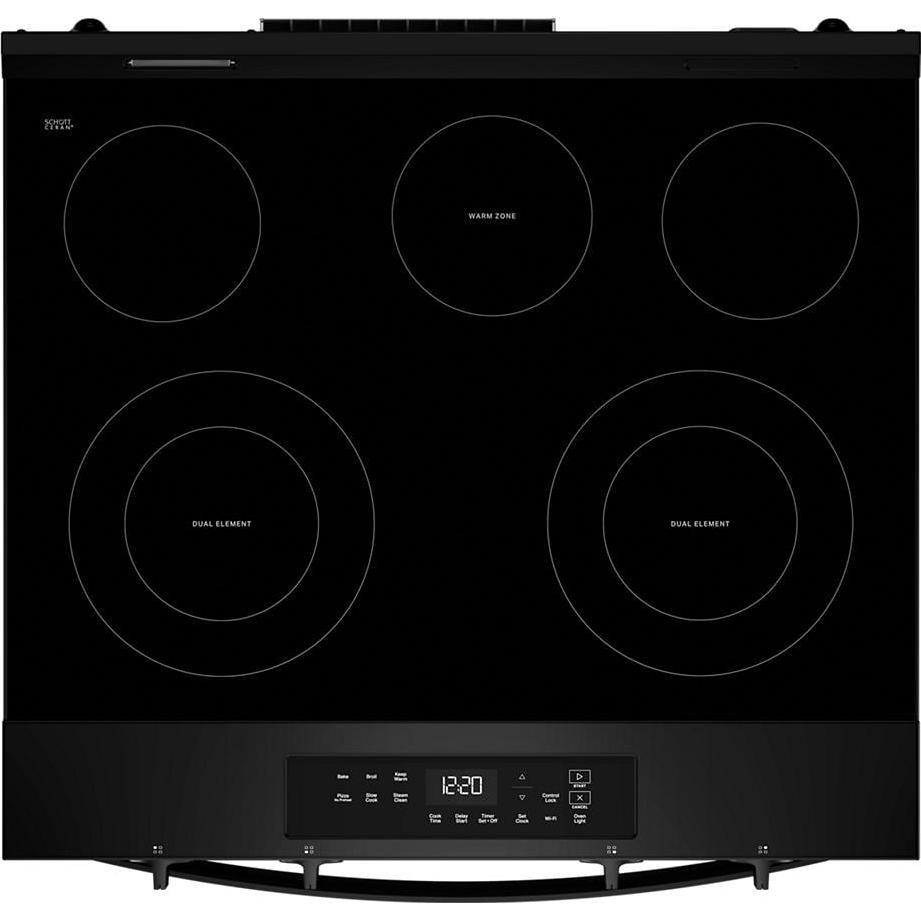

Burners/Elements
5
Burners/Elements Output
• Right Rear Element Power: 1,200 W
• Right Front Element Power: 3,000 W
• Left Rear Element Power: 1,200 W
• Left Front Element Power: 3,000 W
• Center Rear Element Power: 100 W
• Right Front Element Power: 3,000 W
• Left Rear Element Power: 1,200 W
• Left Front Element Power: 3,000 W
• Center Rear Element Power: 100 W
Burner/Element Size
• Right Rear Element Size: 6 in.
• Right Front Element Size: 9 in./6 in.
• Left Rear Element Size: 6 in.
• Left Front Element Size: 9 in./6 in.
• Center Rear Element Size: 6 in.
• Right Front Element Size: 9 in./6 in.
• Left Rear Element Size: 6 in.
• Left Front Element Size: 9 in./6 in.
• Center Rear Element Size: 6 in.
Elements
Smoothtop

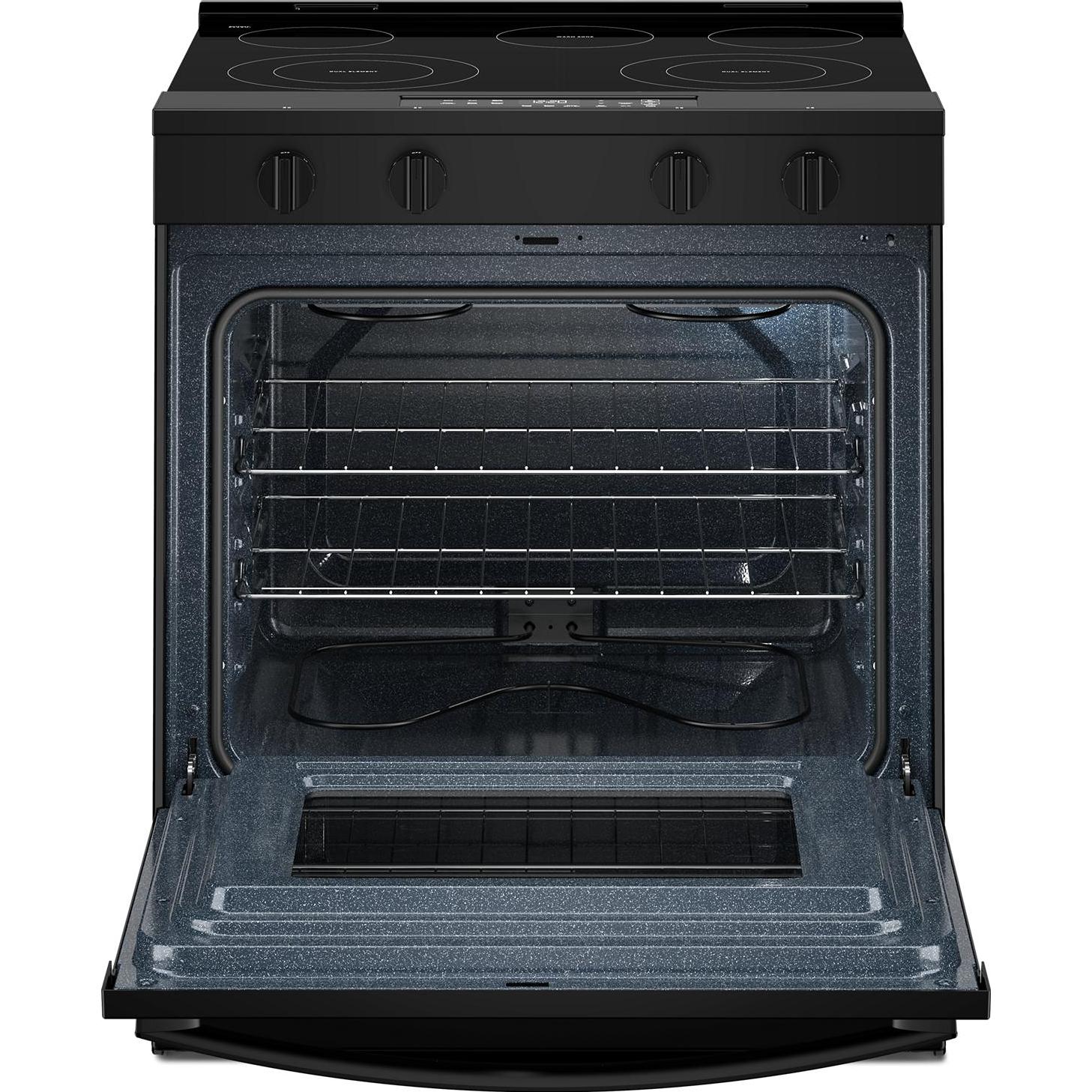

Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Features
Technologies
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• 2 FlexHeat™ Dual Radiant Elements
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• 2 FlexHeat™ Dual Radiant Elements
Air Fry
Yes

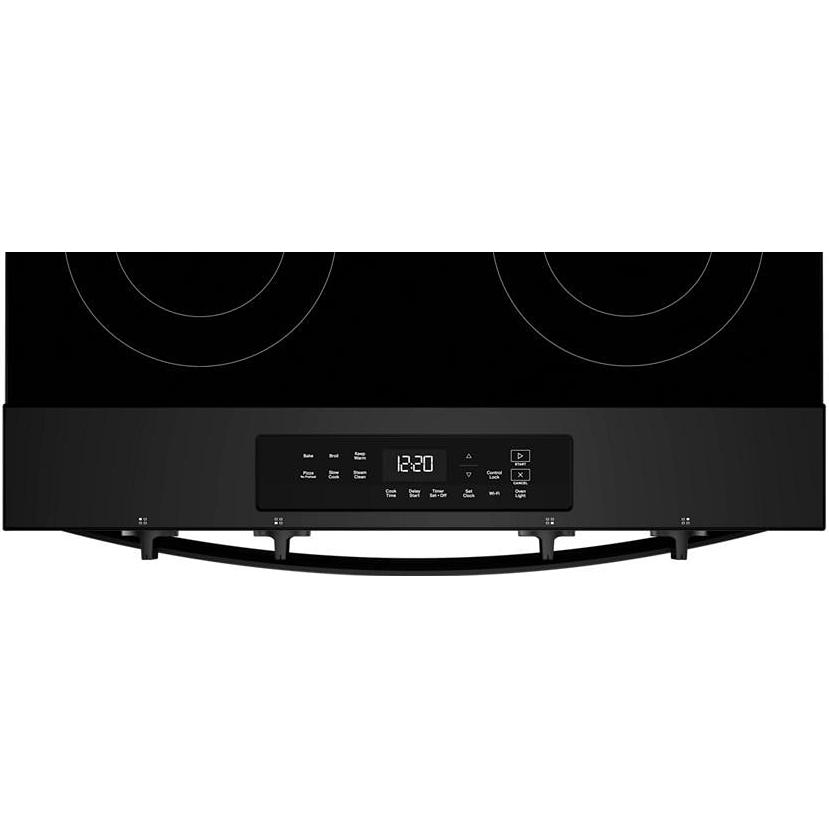

Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• Door: Removable
• Number of Rack Guides: 5
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Hidden Bake Element: Exposed
• Cooktop Surface Material: Glass
• Broiler Element Power: 3,400 W
• Bake Element Power: 2,400 W
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Number of Rack Guides: 5
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Hidden Bake Element: Exposed
• Cooktop Surface Material: Glass
• Broiler Element Power: 3,400 W
• Bake Element Power: 2,400 W
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Hot Surface Indicator Light
• Heating Element On Indicator Light
Drawer Features
Storage
Yes
Electrical Information
Information
• Watts: 12,000 W
• Hz: 60
• Volts: 208 V
• Amps: 40 A
• Hz: 60
• Volts: 208 V
• Amps: 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
• Energy Star
• CUL
• UL
• CUL
• UL
Accessories
Optional
4396096RB, W11692811
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
36.6 inch(es) / 92.96 cm
Depth (Without Handles)
25.4 inch(es) / 64.52 cm
Weight
169.01 lb(s) / 76.66 kg
Additional Dimensions
• Depth Closed Excluding Handles: 27.4"
• Depth Closed Including Handles: 29.1"
• Depth With Door Open 90°: 47.7"
• Maximum Height: 38.1"
• Minimum Height: 36.6"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.0"
• Depth Closed Including Handles: 29.1"
• Depth With Door Open 90°: 47.7"
• Maximum Height: 38.1"
• Minimum Height: 36.6"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.0"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
43 inch(es) / 109.22 cm
Depth
31 inch(es) / 78.74 cm
Weight
184.99 lb(s) / 83.91 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049951072
