DESCRIPTION

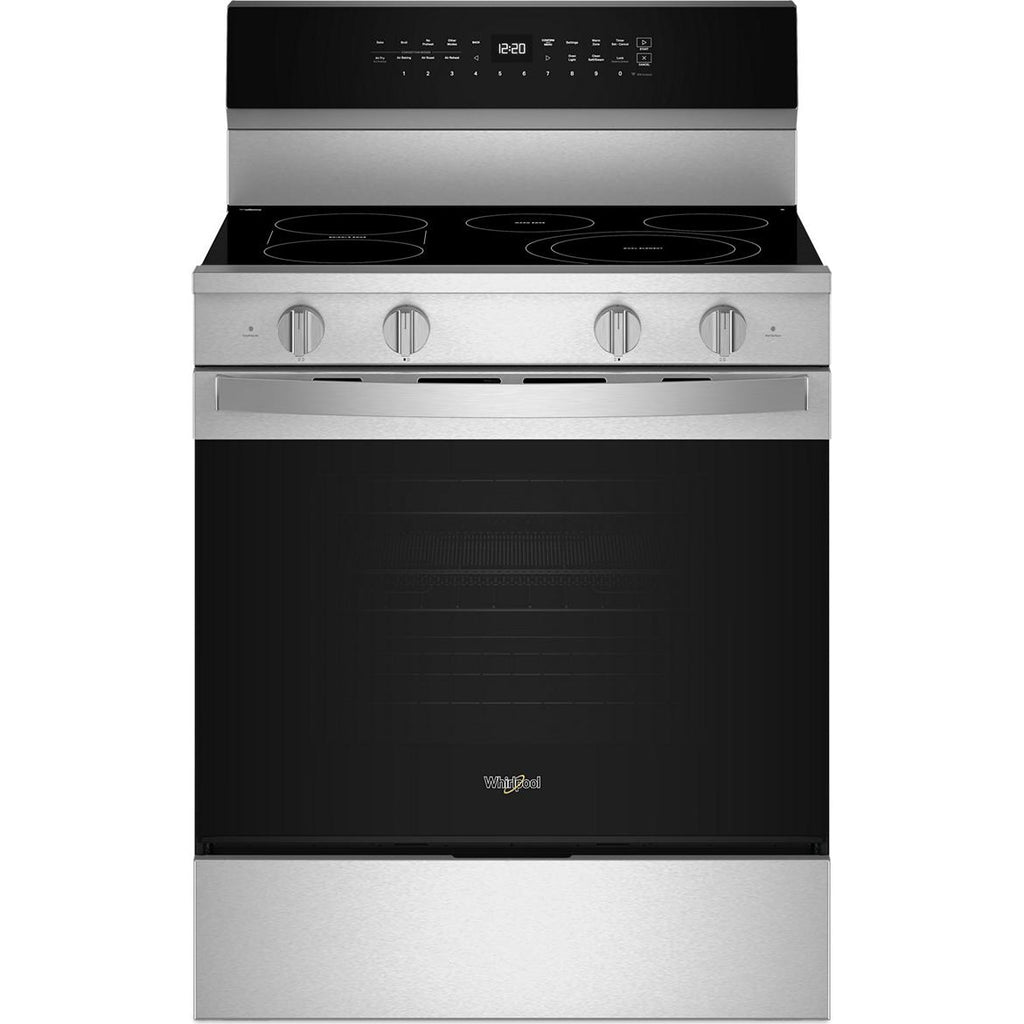

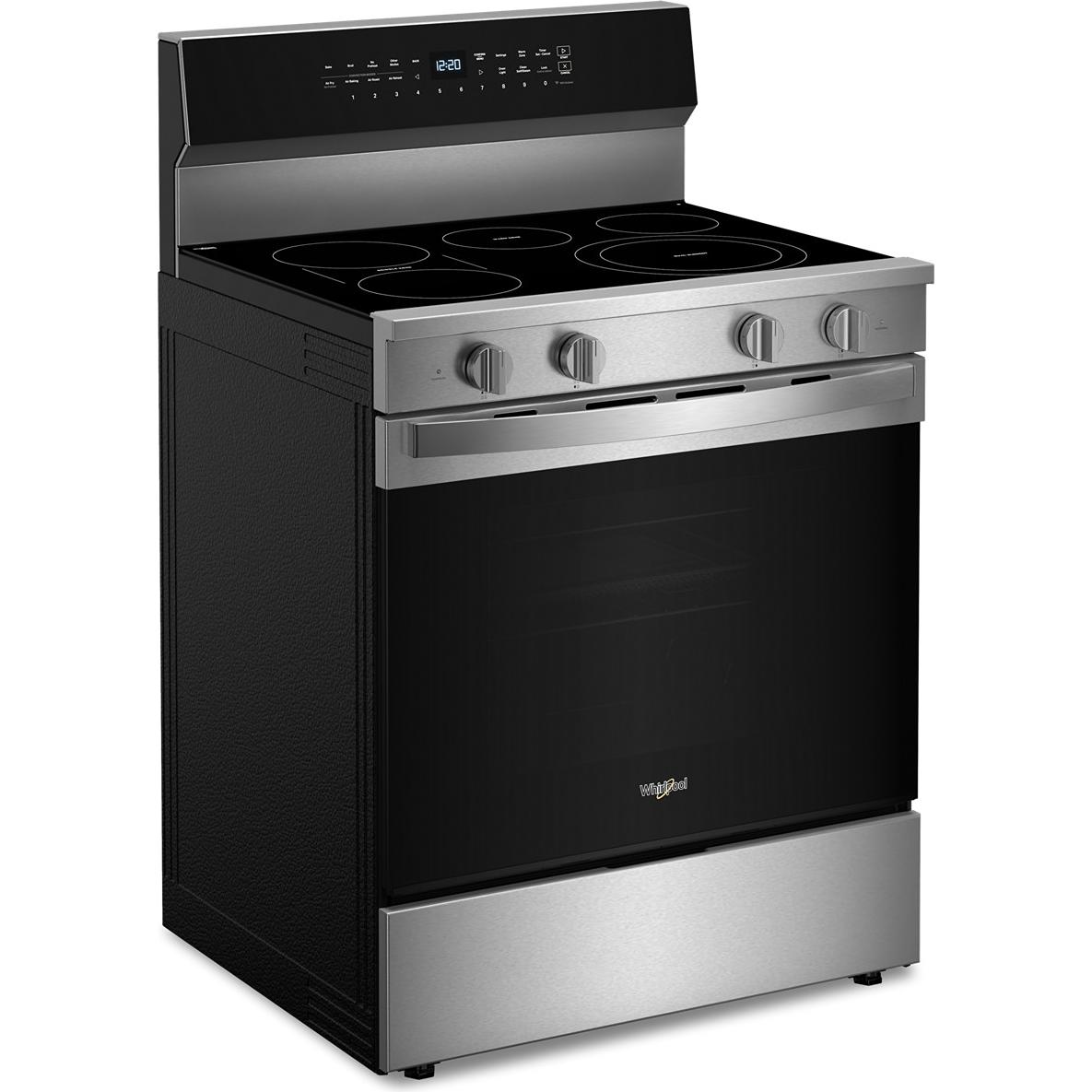

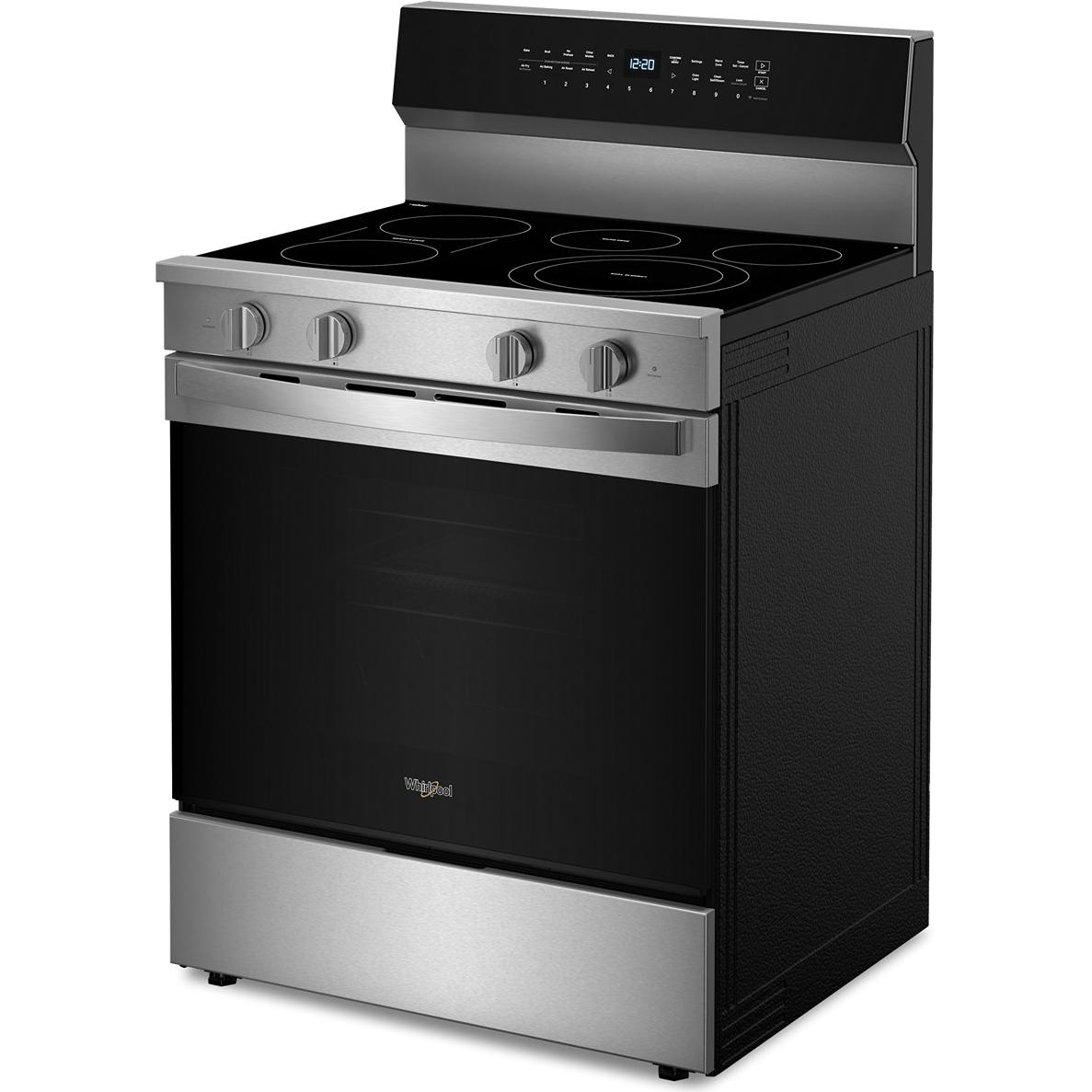

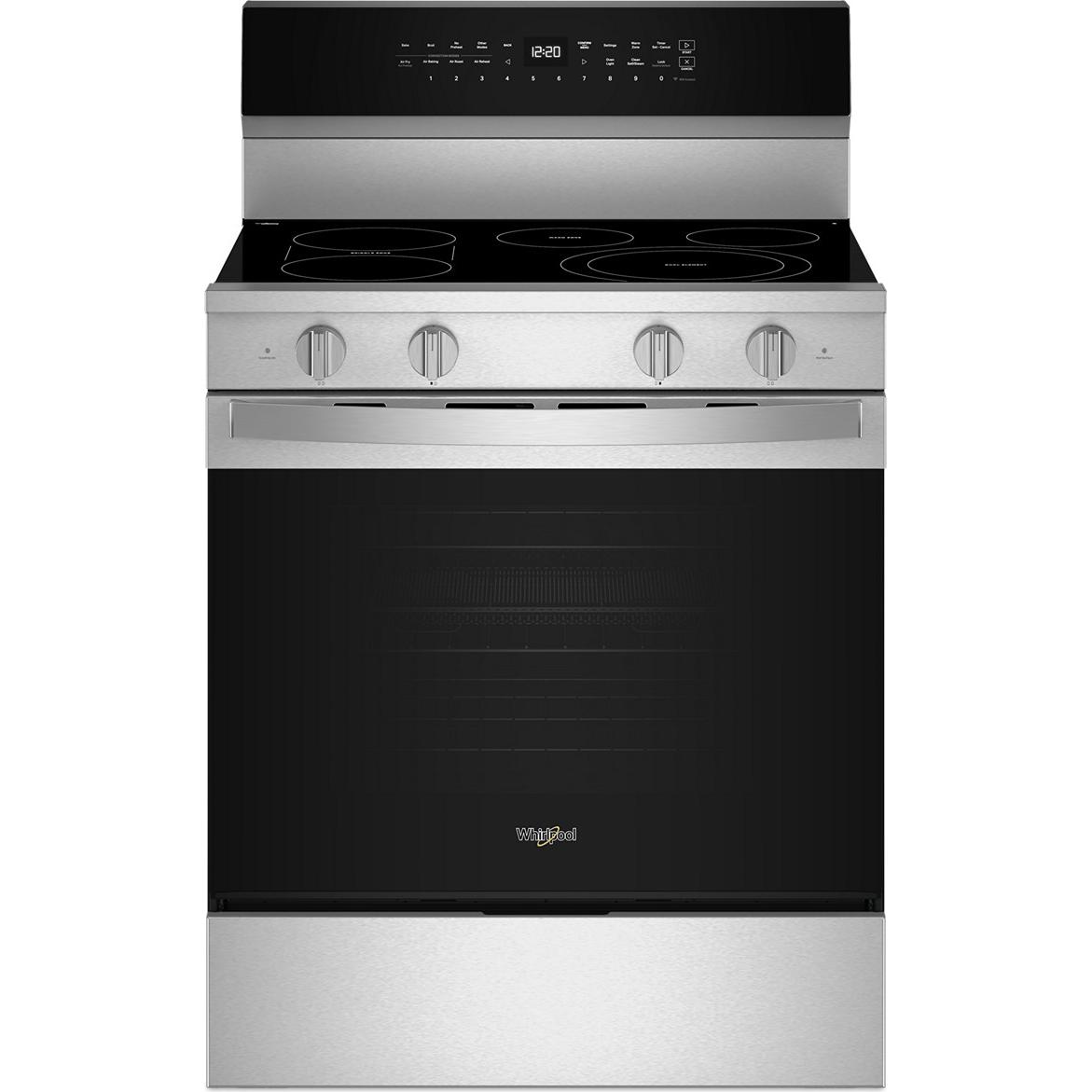

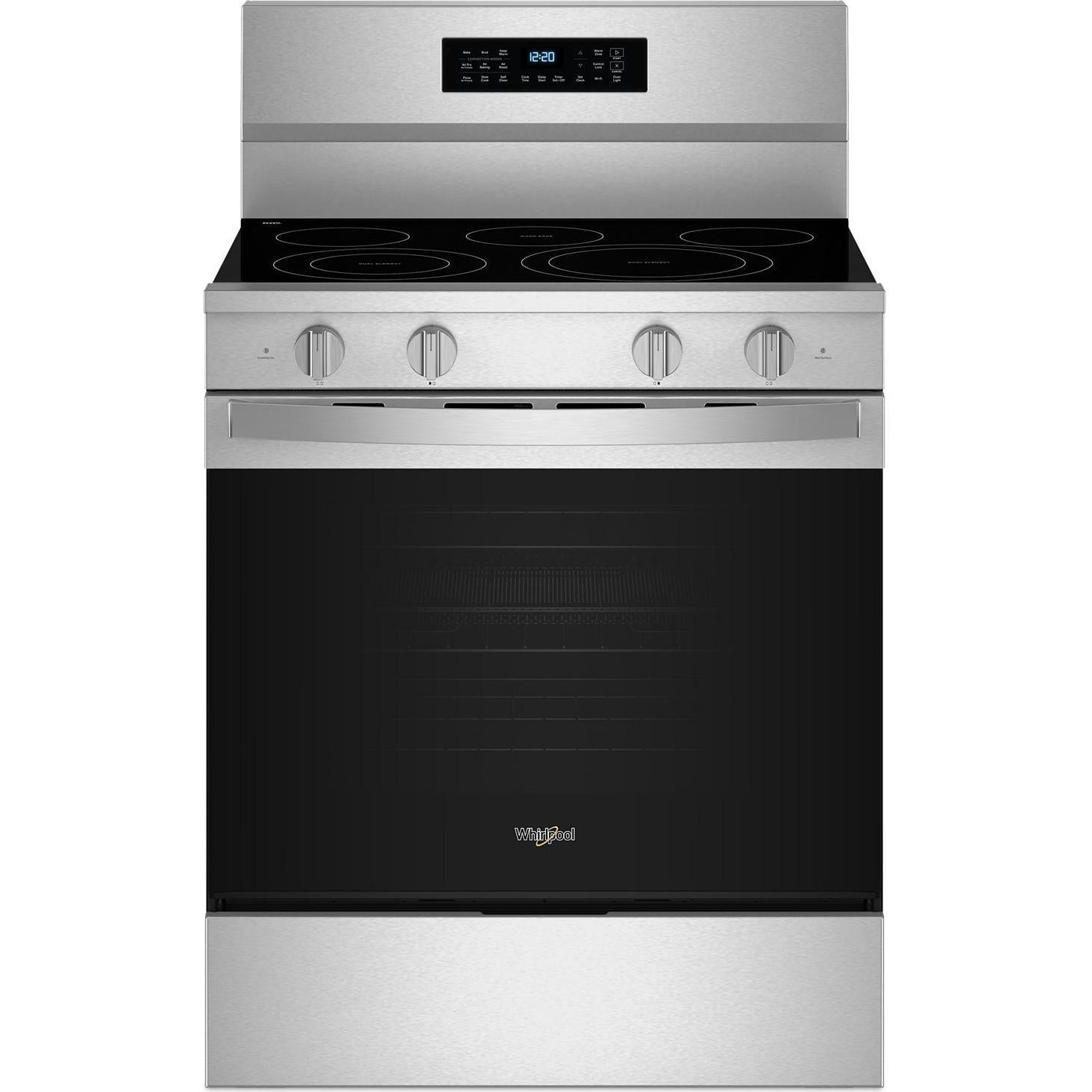

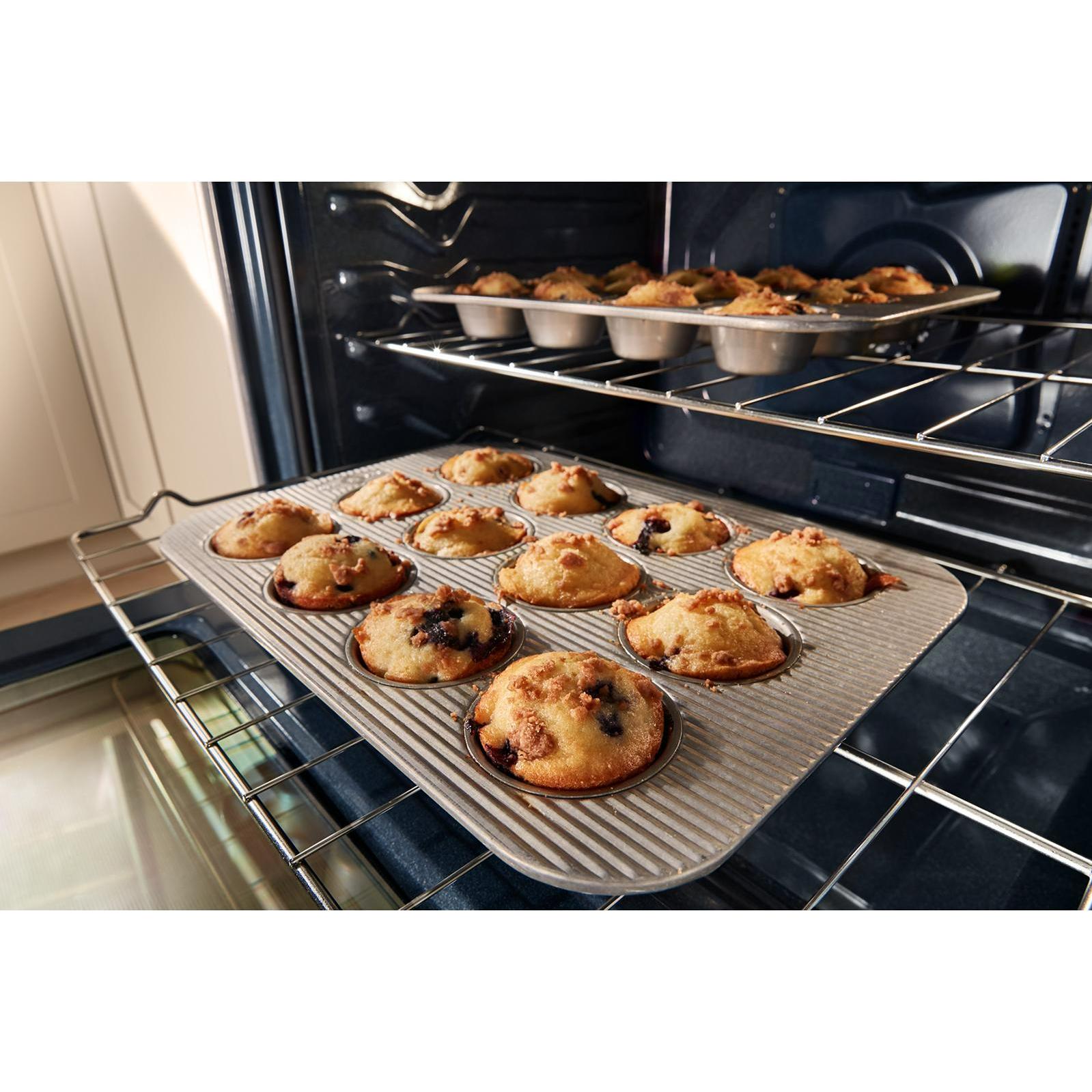

×Experience the difference of Air Cooking Technology with this Whirlpool 30 inch electric range. Get crispy with our most advanced No Preheat Air Fry mode, and even results on every rack with Air Baking. Tackle your to-do list with Smart Features built for multitasking, unlock new cooking capabilities over time with Smart Feature Updates, and boil 40% faster* with 2 FlexHeat™ Dual Radiant Elements.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Fingerprint Resistant Stainless Steel

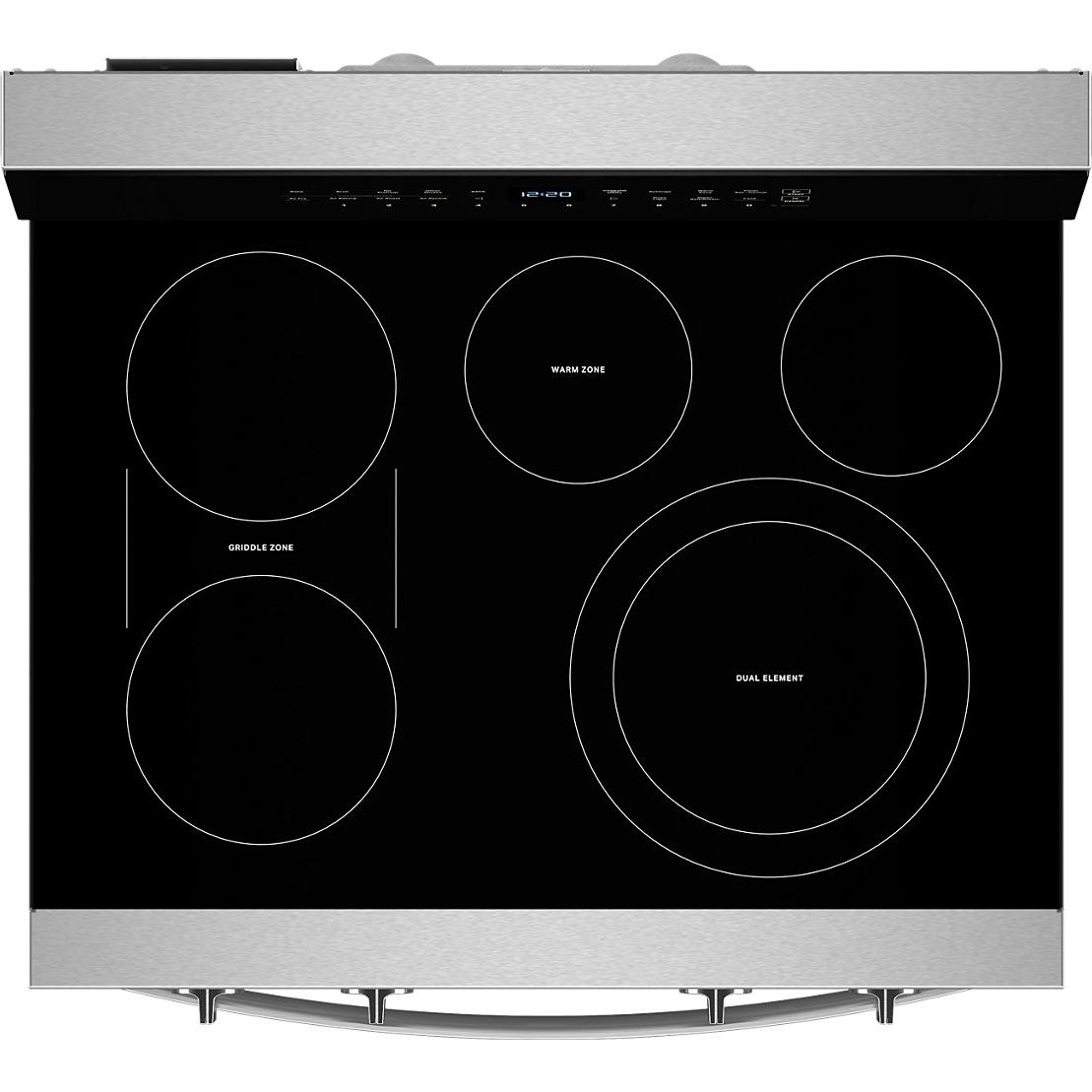

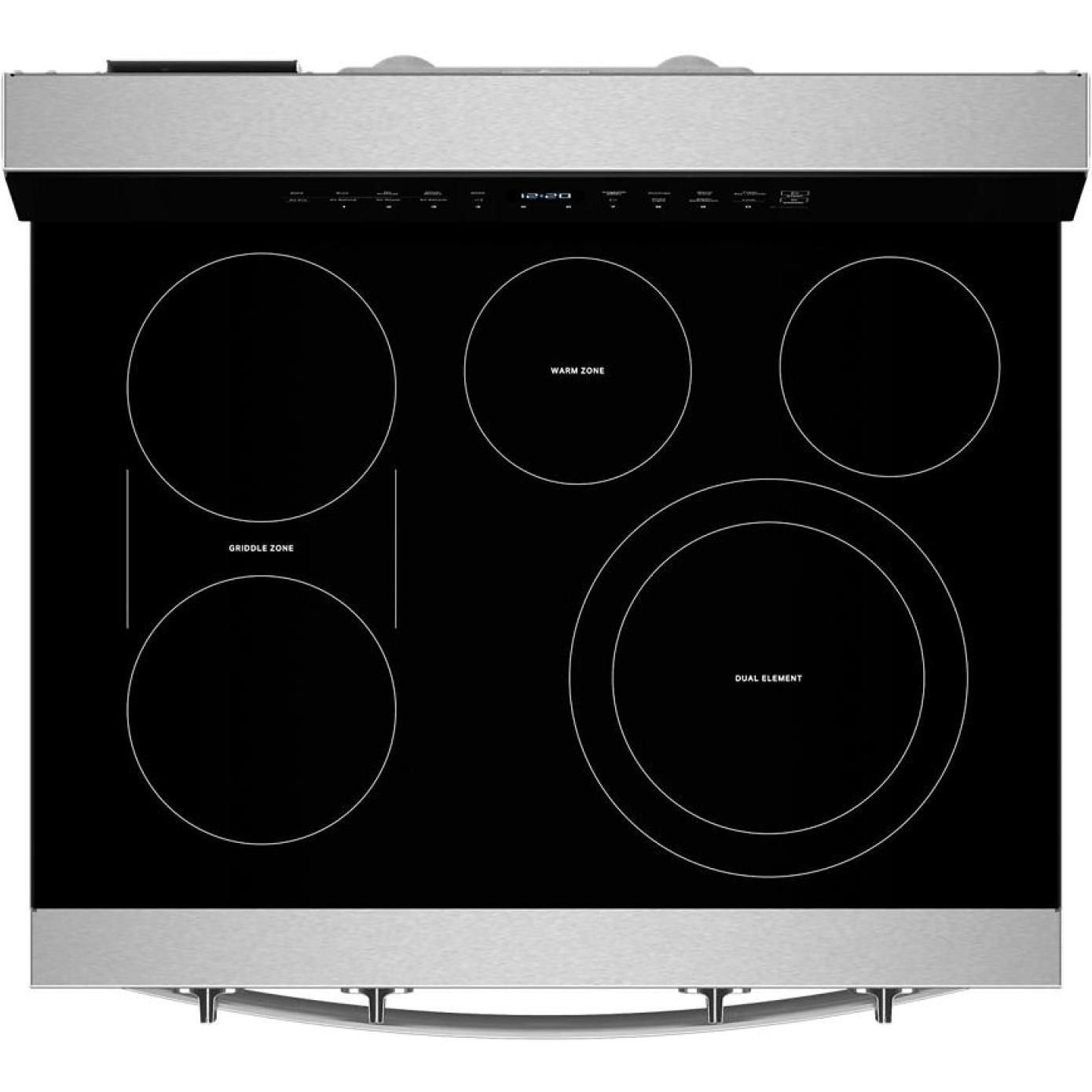

Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear Element Power: 100W
• Left Front Element Power: 3000W
• Right Rear Element Power: 1200W
• Right Front Element Power: 3000W
• Left Rear Element Power: 1200W
• Left Front Element Power: 3000W
• Right Rear Element Power: 1200W
• Right Front Element Power: 3000W
• Left Rear Element Power: 1200W
Burner/Element Size
• Center Rear Element Size: 6in.
• Right Rear Element Size: 6in.
• Right Front Element Size: 12in./9in.
• Left Rear Element Size: 6in.
• Left Front Element Size: 9in./6in.
• Right Rear Element Size: 6in.
• Right Front Element Size: 12in./9in.
• Left Rear Element Size: 6in.
• Left Front Element Size: 9in./6in.
Elements
Smoothtop

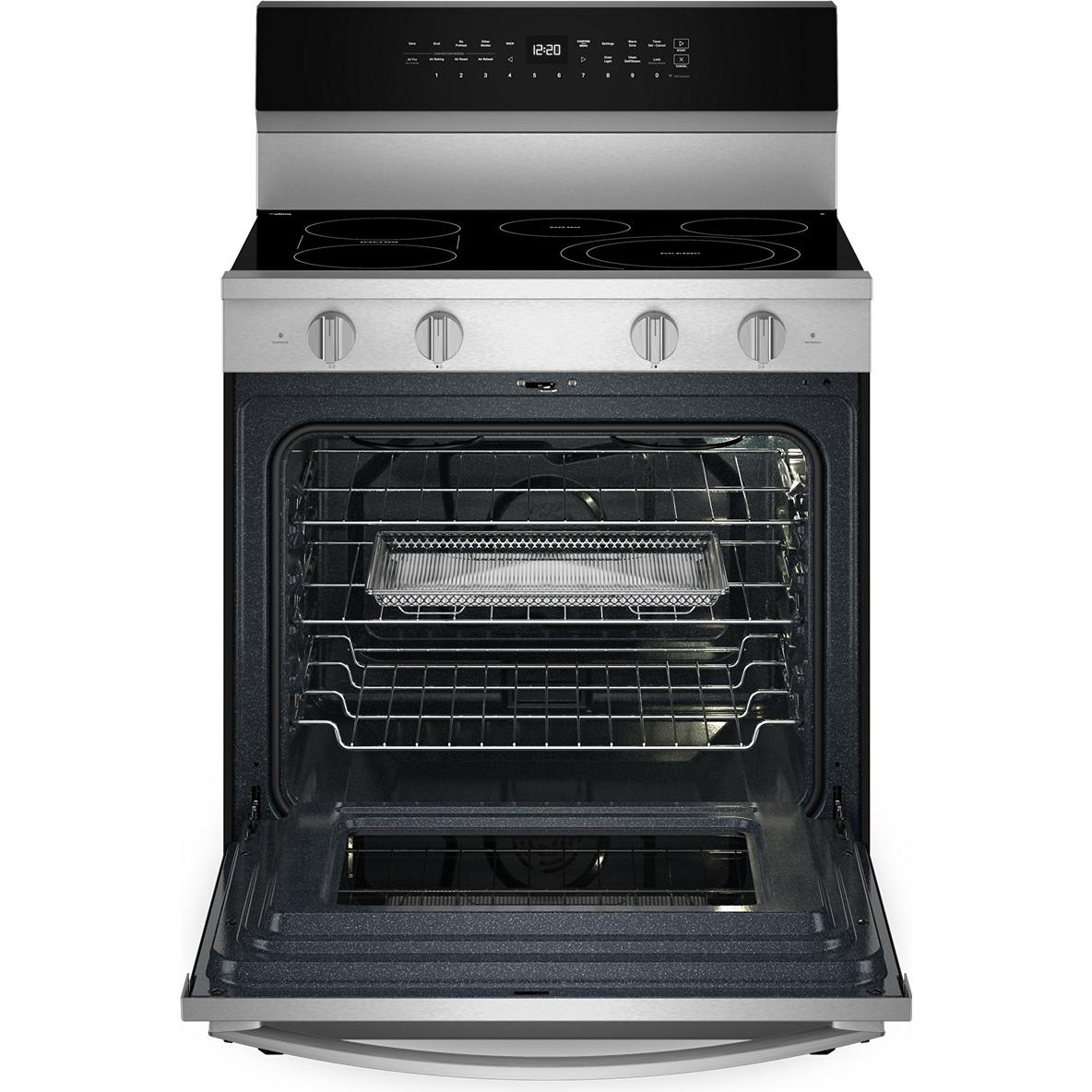

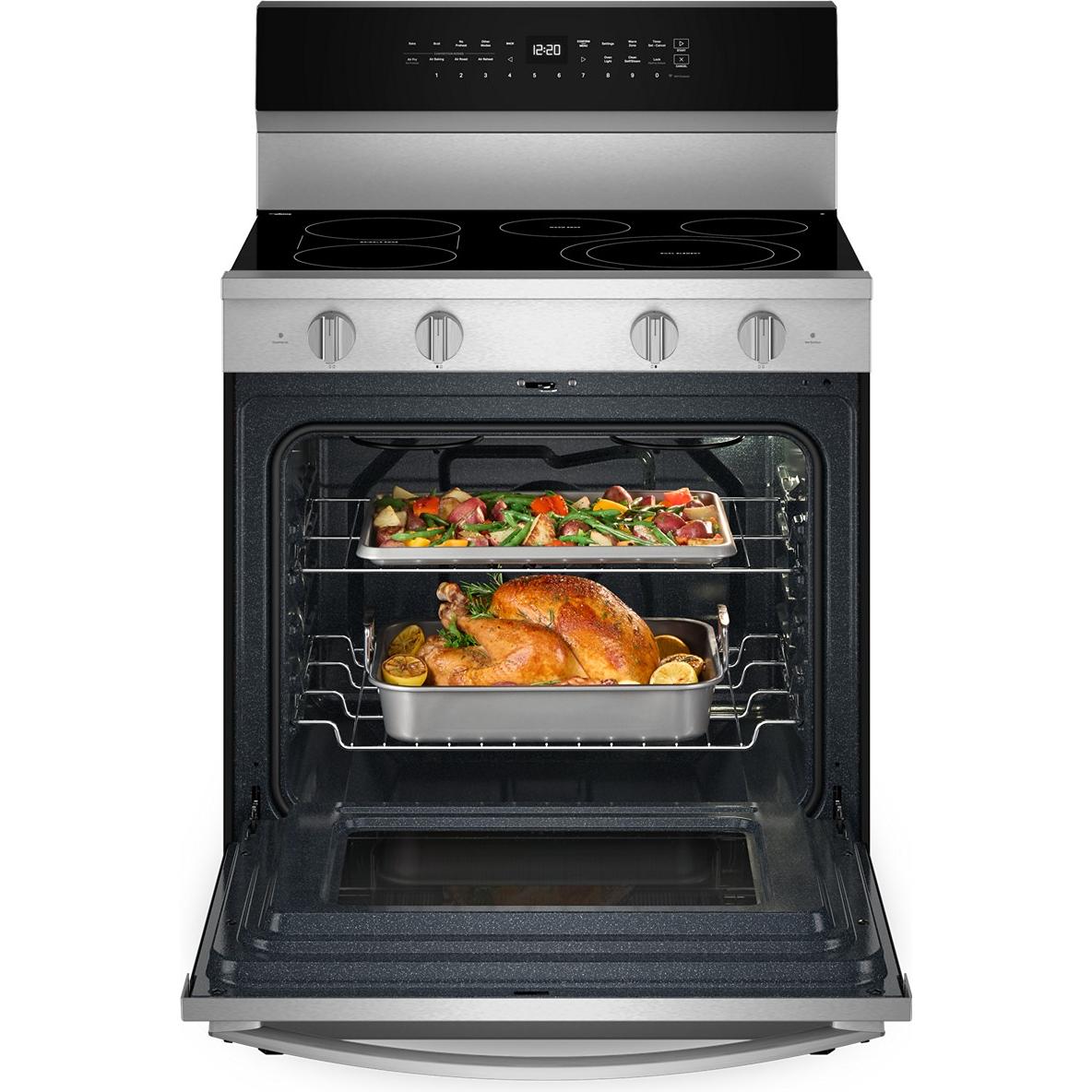

Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Features
Technologies
• Air Cooking Technology

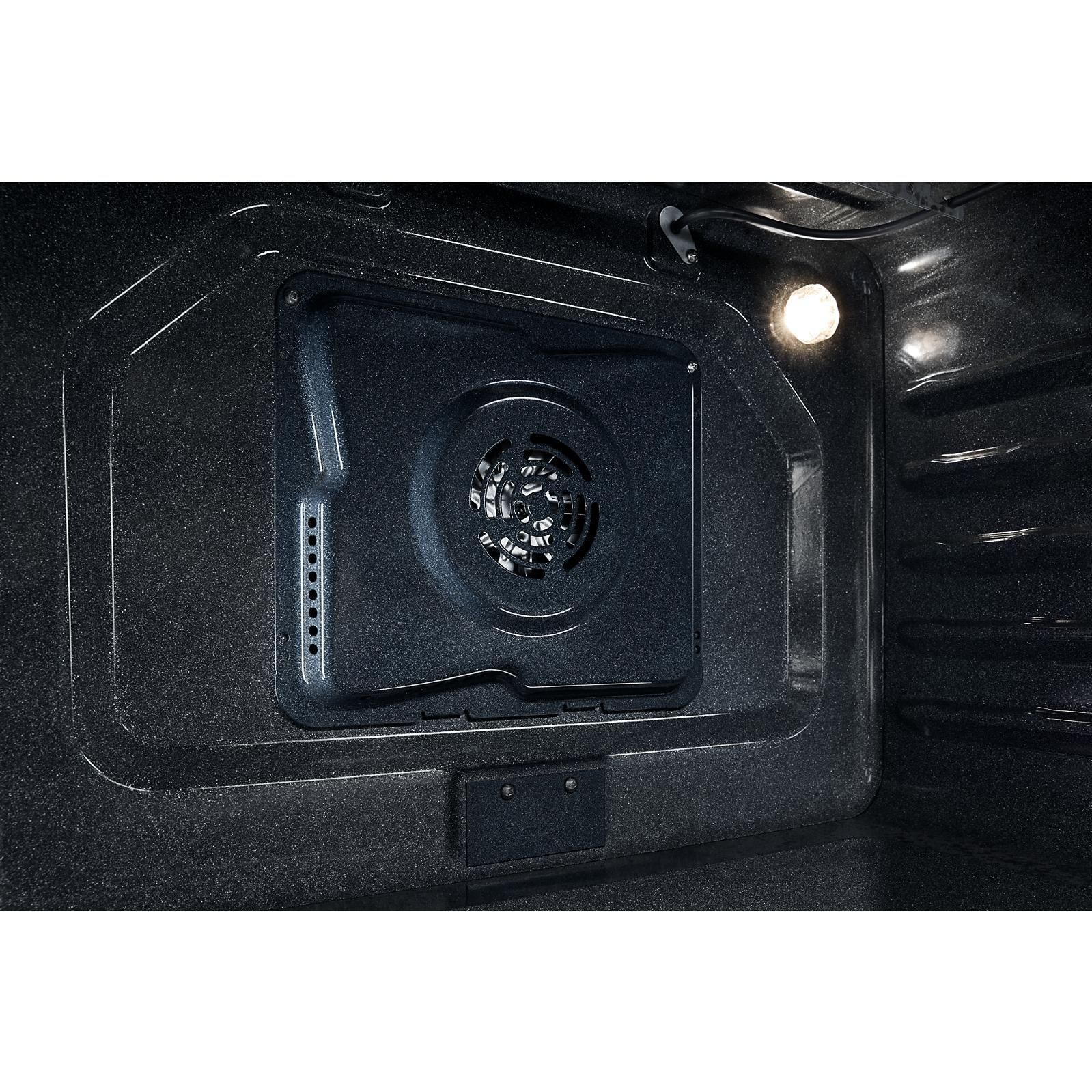

• True Convection Technology

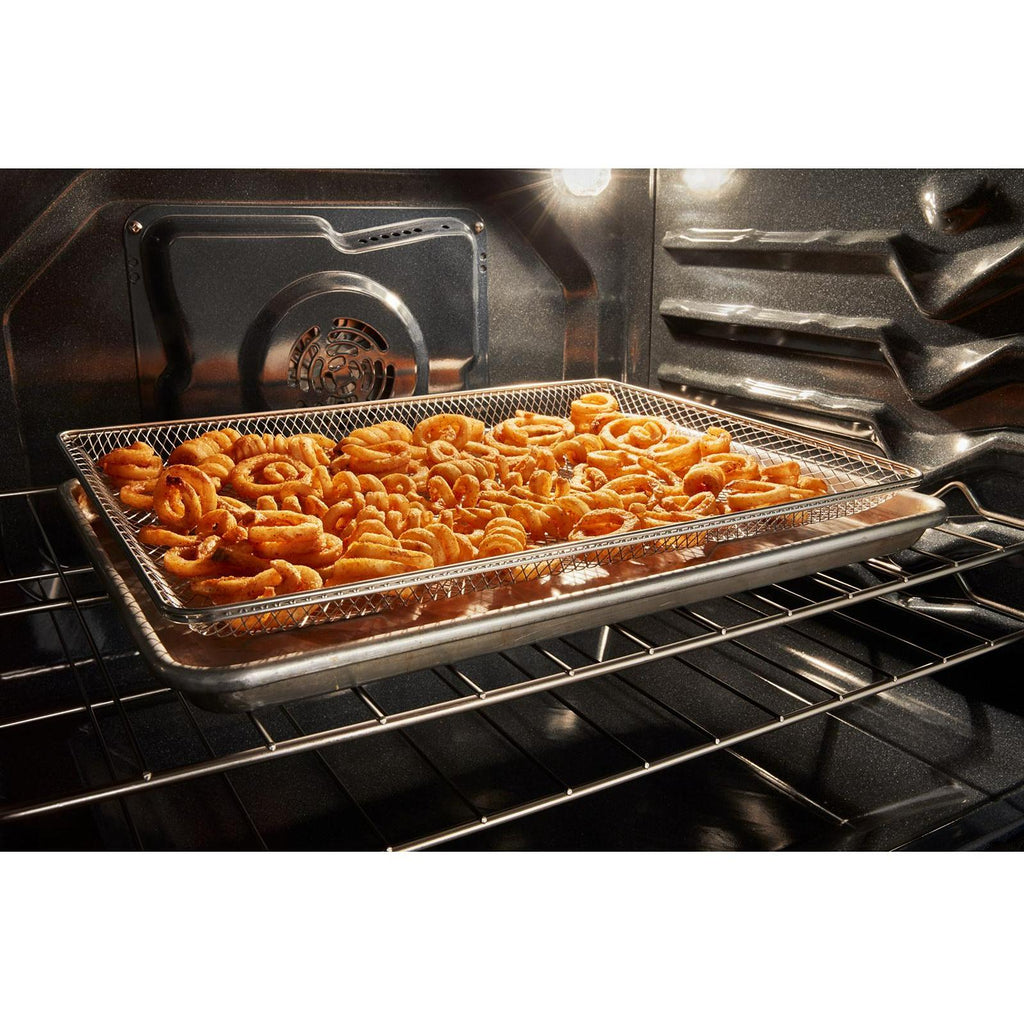

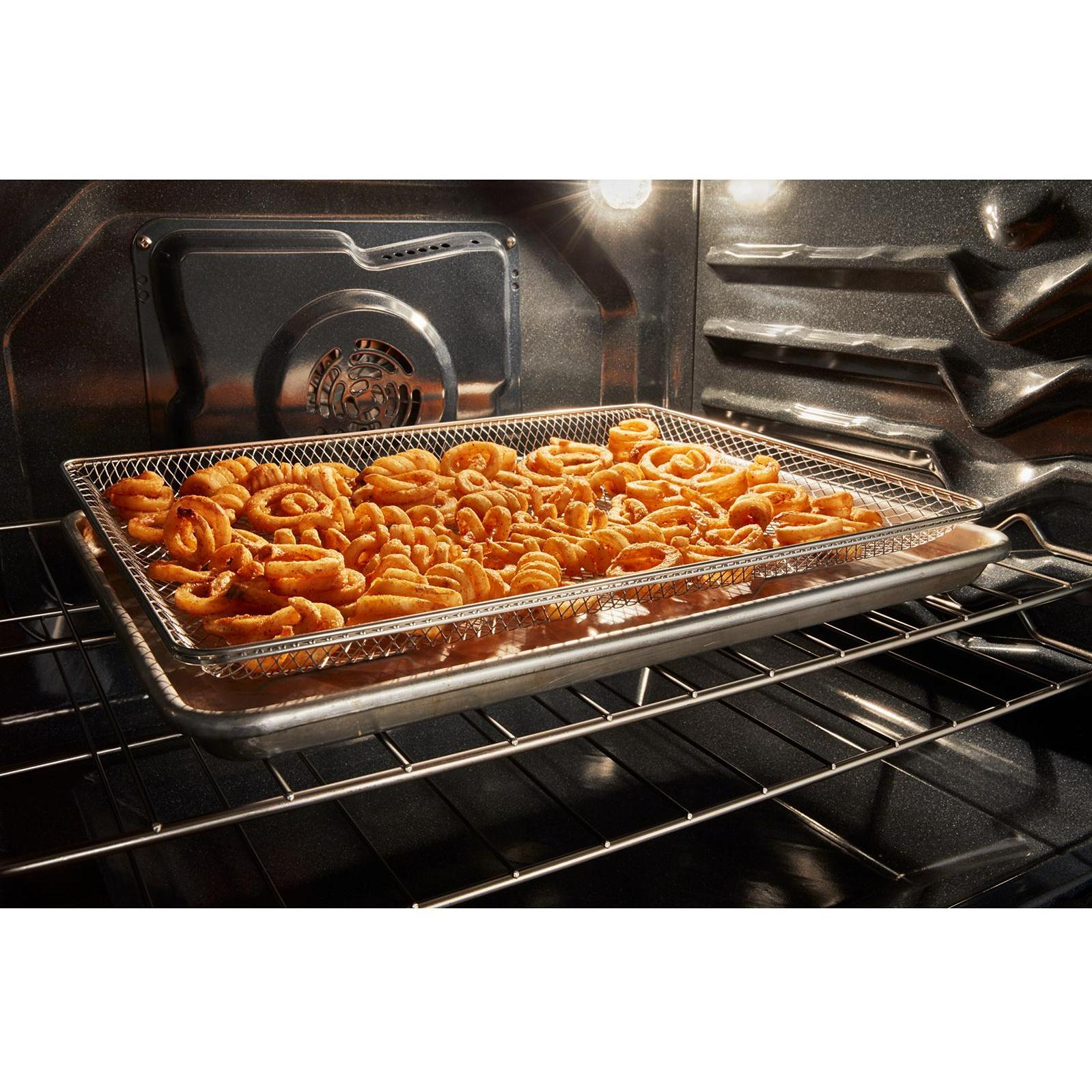

• No Preheat Air Fry

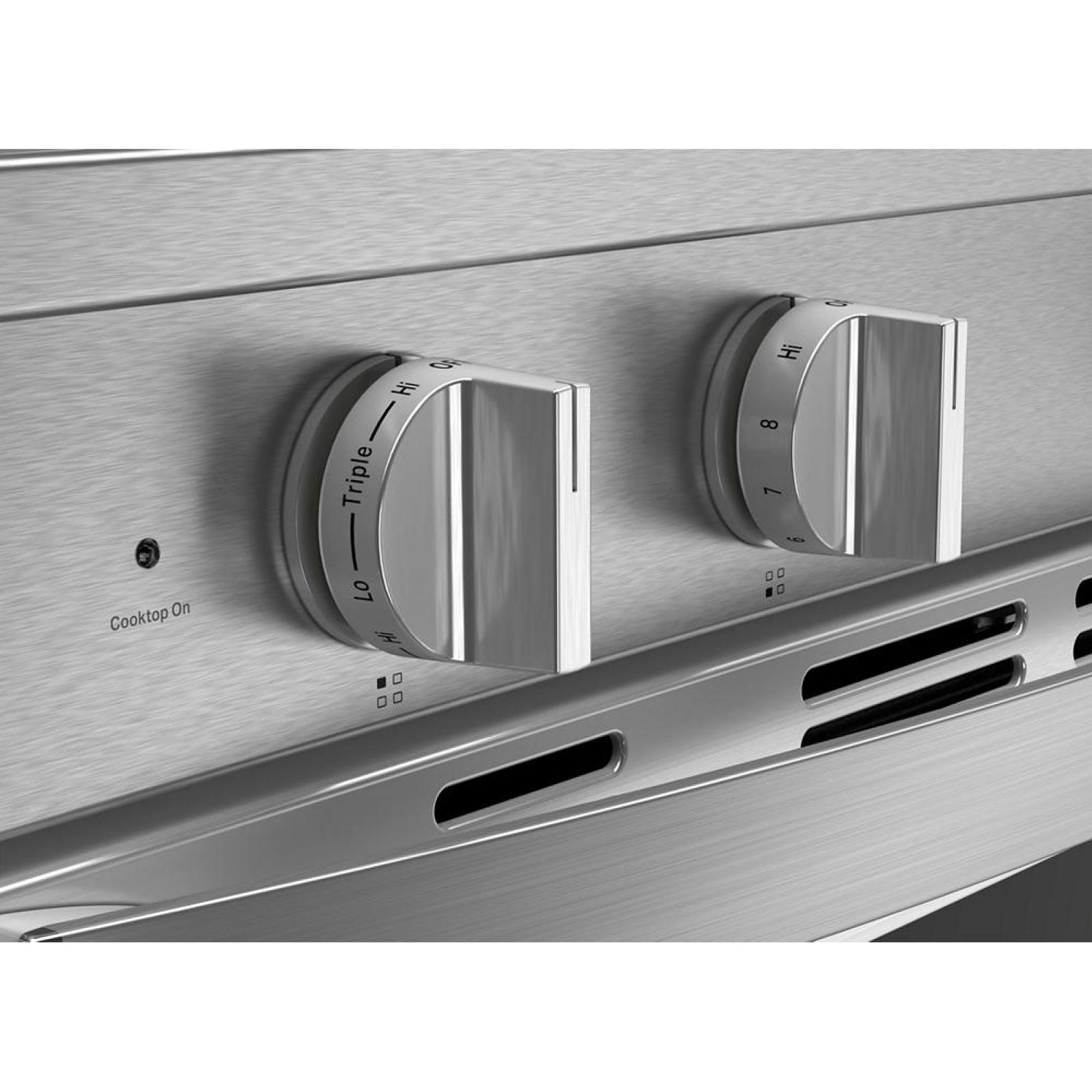

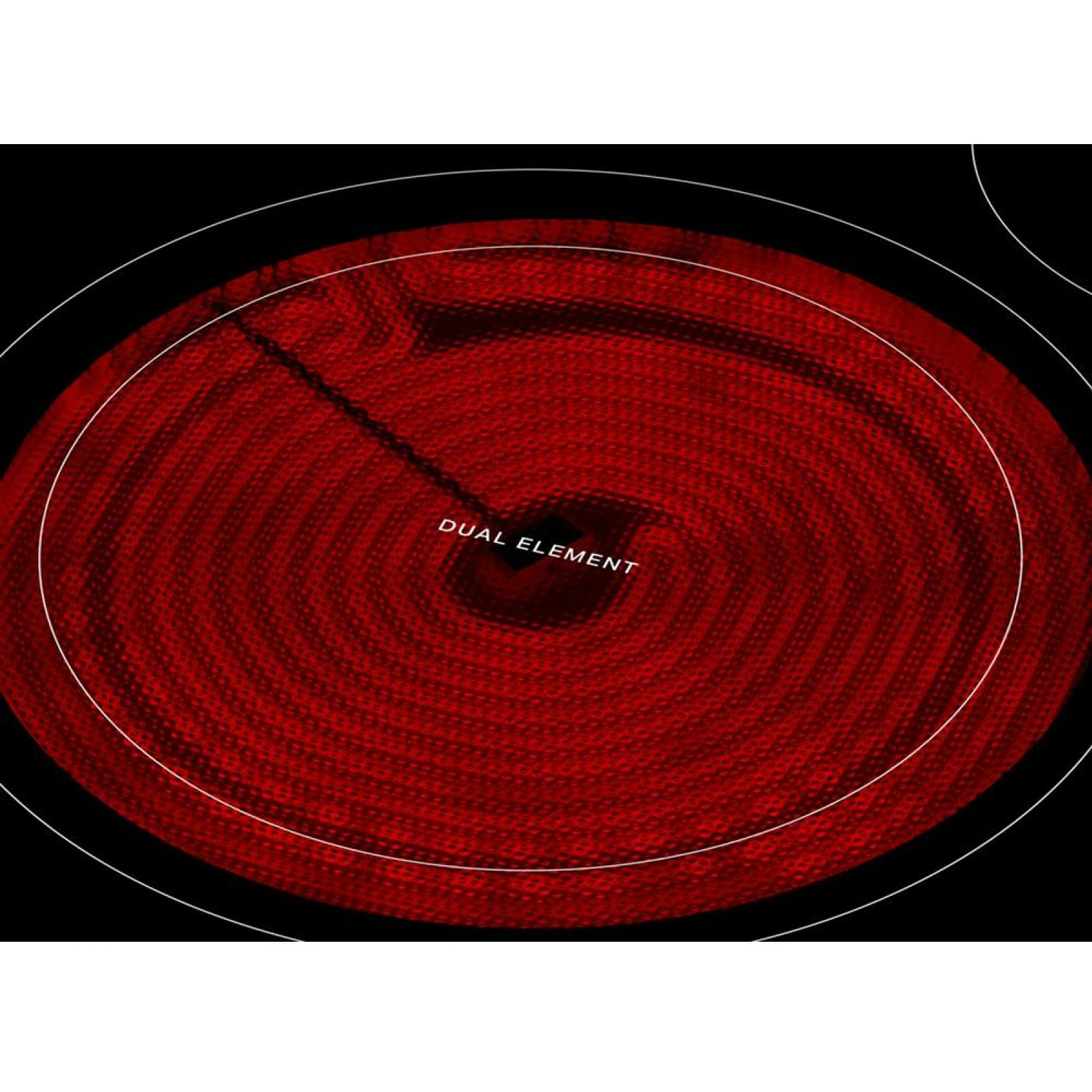

• 2 FlexHeat™ Dual Radiant Elements
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• True Convection Technology
• No Preheat Air Fry
• 2 FlexHeat™ Dual Radiant Elements
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Door Removable
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen

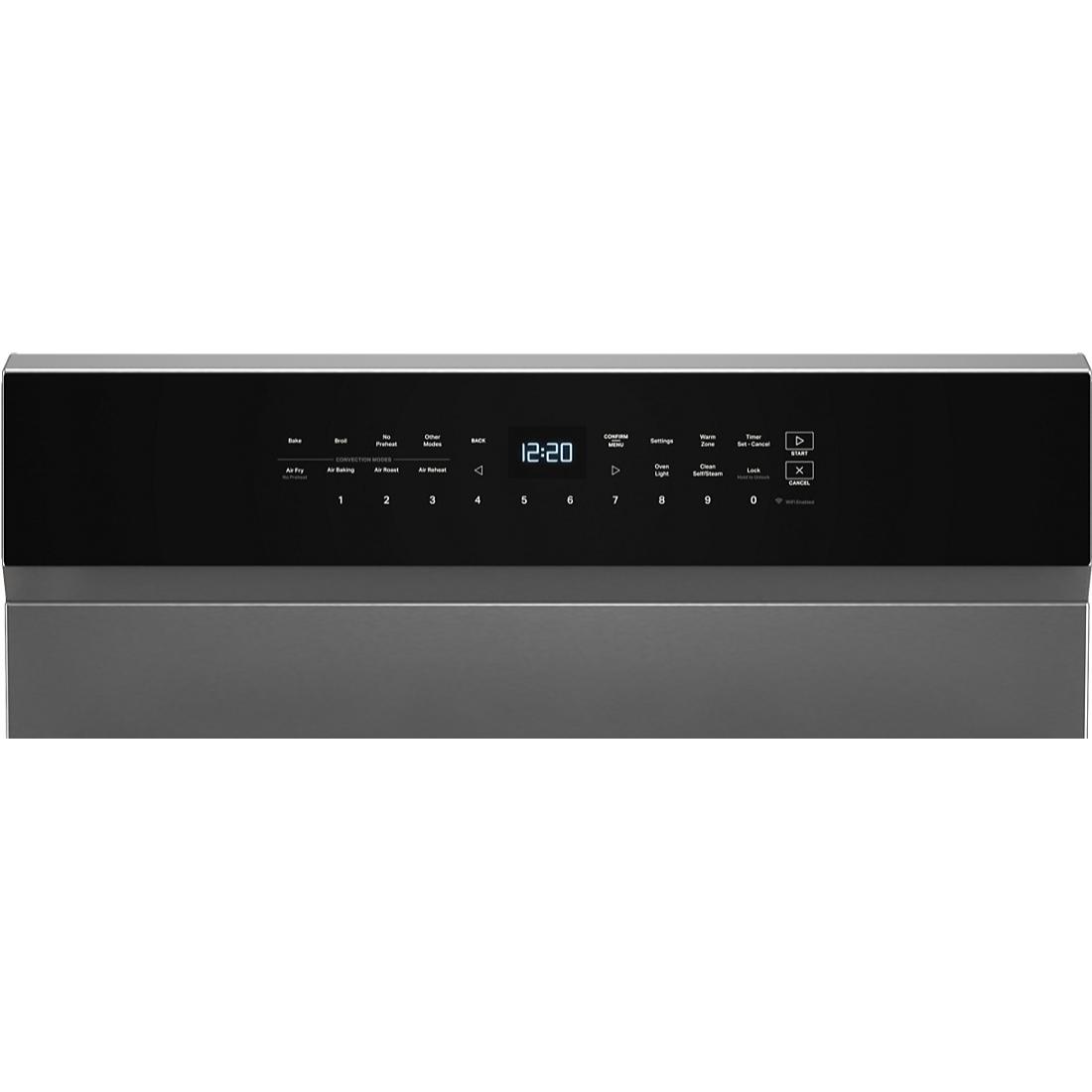

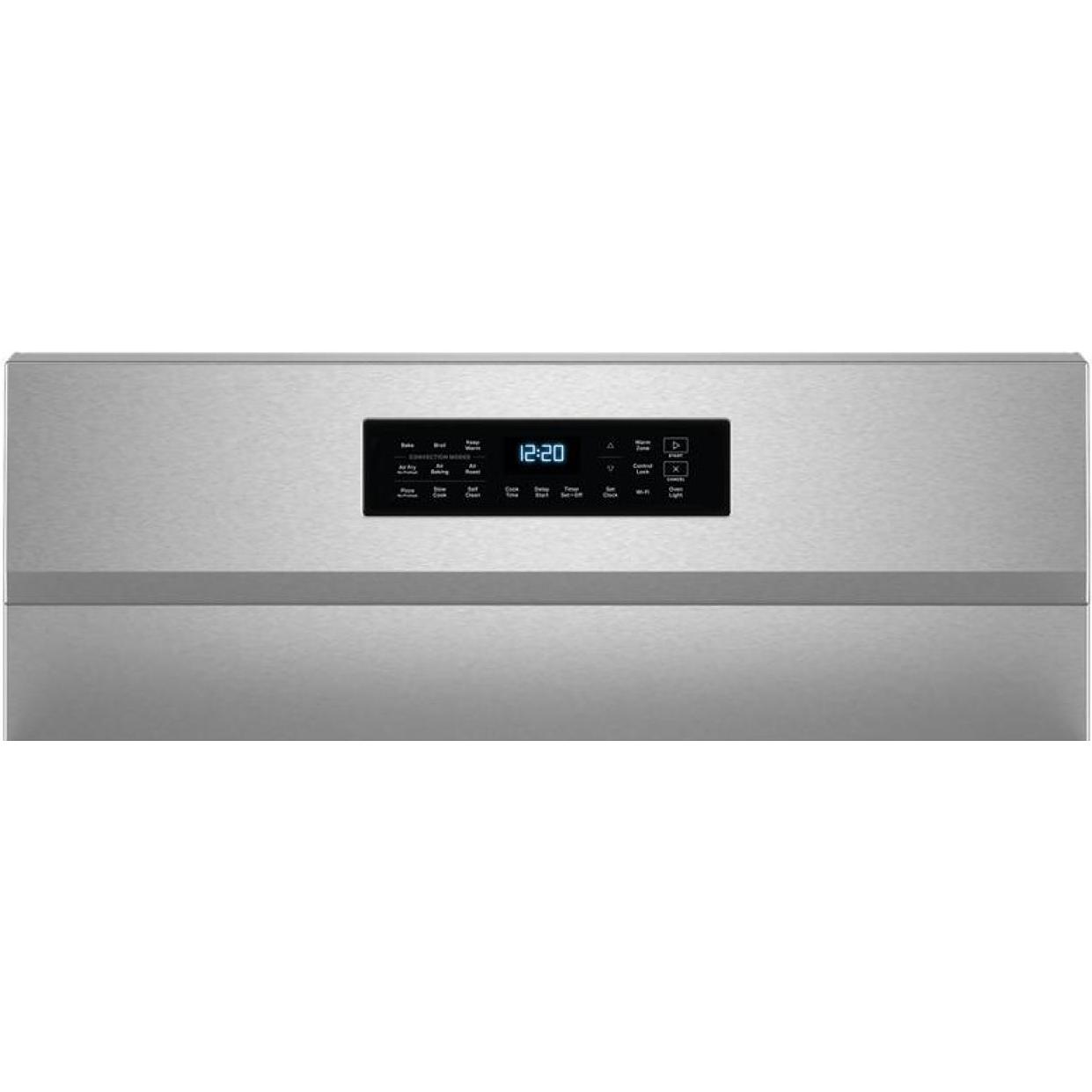

• Oven Control Type: Tap Touch

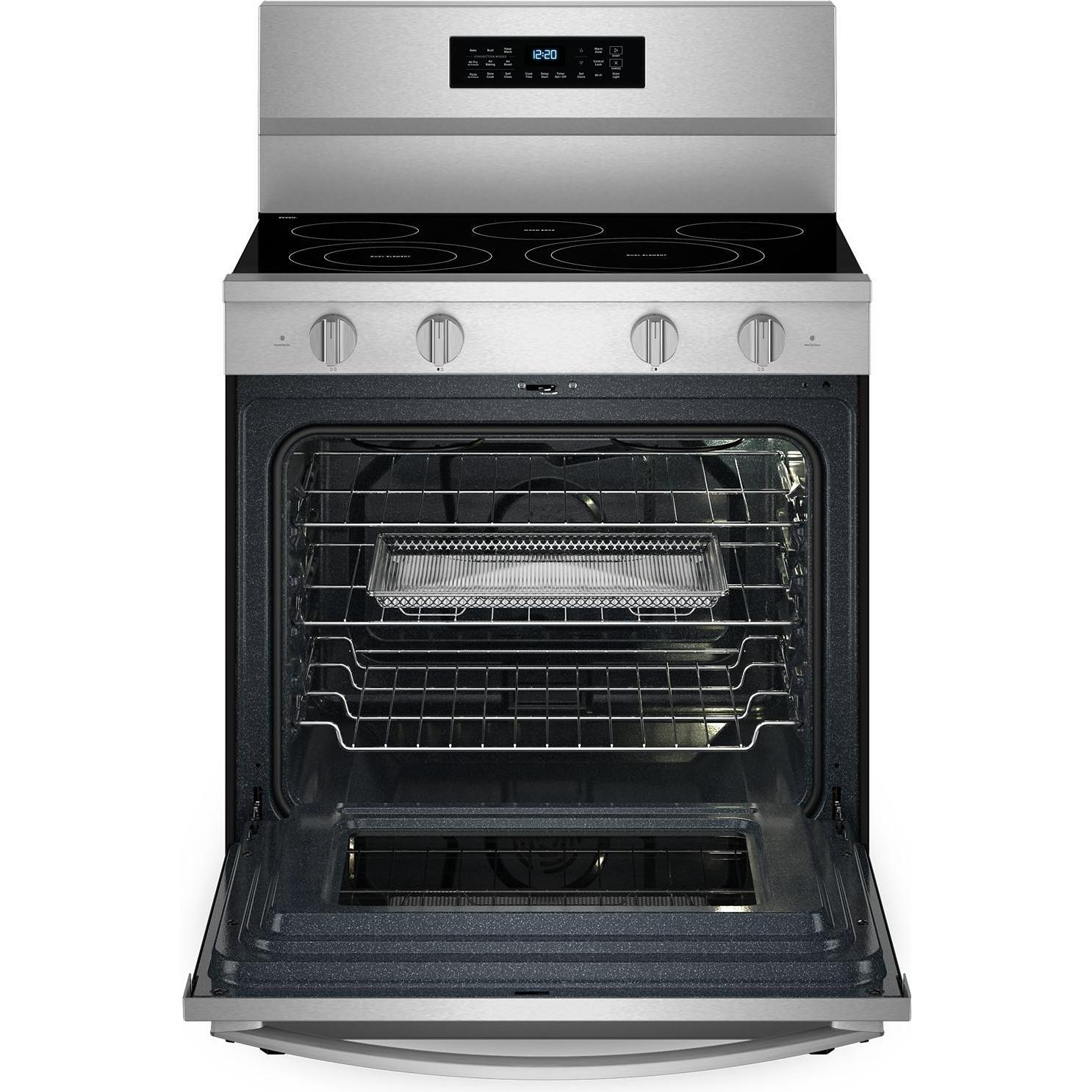

• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Interior Color: Blue
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Glass

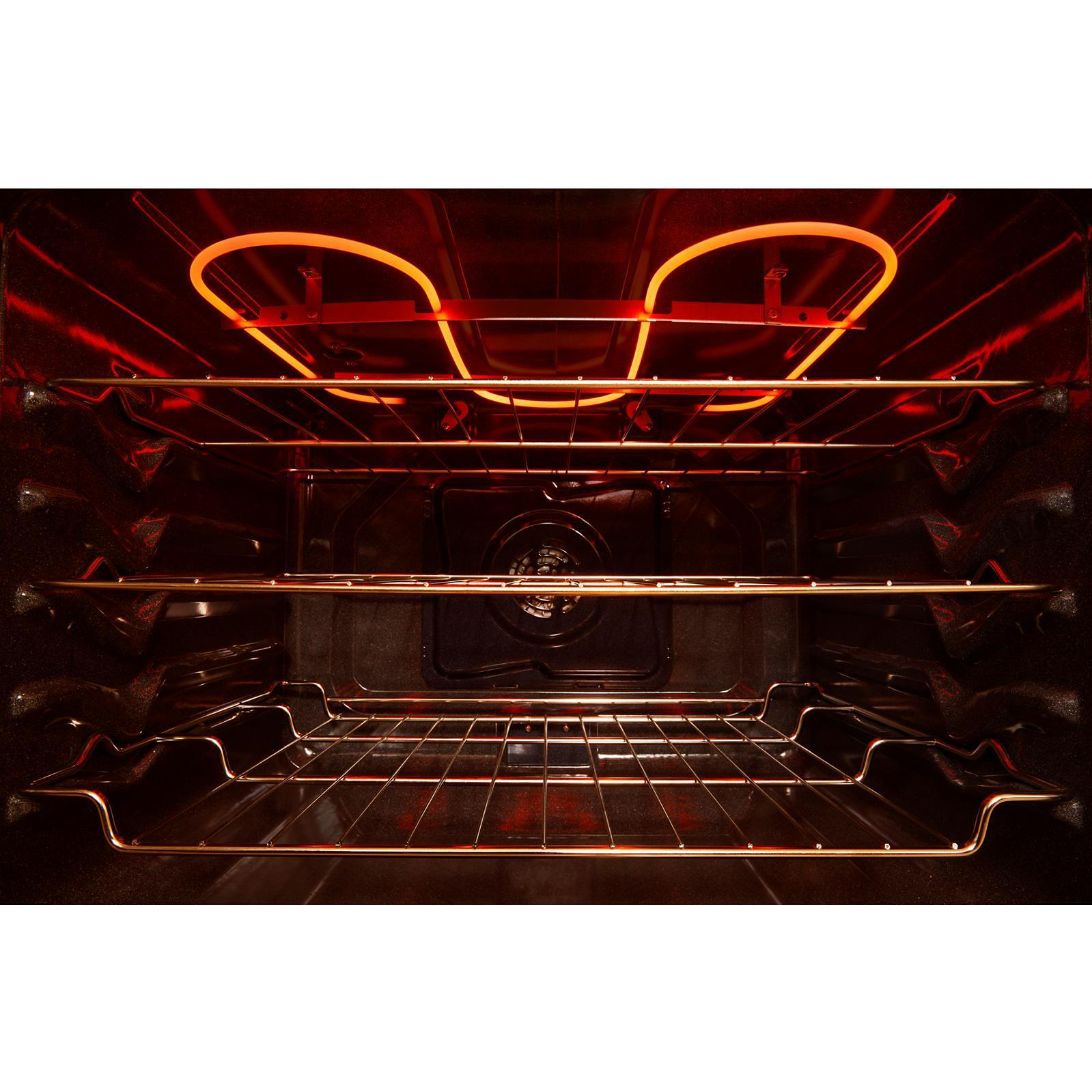

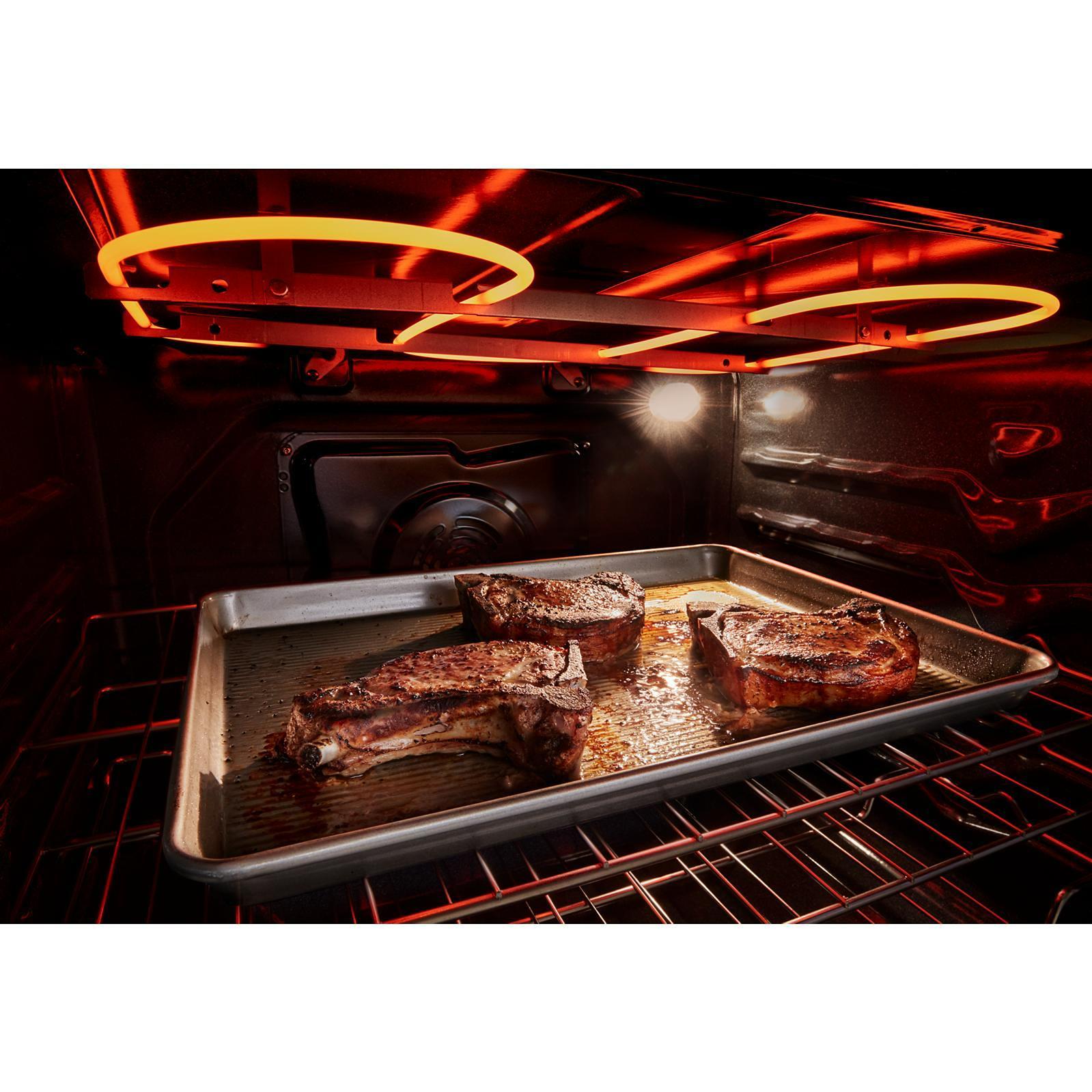

• Broiler Element Power: 3400W
• Bake Element Power: 2400W
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Control Type: Tap Touch
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Interior Color: Blue
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Glass
• Broiler Element Power: 3400W
• Bake Element Power: 2400W
Drawer Features
Storage
Yes
Electrical Information
Information
• 40 A
• 60 Hz
• 12000 W
• 208 V
• Annual Energy Usage Kwh: 565
• 60 Hz
• 12000 W
• 208 V
• Annual Energy Usage Kwh: 565
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• UL
• CUL
• Star K Certified
• CUL
• Star K Certified
Accessories
Optional
• 4396096RB
• W11692811
• W11692811
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.87 inch(es) / 121.60 cm
Depth (Without Handles)
26.1 inch(es) / 66.29 cm
Depth (Including Handles)
29.1 inch(es) / 73.91 cm
Additional Dimensions
• Oven Interior Width In: 24.2"
• Oven Interior Depth In: 19.7"
• Depth With Door Open 90 Degree: 46.8"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Maximum Height: 52.2"
• Minimum Height: 46.7"
• Oven Interior Depth In: 19.7"
• Depth With Door Open 90 Degree: 46.8"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Maximum Height: 52.2"
• Minimum Height: 46.7"
Shipping Dimensions
Weight
180.01 lb(s) / 81.65 kg
