DESCRIPTION

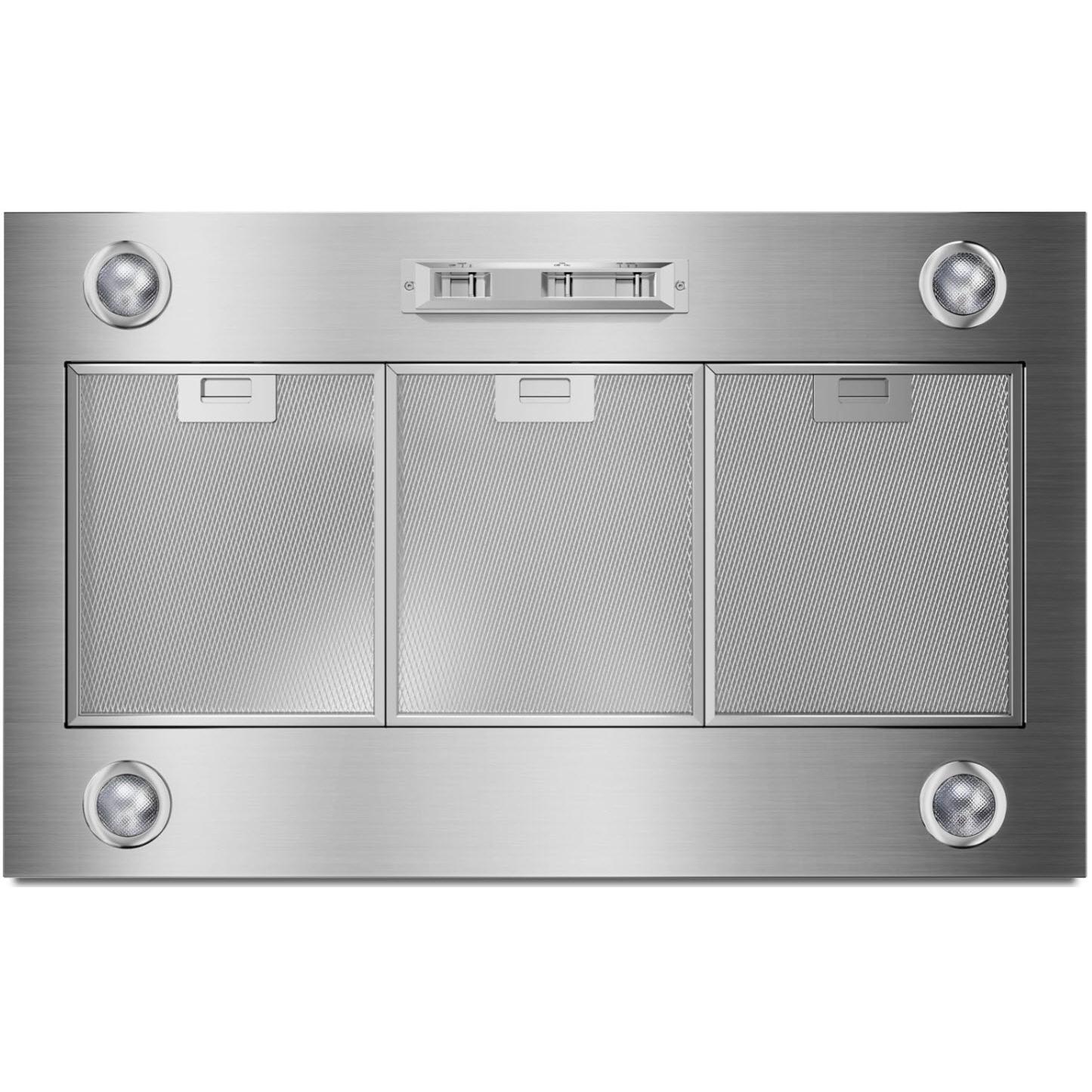

×This 36-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 36-inch ranges or cooktops of comparable output.
SPECIFICATIONS
×
Specifications
General
Blower Included
No
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
Vertical 10" Round
Speeds
3-Speed Push Button Control
Additional Information
• Sones with High Speed: 11.5 (with 585 CFM motor) & 13 (with 1170 CFM motor)
• Aluminum Mesh Grease Filter
• LED Lights
• Centrifugal Blower
• Aluminum Mesh Grease Filter
• LED Lights
• Centrifugal Blower
Accessories
Optional
• UXB0600DYS 600 CFM Internal Blower
• UXB1200DYS 1200 CFM Internal Blower
• UXI1200DYS 1200 CFM In-Line Blower
• UXB1200DYS 1200 CFM Internal Blower
• UXI1200DYS 1200 CFM In-Line Blower
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
30 inch(es) / 76.2 cm
Depth
22 inch(es) / 55.88 cm
Weight
28.2 lb(s) / 12.79 kg
Additional Dimensions
• Cutout Depth: 22"
• Cutout Width: 36"
• Cutout Width: 36"
Shipping Dimensions
Width
27.56 inch(es) / 70.01 cm
Height
16.63 inch(es) / 42.23 cm
Depth
41.37 inch(es) / 105.09 cm
Weight
45 lb(s) / 20.41 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049569505
