DESCRIPTION

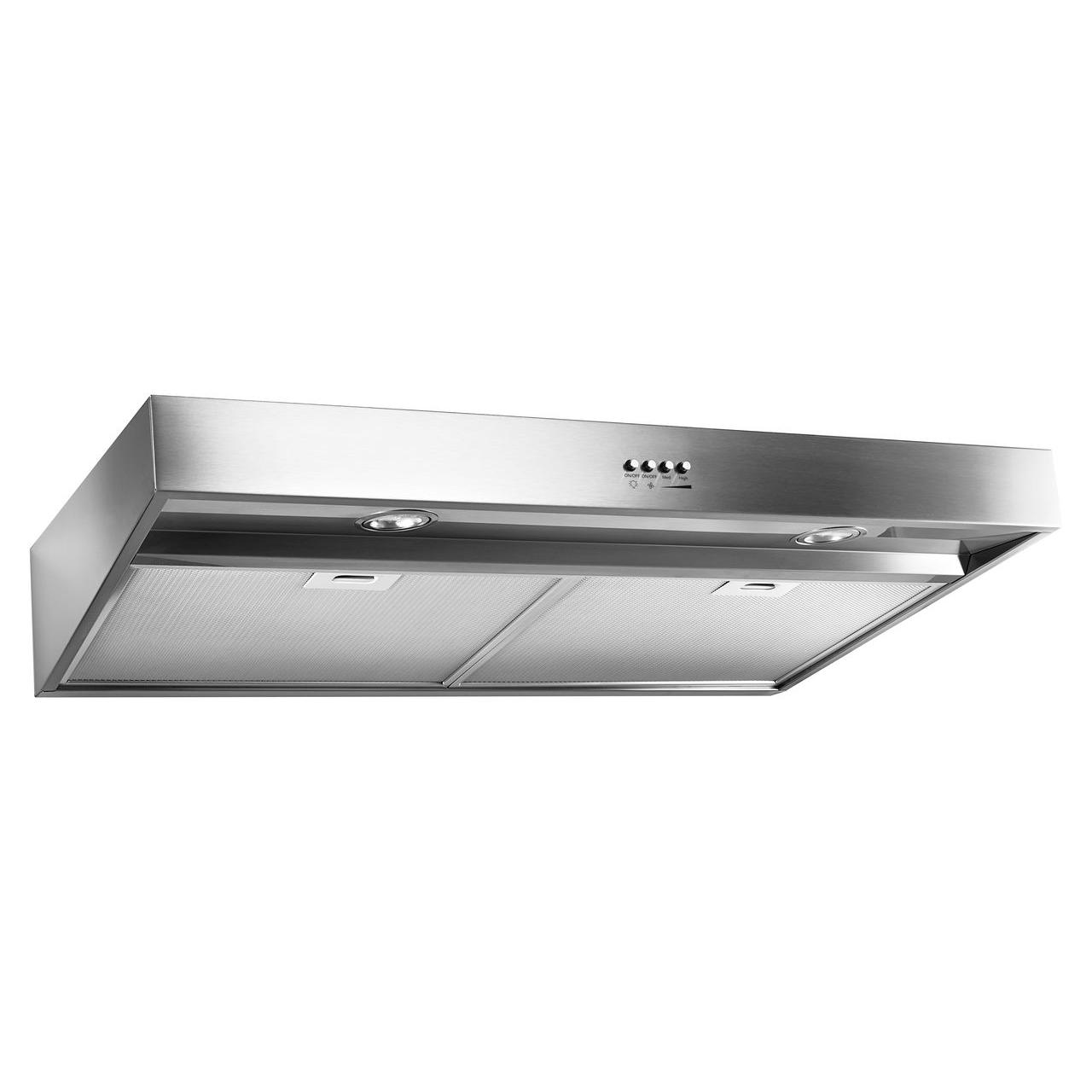

×Installing this stove hood with LED task lighting is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. The powerful 3-speed hood vent kitchen fan takes care of steam, grease, smoke and odors.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Blower Included
Yes
Airflow
270 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Technologies
FIT System
Ducting Information
Ductless
Speeds
3 Speeds
Additional Information
• 55K BTU Threshold
• Sones with High Speed: 5 (Horizontal) & 6 (7" Round Vertical)

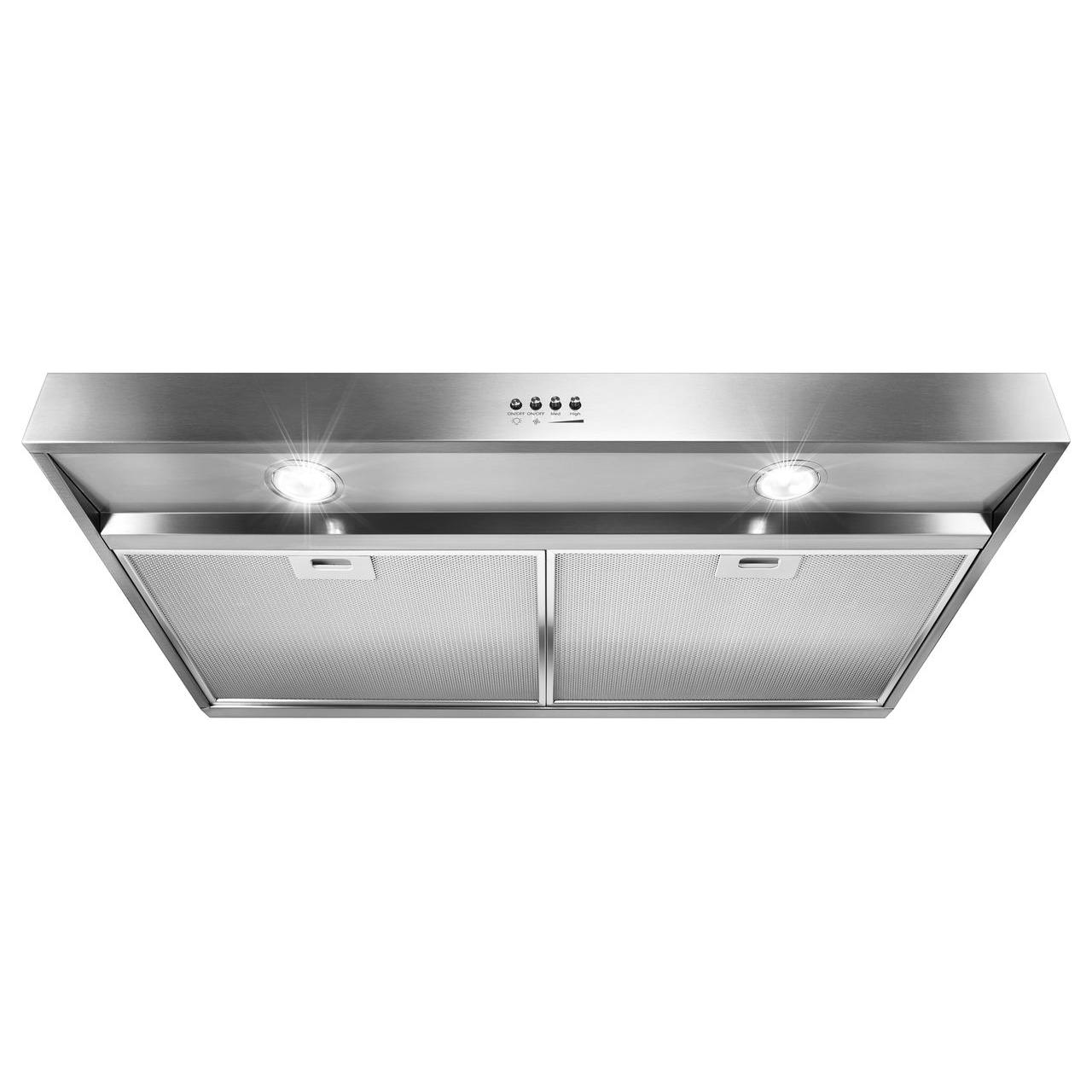

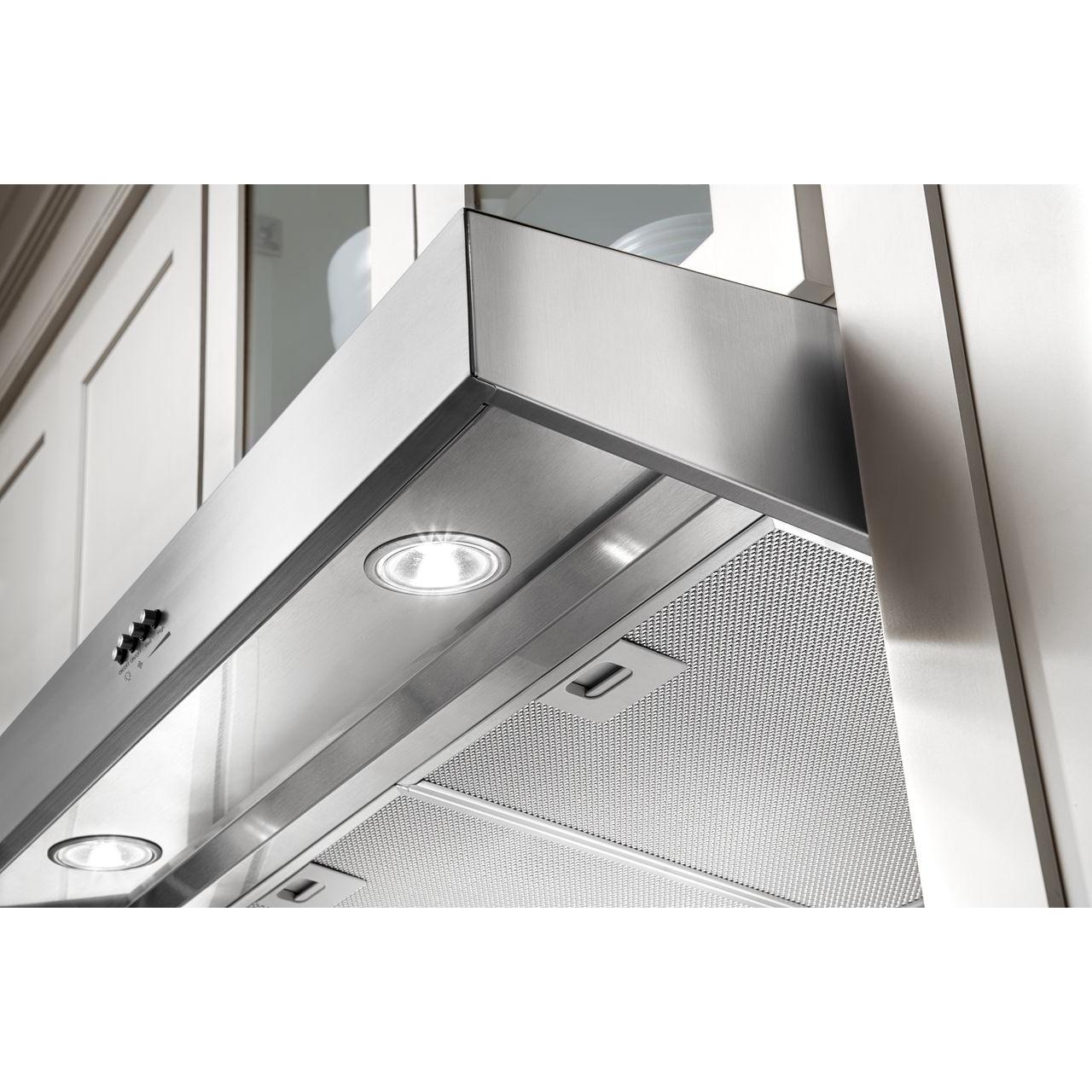

• LED Task Lighting
• Recirculation (Non-Vented/Duct-Free)
• Venting Type: Exterior or Recirculating

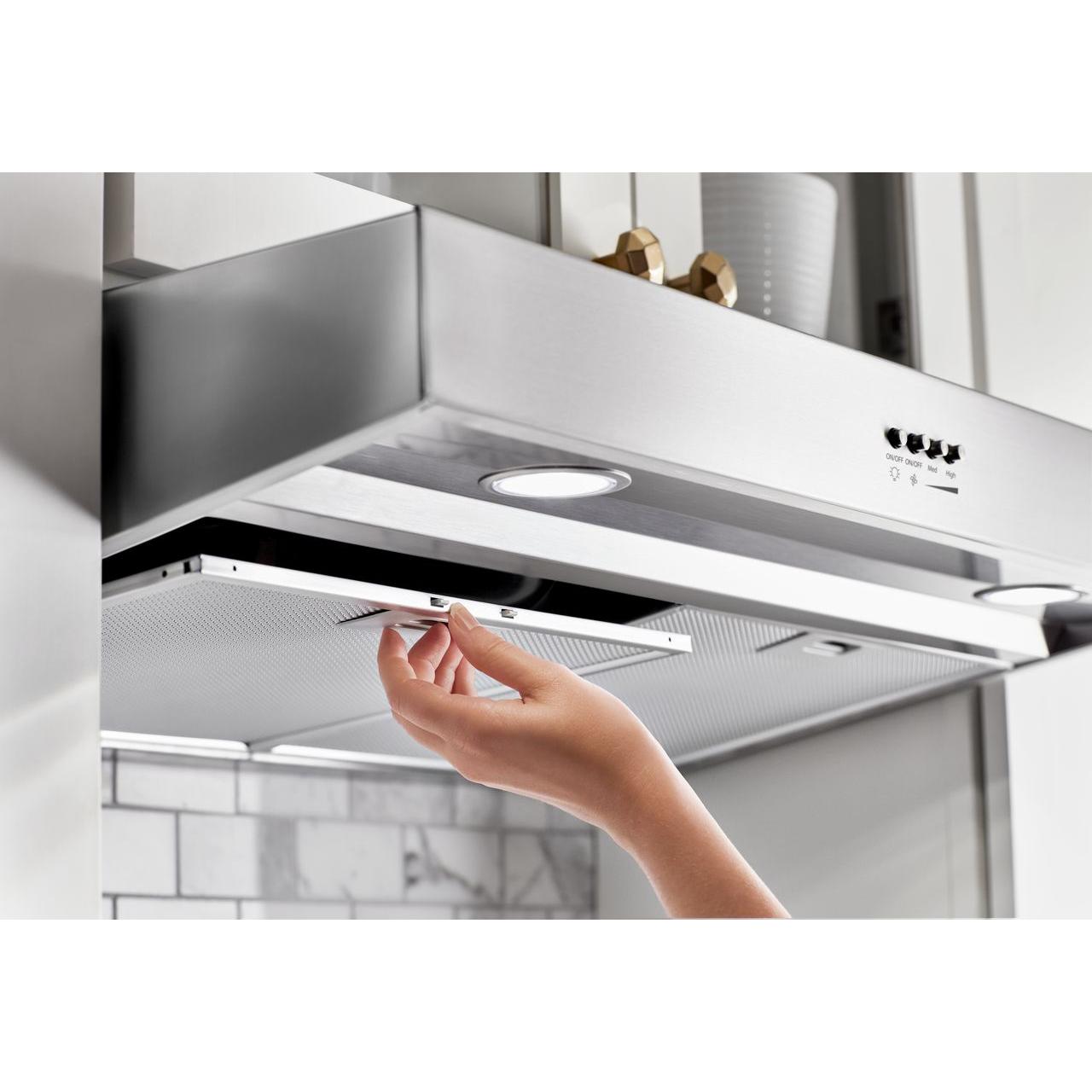

• Full-Width Grease Filters
• Sones with High Speed: 5 (Horizontal) & 6 (7" Round Vertical)
• LED Task Lighting
• Recirculation (Non-Vented/Duct-Free)
• Venting Type: Exterior or Recirculating
• Full-Width Grease Filters
Electrical Information
Information
• 120 V
• 15 A
• 60 Hz
• 15 A
• 60 Hz
Certifications and Approvals
Information
ADA
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
6.37 inch(es) / 16.19 cm
Depth
18.63 inch(es) / 47.31 cm
Weight
19 lb(s) / 8.62 kg
Shipping Dimensions
Width
33.5 inch(es) / 85.09 cm
Height
9.25 inch(es) / 23.5 cm
Depth
23.25 inch(es) / 59.06 cm
Weight
25 lb(s) / 11.34 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049440620
