DESCRIPTION

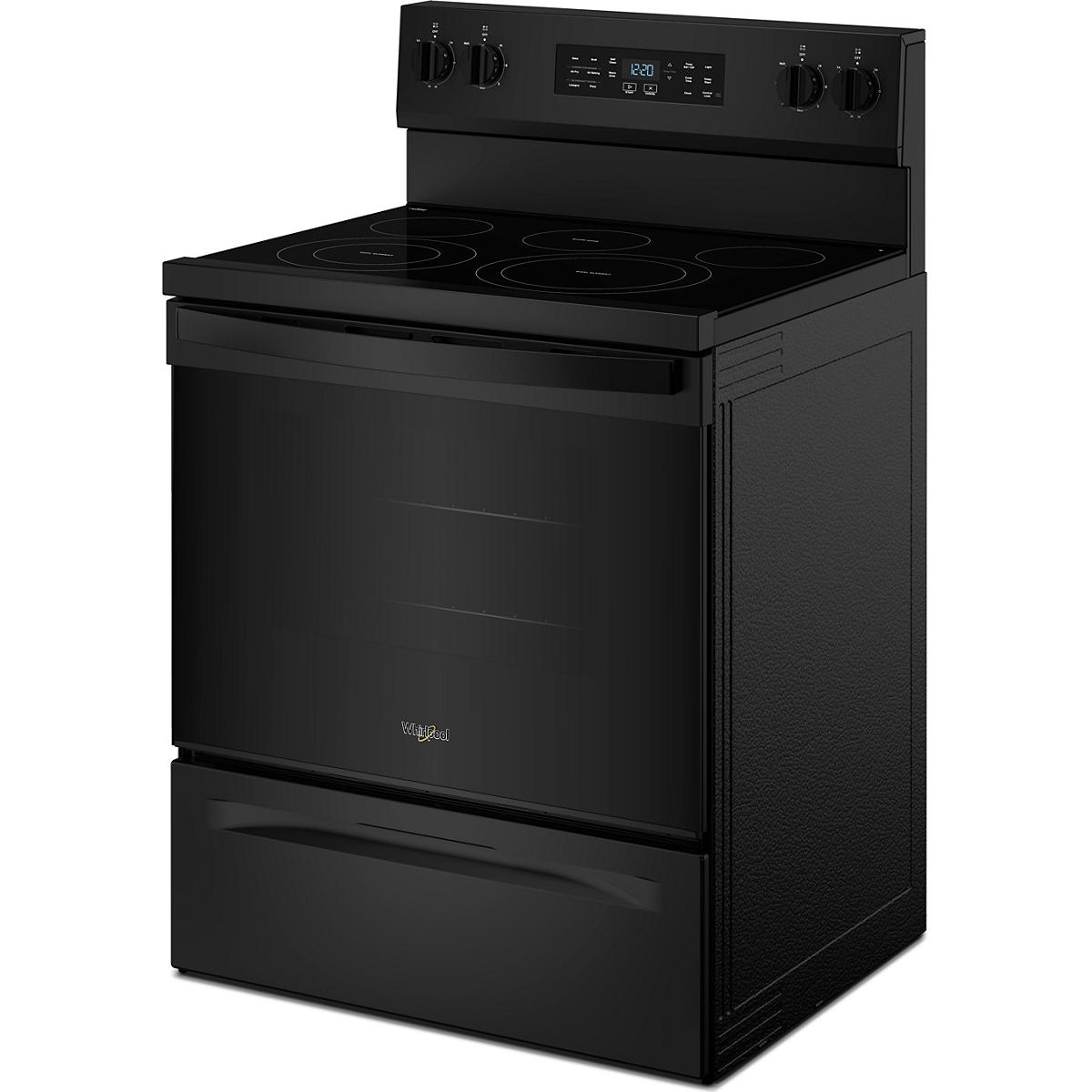

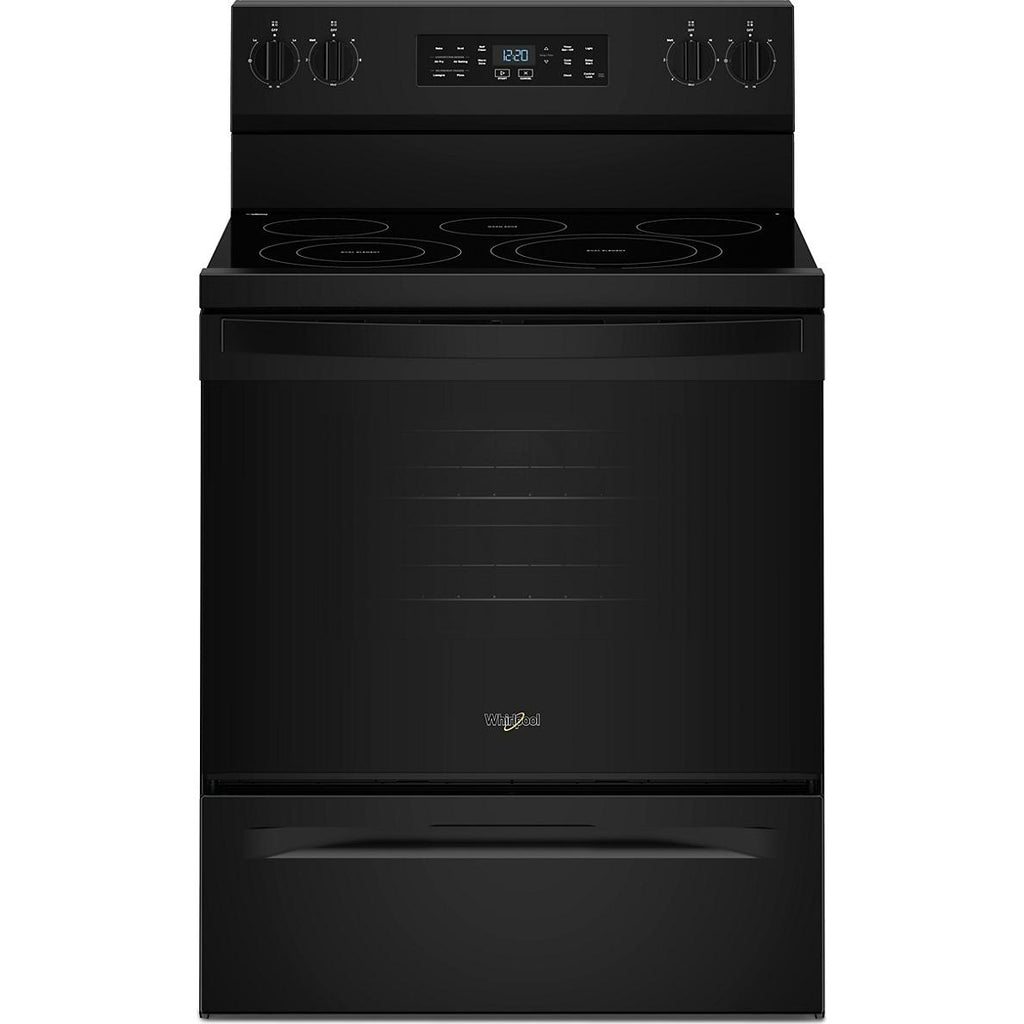

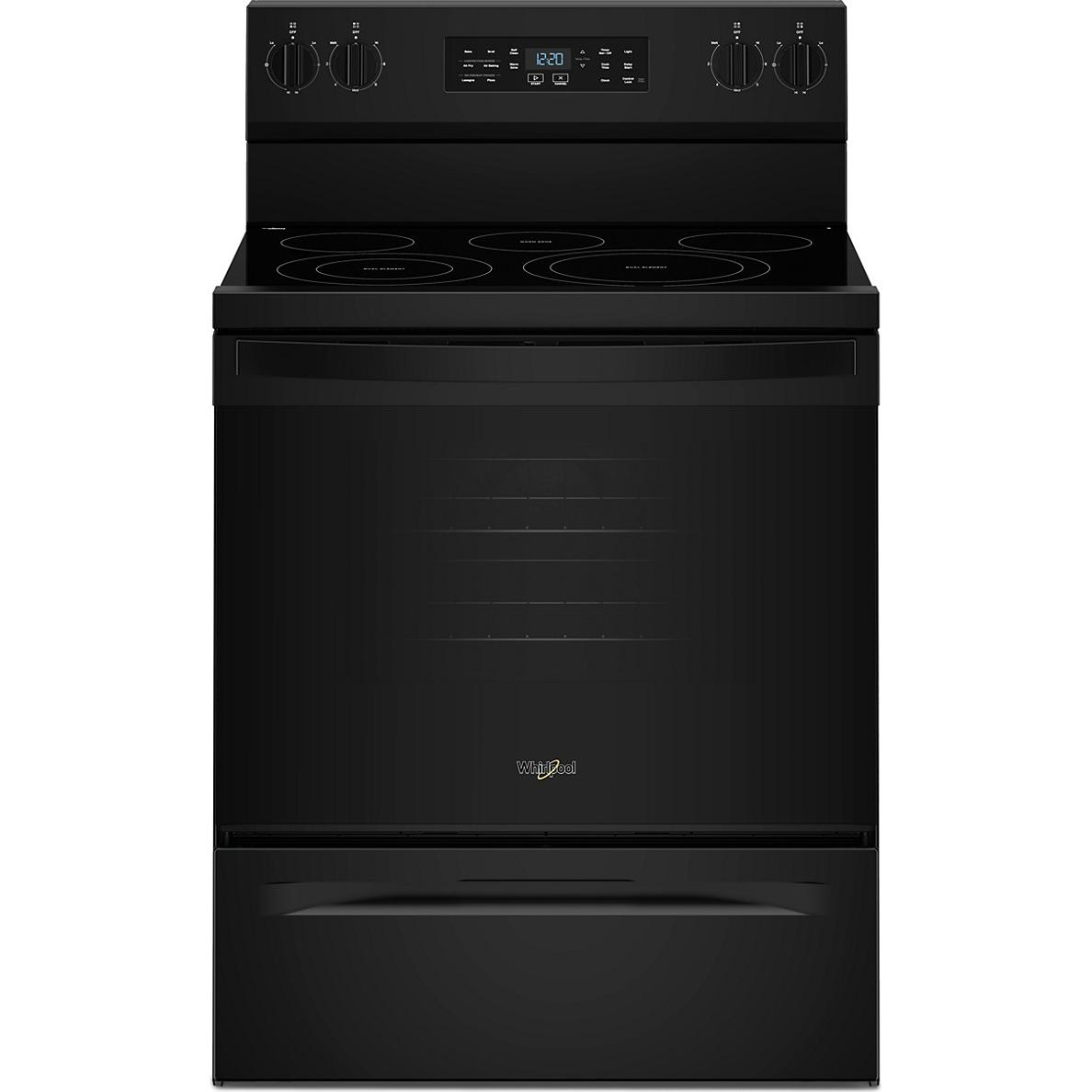

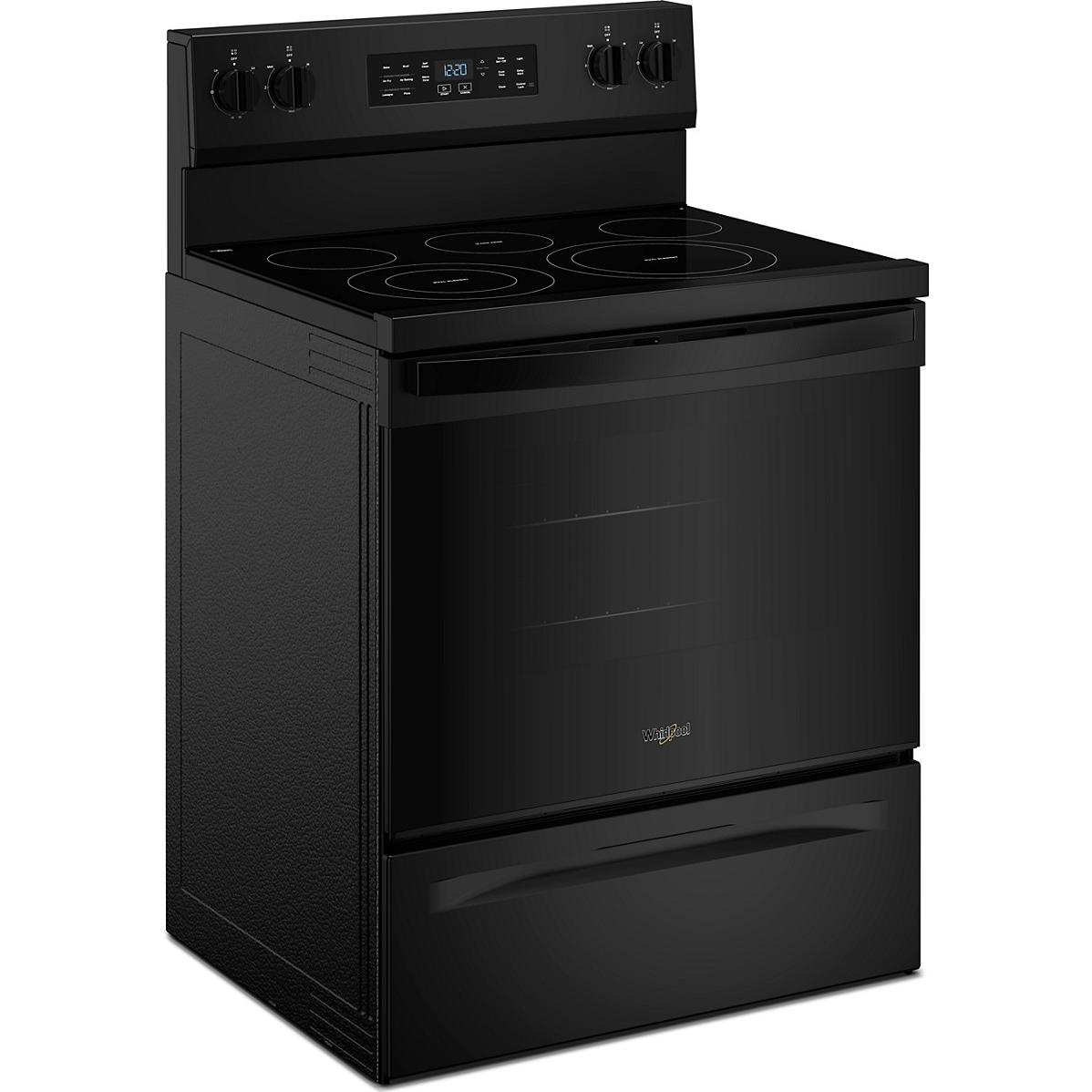

×Whirlpool 30-inch Electric Range with Air Cooking Technology. Experience the difference of Air Cooking Technology with this Whirlpool 30 inch electric range. Get crispy with our most advanced No Preheat Air Fry mode, and even results on every rack with Air Baking. Clean with just water, not harsh cleaners, with WipeClean™ coating, the easiest to clean electric cooktop coating. Tackle your to-do list with Smart Features built for multitasking and unlock new cooking capabilities over time with Smart Feature Updates.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Black
Manufacturer Color
Black
Appliance Care
Self-Clean

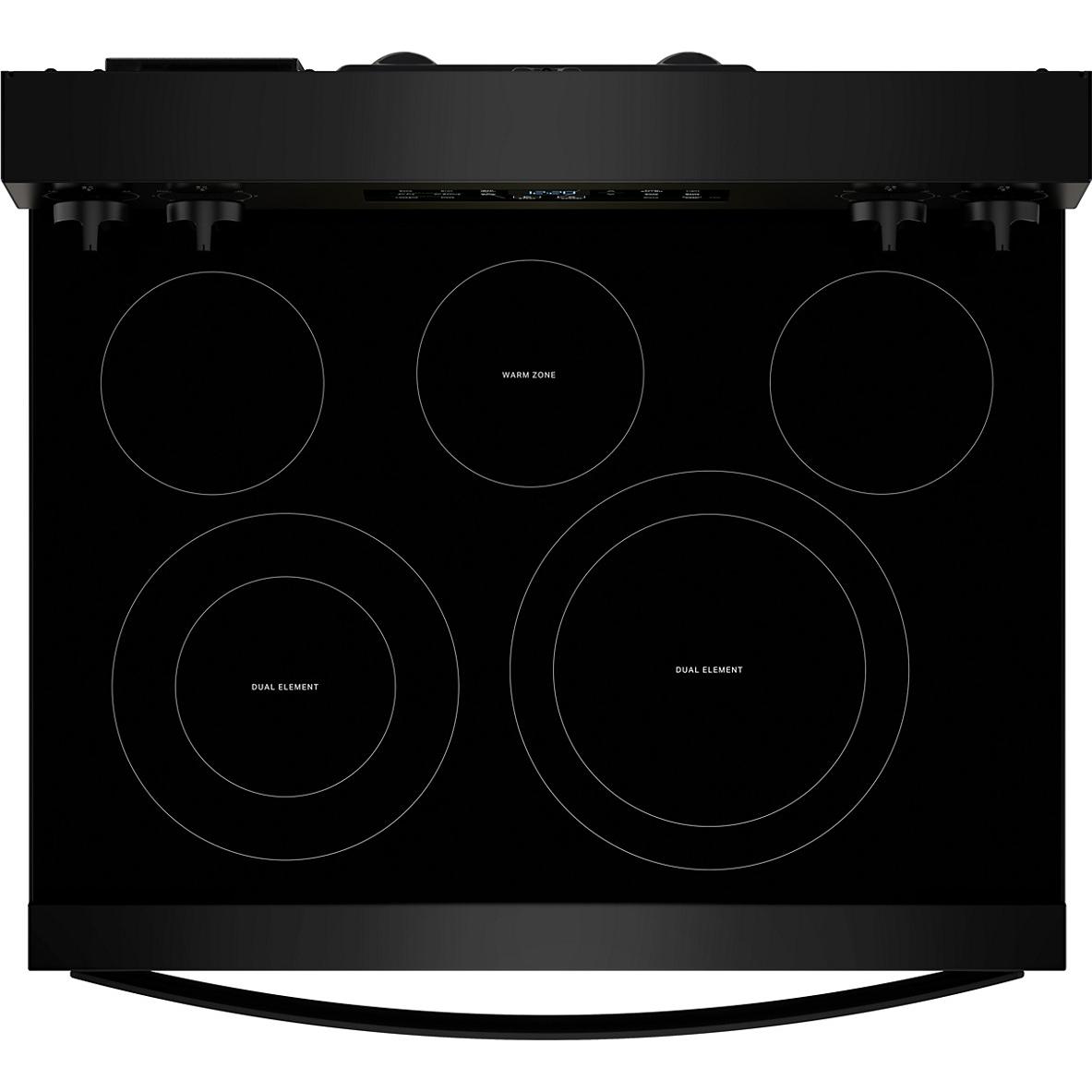

Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear Element Burner Power: 100W
• Left Front Element Burner Power: 3000W
• Left Rear Element Burner Power: 1200W
• Right Front Element Burner Power: 3000W
• Right Rear Element Burner Power: 1200W
• Left Front Element Burner Power: 3000W
• Left Rear Element Burner Power: 1200W
• Right Front Element Burner Power: 3000W
• Right Rear Element Burner Power: 1200W
Burner/Element Size
• Center Rear Element Burner Size: 6in.
• Left Front Element Burner Size: 9in./6in.
• Left Rear Element Burner Size: 6in.
• Right Front Element Burner Size: 12in./9in.
• Right Rear Element Burner Size: 6in.
• Left Front Element Burner Size: 9in./6in.
• Left Rear Element Burner Size: 6in.
• Right Front Element Burner Size: 12in./9in.
• Right Rear Element Burner Size: 6in.
Elements
Smoothtop

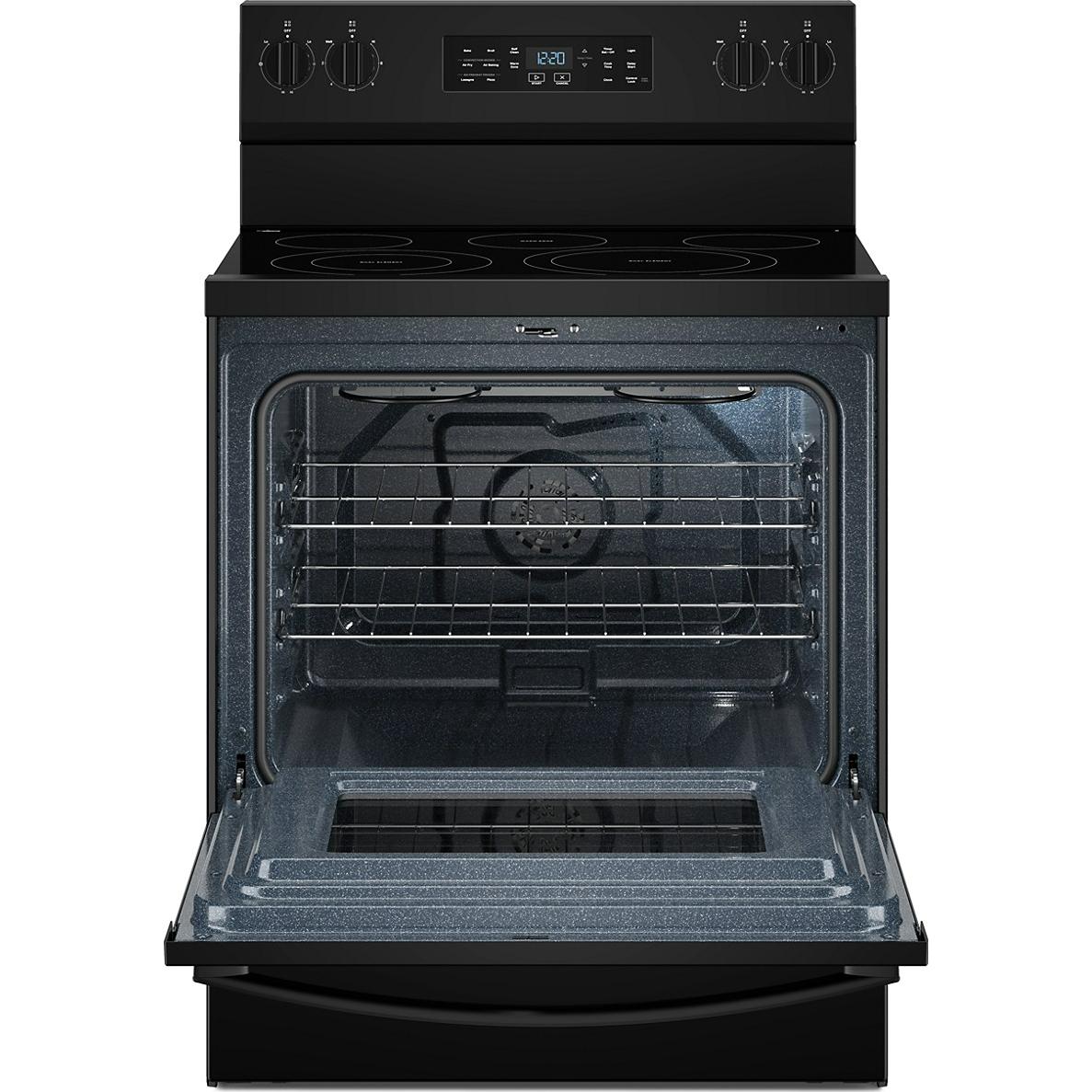

Oven
Capacity (cu. ft.)
5.3
Number of Ovens
Single
Programs
• Air Baking
• Bake
• Broil
• No Preheat Air Fry
• Bake
• Broil
• No Preheat Air Fry
Features
Technologies
• Air Cooking Technology
• FlexHeat™ Dual Radiant Elements
• WipeClean™ Coating
• FlexHeat™ Dual Radiant Elements
• WipeClean™ Coating
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Convection

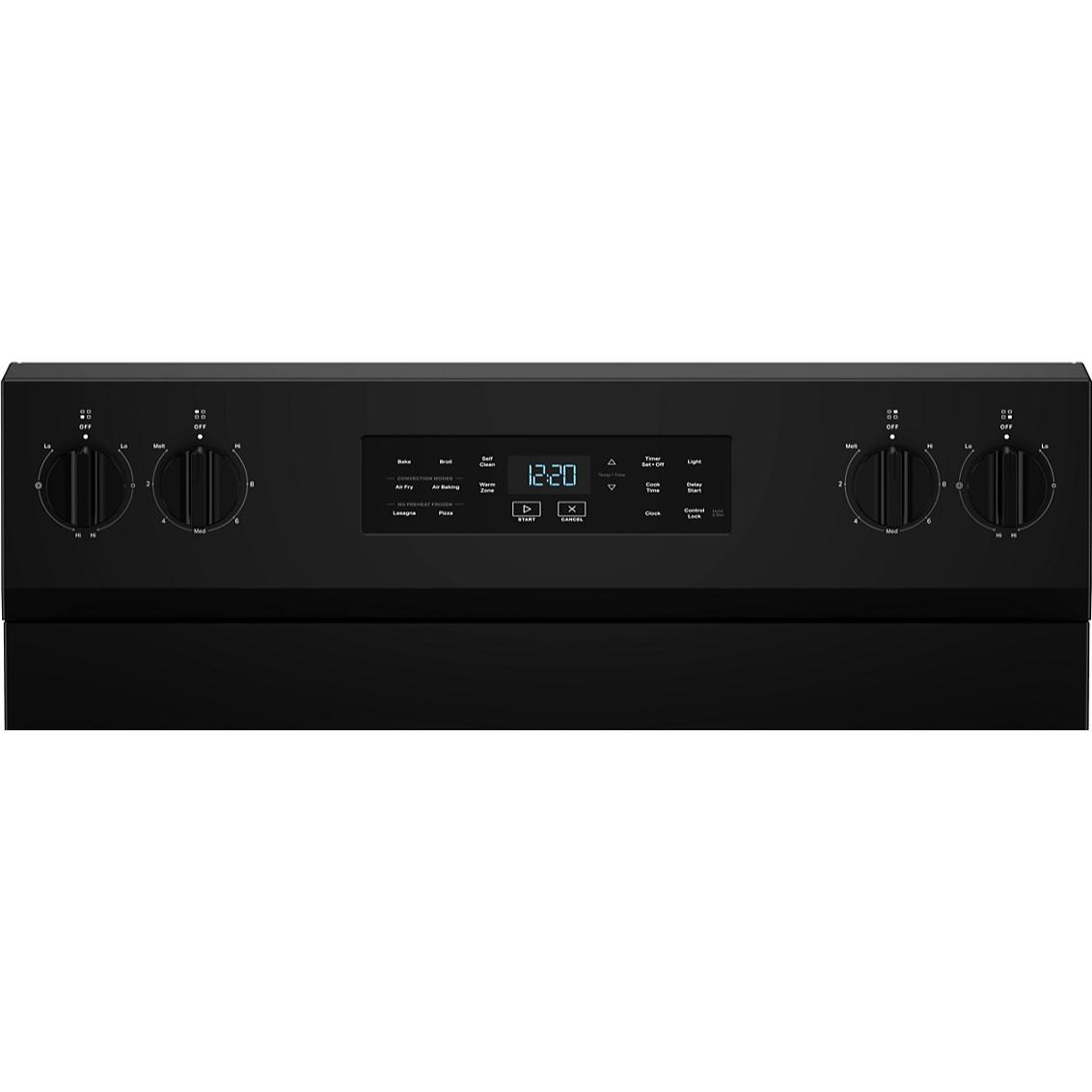

• Oven Control Type: Tap Touch
• Oven Control Location: Rear Control
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Cooktop Surface Material: Glass
• Convection Element Type: Fan
• Broiler Location: Top Center
• Broiler Element Power: 3400W
• Bake Element Power: 2400W
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Power Outage Compatible
• Cooktop Control Location: Backguard
• Control Type: Knobs
• Knob Type: Plastic
• Country Of Origin: USA
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Convection
• Oven Control Type: Tap Touch
• Oven Control Location: Rear Control
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Cooktop Surface Material: Glass
• Convection Element Type: Fan
• Broiler Location: Top Center
• Broiler Element Power: 3400W
• Bake Element Power: 2400W
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Power Outage Compatible
• Cooktop Control Location: Backguard
• Control Type: Knobs
• Knob Type: Plastic
• Country Of Origin: USA
Electrical Information
Information
• Volts: 208-240
• Amps: 40
• Hz:60
• Amps: 40
• Hz:60
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• UL
• CUL
• CUL
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
46.7 inch(es) / 118.62 cm
Depth (Without Handles)
26.1 inch(es) / 66.29 cm
Depth (Including Handles)
28.2 inch(es) / 71.63 cm
Additional Dimensions
• Cutout Depth: 24 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Oven Interior Depth: 19.7 in
• Oven Interior Width: 24.2 in
• Depth Excluding Doors: 24-1/2 in
• Depth With Door Open 90 Degree: 46.8 in
• Maximum Height: 52-2 in
• Minimum Height: 46.7 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Oven Interior Depth: 19.7 in
• Oven Interior Width: 24.2 in
• Depth Excluding Doors: 24-1/2 in
• Depth With Door Open 90 Degree: 46.8 in
• Maximum Height: 52-2 in
• Minimum Height: 46.7 in
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
184.99 lb(s) / 83.91 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049941059
