DESCRIPTION

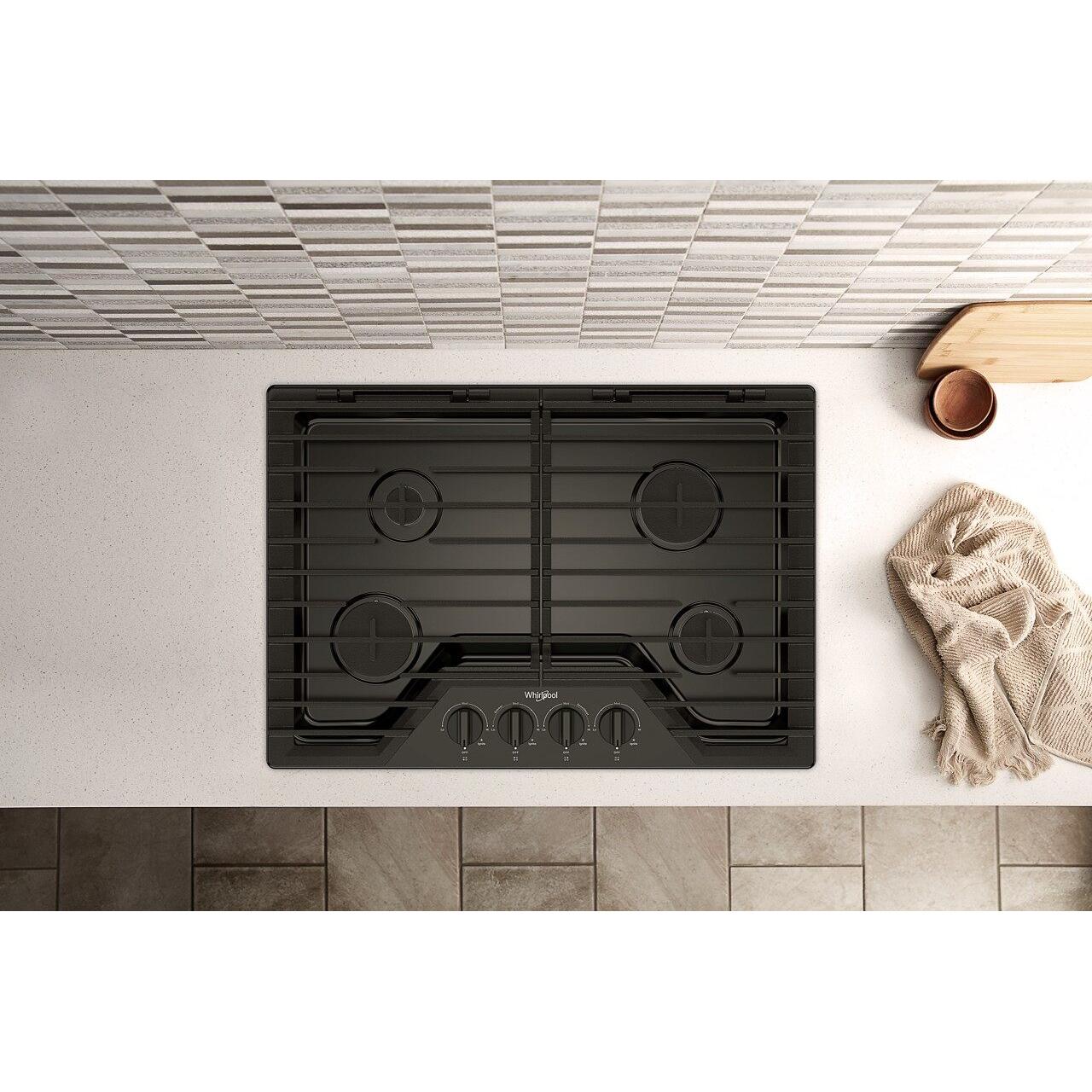

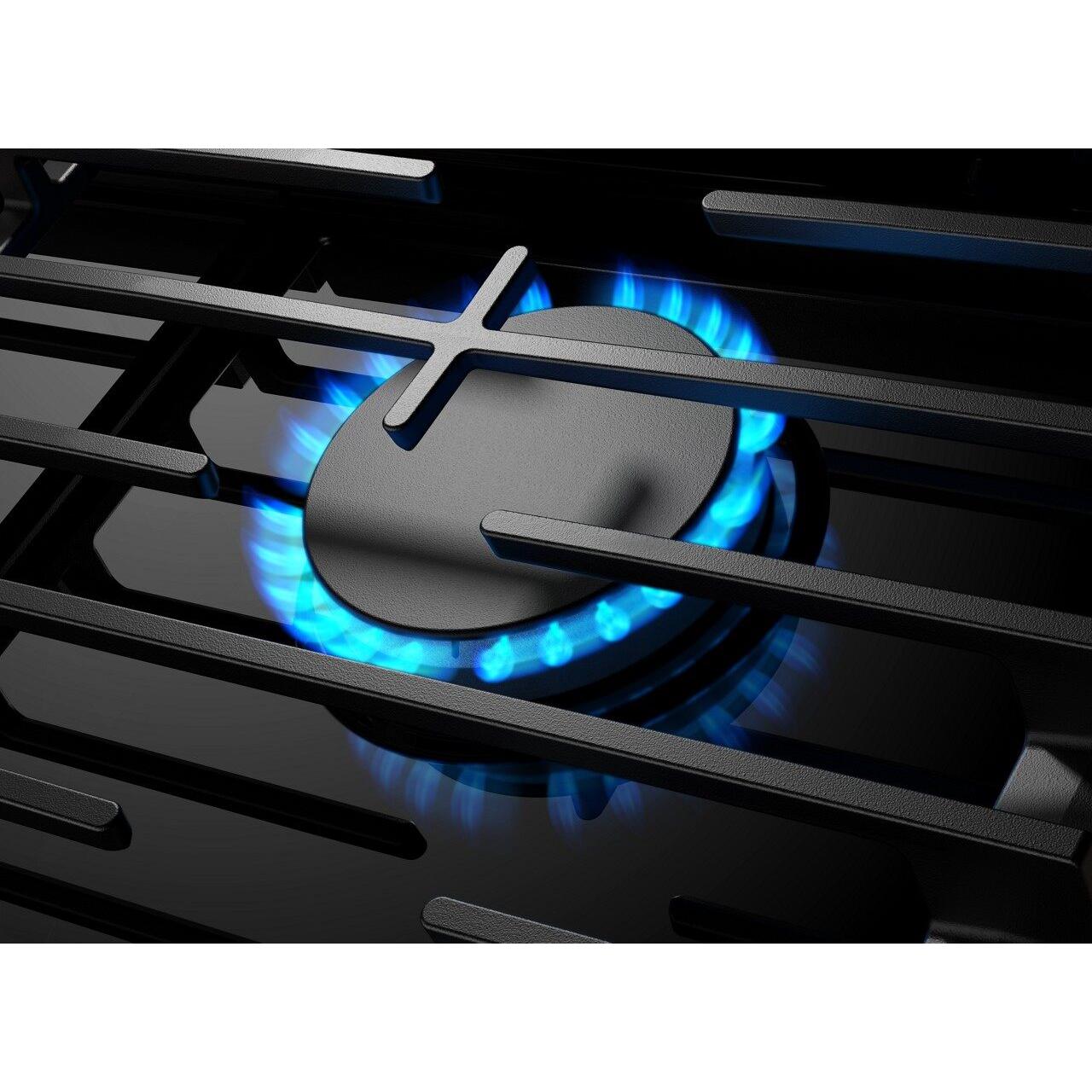

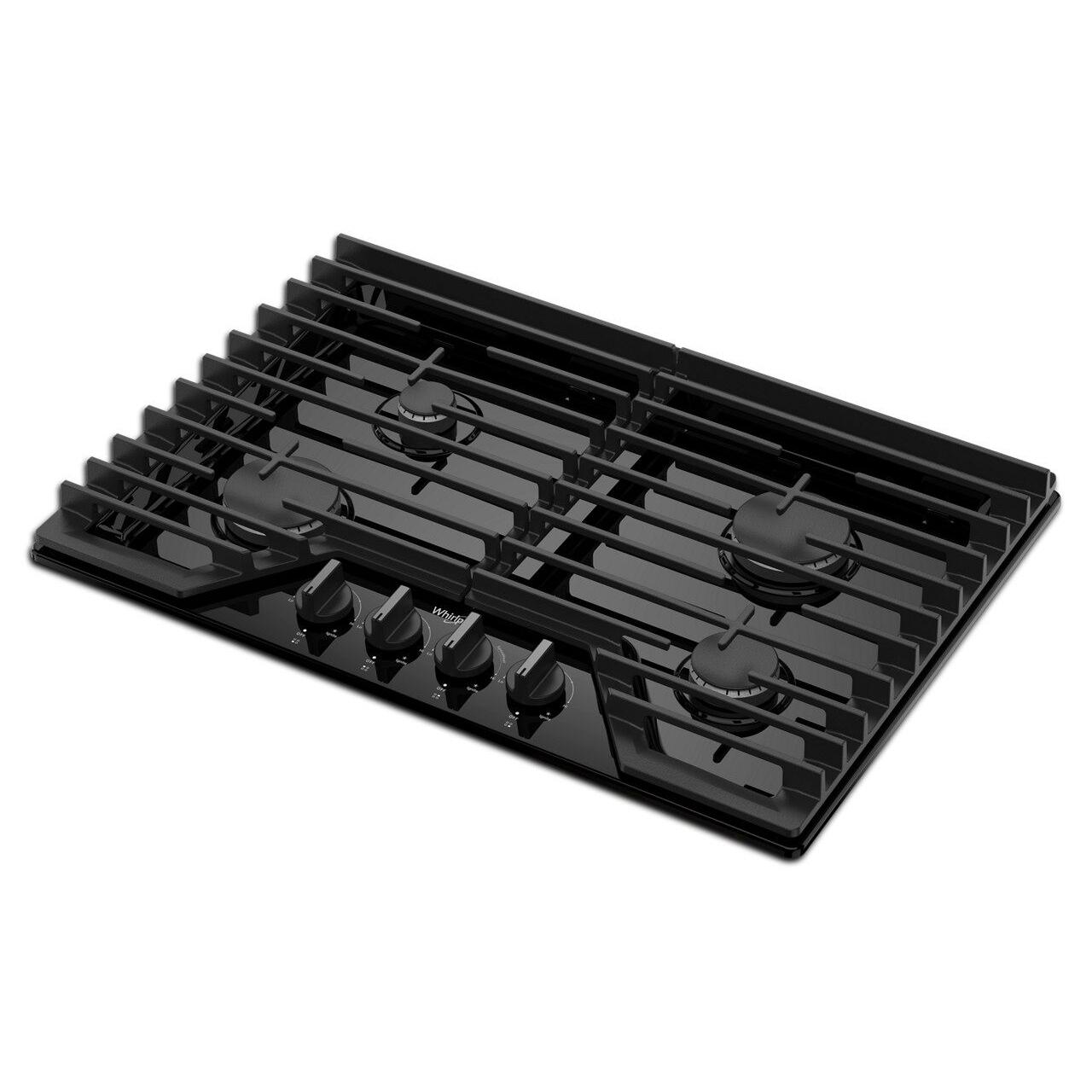

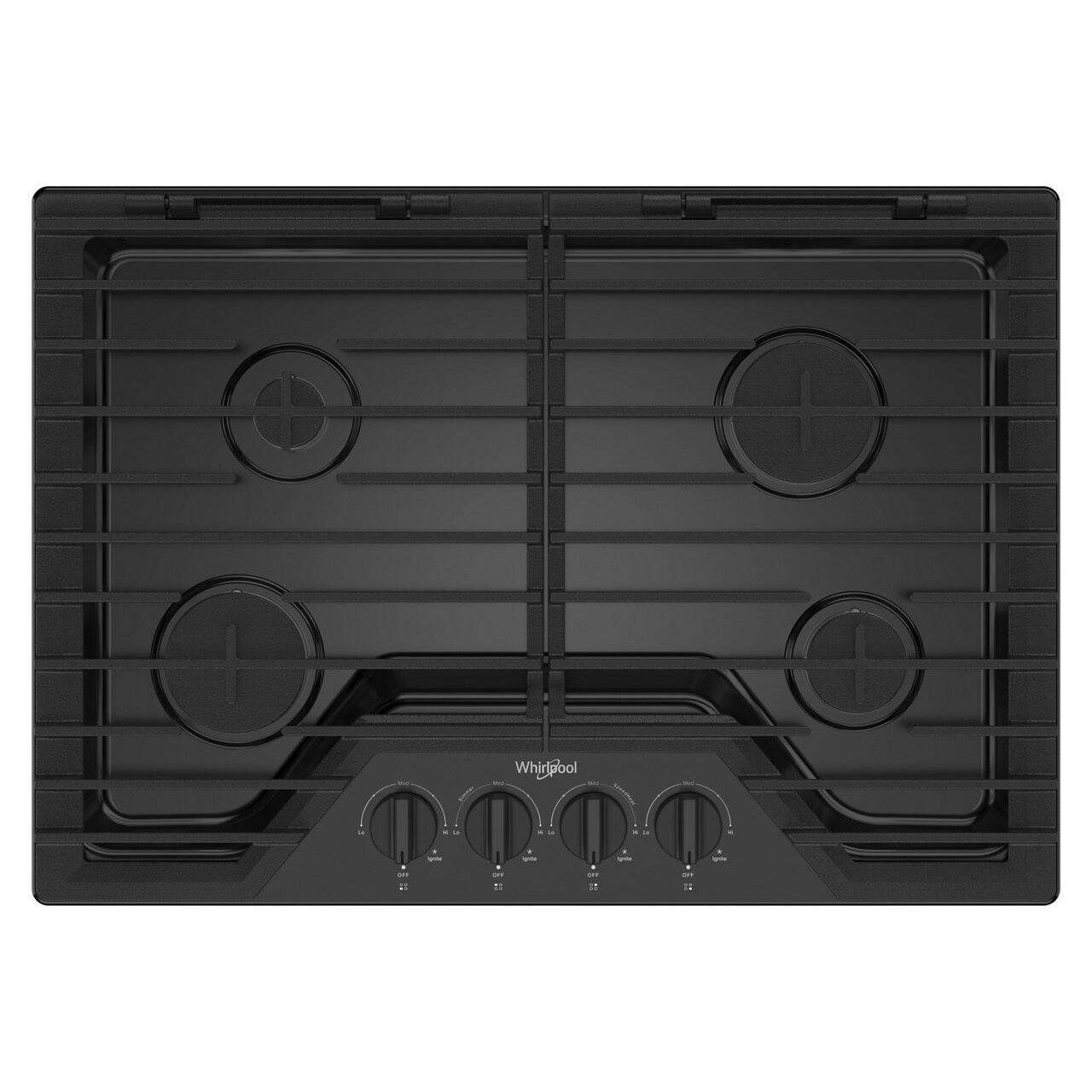

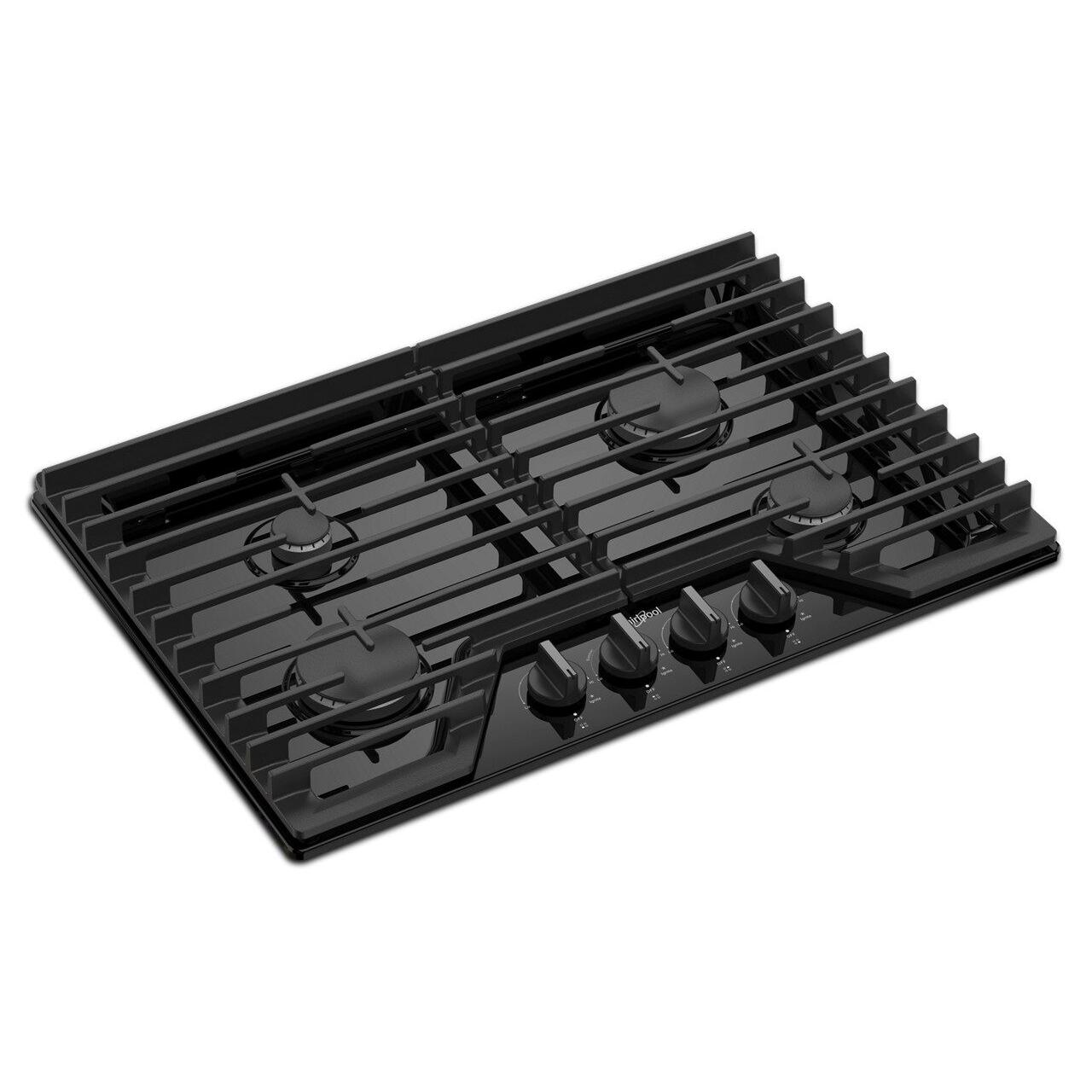

×Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels. Use the SpeedHeat™ Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K–12K BTU Multi-Purpose Burners are perfect for daily cooking. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Right Rear Burner Power: 18,000 BTU
• Left Rear Burner Power: 5,000 BTU
• Right Front Burner Power: 9,100 BTU
• Left Front Burner Power: 12,000 BTU
• Left Rear Burner Power: 5,000 BTU
• Right Front Burner Power: 9,100 BTU
• Left Front Burner Power: 12,000 BTU
Burners
Sealed
Features
Technologies
• SpeedHeat™ Burner
• EZ-2-Lift™ Hinged Cast-Iron Grates
• Upswept SpillGuard™ Cooktop
• EZ-2-Lift™ Hinged Cast-Iron Grates
• Upswept SpillGuard™ Cooktop
Additional Information
• Power Outage Compatible
• Installs Over Built-In Oven
• Installs Over Built-In Oven
Electrical Information
Information
15 A, 60 Hz
Certifications and Approvals
ADA Compliant
Yes
Information
UL
Accessories
Included
LP Convertible
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.56 inch(es) / 14.13 cm
Depth
21 inch(es) / 53.34 cm
Weight
56.11 lb(s) / 25.45 kg
Additional Dimensions
• Cutout Width: 29.31"
• Maximum Height: 5.56"
• Minimum Height: 4.75"
• Maximum Height: 5.56"
• Minimum Height: 4.75"
Shipping Dimensions
Height
13 inch(es) / 33.02 cm
Depth
25 inch(es) / 63.5 cm
UPC
UPC#
883049678160
