DESCRIPTION

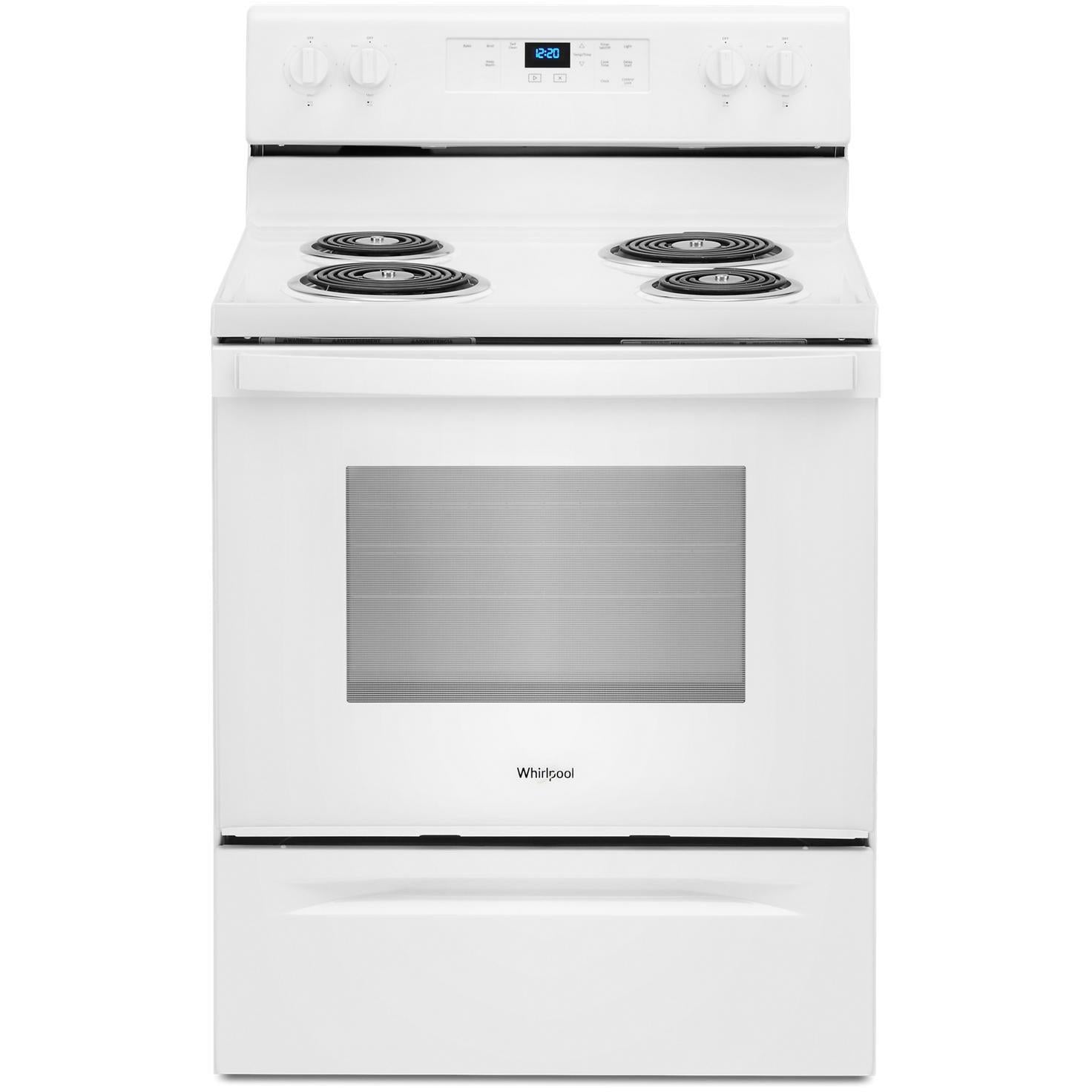

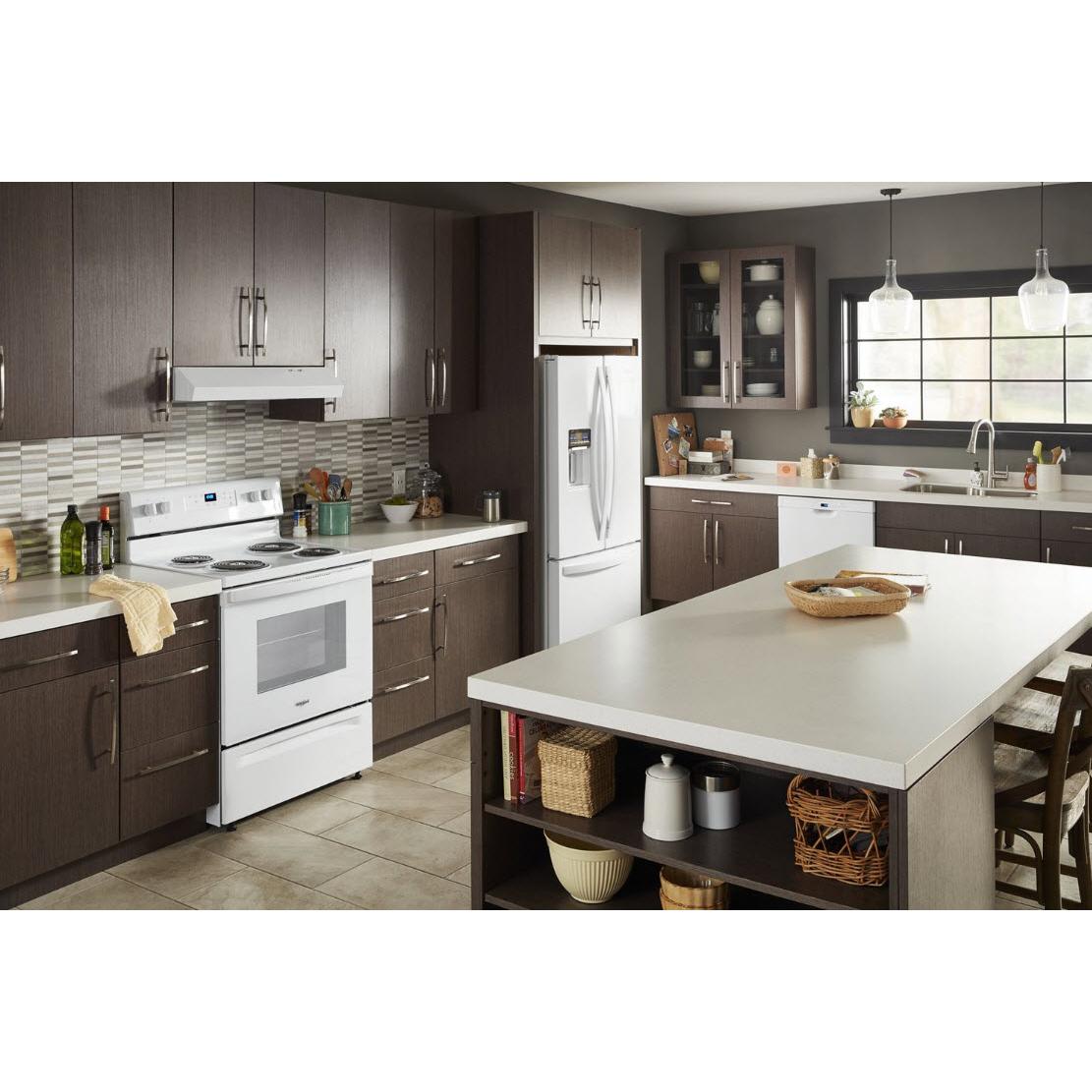

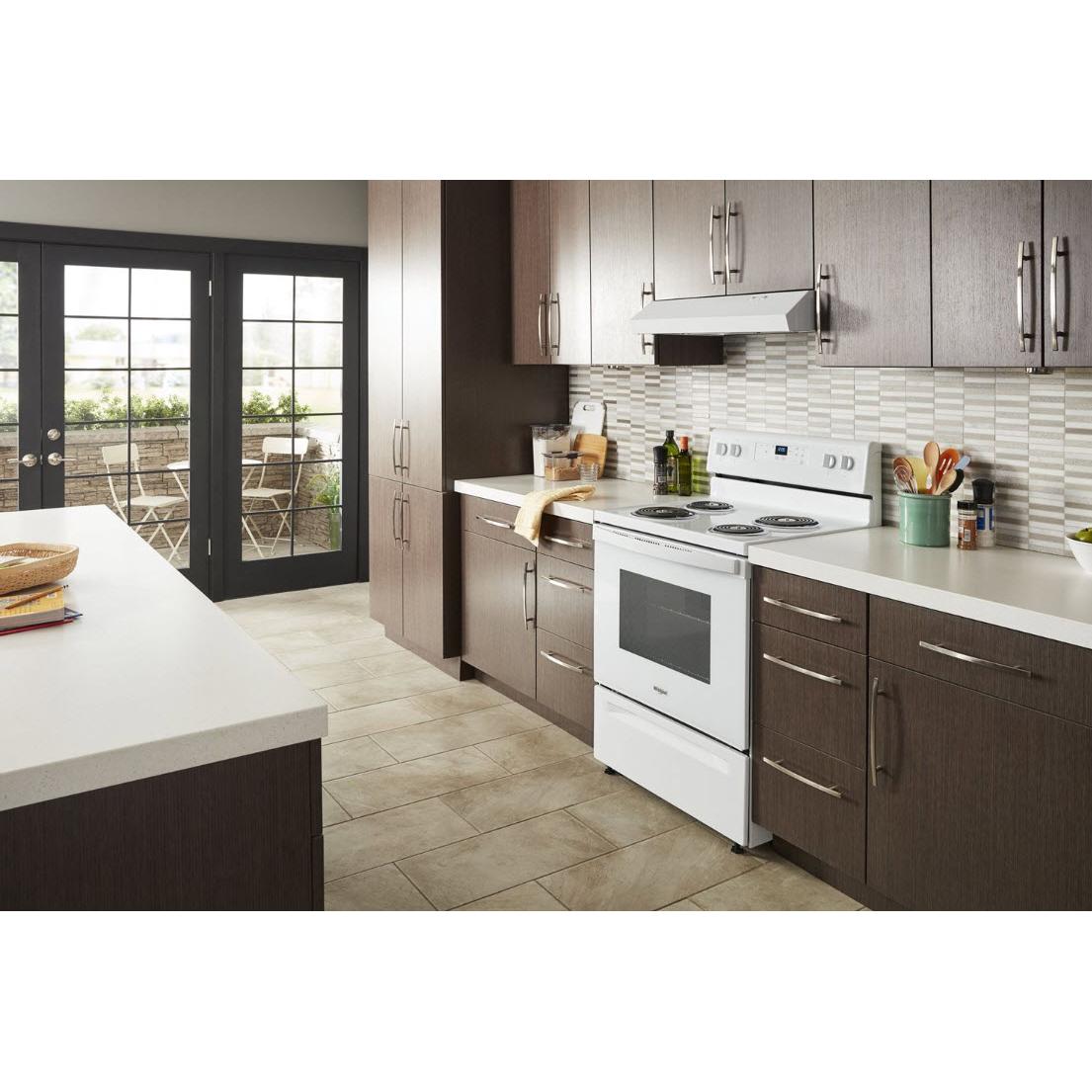

×This Whirlpool® electric range helps you get dinner to the table, even on a hectic schedule. The Keep Warm setting prevents dinner from getting cold. Closed door broiling helps keep the kitchen comfortable. This self cleaning oven also allows you to avoid unintended use with an oven control lock.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
White
Manufacturer Color
White

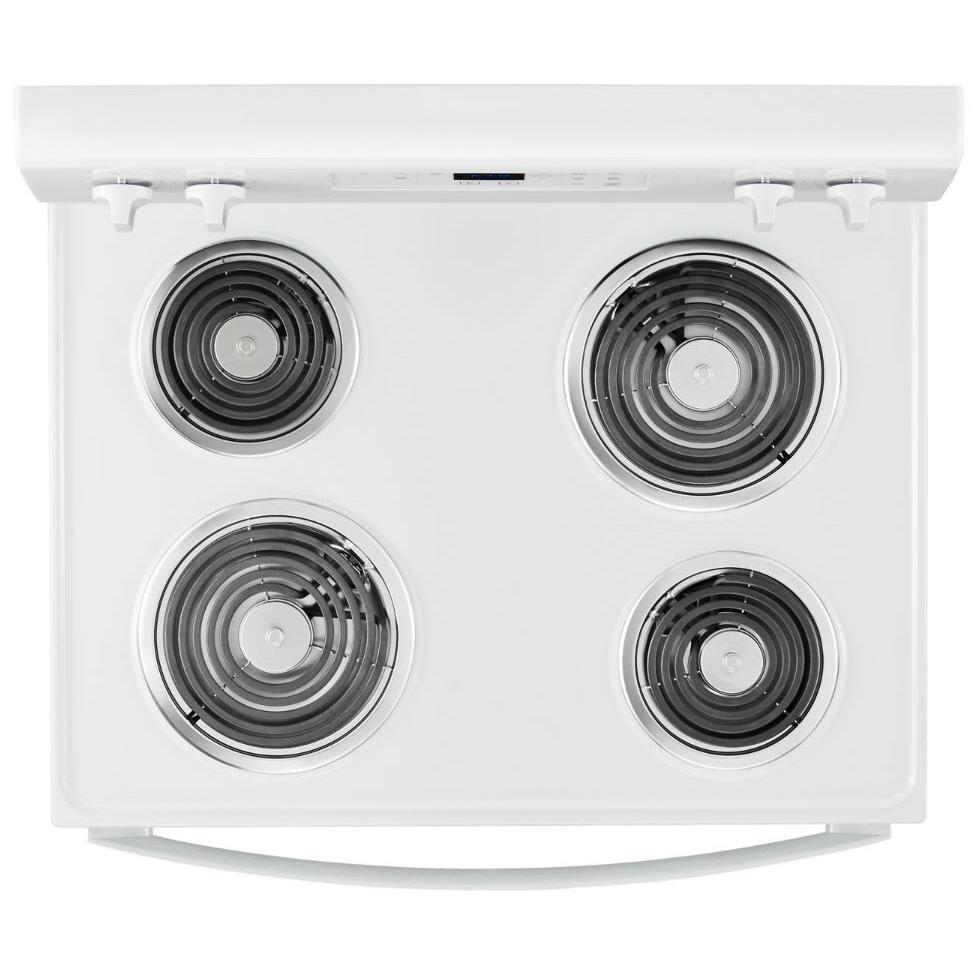

Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element: 2,400 W
• Left Rear Element: 1,500 W
• Right Front Element: 1, 500 W
• Right Rear Element: 2,400 W
• Left Rear Element: 1,500 W
• Right Front Element: 1, 500 W
• Right Rear Element: 2,400 W
Burner/Element Size
• Left Front Element: 8"
• Left Rear Element: 6"
• Right Front Element: 6"
• Right Rear Element: 8"
• Left Rear Element: 6"
• Right Front Element: 6"
• Right Rear Element: 8"
Elements
Coil
Oven
Capacity (cu. ft.)
4.8 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Broil
Features
Technologies
• Adjustable Self-Cleaning Technology
• Upswept SpillGuard™ Cooktop
• Upswept SpillGuard™ Cooktop
Control Lock
Yes
Convection
No
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Closed Door Broiling
• Door Removable
• Power On Indicator Light

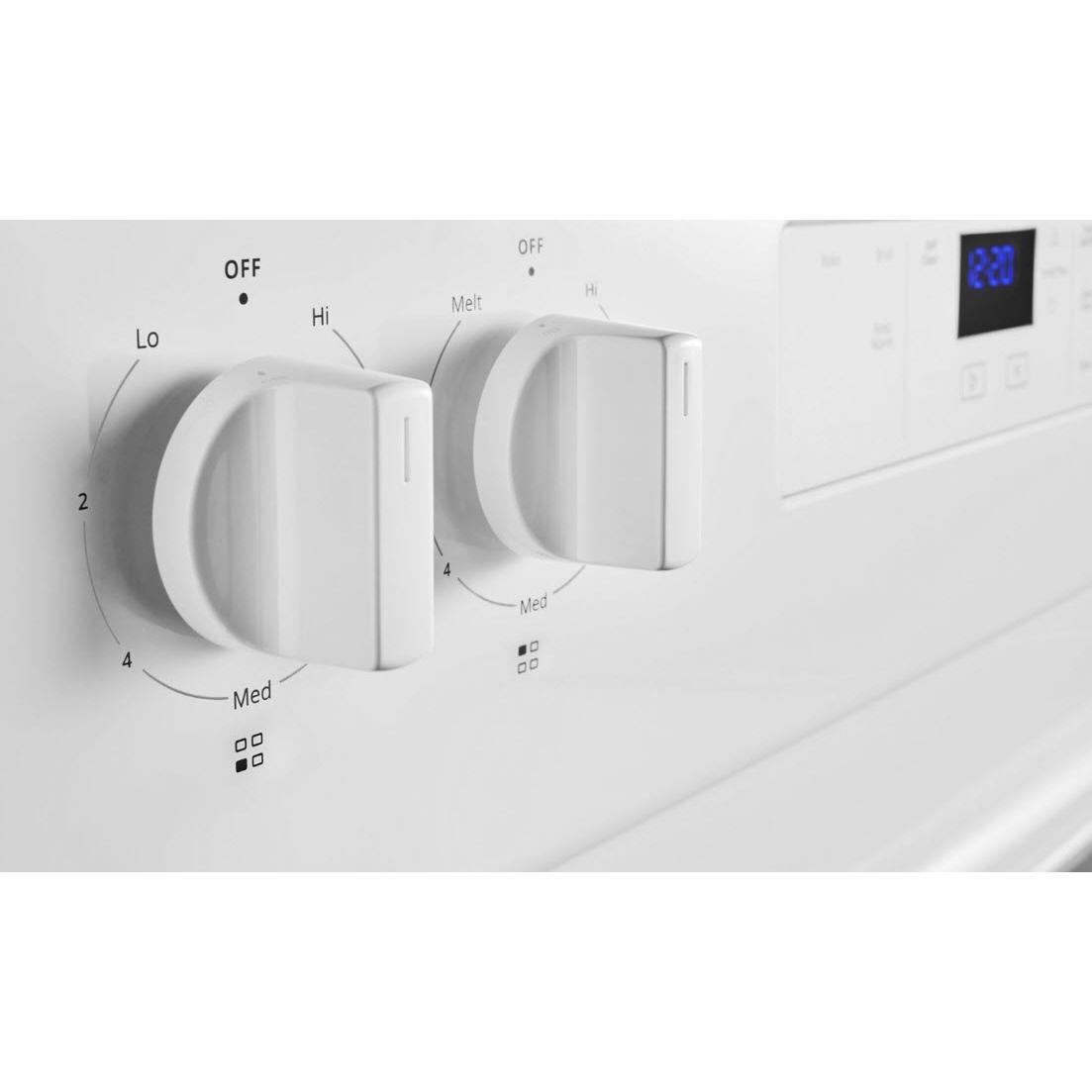

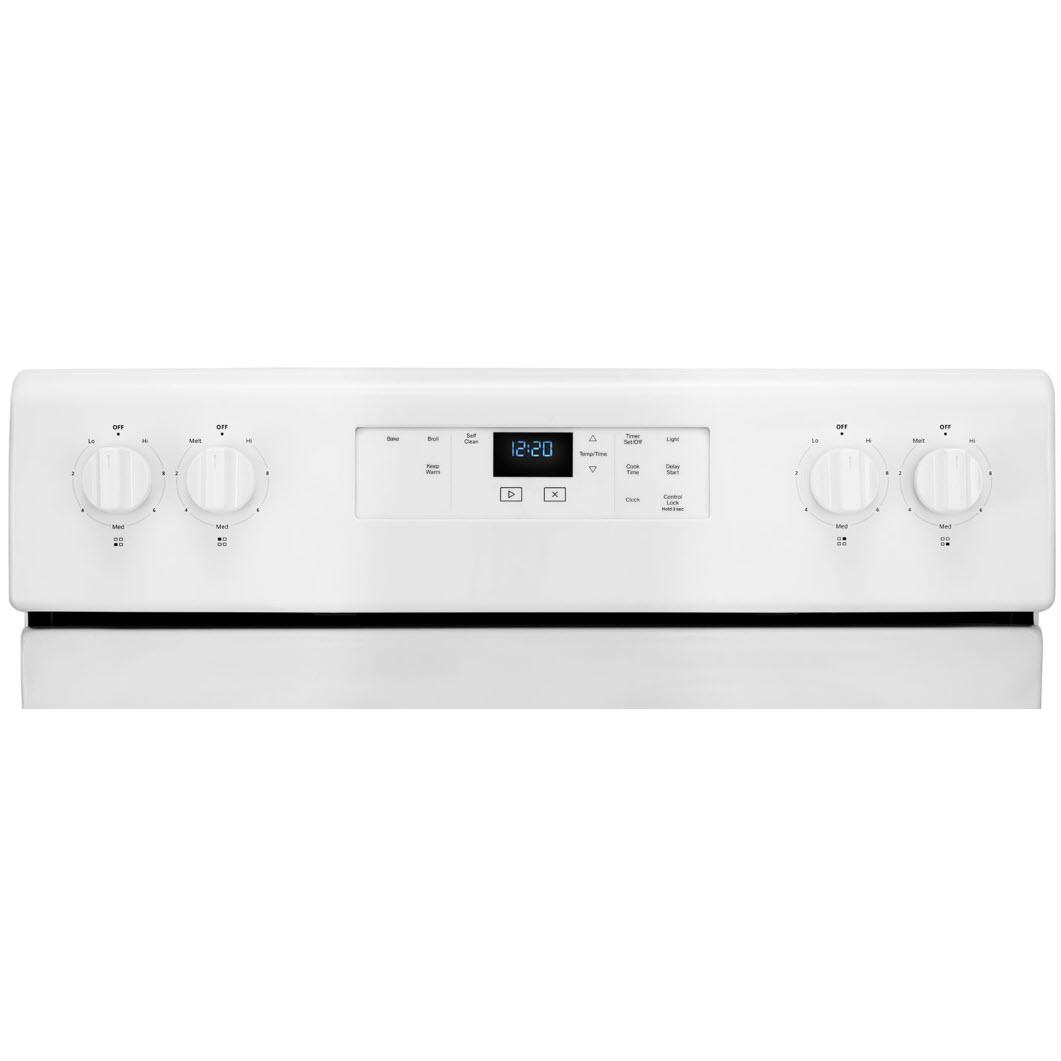

• Electronic Touch Controls
• LED Display
• Bake Element Power: 2400 W
• Broiler Element Power: 3400 W
• 1 Oven Light

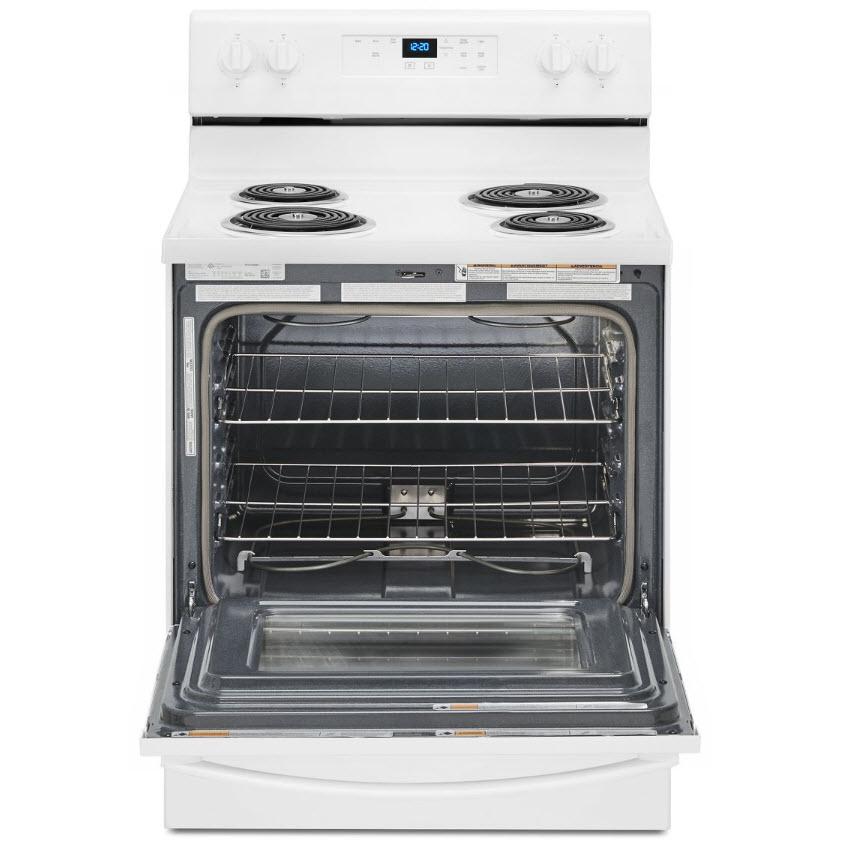

• 2 Racks
• 5 Rack Positions
• Keep Warm Setting
• Audible Signal
• Cancel/Off
• Automatic Door Latch
• Start Time
• Stop Time
• Cook Time Indicator
• Warm Hold
• Timer
• Door Removable
• Power On Indicator Light
• Electronic Touch Controls
• LED Display
• Bake Element Power: 2400 W
• Broiler Element Power: 3400 W
• 1 Oven Light
• 2 Racks
• 5 Rack Positions
• Keep Warm Setting
• Audible Signal
• Cancel/Off
• Automatic Door Latch
• Start Time
• Stop Time
• Cook Time Indicator
• Warm Hold
• Timer
Electrical Information
Information
• 120 V / 240 V
• 40 A
• 515 (kWH/year)
• 40 A
• 515 (kWH/year)
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.87 inch(es) / 121.6 cm
Depth (Without Handles)
25.31 inch(es) / 64.29 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
136 lb(s) / 61.69 kg
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
48.75 inch(es) / 123.83 cm
Depth
29 inch(es) / 73.66 cm
Weight
150.99 lb(s) / 68.49 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049538495
