DESCRIPTION

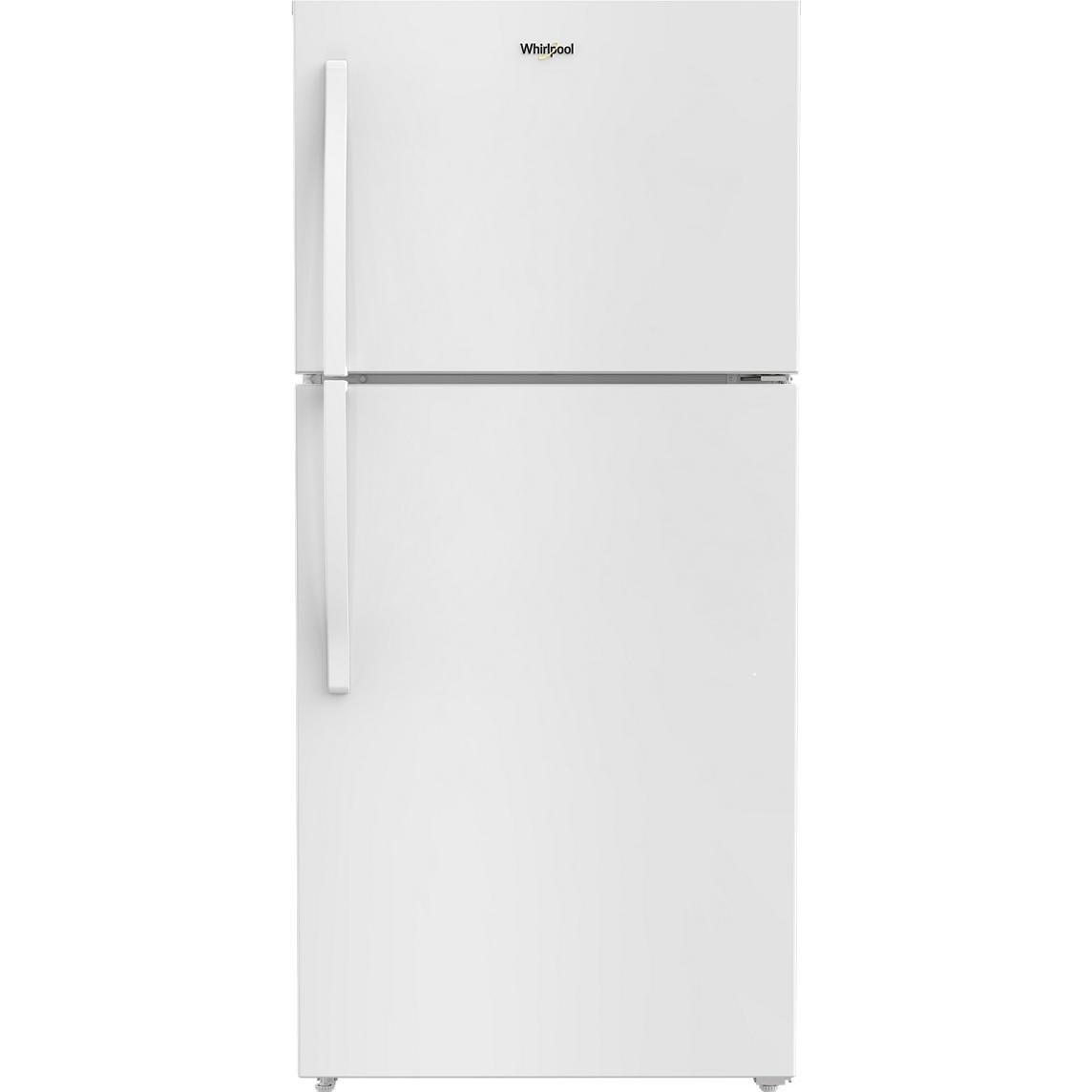

×This Whirlpool® 29.5-inch Wide Top Freezer Refrigerator uses Total Coverage Cooling to help prevent cold spots, a Flexi Slide™ Deli Drawer that slides to side for tall items. Plus. Garage Ready cools in temps 38 °F–110 °F. The FreshSpace™ Humidity-Controlled Crispers help keep produce fresh, and Adjustable Glass Shelves shift to fit what you reach for most.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Refrigerator Type
Top Freezer
Installation Type
Freestanding
Counter-Depth
No
Door Hinge
Right
Reversible Doors
Yes
Color
White
Manufacturer Color
White
Capacity
Total
19.3 cu. ft.
Refrigerator
14.11 cu. ft.
Freezer
5.16 cu. ft.
Refrigerator Features
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Gallon Door
Yes
Additional Information
• Automatic Defrost
• Control Location: Interior Up Front
• Control Options: Demo Mode
• Cooling Type: Single Evaporator
• Temperature Range: 32-45F / -10-21F Freezer
• Cabinet Finish: Textured
• Door Finish: Smooth
• Door Style: Flat
• Handle Material: Plastic
• Handle Type: Reach-Through Handle
• Advance Foam Insulation: 99.9% lower Global Warming Potential and Better Energy Performance
• Garage Ready
• Installation Configuration: Freestanding
• Levelers: 2
• Wheels: 4-Natural
• Door Style Configuration: Top Mount
• Conventional Shelves: 1 Fixed Full-Width Glass, 2 Adjustable Full-Width Glass
• Deli Drawer: 1 Flexi-Slide Bin
• Humidity-Controlled Crispers: 2 Half-Width
• Liner Finish: White Opaque
• Number of Doors: 1
• Number of Lights: 1
• Number of Interior Shelves: 3
• Refrigerator Lighting: LED
• Refrigerator Door Bins: 1 Adjustable Gallon, 1 Dairy, 1 Fixed Full-Width, 2 Adjustable Partial-Width
• Control Location: Interior Up Front
• Control Options: Demo Mode
• Cooling Type: Single Evaporator
• Temperature Range: 32-45F / -10-21F Freezer
• Cabinet Finish: Textured
• Door Finish: Smooth
• Door Style: Flat
• Handle Material: Plastic
• Handle Type: Reach-Through Handle
• Advance Foam Insulation: 99.9% lower Global Warming Potential and Better Energy Performance
• Garage Ready
• Installation Configuration: Freestanding
• Levelers: 2
• Wheels: 4-Natural
• Door Style Configuration: Top Mount
• Conventional Shelves: 1 Fixed Full-Width Glass, 2 Adjustable Full-Width Glass
• Deli Drawer: 1 Flexi-Slide Bin
• Humidity-Controlled Crispers: 2 Half-Width
• Liner Finish: White Opaque
• Number of Doors: 1
• Number of Lights: 1
• Number of Interior Shelves: 3
• Refrigerator Lighting: LED
• Refrigerator Door Bins: 1 Adjustable Gallon, 1 Dairy, 1 Fixed Full-Width, 2 Adjustable Partial-Width
Freezer Features
Additional Freezer Information
• Defrost Drain: Auto Defrost
• Defrost Type: Automatic Defrost
• Freezer Door Bins: 2 Fixed Full-Width
• Freezer Door Type: Swing
• Freezer Lighting: LED
• Freezer Number of Shelves: 1
• Freezer Shelves: 1 Fixed Full-Width Glass
• Defrost Type: Automatic Defrost
• Freezer Door Bins: 2 Fixed Full-Width
• Freezer Door Type: Swing
• Freezer Lighting: LED
• Freezer Number of Shelves: 1
• Freezer Shelves: 1 Fixed Full-Width Glass
Ice and Water
Ice System
None
Water System
None
Dispenser Features
• Icemaker: Optional
• Icemaker Location: Freezer Compartment
• Icemaker Location: Freezer Compartment
Electrical Information
Information
• Amps: 6.5
• Hz: 60
• Volts: 115
• Hz: 60
• Volts: 115
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Sabbath Mode
No
Additional Information
• ADA Compliant
• CEE Tier Rating: Minimum ESTAR
• Export Certifications: Energy Star®
• UL
• ULe Environmentally Preferred Certified: Passed 60 point AHAM Sustainability Standards
• UL File Number: SA623-V5-S19
• CEE Tier Rating: Minimum ESTAR
• Export Certifications: Energy Star®
• UL
• ULe Environmentally Preferred Certified: Passed 60 point AHAM Sustainability Standards
• UL File Number: SA623-V5-S19
Accessories
Optional
Icemaker Kit Part Number: W11729596
Dimensions
Class Width
29" to 31.9"
Class Height
65" - 70"
Width
30 inch(es) / 76.2 cm
Height (With Hinge)
66.13 inch(es) / 167.96 cm
Overall Depth
34.44 inch(es) / 87.47 cm
Depth (Without Handles)
32.25 inch(es) / 81.92 cm
Depth (With Handles)
34.44 inch(es) / 87.47 cm
Additional Dimensions
• Cabinet Width: 74.93 cm, 29.5 in
• Depth Excluding Doors: 72.07 cm, 28.375 in
• Depth With Door Open 90 Degree: 152.08 cm, 59.875 in
• Height: 168.12 cm, 66.1875 in
• Height To Top Of Cabinet: 166.21 cm, 65.438 in
• Height To Top Of Door Trim: 168.12 cm, 66.188 in
• Width with Doors Closed: 76.20 cm, 30 in
• Maximum Height: 168.12 cm, 66.1875 in
• Minimum Height: 166.21 cm, 65.4375 in
• Depth Excluding Doors: 72.07 cm, 28.375 in
• Depth With Door Open 90 Degree: 152.08 cm, 59.875 in
• Height: 168.12 cm, 66.1875 in
• Height To Top Of Cabinet: 166.21 cm, 65.438 in
• Height To Top Of Door Trim: 168.12 cm, 66.188 in
• Width with Doors Closed: 76.20 cm, 30 in
• Maximum Height: 168.12 cm, 66.1875 in
• Minimum Height: 166.21 cm, 65.4375 in
Warranty
Warranty
1-Year Parts and Labor
