DESCRIPTION

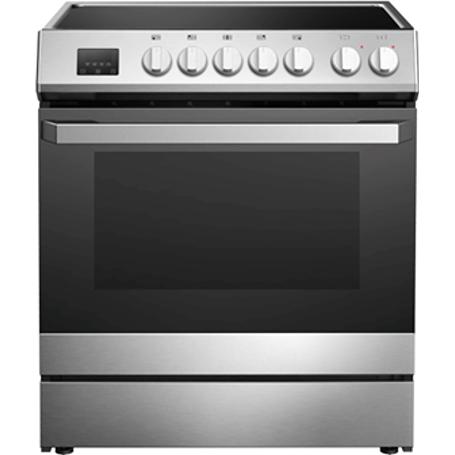

×The Vitara 30” Electric Range features front knob controls with a touch timer for easy operation. Its sleek stainless-steel finish complements any kitchen, while the smooth surface cooktop ensures effortless cleaning. Equipped with a hot surface indicator light for safety, this 240V, 60Hz, 50A range connects directly to the main outlet, with an optional plug available.
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Standard Clean and Steam Clean
Cooktop
Burners/Elements
4
Burners/Elements Output
• Right Front Element: 2500/1200W
• Right Rear Element: 1200W
• Left Front Element: 1000/2200W
• Left Rear Element: 1200W
• Right Rear Element: 1200W
• Left Front Element: 1000/2200W
• Left Rear Element: 1200W
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.0
Number of Ovens
Single
Programs
• Bake
• Pizza
• Low Broil
• High Broil
• Convection Broil
• Convection Bake
• Defrost
• Pizza
• Low Broil
• High Broil
• Convection Broil
• Convection Bake
• Defrost
Features
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Configuration: Ceramic top and electric oven
• Cooktop Surface: Ceramic glass
• Oven Timer: Mechanical timer / Touch timer
• Leveling System: 4 Leveling Legs + anti-tip bracket
• Rack Configuration: 1 Flat Nickel Rack
• Oven Light: 2
• Oven Power - Top element: 1300+2000W
• Oven Power - Bottom element: 2200W
• Oven Power - Rear element: 2500W
• Hot surface indicator light
• Cooktop Surface: Ceramic glass
• Oven Timer: Mechanical timer / Touch timer
• Leveling System: 4 Leveling Legs + anti-tip bracket
• Rack Configuration: 1 Flat Nickel Rack
• Oven Light: 2
• Oven Power - Top element: 1300+2000W
• Oven Power - Bottom element: 2200W
• Oven Power - Rear element: 2500W
• Hot surface indicator light
Electrical Information
Information
240V, 60Hz, 50Amps
Certifications and Approvals
Information
cETLus
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
35.4 inch(es) / 89.92 cm
Depth (Without Handles)
25 inch(es) / 63.5 cm
Weight
180.49 lb(s) / 81.87 kg
Shipping Dimensions
Width
33 inch(es) / 83.82 cm
Height
37.8 inch(es) / 96.01 cm
Depth
29 inch(es) / 73.66 cm
Warranty
Warranty
1-Year parts and labor
