DESCRIPTION

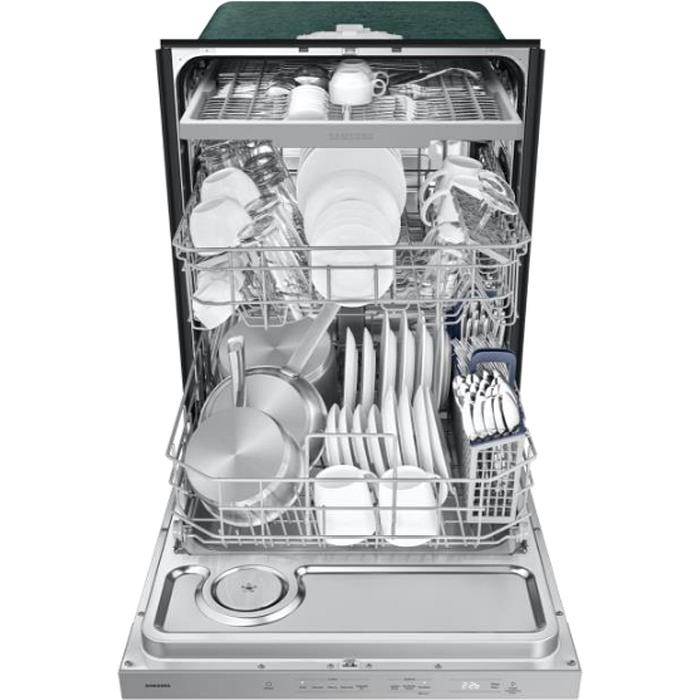

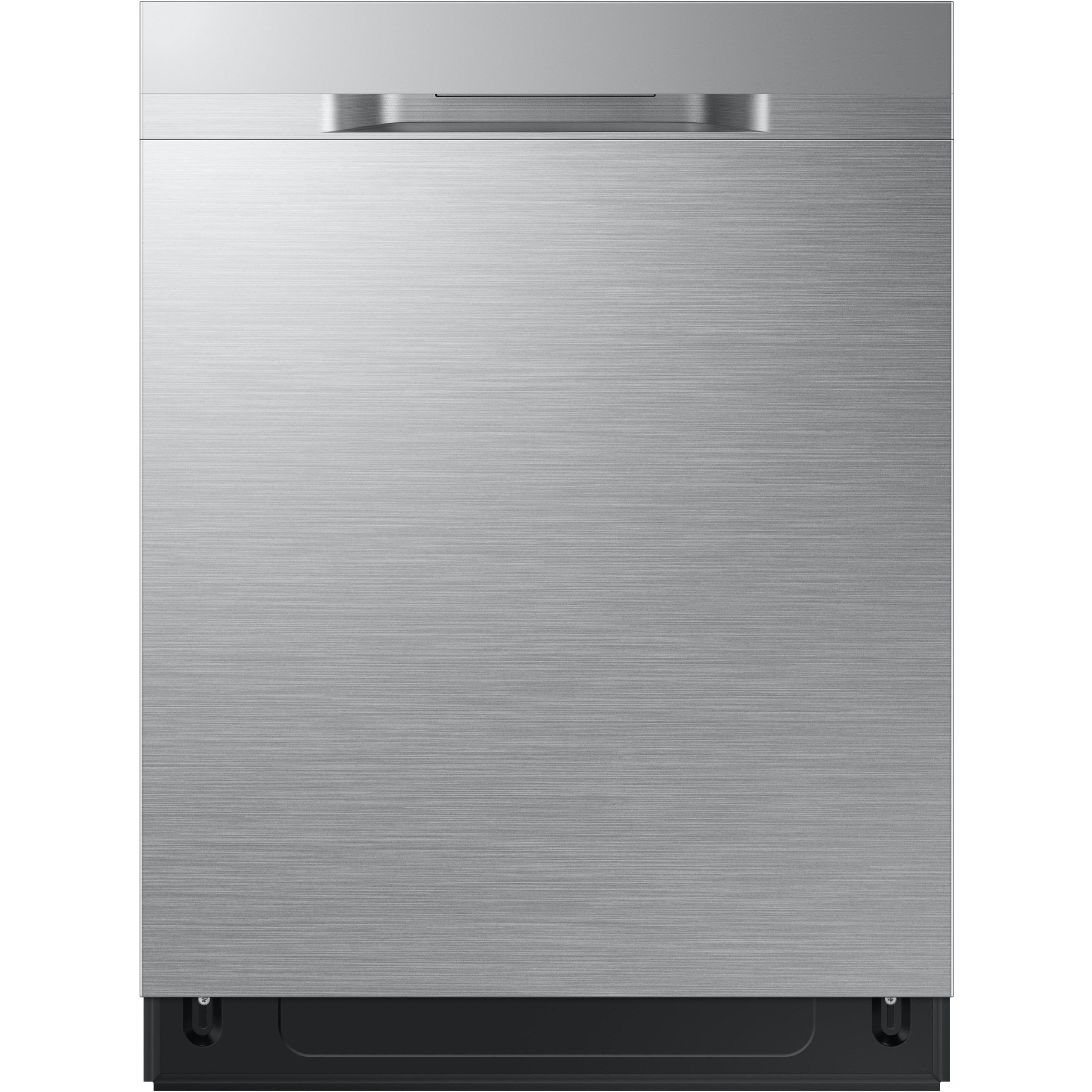

×The Samsung 5500 Series built-in dishwasher is ENERGY STAR® certified and runs at just 48 dBA, thanks to a brushless DC motor and an insulated stainless steel tub that absorbs sound and vibration. When the cycle ends, AutoRelease™ Drying automatically opens the door 5 inches to let steam escape for better drying. A 3rd rack at the top gives cutlery and long utensils their own space, the upper rack adjusts by 2 inches to fit tall pots and large platters, and the Express 60' cycle washes and dries lightly soiled loads in just one hour. Hidden touch controls on top of the door keep the stainless steel front clean and minimalist.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
5500 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
48 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Normal
• Auto
• Delicate
• Heavy
• Express 60'
• Auto
• Delicate
• Heavy
• Express 60'
Options
• Delay Start
• Half load
• Sanitize
• Hi-Temp Wash
• Half load
• Sanitize
• Hi-Temp Wash
Features
Technologies
Auto Release™ Door
3rd Rack System
Yes
Control Lock
Yes
Silverware Basket
Yes
Additional Information
• Cycle time: 105 min
• Upper Rack: Foldable cup shelves, Adjustable Height
• Leakage Sensor
• Number of Wash Arm: Upper/Mid/Low
• Cancel&Drain Button
• Upper Rack: Foldable cup shelves, Adjustable Height
• Leakage Sensor
• Number of Wash Arm: Upper/Mid/Low
• Cancel&Drain Button
Electrical Information
Information
• 225 kWh/year
• Electrical(Volts/Hertz/Amps): 120/60/15
• Heater: 1000W
• Circulation Motor: 60-100W
• Drain Pump: 35 W
• Electrical(Volts/Hertz/Amps): 120/60/15
• Heater: 1000W
• Circulation Motor: 60-100W
• Drain Pump: 35 W
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Dimensions
Class Width
24"
Width
23.9 inch(es) / 60.71 cm
Height (Min.)
33.9 inch(es) / 86.11 cm
Depth (Without Handle)
24.8 inch(es) / 62.99 cm
Weight
83.78 lb(s) / 38 kg
Additional Dimensions
• Enclosure (Min.): 24 x 24 x 34.13 in (W x D x H)
• Countertop Depth for a Flush Door (Min.): 25 in
• Countertop Depth for a Flush Door (Min.): 25 in
Shipping Dimensions
Weight
94.8 lb(s) / 43 kg
Warranty
Warranty
• 1 year parts and labour
• 5 years on the printed circuit board, racking, and stainless door liner and tub for leakage (parts only)
• 5 years on the printed circuit board, racking, and stainless door liner and tub for leakage (parts only)
UPC
UPC#
887276824857
