DESCRIPTION

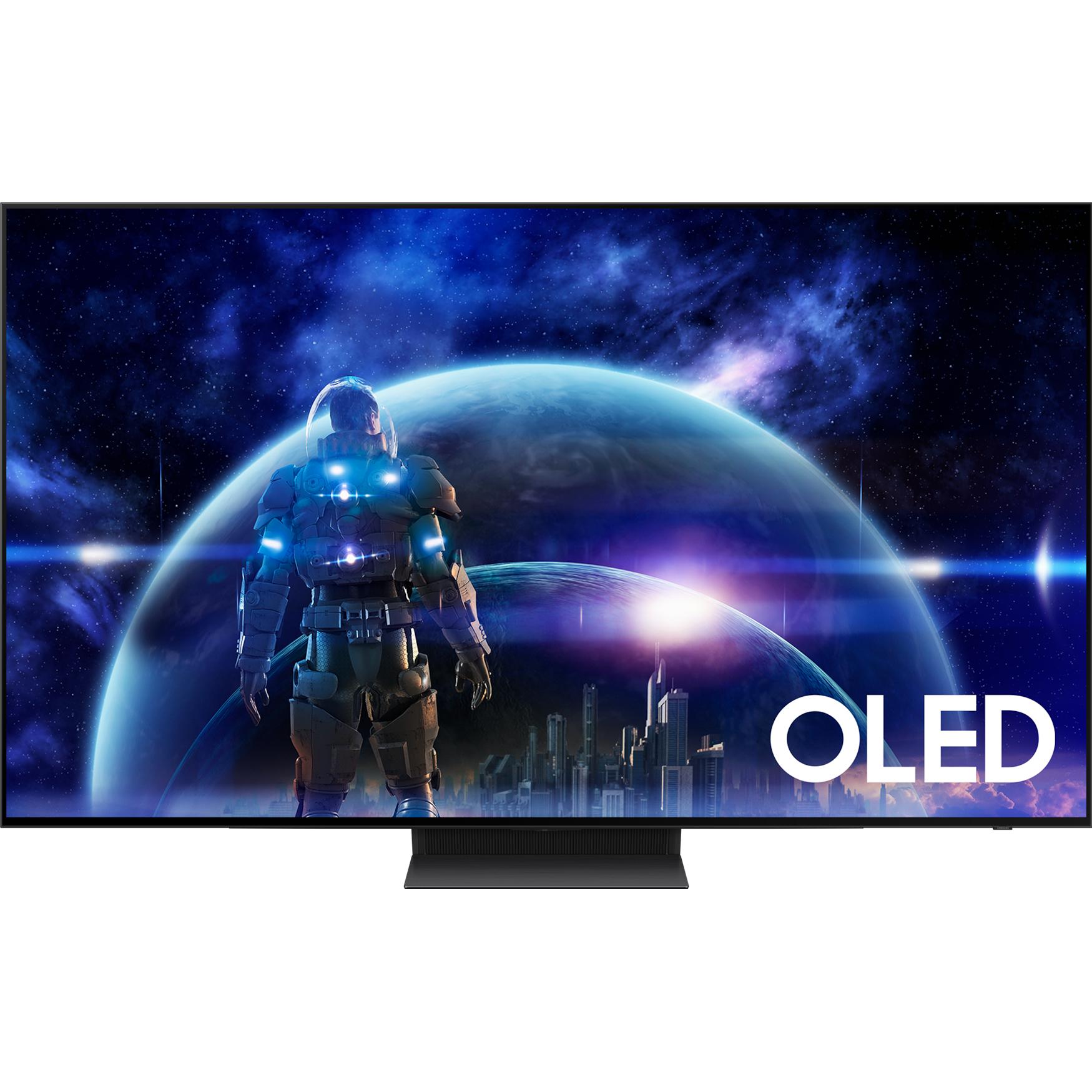

×With smart capabilities, you can easily access streaming services, apps, and more, all from the comfort of your couch. Elevate your entertainment experience with the Samsung 48-inch OLED 4K Smart TV.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series
S90DAE
Resolution
4K Ultra HD
Screen Size
48 in
Refresh Rate
120 Hz
Native Resolution
3840x2160 pixels
TV Standard
ATSC,QAM
OLED
Yes
Wi-Fi
Yes
Bluetooth
Yes
Technologies
• Picture Engine: NQ4 AI Gen2 Processor
• HDR (High Dynamic Range)
• OLED HDR
• Compatible with HDR 10+ (ADAPTIVE/GAMING)
• Contrast: Self-illuminating pixels
• Colour: Perceptional Color Mapping
• Viewing Angle: Ultra Viewing Angle
• Motion Technology: Motion Xcelerator 144Hz
• Film Mode
• Smart Calibration: Basic
• AI Upscale: 4K AI Upscaling
• Filmmaker Mode (FMM)
• Dolby Atmos
• Object Tracking Sound: OTS Lite
• Q-Symphony
• Sound Output (RMS): 20W
• Speaker Type: 2CH
• Bluetooth Audio
• Active Voice Amplifier
• Operating System: Tizen™ Smart TV
• Bixby
• Far-Field Voice Interaction
• Built-in Voice Assistant: Alexa
• Samsung TV Plus
• Works with AI Speaker: Alexa, Google Assistant
• SmartThings Hub / Matter Hub / IoT-Sensor Functionality / Quick Remote
• Samsung Health
• Universal Guide
• Media Home / Multi Device Experience: TV to Mobile, Mobile to TV, TV initiate mirroring, Sound Mirroring, Wireless TV On, Tap View
• Multi-View: up to 2 videos
• Ambient Mode: Ambient Mode+
• Virtual Communication (US Only)
• ScreenVitals
• Multi Control
• Auto Game Mode (ALLM)
• Game Motion Plus
• Dynamic Black EQ
• Surround Sound
• Super Ultra Wide Game View
• Mini Map Zoom
• FreeSync: FreeSync Premium
• HGiG
• Gaming Hub
• Wi-Fi (Wi-Fi 5)
• Bluetooth (BT5.2)
• ConnectShare™
• HDR (High Dynamic Range)
• OLED HDR
• Compatible with HDR 10+ (ADAPTIVE/GAMING)
• Contrast: Self-illuminating pixels
• Colour: Perceptional Color Mapping
• Viewing Angle: Ultra Viewing Angle
• Motion Technology: Motion Xcelerator 144Hz
• Film Mode
• Smart Calibration: Basic
• AI Upscale: 4K AI Upscaling
• Filmmaker Mode (FMM)
• Dolby Atmos
• Object Tracking Sound: OTS Lite
• Q-Symphony
• Sound Output (RMS): 20W
• Speaker Type: 2CH
• Bluetooth Audio
• Active Voice Amplifier
• Operating System: Tizen™ Smart TV
• Bixby
• Far-Field Voice Interaction
• Built-in Voice Assistant: Alexa
• Samsung TV Plus
• Works with AI Speaker: Alexa, Google Assistant
• SmartThings Hub / Matter Hub / IoT-Sensor Functionality / Quick Remote
• Samsung Health
• Universal Guide
• Media Home / Multi Device Experience: TV to Mobile, Mobile to TV, TV initiate mirroring, Sound Mirroring, Wireless TV On, Tap View
• Multi-View: up to 2 videos
• Ambient Mode: Ambient Mode+
• Virtual Communication (US Only)
• ScreenVitals
• Multi Control
• Auto Game Mode (ALLM)
• Game Motion Plus
• Dynamic Black EQ
• Surround Sound
• Super Ultra Wide Game View
• Mini Map Zoom
• FreeSync: FreeSync Premium
• HGiG
• Gaming Hub
• Wi-Fi (Wi-Fi 5)
• Bluetooth (BT5.2)
• ConnectShare™
Additional Information
• Power Supply: AC110-120V~ 50/60Hz
• Power Consumption (Max): 175 W
• Power Consumption (Stand-by): 0.5 W
• Power Consumption (Typical): 67 W
• Eco Sensor
• Auto Power Saving
• Auto Power Off
• Power Consumption (Max): 175 W
• Power Consumption (Stand-by): 0.5 W
• Power Consumption (Typical): 67 W
• Eco Sensor
• Auto Power Saving
• Auto Power Off
Inputs/Outputs
Information
• HDMI: 4
• HDMI (High Frame Rate): 4K 144Hz (for HDMI 1/2/3/4)
• USB: 2 x USB-A
• Ethernet (LAN): 1
• Digital Audio Out (Optical): 1
• RF In (Terrestrial / Cable input / Satellite input): 1 / 1 (Common Use for Terrestrial) / 0
• Ex-Link (RS-232C): 1
• HDMI Audio Return Channel: eARC
• HDMI (High Frame Rate): 4K 144Hz (for HDMI 1/2/3/4)
• USB: 2 x USB-A
• Ethernet (LAN): 1
• Digital Audio Out (Optical): 1
• RF In (Terrestrial / Cable input / Satellite input): 1 / 1 (Common Use for Terrestrial) / 0
• Ex-Link (RS-232C): 1
• HDMI Audio Return Channel: eARC
Accessories
Included
SolarCell Remote™ TM2360E
Dimensions without stand
Width
42.1 inch(es) / 106.93 cm
Height
24.41 inch(es) / 61.99 cm
Depth
1.56 inch(es) / 3.96 cm
Weight
23.37 lb(s) / 10.6 kg
Dimensions with stand
Width
42.1 inch(es) / 106.93 cm
Height
27 inch(es) / 68.59 cm
Depth
10.44 inch(es) / 26.52 cm
Weight
26.24 lb(s) / 11.9 kg
Shipping Dimensions
Width
47.32 inch(es) / 120.2 cm
Height
29.45 inch(es) / 74.8 cm
Depth
5.63 inch(es) / 14.3 cm
Weight
36.38 lb(s) / 16.5 kg
