DESCRIPTION

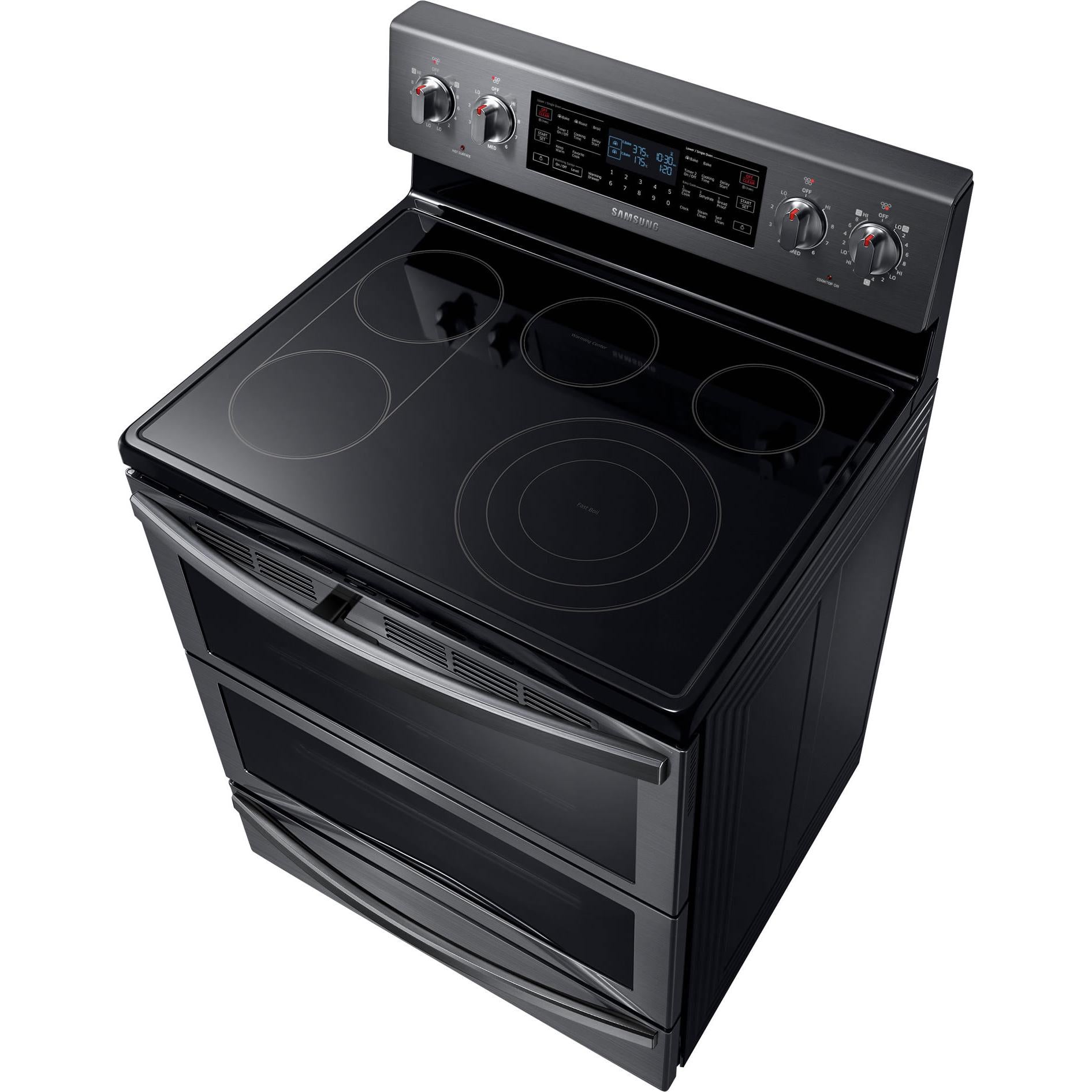

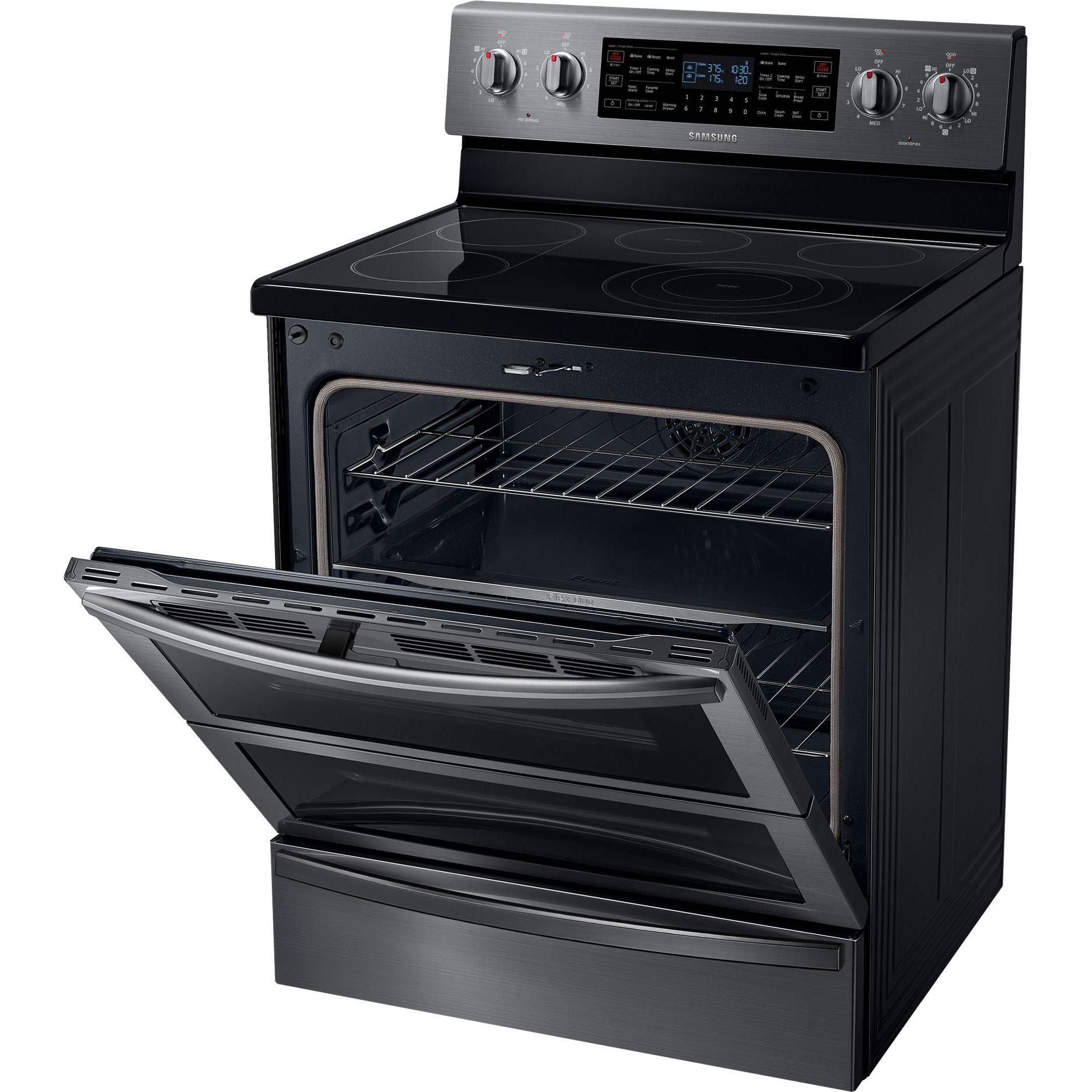

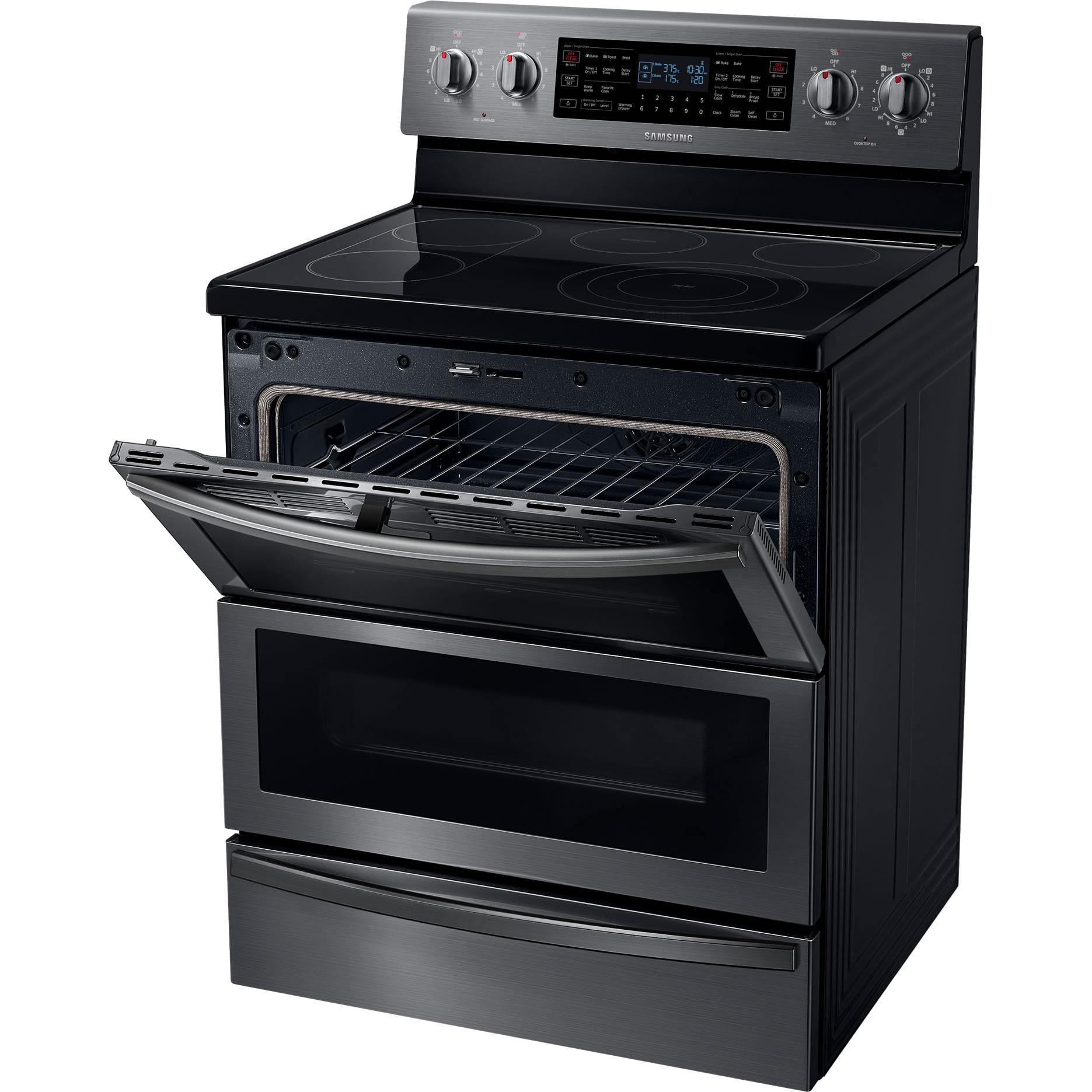

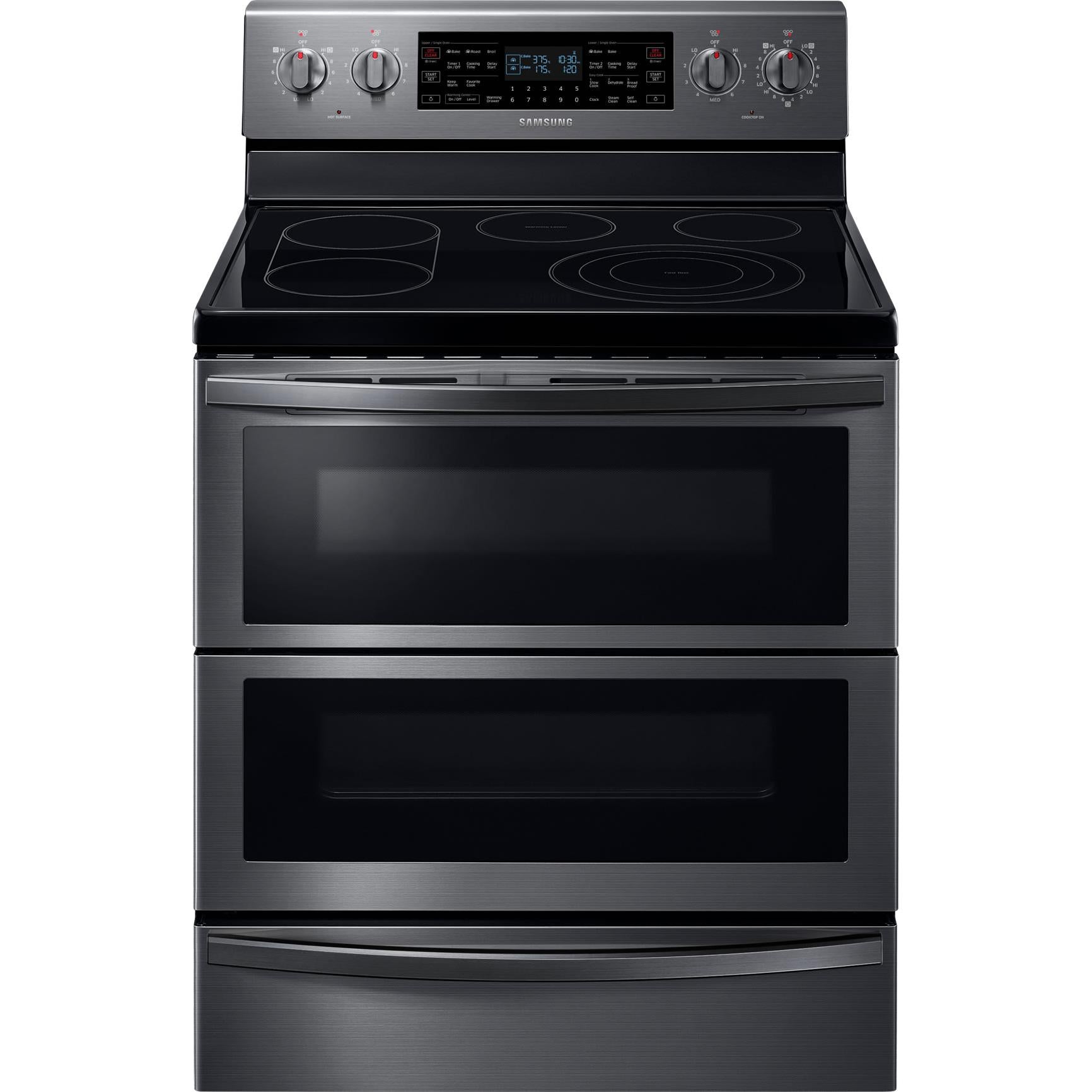

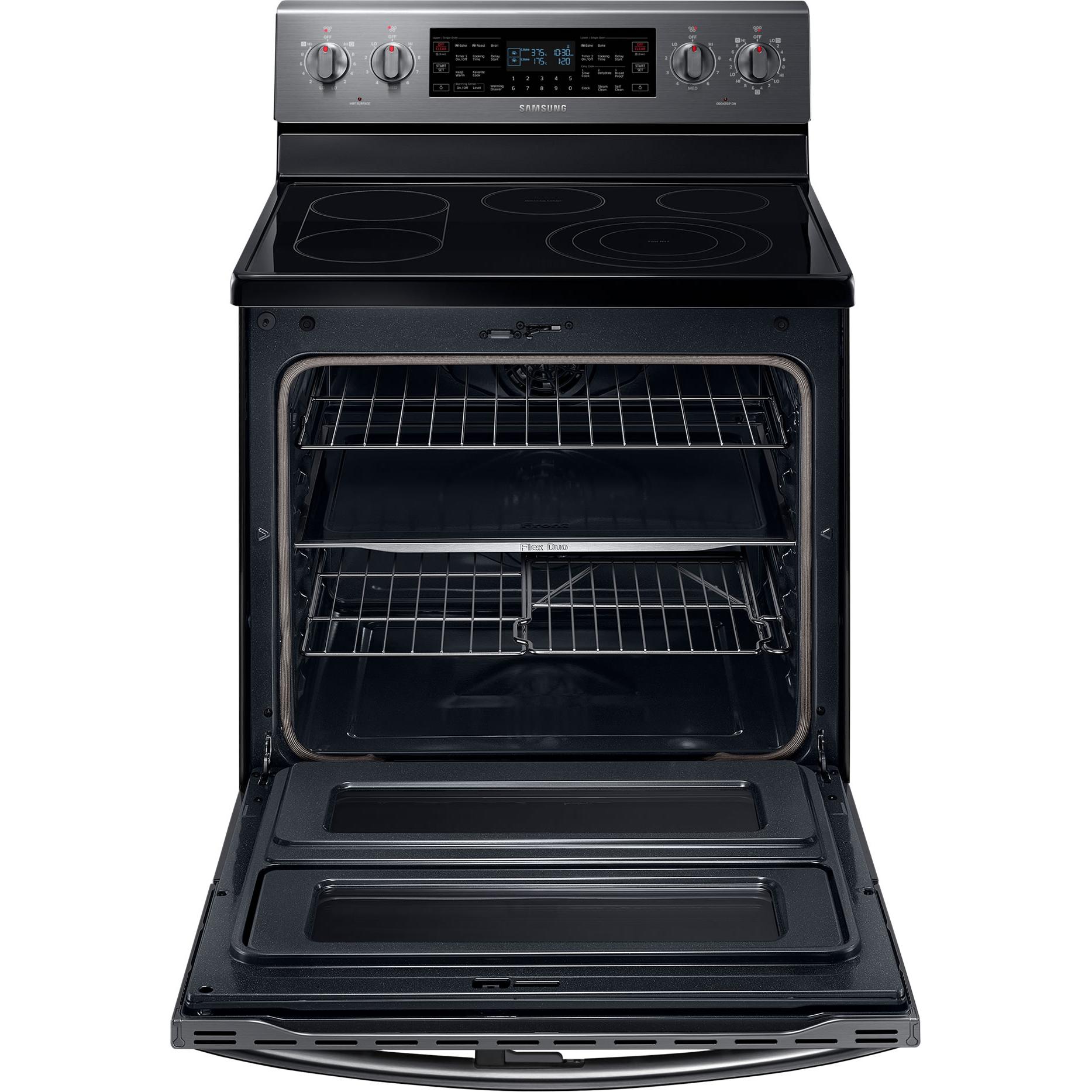

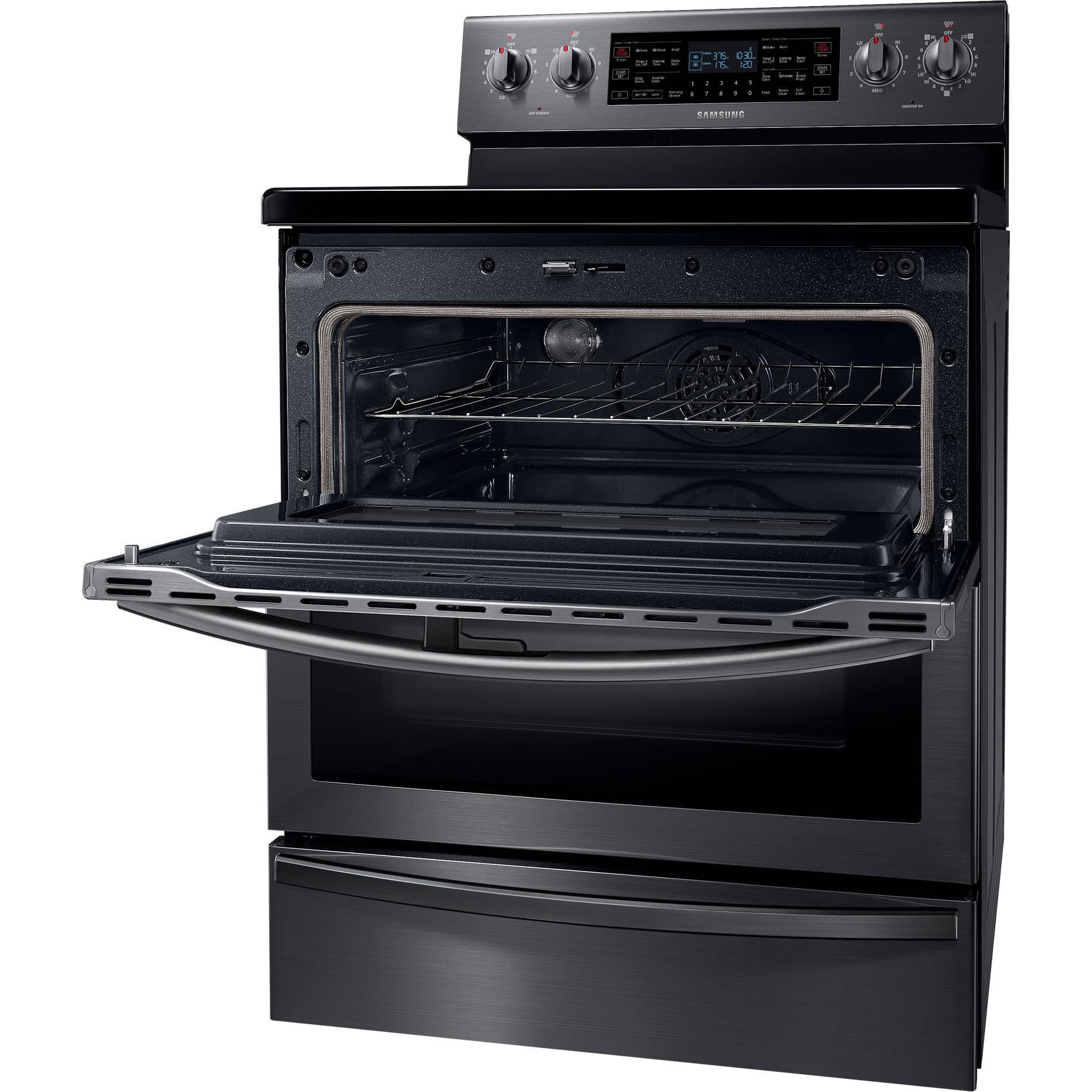

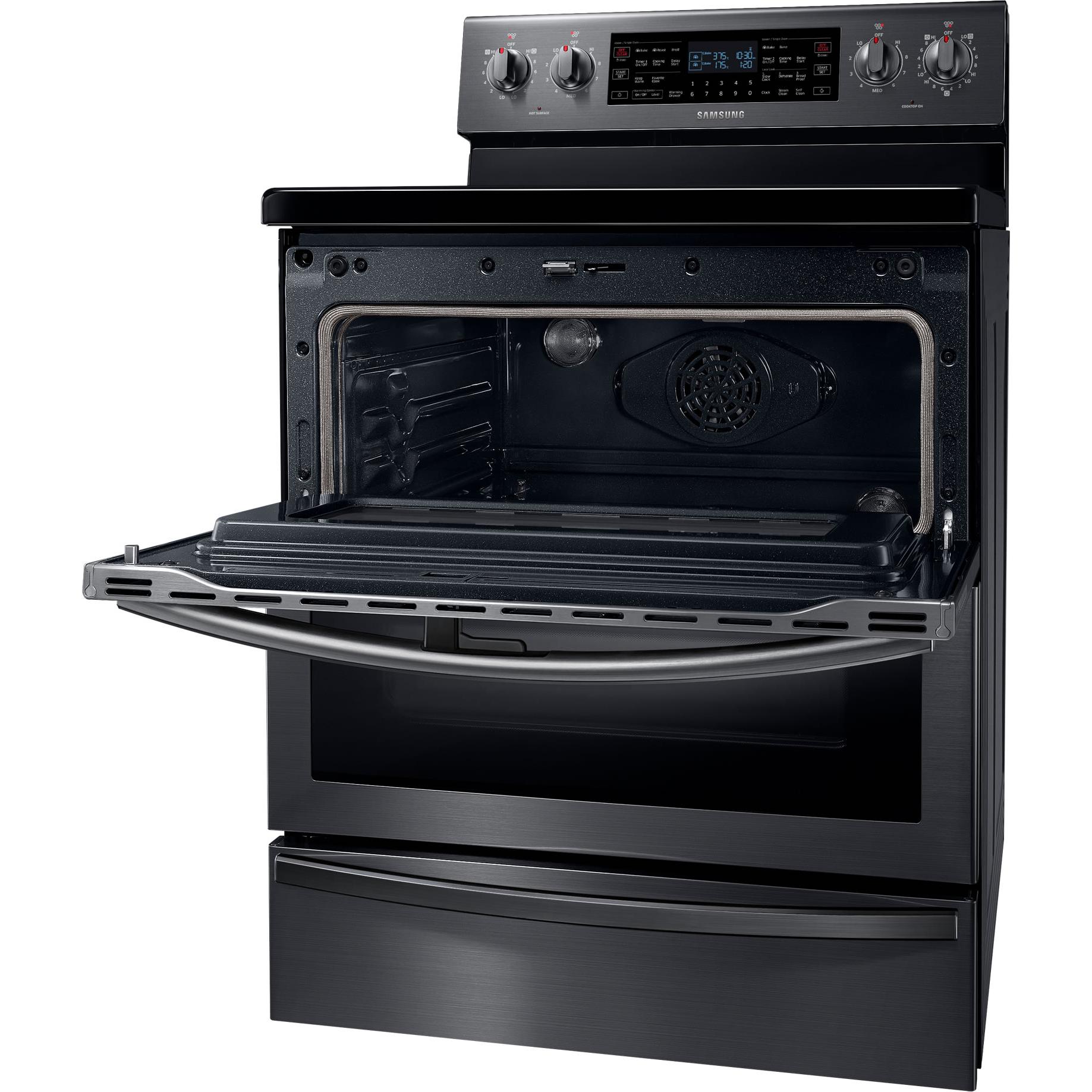

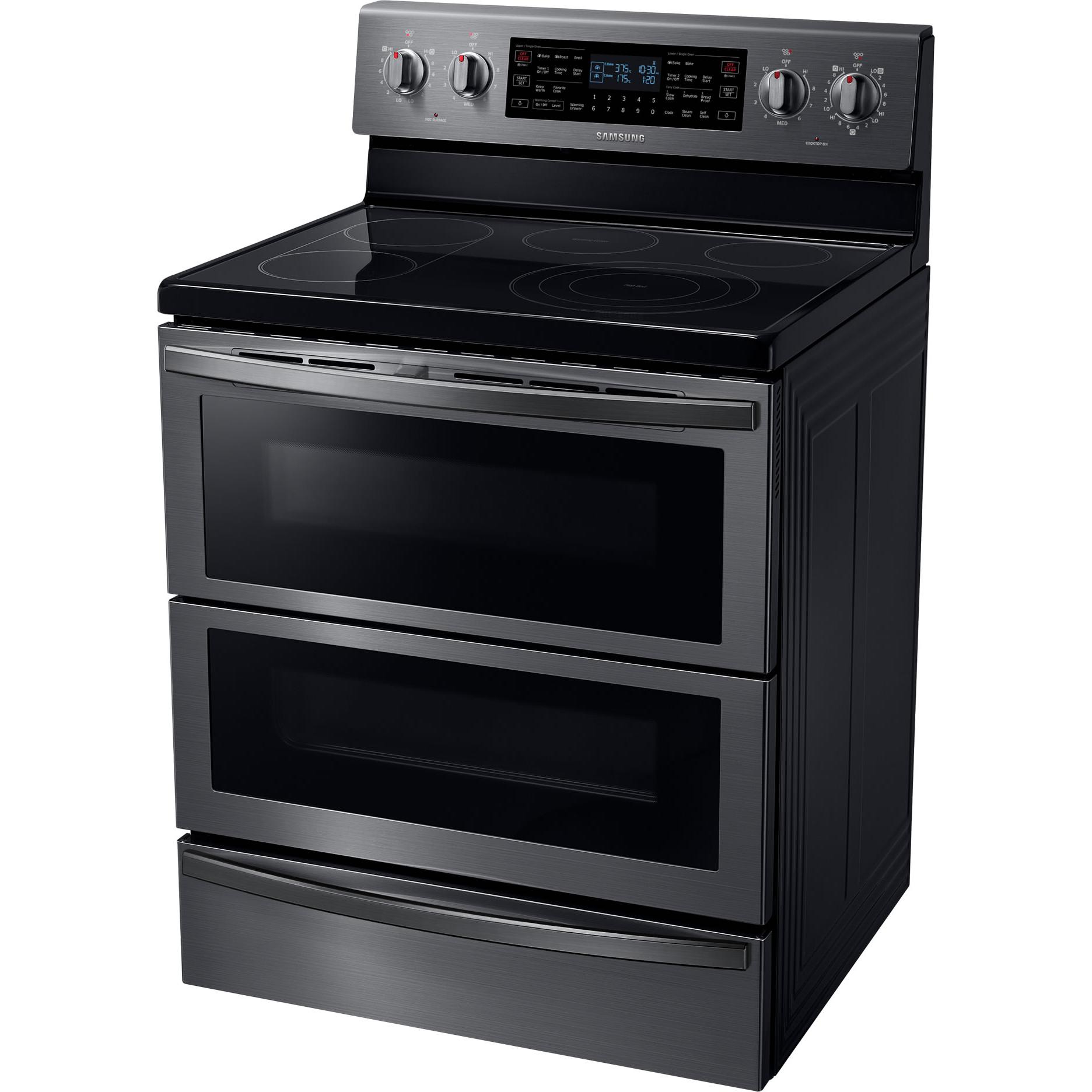

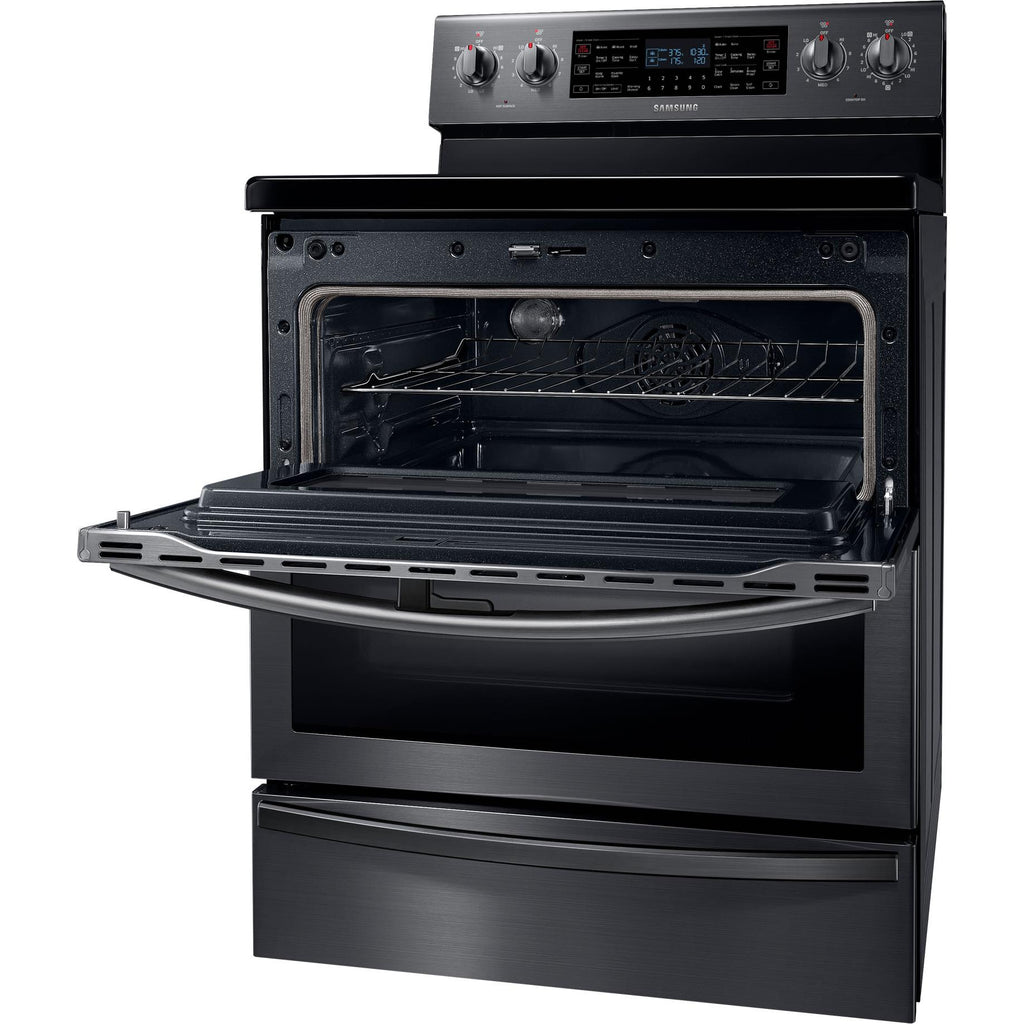

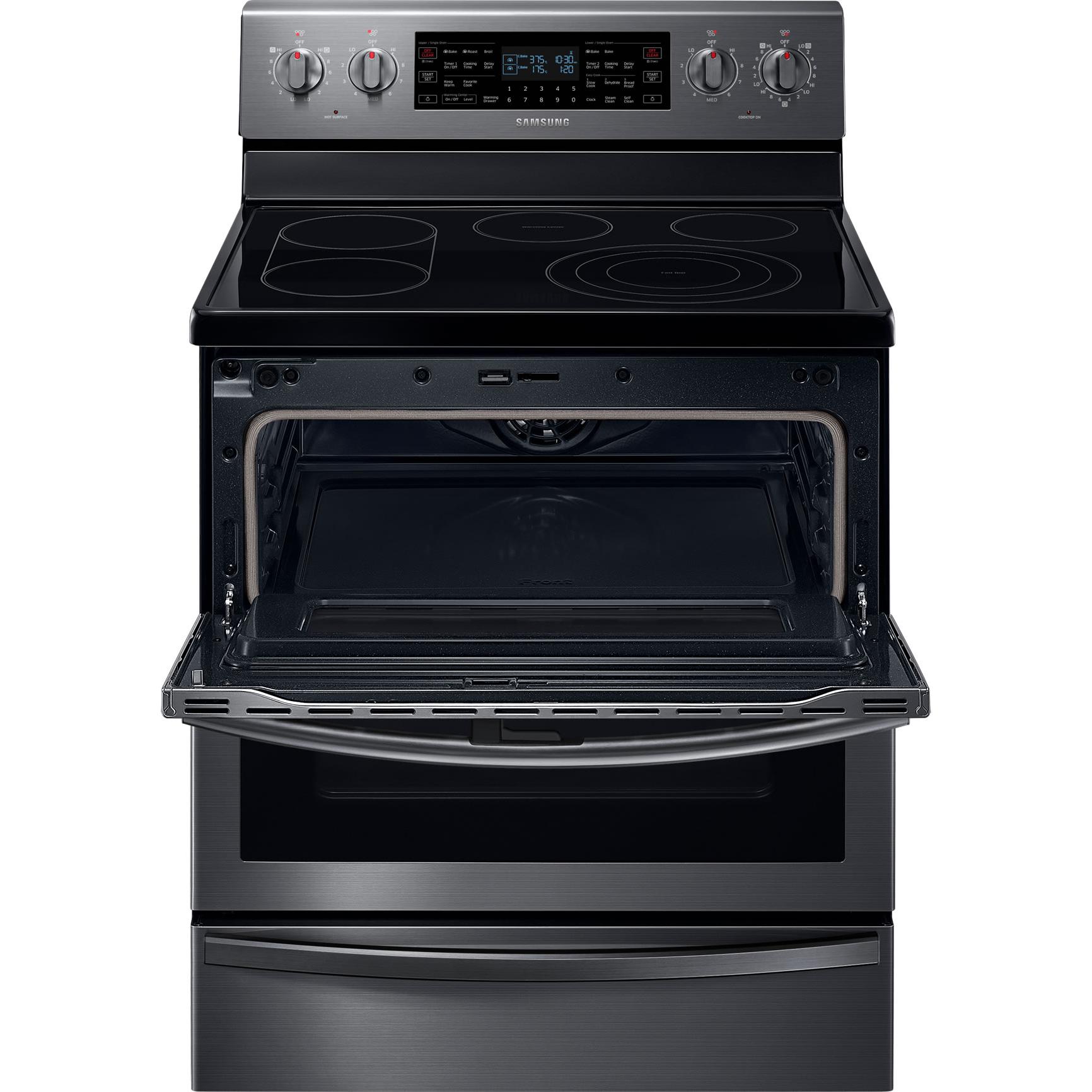

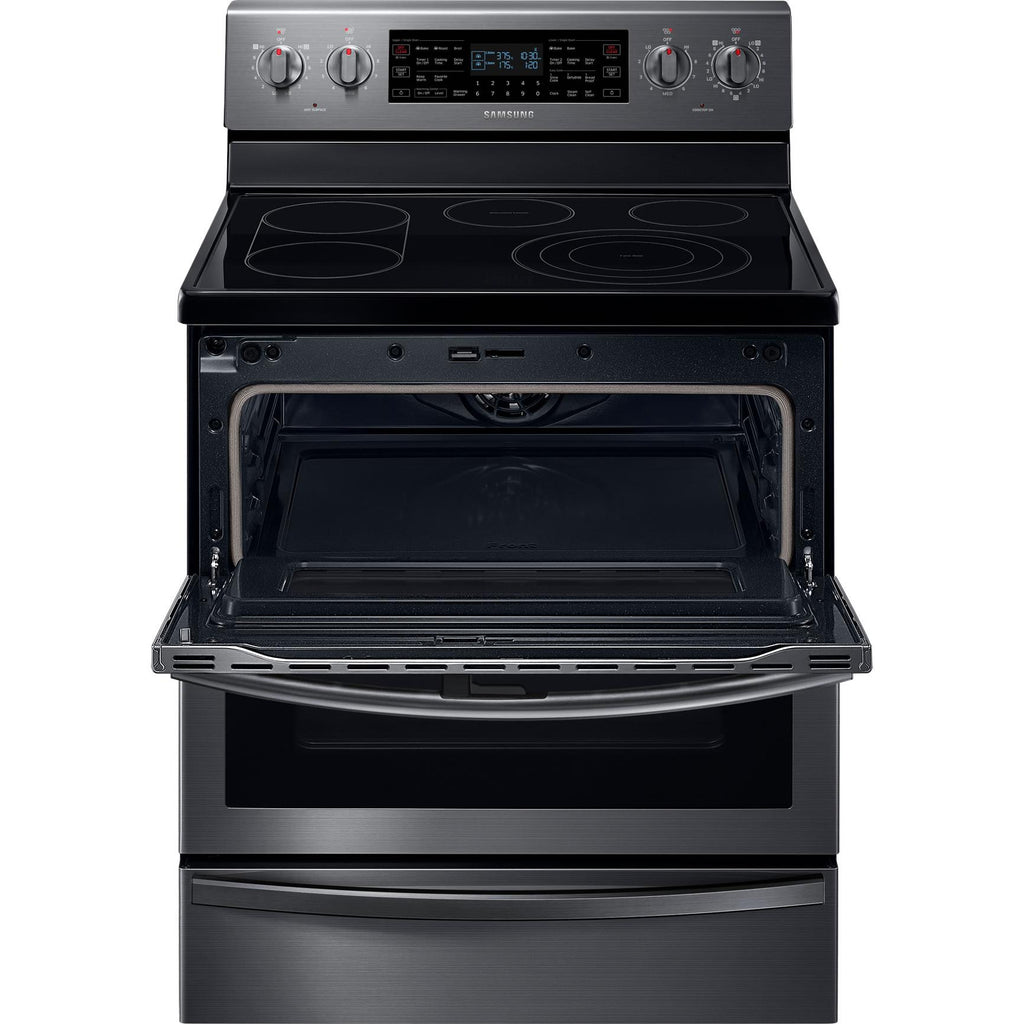

×This 30-inch wide Samsung electric range features Flex Duo™ technology with dual door, 5 cooktop elements, Convection technology and a 5.9 cu.ft. oven capacity.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Appliance Care
SteamQuick™ (20-min. Oven Cleaning) and Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Front Element: 3,000 W
• Left Front Element: 1.800 W (Bridge)
• Right Rear Element: 1.200 W
• Left Rear Element: 1.800 W (Bridge)
• Left Front Element: 1.800 W (Bridge)
• Right Rear Element: 1.200 W
• Left Rear Element: 1.800 W (Bridge)

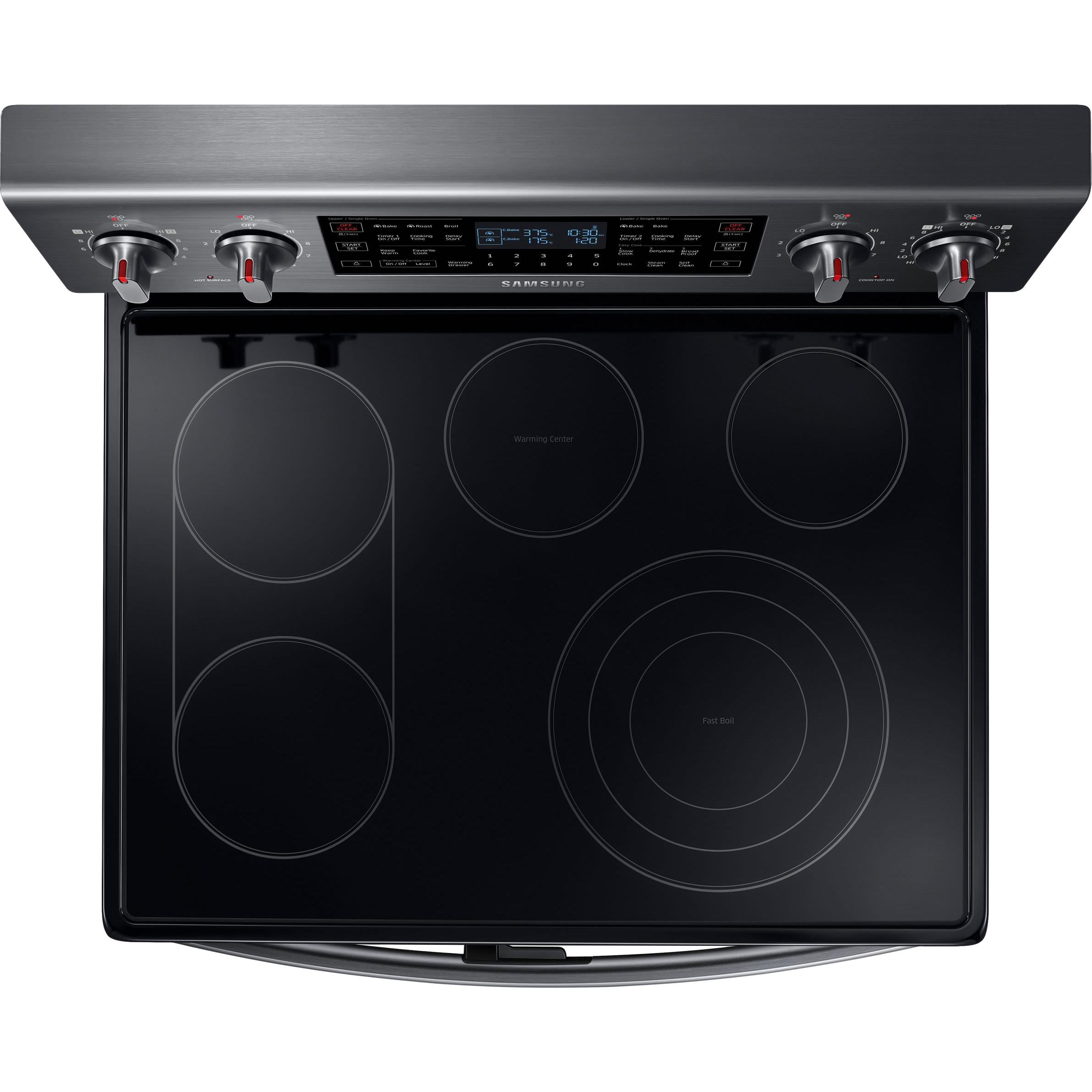

Burner/Element Size
• (1x) Triple Burner: 6"/9"/12"
• (2x) Bridged: 7"
• (1x) Single Burner: 6"
• (1x) Warming Center: 7"
• (2x) Bridged: 7"
• (1x) Single Burner: 6"
• (1x) Warming Center: 7"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.9 cu.ft.
Number of Ovens
Single
Programs
• Bake: 175°F–550°F
• Convection Bake: 175°F–550°F
• Convection Roast: 175°F–550°F
• Broil: Low/High
• Convection Element/Heater: 1250 W
• Proofing
• Sabbath Mode
• Convection Bake: 175°F–550°F
• Convection Roast: 175°F–550°F
• Broil: Low/High
• Convection Element/Heater: 1250 W
• Proofing
• Sabbath Mode
Features
Technologies
• Flex Duo™ Oven
• SteamQuick™
• Convection Technology
• SteamQuick™
• Convection Technology
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Hidden Bake Element
• Warming Drawer Heating Performance: 600 W (4 Pass)
• Warming Drawer Temperature Settings: High, Medium, Low
• Auto Oven Light

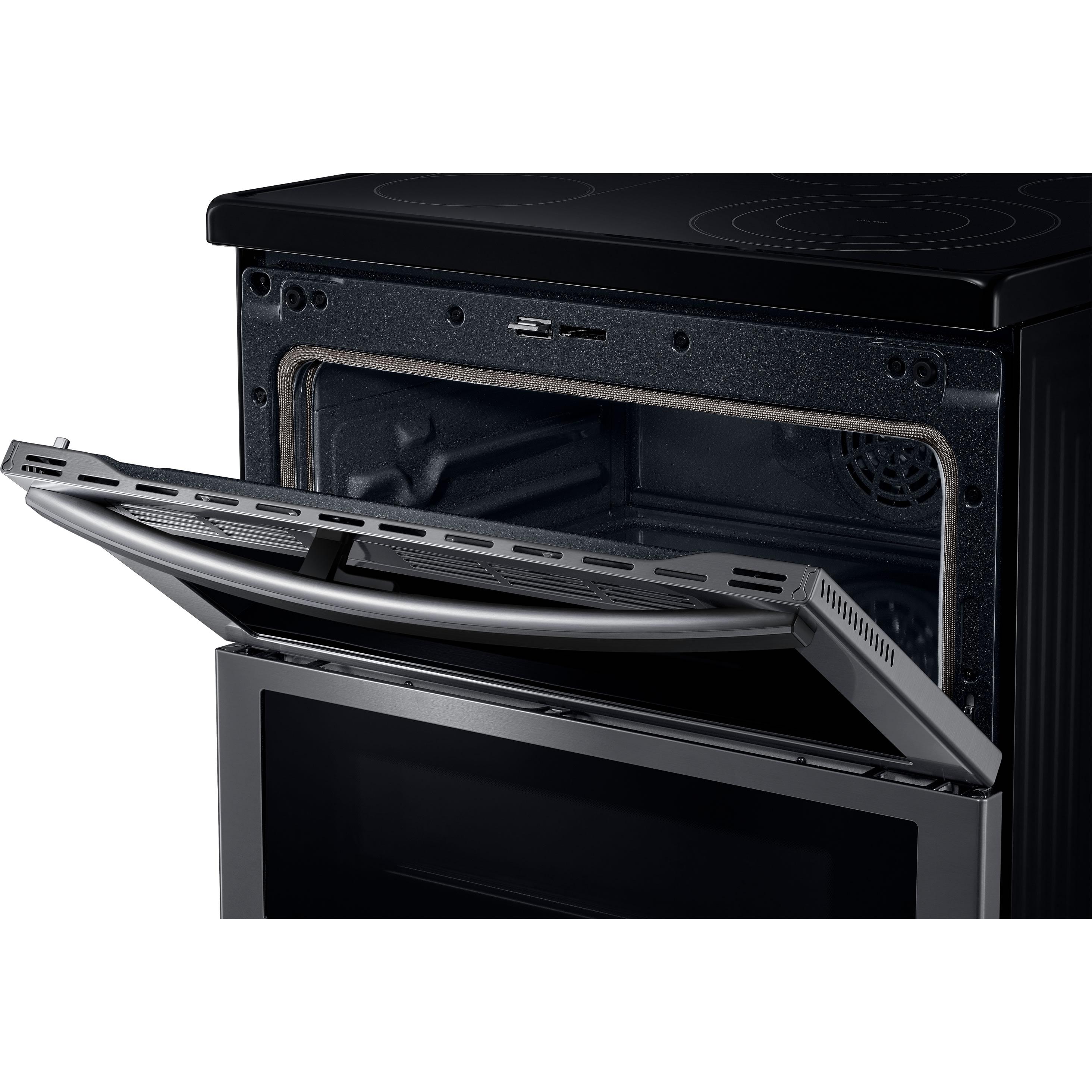

• Soft-Close Door
• Three Preset Easy Cook Options

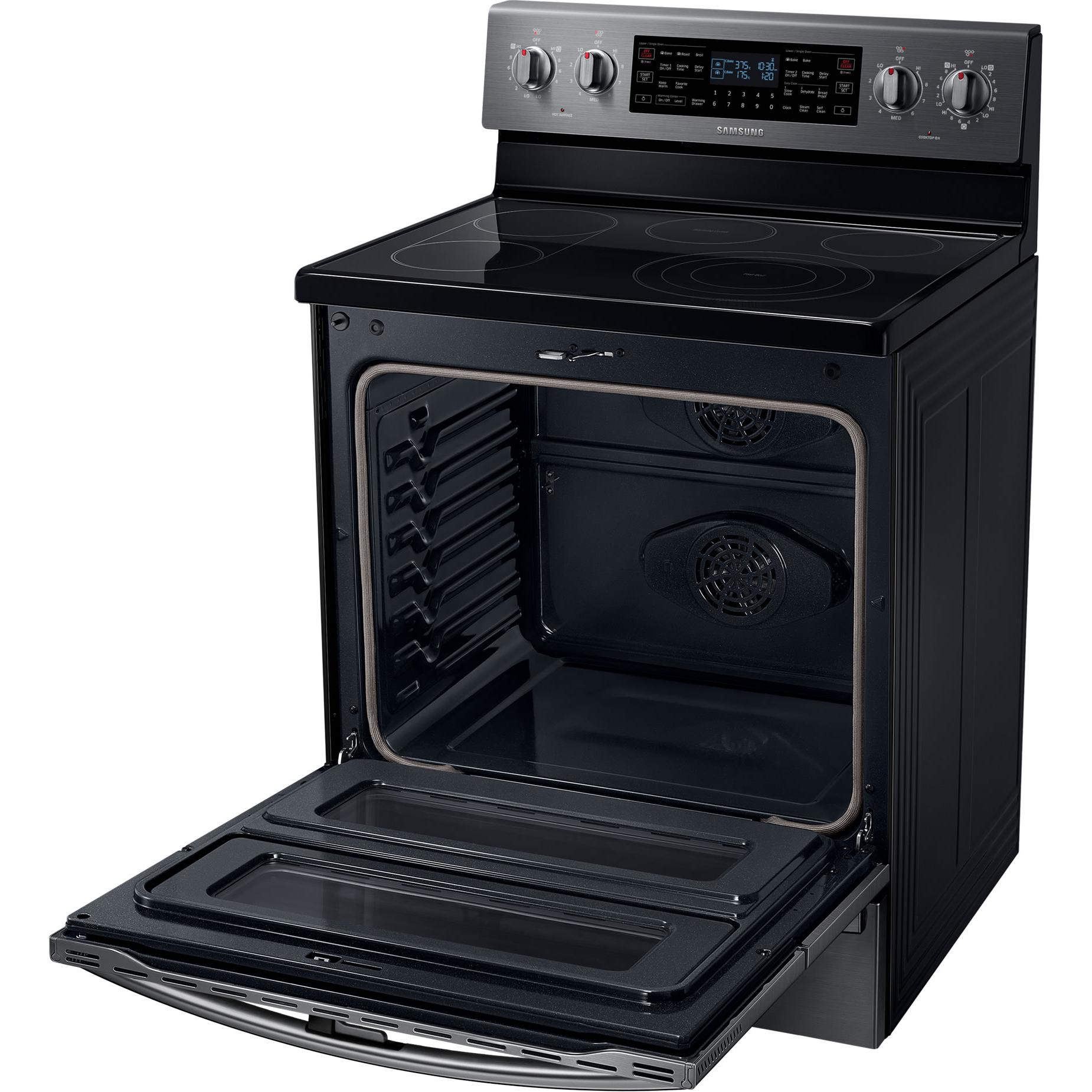

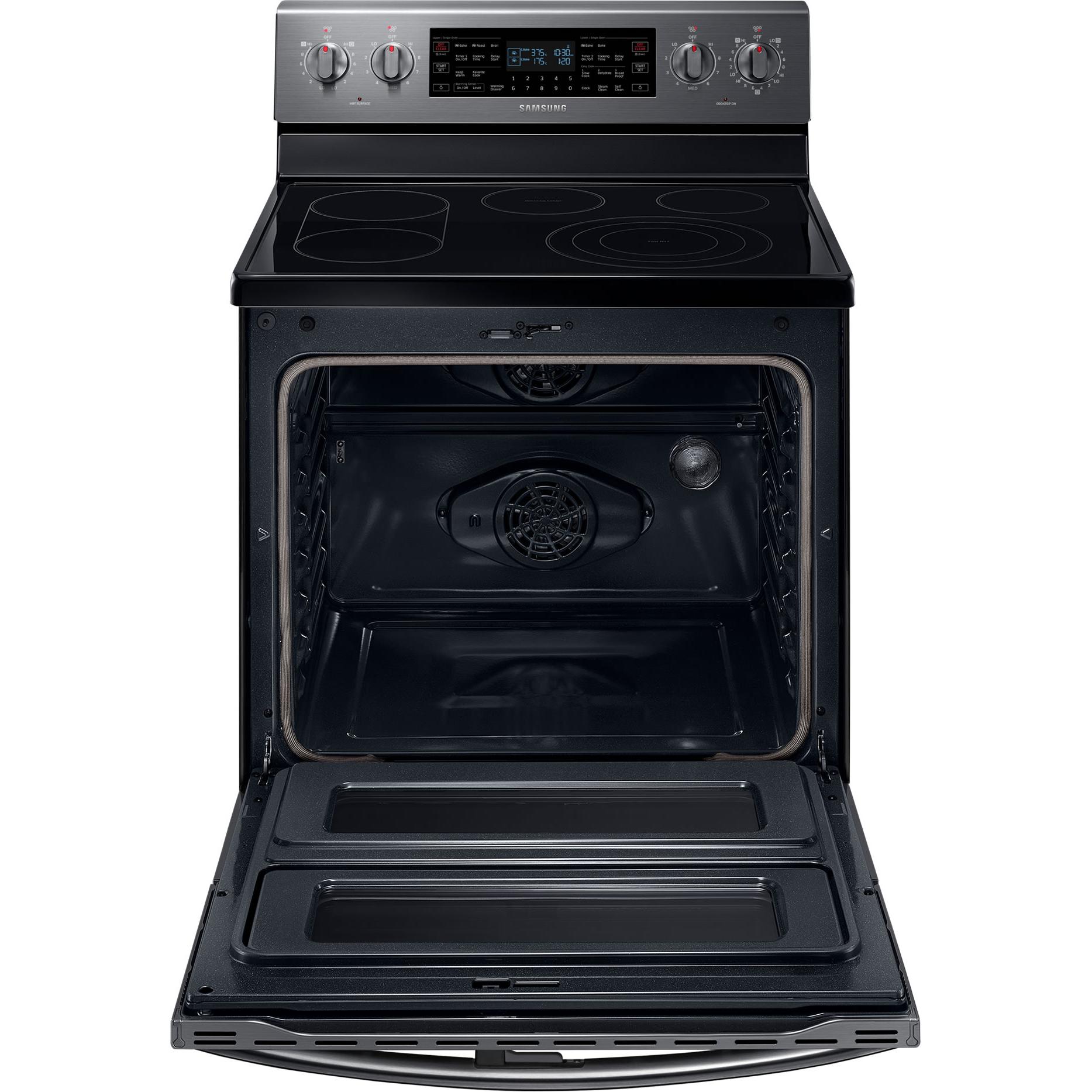

• Large 5.9 cu.ft. Convection Oven Splits into Two Cavities with a Removable Smart Divider: 2.6 cu.ft. Upper, 3.2 cu.ft. Lower
• Dual Convection Oven: Top Fan Convection, Bottom: True Convection
• Warming Drawer Heating Performance: 600 W (4 Pass)
• Warming Drawer Temperature Settings: High, Medium, Low
• Auto Oven Light
• Soft-Close Door
• Three Preset Easy Cook Options
• Large 5.9 cu.ft. Convection Oven Splits into Two Cavities with a Removable Smart Divider: 2.6 cu.ft. Upper, 3.2 cu.ft. Lower
• Dual Convection Oven: Top Fan Convection, Bottom: True Convection

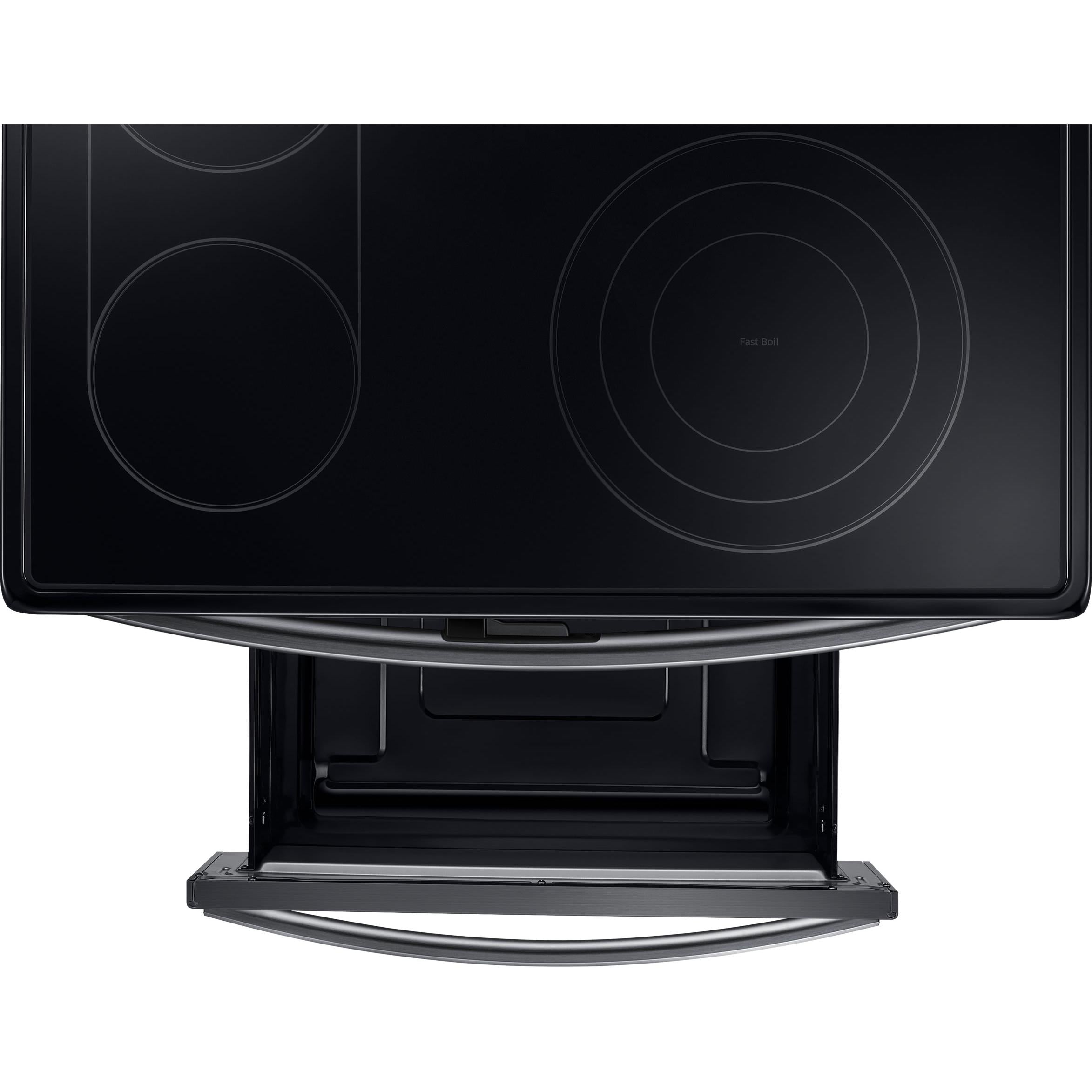

Drawer Features
Capacity
1.4 cu. ft.
Power
600 W
Warming
Yes
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.09 inch(es) / 119.61 cm
Depth (Without Handles)
25.97 inch(es) / 65.96 cm
Weight
192.71 lb(s) / 87.41 kg
Additional Dimensions
Actual Oven Dimensions: 25" x 20 25/32" x 18 15/16"
Shipping Dimensions
Width
33.03 inch(es) / 83.89 cm
Height
50.39 inch(es) / 127.99 cm
Depth
30.28 inch(es) / 76.91 cm
Weight
216.89 lb(s) / 98.38 kg
Warranty
Warranty
• One (1) Year All Parts and Labor
• Five (5) Years Electric Cooktop
• Five (5) Years Electric Cooktop
UPC
UPC#
887276381312
