DESCRIPTION

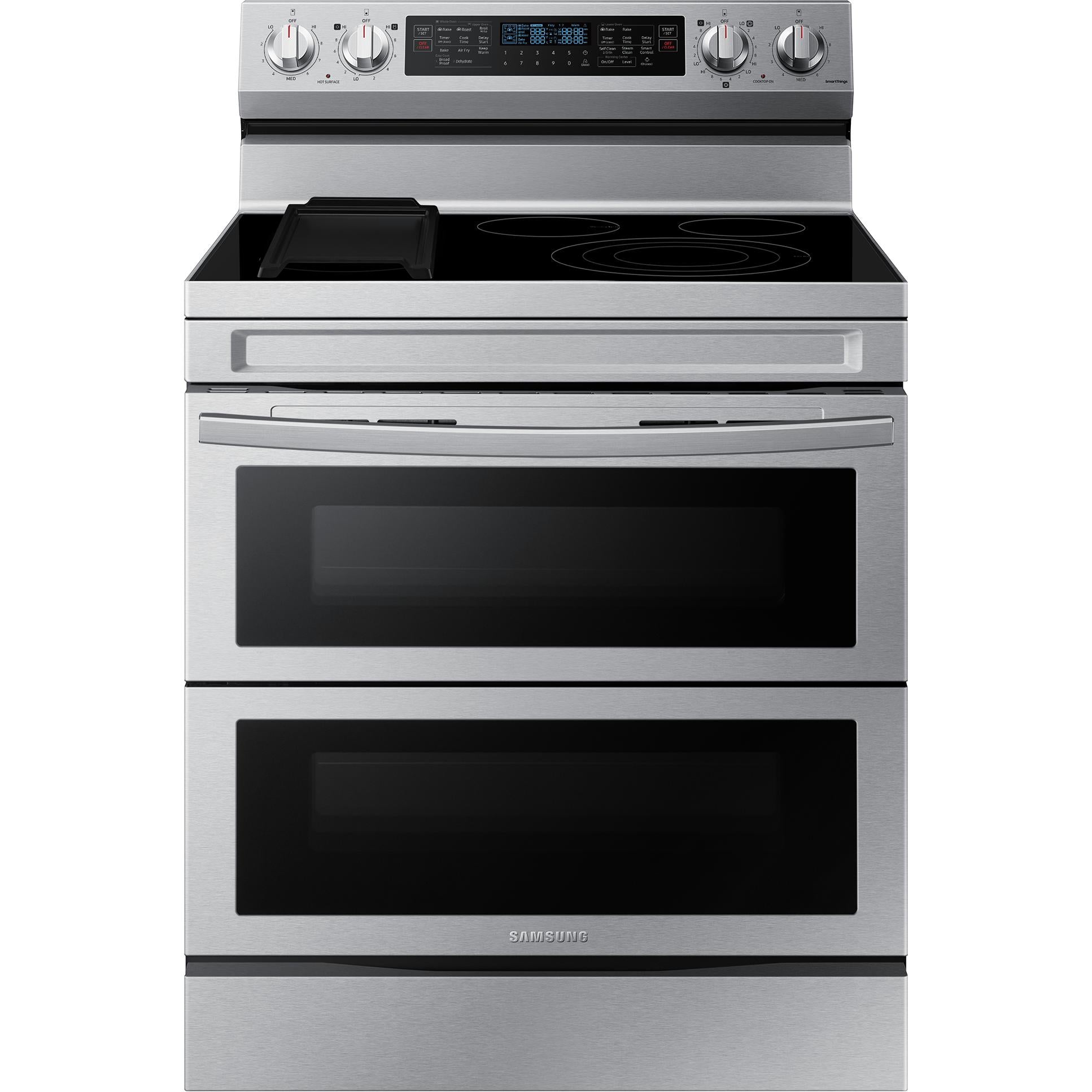

×Samsung 6.3 cu.ft. electric range with Air Fry and Flex Duo™. Give your kitchen a modern look. The oven's frame is made of stainless steel with flat and narrow bezels to keep the oven looking sleek and stylish while the solid metal edges provide added durability. Save time and do more with Wi-Fi Connectivity. Control the oven with your voice using a voice assistant, such as Samsung Bixby, Amazon Alexa or Google Assistant. Or simply monitor and control the oven using the SmartThings App.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Self Clean
• Steam Clean
• Steam Clean

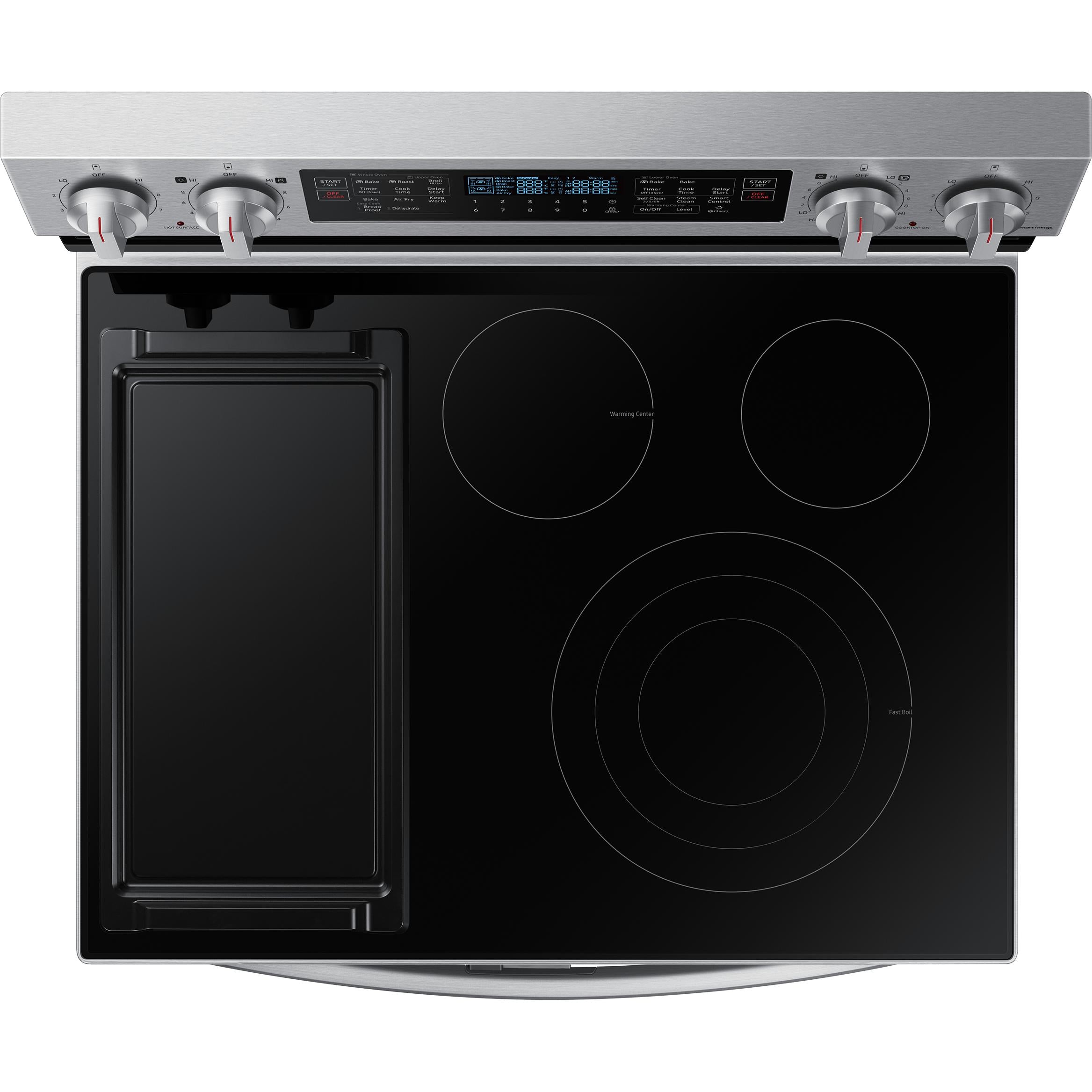

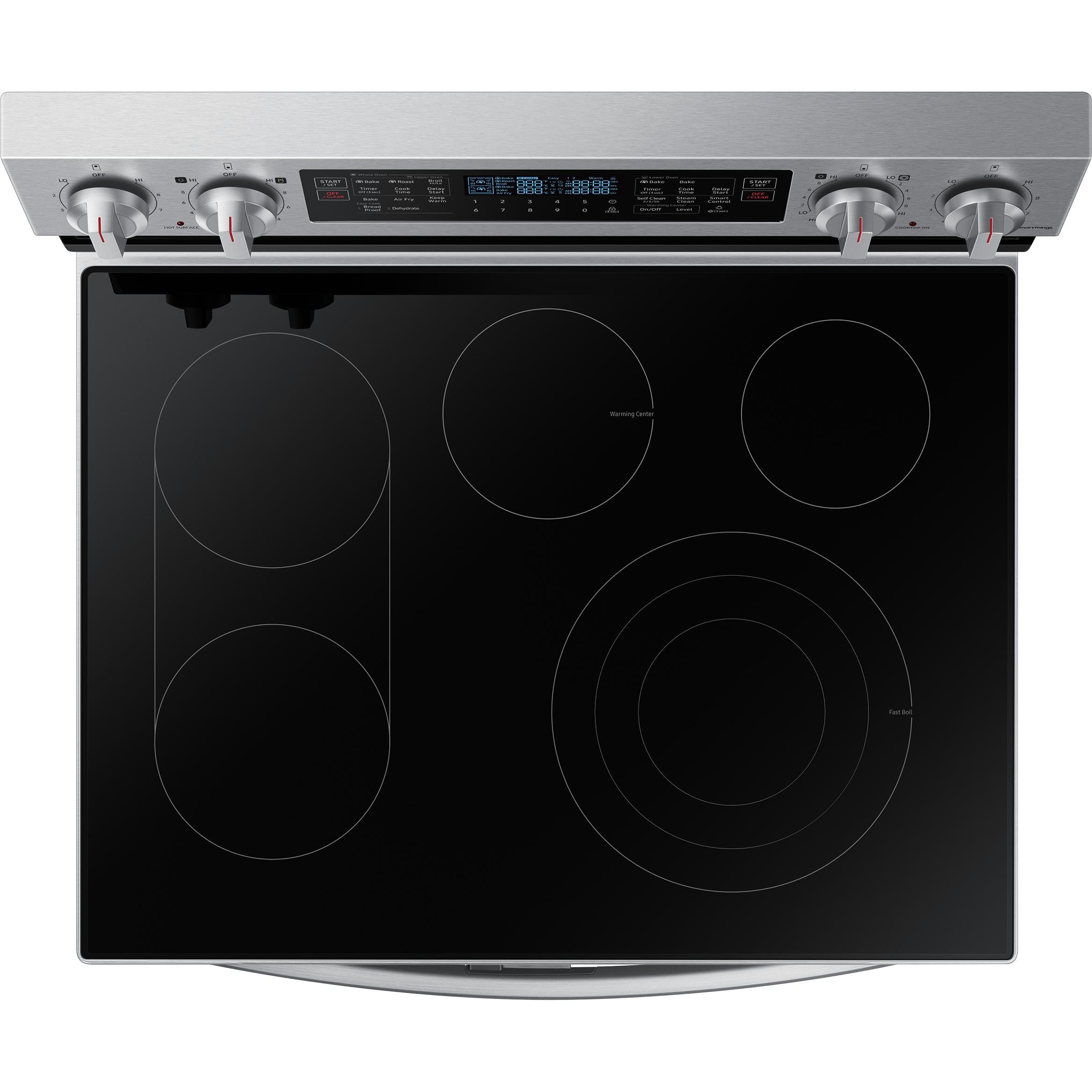

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front: 1800 W (Bridge: 2600 W)
• Left Rear: 1800 W
• Right Front: 3000 W
• Right Rear: 1200 W
• Warm Zone: 100 W
• Left Rear: 1800 W
• Right Front: 3000 W
• Right Rear: 1200 W
• Warm Zone: 100 W
Burner/Element Size
• Left Front: 7"
• Left Rear: 7"
• Right Front: 6"/9"/12"
• Right Rear: 6"
• Left Rear: 7"
• Right Front: 6"/9"/12"
• Right Rear: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Total Capacity: 6.3 cu.ft
• Upper Oven Capacity: 3.4 cu.ft
• Lower Oven Capacity: 2.7 cu.ft
• Upper Oven Capacity: 3.4 cu.ft
• Lower Oven Capacity: 2.7 cu.ft
Number of Ovens
Double
Programs
• Bake (Single): 175°F (80°C) - 550°F (285°C)
• Bake (Lower): 175°F (80°C) - 480°F (250°C)
• Convection Bake (Single): 175°F (80°C) - 550°F (285°C)
• Convection Bake (Upper): 175°F (80°C) - 480°F (250°C)
• Convection Bake (Lower): 175°F (80°C) - 480°F (250°C)
• Convection Roast (Single): 175°F (80°C) - 550°F (285°C)
• Convection Roast (Upper): 175°F (80°C) - 480°F (250°C)
• Bake (Lower): 175°F (80°C) - 480°F (250°C)
• Convection Bake (Single): 175°F (80°C) - 550°F (285°C)
• Convection Bake (Upper): 175°F (80°C) - 480°F (250°C)
• Convection Bake (Lower): 175°F (80°C) - 480°F (250°C)
• Convection Roast (Single): 175°F (80°C) - 550°F (285°C)
• Convection Roast (Upper): 175°F (80°C) - 480°F (250°C)
Features
Technologies

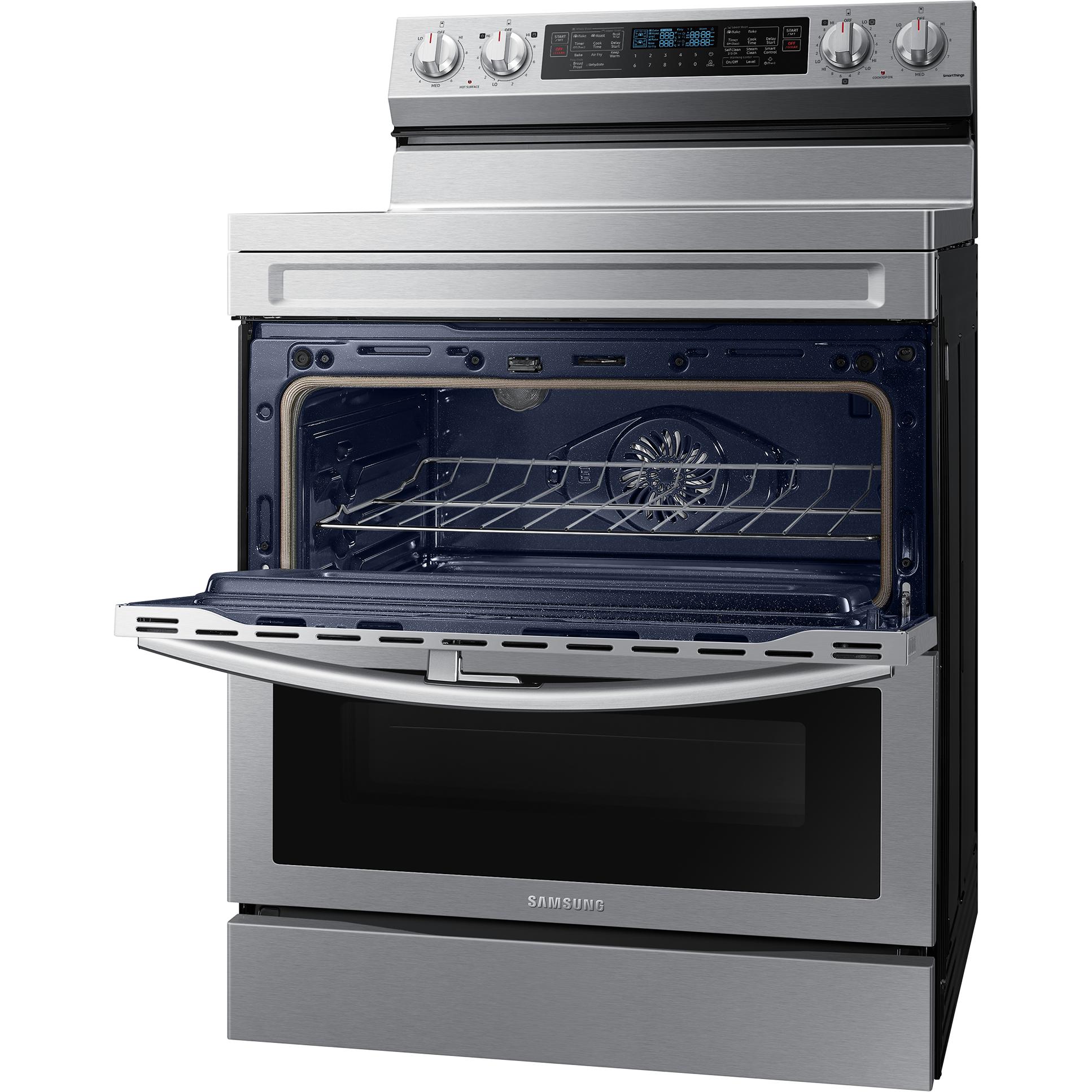

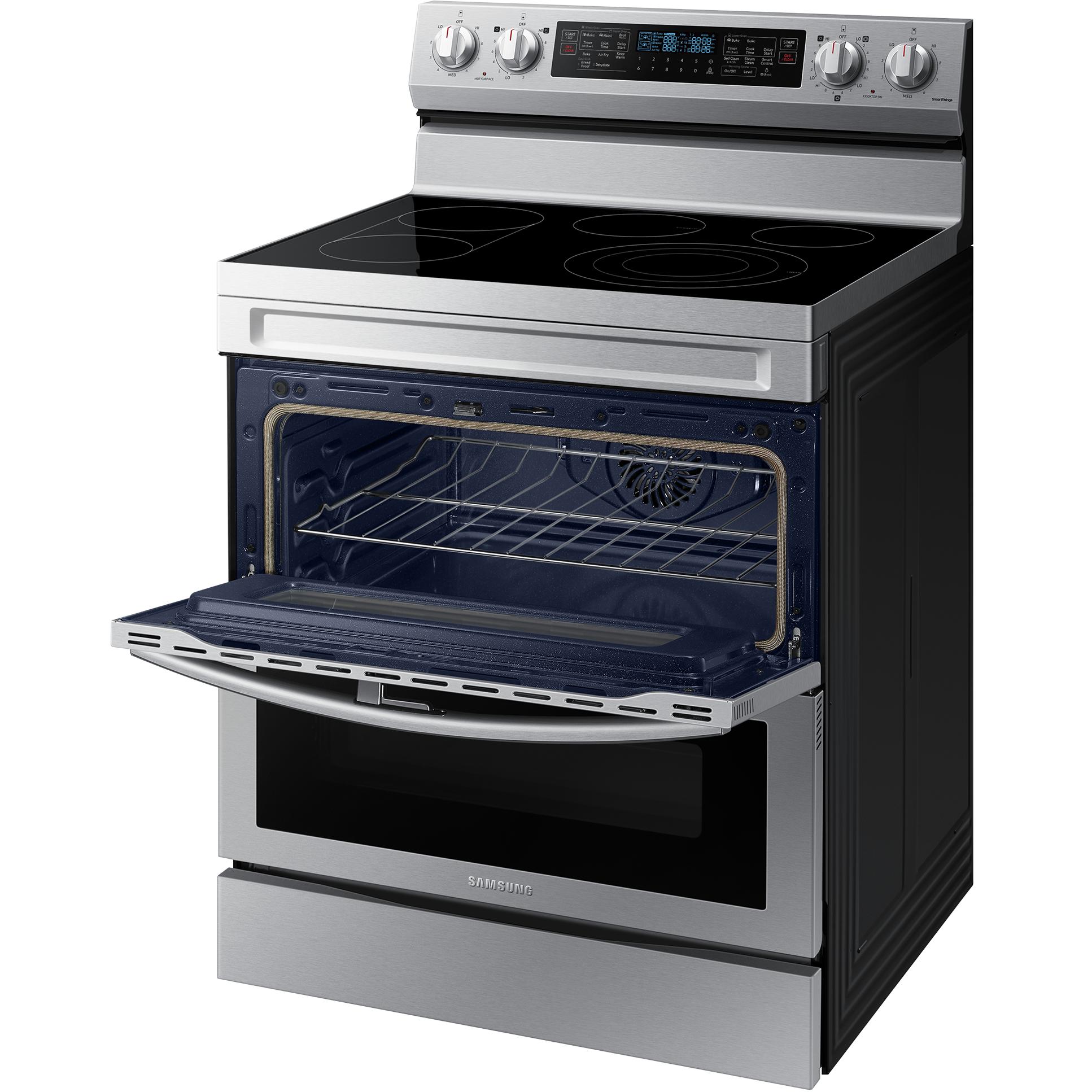

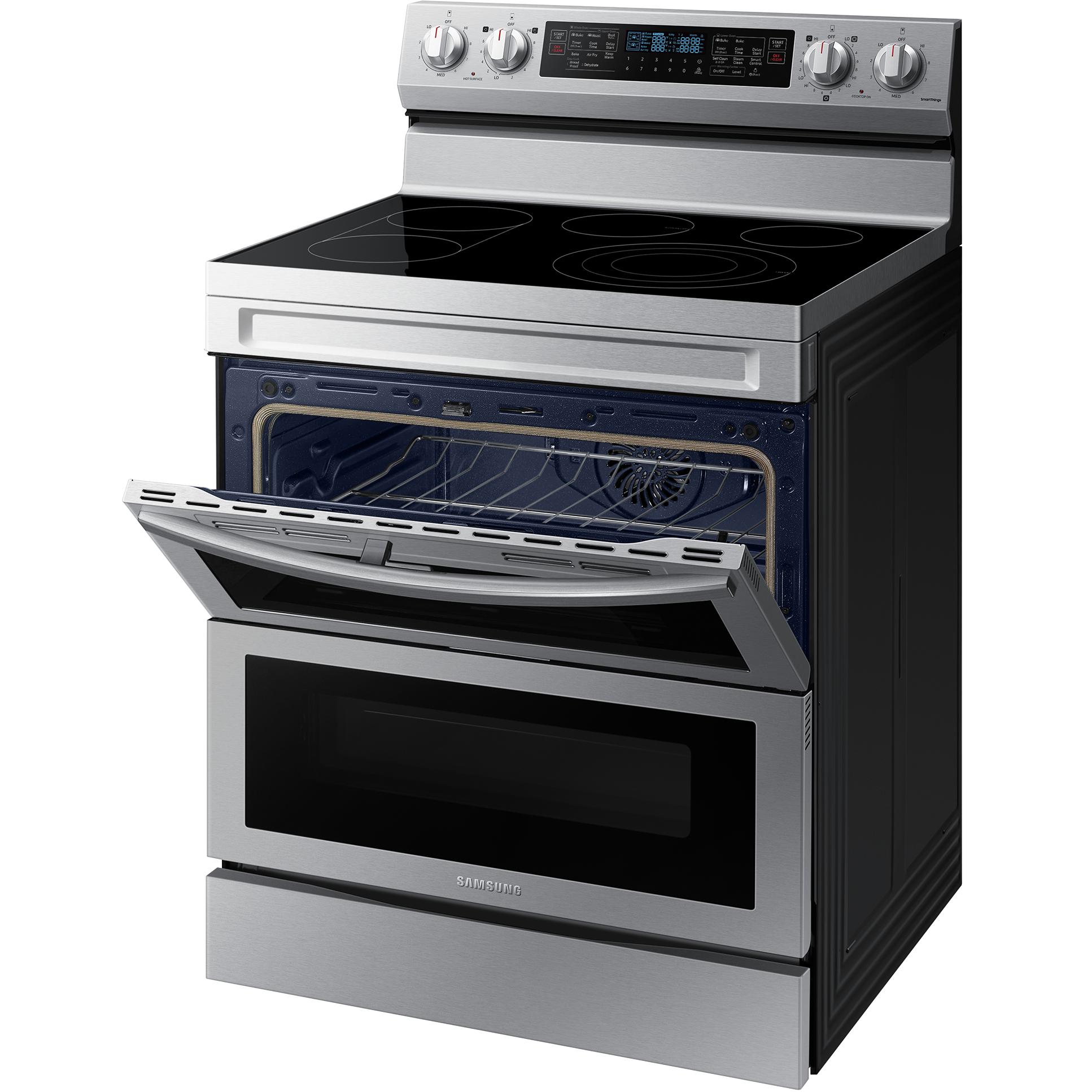

• Flex Duo™ with Dual Door
• Wi-Fi Connectivity: Voice assistant (Samsung Bixby, Amazon Alexa, Google Assistant)
• SmartThings App Support
• Wi-Fi Connectivity: Voice assistant (Samsung Bixby, Amazon Alexa, Google Assistant)
• SmartThings App Support
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• 3 ways to cook Oven: Single, Upper, Lower
• Premium Stainless Design

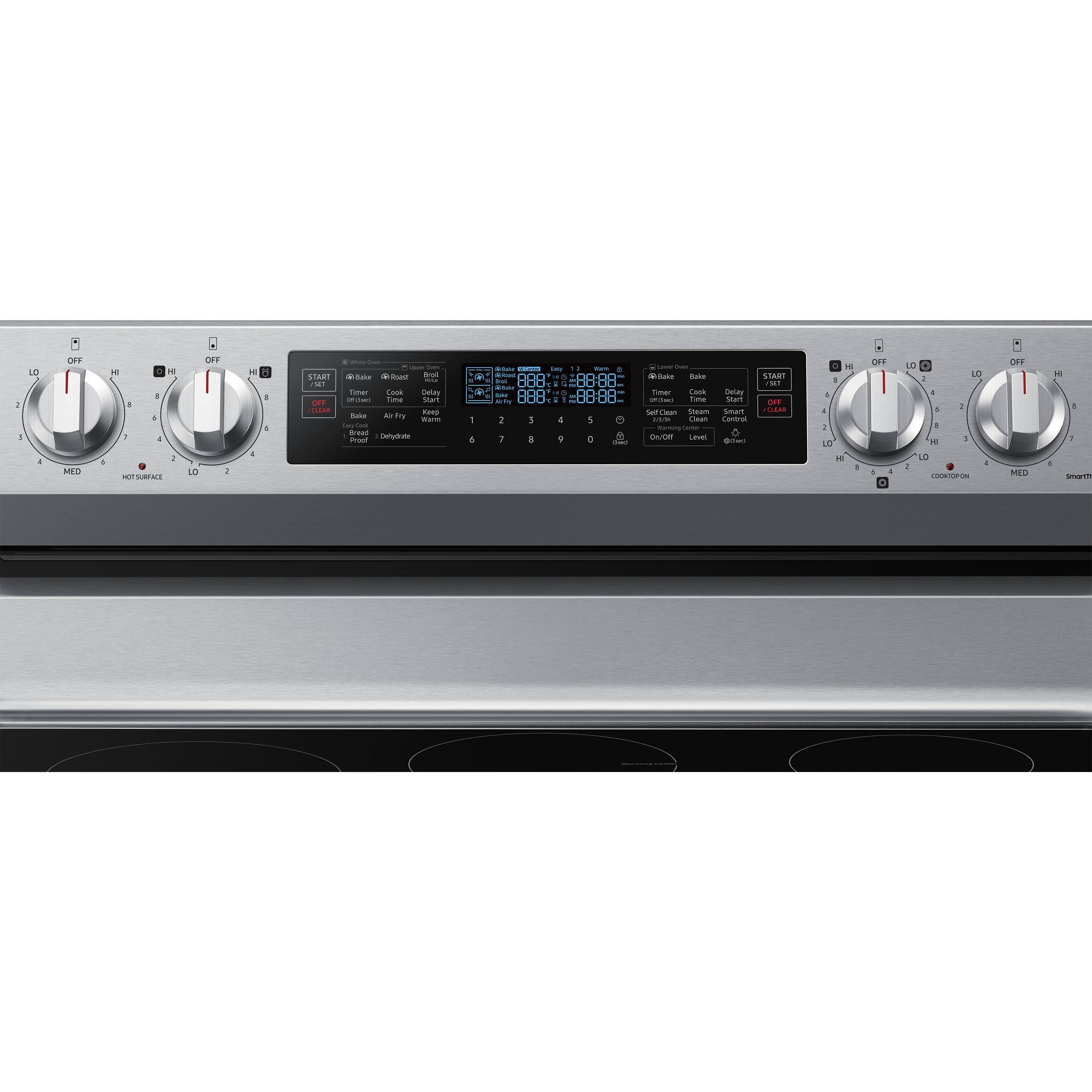

• Cooktop Control Type: Knob
• Hot Surface Indicator
• LED Display Color: Ice Blue
• Soft Closing Door
• Hidden Bake Element
• Auto Oven Light
• Interior Light: 2 Incandescent 40 W

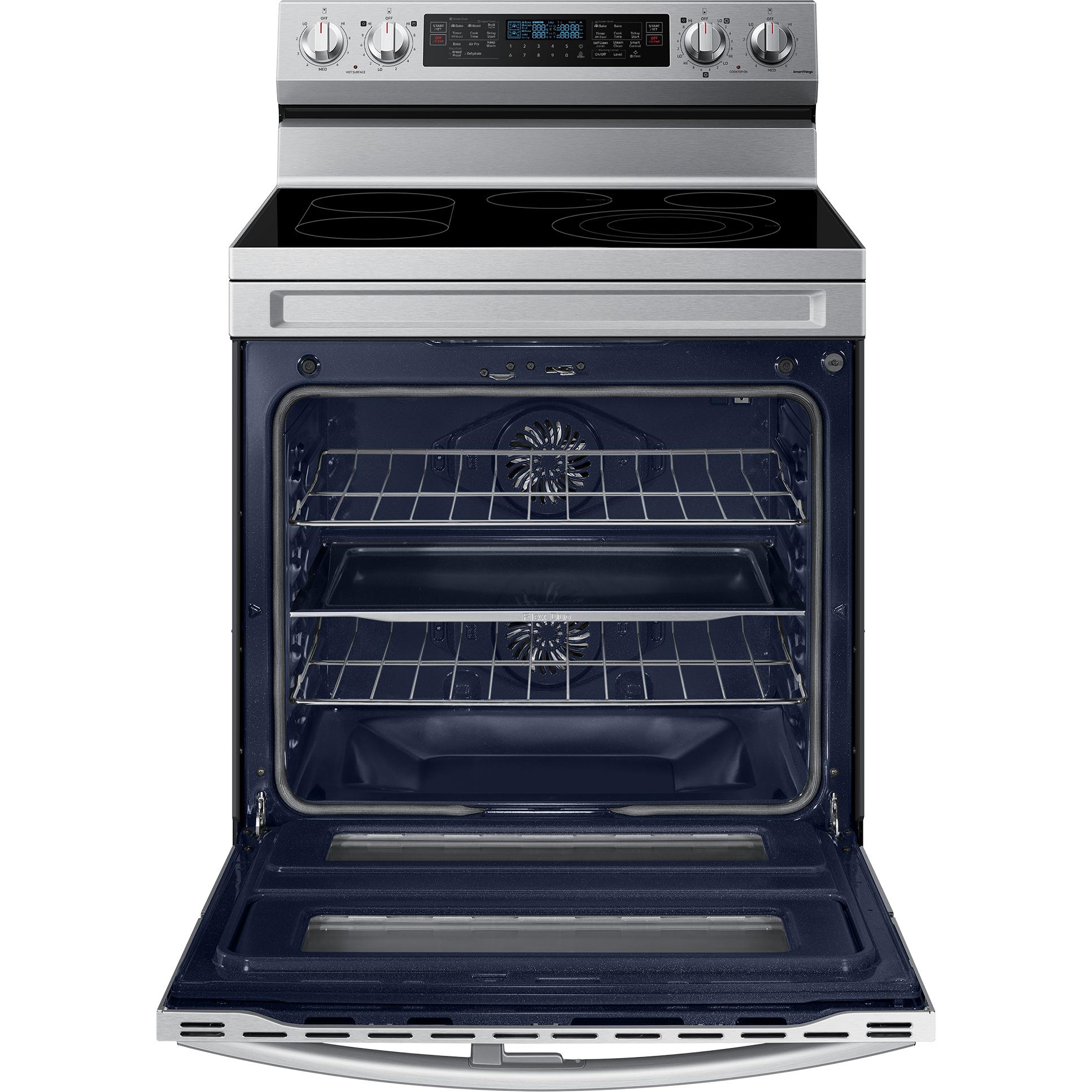

• True Convection (Dual Fan)
• Variable Broil Low-High (Upper)
• Air Fry
• Bread Proof
• Keep Warm
• 2 Wire Racks
• 7 Rack Positions
• Premium Stainless Design
• Cooktop Control Type: Knob
• Hot Surface Indicator
• LED Display Color: Ice Blue
• Soft Closing Door
• Hidden Bake Element
• Auto Oven Light
• Interior Light: 2 Incandescent 40 W
• True Convection (Dual Fan)
• Variable Broil Low-High (Upper)
• Air Fry
• Bread Proof
• Keep Warm
• 2 Wire Racks
• 7 Rack Positions
Drawer Features
Capacity
1.0 cu. ft.
Storage
Yes
Electrical Information
Information
• 240V
• Bake Element: 3000 W
• Broil Element: 4200 W
• Convection Heater Element: 1300 W
• Bake Element: 3000 W
• Broil Element: 4200 W
• Convection Heater Element: 1300 W
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included

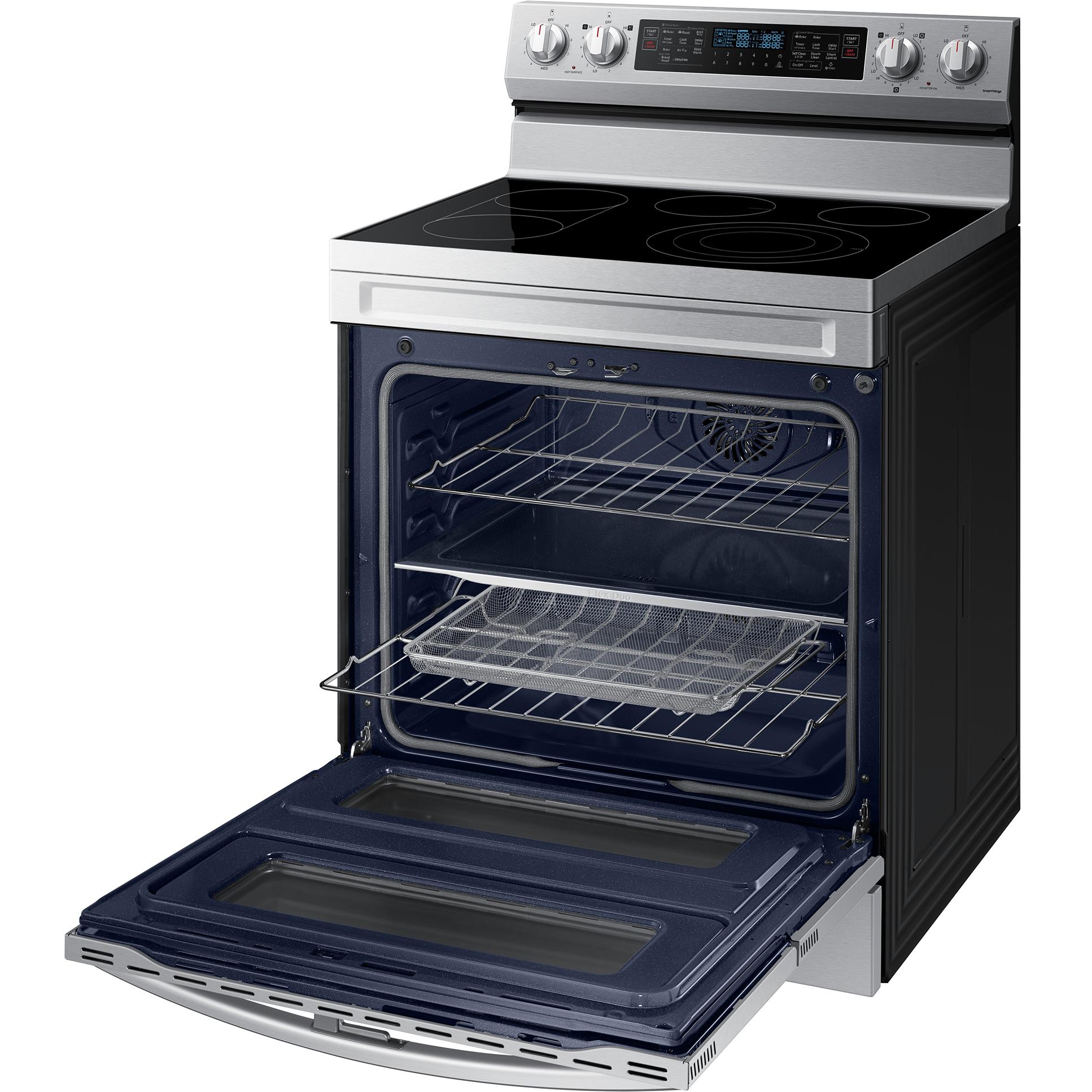

• Air Fry Tray
• Anti-Tip Device

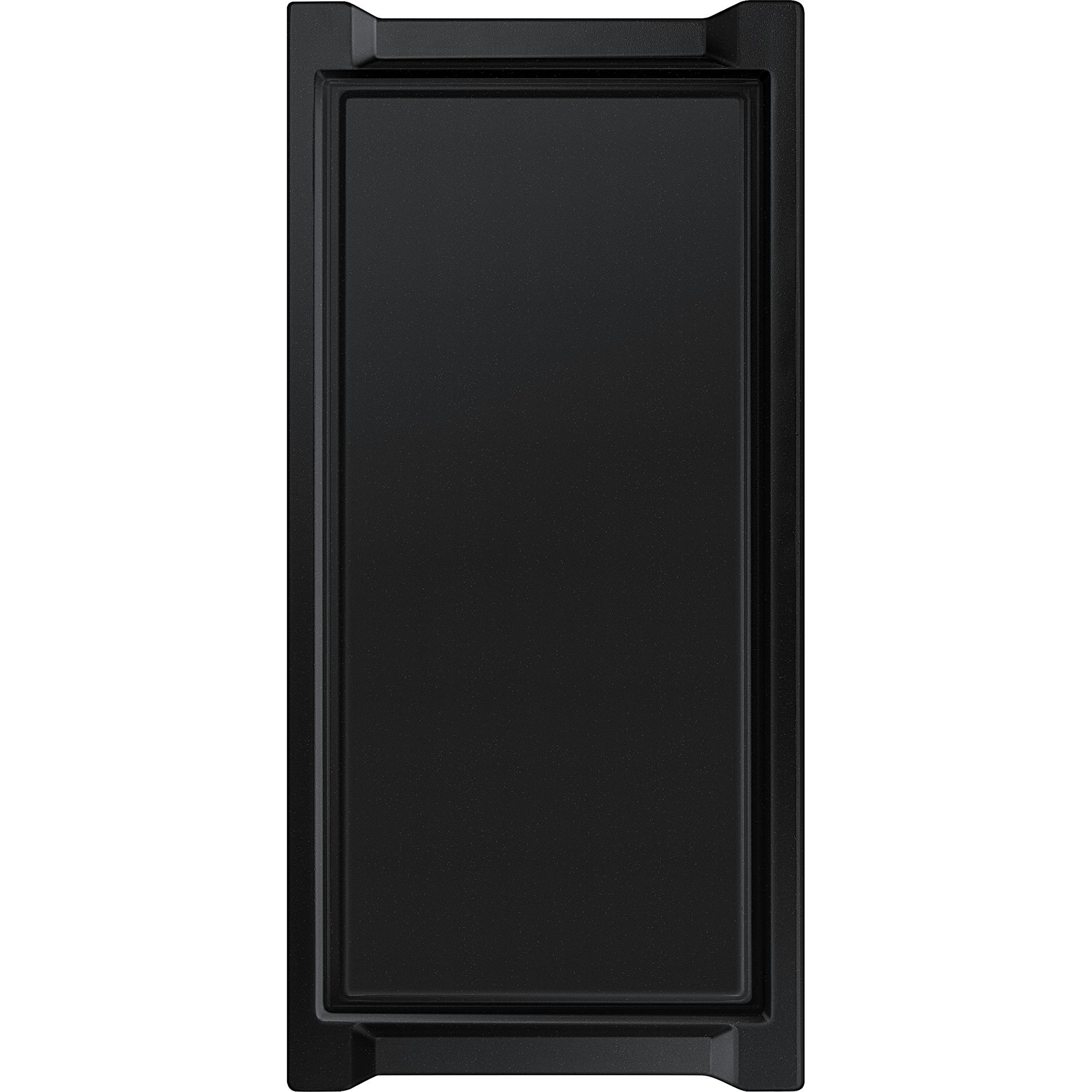

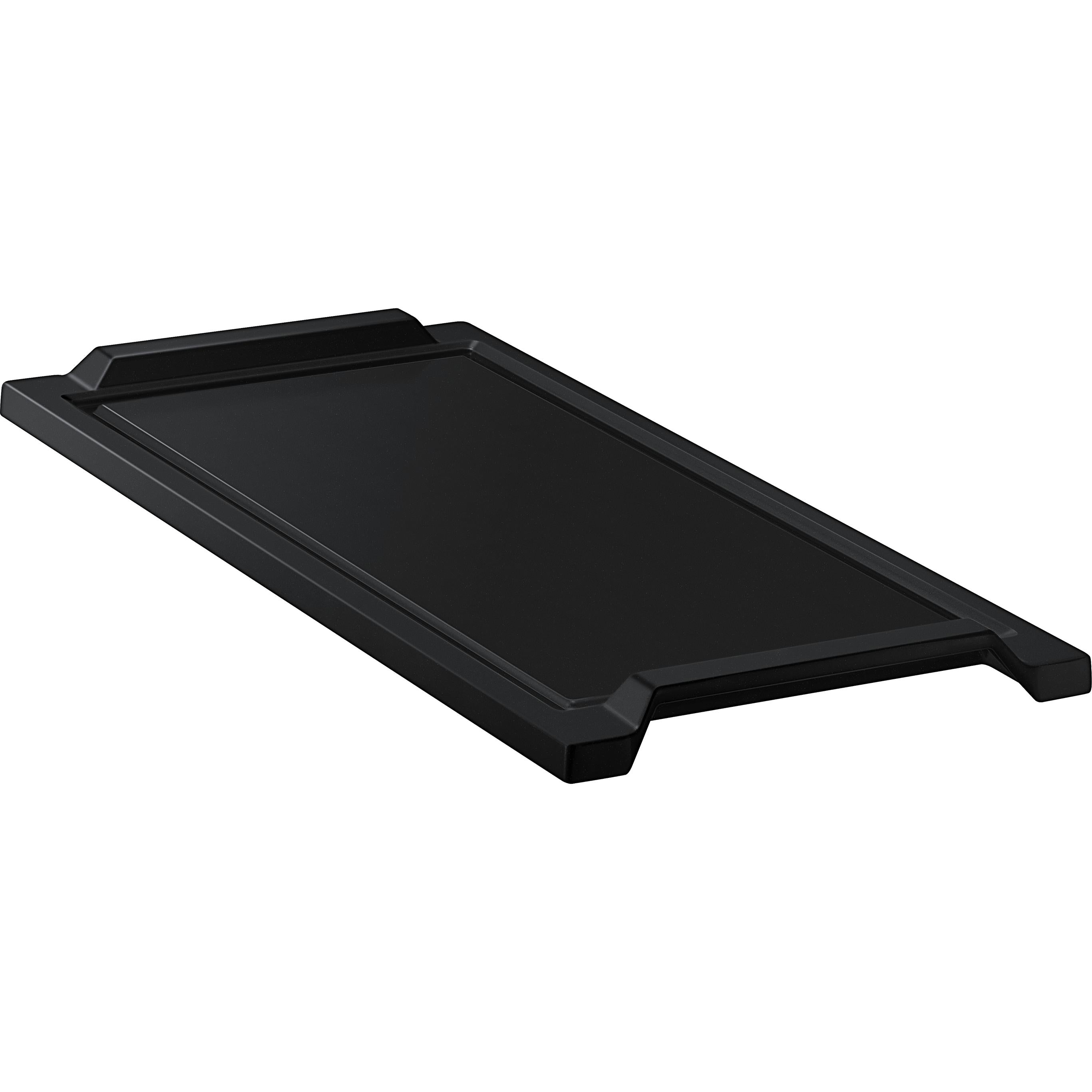

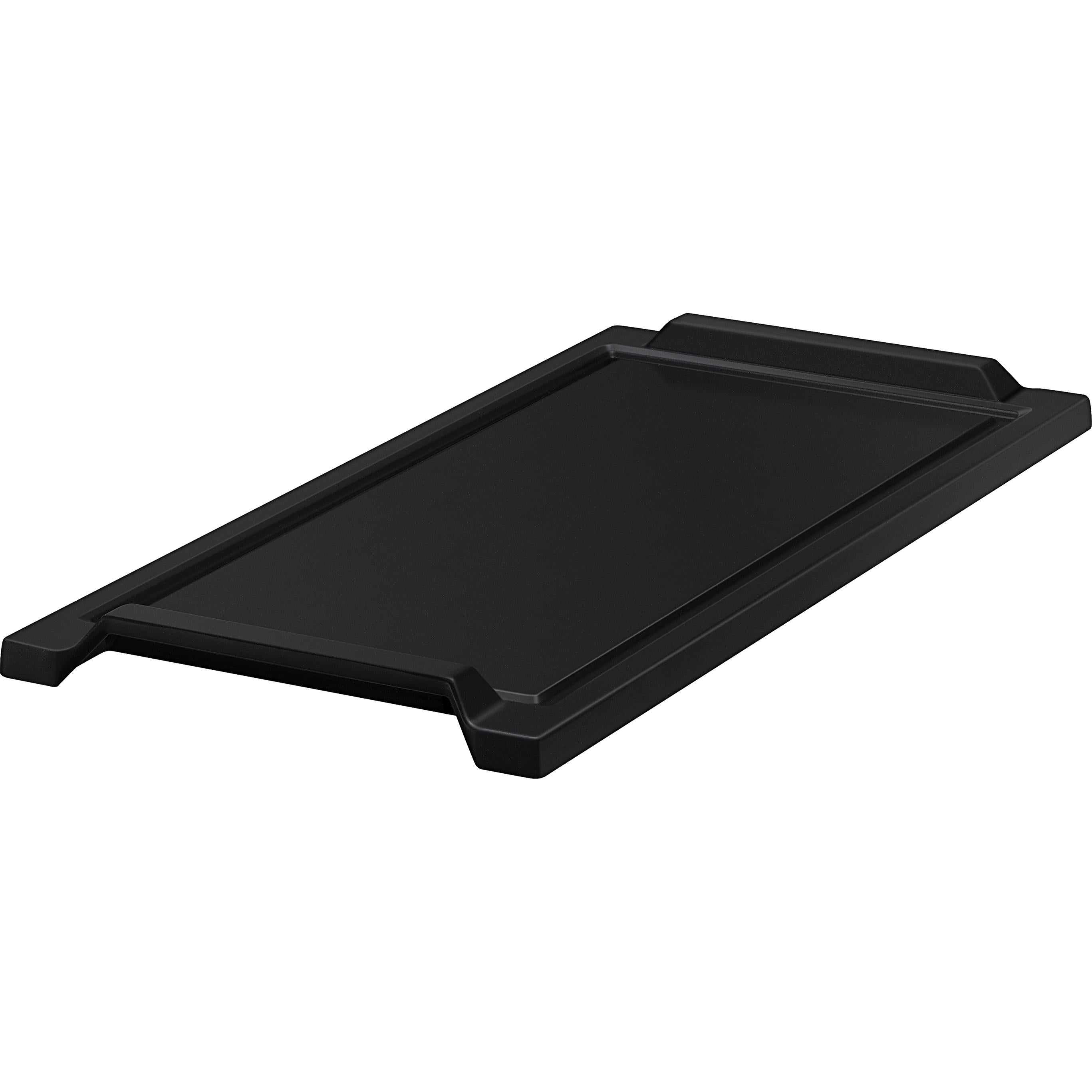

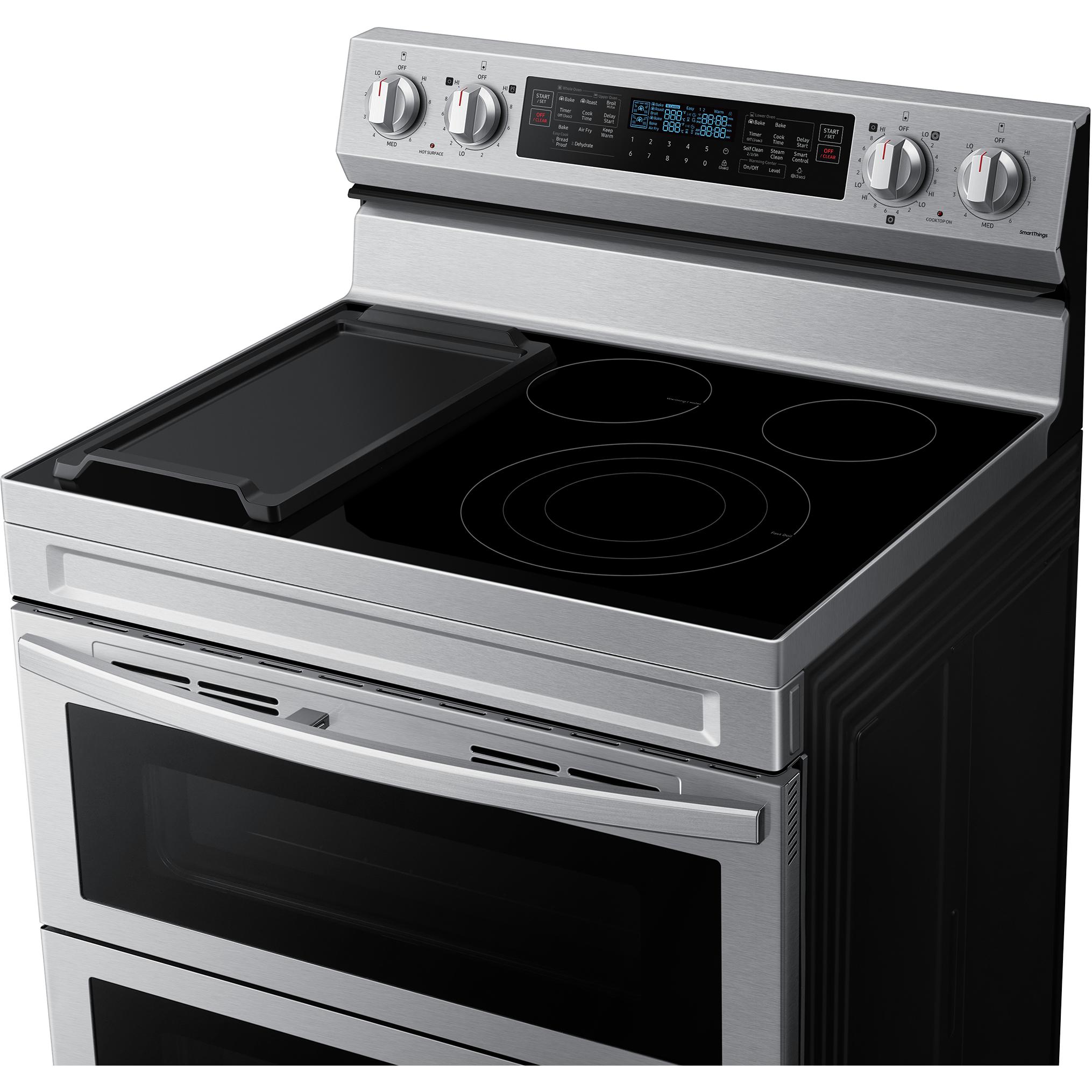

• Aluminum Griddle

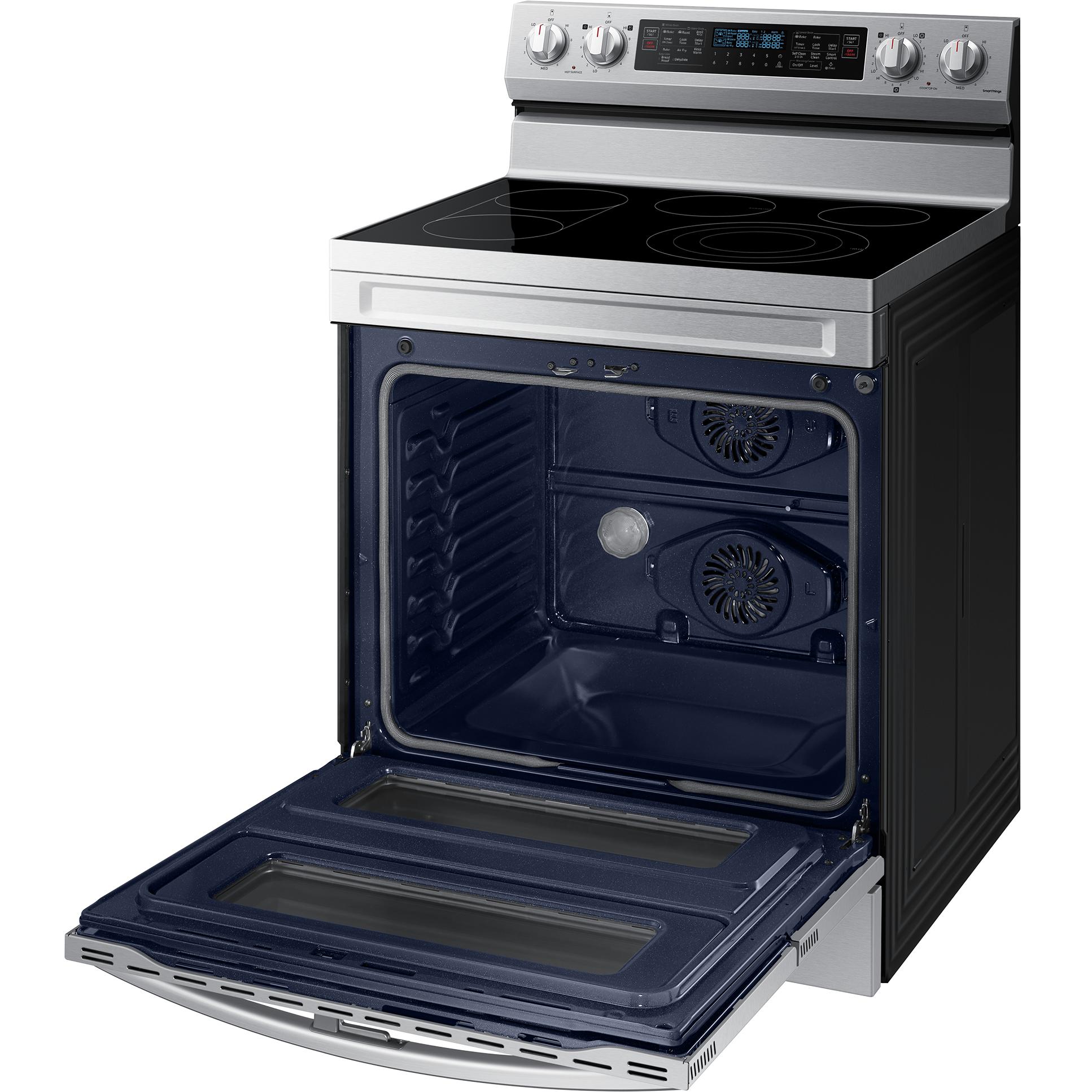

• Divider
• Anti-Tip Device
• Aluminum Griddle
• Divider
Dimensions
Class Width
30"
Width
29.96 inch(es) / 76.1 cm
Height
46.33 inch(es) / 117.69 cm
Depth (Without Handles)
30.26 inch(es) / 76.86 cm
Weight
189.6 lb(s) / 86 kg
Additional Dimensions
Max Height: 47-4/16"
Shipping Dimensions
Width
33.03 inch(es) / 83.9 cm
Height
50.59 inch(es) / 128.5 cm
Depth
30.28 inch(es) / 76.9 cm
Weight
213.85 lb(s) / 97 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
887276552118
