DESCRIPTION

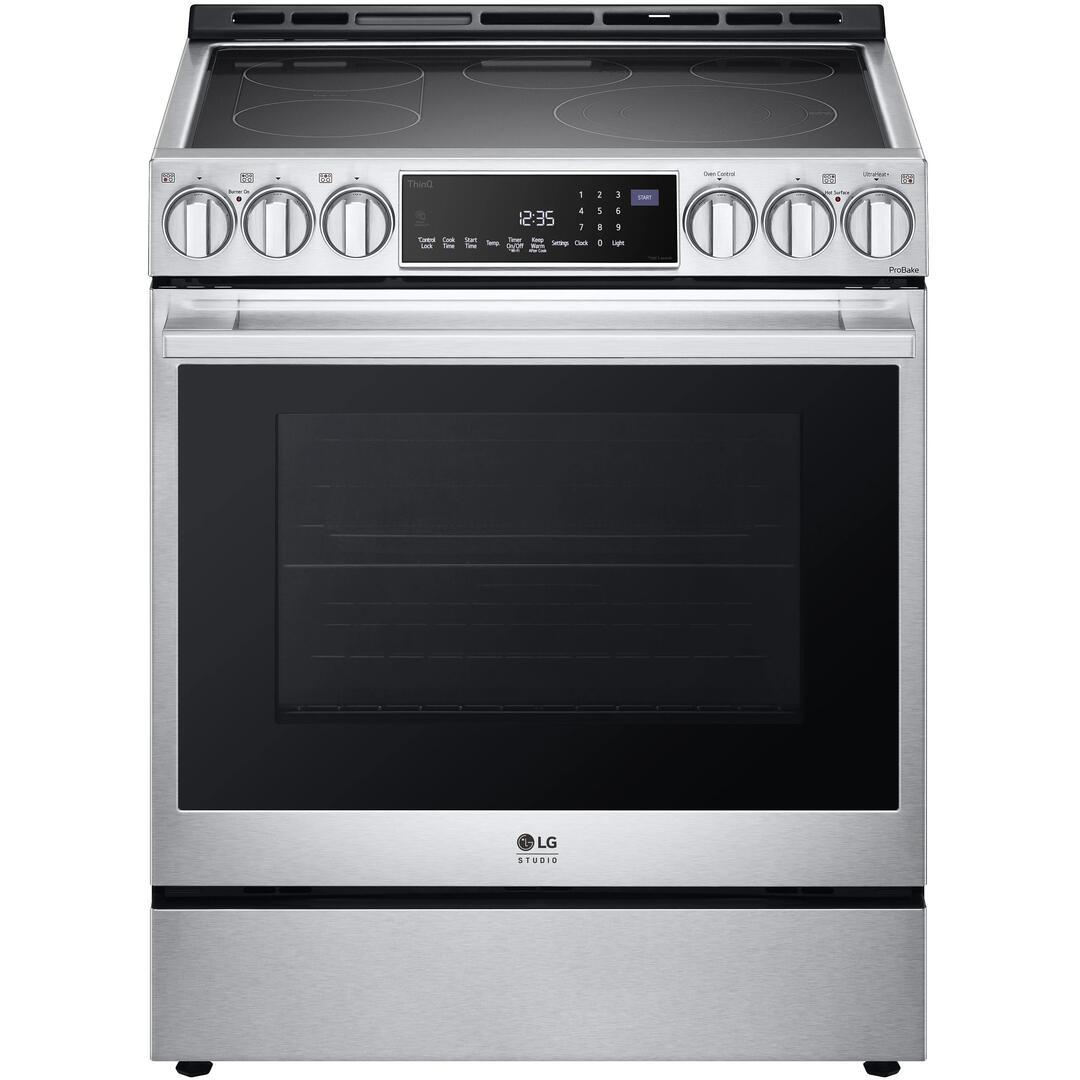

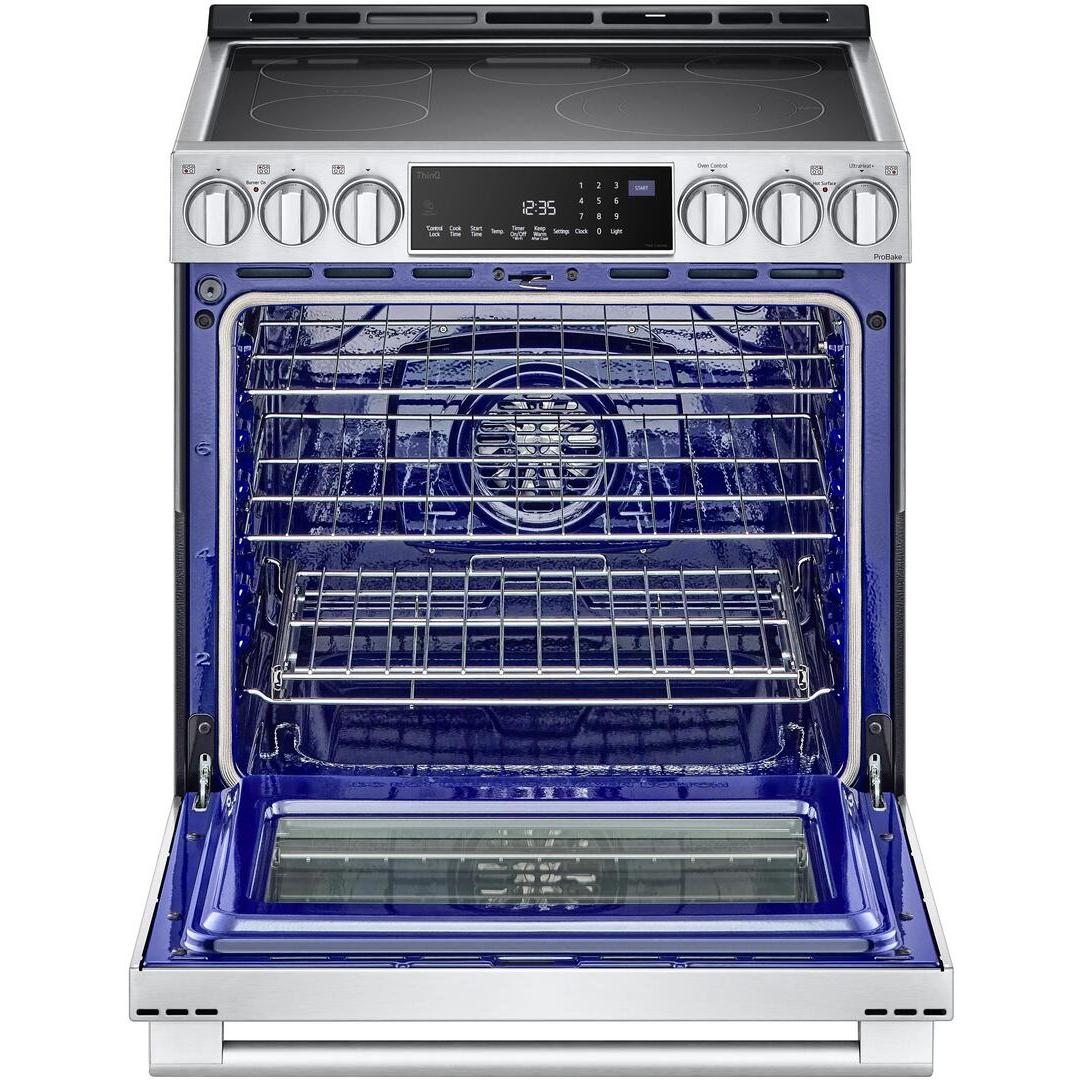

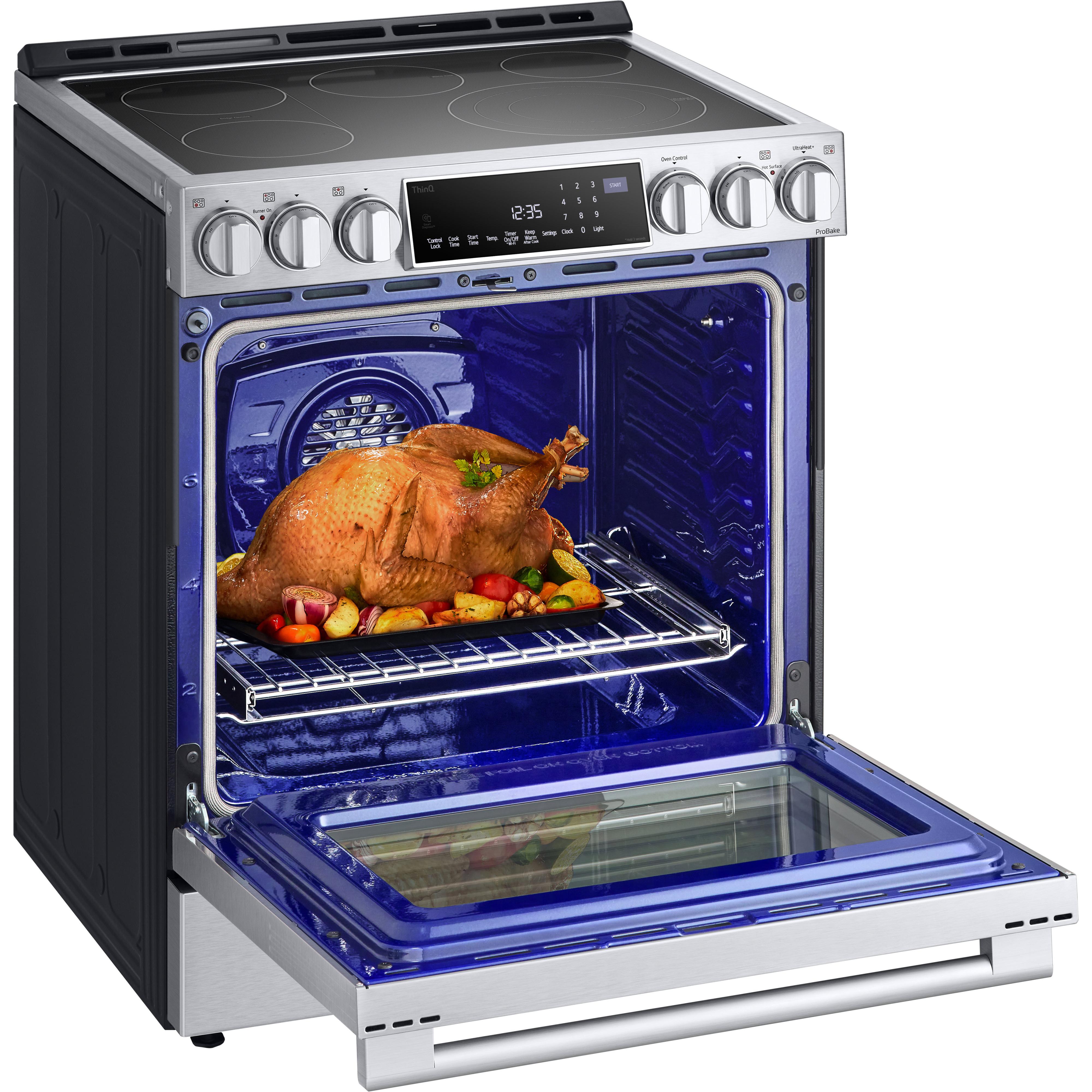

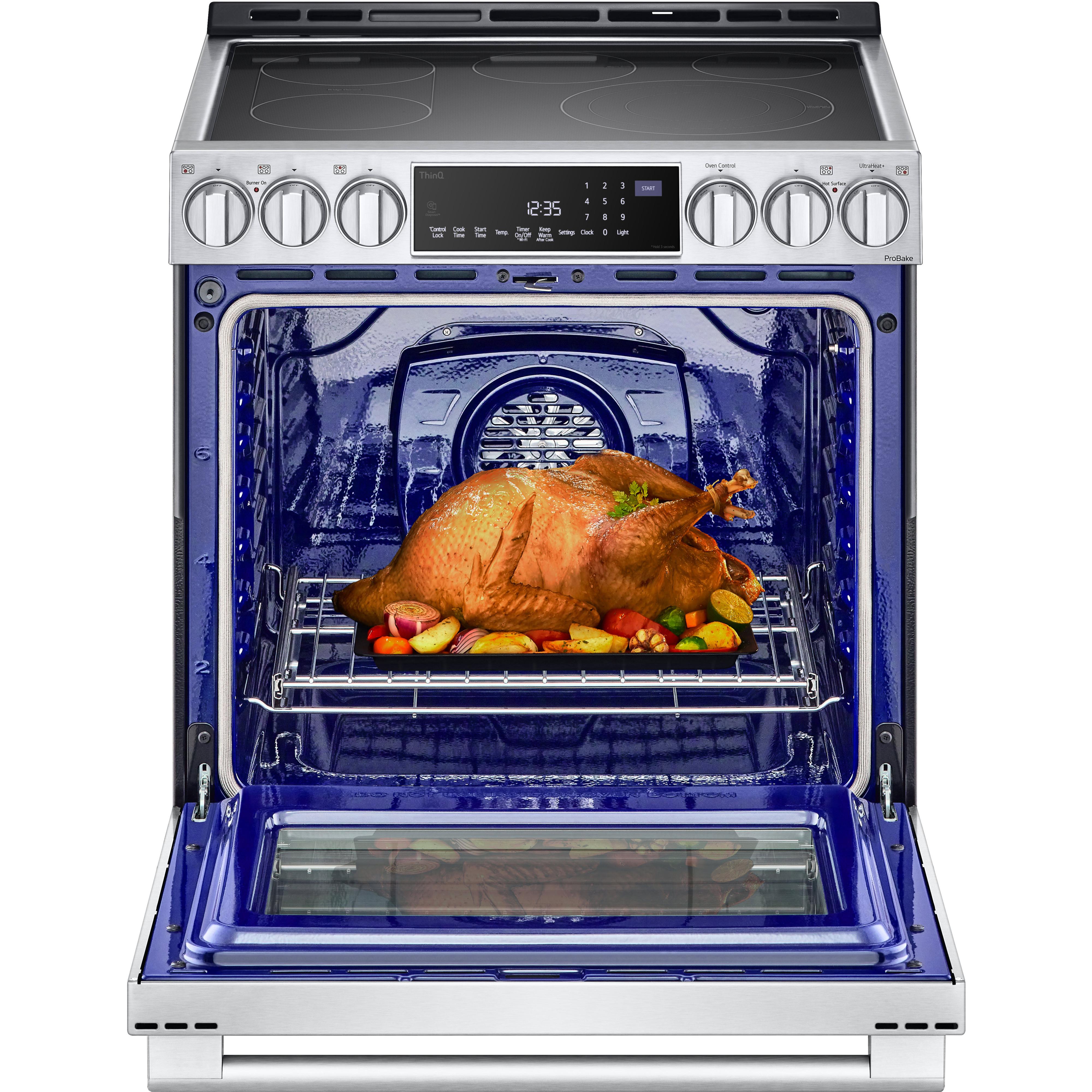

×LG Studio slide-in electric range features ProBake Convection ™ Technology, self-cleaning oven, 5 cooktop elements and a total oven capacity of 6.3 cu.ft.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Printproof ™ Stainless Steel
Appliance Care
• EasyClean® (10 mins)
• Self Clean
• Self Clean

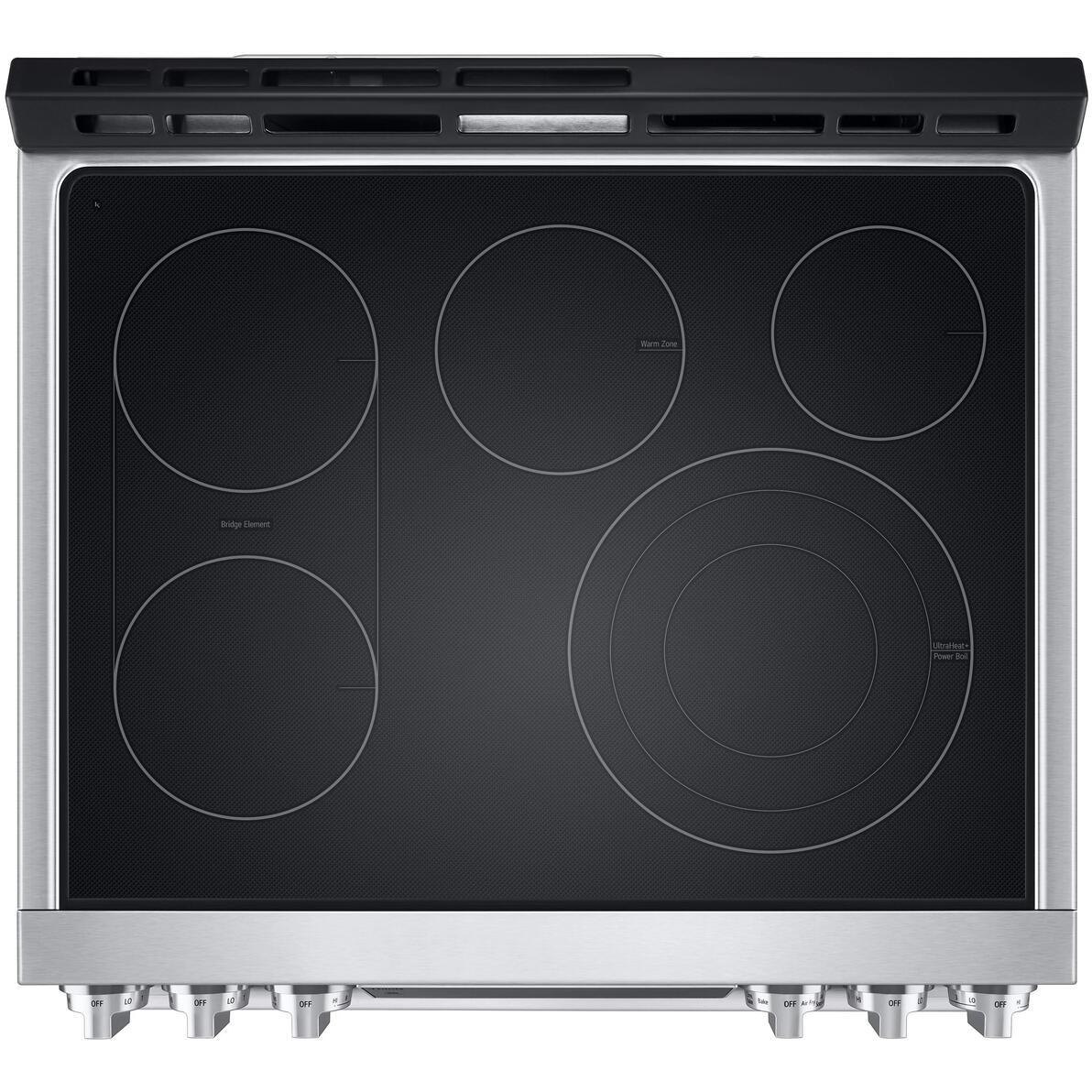

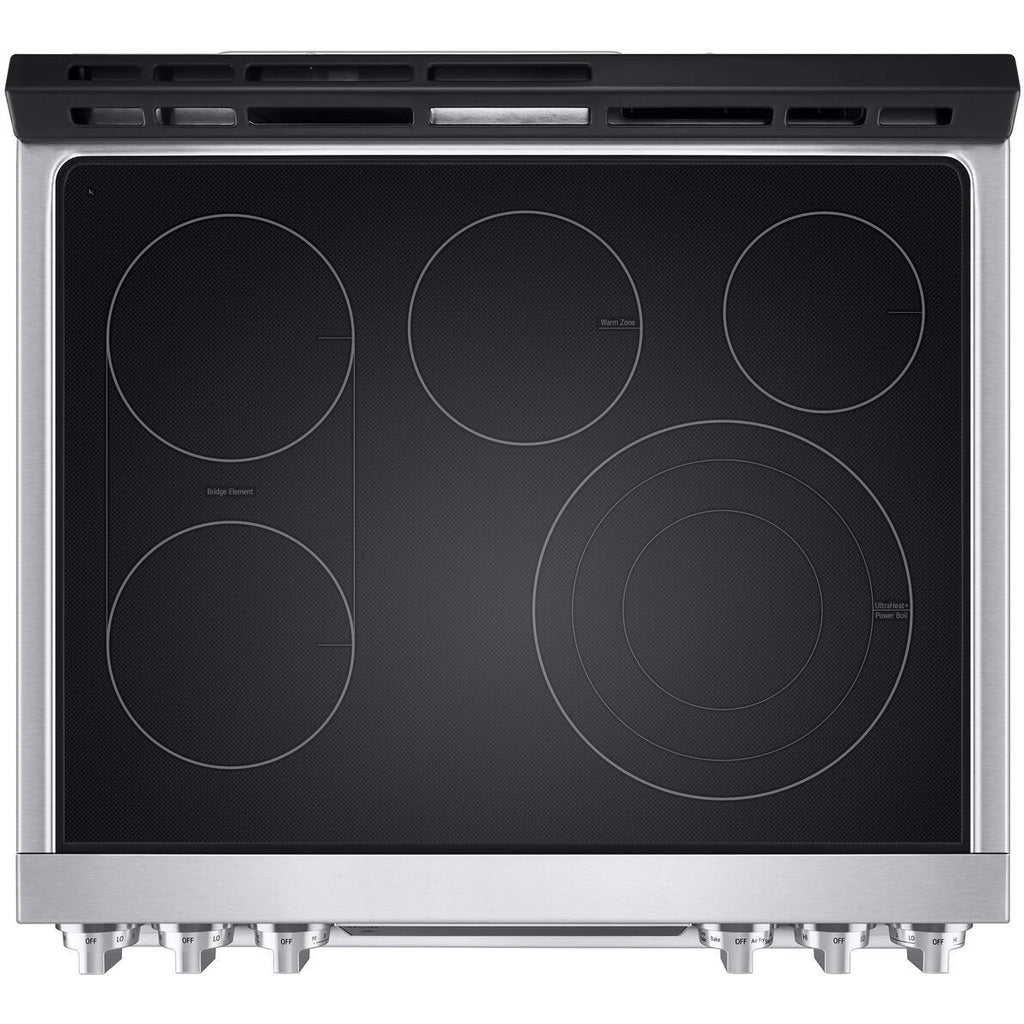

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Rear Element: 1800W Bridge heater (0.8KW)
• Right Rear Element: 1200W
• Left Front Element: 1800W Bridge heater (0.8KW)
• Right Front Element: 3600W / 2400W / 1200W (UltraHeat+™)
• Center (Warming Zone): 100W
• Right Rear Element: 1200W
• Left Front Element: 1800W Bridge heater (0.8KW)
• Right Front Element: 3600W / 2400W / 1200W (UltraHeat+™)
• Center (Warming Zone): 100W
Burner/Element Size
• Left Rear Element: 8"
• Right Rear Element: 6"
• Left Front Element: 8"
• Right Front Element: 12"/9"/6"
• Center (Warming Zone): 6"
• Right Rear Element: 6"
• Left Front Element: 8"
• Right Front Element: 12"/9"/6"
• Center (Warming Zone): 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.3 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Convection Bake
• Convection Roast
• Broil High
• Broil Low
• Warm
• Proof
• Frozen meal
• Air fry
• Air sous-vide
• Convection Bake
• Convection Roast
• Broil High
• Broil Low
• Warm
• Proof
• Frozen meal
• Air fry
• Air sous-vide
Features
Technologies
• ProBake Convection ™
• Air Fry Technology
• Air Sous Vide
• ThinQ® (Wifi Enabled)
• Check & Control
• Voice Control
• Smart Recipe (3rd Party Recipe App) Innit, Sidechef
• SmartDiagnosis™
• Air Fry Technology
• Air Sous Vide
• ThinQ® (Wifi Enabled)
• Check & Control
• Voice Control
• Smart Recipe (3rd Party Recipe App) Innit, Sidechef
• SmartDiagnosis™
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• InstaView® Window (WideView)
• Broil Element (Watt) Sheath 4200 / 6 Pass
• Convection (Watt) Sheath 2500W

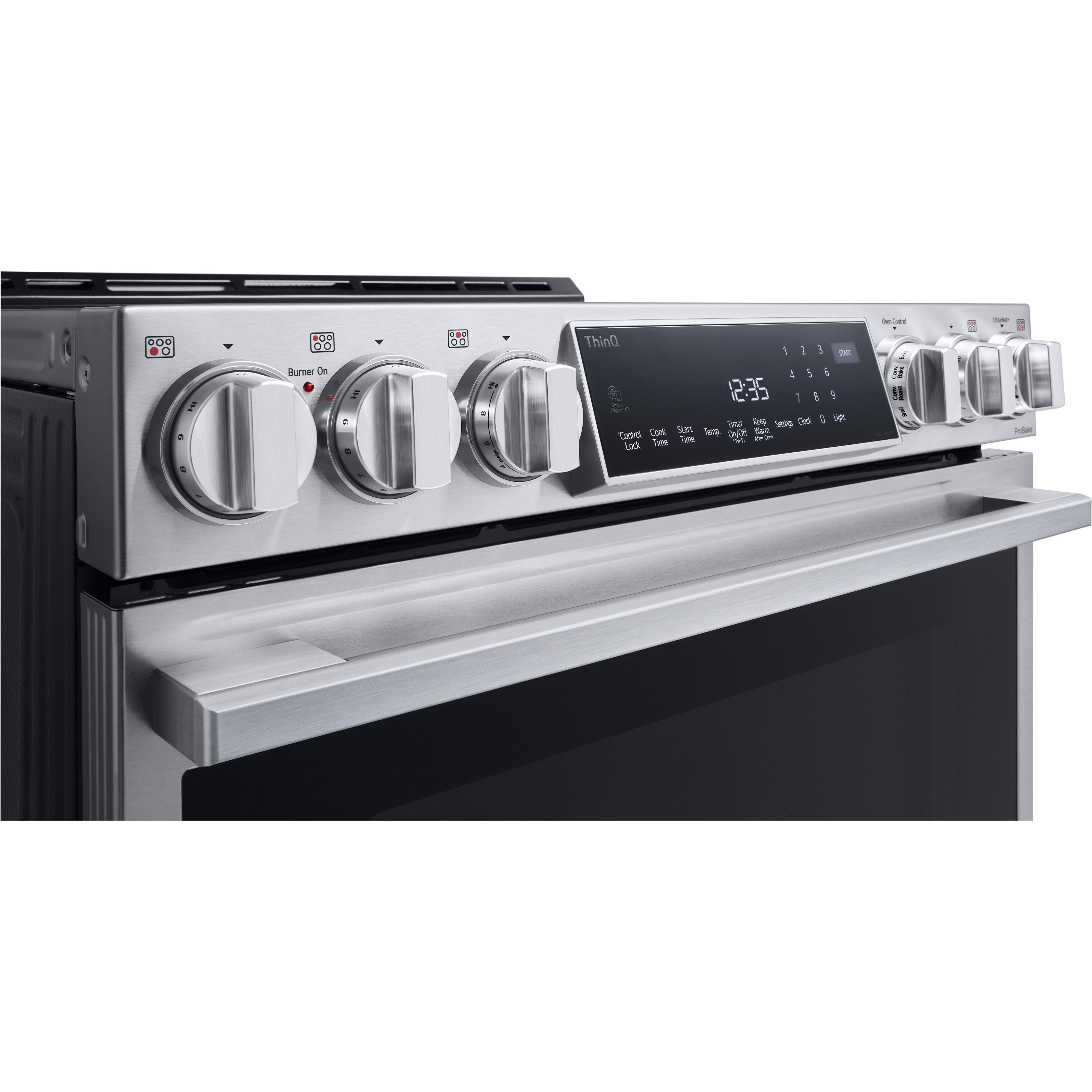

• Glass Touch Controls
• Convection Conversion
• GoCook Smart Oven Light

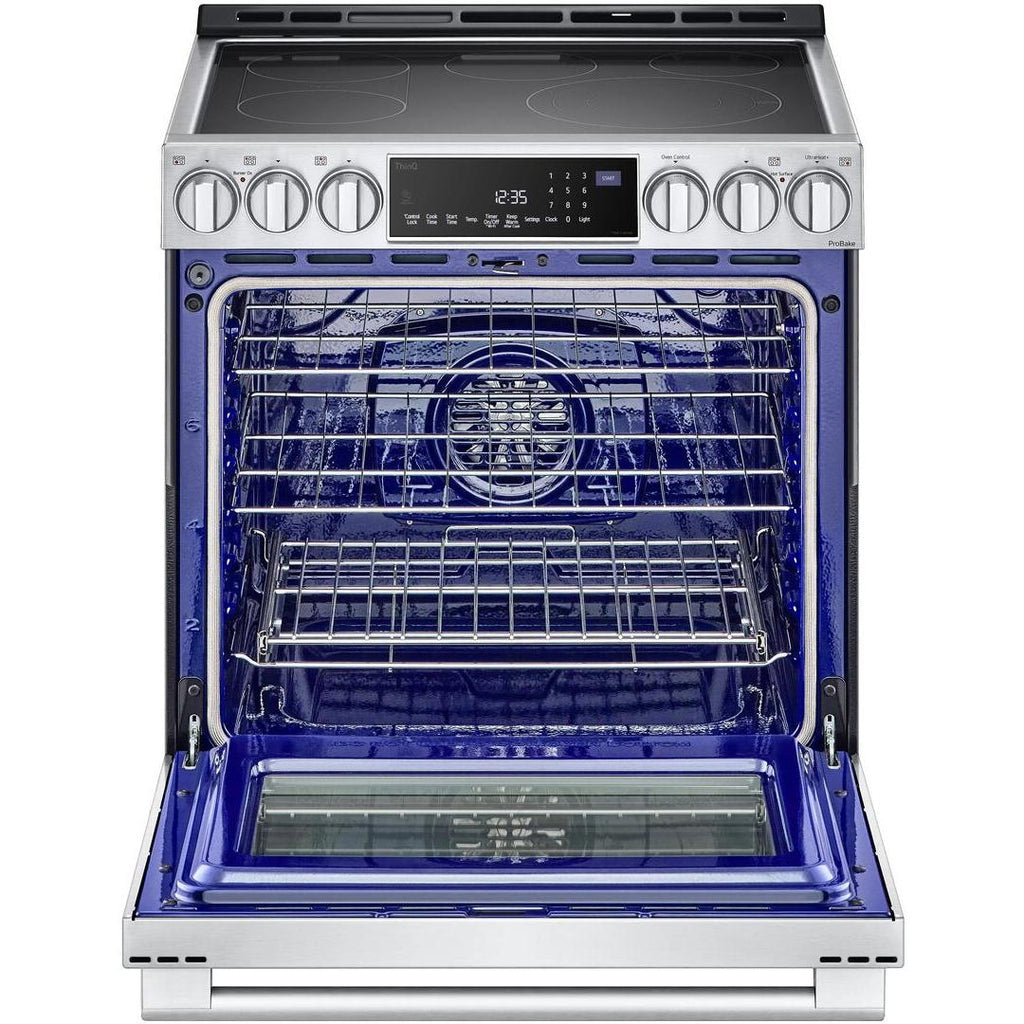

• 7 Rack Positions
• Automatic Safety Shut-Down After 12 hours
• Knob Lighting
• Black Ceramic + Grey Pattern Cooktop
• Broil Element (Watt) Sheath 4200 / 6 Pass
• Convection (Watt) Sheath 2500W
• Glass Touch Controls
• Convection Conversion
• GoCook Smart Oven Light
• 7 Rack Positions
• Automatic Safety Shut-Down After 12 hours
• Knob Lighting
• Black Ceramic + Grey Pattern Cooktop

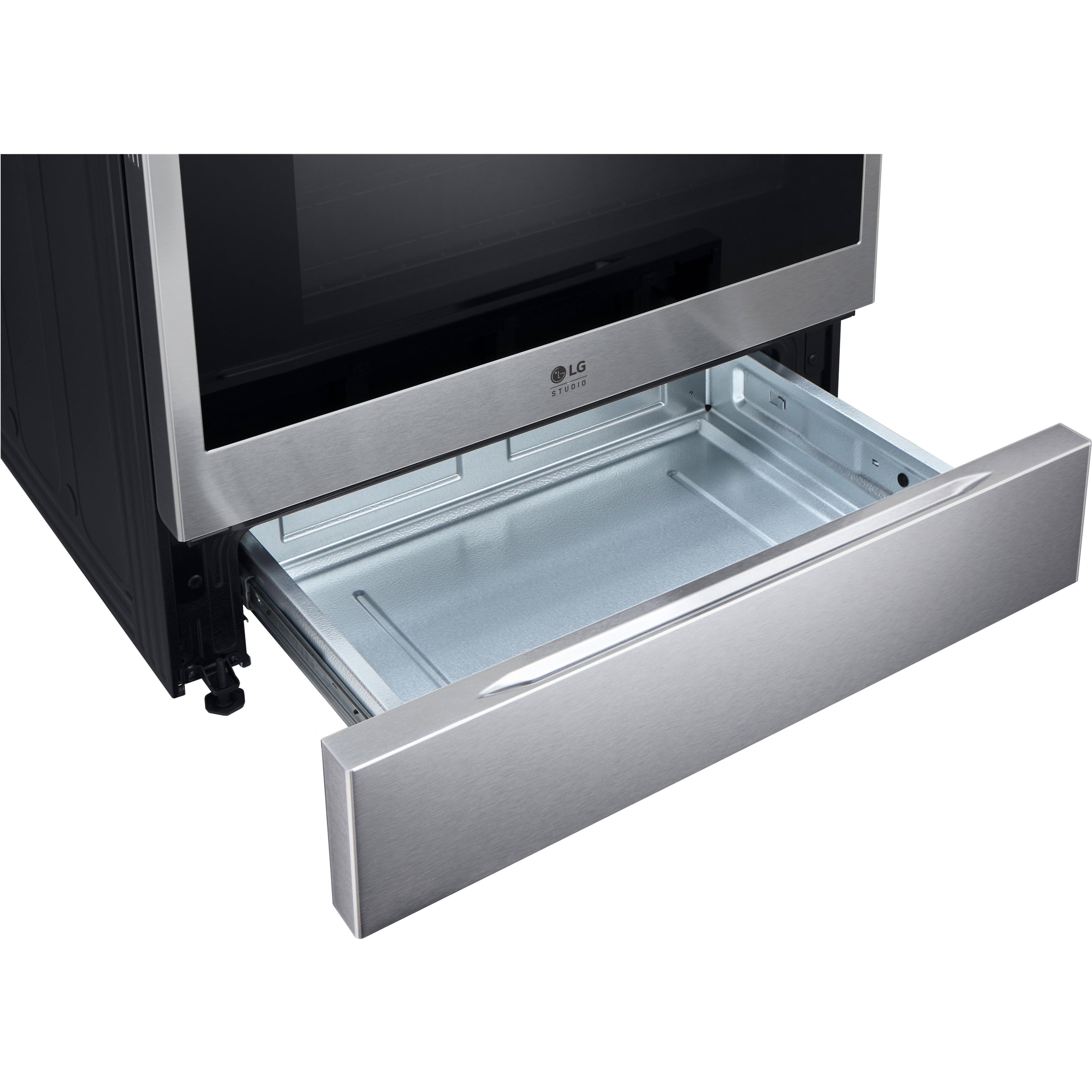

Drawer Features
Capacity
0.8 cu. ft.
Storage
Yes
Electrical Information
Information
• Amp Rating at 208V 49.1A
• Amp Rating at 240V 56.7A
• KW Rating at 208V 10.2kW
• KW Rating at 240V 13.6kW
• Required Power Supply (amp) 40A
• Amp Rating at 240V 56.7A
• KW Rating at 208V 10.2kW
• KW Rating at 240V 13.6kW
• Required Power Supply (amp) 40A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included

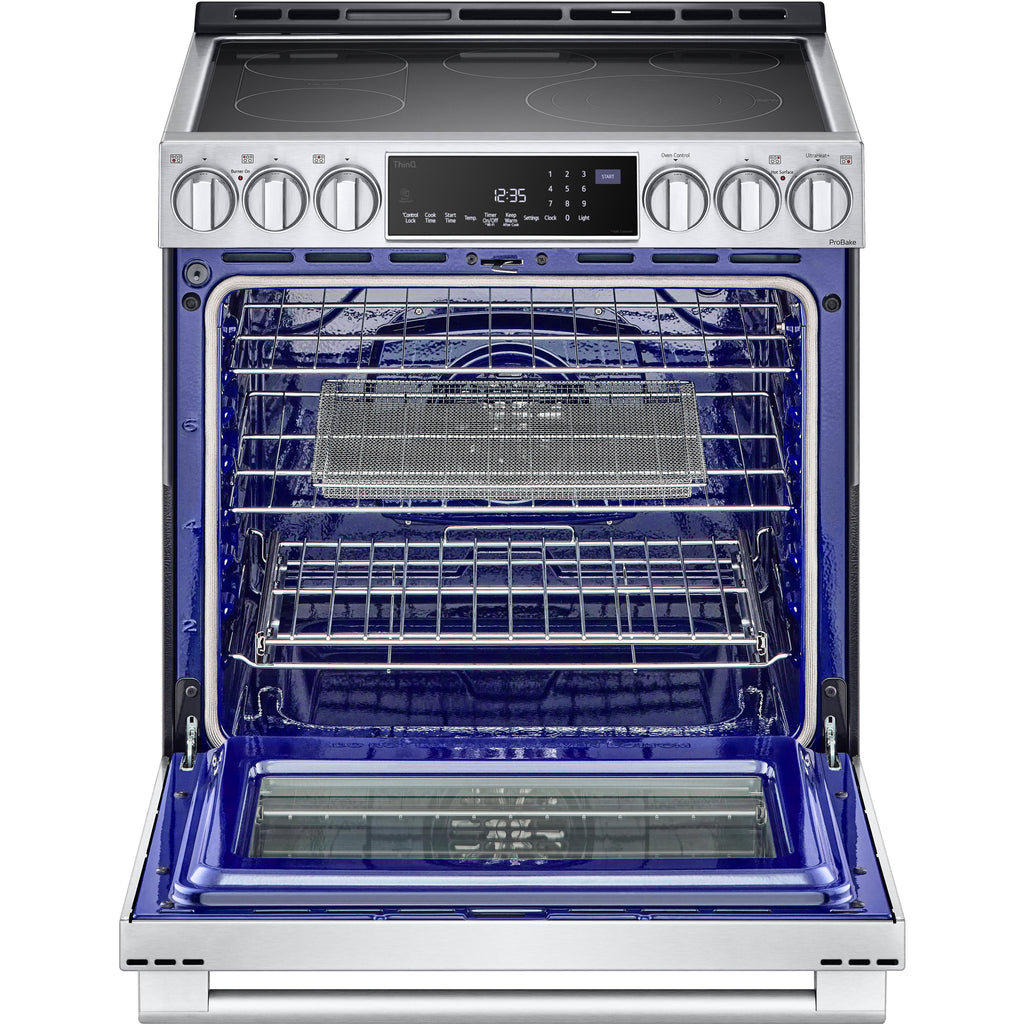

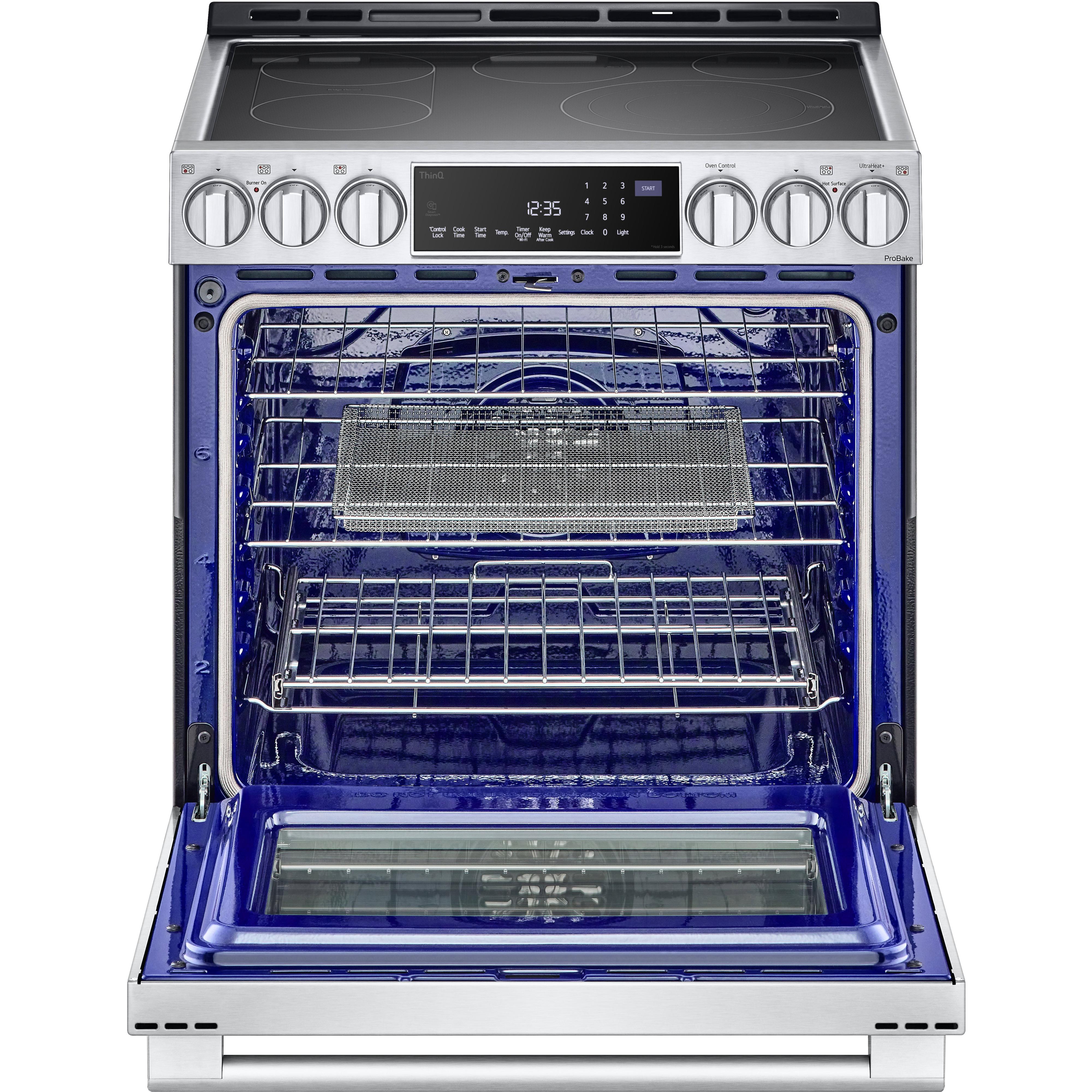

• 1 Gliding Rack
• 2 Heavy Duty Racks

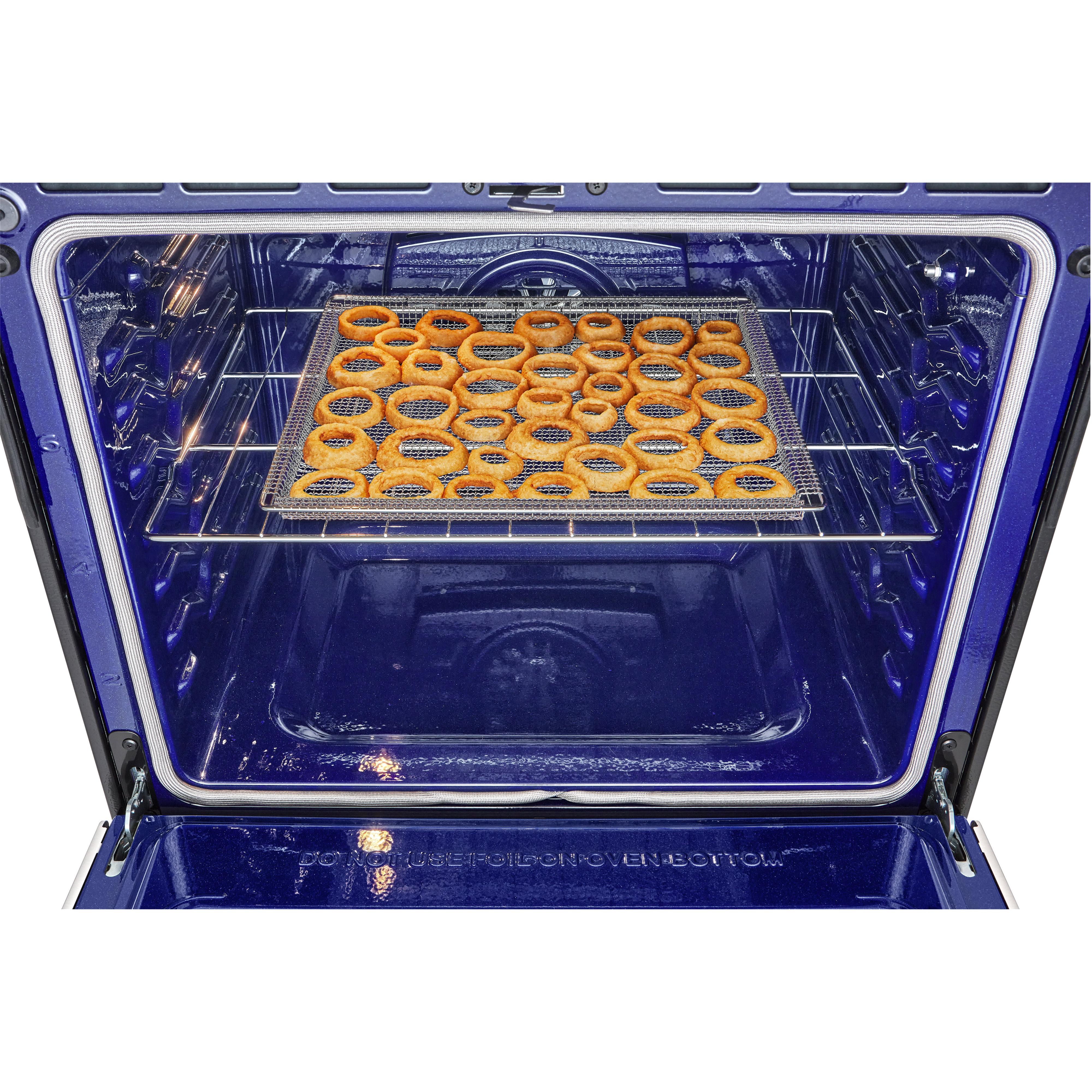

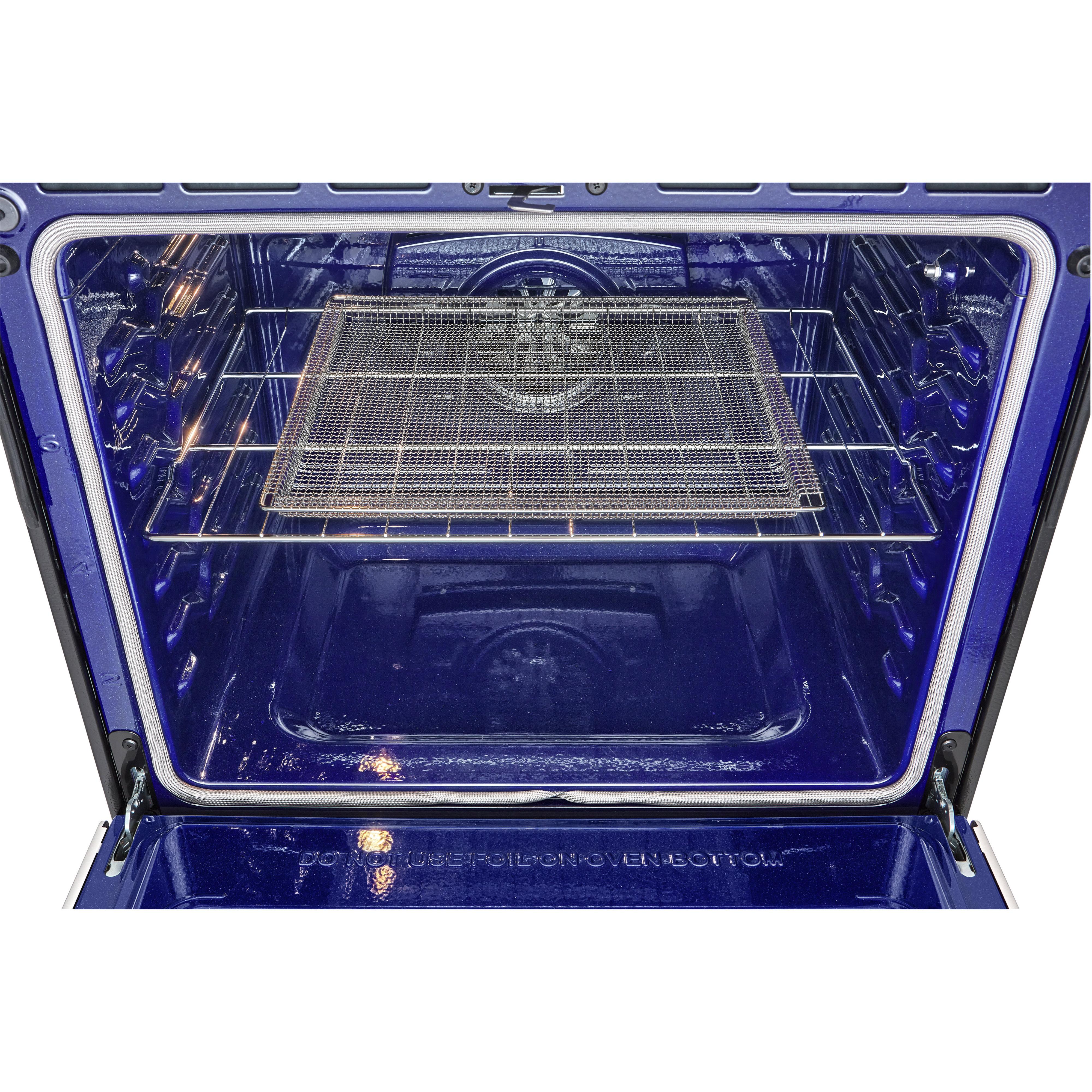

• 1 Air Fry Rack
• Temp Probe
• Spray Bottle
• Cooktop Cream/ Cleaner
• 2 Heavy Duty Racks
• 1 Air Fry Rack
• Temp Probe
• Spray Bottle
• Cooktop Cream/ Cleaner
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.25 inch(es) / 94.62 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.37 inch(es) / 74.61 cm
Weight
175.6 lb(s) / 79.65 kg
Additional Dimensions
Depth when door is fully opened: 48 5/8"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
44 inch(es) / 111.76 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
213.3 lb(s) / 96.75 kg
Warranty
Warranty
2 Years
UPC
UPC#
195174020593
