DESCRIPTION

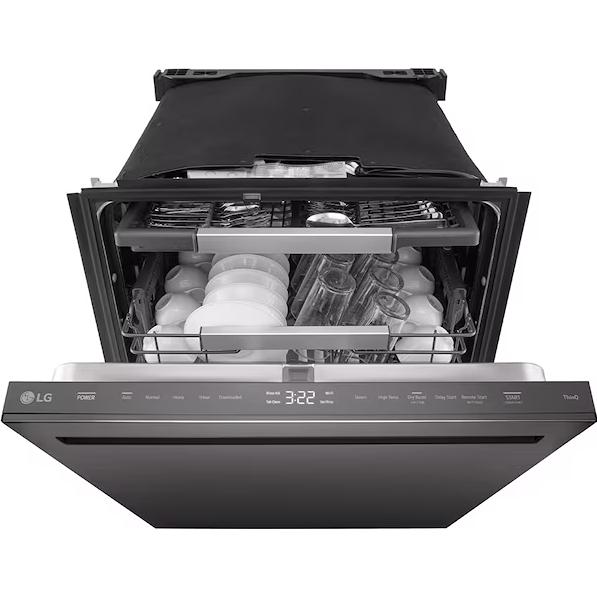

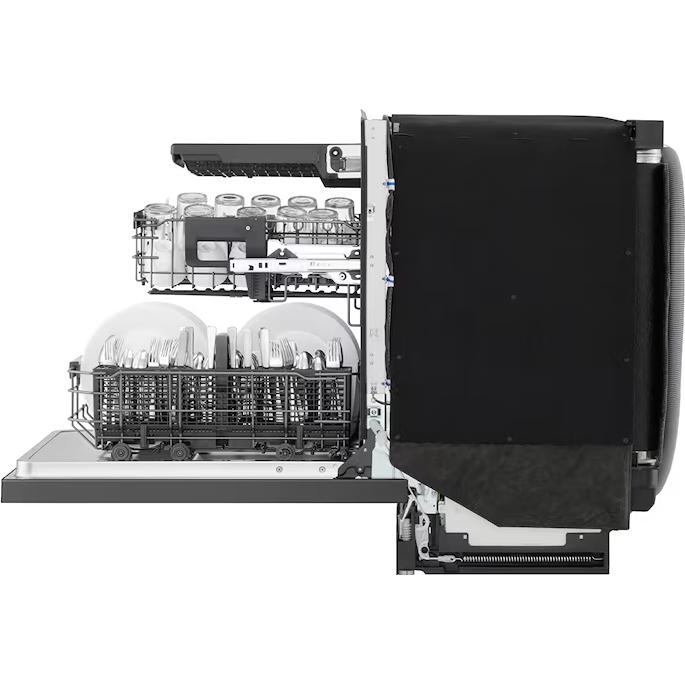

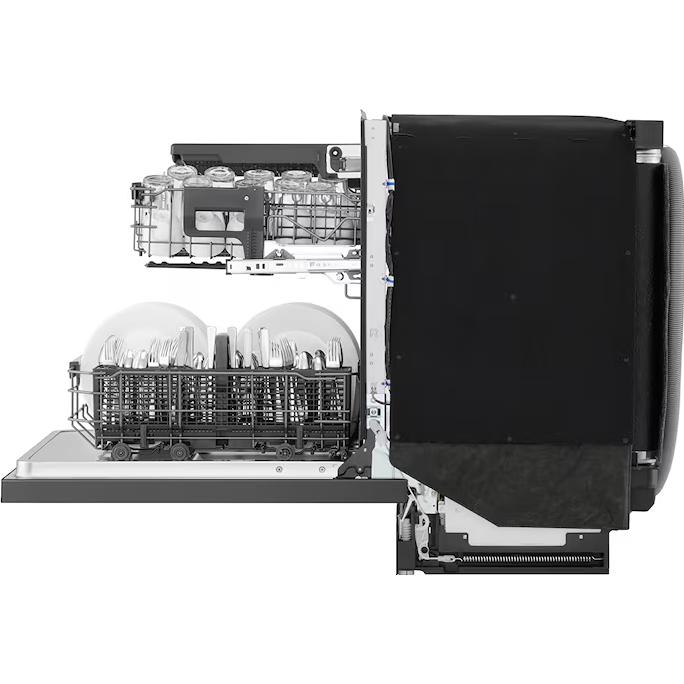

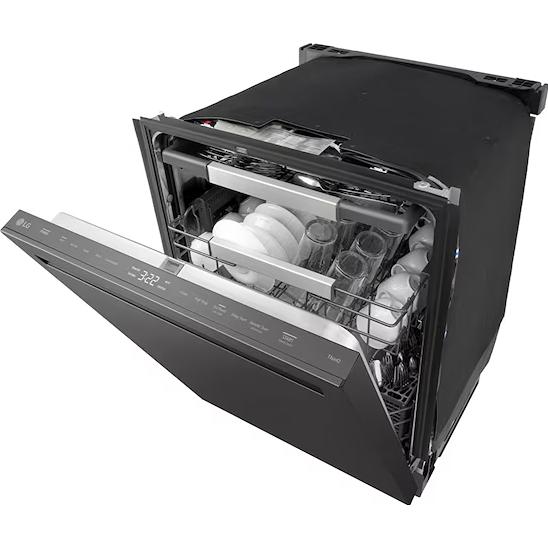

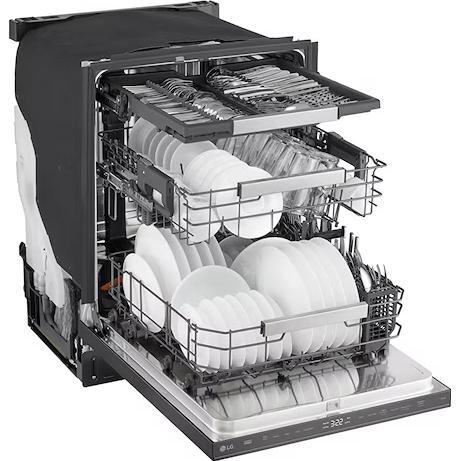

×This 24-inch built-in dishwasher features a 1-Hour Wash & Dry Cycle, QuadWash® Pro, Dynamic Heat Dry™ with AutoVent Dry™, ThinQ® Auto Leak Detection, and a FlushFit™ Design.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Auto
• Heavy
• Normal
• 1Hr
• Download Cycle
• Heavy
• Normal
• 1Hr
• Download Cycle
Options
• Steam
• High Temp
• Dry Boost
• Delay Start
• Control Lock
• Remote
• Wi-Fi (AP Mode)
• High Temp
• Dry Boost
• Delay Start
• Control Lock
• Remote
• Wi-Fi (AP Mode)
Features
Technologies
• LoDecibel™ Quiet Operation: 44 dBA
• SenseClean™ Wash System
• ThinQ® Smart Technology
• QuadWash® Pro
• EasyRack Plus®
• PrintProof® finish
• SenseClean™ Wash System
• ThinQ® Smart Technology
• QuadWash® Pro
• EasyRack Plus®
• PrintProof® finish
Delay Start
Yes

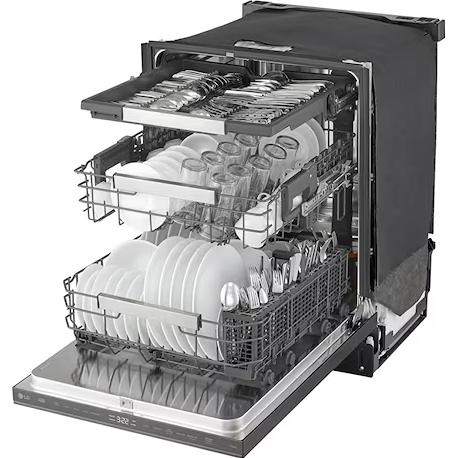

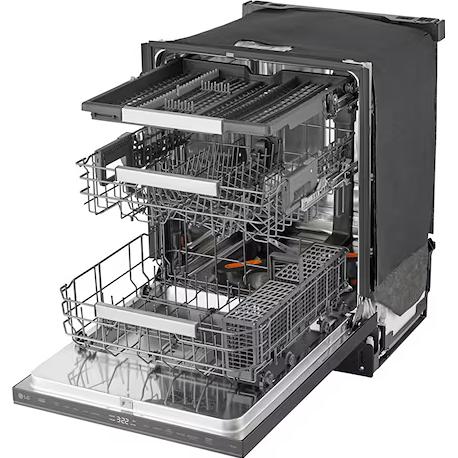

3rd Rack System
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information

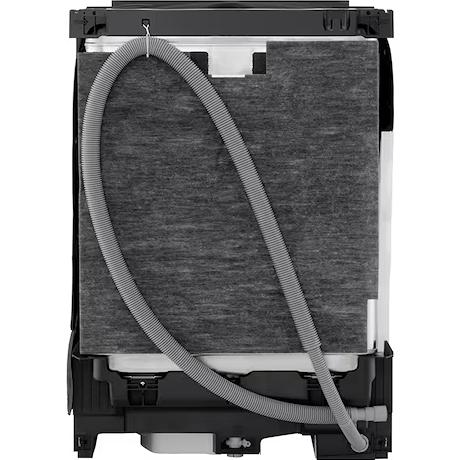

• Anti-Bacterial Treatment (Drain Hose)
• Balanced Door
• Detergent and Rinse-Aid Dispenser
• Drying System: Dynamic Heat Dry with Auto Open Door
• End of Cycle Indicator: Beeper + END indication on display
• Hidden Water Heater
• Number of Spray Arms: 3 (Top, Upper, Lower)
• Safety Float Switch (Leaks)
• Soil (Turbidity) Sensor
• Time Remaining Indicator

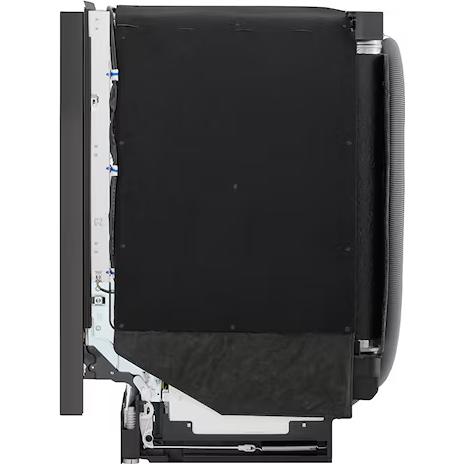

• Tub Insulation: Damping Sheet, Sound Absorbing Material (felt), Base
• Vario Wash
• BPA-Free Nylon Coated Racks and Tines
• Cutlery Baskets
• Fold Down Tines: Upper 3/4 Foldable, Lower Half Smart FD & Half Normal FD
• Rack Handle

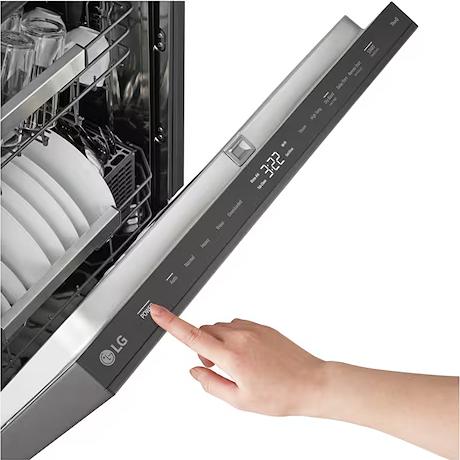

• Control Panel Location: Top Control
• Handle: Pocket Handle
• Tub Material: Stainless Steel
• Balanced Door
• Detergent and Rinse-Aid Dispenser
• Drying System: Dynamic Heat Dry with Auto Open Door
• End of Cycle Indicator: Beeper + END indication on display
• Hidden Water Heater
• Number of Spray Arms: 3 (Top, Upper, Lower)
• Safety Float Switch (Leaks)
• Soil (Turbidity) Sensor
• Time Remaining Indicator
• Tub Insulation: Damping Sheet, Sound Absorbing Material (felt), Base
• Vario Wash
• BPA-Free Nylon Coated Racks and Tines
• Cutlery Baskets
• Fold Down Tines: Upper 3/4 Foldable, Lower Half Smart FD & Half Normal FD
• Rack Handle
• Control Panel Location: Top Control
• Handle: Pocket Handle
• Tub Material: Stainless Steel
Electrical Information
Information
Energy Use: 220 kWh/Year
Certifications and Approvals
Information
• CEE Tier: 1
• ENERGY STAR® Qualified
• ENERGY STAR® Qualified
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
33.63 inch(es) / 85.42 cm
Weight
88.01 lb(s) / 39.92 kg
Additional Dimensions
• Lower Rack Dish Height Limit: 12.5"
• Upper Rack Dish Height Limit: 7.1"
• Depth with Door Open: 48.5"
• Depth with Door Closed with Handle: 23.75"
• Clearances (W x H x D): 24" x 33 5/8" x 24"
• Upper Rack Dish Height Limit: 7.1"
• Depth with Door Open: 48.5"
• Depth with Door Closed with Handle: 23.75"
• Clearances (W x H x D): 24" x 33 5/8" x 24"
Shipping Dimensions
Width
28.03 inch(es) / 71.2 cm
Height
29.63 inch(es) / 75.26 cm
Depth
34.88 inch(es) / 88.6 cm
Warranty
Warranty
Limited Warranty:
• Control Board and Rack Parts Warranty: 2 Years
• Stainless Tub and Door Liner Warranty: 2 Years
• Direct Drive Motor Warranty: 10 Years
• Labor Warranty: 1 Year
• Parts Warranty: 1 Year
• Control Board and Rack Parts Warranty: 2 Years
• Stainless Tub and Door Liner Warranty: 2 Years
• Direct Drive Motor Warranty: 10 Years
• Labor Warranty: 1 Year
• Parts Warranty: 1 Year
UPC
UPC#
195174136485
