DESCRIPTION
×This LG Smart Mirror InstaView® Counter-Depth MAX™ French door refrigerator delivers an ultra-large capacity of a standard-depth fridge for a seamless, built-in look. It offers four types of ice, a UVNano™ smooth touch dispenser, and a PrintProof™ finish.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Refrigerator Type
French 3-Door
Installation Type
Built-In
Counter-Depth
Yes
Door Hinge
Left and Right
Color
Stainless Steel
Manufacturer Color
SmudgeProof & PrintProof Stainless Steel
Capacity
Total
25.5 cu. ft.
Refrigerator
16.9 cu. ft.
Freezer
8.6 cu. ft.
Refrigerator Features
Technologies
• Mirror InstaView™ Window
• IcePlus™
• Dual Ice with Craft Ice™
• Slim SpacePlus®
• UVNano™
• Decibel™ Quiet Operation
• ThinQ®
• Smart Diagnosis
• Door Cooling+
• Door-in-Door®
• Glide N' Serve™ Drawer
• CoolGuard™
• Shelf Construction: SpillProof™ Tempered Glass
• DuraBase™ Solid Drawer Base
• Freezer Handle: SmartPull™ Handle
• IcePlus™
• Dual Ice with Craft Ice™
• Slim SpacePlus®
• UVNano™
• Decibel™ Quiet Operation
• ThinQ®
• Smart Diagnosis
• Door Cooling+
• Door-in-Door®
• Glide N' Serve™ Drawer
• CoolGuard™
• Shelf Construction: SpillProof™ Tempered Glass
• DuraBase™ Solid Drawer Base
• Freezer Handle: SmartPull™ Handle
Control Lock
Yes
Digital Display
Yes
Door Alarm
Yes
Interior Light
Yes
Wi-Fi
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Multi Air Flow Cooling
• Inverter Linear Compressor
• 9 Temperature Sensors
• Fresh Air Filter
• Evaporator
• Smooth Touch Control / White LED
• Auto Closing Door Hinge
• No. of Shelves: 4 Split (3 Fixed+1Folding)
• Hybrid Cantilevered Shelves
• 2 Crispers Bins
• No. of Door Bins: 8 Total (2 Adjustable Gallon Sized)
• 1 Folding Shelf
• PrintProof™ Finish
• Inverter Linear Compressor
• 9 Temperature Sensors
• Fresh Air Filter
• Evaporator
• Smooth Touch Control / White LED
• Auto Closing Door Hinge
• No. of Shelves: 4 Split (3 Fixed+1Folding)
• Hybrid Cantilevered Shelves
• 2 Crispers Bins
• No. of Door Bins: 8 Total (2 Adjustable Gallon Sized)
• 1 Folding Shelf
• PrintProof™ Finish
Freezer Features
Additional Freezer Information
• Freezer Light Upper: LED Lighting
• Drawers / Shelves: 3-Tier Organization
• Drawers / Shelves: 3-Tier Organization
Ice and Water
Ice System
Exterior
Water System
Exterior
Filtration
Yes

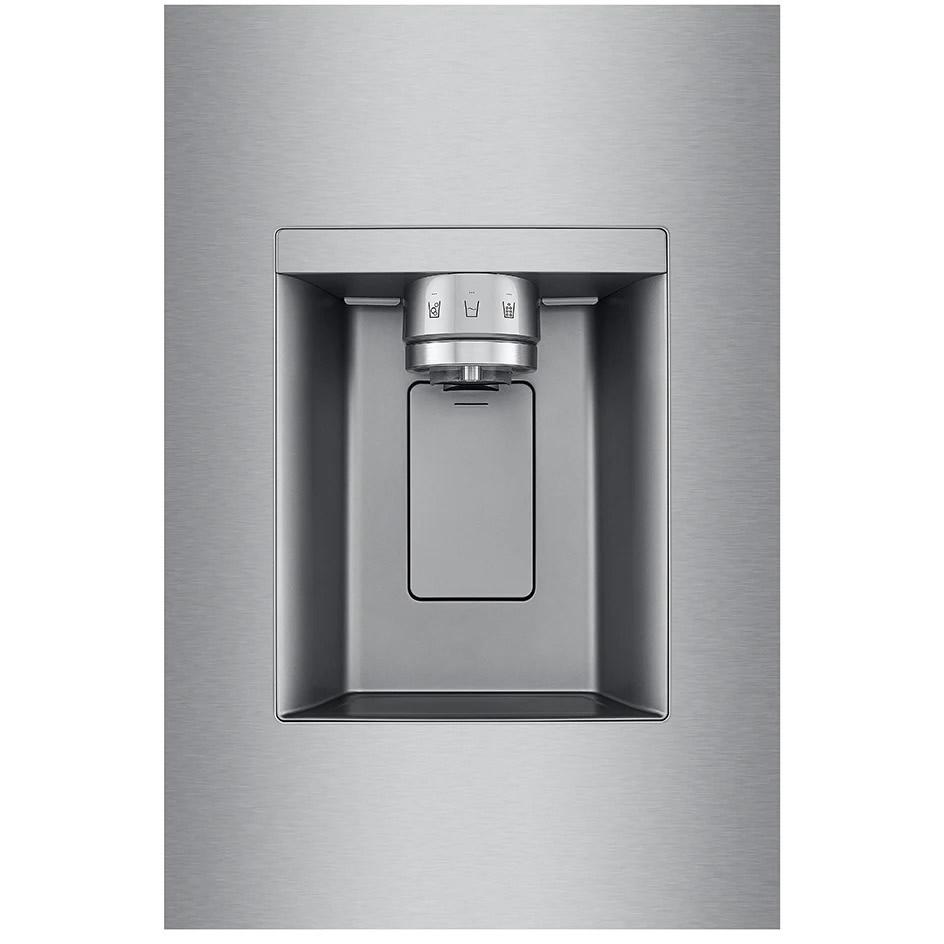

Dispenser Features
• Integrated Tall Ice & Water Dispenser
• Daily Ice Production: 3.0 lbs / 3.3 (Ice Plus), 0.7 lbs (Clear big ice), 1.5 lbs (Cubed mini ice)
• Craft Ice™ Daily Ice Production: 6 / 3
• Ice Storage Capacity: 3.0 + 3.8 + 4.0 lbs
• Cube & Crushed Ice
• Water Filter: LT1000P
• Daily Ice Production: 3.0 lbs / 3.3 (Ice Plus), 0.7 lbs (Clear big ice), 1.5 lbs (Cubed mini ice)
• Craft Ice™ Daily Ice Production: 6 / 3
• Ice Storage Capacity: 3.0 + 3.8 + 4.0 lbs
• Cube & Crushed Ice
• Water Filter: LT1000P
Certifications and Approvals
Sabbath Mode
Yes
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.81 cm
Height (With Hinge)
70.25 inch(es) / 178.44 cm
Depth (Without Handles)
29.13 inch(es) / 73.99 cm
Depth (With Handles)
31.63 inch(es) / 80.34 cm
Weight
333.01 lb(s) / 151.05 kg
Additional Dimensions
• Depth without Door: 24 3/4"
• Height to Top of Hinge: 70 1/4"
• Height to Top of Case: 68 7/8"
• Width (Door Open 90 Degrees with Handle): 44 7/8"
• Width (Door Open 90 Degrees without Handle): 40"
• Installation Clearance: Sides 1/8", Top 1", Back 2"
• Height to Top of Hinge: 70 1/4"
• Height to Top of Case: 68 7/8"
• Width (Door Open 90 Degrees with Handle): 44 7/8"
• Width (Door Open 90 Degrees without Handle): 40"
• Installation Clearance: Sides 1/8", Top 1", Back 2"
Shipping Dimensions
Width
38 inch(es) / 96.52 cm
Height
73 inch(es) / 185.42 cm
Depth
32 inch(es) / 81.28 cm
Weight
362.99 lb(s) / 164.65 kg
Warranty
Warranty
• 1 Year Parts and Labor
• 5 Years on the Sealed System (Parts and Labor)
• 5 Years on the Compressor (Parts and Labor)
• 6-10 Years on Linear Compressor (Parts and Labor)
• 5 Years on the Sealed System (Parts and Labor)
• 5 Years on the Compressor (Parts and Labor)
• 6-10 Years on Linear Compressor (Parts and Labor)
UPC
UPC#
195174034828
