DESCRIPTION
×This versatile gas range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features flawless cooking results from Even-Heat™ True Convection, with the unique bow-tie design and convection fan that ensures the entire oven is heated to, and stays at, the perfect temperature.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center rear: 8000 BTU
• Left front: 19000 BTU
• Left rear: 5000 BTU
• Right front: 15000 BTU
• Right rear: 9200 BTU
• Left front: 19000 BTU
• Left rear: 5000 BTU
• Right front: 15000 BTU
• Right rear: 9200 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
6.5 cu. ft.
Number of Ovens
Single
Features
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Steam rack offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
• 2 continuous Grates
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F

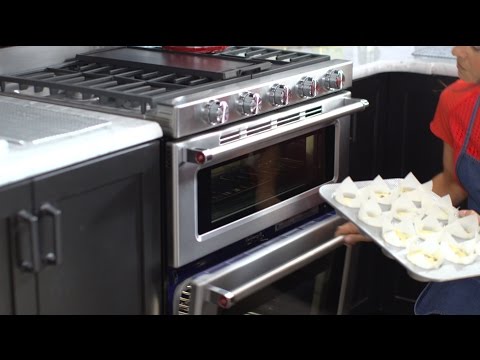

• Baking drawer's separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Steam rack offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
• 2 continuous Grates
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• Baking drawer's separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm
Drawer Features
Baking
Yes
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
120 V
Certifications and Approvals
Sabbath/Star-K
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.37 inch(es) / 66.99 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
214.99 lb(s) / 97.52 kg
Additional Dimensions
• 1 3/16" (3.0 cm) height from cooktop to top of vent
• 36" (91.4 cm) height to top of cooktop edge with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• 36" (91.4 cm) height to top of cooktop edge with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
262 lb(s) / 118.84 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049343587
