DESCRIPTION
×This versatile gas freestanding range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. The cooktop has 5 burners ranging from 5,000 to 18,000 BTU, letting you go from a rolling boil to a delicate simmer.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop

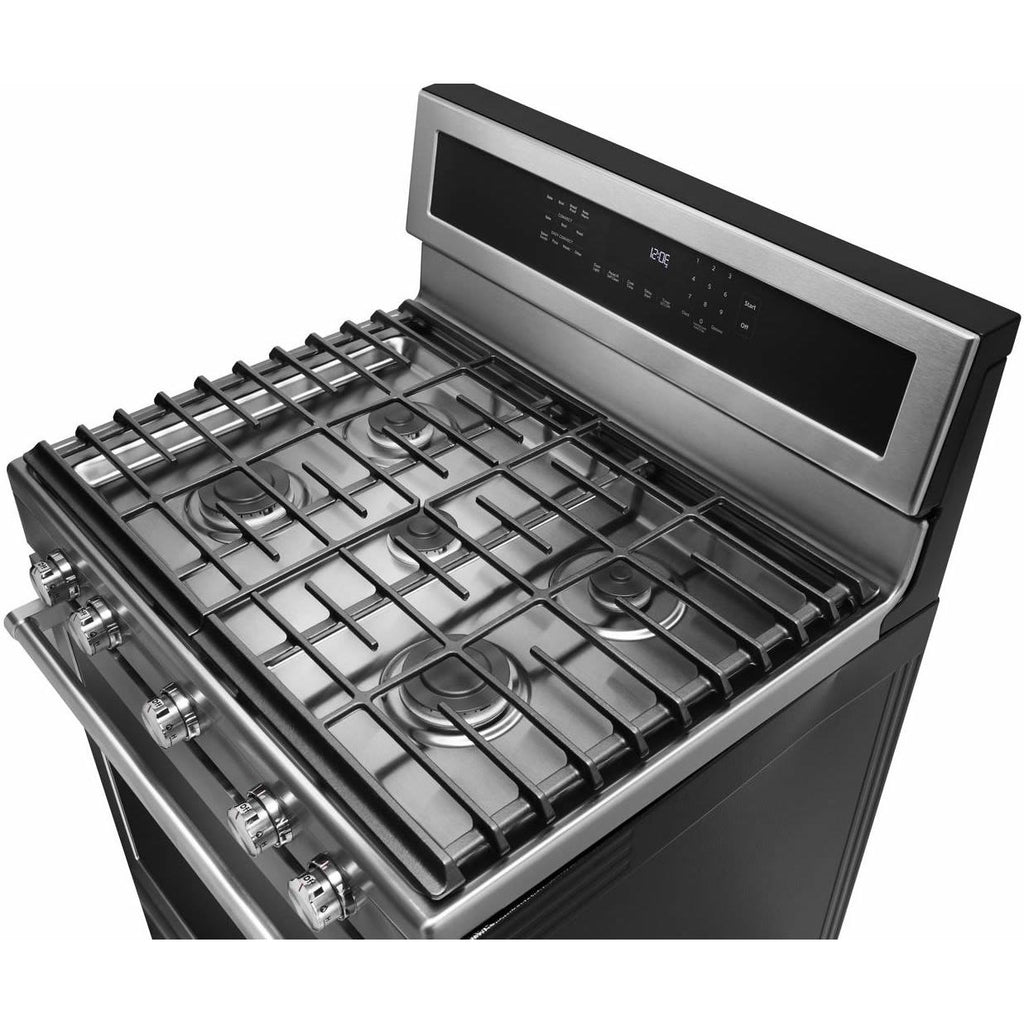

Burners/Elements
5
Burners/Elements Output
• Center rear: 8,000 BTU
• Left front: 18,000 BTU
• Left rear: 9,500 BTU
• Right front: 15,000 BTU
• Right rear: 5,000 BTU
• Left front: 18,000 BTU
• Left rear: 9,500 BTU
• Right front: 15,000 BTU
• Right rear: 5,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
5.8 cu. ft.
Number of Ovens
Single
Features
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking

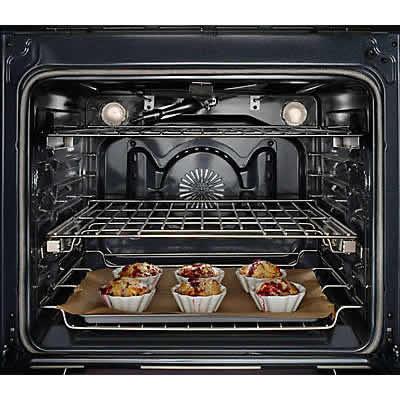

• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• 2 Grates
• Storage drawer
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• 2 Grates
• Storage drawer
Drawer Features
Baking
No
Broiler
No
Storage
Yes
Warming
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.13 inch(es) / 119.7 cm
Depth (Without Handles)
25.44 inch(es) / 64.61 cm
Depth (Including Handles)
27.87 inch(es) / 70.8 cm
Weight
203.99 lb(s) / 92.53 kg
Additional Dimensions
• 27 7/8" (70.8 cm) max. depth with handle
• 36" (91.4 cm) cooktop height (max.) with leveling legs screwed in all the way ( Model/serial/rating plates may be rotated up from behind the control panel for viewing front the front of the range.)
• 47 1/8" (119.7 cm) overall height (max.) with leveling legs screwed in all the way ( Model/serial/rating plates may be rotated up from behind the control panel for viewing front the front of the range.)
• 29 7/8" (75.9 cm) width
• 25 7/16 (64.6 cm) depth. Back of range to front of cooktop ( Front door and drawer may extend farther forward,depending on styling.)
• 36" (91.4 cm) cooktop height (max.) with leveling legs screwed in all the way ( Model/serial/rating plates may be rotated up from behind the control panel for viewing front the front of the range.)
• 47 1/8" (119.7 cm) overall height (max.) with leveling legs screwed in all the way ( Model/serial/rating plates may be rotated up from behind the control panel for viewing front the front of the range.)
• 29 7/8" (75.9 cm) width
• 25 7/16 (64.6 cm) depth. Back of range to front of cooktop ( Front door and drawer may extend farther forward,depending on styling.)
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
48.75 inch(es) / 123.83 cm
Depth
29 inch(es) / 73.66 cm
Weight
209 lb(s) / 94.8 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049354859
