DESCRIPTION

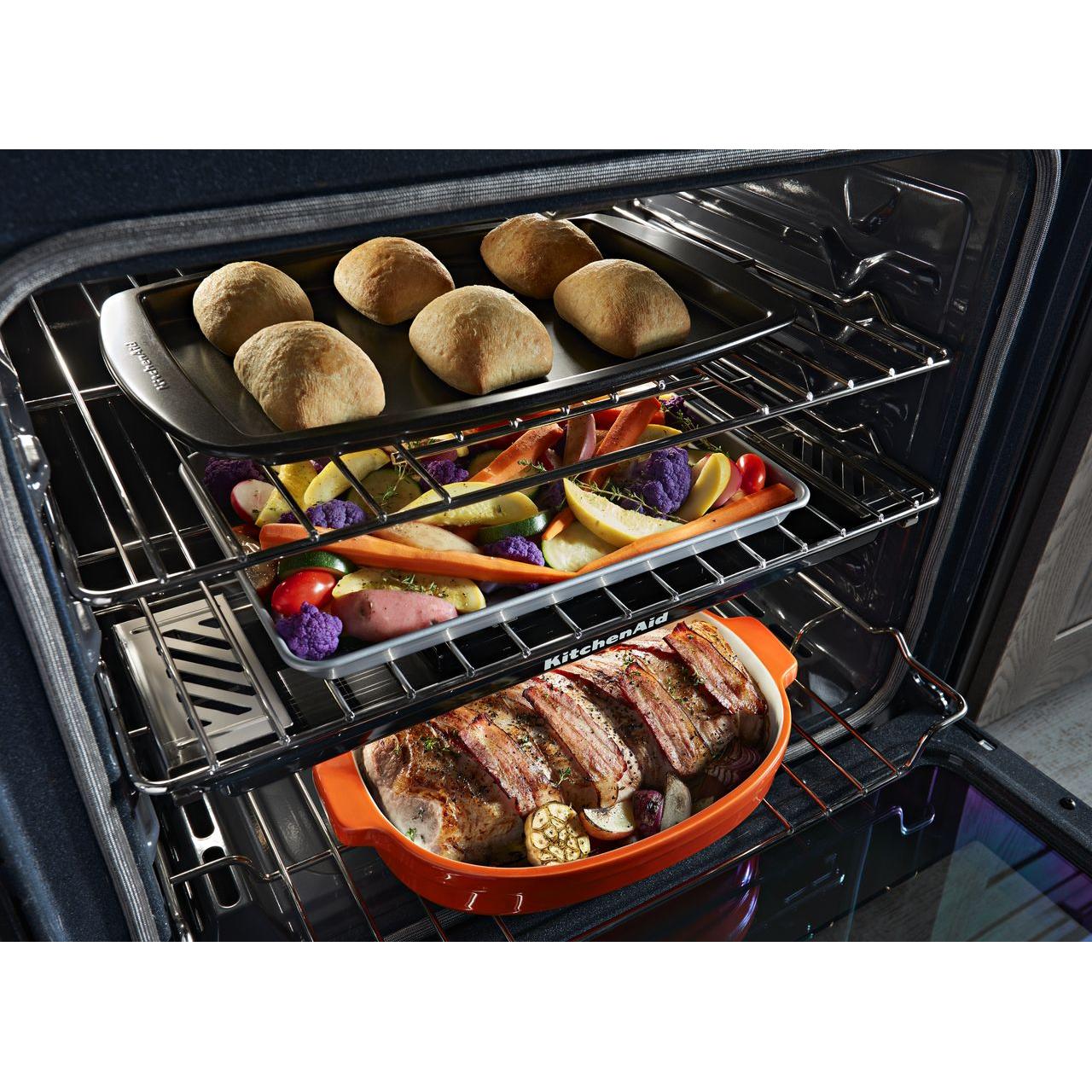

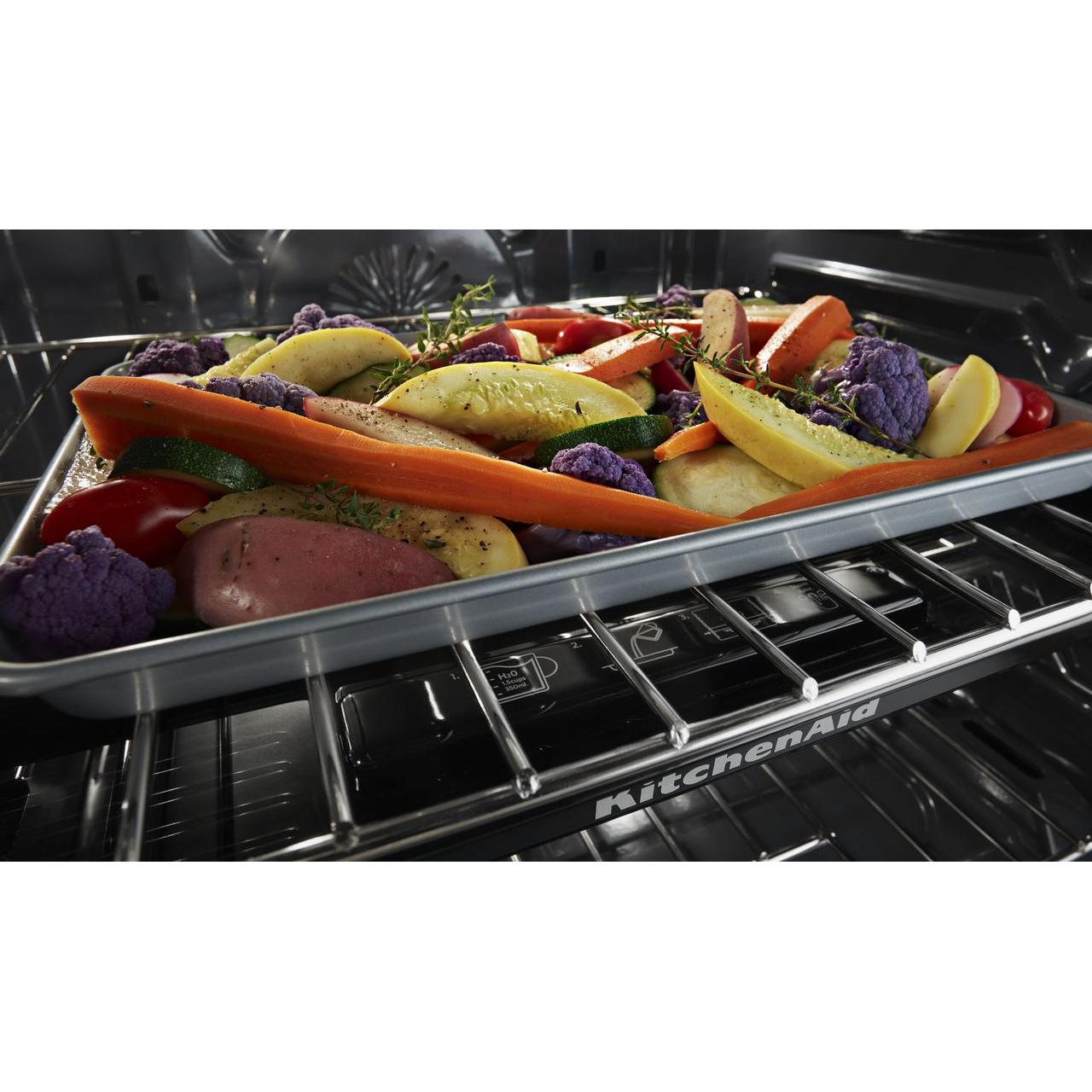

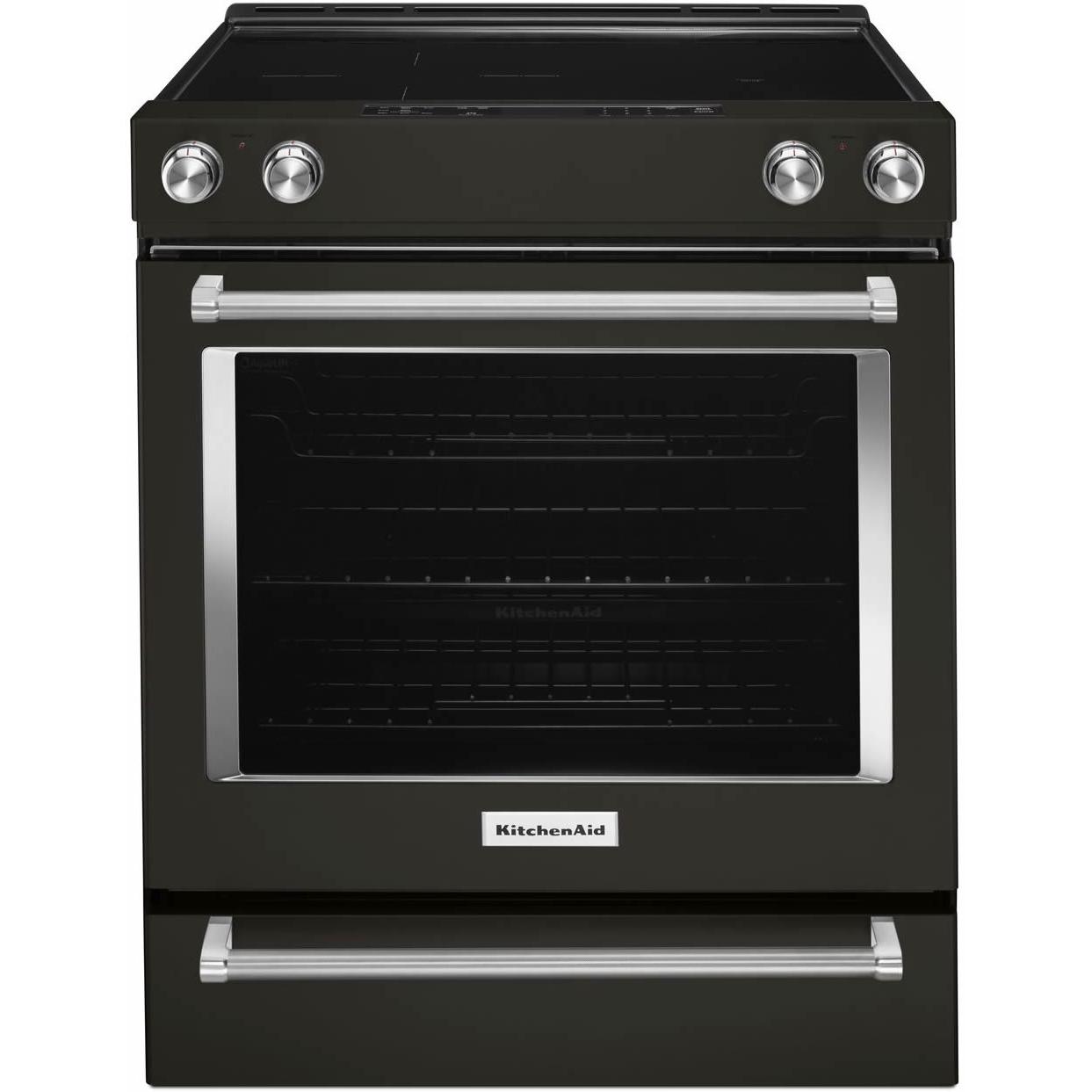

×This beautiful electric range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. This range also features a Steam Rack that adds additional moisture to the inside of the oven, enhancing cooking results. The oven is 6.4 cu ft., providing an extra-large cooking capacity that’s perfect for preparing multiple dishes at once.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Element : 3000/1950/1050 Watts
• Left Rear Element : 1300 Watts
• Right Front Element : 3200 Watts
• Right Rear Element : 1200 Watts
• Center Warm Zone : 100 Watts
• Left Rear Element : 1300 Watts
• Right Front Element : 3200 Watts
• Right Rear Element : 1200 Watts
• Center Warm Zone : 100 Watts
Burner/Element Size
12"/9"/6", 6", 10", 6", 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4 cu. ft.
Number of Ovens
Single
Features
Technologies
• EasyConvect™ Conversion System
• Aqualift®
• Even-Heat™ True Convection
• Aqualift®
• Even-Heat™ True Convection
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Steam Rack
• 5 Cooking Elements Including a Warm Zone
• Glass Touch Controls
• Stainless Steel Towel Bar Handles
• ADA Height and Operation Compliant
• Bake Element Power : 3600W@240 V
• Broiler Element Power : 4000W
• Single Convection Fan
• Selections : Steam Bake, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Warm Zone, Clock
• 5 Cooking Elements Including a Warm Zone
• Glass Touch Controls
• Stainless Steel Towel Bar Handles
• ADA Height and Operation Compliant
• Bake Element Power : 3600W@240 V
• Broiler Element Power : 4000W
• Single Convection Fan
• Selections : Steam Bake, Bread Proofing, Keep Warm Setting, Cook Time, Delay Start, Warm Zone, Clock
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V
• 40 or 50 A
• 40 or 50 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.37 inch(es) / 66.99 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
209.99 lb(s) / 95.25 kg
Additional Dimensions
For more information refer to dimension manual
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
209.99 lb(s) / 95.25 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049413617
