DESCRIPTION

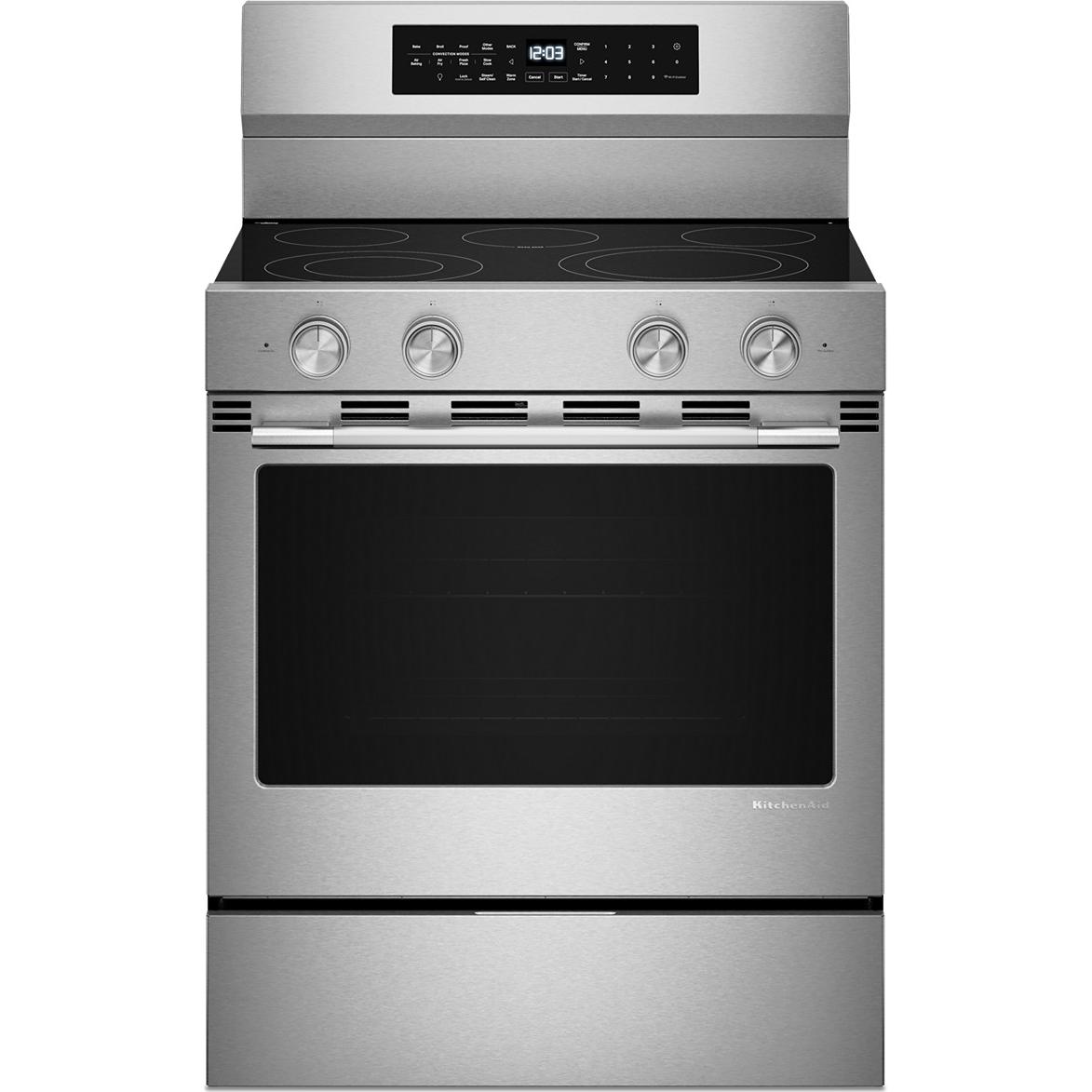

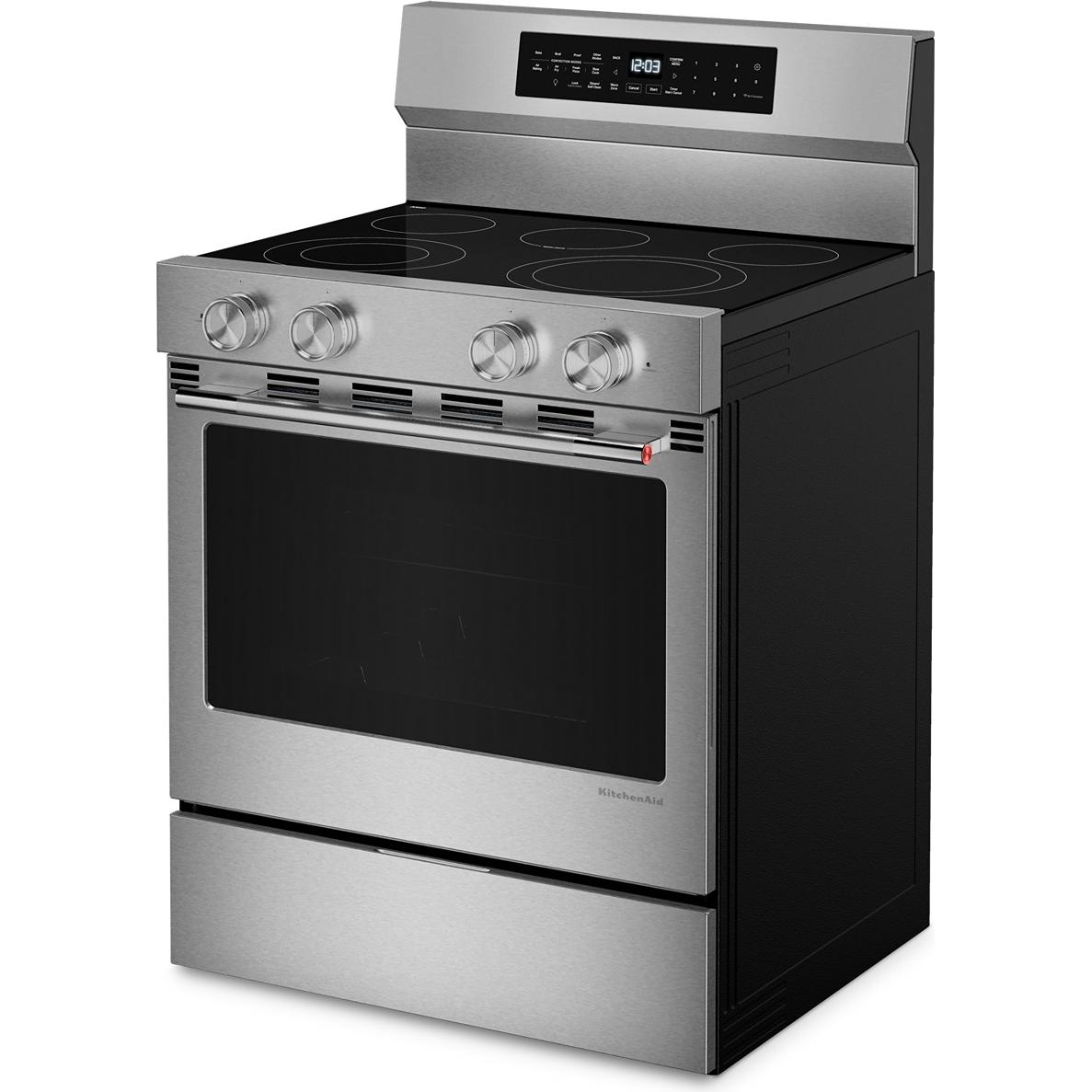

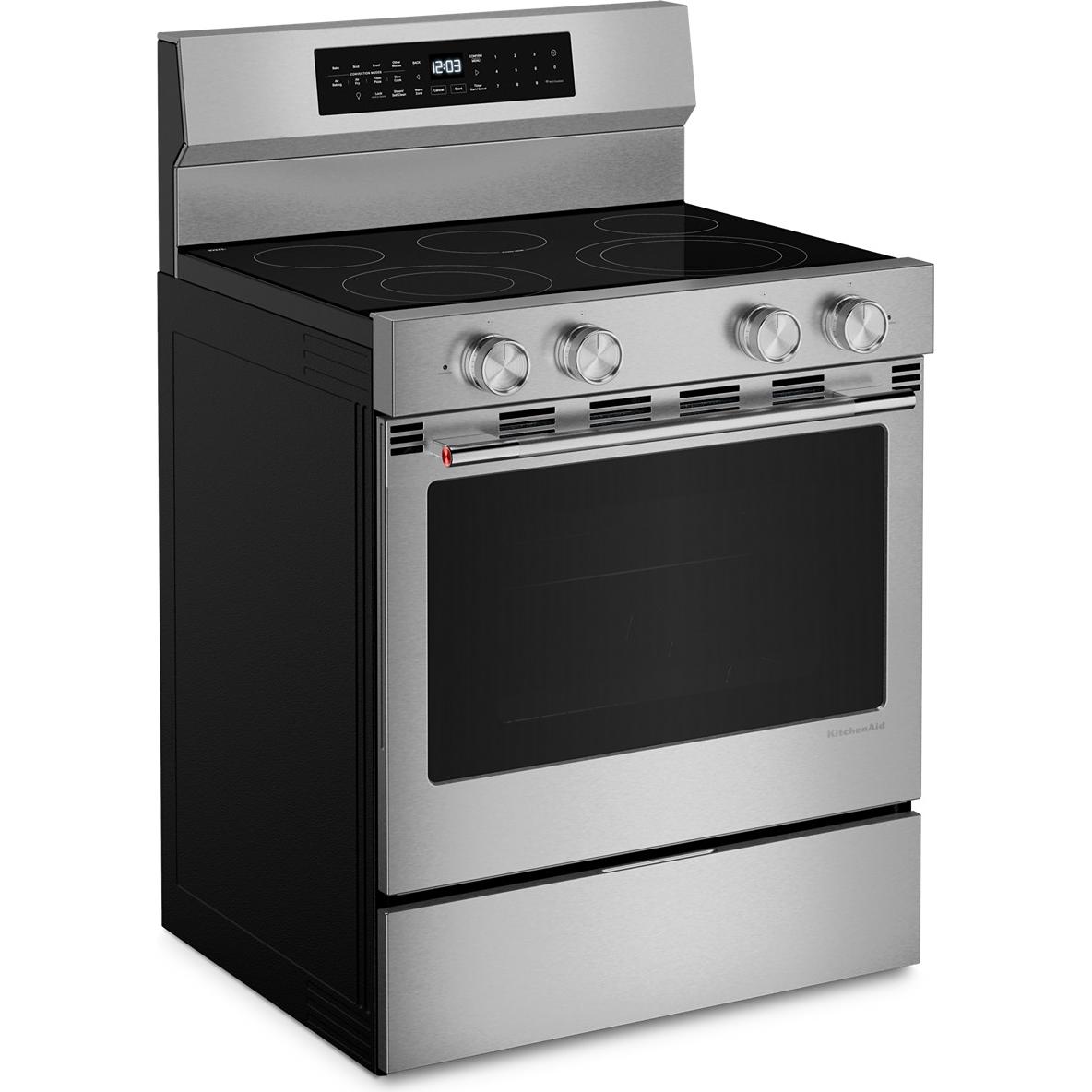

×Enjoy a range of possibilities with our most powerful KitchenAid 30-inch Electric Range available. A WiFi-enabled Smart Appliance featuring Convection Cooking Modes that help you get consistent results with optimal temperatures. Move pots and pans easily from cooktop to countertop with an Edge-to-Edge Glass Cooking Surface. A spacious 5.3 Cu. Ft. Capacity and optimized oven system design with Rapid Preheat gets your oven to 350°F in under 8 minutes*.
*Using Rapid Preheat to 350 degrees when cooktop is not in use.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
PrintShield™ Stainless Steel
Appliance Care
Steam Clean & Self-Cleaning
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear Element Power: 100W
• Left Front Element Power: 3000W
• Right Rear Element Power: 1200W
• Right Front Element Power: 3000W
• Left Rear Element Power: 1200W
• Left Front Element Power: 3000W
• Right Rear Element Power: 1200W
• Right Front Element Power: 3000W
• Left Rear Element Power: 1200W

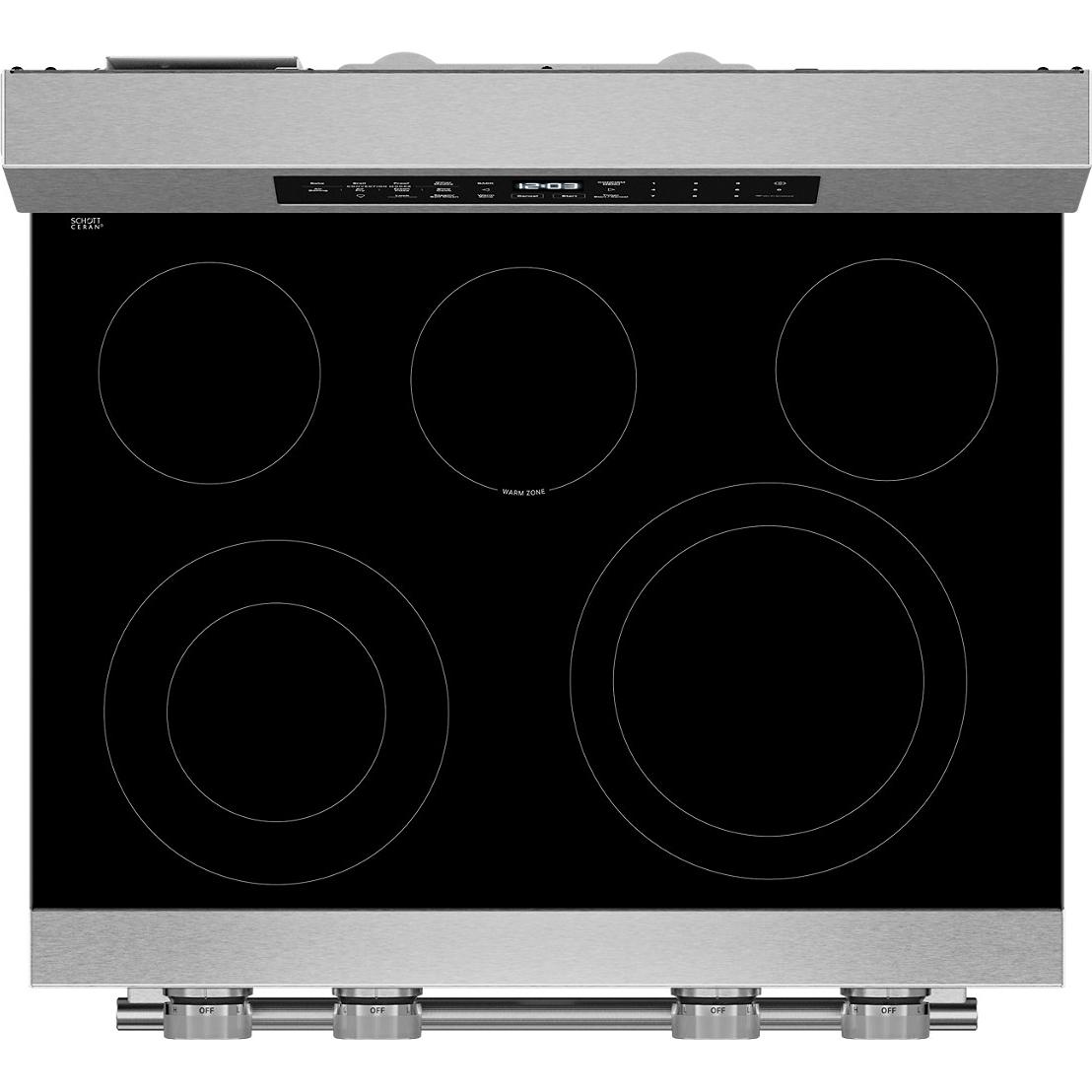

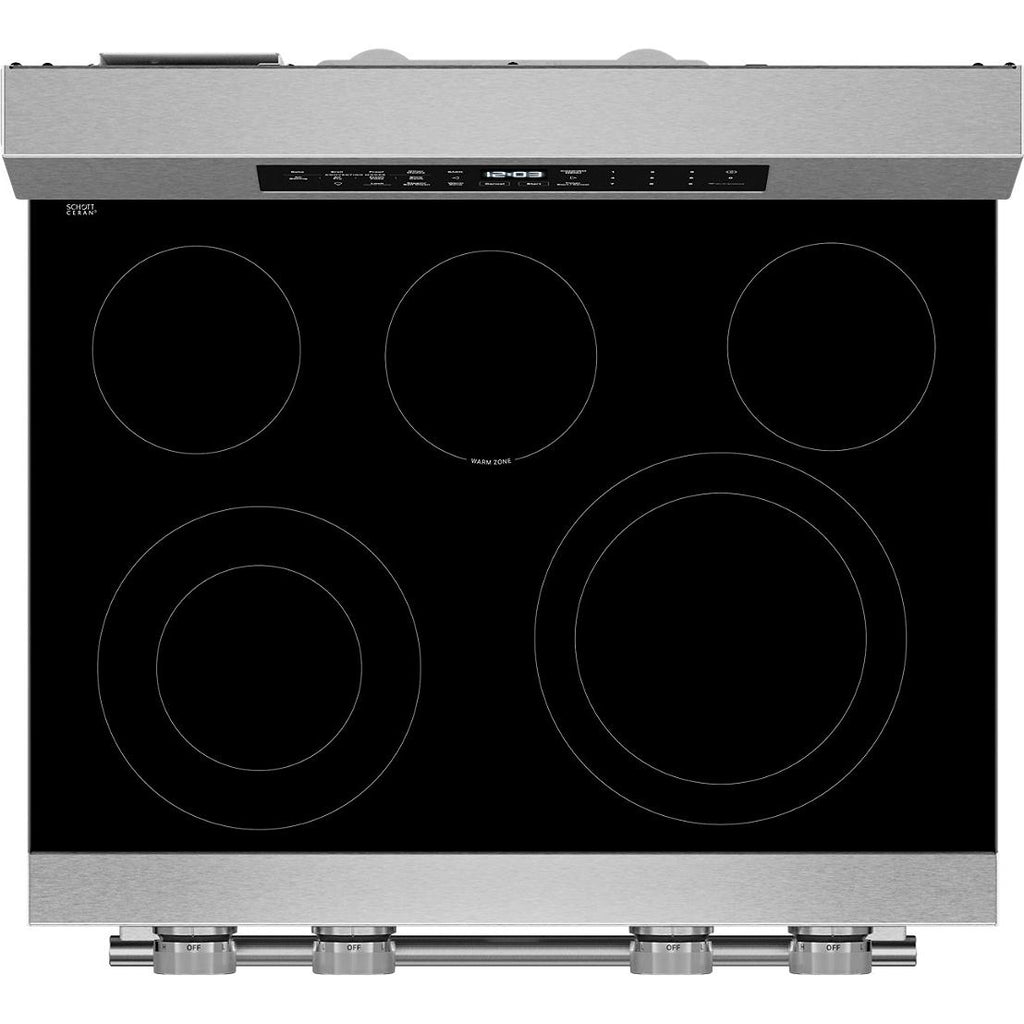

Burner/Element Size
• Center Rear Element Size: 6in.
• Right Rear Element Size: 6in.
• Right Front Element Size: 12in./9in.
• Left Rear Element Size: 6in.
• Left Front Element Size: 9in./6in.
• Right Rear Element Size: 6in.
• Right Front Element Size: 12in./9in.
• Left Rear Element Size: 6in.
• Left Front Element Size: 9in./6in.
Elements
Smoothtop

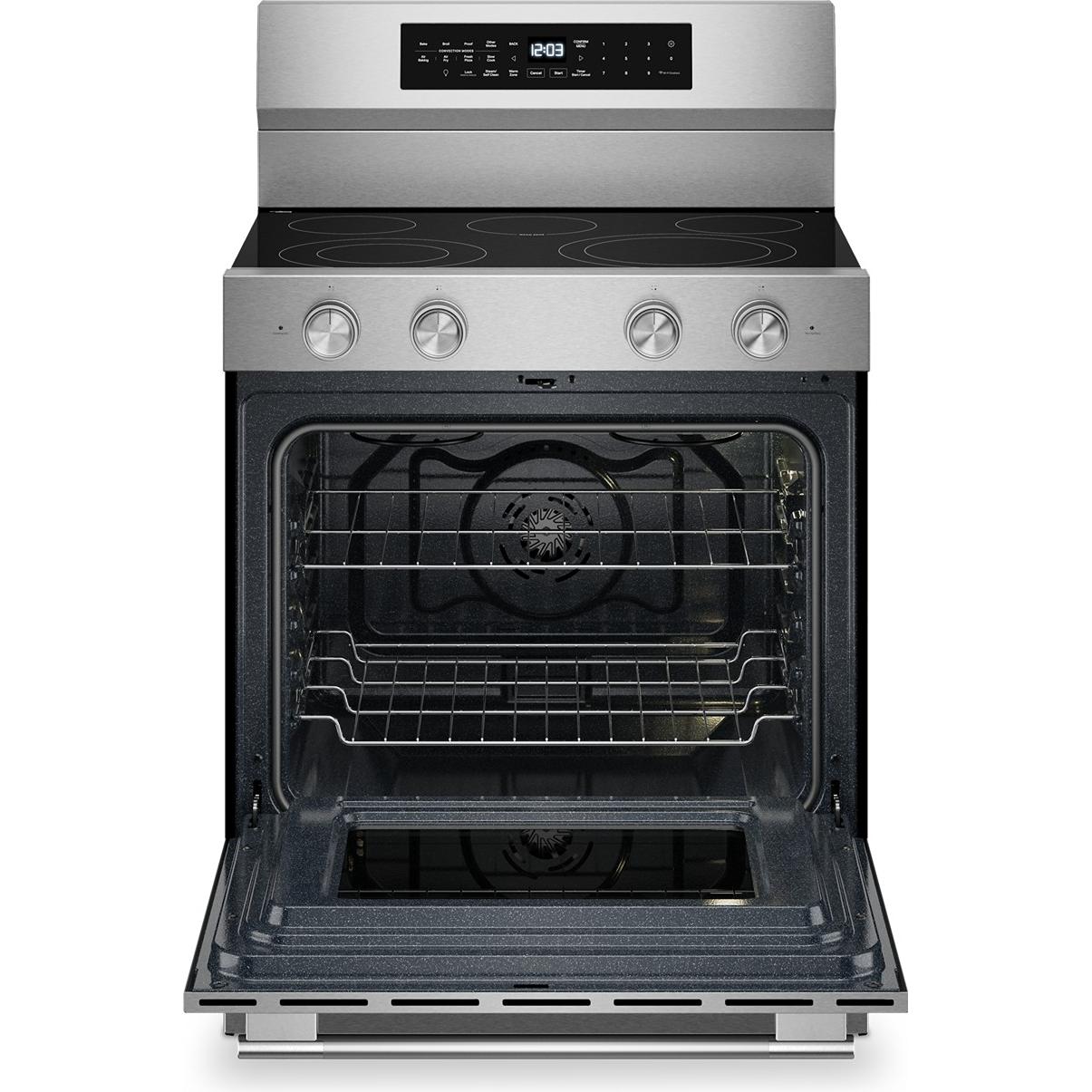

Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Features
Technologies
• Even-Heat™ True Convection
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes

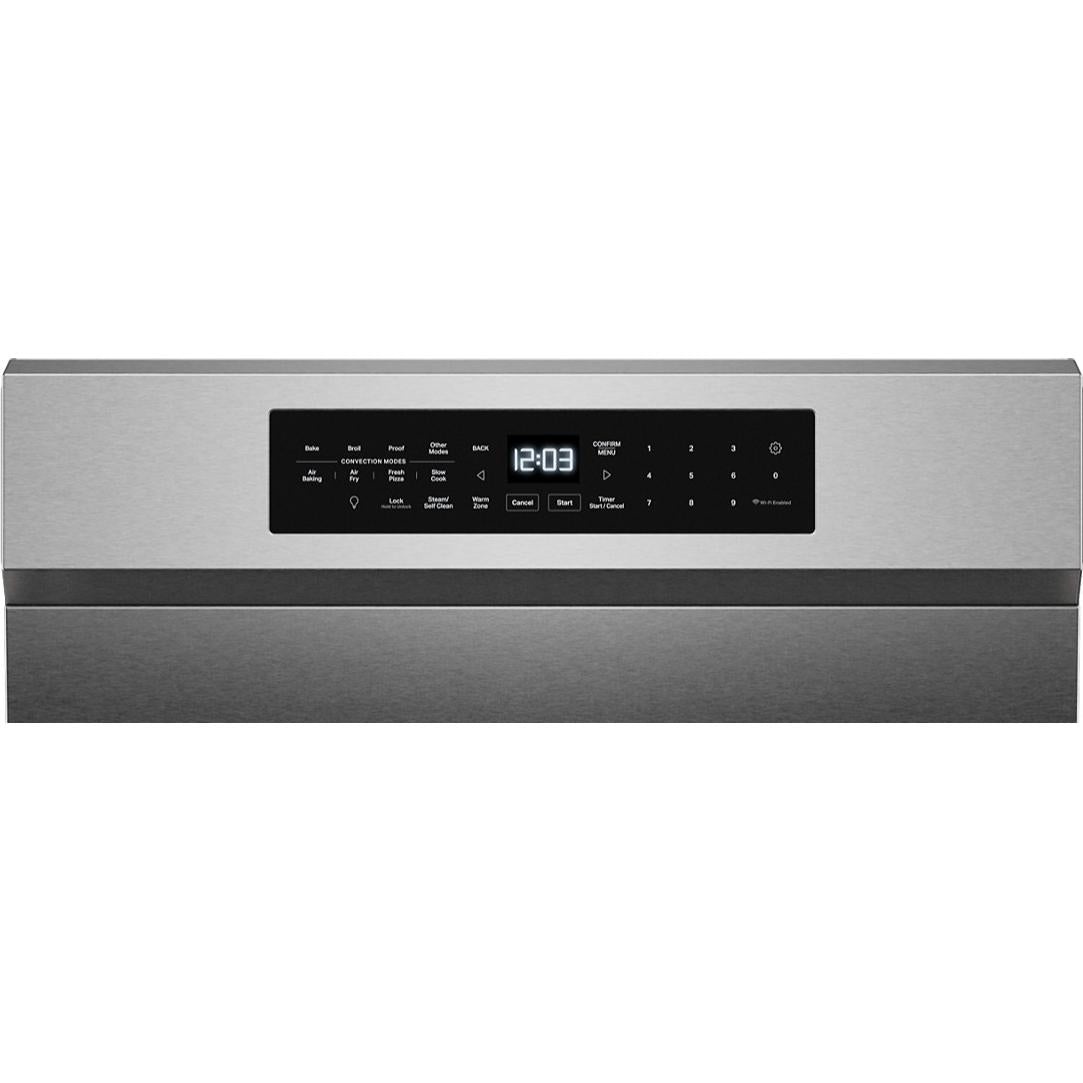

Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Power Outage Compatible
• Hot Surface Indicator Light
• Heating Element On Indicator Light

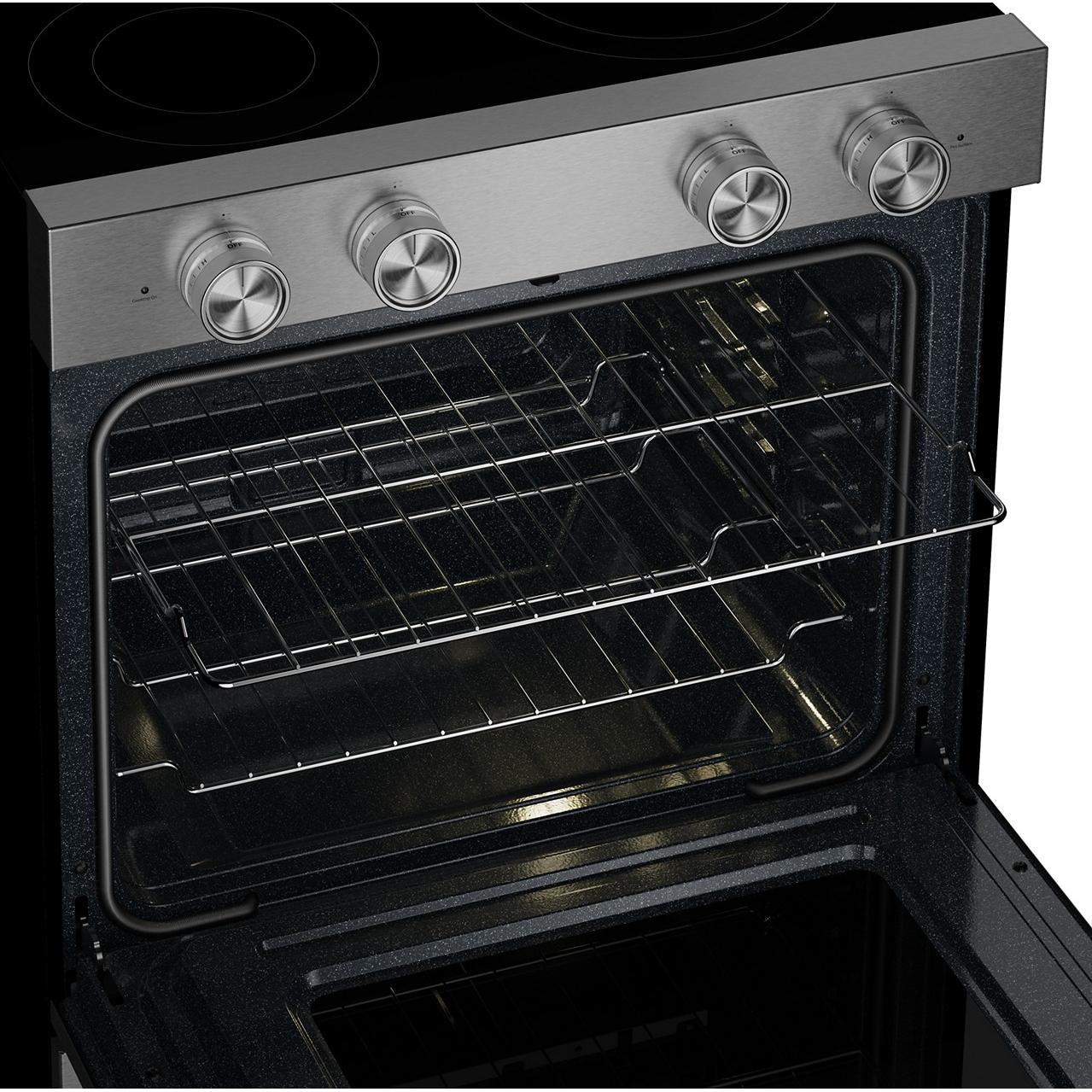

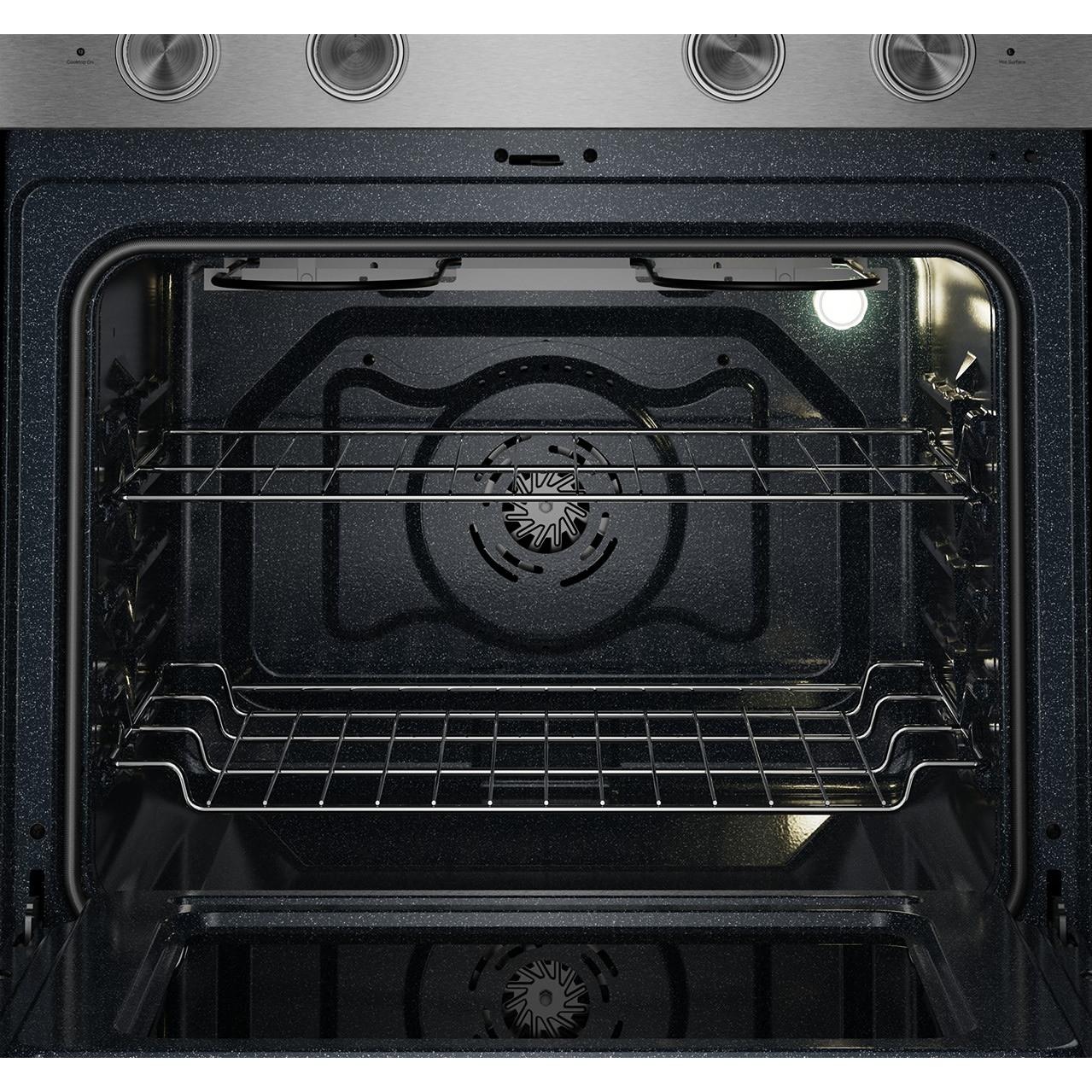

• Rack Guide Type: Embossed
• Oven Rack Type: Max Capacity; Standard
• Oven Light Type: Halogen
• 5 Rack Guides
• 2 Oven Racks
• 1 Oven Lights
• Interior Color: Blue
• Hidden Bake Element
• Cooktop Surface Material: Glass
• Broiler Location: Top Center
• Broiler Element Power: 3400W
• Bake Element Power: 2400W
• Handle Type: Reach-Through Handle
• Handle Material: Metal
• Door Removable
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Rack Guide Type: Embossed
• Oven Rack Type: Max Capacity; Standard
• Oven Light Type: Halogen
• 5 Rack Guides
• 2 Oven Racks
• 1 Oven Lights
• Interior Color: Blue
• Hidden Bake Element
• Cooktop Surface Material: Glass
• Broiler Location: Top Center
• Broiler Element Power: 3400W
• Bake Element Power: 2400W
• Handle Type: Reach-Through Handle
• Handle Material: Metal
• Door Removable
Drawer Features
Storage
Yes
Electrical Information
Information
• Annual Energy Usage Kwh: 564
• 208 V
• 60 Hz
• 12000 W
• 208 V
• 60 Hz
• 12000 W
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• Energy Star® Certified
• UL
• CUL
• UL
• CUL
Accessories
Optional
4396096RB, W11692811

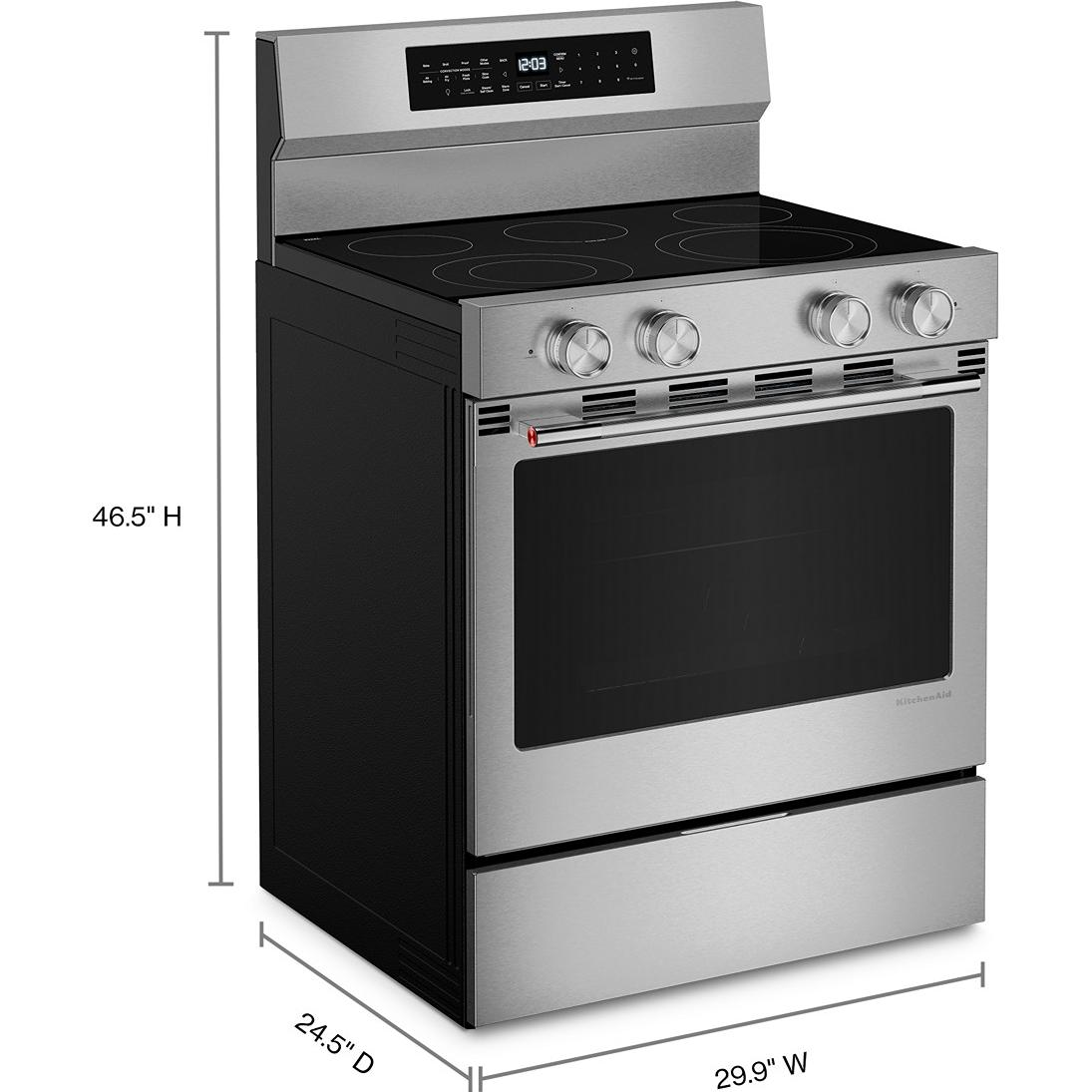

Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
46.5 inch(es) / 118.11 cm
Depth (Without Handles)
24.5 inch(es) / 62.23 cm
Additional Dimensions
• Depth With Door Open 90 Degree: 46.8"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Depth Closed Excluding Handles: 26.5"
• Depth Closed Including Handles: 28.1"
• Maximum Height: 52.0"
• Minimum Height: 46.5"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.7"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Depth Closed Excluding Handles: 26.5"
• Depth Closed Including Handles: 28.1"
• Maximum Height: 52.0"
• Minimum Height: 46.5"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.7"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
192 lb(s) / 87.09 kg
