DESCRIPTION

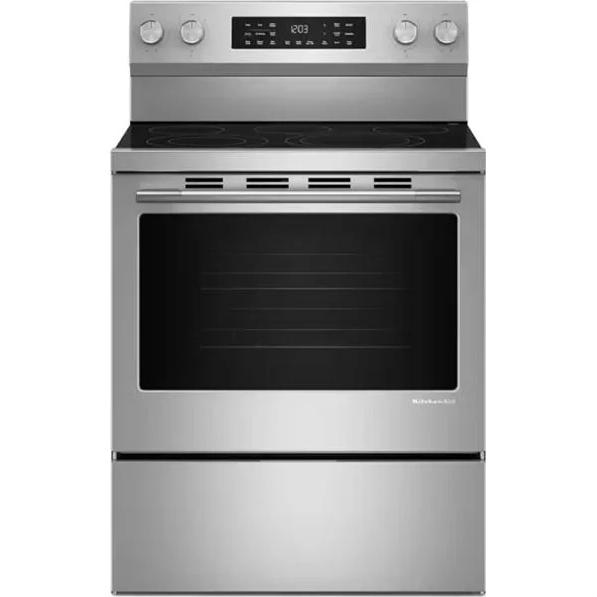

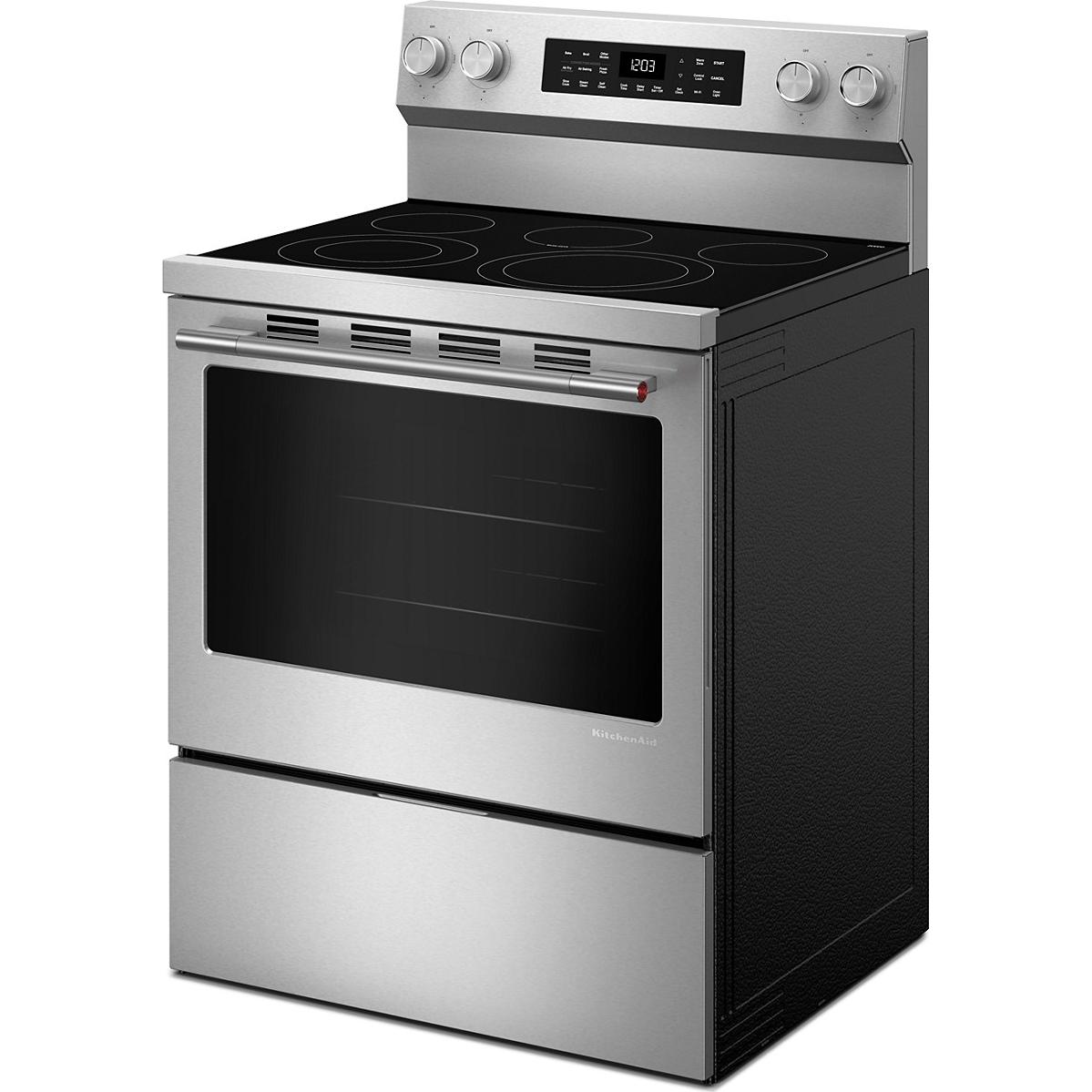

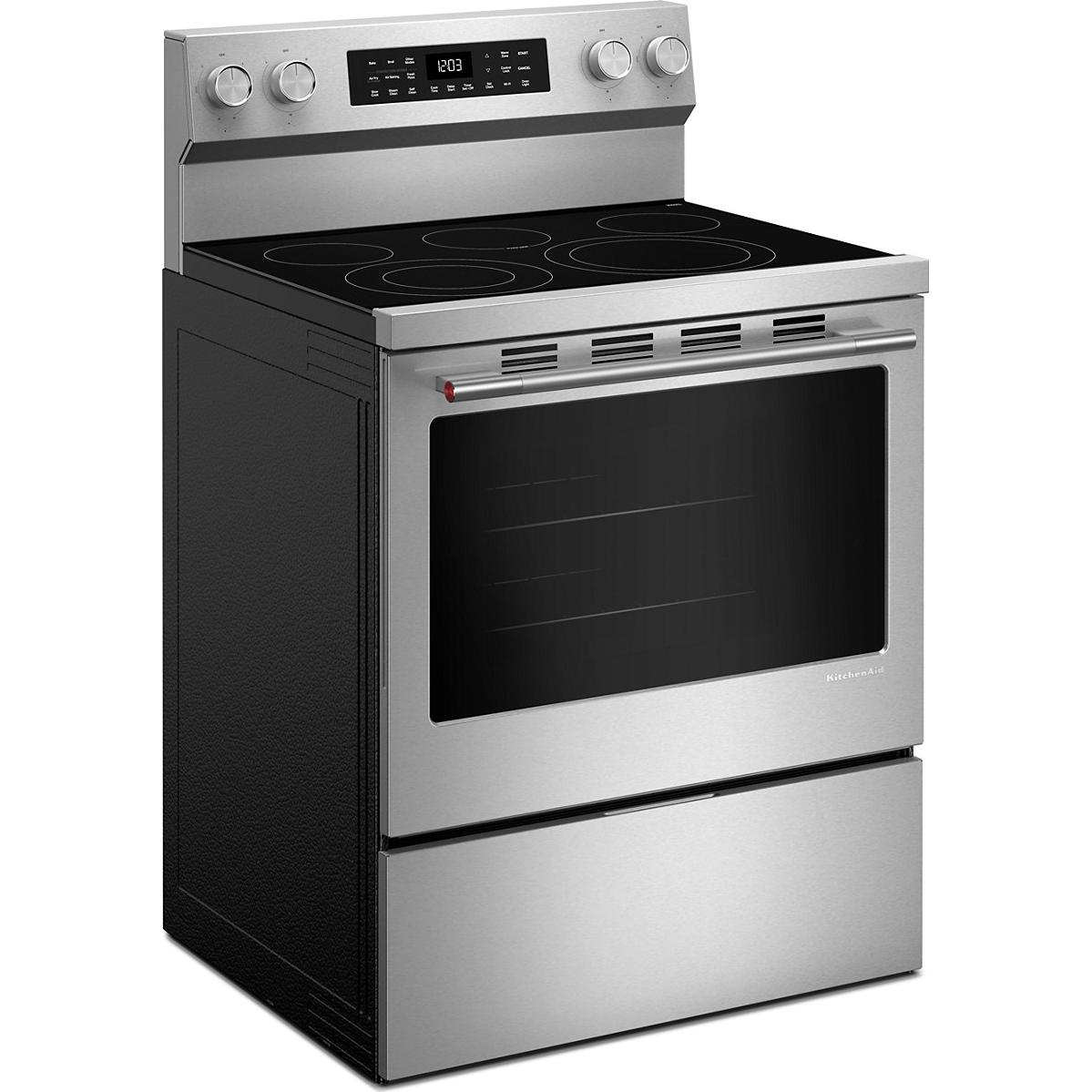

×Enjoy a range of possibilities with our most powerful KitchenAid 30-inch Electric Range available. A WiFi-enabled Smart Appliance featuring Convection Cooking Modes that help you get consistent results with optimal temperatures. Move pots and pans easily from cooktop to countertop with an Edge-to-Edge Glass Cooking Surface. A spacious 5.3 Cu. Ft. Capacity and optimized oven system design with Rapid Preheat gets your oven to 350°F in under 8 minutes*. *Using Rapid Preheat to 350 degrees when cooktop is not in use.
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
PrintShield™ Stainless Steel
Appliance Care
Steam Clean

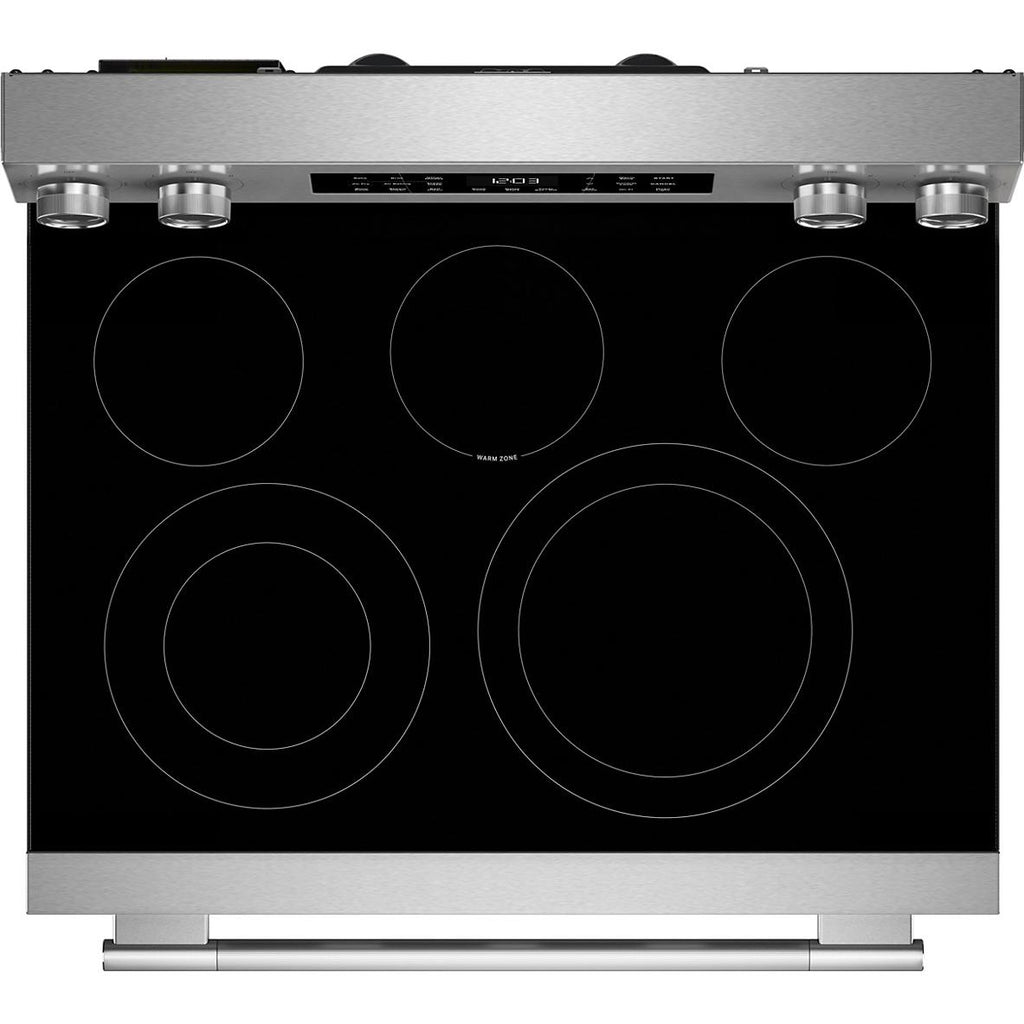

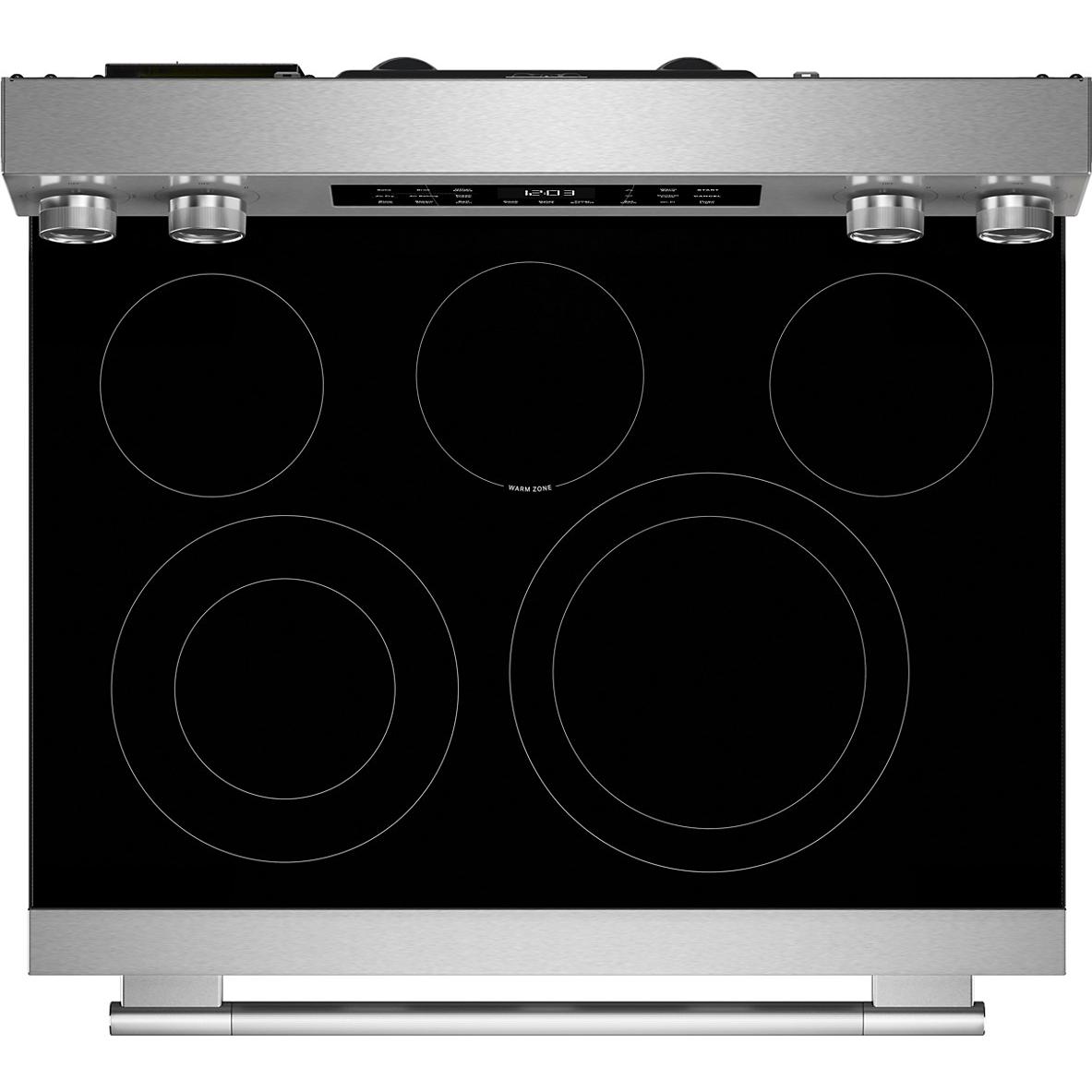

Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Rear Element Power: 1200 W
• Right Front Element Power: 3000 W
• Left Rear Element Power: 1200 W
• Left Front Element Burner Power: 3000 W
• Center Rear Element Power: 100 W
• Right Front Element Power: 3000 W
• Left Rear Element Power: 1200 W
• Left Front Element Burner Power: 3000 W
• Center Rear Element Power: 100 W

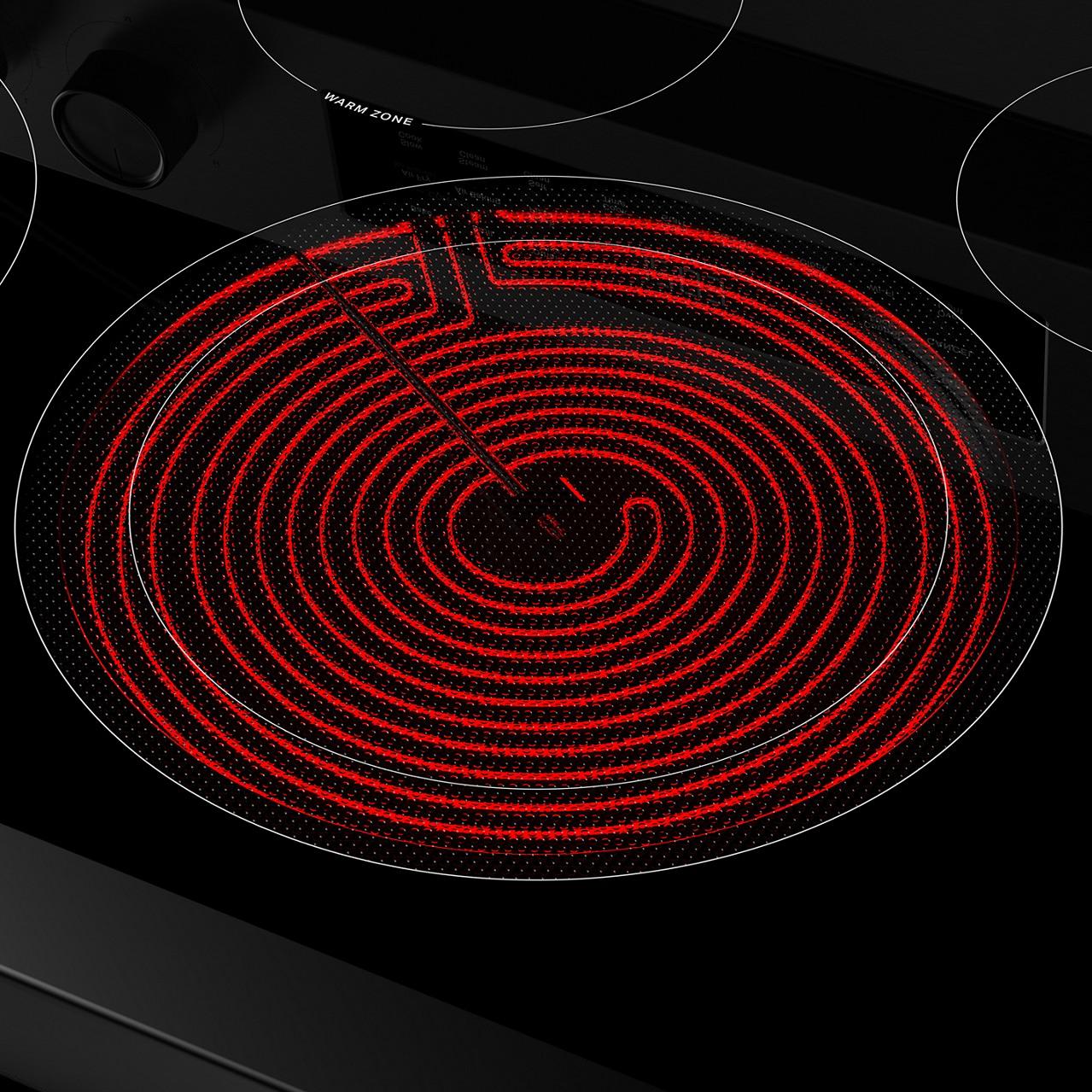

Burner/Element Size
• Right Rear Element Size: 6 in.
• Right Front Element Size: 12 in./9 in.
• Left Rear Element Size: 6 in.
• Left Front Element Burner Size: 9 in./6 in.
• Right Front Element Size: 12 in./9 in.
• Left Rear Element Size: 6 in.
• Left Front Element Burner Size: 9 in./6 in.
Elements
Smoothtop

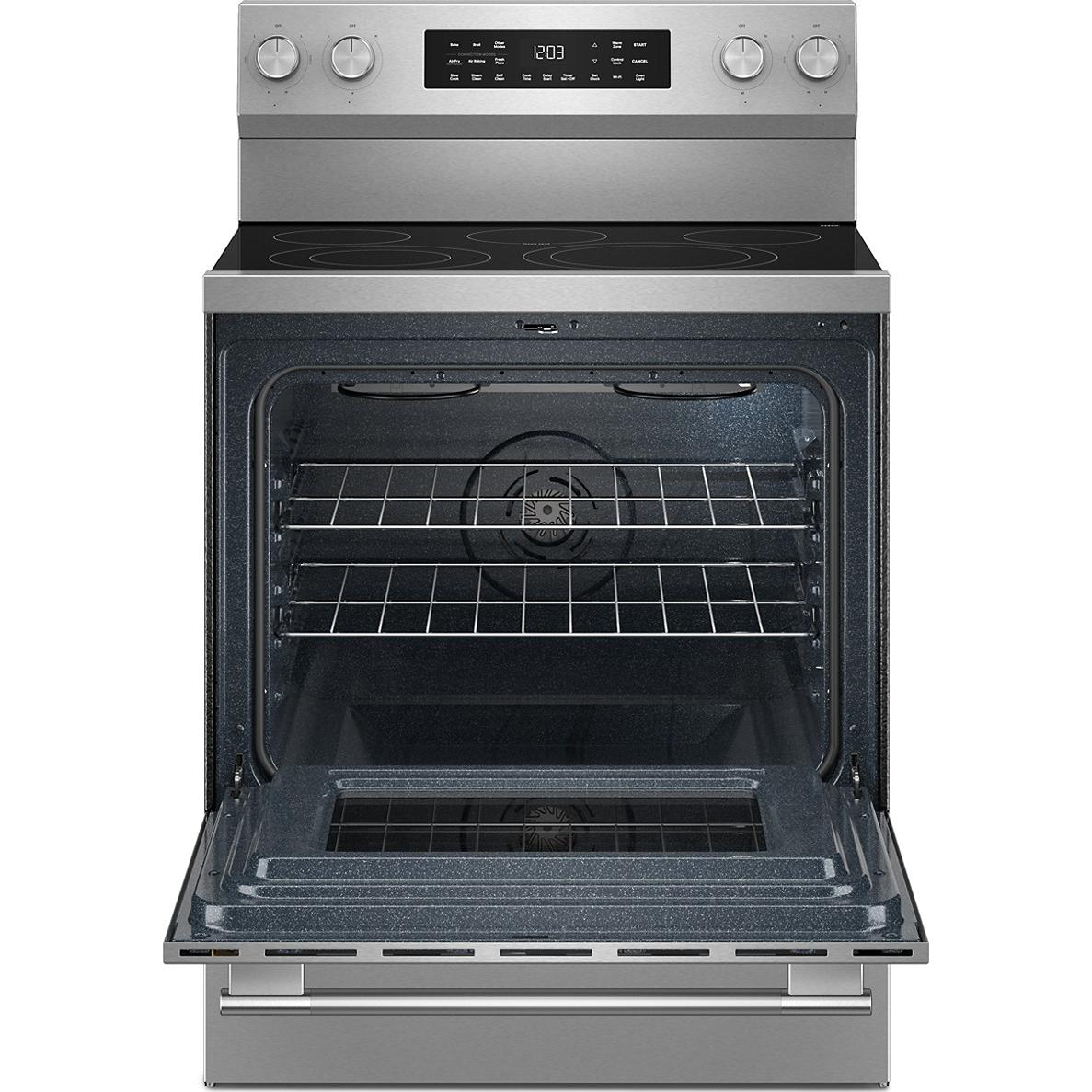

Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Features
Technologies
True Convection Technology
Convection
Yes

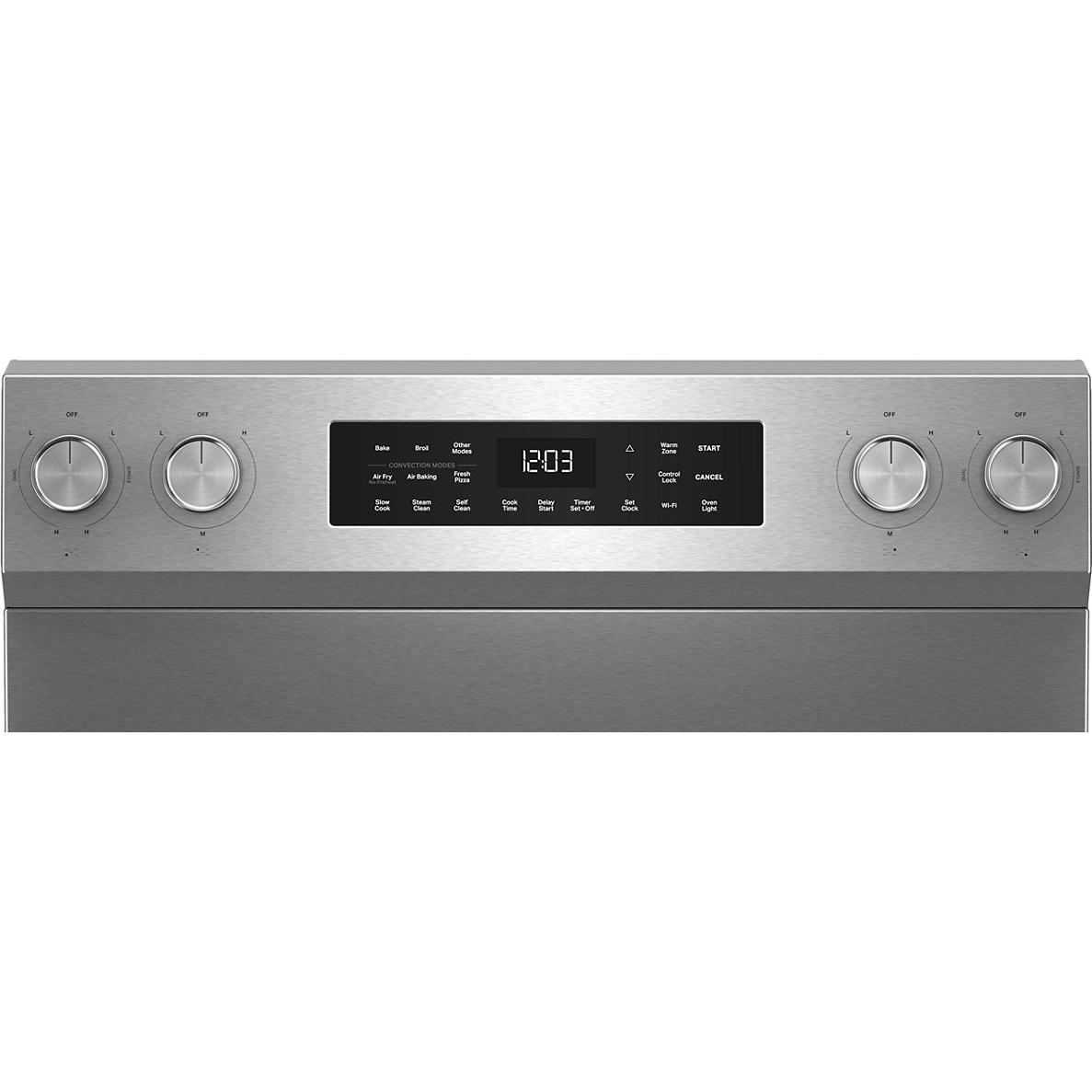

Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• Broiler Element Power: 3400 W
• Number of Rack Guides: 5
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Interior Color: Blue
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Glass
• Broiler Location: Top Center
• Bake Element Power: 2400 W
• Oven Light Type: Halogen
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Number of Rack Guides: 5
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Interior Color: Blue
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Glass
• Broiler Location: Top Center
• Bake Element Power: 2400 W
• Oven Light Type: Halogen
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
Drawer Features
Storage
Yes
Electrical Information
Information
• 208 V
• 1200 W
• 60 Hz
• 40 A
• 1200 W
• 60 Hz
• 40 A
Certifications and Approvals
Sabbath/Star-K
Yes
Information
CUL, UL
Accessories
Optional
4396096RB, W11692811
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
46.5 inch(es) / 118.11 cm
Depth (Without Handles)
24.5 inch(es) / 62.23 cm
Weight
169.01 lb(s) / 76.66 kg
Additional Dimensions
• Depth Closed Excluding Handles: 26.5"
• Depth Closed Including Handles: 28.1"
• Depth With Door Open 90°: 46.8"
• Maximum Height: 52.0"
• Minimum Height: 46.5"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Depth Closed Including Handles: 28.1"
• Depth With Door Open 90°: 46.8"
• Maximum Height: 52.0"
• Minimum Height: 46.5"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
184.99 lb(s) / 83.91 kg
