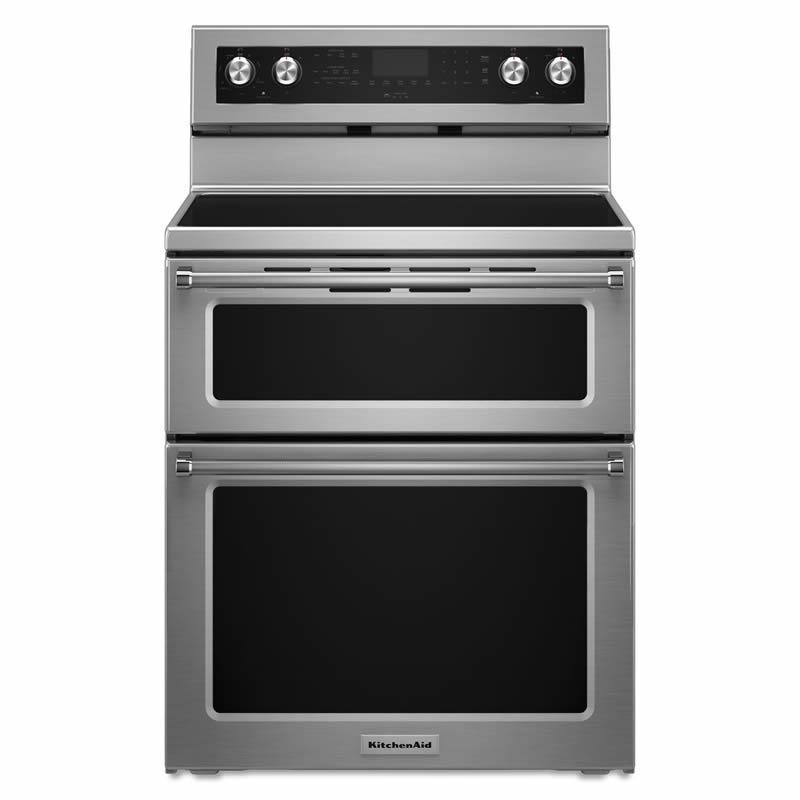

DESCRIPTION
×This beautiful electric double oven range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. The ovens are a combined 6.7 cu ft., providing an extra-large capacity and separate temperature environments. The cooktop features five heating surfaces, including a dedicated warming zone, allowing you to do more on your range.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear : 100 Watt
• Left Front : 2700/1950/1050 Watt
• Left Rear : 700 Watt
• Right Front : 3200 Watt
• Right Rear : 1200 Watt
• Left Front : 2700/1950/1050 Watt
• Left Rear : 700 Watt
• Right Front : 3200 Watt
• Right Rear : 1200 Watt
Burner/Element Size
Center rear: 6";Left front: 12"/9"/6";Left rear: 6";Right front: 10";Right Rear: 6".
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Upper Oven: 2.5
• Lower Oven: 4.2
• Total: 6.7
• Lower Oven: 4.2
• Total: 6.7
Number of Ovens
Double
Features
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information

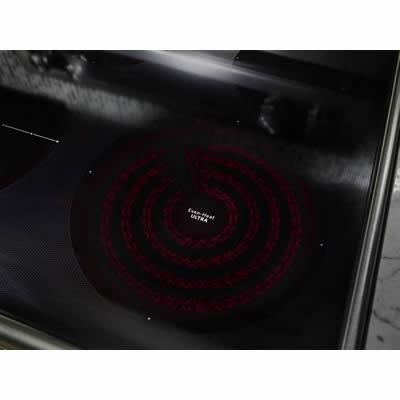

• 10" 3200-watt Ultra element accommodates high-temperature cooking methods like rapid boiling and searing
• EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• The oven's slow cook function provides superb slow cooking without taking up valuable counter space
• EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• The oven's slow cook function provides superb slow cooking without taking up valuable counter space
Drawer Features
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
240
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
47.37 inch(es) / 120.33 cm
Depth (Without Handles)
26.14 inch(es) / 66.4 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Weight
203.6 lb(s) / 92.35 kg
Additional Dimensions
• 35 3/4" ± 1/8" (90.8 cm ± 0.3 cm) cooktop height (minimum) with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• Model/serial/rating plates (located behind the control panel), (Model/serial/rating plates may be rotated up from behind the control panel for viewing from the front of the range.)
• 47 3/8" ± 1/8" (120.3 cm ± 0.3 cm) overall height (minimum) with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• 28 1/2" ± 1/4" (72.4 cm ± 0.6 cm) depth with handle
• 26 1/8" ± 1/8" (66.4 cm ± 0.3 cm) , (Excludes handle. Dimension given is from wall to front of oven door and will vary based on electric outlet receptacle installation.)
• 29 15/16 " ± 1/16" (76.0 cm ± 0.2 cm) width
• Model/serial/rating plates (located behind the control panel), (Model/serial/rating plates may be rotated up from behind the control panel for viewing from the front of the range.)
• 47 3/8" ± 1/8" (120.3 cm ± 0.3 cm) overall height (minimum) with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• 28 1/2" ± 1/4" (72.4 cm ± 0.6 cm) depth with handle
• 26 1/8" ± 1/8" (66.4 cm ± 0.3 cm) , (Excludes handle. Dimension given is from wall to front of oven door and will vary based on electric outlet receptacle installation.)
• 29 15/16 " ± 1/16" (76.0 cm ± 0.2 cm) width
Shipping Dimensions
Width
30.75 inch(es) / 78.11 cm
Height
49.5 inch(es) / 125.73 cm
Depth
30.25 inch(es) / 76.84 cm
Weight
223.99 lb(s) / 101.6 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049365817
