DESCRIPTION

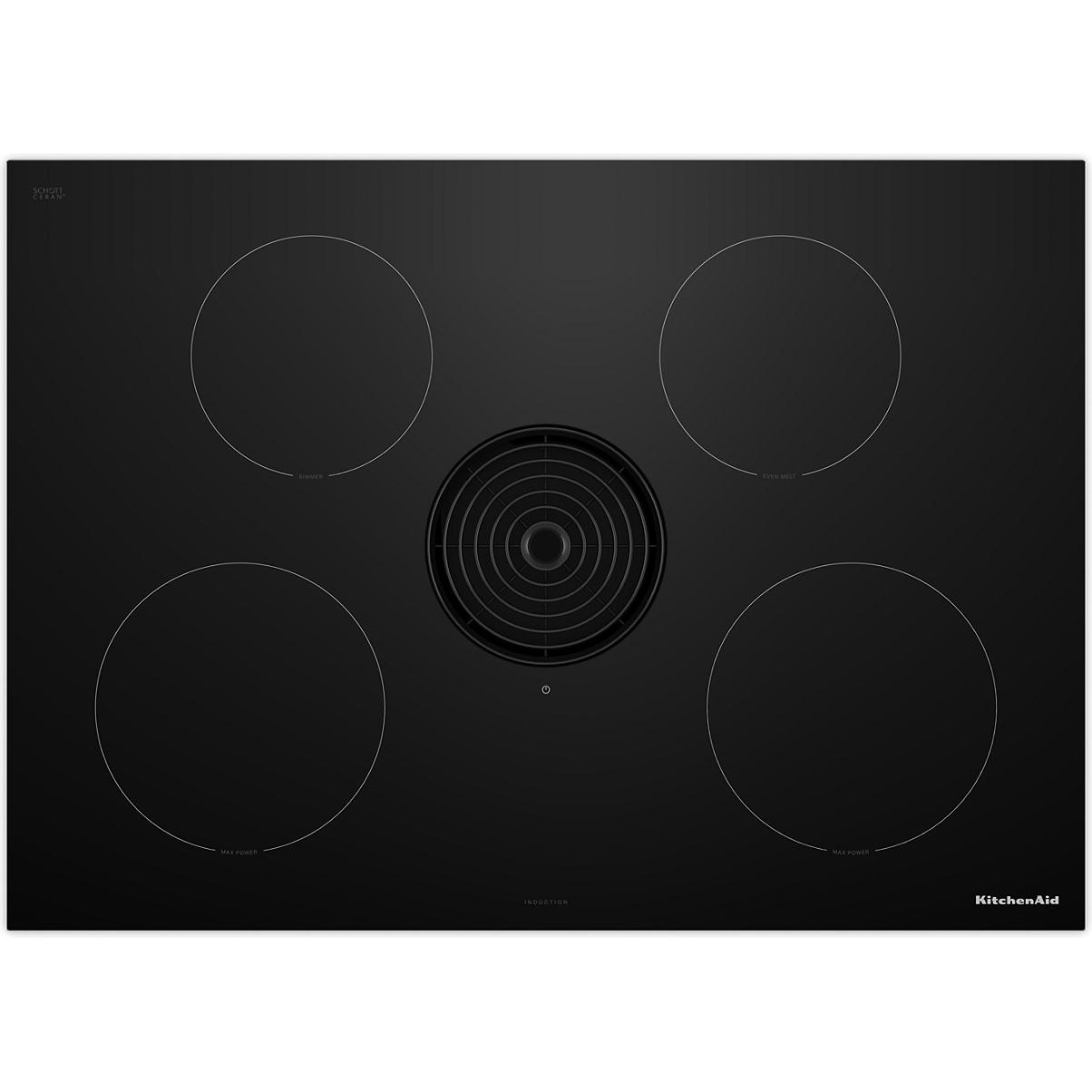

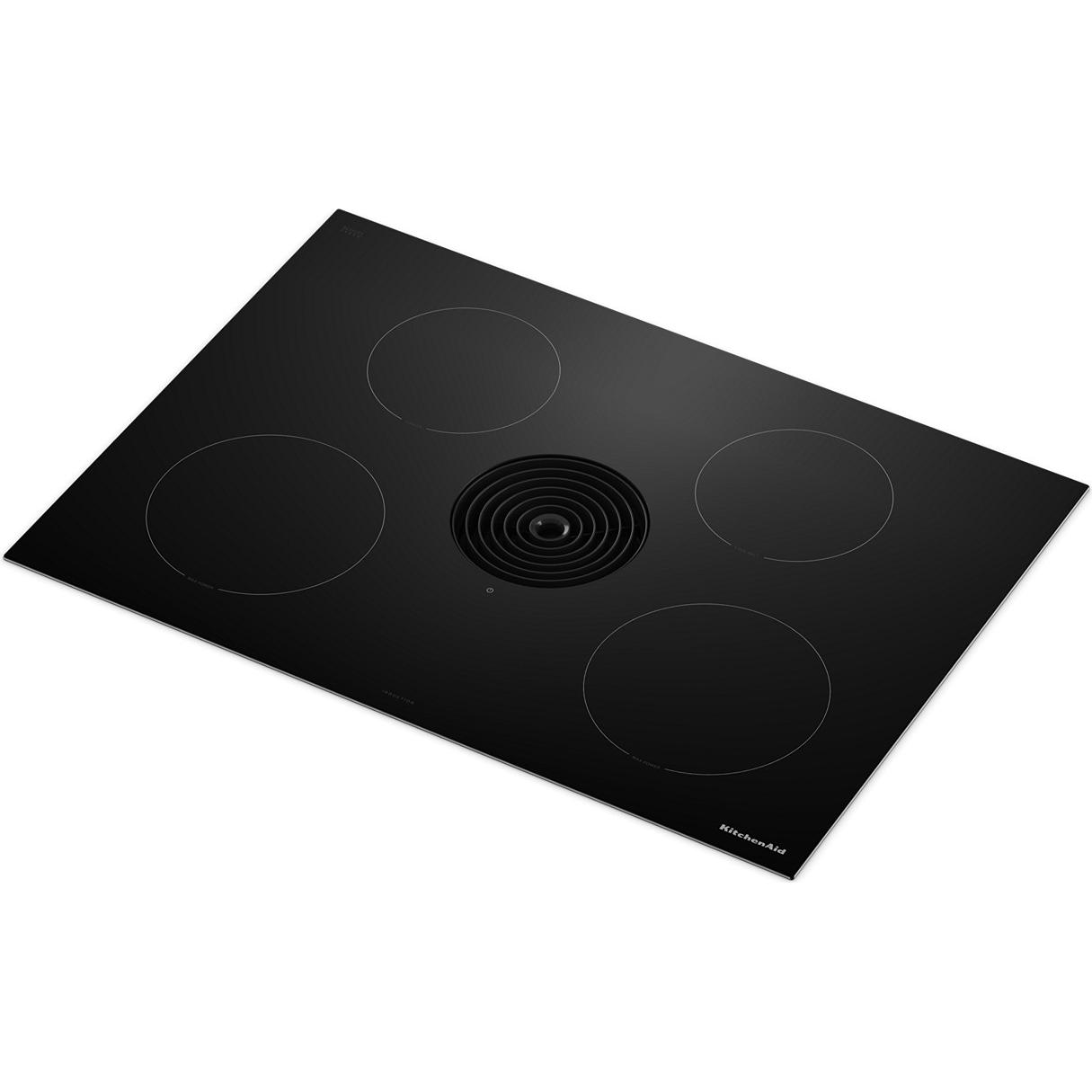

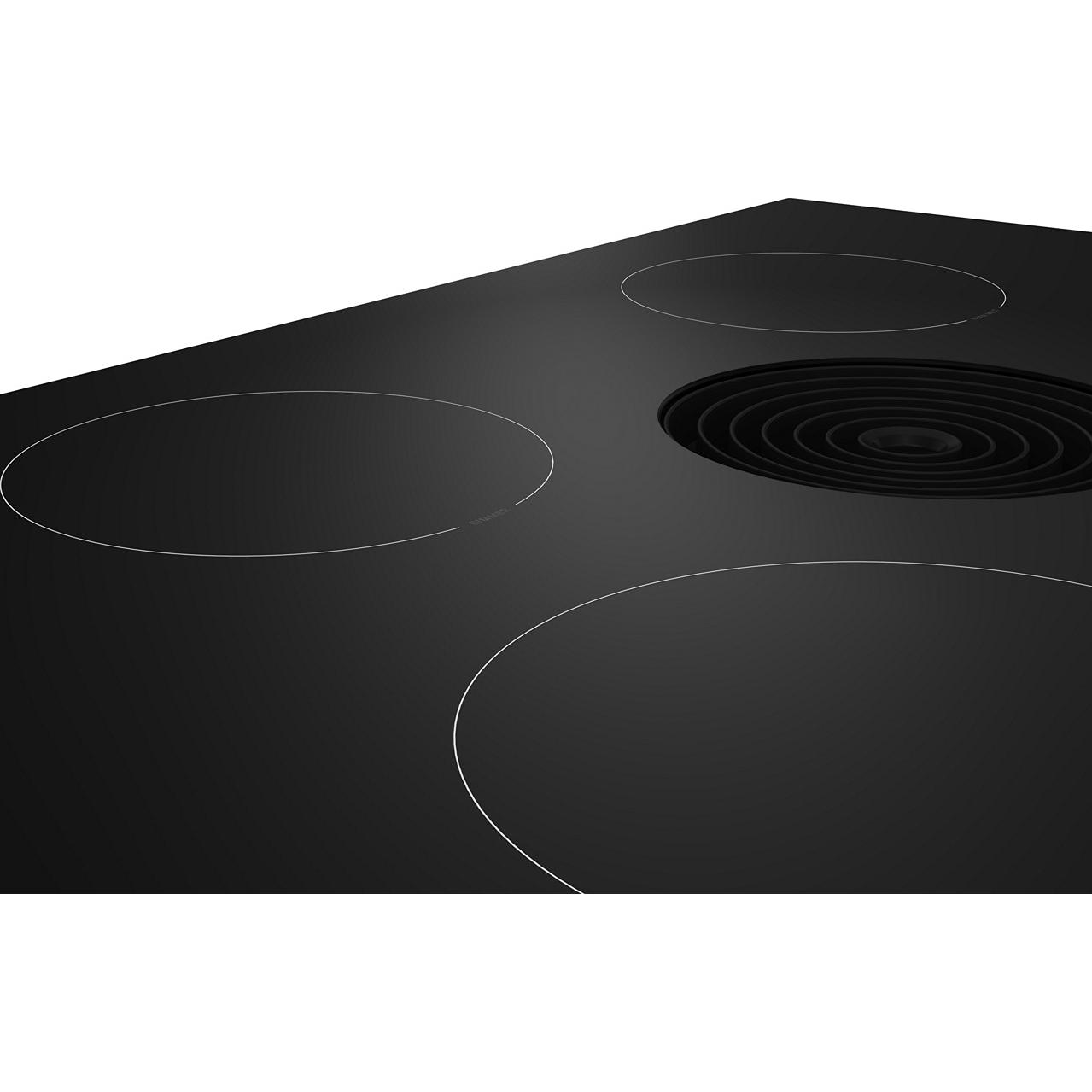

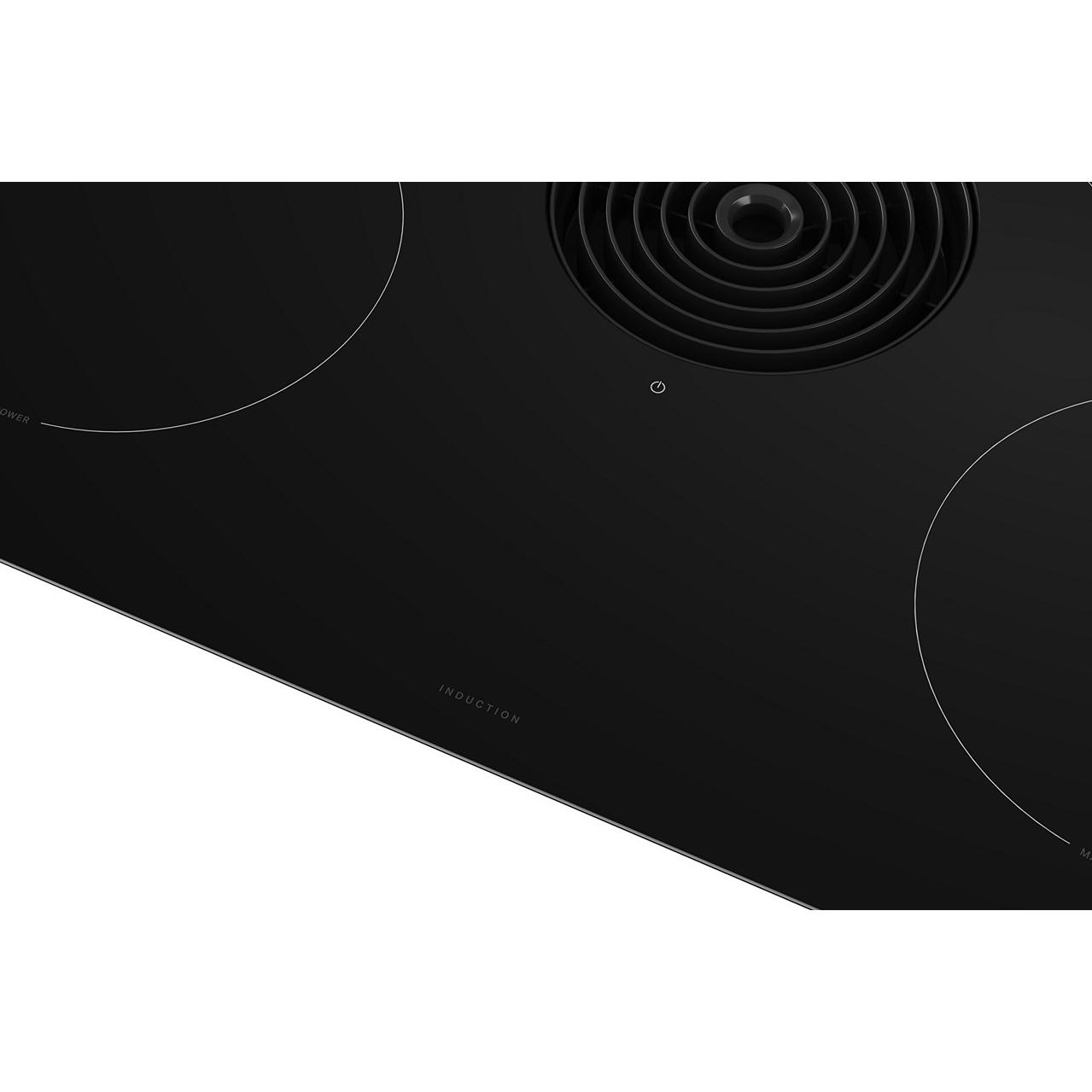

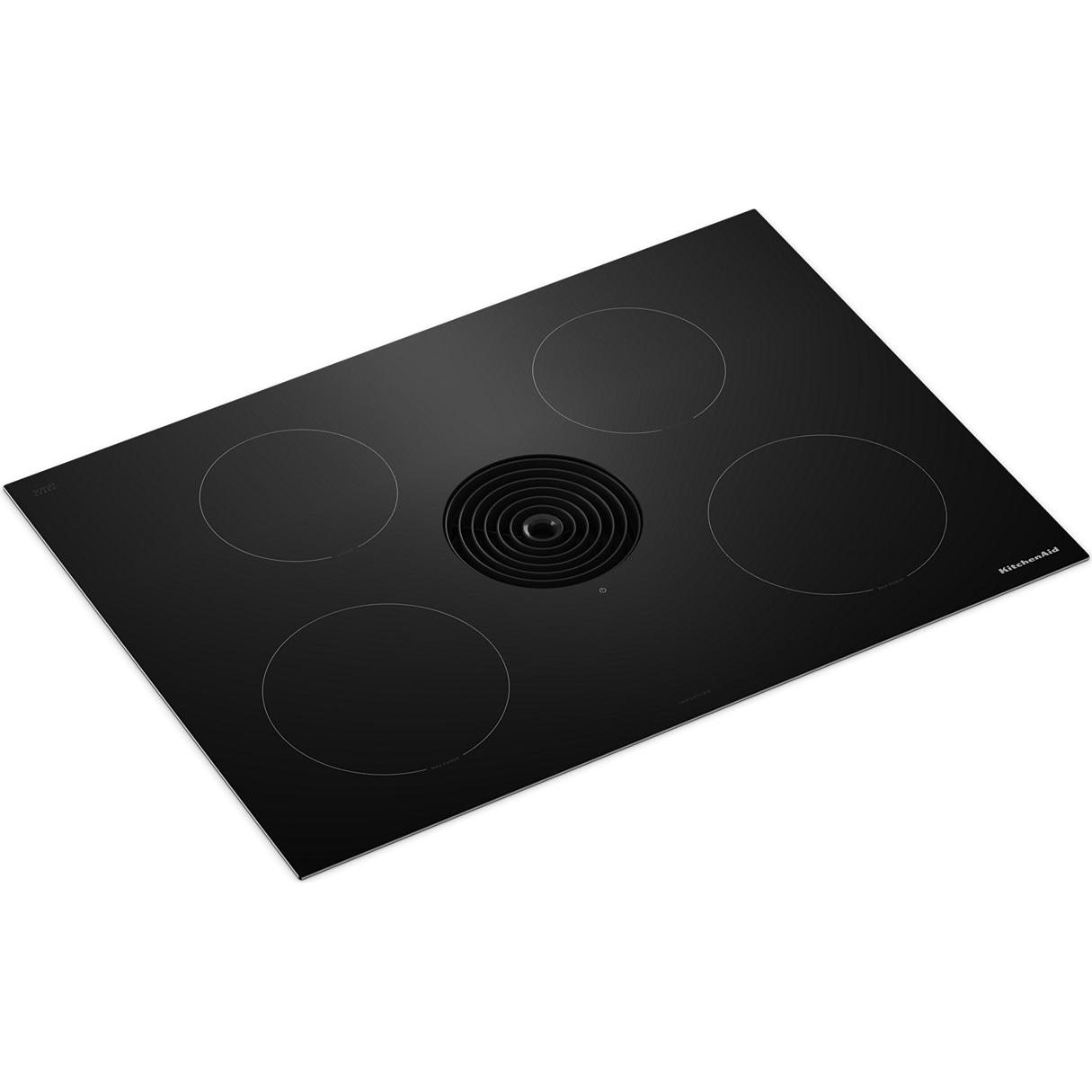

×The KitchenAid 30-inch NextGen Induction Downdraft Cooktop features 4 cooking zones and an integrated downdraft system for powerful ventilation without the need for a separate hood.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front Element-Burner Power: 2300W / 3000W Boost
• Left Front Element-Burner Type: Round
• Left Rear Element-Burner Power: 1400W / 2100W Boost
• Left Rear Element-Burner Type: Round
• Power Boost
• Right Front Element-Burner Power: 2300W / 3000W Boost
• Right Front Element-Burner Type: Round
• Right Rear Element-Burner Power: 1400W / 2100W Boost
• Right Rear Element-Burner Type: Round
• Left Front Element-Burner Type: Round
• Left Rear Element-Burner Power: 1400W / 2100W Boost
• Left Rear Element-Burner Type: Round
• Power Boost
• Right Front Element-Burner Power: 2300W / 3000W Boost
• Right Front Element-Burner Type: Round
• Right Rear Element-Burner Power: 1400W / 2100W Boost
• Right Rear Element-Burner Type: Round
Burner/Element Size
• Left Front Element-Burner Size: 8in.
• Left Rear Element-Burner Size: 7in.
• Right Front Element-Burner Size: 8in.
• Right Rear Element-Burner Size: 7in.
• Left Rear Element-Burner Size: 7in.
• Right Front Element-Burner Size: 8in.
• Right Rear Element-Burner Size: 7in.
Elements
Smoothtop
Features
Technologies
• Powerful Extraction System
• Quiet Ventilation Technology
• Assisted Cooking Presets
• Quiet Ventilation Technology
• Assisted Cooking Presets
Control Lock
Yes
Digital Display
Yes
Downdraft Ventilation
Yes
Additional Information
• Automatic Pan Detection
• Automatic Pan Size Adjustment: No
• Cooktop Surface Color: Black
• Cooktop Surface Material: Glass
• Heating Element On Indicator Light: No
• Hot Surface Indicator Light
• Ignition Type: Electronic Button
• Installs Over Built-In Oven: No
• Control Location: Front
• Control Type: Tap Touch
• LP Convertible: No
• Power Outage Compatible: No
• Venting: Exterior or Recirculating with Kit
• Automatic Pan Size Adjustment: No
• Cooktop Surface Color: Black
• Cooktop Surface Material: Glass
• Heating Element On Indicator Light: No
• Hot Surface Indicator Light
• Ignition Type: Electronic Button
• Installs Over Built-In Oven: No
• Control Location: Front
• Control Type: Tap Touch
• LP Convertible: No
• Power Outage Compatible: No
• Venting: Exterior or Recirculating with Kit
Electrical Information
Information
• 208V Compatible
• Amps: 40
• Hz: 60
• Power Cord Included
• Volts: 240
• Watts: 7600
• Amps: 40
• Hz: 60
• Power Cord Included
• Volts: 240
• Watts: 7600
Certifications and Approvals
Information
Energy Star® Qualified

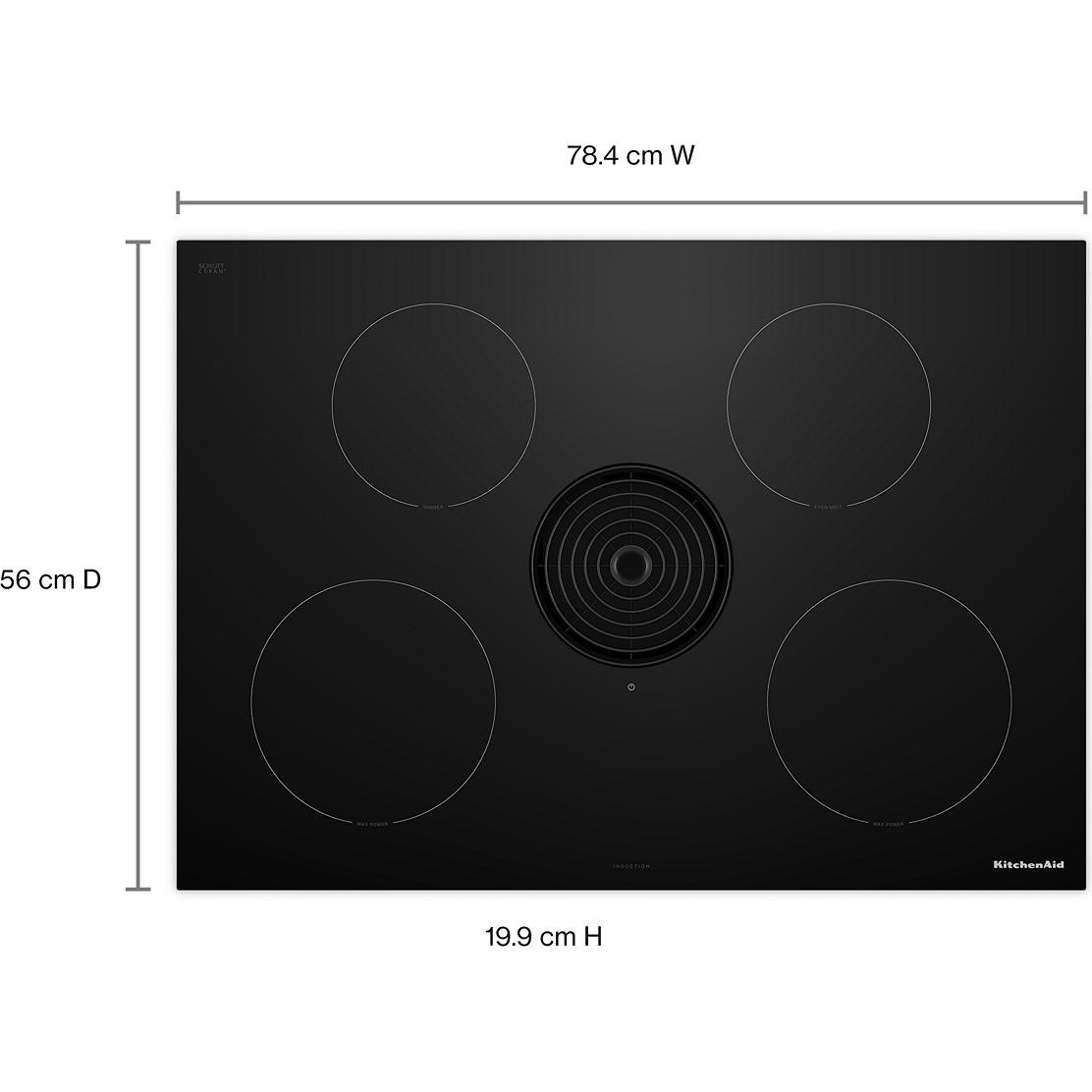

Dimensions
Class Width
30"
Width
30.87 inch(es) / 78.41 cm
Height
7.83 inch(es) / 19.9 cm
Depth
22.05 inch(es) / 56 cm
Weight
42.55 lb(s) / 19.3 kg
Shipping Dimensions
Weight
60.85 lb(s) / 27.6 kg
