DESCRIPTION

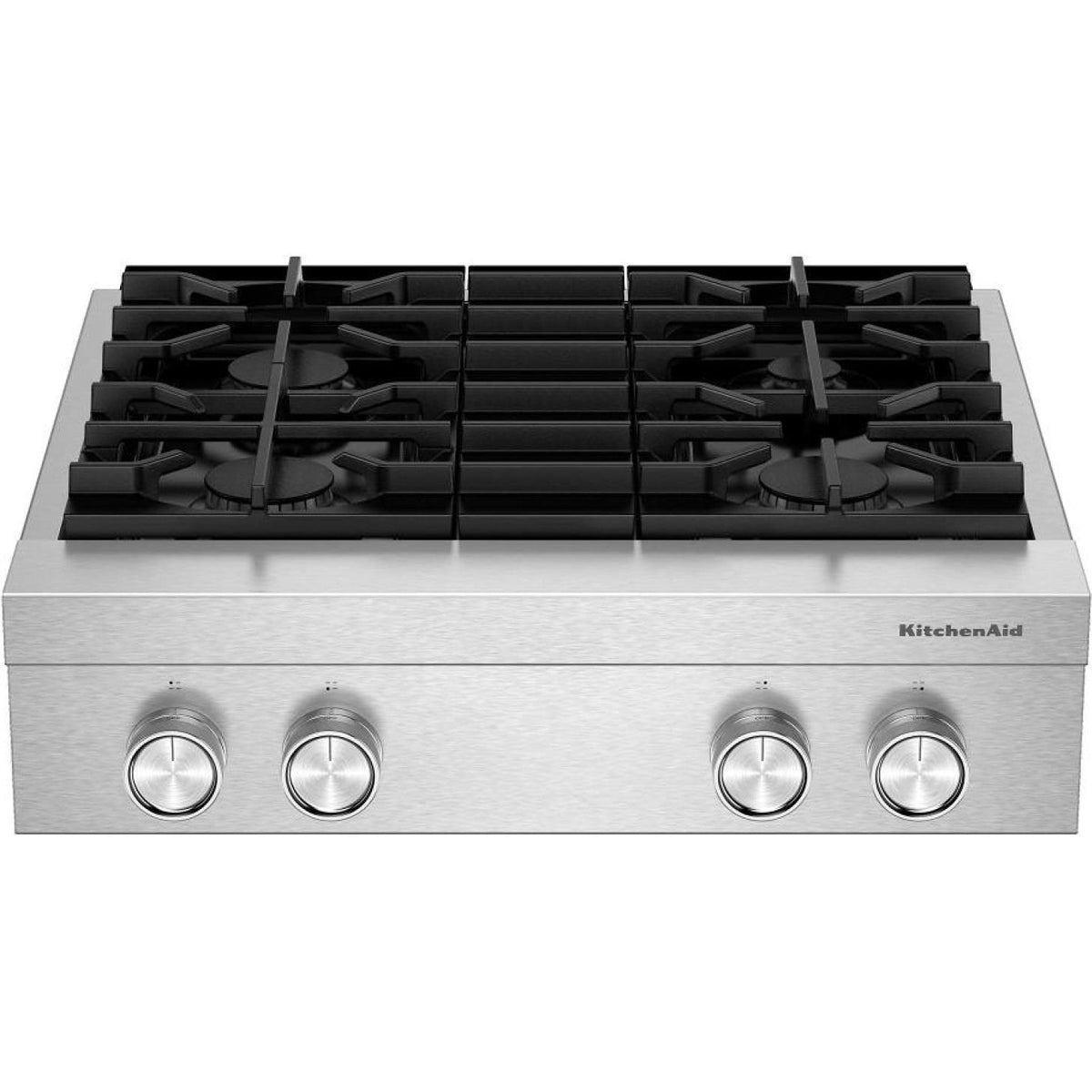

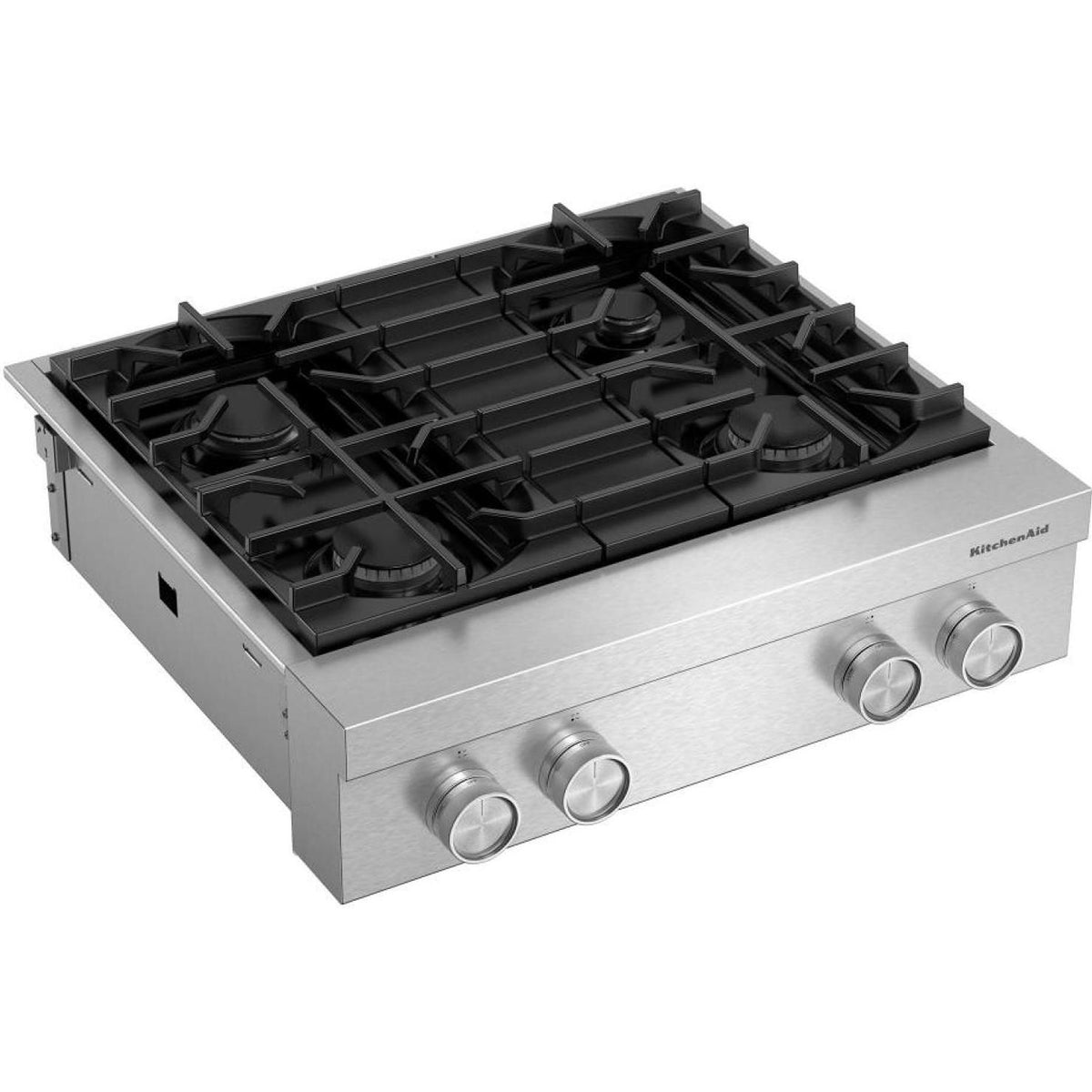

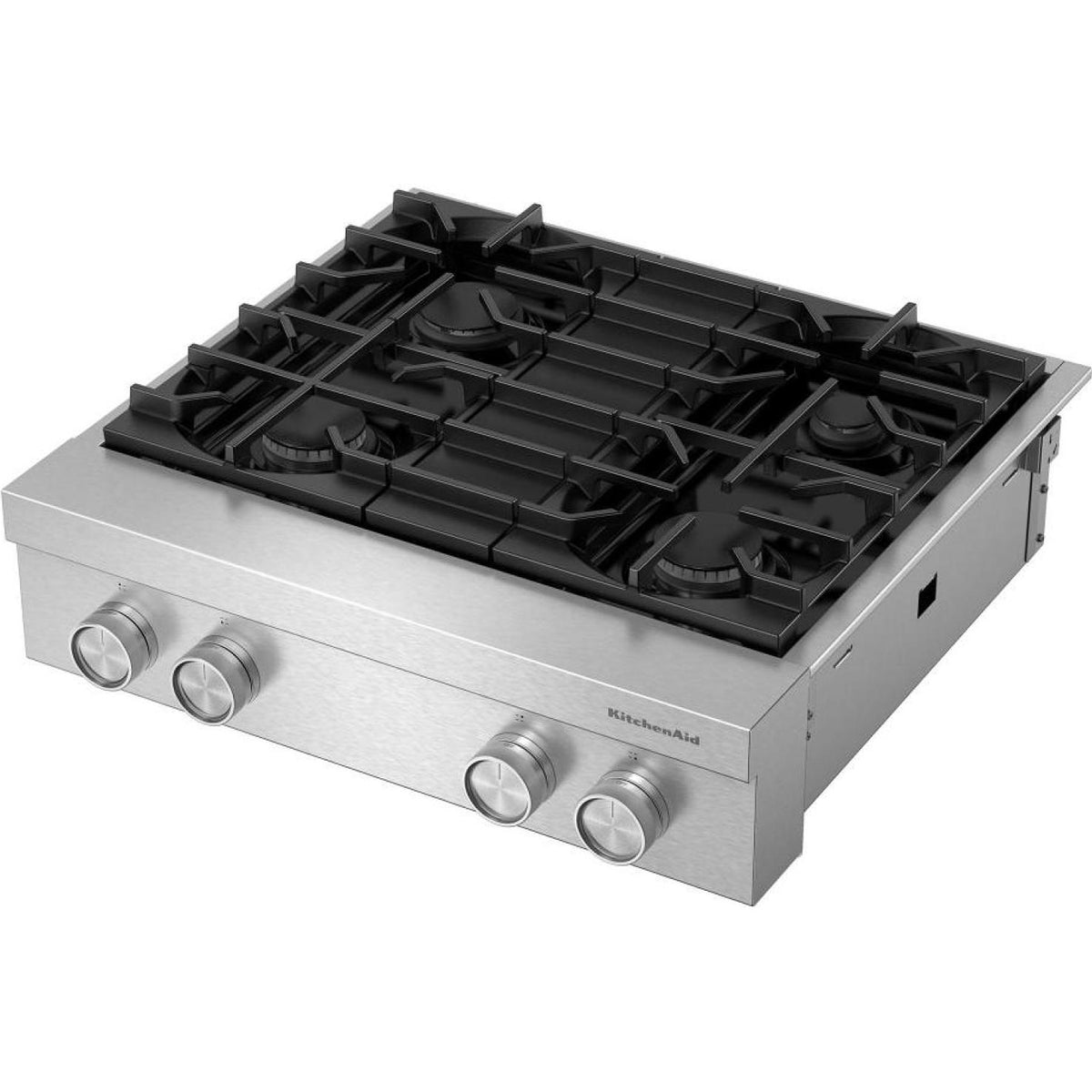

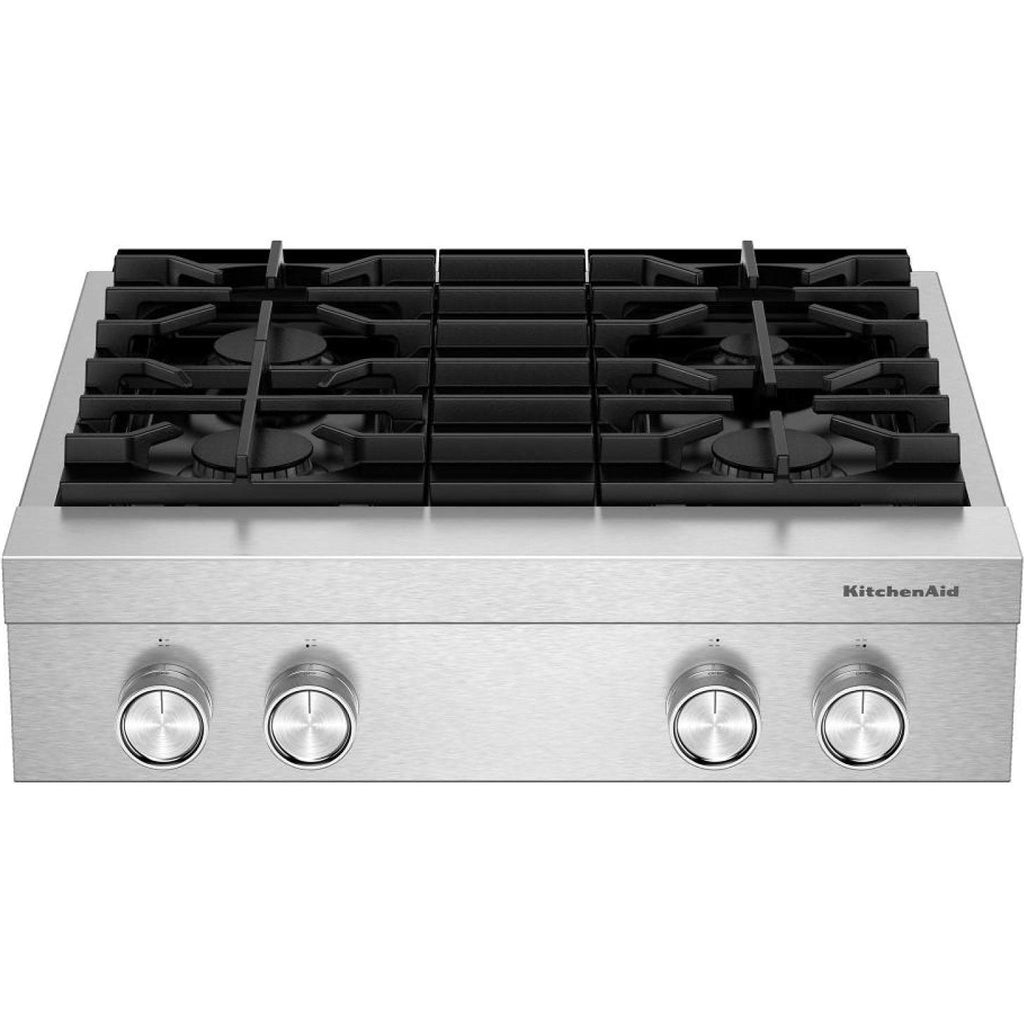

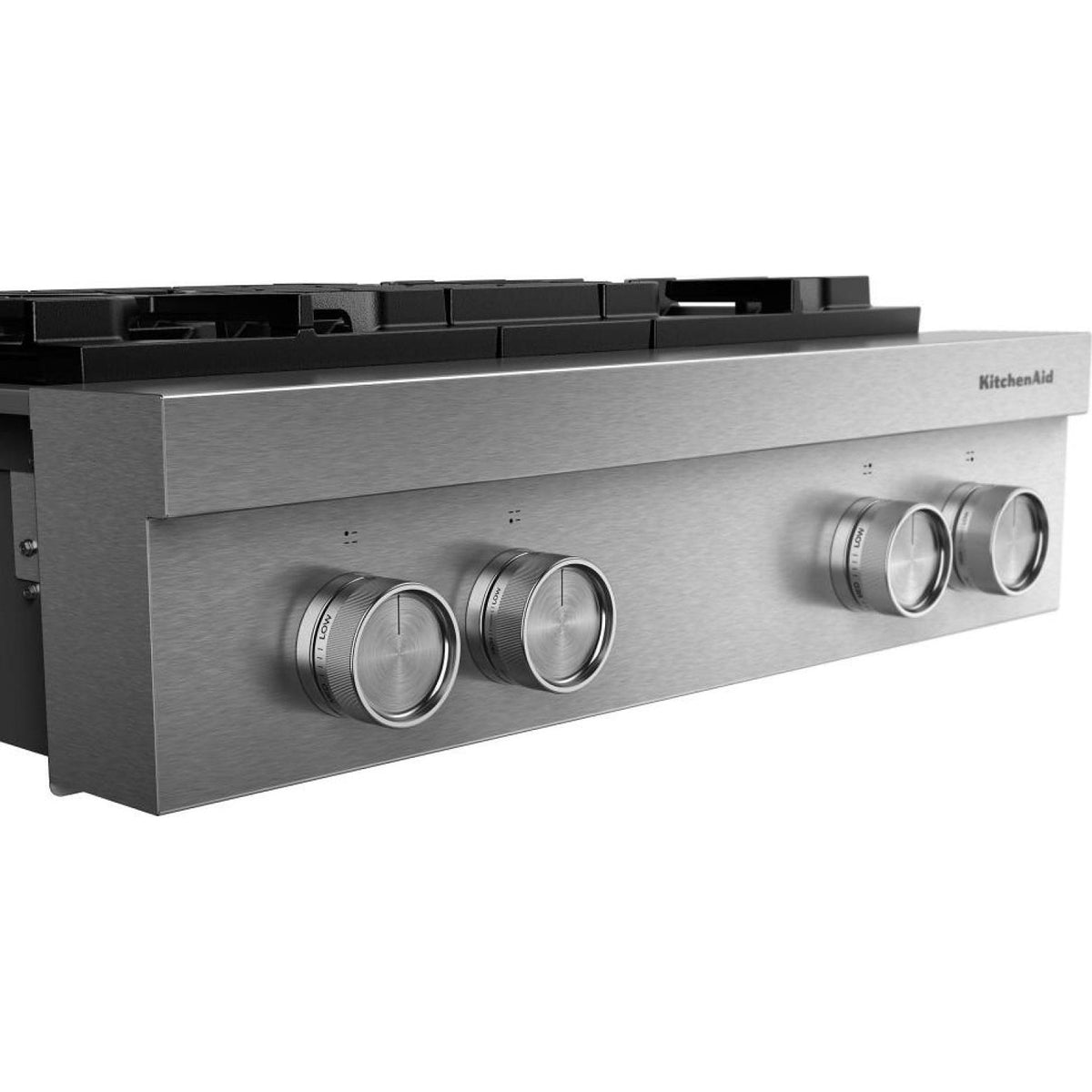

×Experience performance and versatility with the 30-inch KitchenAid® Commercial-Style Rangetop with The Most Versatile Burner Spectrum Available Among Rangetops*. Featuring two 20,000 BTU Dual-Flame Burners and a dedicated 5,000 BTU Simmer & Melt Burner, you can successfully sear, simmer, stir-fry and sauté simultaneously. Scratch-Resistant Porcelain Coated Cooking Surface helps protect against scratches and spills while offering a pristine look.
*Based on reported BTU output of highest and lowest BTU burner
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Rangetop
Cooktop
Burners/Elements
4
Power Output

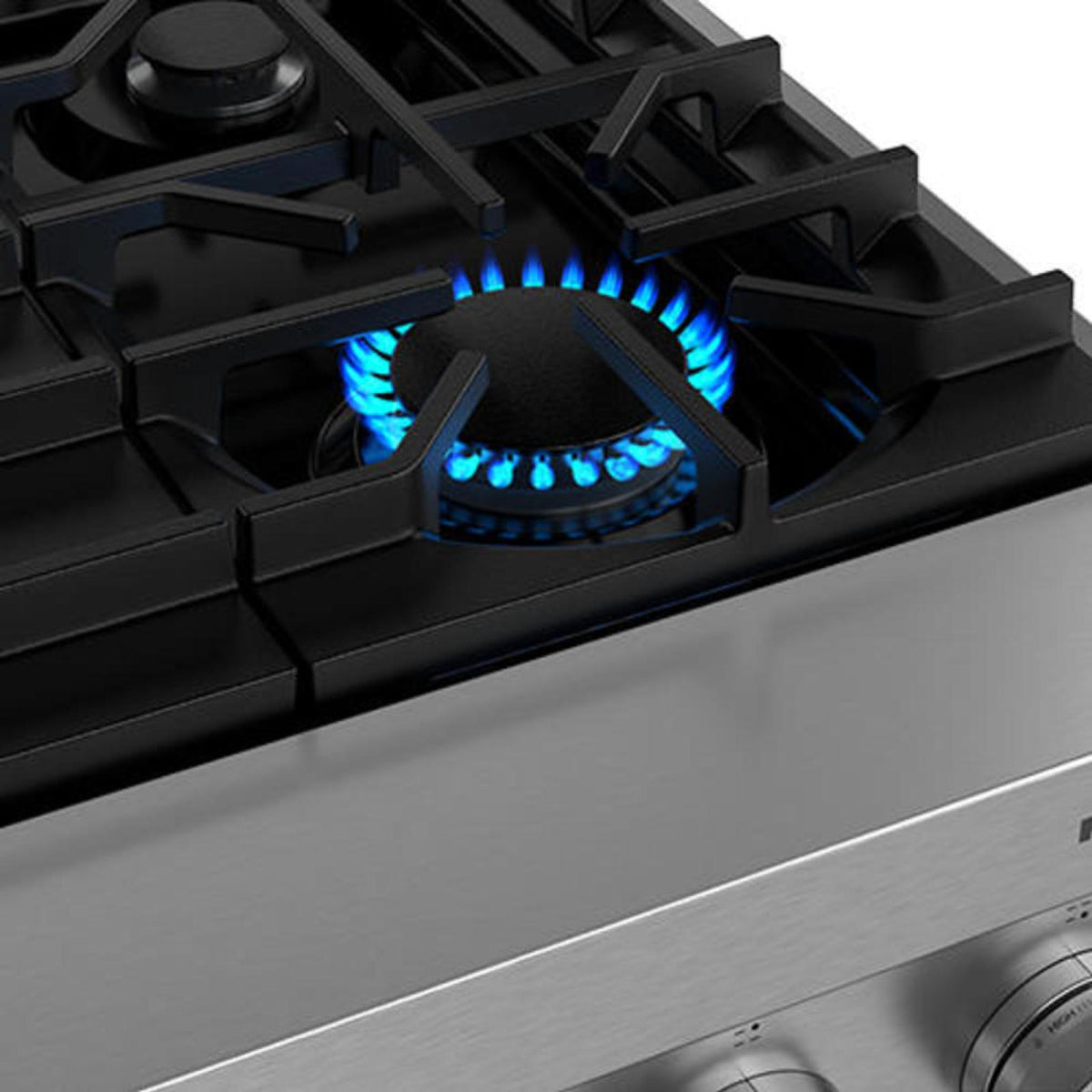

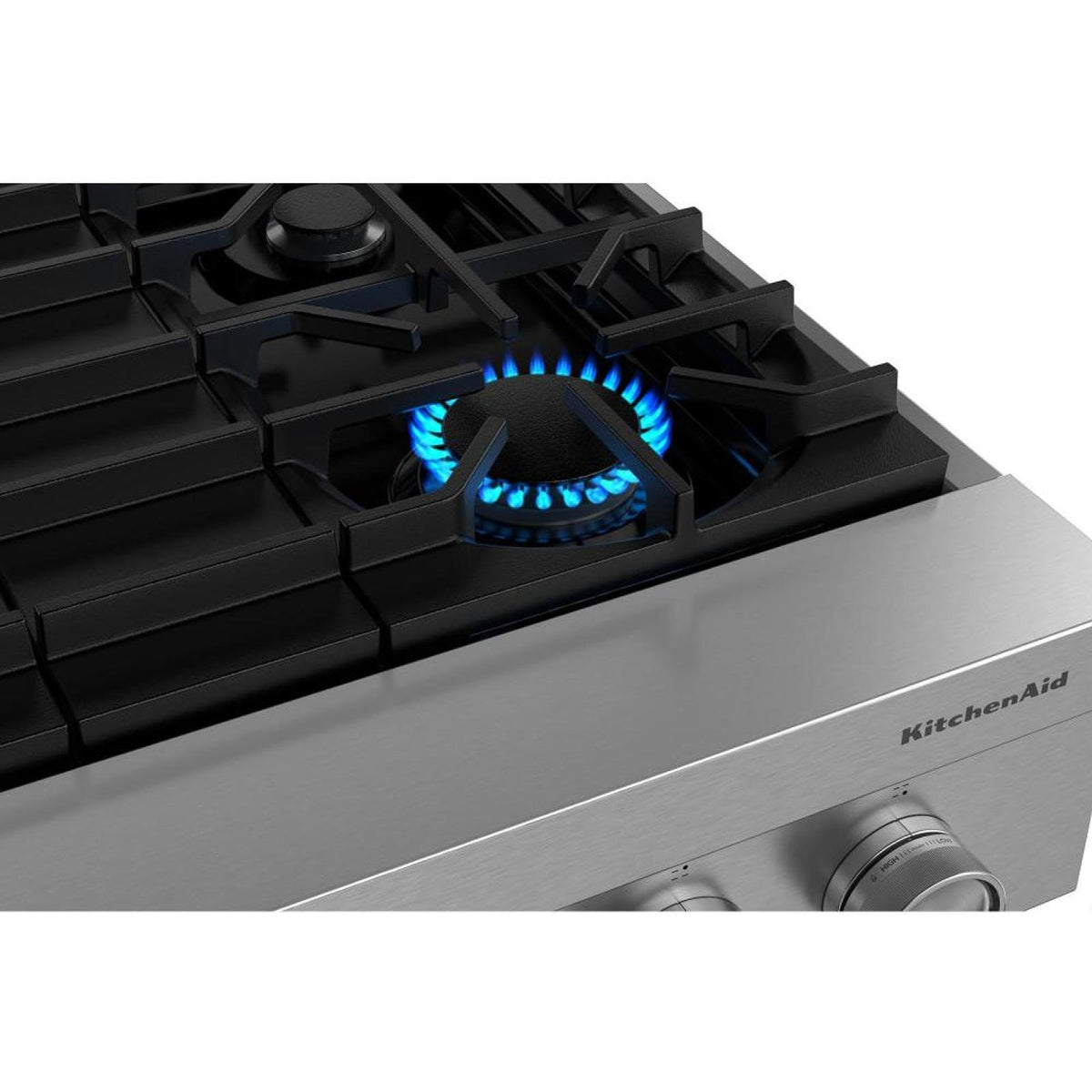

• Right Front Burner: 20,000 BTU (Sealed)
• Right Rear Burner: 15,000 BTU (Sealed)
• Left Front Burner: 20,000 BTU (Sealed)
• Left Rear Burner: 5,000 BTU (Simmer)
• Right Rear Burner: 15,000 BTU (Sealed)
• Left Front Burner: 20,000 BTU (Sealed)
• Left Rear Burner: 5,000 BTU (Simmer)
Burners
Sealed
Surface Features
• Scratch-Resistant Porcelain Coated Cooking Surface — 10x more scratch-resistant than stainless steel
• Three-Level Convertible Grates — flip or remove to match cooking technique (high-heat searing, simmer/melt, or wok stir-fry)
• Three-Level Convertible Grates — flip or remove to match cooking technique (high-heat searing, simmer/melt, or wok stir-fry)
Features
Digital Display
No
Downdraft Ventilation
No
Additional Information
• Power Outage Compatible
• LP Conversion Kit included, allows use with liquid propane
• Auto Reignition — relights burners automatically with an electric spark if the flame goes out
• Sealed Burners — cap and edging design prevents crumbs and spills from falling into the rangetop interior
• LP Conversion Kit included, allows use with liquid propane
• Auto Reignition — relights burners automatically with an electric spark if the flame goes out
• Sealed Burners — cap and edging design prevents crumbs and spills from falling into the rangetop interior
Electrical Information
Information
• 120 V, 60 Hz, 15 A
• Power Cord Included
• Power Cord Included
Certifications and Approvals
Information
UL Listed
Accessories
Included
• Power Cord
• LP (Liquid Propane) Conversion Kit
• LP (Liquid Propane) Conversion Kit
Optional
Griddle
Dimensions
Class Width
30"
Width
29.75 inch(es) / 75.57 cm
Height
9 inch(es) / 22.86 cm
Depth
27.88 inch(es) / 70.82 cm
Weight
89.99 lb(s) / 40.82 kg
Additional Dimensions
• Cutout Width: 29.25 in
• Cutout Depth: 22.25 in
• Cutout Height: 7.25 in
• Cutout Depth: 22.25 in
• Cutout Height: 7.25 in
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
21 inch(es) / 53.34 cm
Depth
35 inch(es) / 88.9 cm
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049955506
