DESCRIPTION

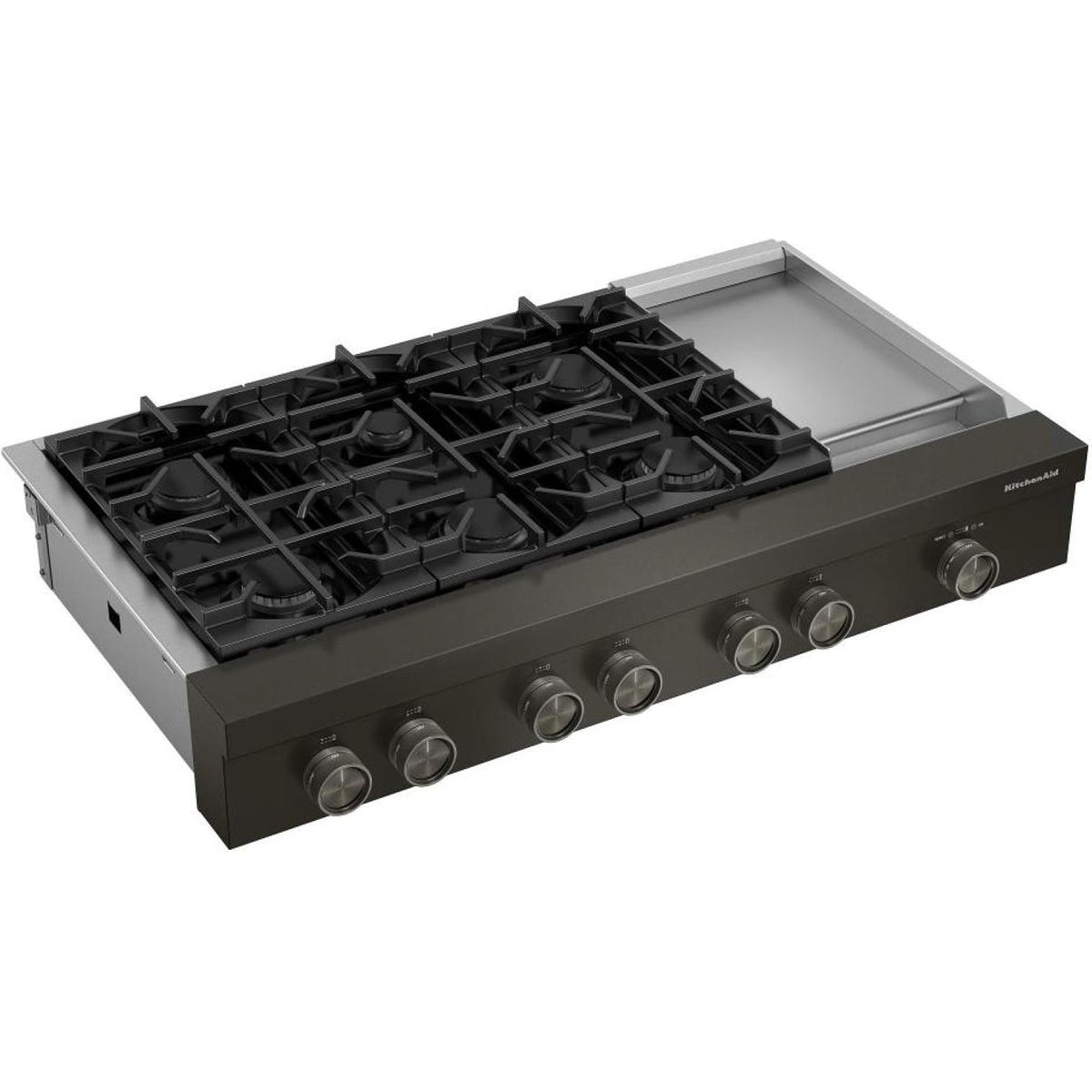

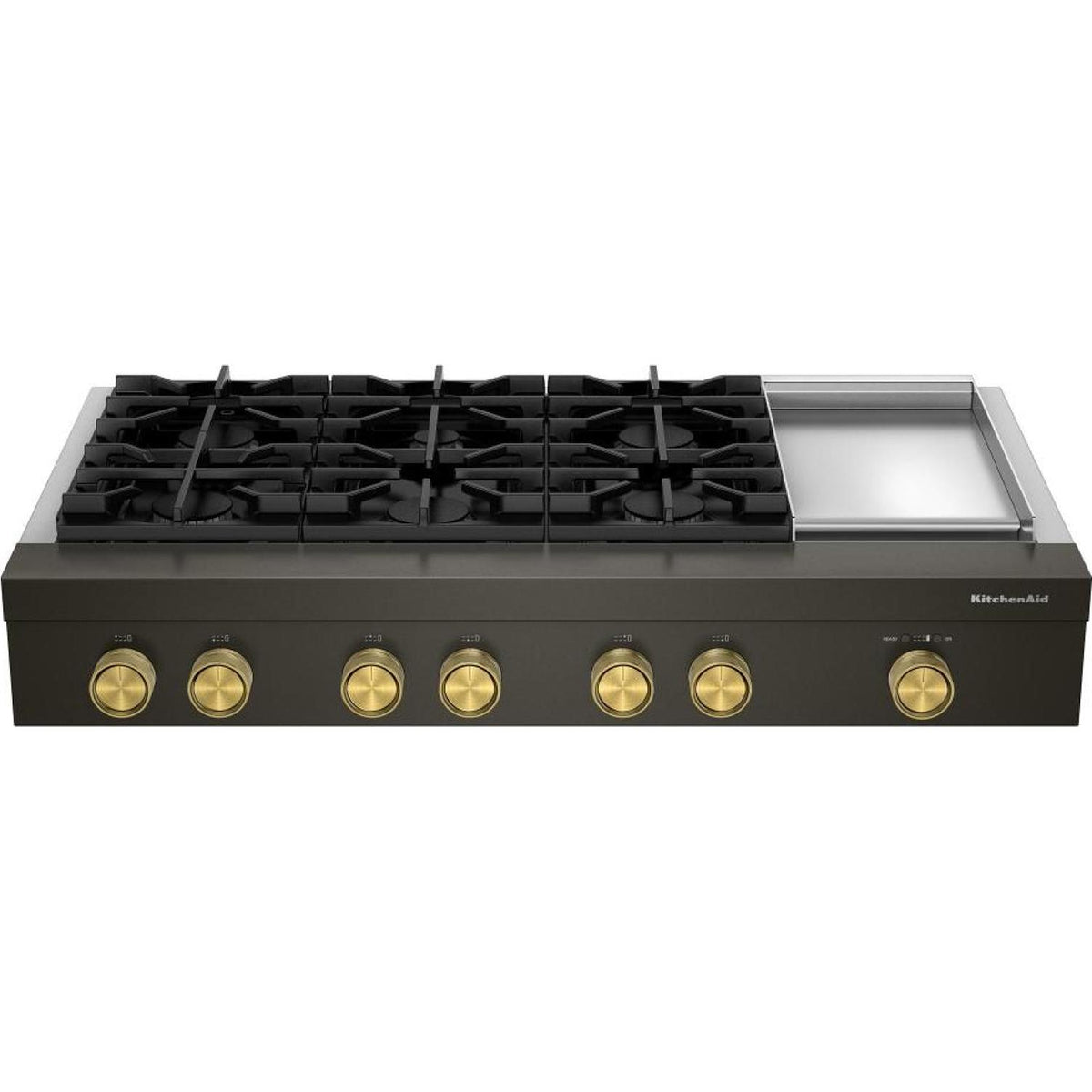

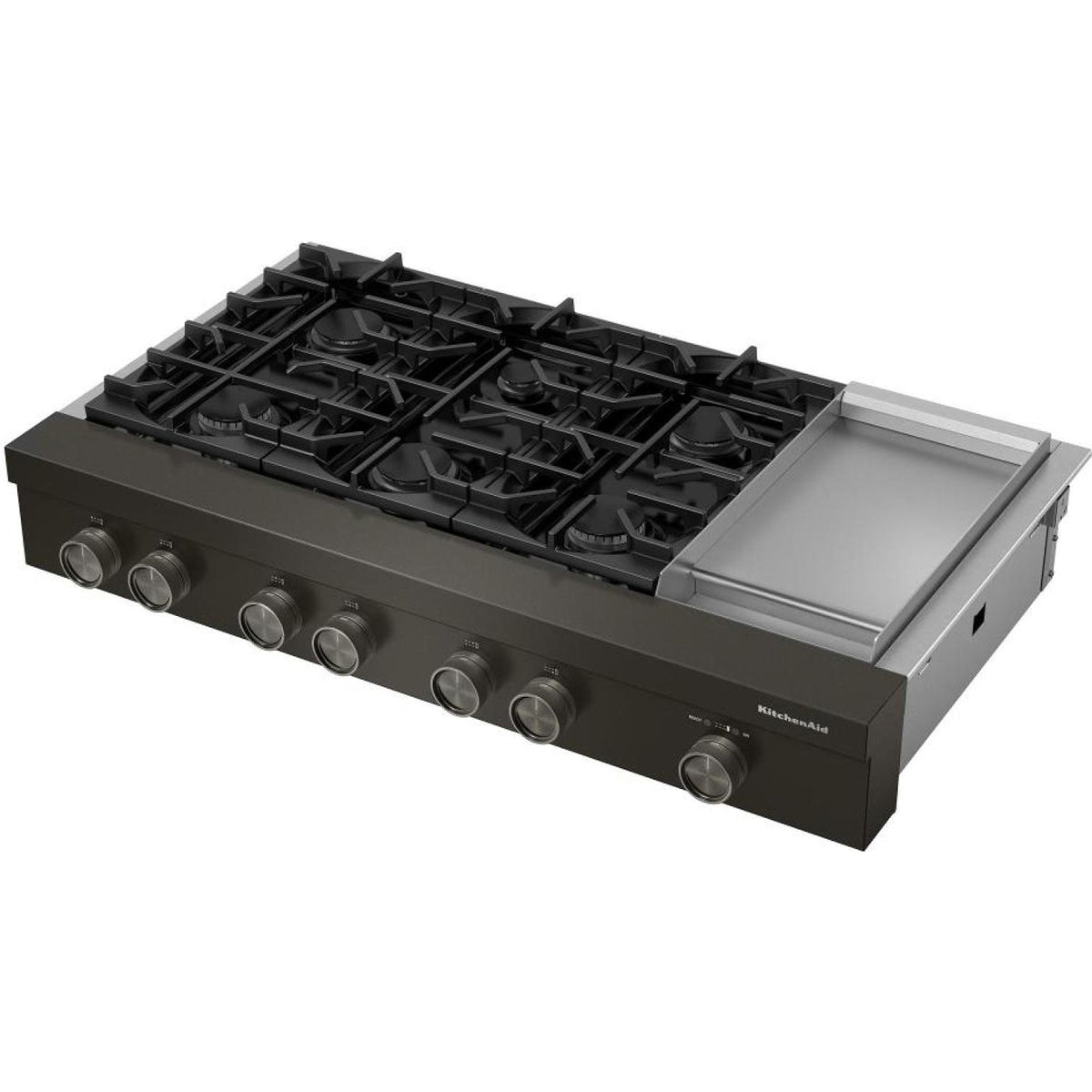

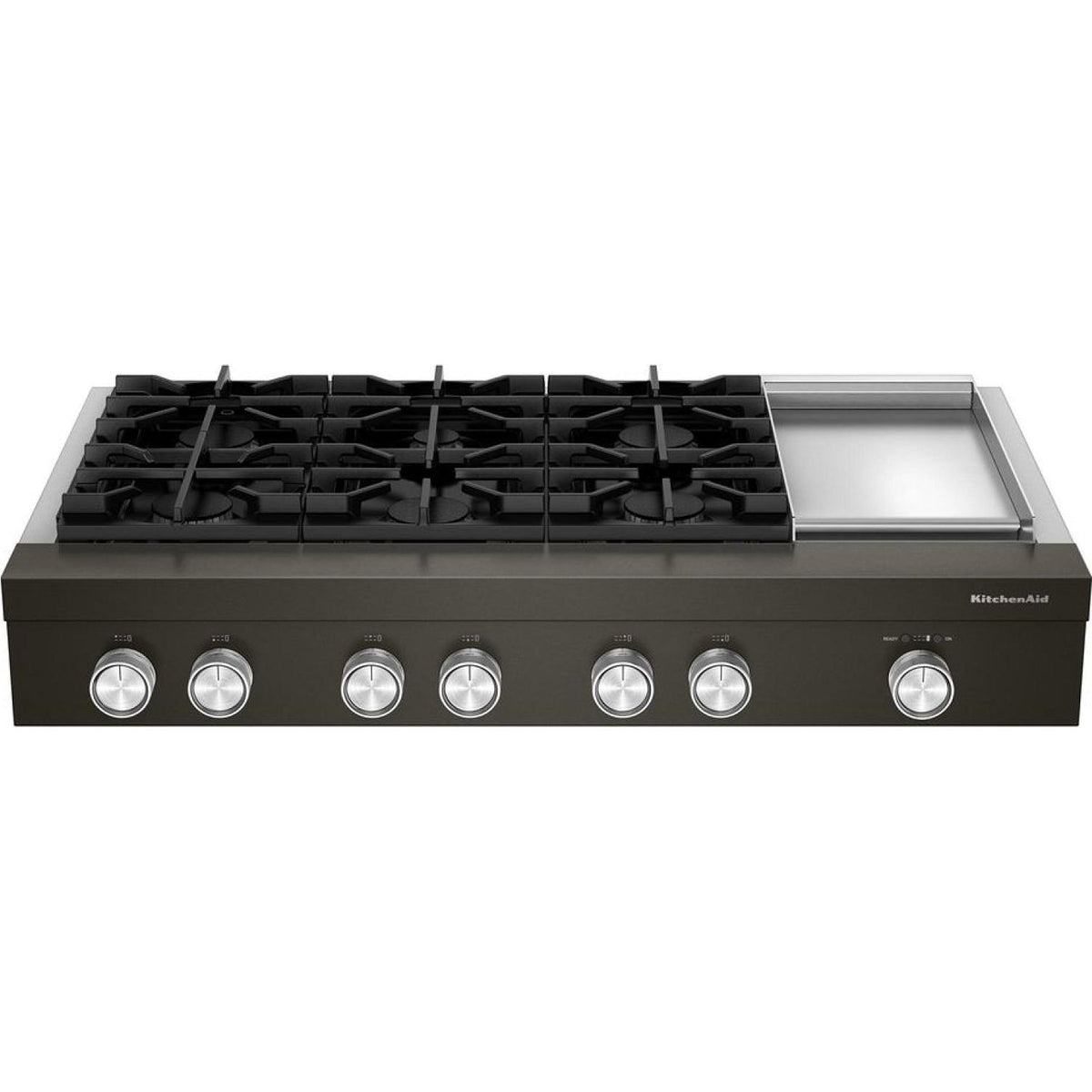

×Experience performance and versatility with the 48-inch KitchenAid® Commercial-Style Rangetop with Chrome-Infused Electric Griddle. With The Most Versatile Burner Spectrum Available Among Rangetops*, you can successfully sear, simmer, stir-fry and sauté simultaneously. The Chrome-Infused Electric Griddle doesn't need to be seasoned, preheats faster than cast iron and easily wipes clean with a non-porous finish.
*Based on reported BTU output of highest and lowest BTU burner
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black
Manufacturer Color
Black Ore
Fuel Type
Natural Gas
Type
Rangetop
Cooktop
Burners/Elements
6
Power Output
• Right Front Burner: 20,000 BTU (Sealed)
• Left Front Burner: 20,000 BTU (Sealed)
• Right Rear Burner: 15,000 BTU (Sealed)
• Center Front Burner: 15,000 BTU (Sealed)
• Left Rear Burner: 5,000 BTU (Simmer)
• Center Rear Burner: 5,000 BTU (Simmer)
• Left Front Burner: 20,000 BTU (Sealed)
• Right Rear Burner: 15,000 BTU (Sealed)
• Center Front Burner: 15,000 BTU (Sealed)
• Left Rear Burner: 5,000 BTU (Simmer)
• Center Rear Burner: 5,000 BTU (Simmer)
Burners
Sealed
Other
Griddle
Surface Features
• Scratch-Resistant Porcelain Coated Cooking Surface — 10x more scratch-resistant than stainless steel
• Three-Level Convertible Grates — flip or remove to match cooking technique (high-heat searing, simmer/melt, or wok stir-fry)
• Chrome-Infused Electric Griddle — no seasoning required, preheats faster than cast iron, wipes clean
• Three-Level Convertible Grates — flip or remove to match cooking technique (high-heat searing, simmer/melt, or wok stir-fry)
• Chrome-Infused Electric Griddle — no seasoning required, preheats faster than cast iron, wipes clean
Features
Digital Display
No
Downdraft Ventilation
No
Additional Information
• Power Outage Compatible
• LP Conversion Kit included, allows use with liquid propane
• Auto Reignition — relights burners automatically with an electric spark if the flame goes out

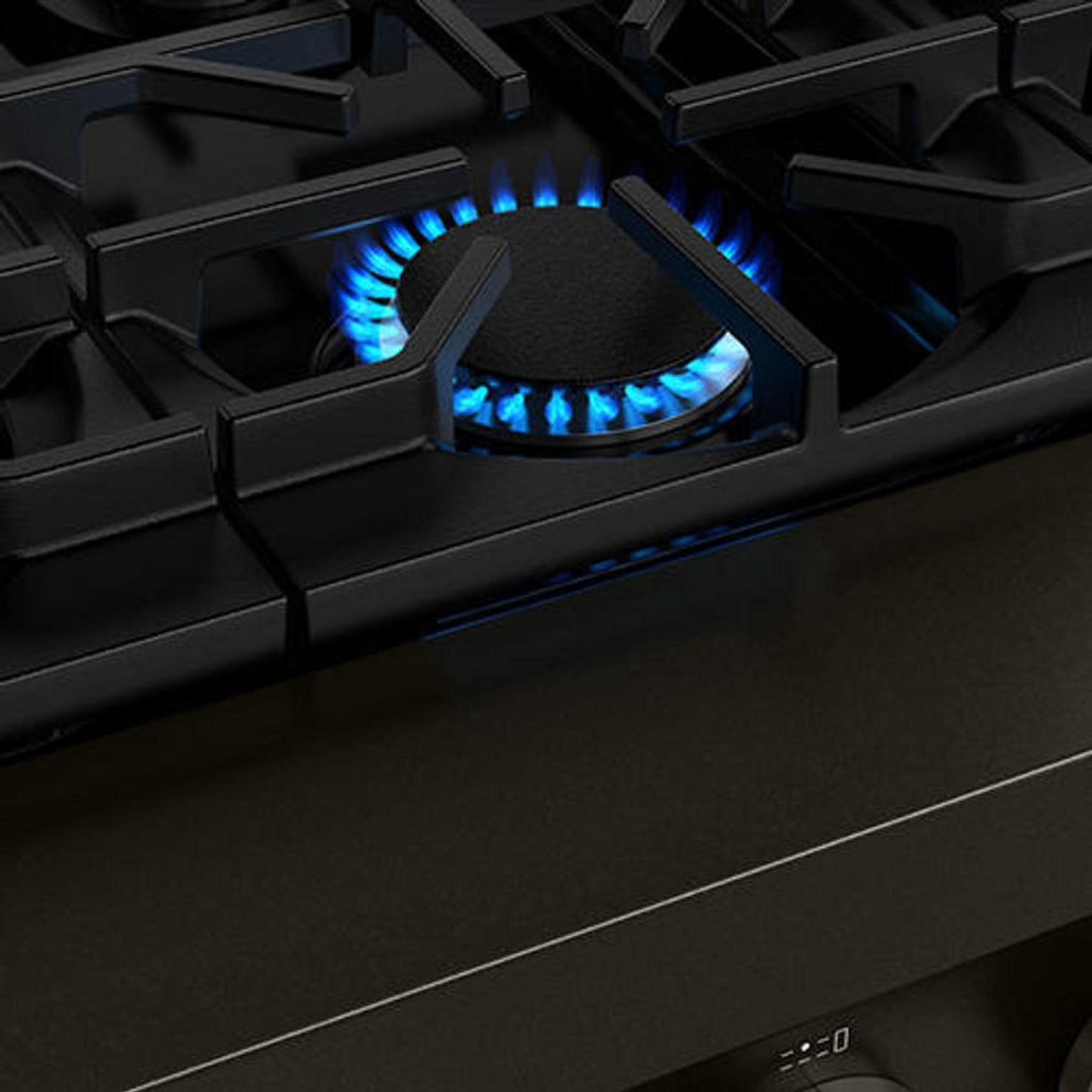

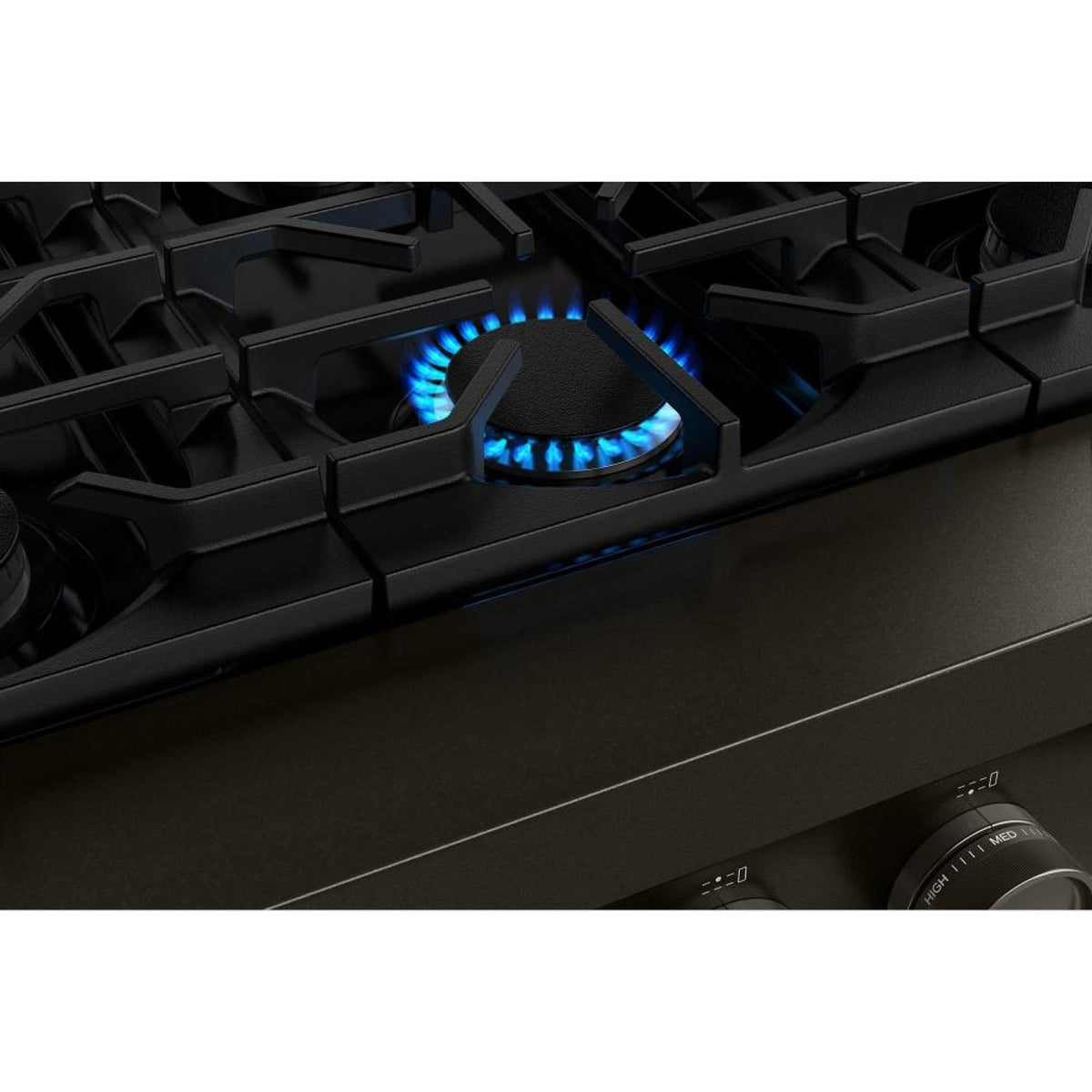

• Sealed Burners — cap and edging design prevents crumbs and spills from falling into the rangetop interior

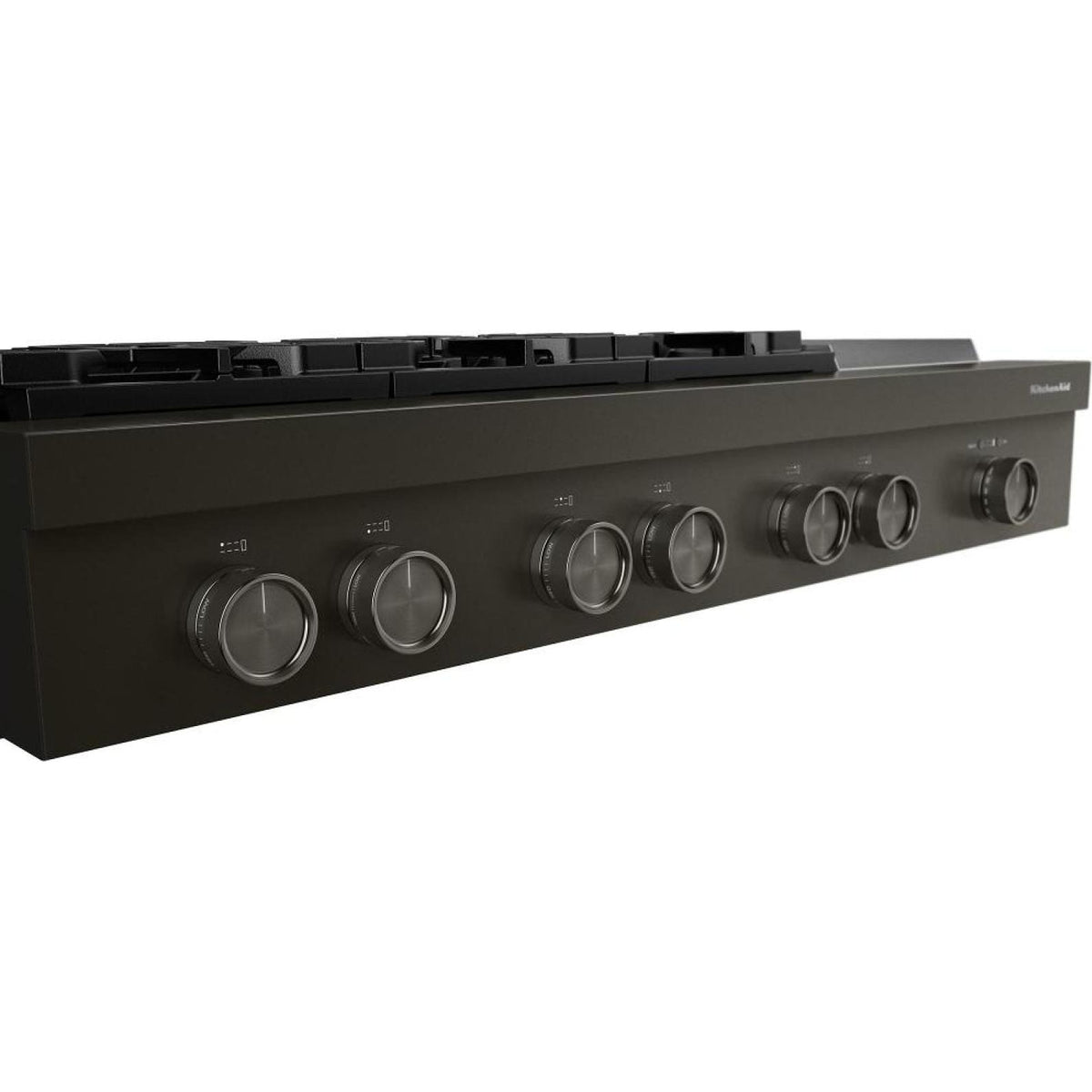

• Control Location: Front
• Control Type: Manual
• LP Conversion Kit included, allows use with liquid propane
• Auto Reignition — relights burners automatically with an electric spark if the flame goes out
• Sealed Burners — cap and edging design prevents crumbs and spills from falling into the rangetop interior
• Control Location: Front
• Control Type: Manual
Electrical Information
Information
• 120 V, 60 Hz, 15 A
• Power Cord Included
• Power Cord Included
Certifications and Approvals
Information
UL Listed
Accessories
Included
• Power Cord
• LP (Liquid Propane) Conversion Kit
• LP (Liquid Propane) Conversion Kit
Dimensions
Class Width
48" or More
Width
47.75 inch(es) / 121.29 cm
Height
9 inch(es) / 22.86 cm
Depth
27.88 inch(es) / 70.82 cm
Weight
209 lb(s) / 94.8 kg
Additional Dimensions
• Cutout Width: 47.25 in
• Cutout Depth: 22.25 in
• Cutout Height: 7.25 in
• Cutout Depth: 22.25 in
• Cutout Height: 7.25 in
Shipping Dimensions
Width
52 inch(es) / 132.08 cm
Height
20 inch(es) / 50.8 cm
Depth
35 inch(es) / 88.9 cm
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049955575
