DESCRIPTION

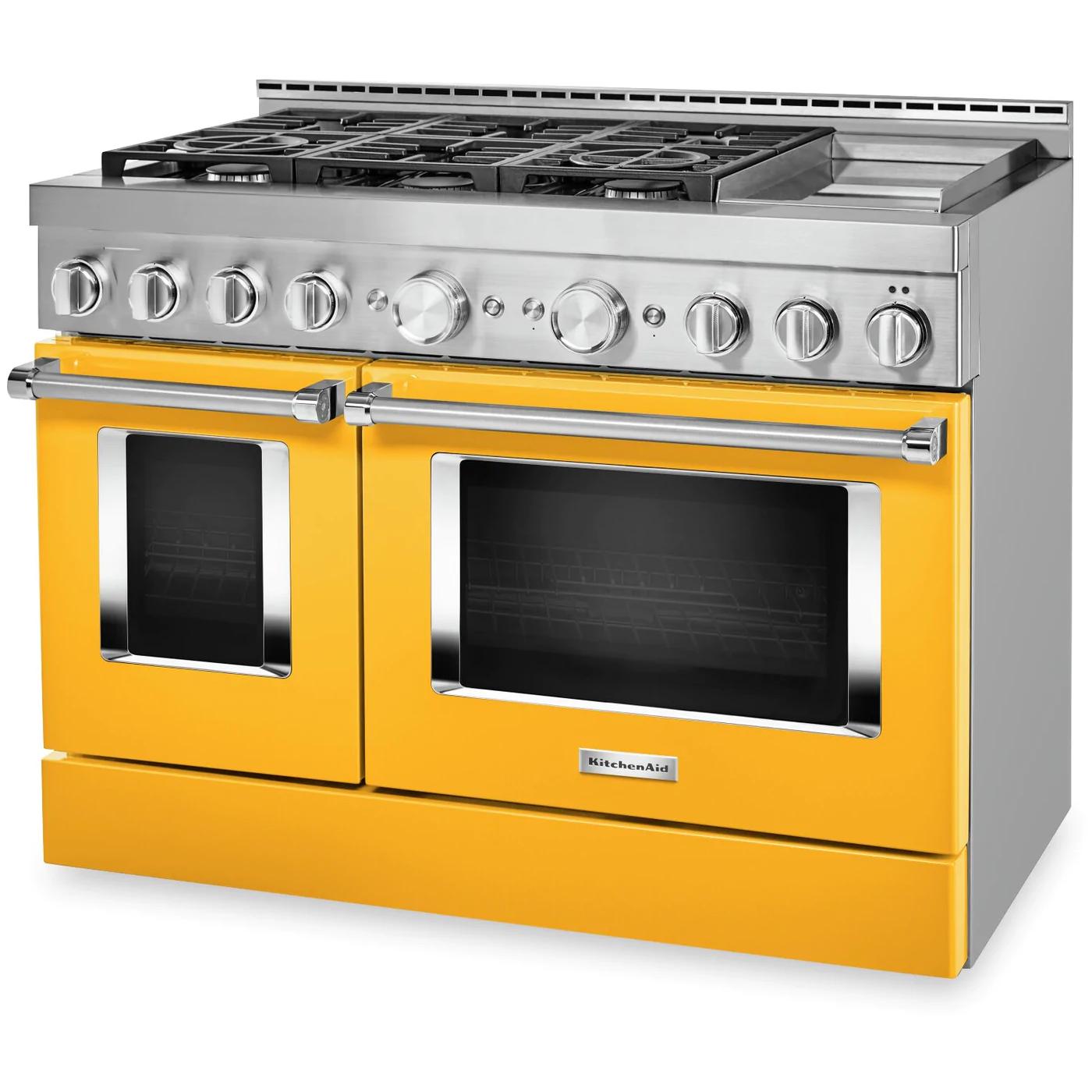

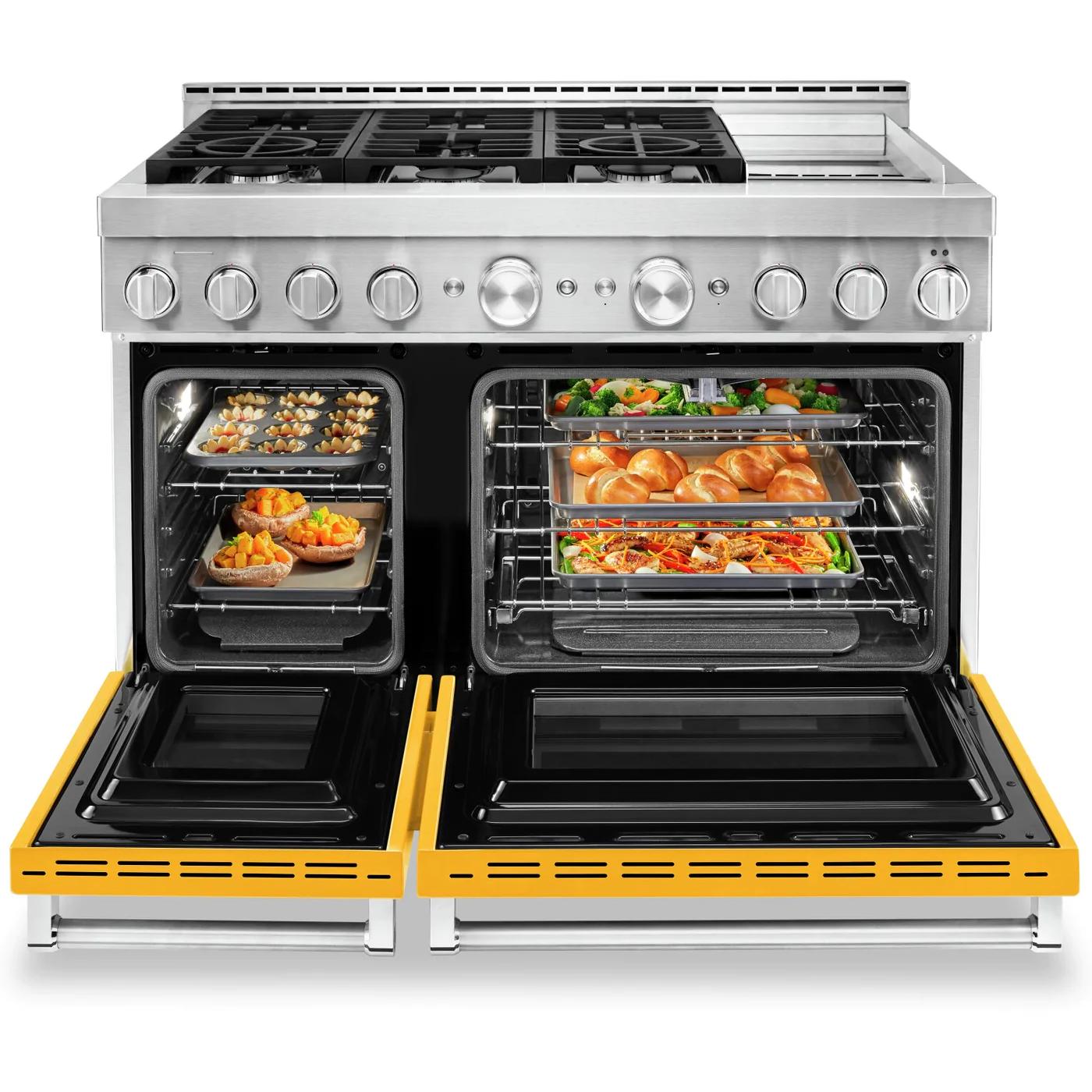

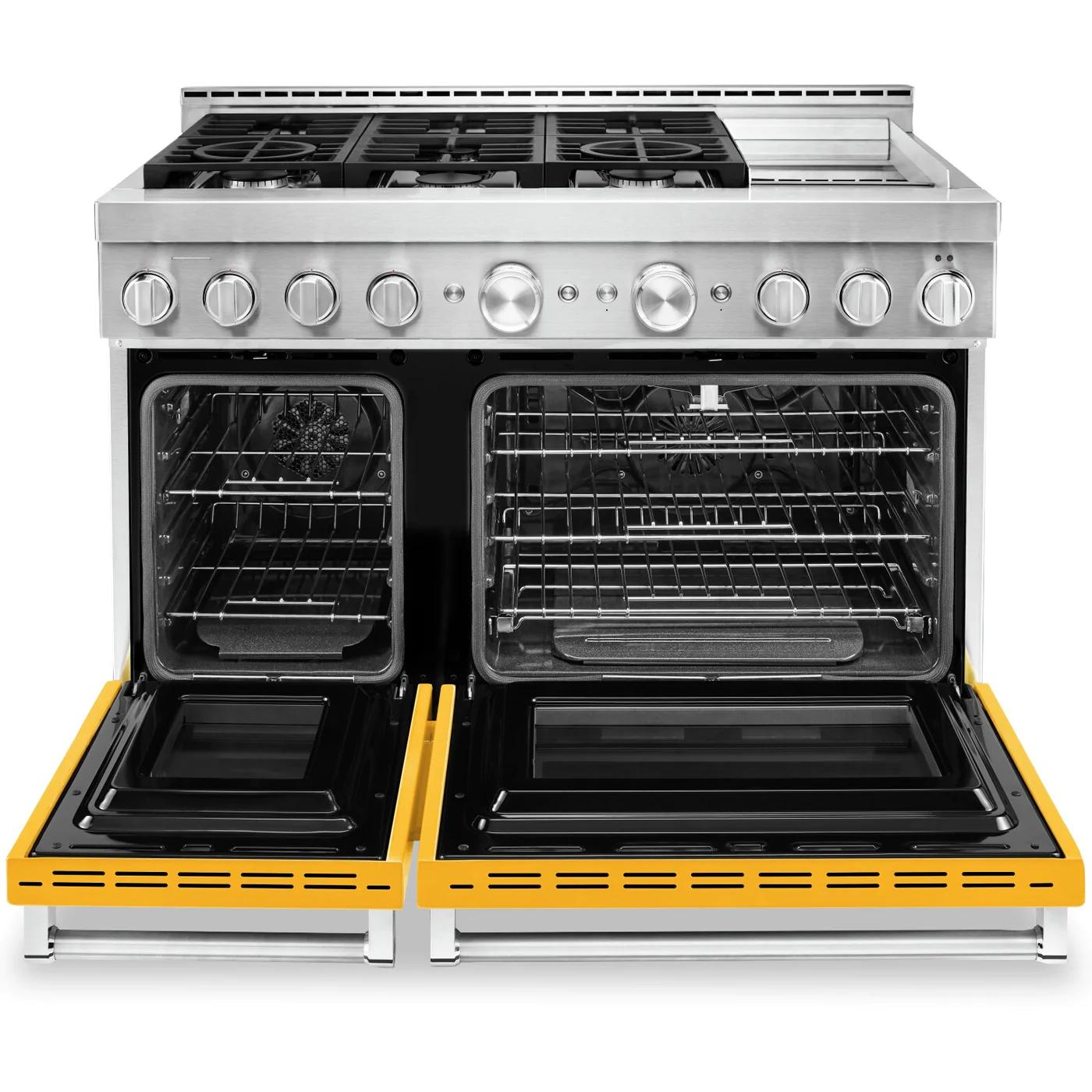

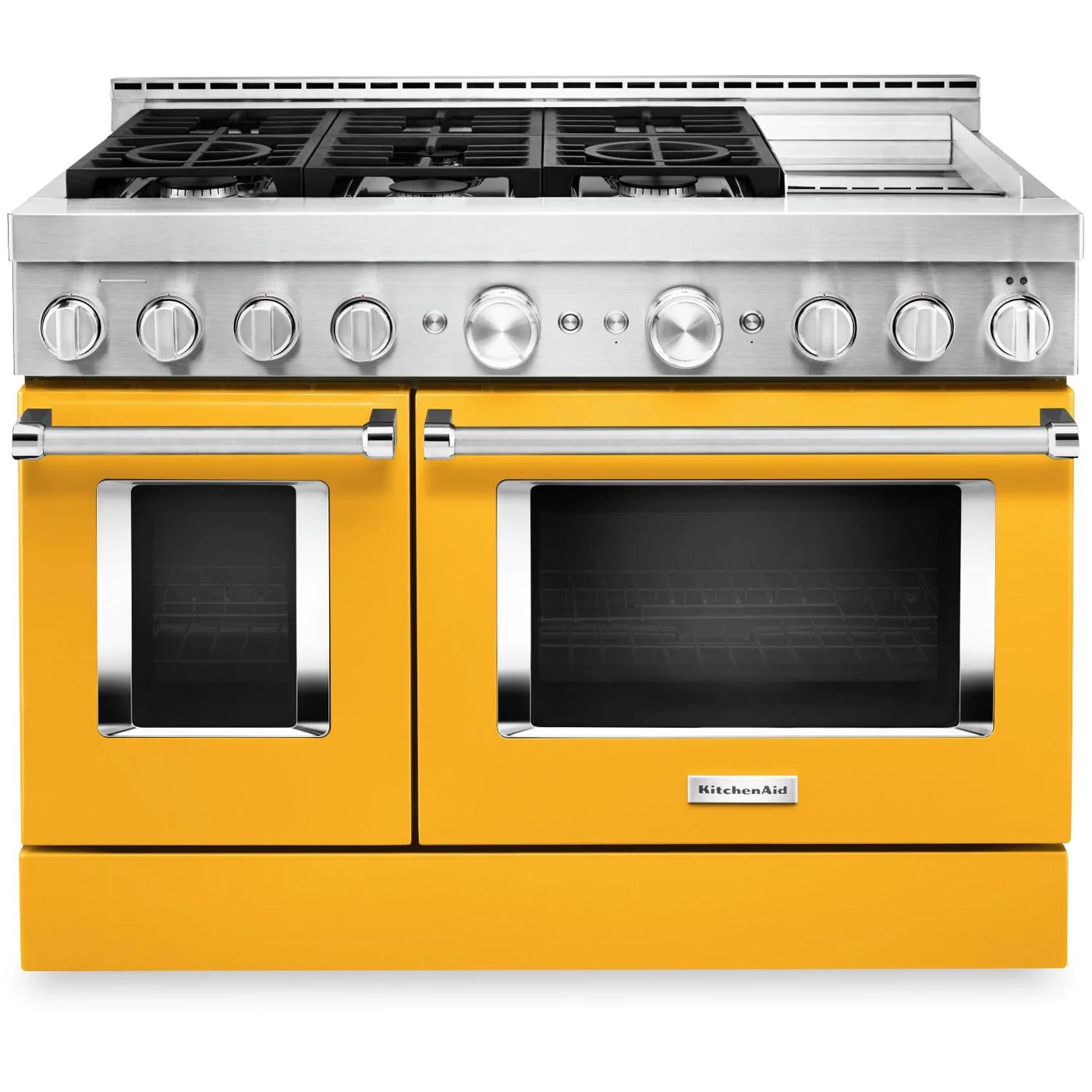

×Satisfy your craving to create with a 48-inch KitchenAid® Commercial-Style Range with Even-Heat™ Chrome Electric Griddle. This dual fuel range combines an electric double oven with a 6-burner gas cooktop. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer power and precision to successfully sear, simmer, stir-fry and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
Commercial-Style
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Yellow
Manufacturer Color
Yellow Pepper
Cooktop
Burners/Elements
7
Burners/Elements Output
• (2x) Ultra Power™ Dual-Flame Burners: 20,000 BTU
• (1x) Simmer and Melt Burner: 5,000 BTU
• (3x) Burners: 15,000 BTU
• (1x) Simmer and Melt Burner: 5,000 BTU
• (3x) Burners: 15,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Total Capacity: 6.3
• Large Oven: 4.1 cu.ft.
• Small Oven: 2.2 cu.ft.
• Large Oven: 4.1 cu.ft.
• Small Oven: 2.2 cu.ft.
Number of Ovens
Double
Programs
• Audible Signal
• Automatic Door Latch
• Bake
• Broil
• Cancel/Off
• Convect Modes
• Easy Convect Baked Goods
• Easy Convect Meats
• Easy Convect Pizza
• Favorites
• Keep Warm Setting
• Proofing
• Sabbath Mode
• Temperature Probe
• Automatic Door Latch
• Bake
• Broil
• Cancel/Off
• Convect Modes
• Easy Convect Baked Goods
• Easy Convect Meats
• Easy Convect Pizza
• Favorites
• Keep Warm Setting
• Proofing
• Sabbath Mode
• Temperature Probe
Features
Technologies
• Even-Heat™ True Convection
• Ultra Power™ Dual-Flame Burners
• Connectivity: Amazon Alexa , Android , Google Assistant , iOS
• Works With: WiFi , App , Remote Access , Voice Controlled
• SatinGlide™ Roll-Out Extension Rack
• EasyConvect™ Conversion System
• Ultra Power™ Dual-Flame Burners
• Connectivity: Amazon Alexa , Android , Google Assistant , iOS
• Works With: WiFi , App , Remote Access , Voice Controlled
• SatinGlide™ Roll-Out Extension Rack
• EasyConvect™ Conversion System
Convection
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Removable Door
• Power On Indicator Light
• Automatic Convection Conversion Temperature Adjust
• Automatic Shut-Off
• Hidden Bake Element
• Gliding Roll-Out, Standard (Both) Grills
• Power On Indicator Light
• Automatic Convection Conversion Temperature Adjust
• Automatic Shut-Off
• Hidden Bake Element
• Gliding Roll-Out, Standard (Both) Grills
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
KitchenAid® Handle Medallion Kit
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.75 inch(es) / 70.49 cm
Depth (Including Handles)
30.25 inch(es) / 76.84 cm
Weight
487 lb(s) / 220.9 kg
Additional Dimensions
• Depth With Door Open 90 Degree: 46-1/2"
• Maximum Height: 37-1/2"
• Cutout Depth: 24"
• Cutout Height: 36"
• Cutout Width: 48"
• Maximum Height: 37-1/2"
• Cutout Depth: 24"
• Cutout Height: 36"
• Cutout Width: 48"
Shipping Dimensions
Width
53.81 inch(es) / 136.68 cm
Height
47.75 inch(es) / 121.29 cm
Depth
35.5 inch(es) / 90.17 cm
Weight
562 lb(s) / 254.92 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049529301
