DESCRIPTION

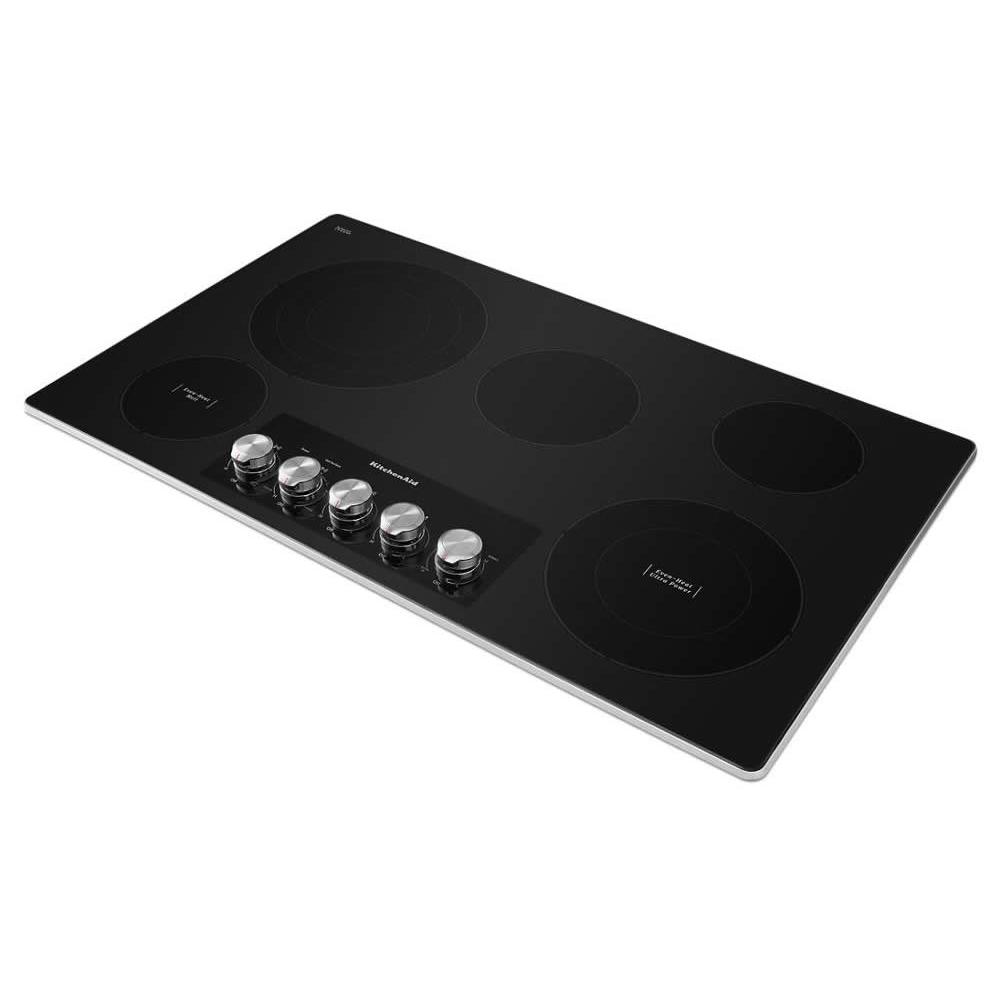

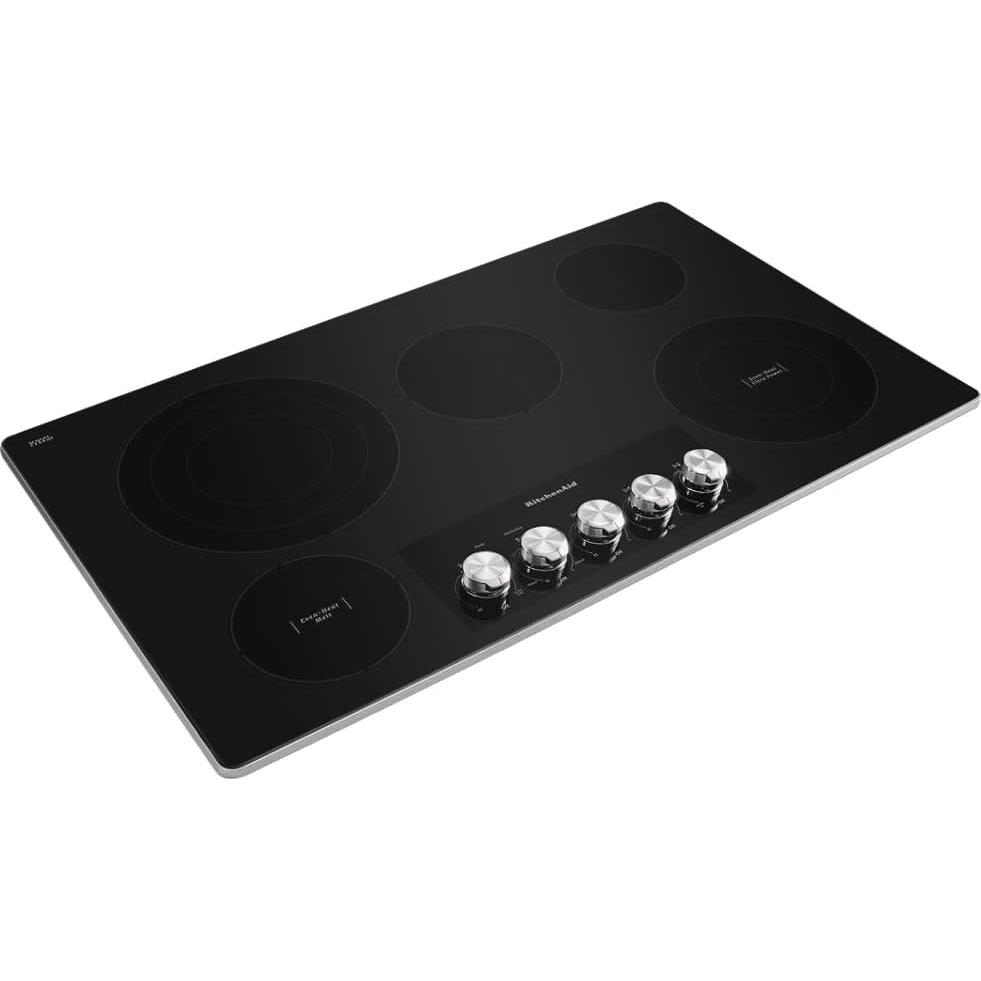

×This 36 electric cooktop combines timeless style with the performance of five radiant elements, including a 10'' Even-Heat™ Ultra Power™ Element with Simmer Setting, a 6'' Even-Heat™ Elements with Melt Setting, and a 12''/9''/6'' Triple-Ring Round Element that maximizes your flexibility with three distinct rings that allow for element selection based on cookware size.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Rear Element: 3,000 W/ 2,200 W/ 1,100 W
• Right Front Element: 3,200 W
• Center Rear Element: 1,800 W
• Left Front Element: 1,300 W
• Right Front Element: 3,200 W
• Center Rear Element: 1,800 W
• Left Front Element: 1,300 W
Burner/Element Size
• Center Rear Element: 8"
• Left Front Element: 6"
• Left Rear Element: 12"/9"/6"
• Right Front Element: 10"/6"
• Right Rear Element: 6"
• Left Front Element: 6"
• Left Rear Element: 12"/9"/6"
• Right Front Element: 10"/6"
• Right Rear Element: 6"
Elements
Smoothtop
Features
Technologies
• Even-Heat™ Technology
• Even-Heat™ Ultra Power™ Element
• Even-Heat™ Ultra Power™ Element
Additional Information
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Metal Knobs
• Hot Surface Indicator Light
• Metal Knobs
Electrical Information
Information
• 240 V
• 40 A
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
5.25 inch(es) / 13.34 cm
Depth
21.63 inch(es) / 54.93 cm
Weight
44 lb(s) / 19.96 kg
Shipping Dimensions
Width
40.75 inch(es) / 103.51 cm
Height
9.25 inch(es) / 23.5 cm
Depth
25 inch(es) / 63.5 cm
Weight
56 lb(s) / 25.4 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049472973
