DESCRIPTION

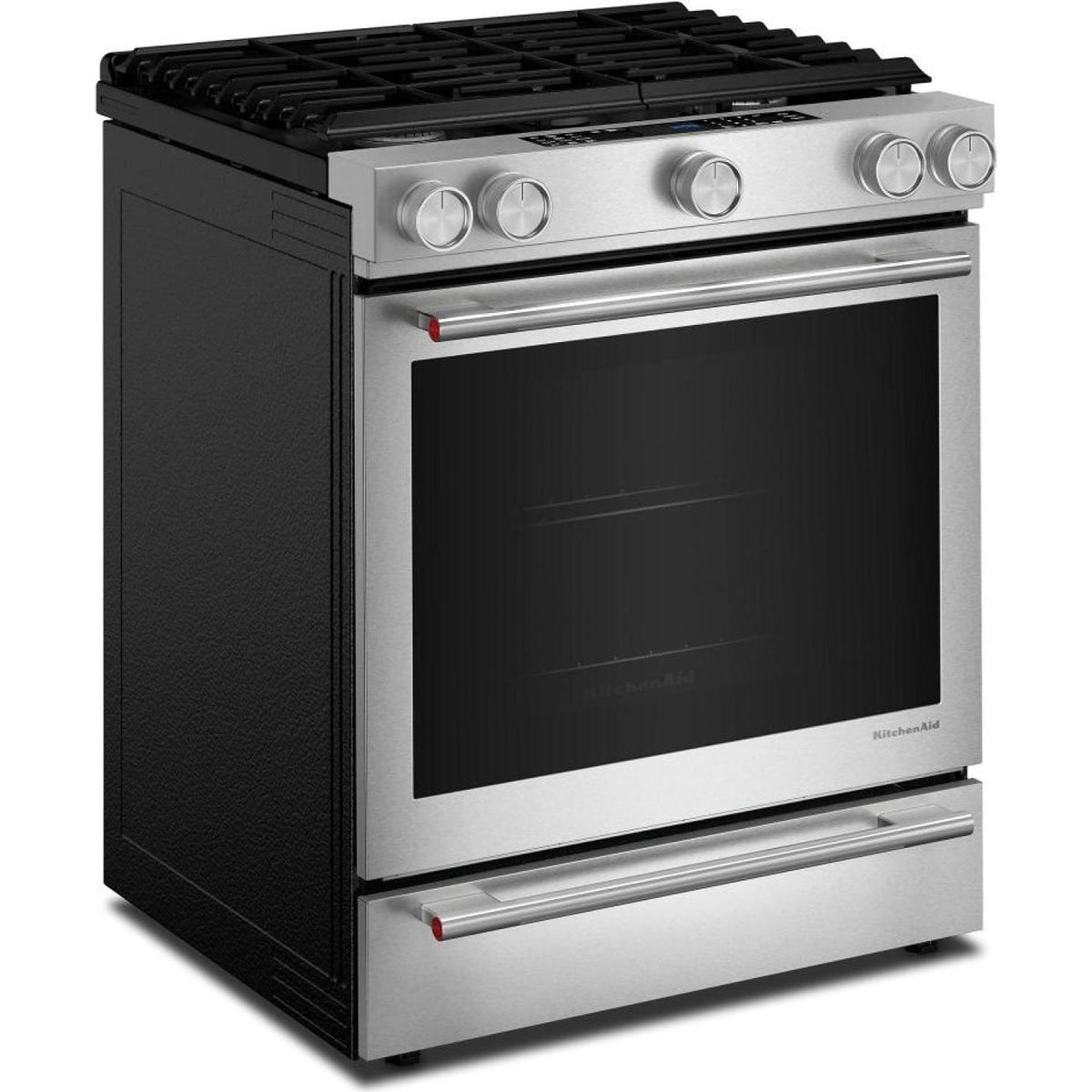

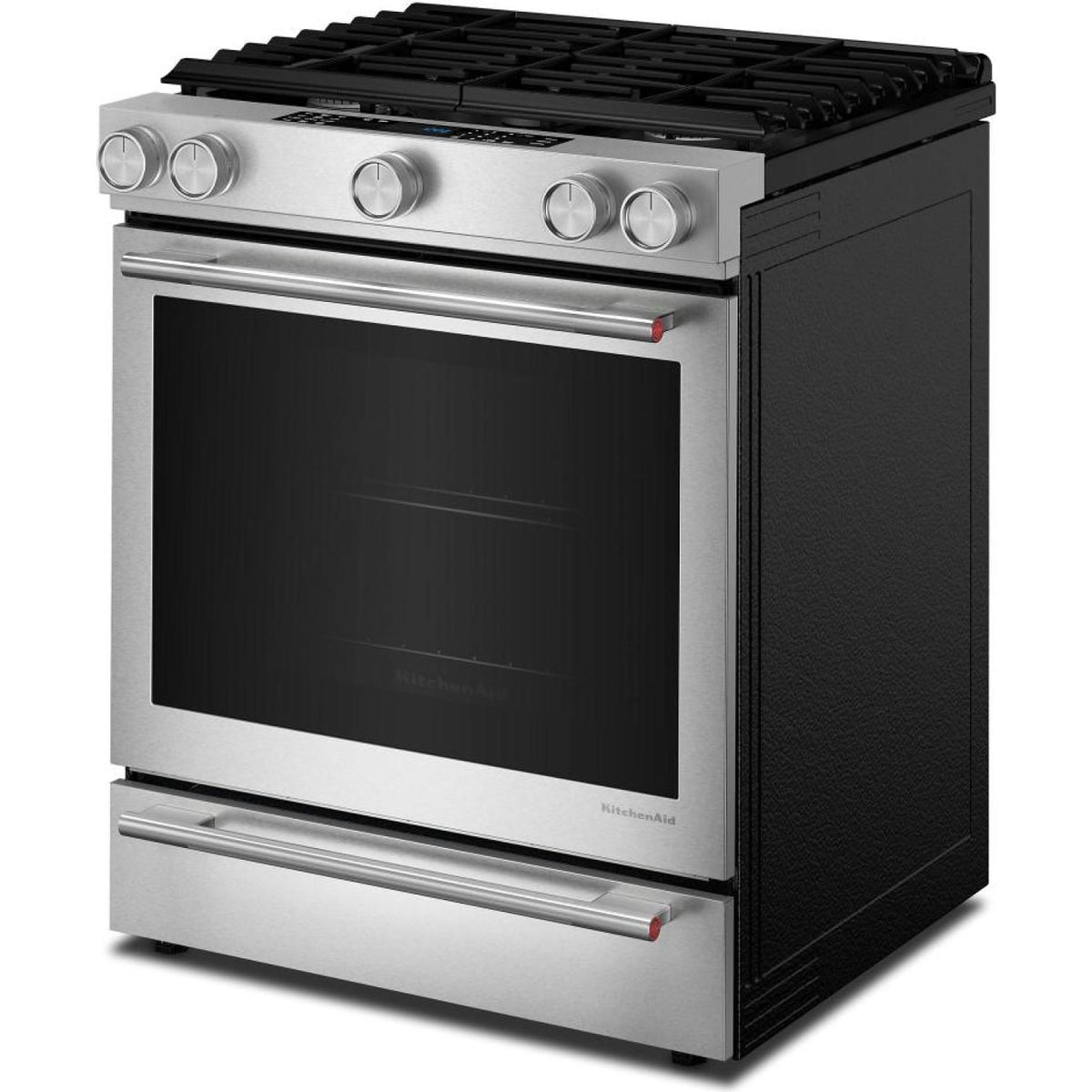

×This versatile gas range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features flawless cooking results from Even-Heat™ True Convection, featuring a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful caramelized vegetables.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
PrintShield™ Stainless
Appliance Care
• Steam Clean
• PrintShield™ Finish — easy to clean with just water and a soft cloth
• PrintShield™ Finish — easy to clean with just water and a soft cloth

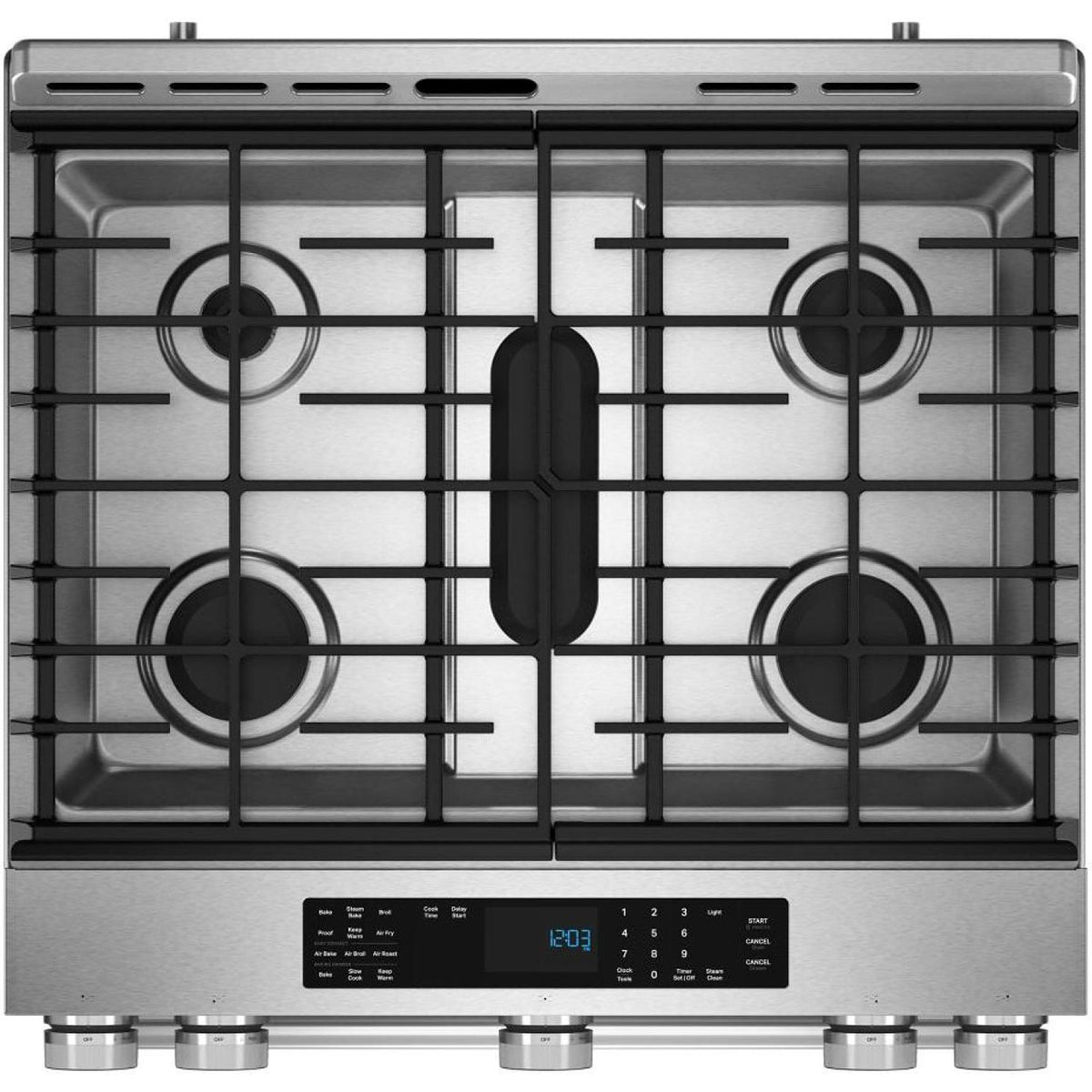

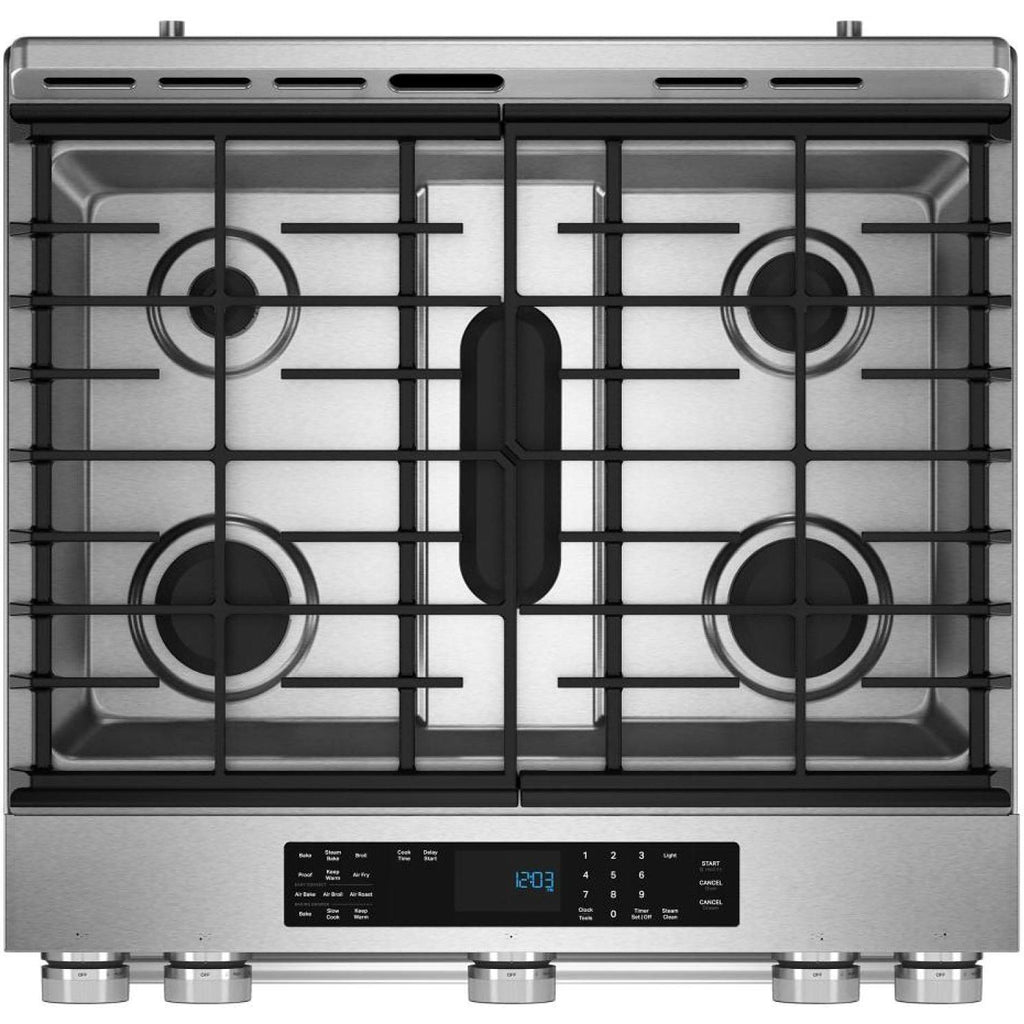

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front: 19,000 BTU
• Right Front: 15,000 BTU
• Right Rear: 9,200 BTU
• Center Rear: 8,000 BTU
• Left Rear: 5,000 BTU
• Right Front: 15,000 BTU
• Right Rear: 9,200 BTU
• Center Rear: 8,000 BTU
• Left Rear: 5,000 BTU

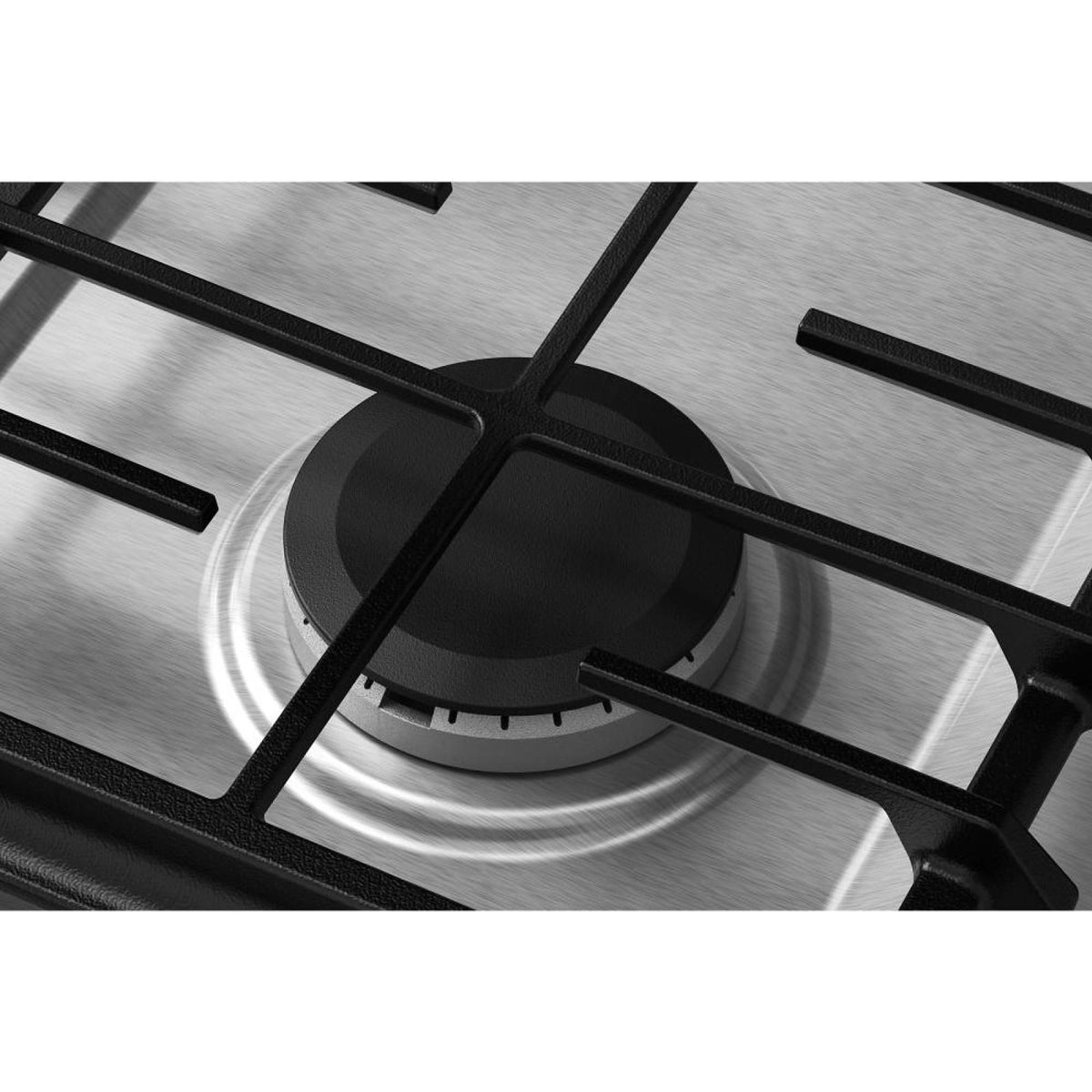

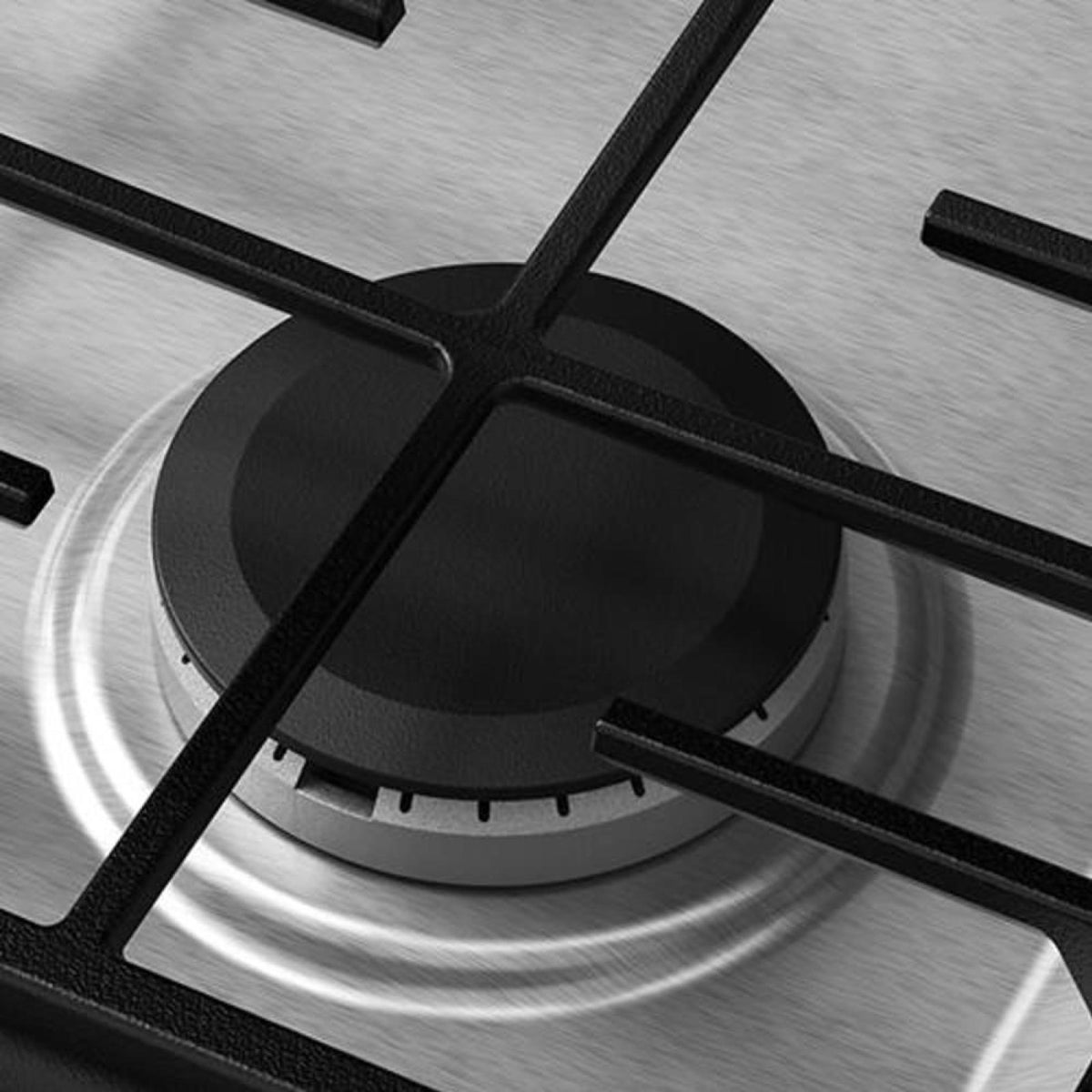

Burners
Sealed

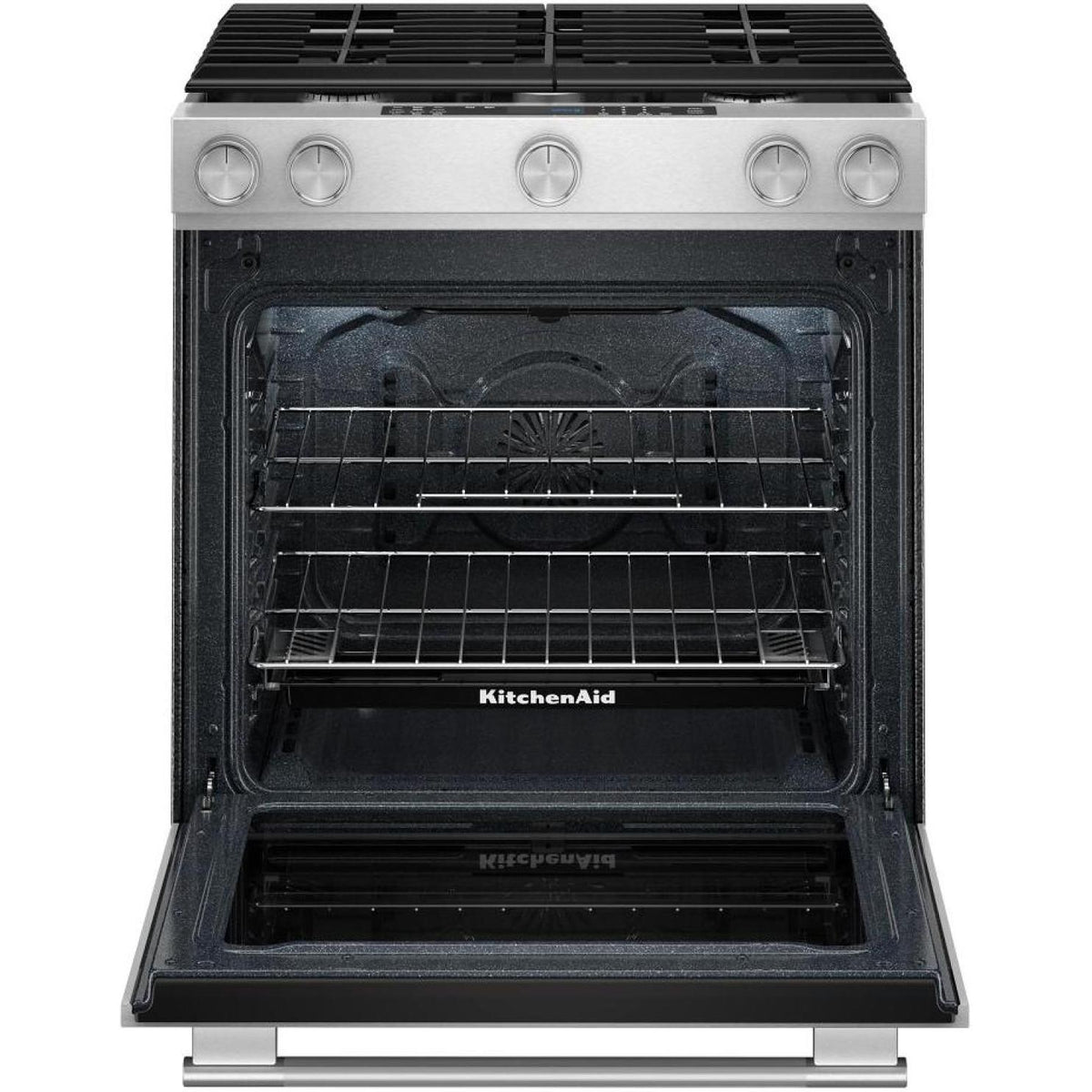

Oven
Capacity (cu. ft.)
6.5
Number of Ovens
Single
Programs
• Bake
• Broil
• Air Baking
• Air Roast
• Air Broil (Convect Broil)
• Air Fry (No Preheat)
• Steam Bake
• Forced Air
• Proofing
• Keep Warm
• Baking Drawer: Keep Warm, Slow Cook, Bake
• Broil
• Air Baking
• Air Roast
• Air Broil (Convect Broil)
• Air Fry (No Preheat)
• Steam Bake
• Forced Air
• Proofing
• Keep Warm
• Baking Drawer: Keep Warm, Slow Cook, Bake
Features
Technologies
• Even-Heat™ True Convection — unique bow-tie design with a heating element and fan for even airflow and consistent temperatures throughout the oven
• PrintShield™ Finish — resists smudges and fingerprints
• PrintShield™ Finish — resists smudges and fingerprints
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Baking Drawer — separate compartment to keep warm, slow cook or bake at a different temperature
• Steam Bake Mode with Steam Bake Tray
• Automatic Convection Conversion
• Hidden Bake Element
• 7 Embossed Rack Guides
• 2 Oven Racks: 1 Heavy Duty and 1 Steam Rack
• 2 Halogen Oven Lights
• Black Oven Interior
• Bake Burner: 18,000 BTU
• Broil Burner: 13,000 BTU (top of oven)
• Convection Element: 914 W, True Bow-Tie

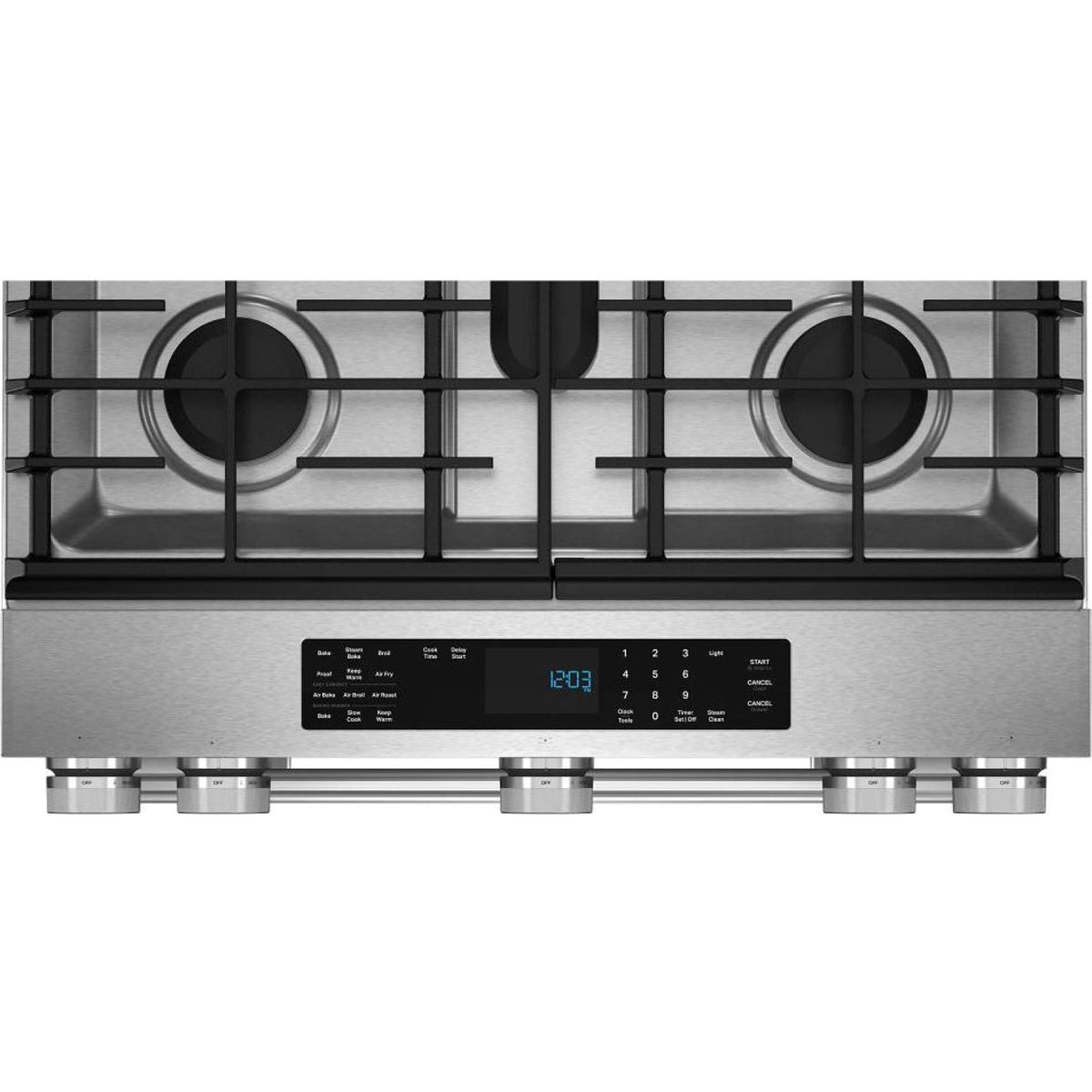

• Front Tap Touch Oven Controls
• Electronic Oven Ignition
• Electronic Burner Ignition
• Front Knob Cooktop Controls — Weighted Stainless Steel Knobs
• Stainless Steel Cooktop Surface
• 2 Cast Iron Grates (not dishwasher safe)
• Cook Time
• Clock
• Timer
• Removable Metal and Glass Oven Door
• Stainless Steel Towel Bar Handle
• Country of Origin: USA
• Steam Bake Mode with Steam Bake Tray
• Automatic Convection Conversion
• Hidden Bake Element
• 7 Embossed Rack Guides
• 2 Oven Racks: 1 Heavy Duty and 1 Steam Rack
• 2 Halogen Oven Lights
• Black Oven Interior
• Bake Burner: 18,000 BTU
• Broil Burner: 13,000 BTU (top of oven)
• Convection Element: 914 W, True Bow-Tie
• Front Tap Touch Oven Controls
• Electronic Oven Ignition
• Electronic Burner Ignition
• Front Knob Cooktop Controls — Weighted Stainless Steel Knobs
• Stainless Steel Cooktop Surface
• 2 Cast Iron Grates (not dishwasher safe)
• Cook Time
• Clock
• Timer
• Removable Metal and Glass Oven Door
• Stainless Steel Towel Bar Handle
• Country of Origin: USA
Drawer Features
Baking
Yes
Broiler
No
Storage
No
Warming
Yes
Electrical Information
Information
• Voltage: 120 V
• Frequency: 60 Hz
• Amperage: 15 A
• Power Cord Included
• Frequency: 60 Hz
• Amperage: 15 A
• Power Cord Included
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
• UL Listed
• cUL Listed
• cUL Listed
Accessories
Included
• Air Fry Basket
• Steam Bake Tray
• 1 Heavy Duty Oven Rack
• 1 Steam Rack
• Steam Bake Tray
• 1 Heavy Duty Oven Rack
• 1 Steam Rack
Optional
W11692811
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.38 inch(es) / 67.01 cm
Depth (Including Handles)
28.88 inch(es) / 73.36 cm
Weight
248.99 lb(s) / 112.94 kg
Additional Dimensions
• Depth with Door Open 90°: 48.75 in
• Oven Interior Width: 24.13 in
• Oven Interior Depth: 20.63 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Oven Interior Width: 24.13 in
• Oven Interior Depth: 20.63 in
• Cutout Height: 36 in
• Cutout Width: 30 in
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
43 inch(es) / 109.22 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
265 lb(s) / 120.2 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
883049966236
