DESCRIPTION

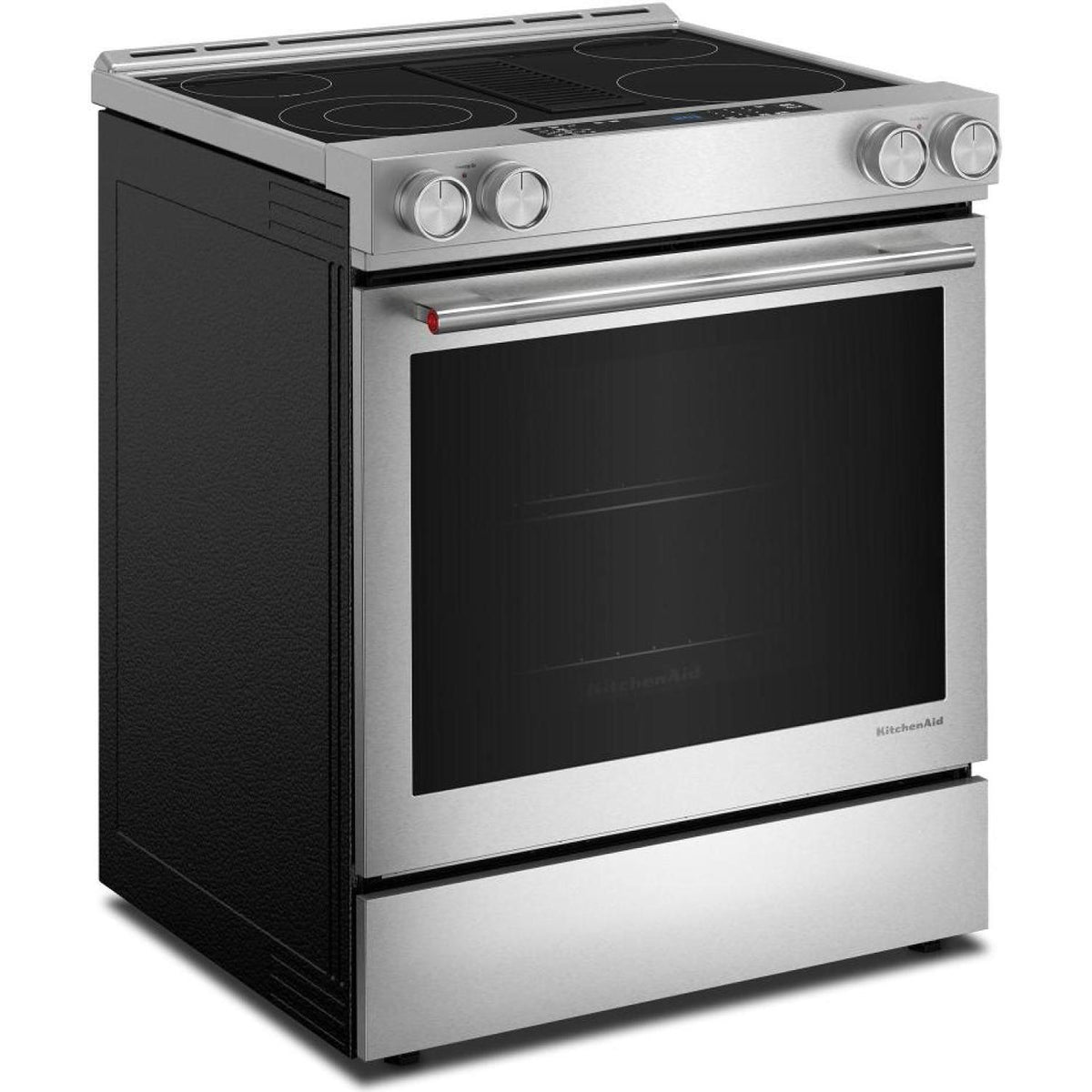

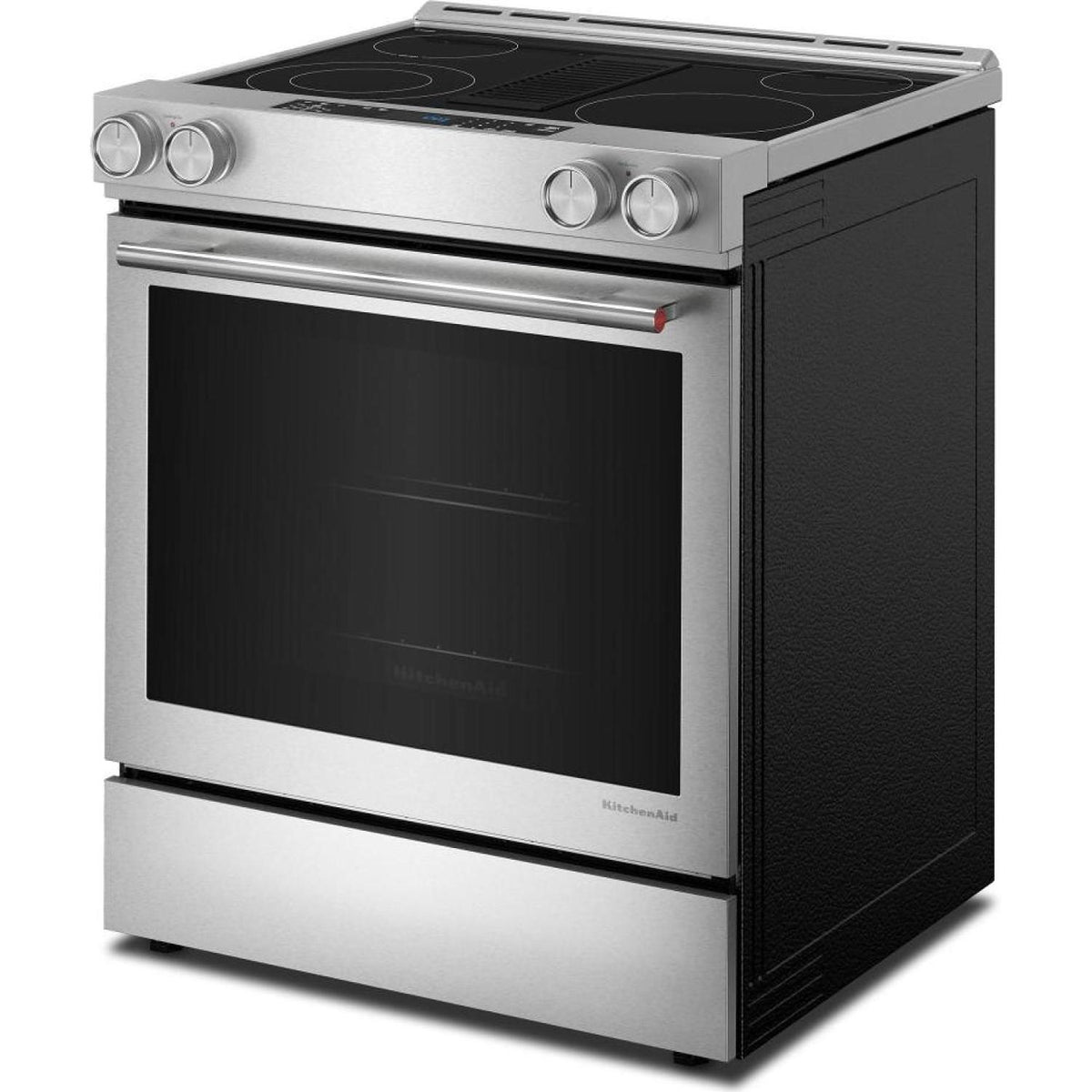

×This all-in-one electric range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range also features flawless cooking results from Even-Heat™ True Convection, featuring a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful caramelized vegetables.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
PrintShield™ Stainless
Appliance Care
• Steam Clean
• PrintShield™ Finish — easy to clean with just water and a soft cloth
• PrintShield™ Finish — easy to clean with just water and a soft cloth
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front: 3,000 W (dual element)
• Right Front: 3,200 W
• Left Rear: 1,300 W
• Right Rear: 1,200 W
• Right Front: 3,200 W
• Left Rear: 1,300 W
• Right Rear: 1,200 W
Burner/Element Size
• Left Front: 10 in / 6 in (dual)
• Right Front: 10 in
• Left Rear: 6 in
• Right Rear: 6 in
• Right Front: 10 in
• Left Rear: 6 in
• Right Rear: 6 in
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4
Number of Ovens
Single
Programs
• Bake
• Broil
• Air Baking
• Air Roast
• Air Broil (Convect Broil)
• Air Fry (No Preheat)
• Steam Bake
• Proofing
• Keep Warm
• Broil
• Air Baking
• Air Roast
• Air Broil (Convect Broil)
• Air Fry (No Preheat)
• Steam Bake
• Proofing
• Keep Warm
Features
Technologies
• Even-Heat™ True Convection — unique bow-tie design with a heating element and fan for even airflow and consistent temperatures throughout the oven
• PrintShield™ Finish — resists smudges and fingerprints
• PrintShield™ Finish — resists smudges and fingerprints
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information

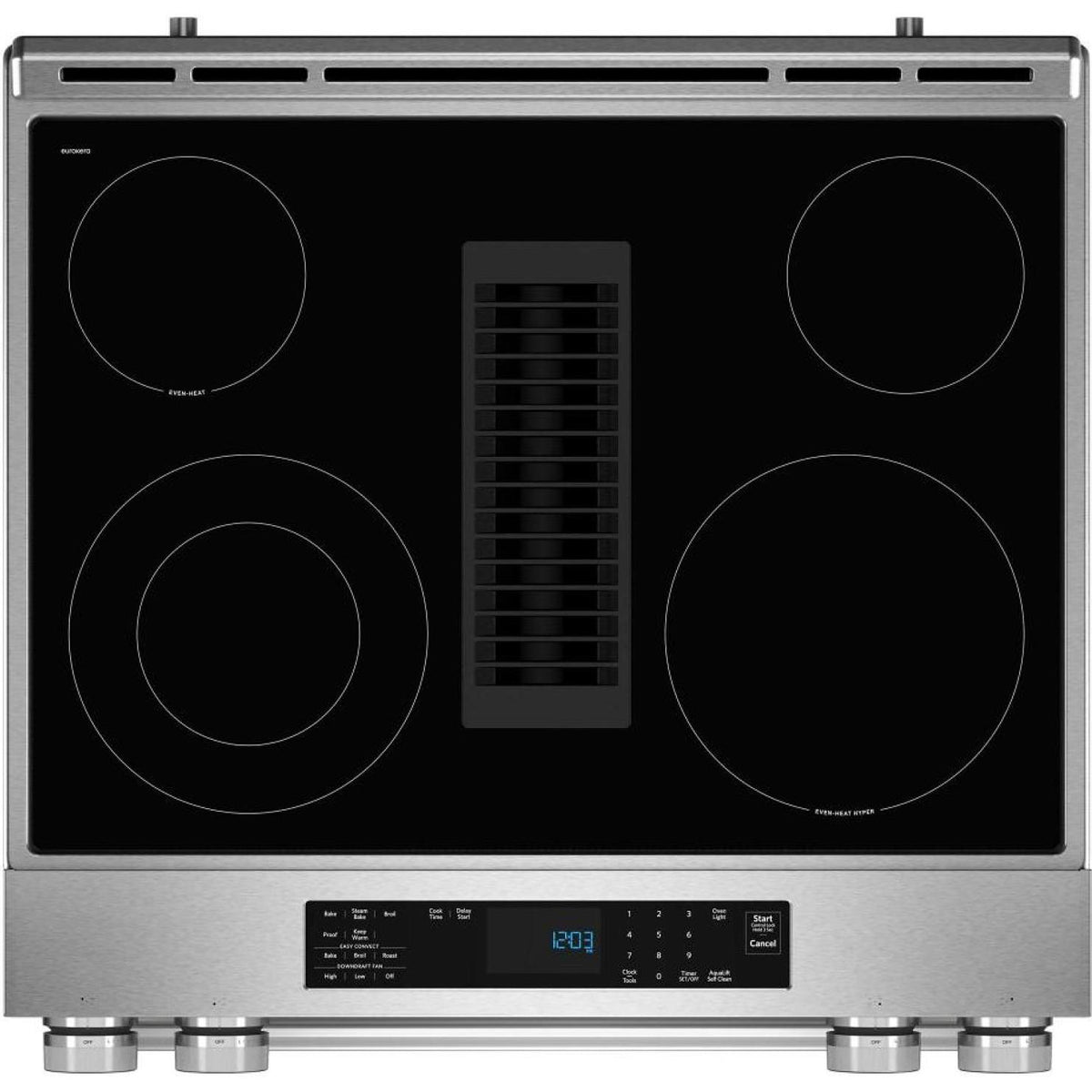

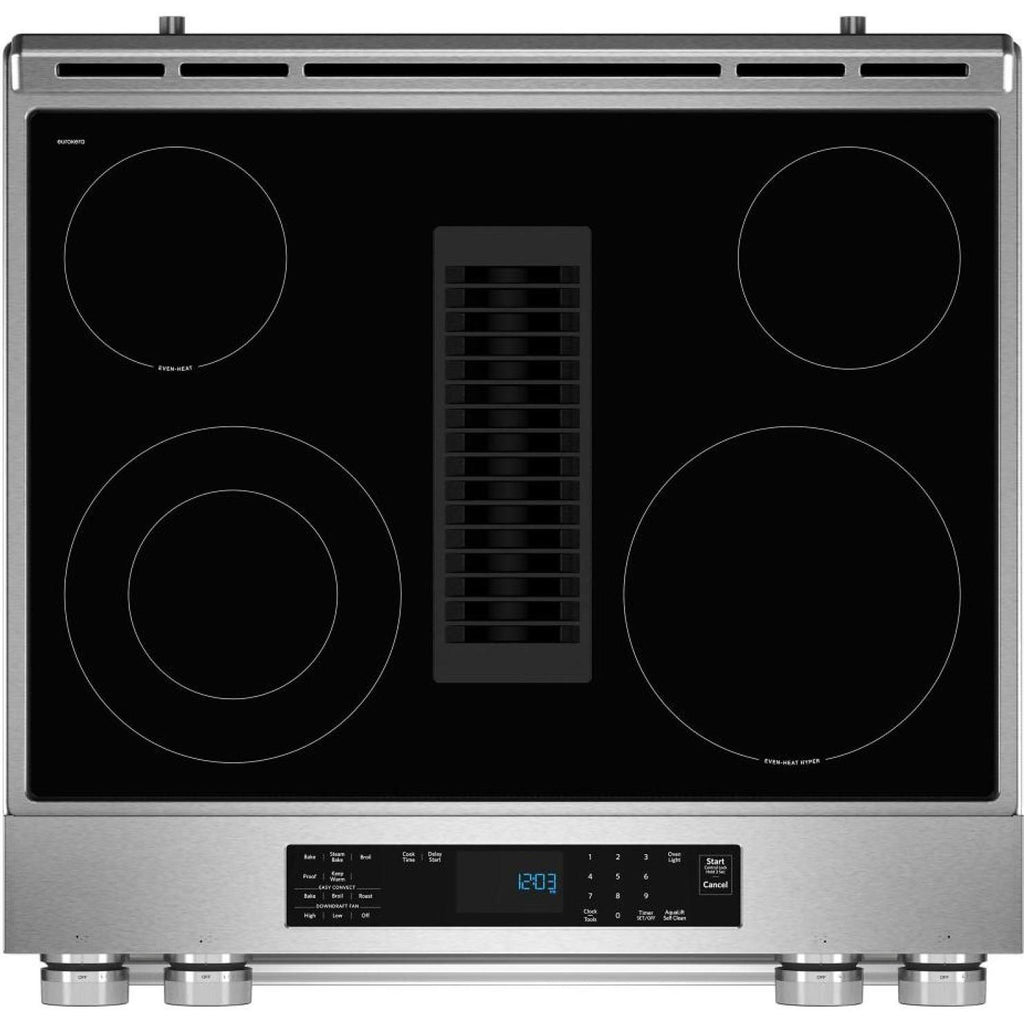

• Downdraft — ventilation integrated into the range, so a separate hood is not needed
• External or Recirculating Venting — vent outside or convert to duct-free recirculation (kit sold separately), ideal for an island installation
• Steam Bake Mode with Steam Bake Tray
• Automatic Convection Conversion
• Hidden Bake Element
• 7 Embossed Rack Guides

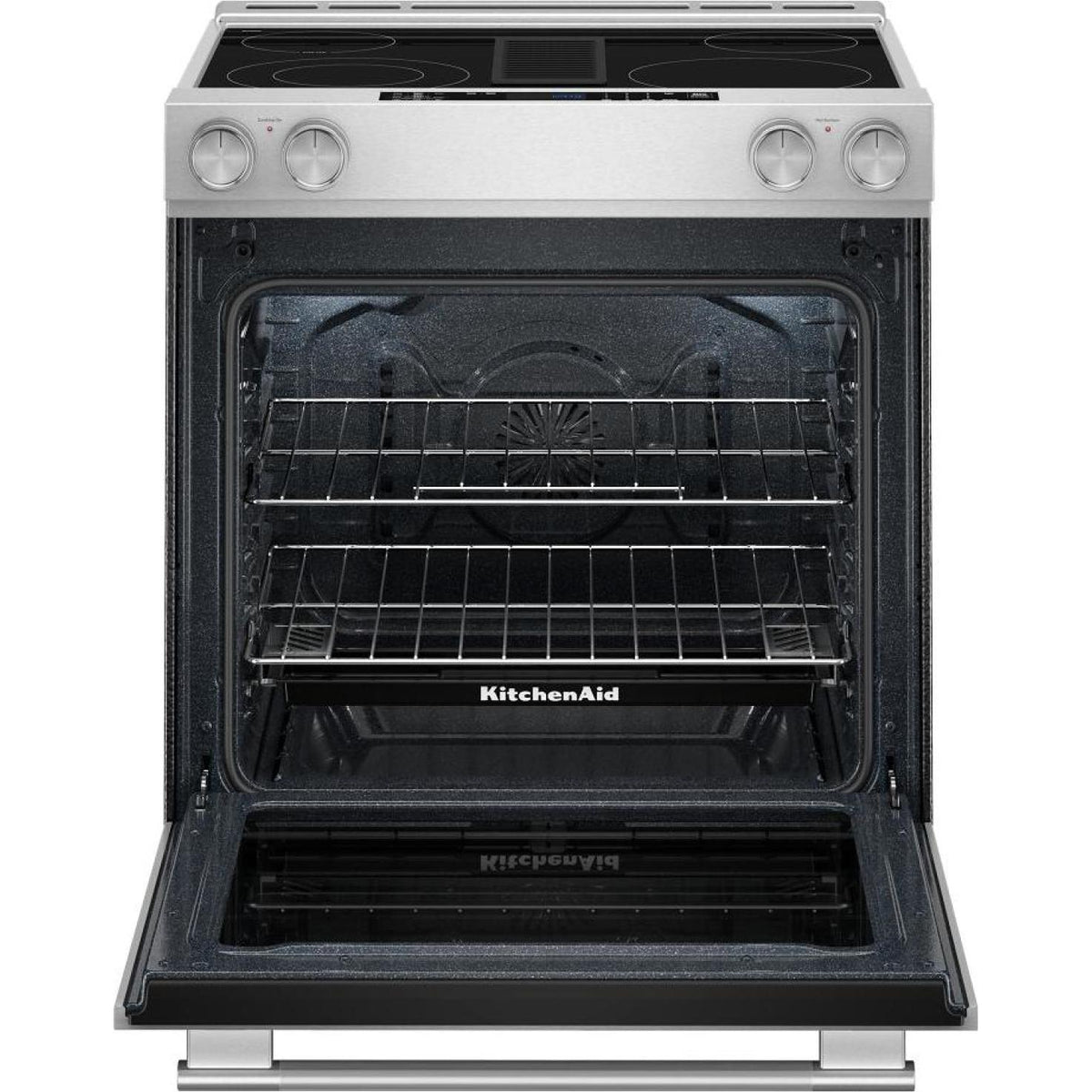

• 2 Oven Racks: 1 Steam Rack and 1 Gliding Roll-Out Rack
• 2 Halogen Oven Lights
• Black Oven Interior
• Bake Element: 3,600 W
• Broil Element: 4,000 W (top of oven)
• Convection Element: 914 W, True Bow-Tie

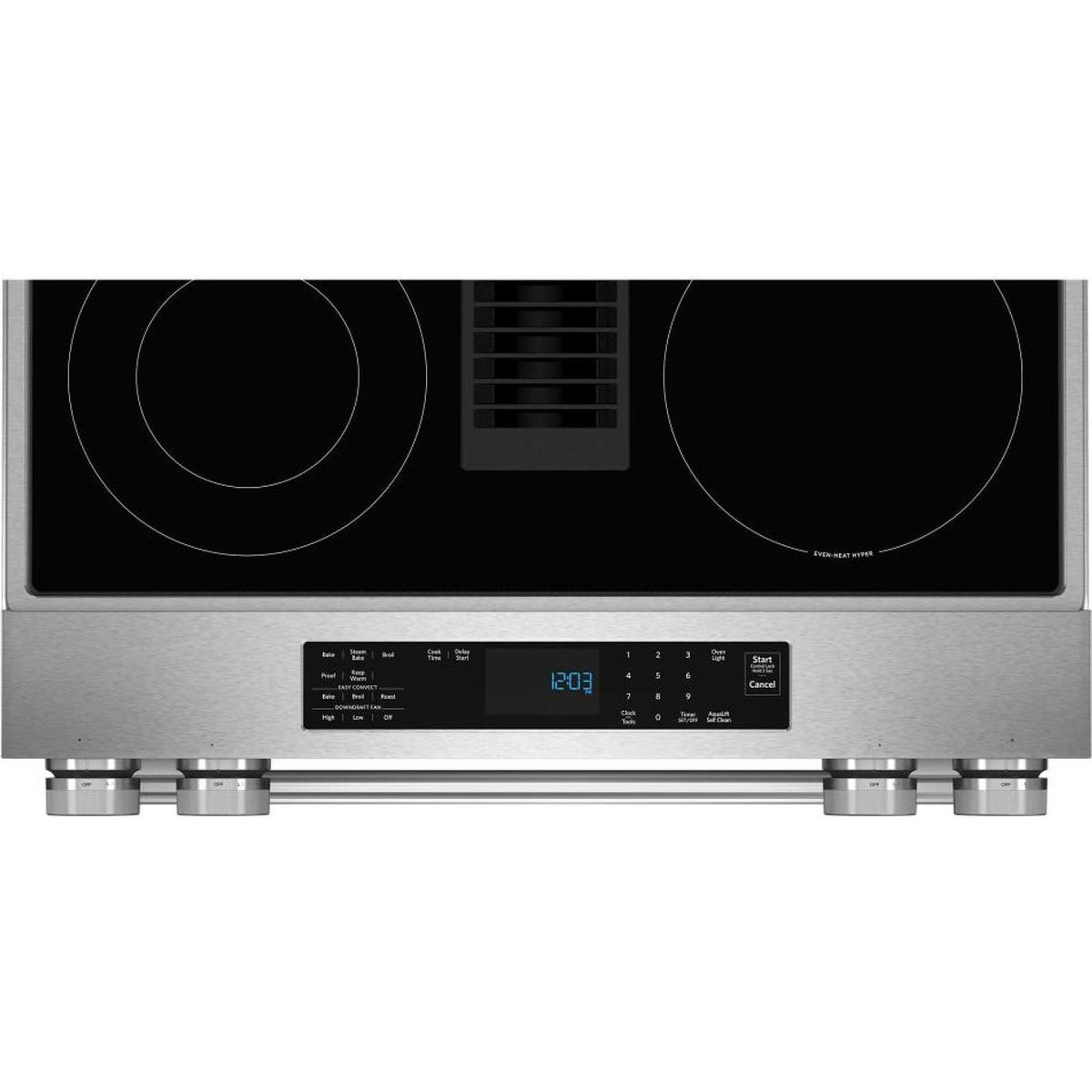

• Front Tap Touch Oven Controls
• Electronic Oven Ignition

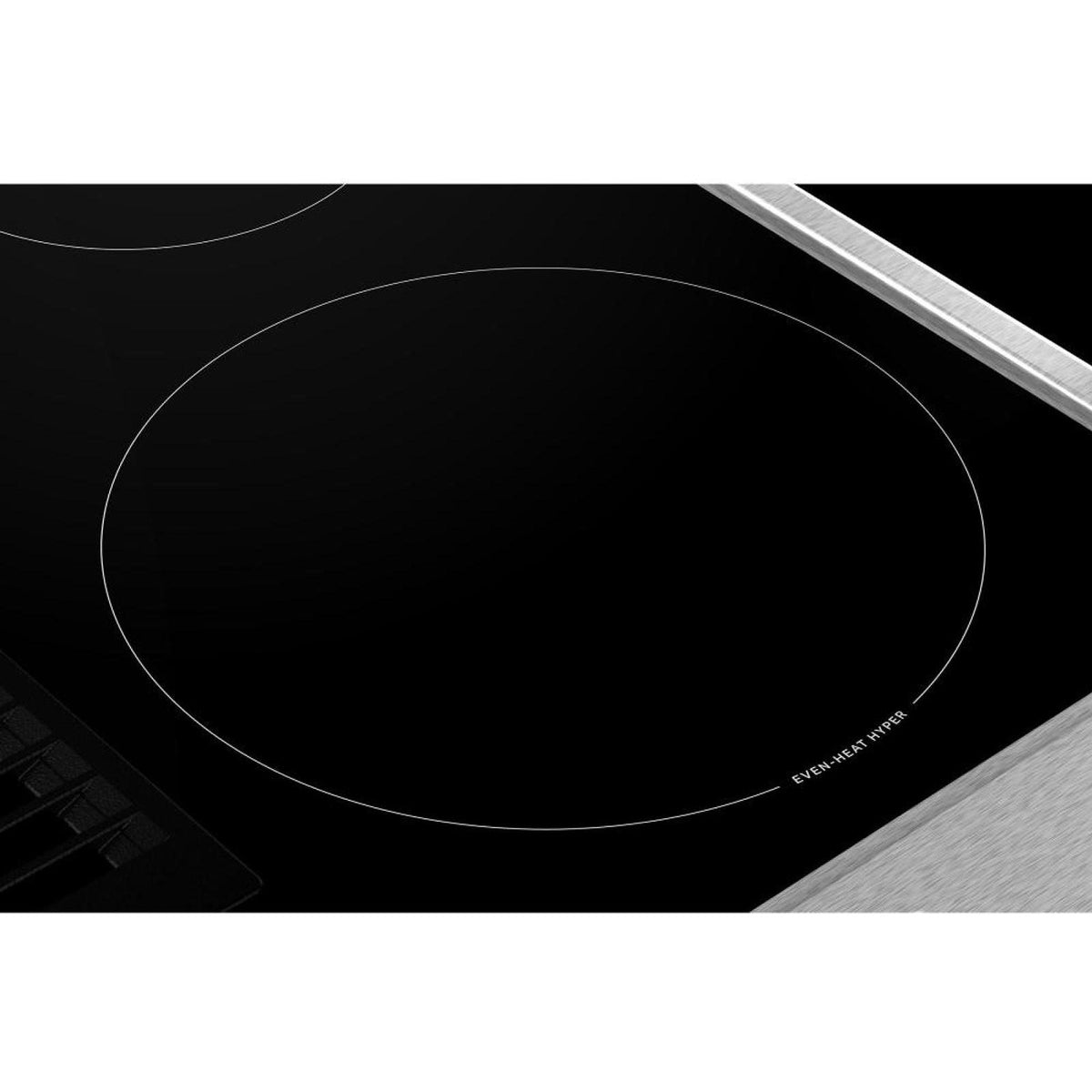

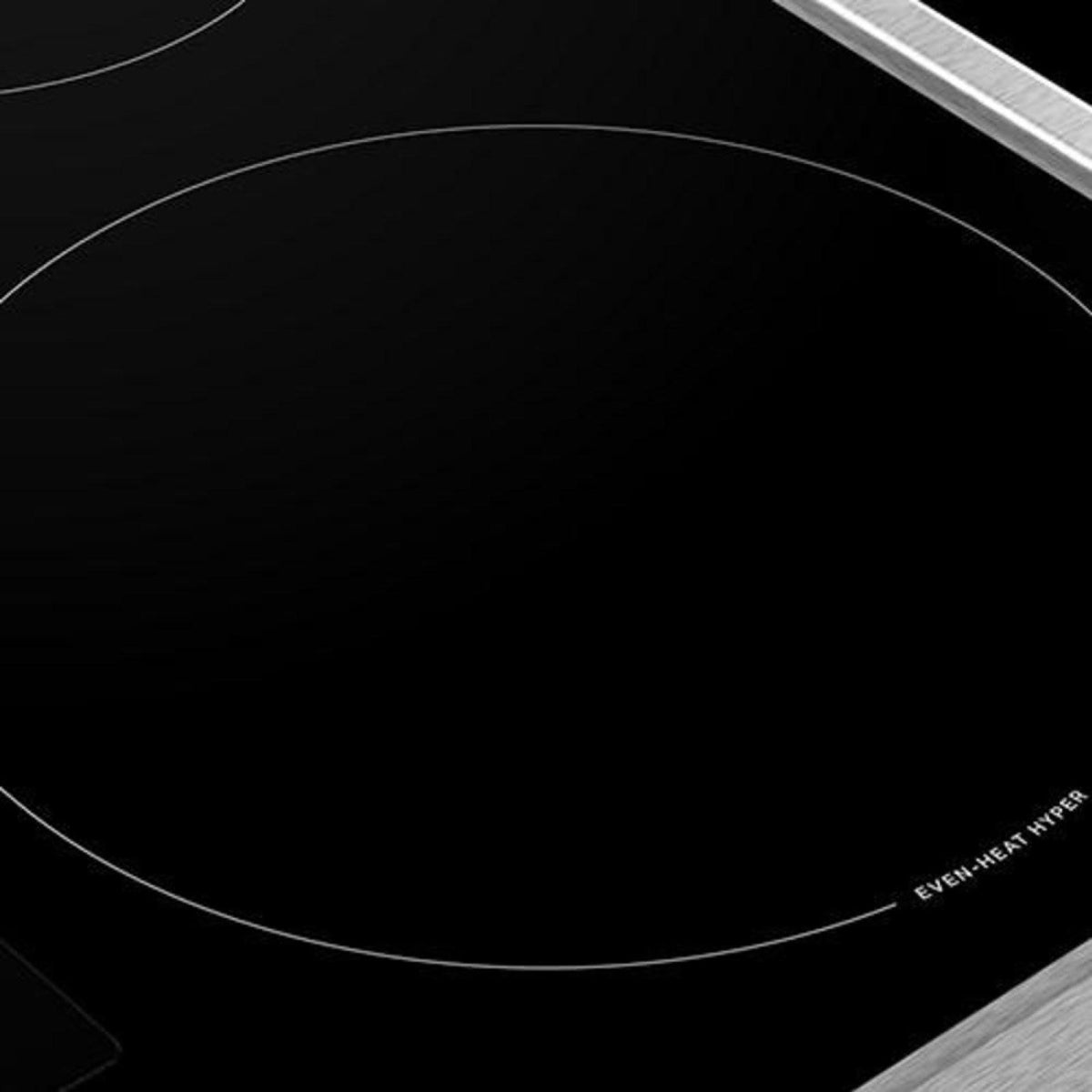

• Black Ceramic Glass Cooktop
• Radiant Elements: 1 Dual and 3 Standard

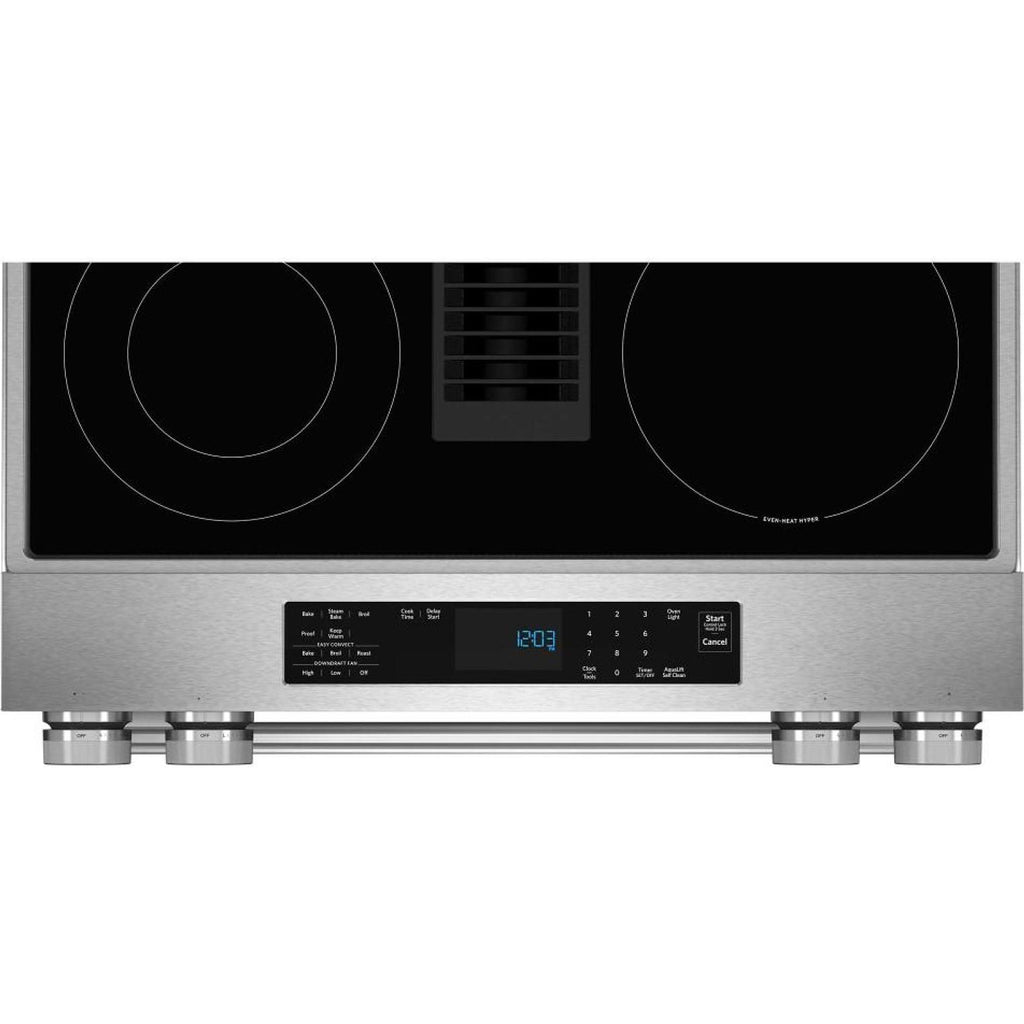

• Front Knob Cooktop Controls — Weighted Stainless Steel Knobs
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Automatic Shut-Off
• Cook Time
• Clock
• Timer
• Removable Metal and Glass Oven Door
• Stainless Steel Towel Bar Handle
• Annual Energy Usage: 616 kWh
• Country of Origin: USA
• External or Recirculating Venting — vent outside or convert to duct-free recirculation (kit sold separately), ideal for an island installation
• Steam Bake Mode with Steam Bake Tray
• Automatic Convection Conversion
• Hidden Bake Element
• 7 Embossed Rack Guides
• 2 Oven Racks: 1 Steam Rack and 1 Gliding Roll-Out Rack
• 2 Halogen Oven Lights
• Black Oven Interior
• Bake Element: 3,600 W
• Broil Element: 4,000 W (top of oven)
• Convection Element: 914 W, True Bow-Tie
• Front Tap Touch Oven Controls
• Electronic Oven Ignition
• Black Ceramic Glass Cooktop
• Radiant Elements: 1 Dual and 3 Standard
• Front Knob Cooktop Controls — Weighted Stainless Steel Knobs
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Automatic Shut-Off
• Cook Time
• Clock
• Timer
• Removable Metal and Glass Oven Door
• Stainless Steel Towel Bar Handle
• Annual Energy Usage: 616 kWh
• Country of Origin: USA
Electrical Information
Information
• Voltage: 240 V
• Amperage: 40 A
• Power Rating: 14 kW
• Power Cord Included
• Amperage: 40 A
• Power Rating: 14 kW
• Power Cord Included
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
• UL Listed
• cUL Listed
• cUL Listed
Accessories
Included
• Steam Bake Tray
• 1 Steam Rack
• 1 Gliding Roll-Out Rack
• 1 Steam Rack
• 1 Gliding Roll-Out Rack
Optional
• W11692811
• Duct-Free Recirculation Kit
• Dishwasher-Safe Air Fry Basket
• Duct-Free Recirculation Kit
• Dishwasher-Safe Air Fry Basket
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.38 inch(es) / 67.01 cm
Depth (Including Handles)
28.88 inch(es) / 73.36 cm
Weight
164 lb(s) / 74.39 kg
Additional Dimensions
• Depth with Door Open 90°: 48.75 in
• Oven Interior Width: 24.13 in
• Oven Interior Depth: 20.63 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Oven Interior Width: 24.13 in
• Oven Interior Depth: 20.63 in
• Cutout Height: 36 in
• Cutout Width: 30 in
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
43 inch(es) / 109.22 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
180.01 lb(s) / 81.65 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
883049966229
