DESCRIPTION

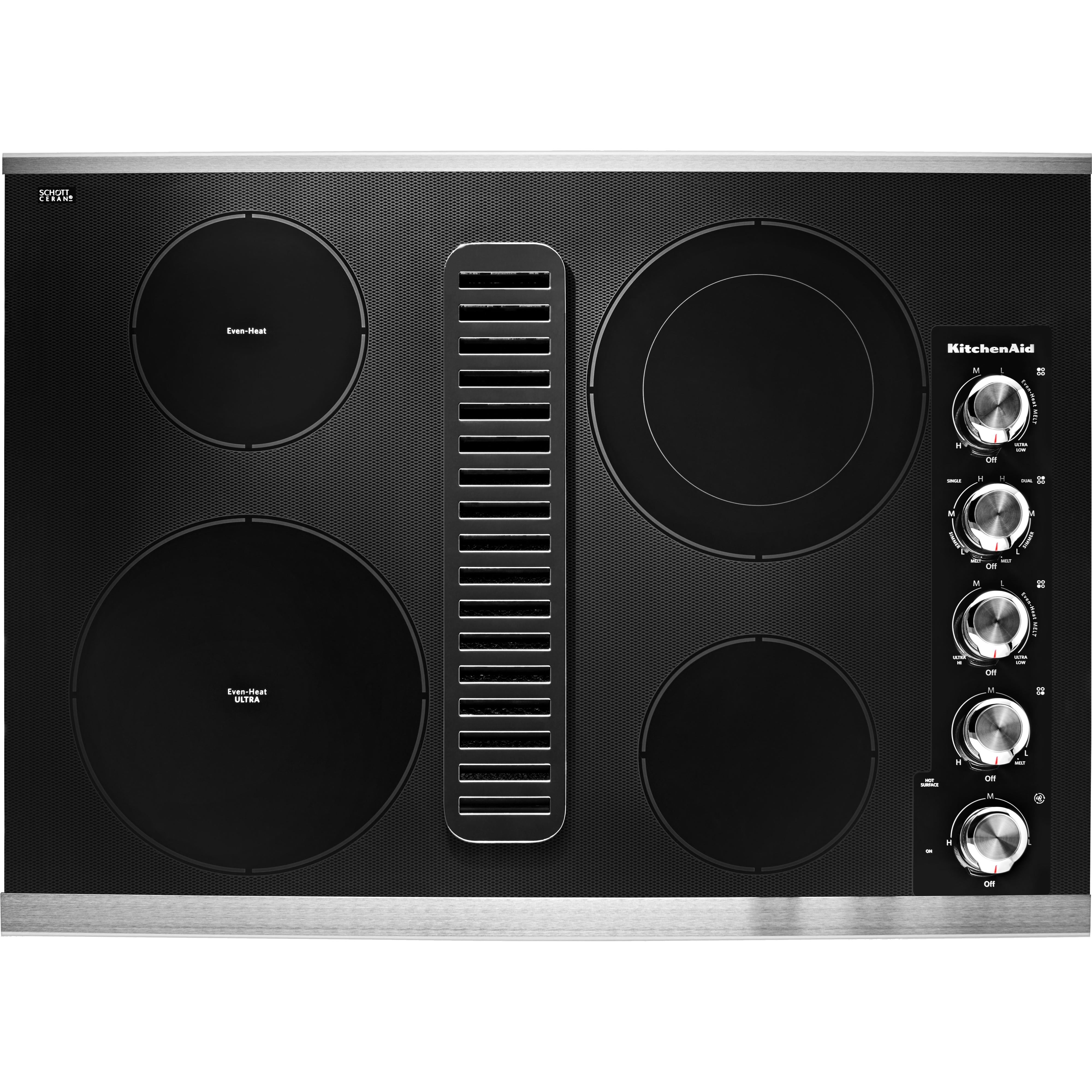

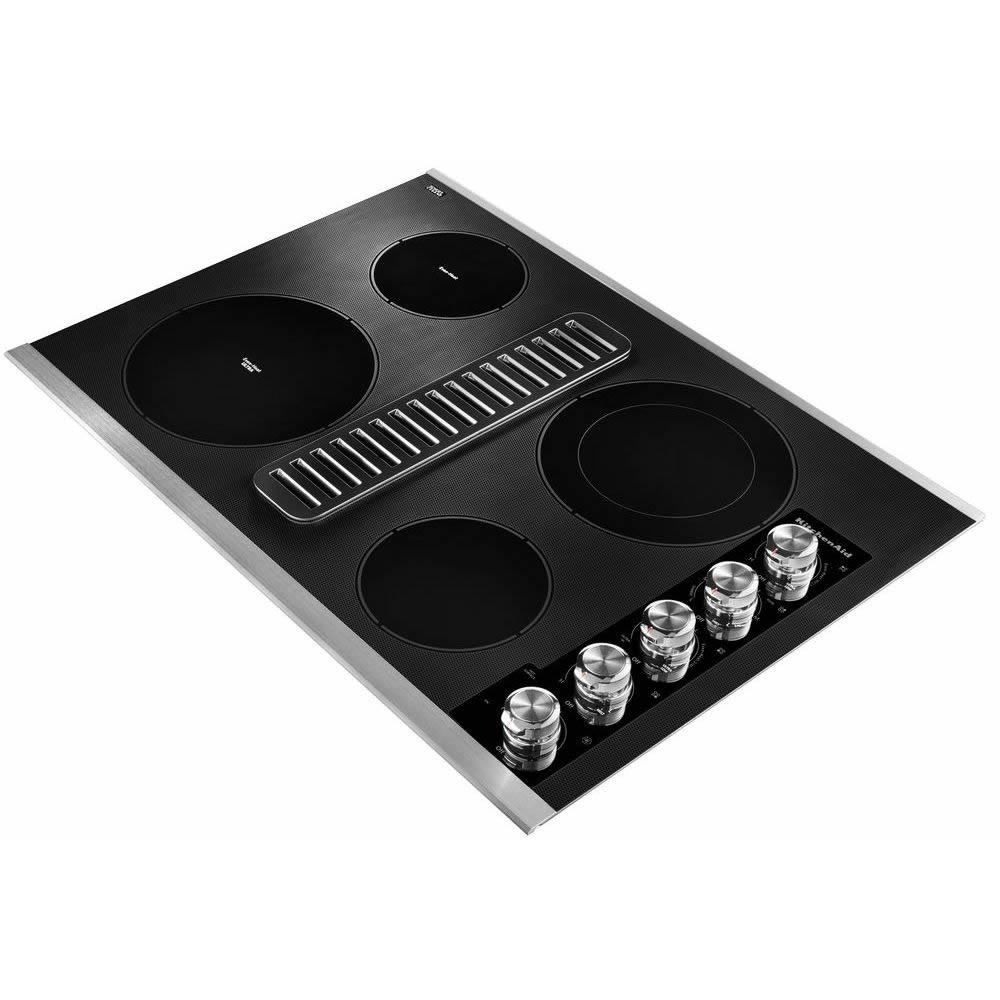

×This 30” electric cooktop features Downdraft, an integrated ventilation system that doesn’t require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high- and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up with your culinary feats.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front Element: 3,200 W
• Left Rear Element: 1,300 W
• Right Front Element: 1,200 W
• Right Rear Element: 3,000 W/1,400 W
• Left Rear Element: 1,300 W
• Right Front Element: 1,200 W
• Right Rear Element: 3,000 W/1,400 W
Burner/Element Size
• Left Front Element: 10"
• Left Rear Element: 6"
• Right Front Element: 6"
• Right Rear Element: 9"/6"
• Left Rear Element: 6"
• Right Front Element: 6"
• Right Rear Element: 9"/6"
Elements
Smoothtop
Surface Features
• CookShield Finish for Glass Surface
• Stainless Steel Knobs
• Pure Color Ceramic-Glass Surface
• Stainless Steel Knobs
• Pure Color Ceramic-Glass Surface
Features
Technologies
• 10" Even-Heat™ Ultra Element
• 6" Even-Heat™ Element
• 9"/6" Ultra Power™ Double-Ring Round Element
• 6" Even-Heat™ Element
• 9"/6" Ultra Power™ Double-Ring Round Element
Downdraft Ventilation
Yes
Additional Information
• 300 CFM Exhaust Rating
• 3-Speed Fan Control
• Convertible to Duct-Free Ventilation
• Power-On Indicator Light
• Hot-Surface Indicator
• 3-Speed Fan Control
• Convertible to Duct-Free Ventilation
• Power-On Indicator Light
• Hot-Surface Indicator
Electrical Information
Information
• 120 V /240 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Dimensions
Class Width
30"
Width
30.87 inch(es) / 78.42 cm
Height
3.63 inch(es) / 9.21 cm
Depth
22.06 inch(es) / 56.04 cm
Weight
50 lb(s) / 22.68 kg
Additional Dimensions
• Cutout Depth: 21 1/8"
• Cutout Width: 28 3/4"
• For more information refer to dimension manual
• Cutout Width: 28 3/4"
• For more information refer to dimension manual
Shipping Dimensions
Width
35.13 inch(es) / 89.22 cm
Height
23.81 inch(es) / 60.48 cm
Depth
26.44 inch(es) / 67.15 cm
Weight
61.99 lb(s) / 28.12 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049415079
