DESCRIPTION

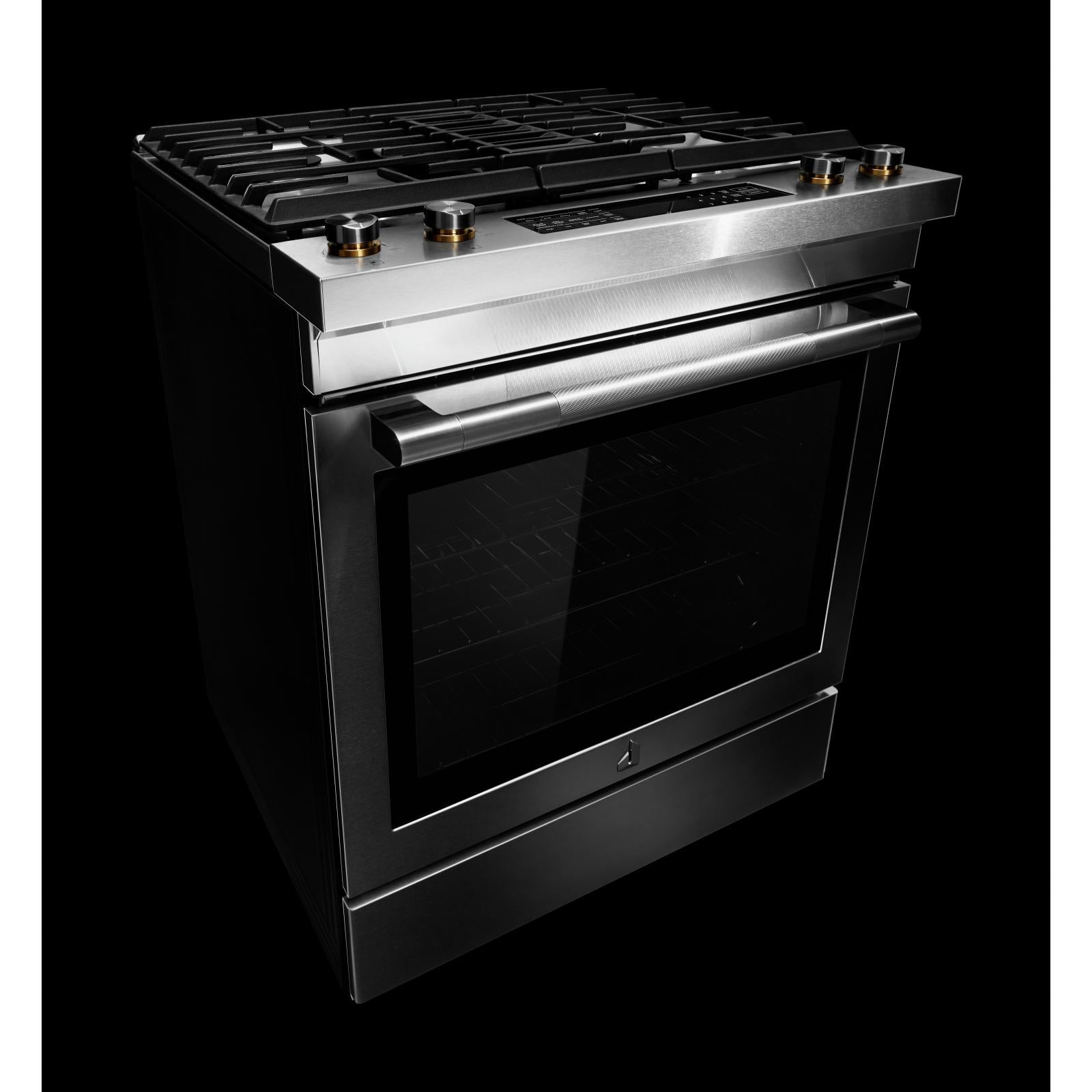

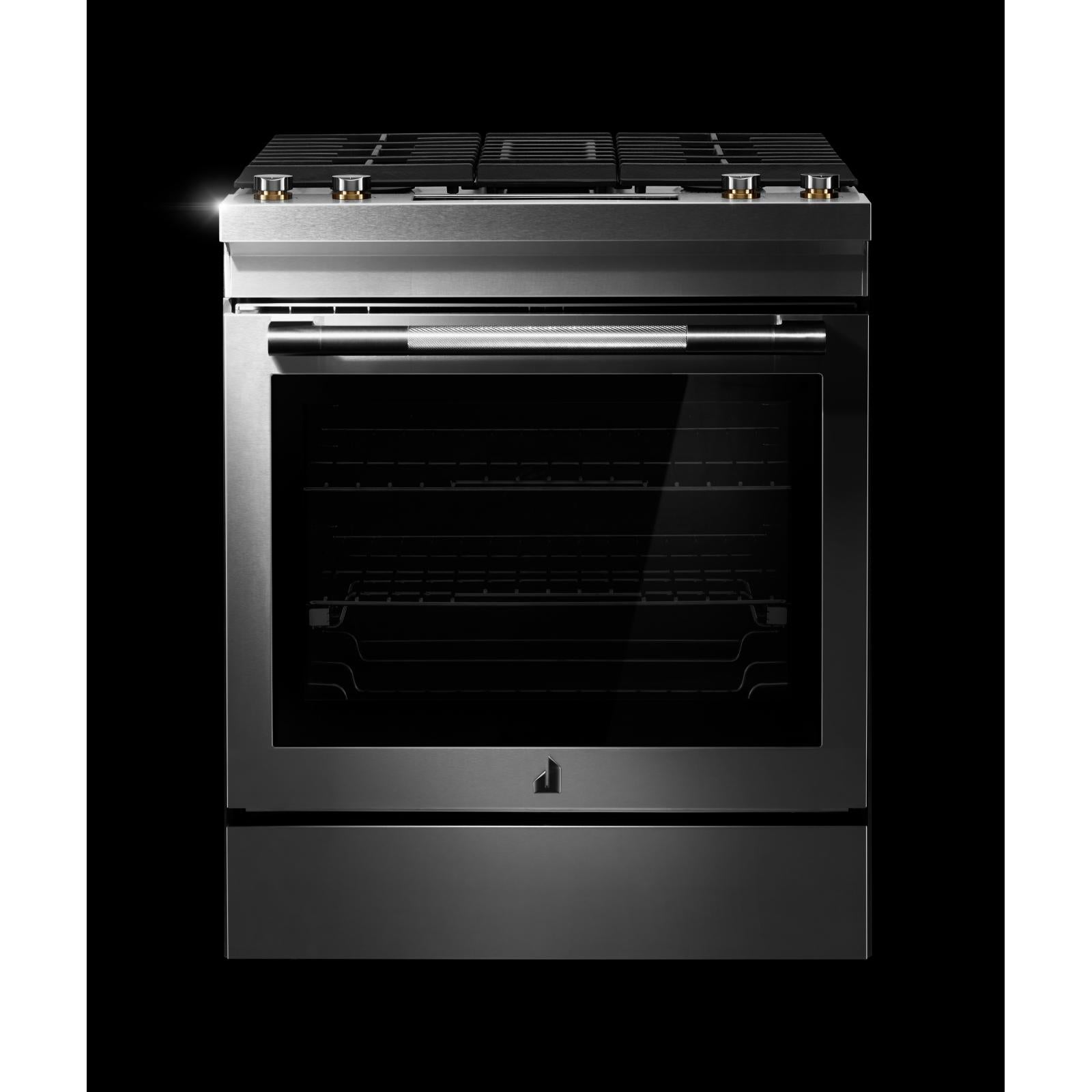

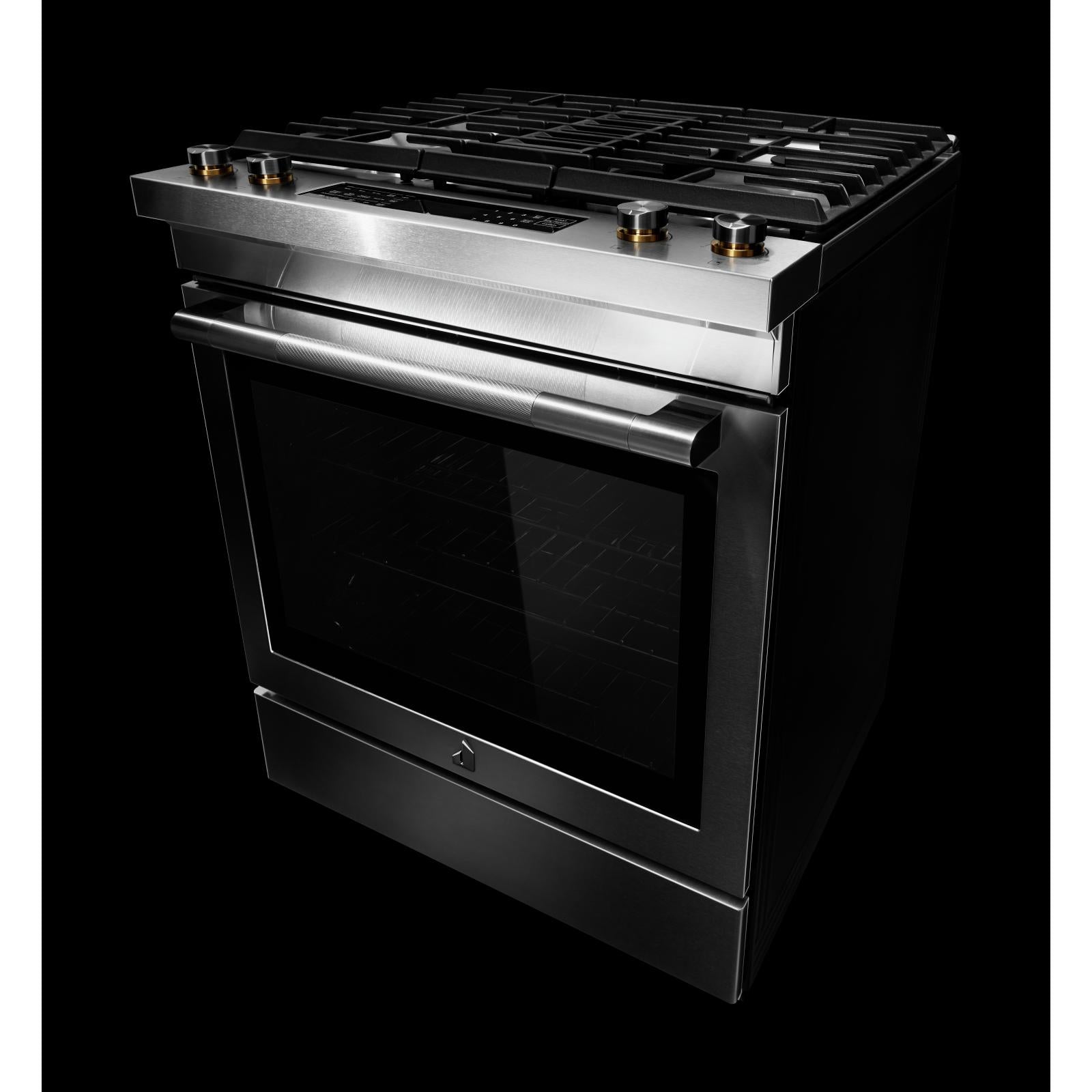

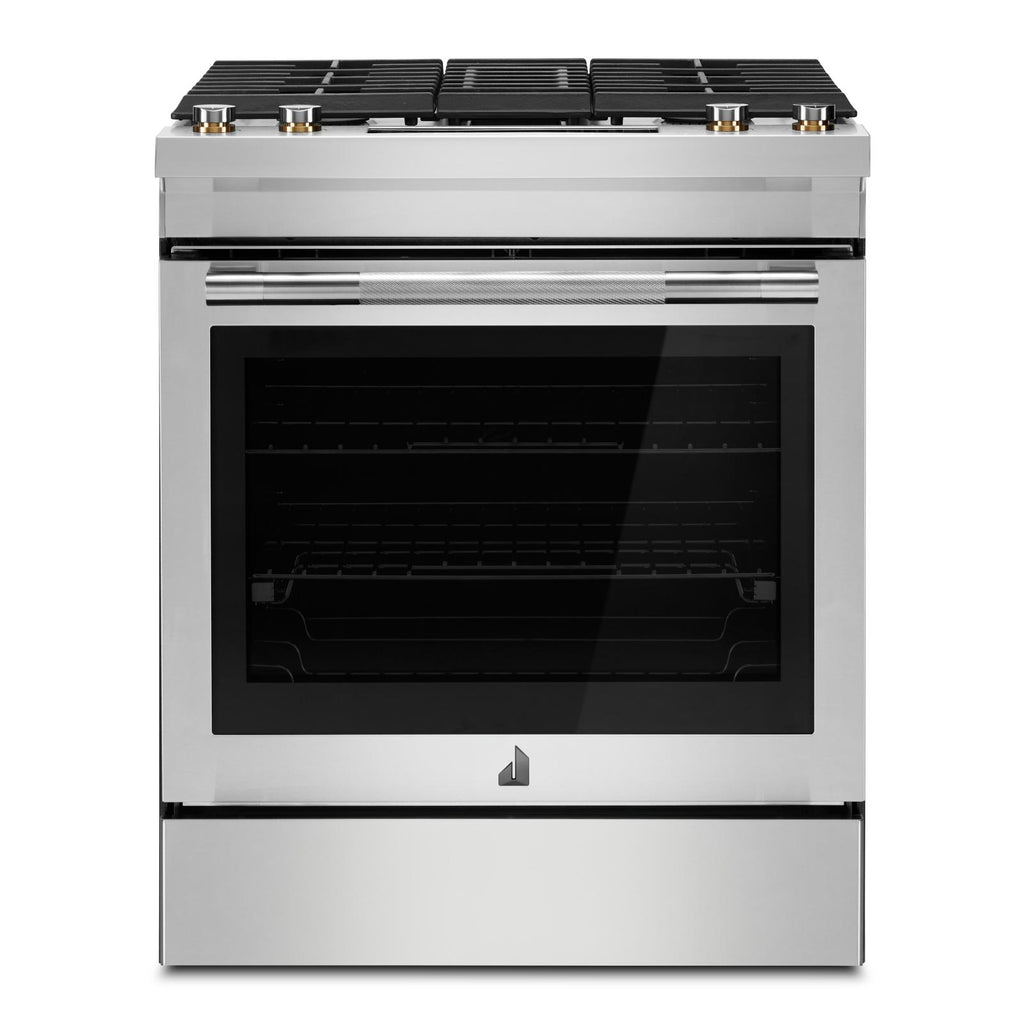

×Revel in the power and flexibility of a JennAir® dual-fuel downdraft slide-in range. Cook multiple dishes on multiple racks in the 6.2 cu. ft. oven cavity, stir-fry over a burner with an output of up to 17,000 BTUs, then utilize a downdraft ventilation system to help draw odours away.
*Max Capacity Rack sold separately, W10554006. Griddle sold separately, W10432544
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean: AquaLift® Self-Cleaning Technology

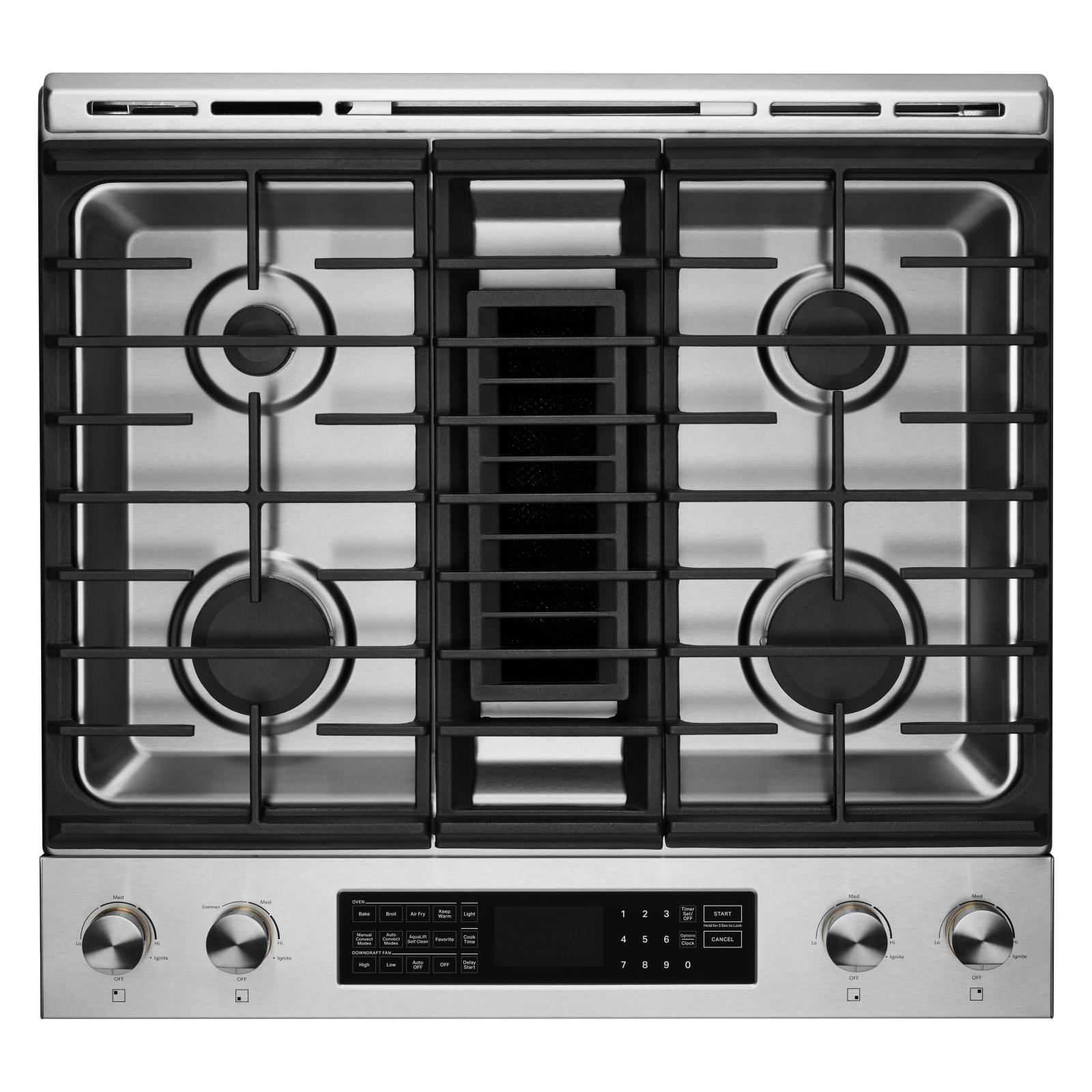

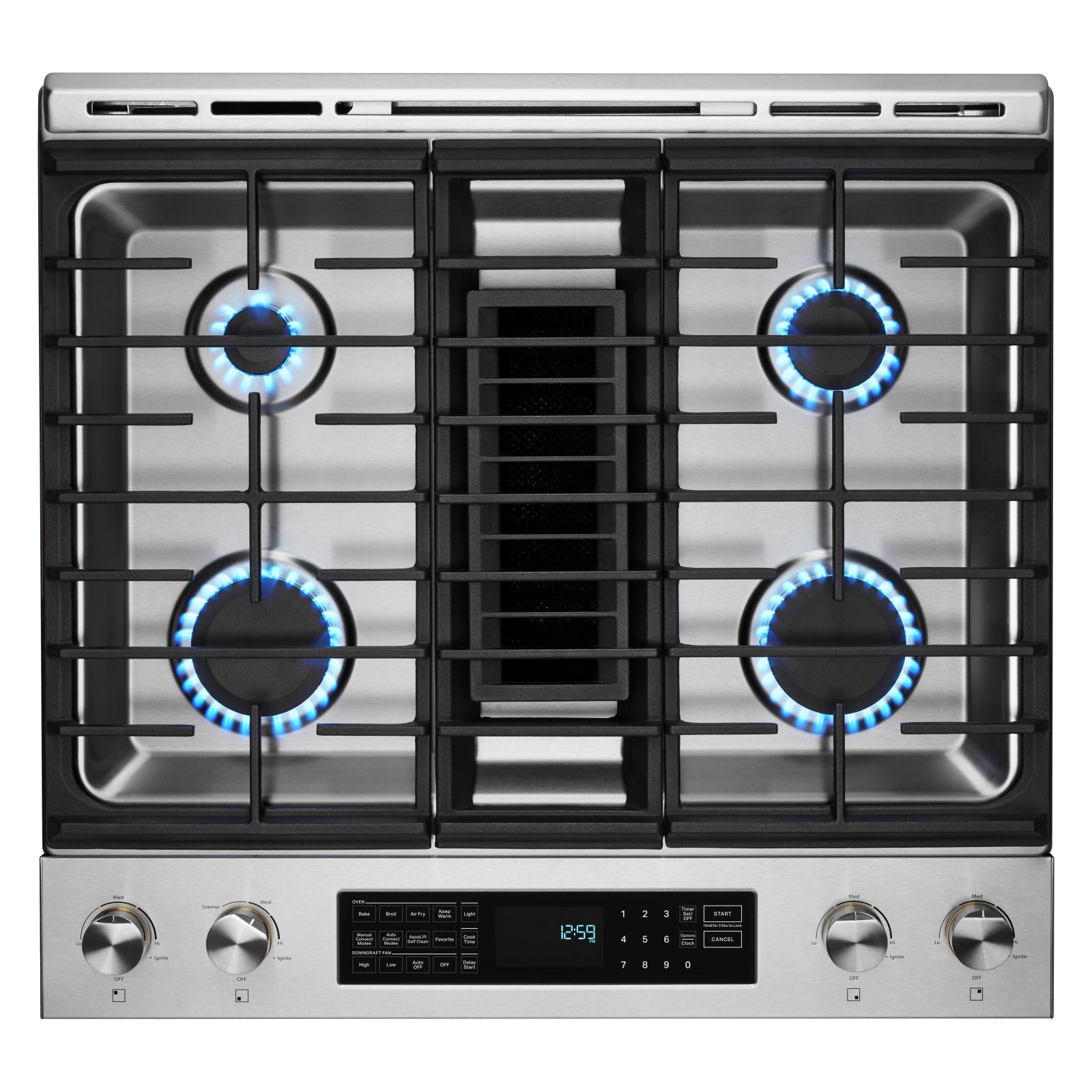

Cooktop
Burners/Elements
4
Burners/Elements Output

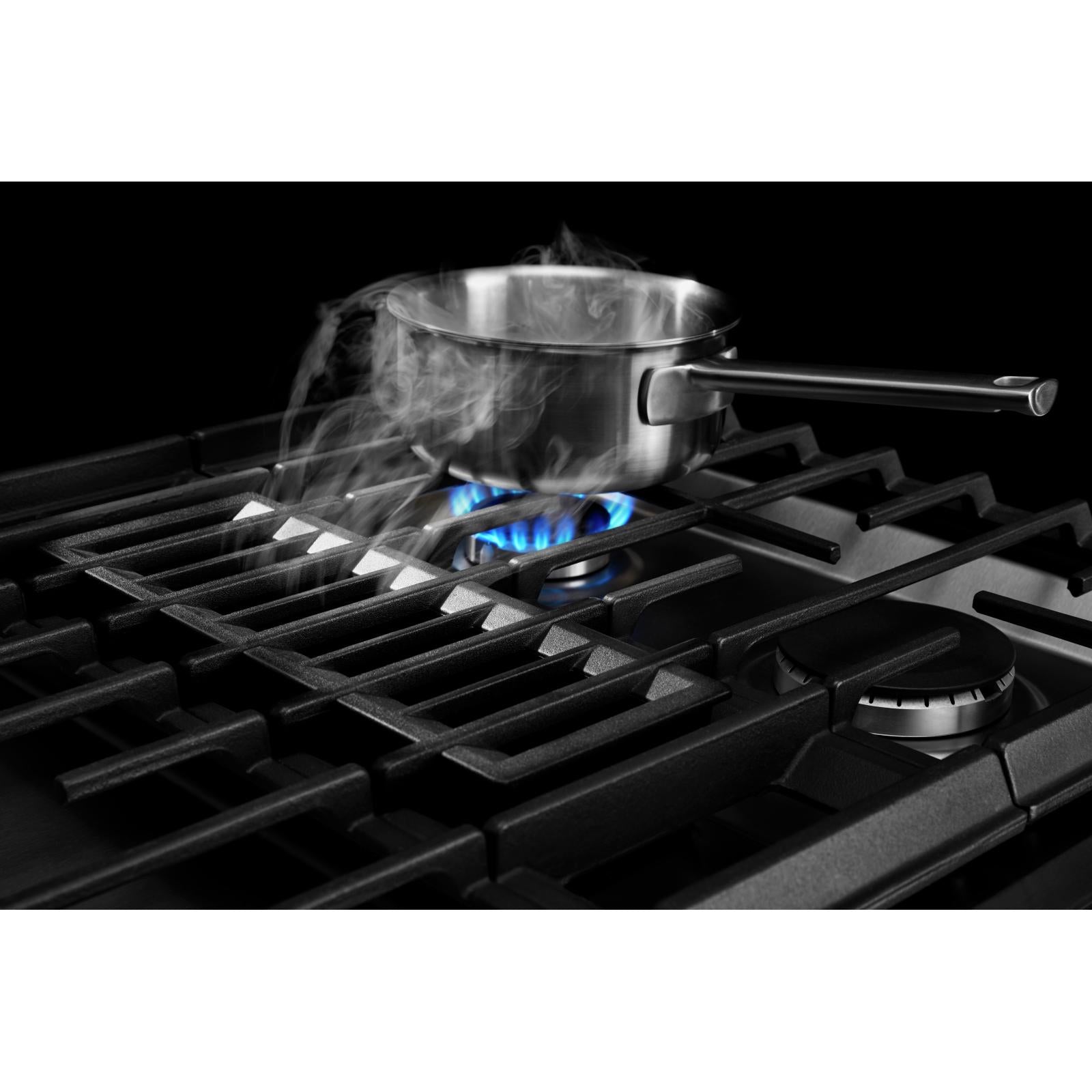

• Left Front: 17,000 BTU
• Left Rear: 5,000 BTU
• Right Front: 15,000 BTU
• Right Rear: 9,200 BTU
• Left Rear: 5,000 BTU
• Right Front: 15,000 BTU
• Right Rear: 9,200 BTU
Burners

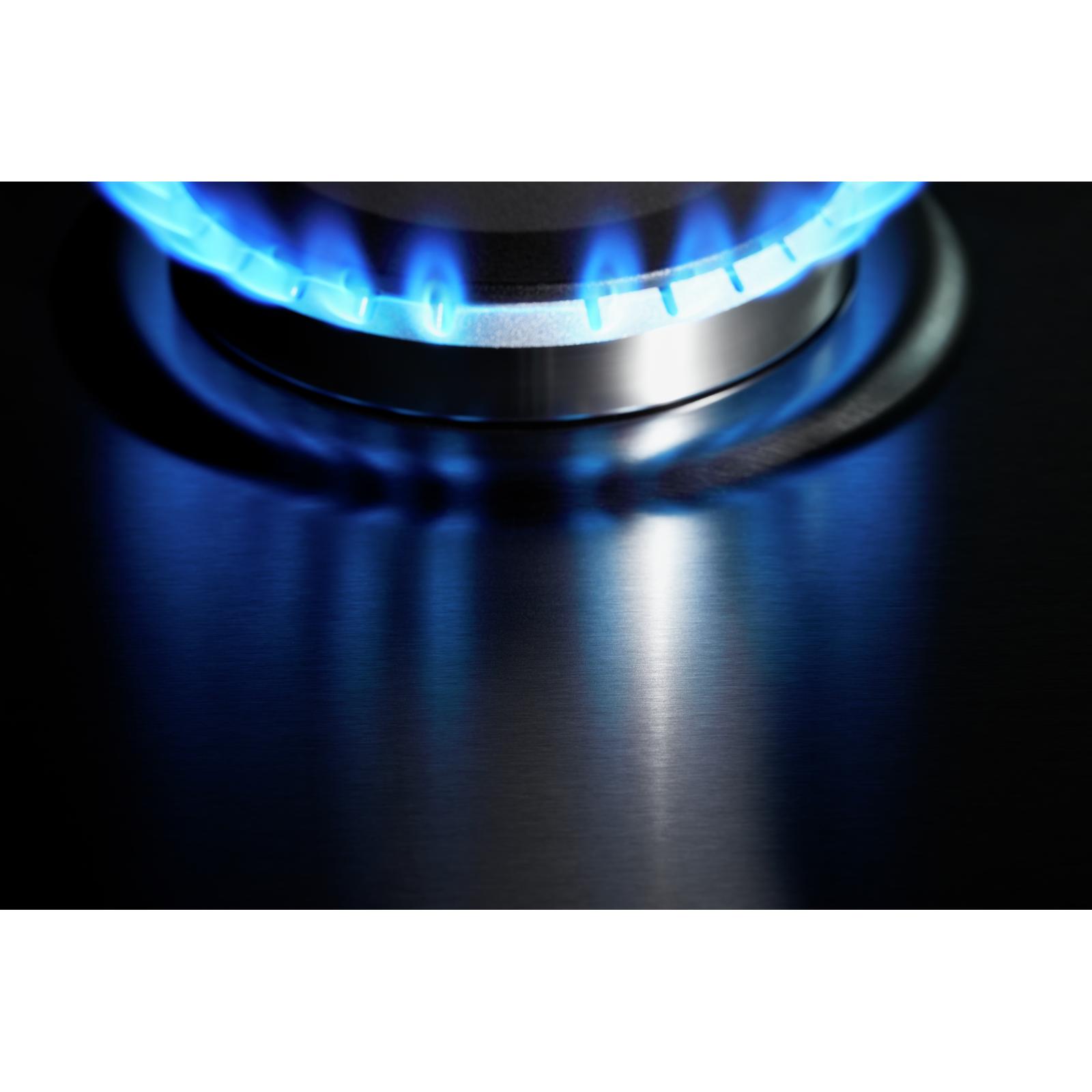

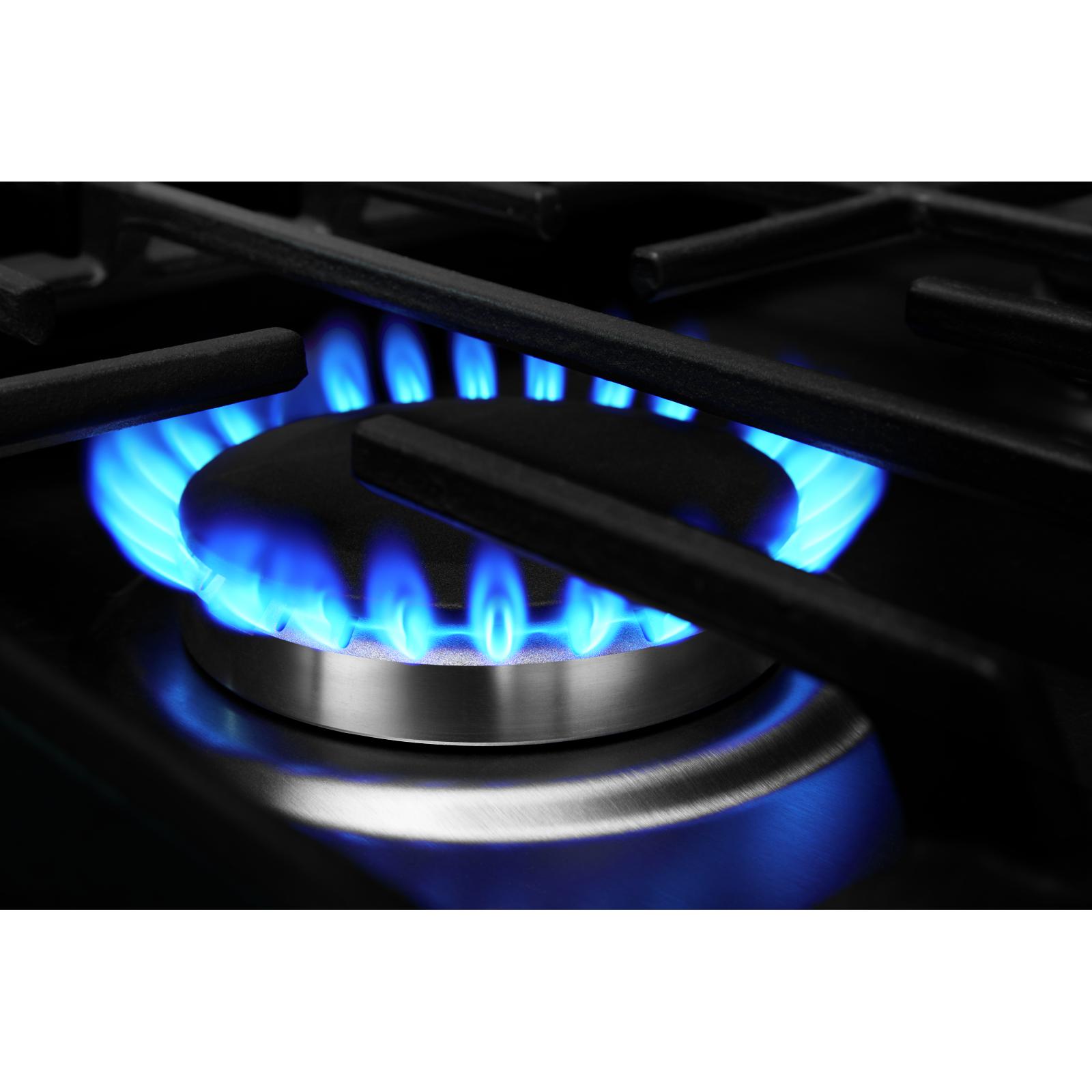

Sealed
Oven
Capacity (cu. ft.)
6.4
Number of Ovens
Single
Programs

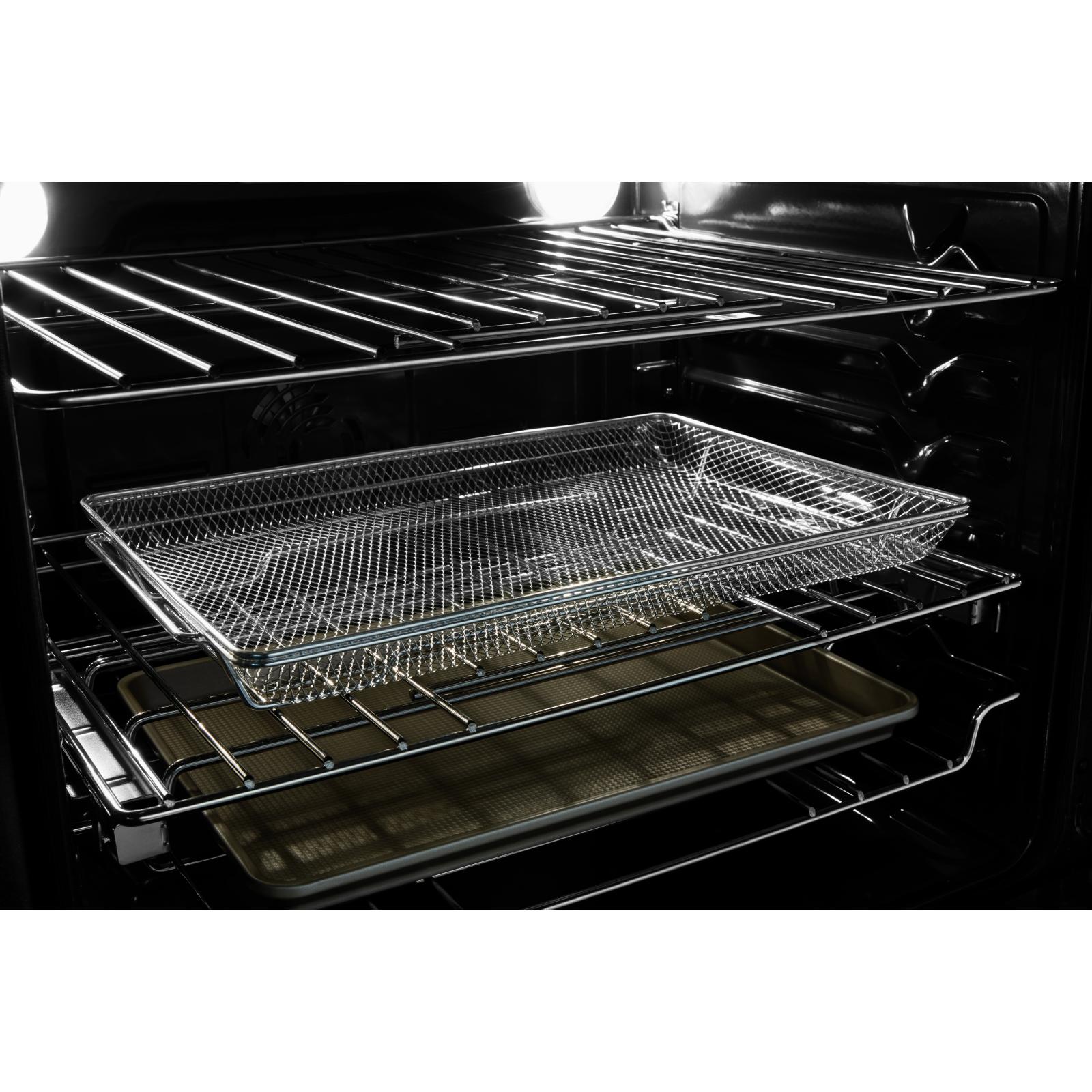

• Air Fry
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
Features
Technologies
• Convection
• Automatic Convection Conversion
• Automatic Convection Conversion
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information

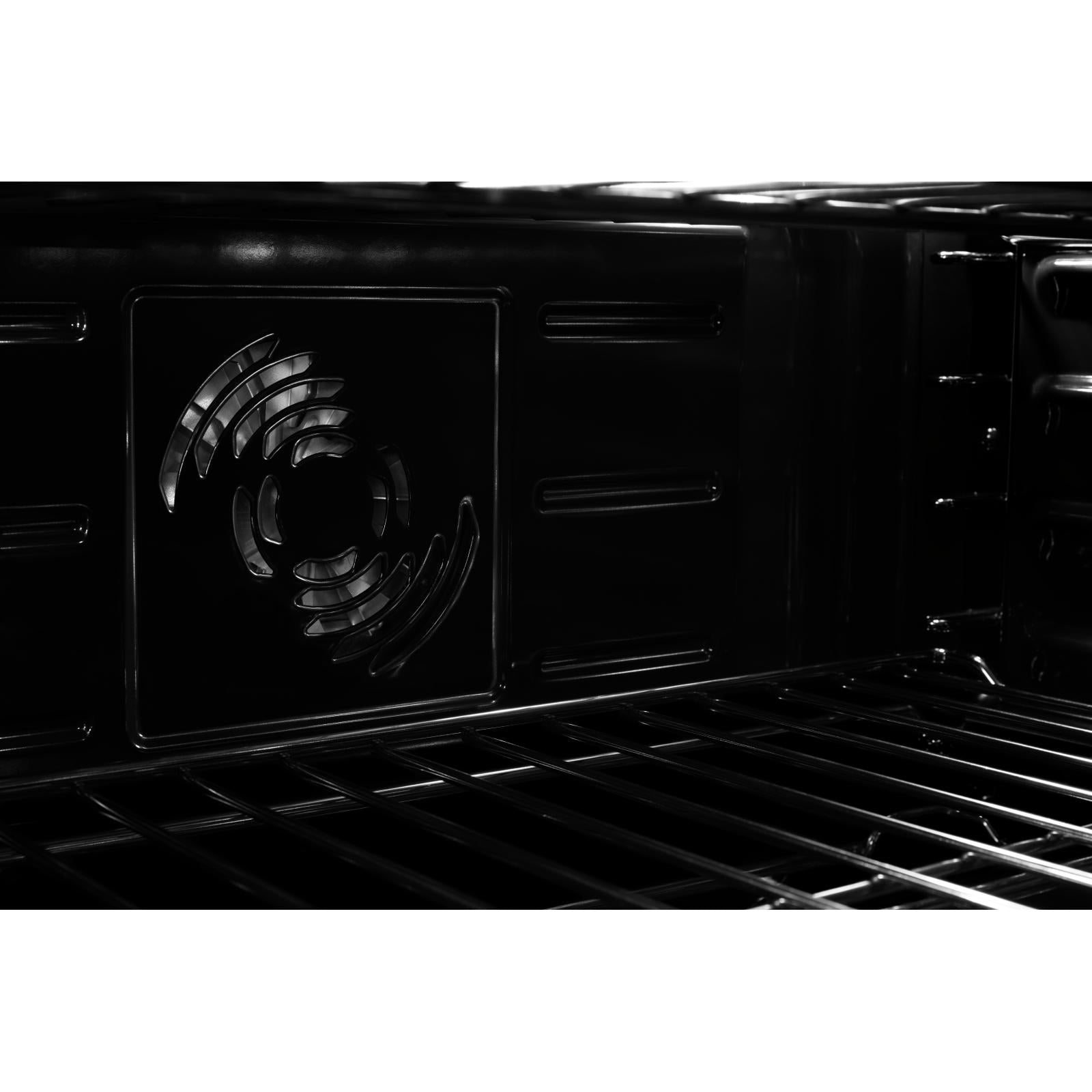

• Oven Cooking System: Convection
• Convection Element Type: Fan
• Convection Element Power: 3,200 W
• Oven Cleaning Type: Self-Clean

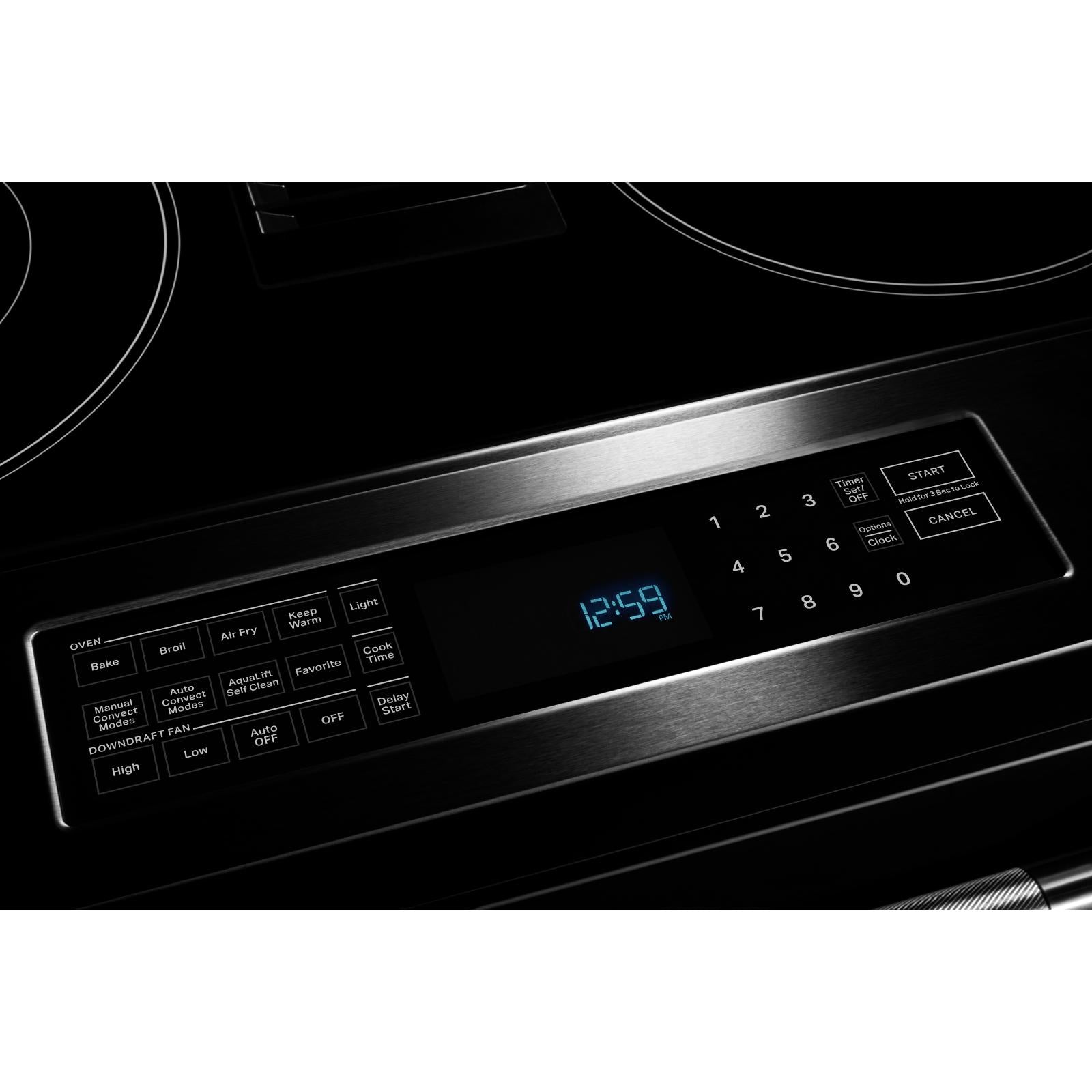

• Oven Control Type: Tap Touch
• Oven Control Location: Front Control
• Broiler Location: Top of Oven
• Broiler Element Power: 4,000 W
• Bake Element Power: 3,600 W
• Hidden Bake Element
• Interior Color: Black

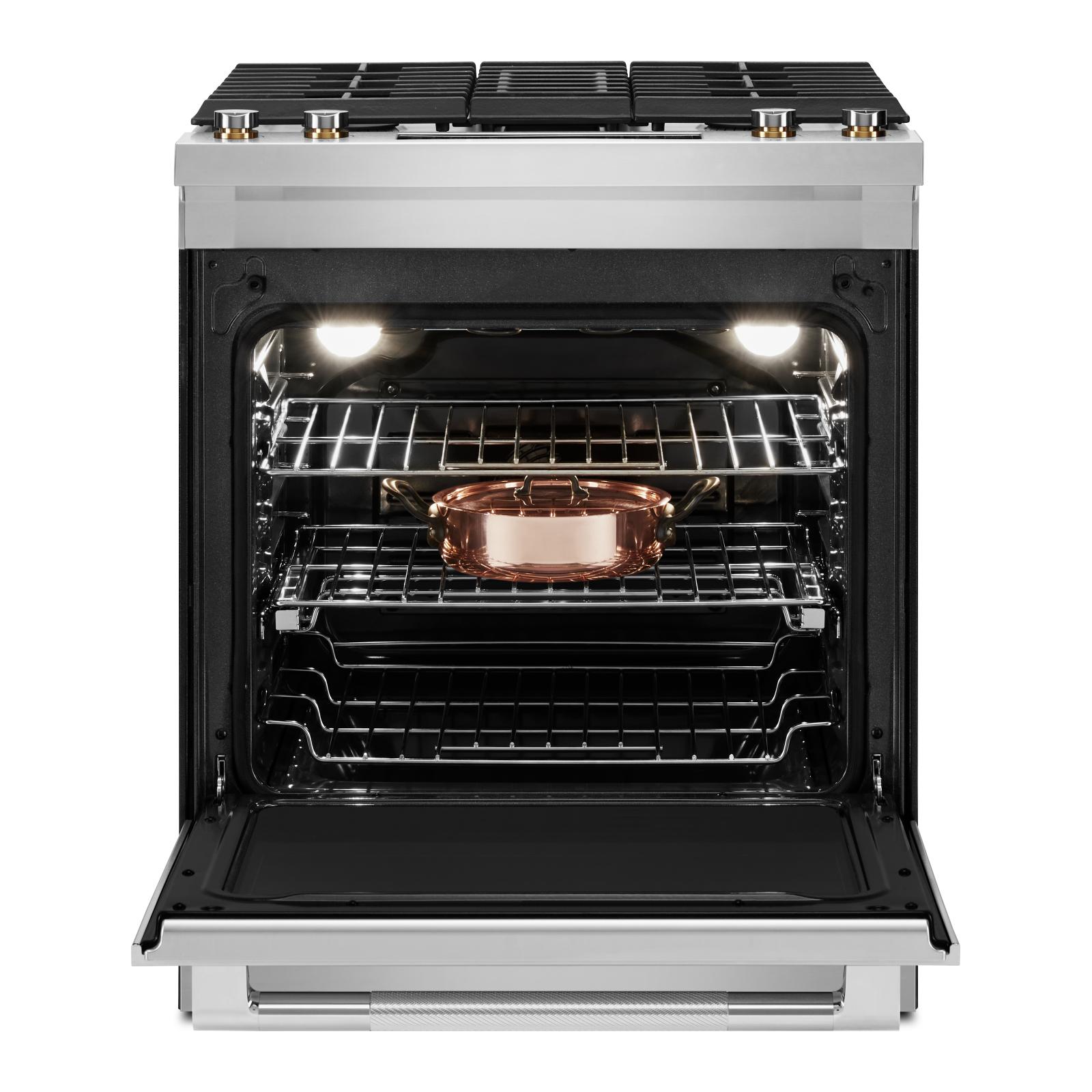

• Number of Rack Guides: 7
• Number of Oven Racks: 3

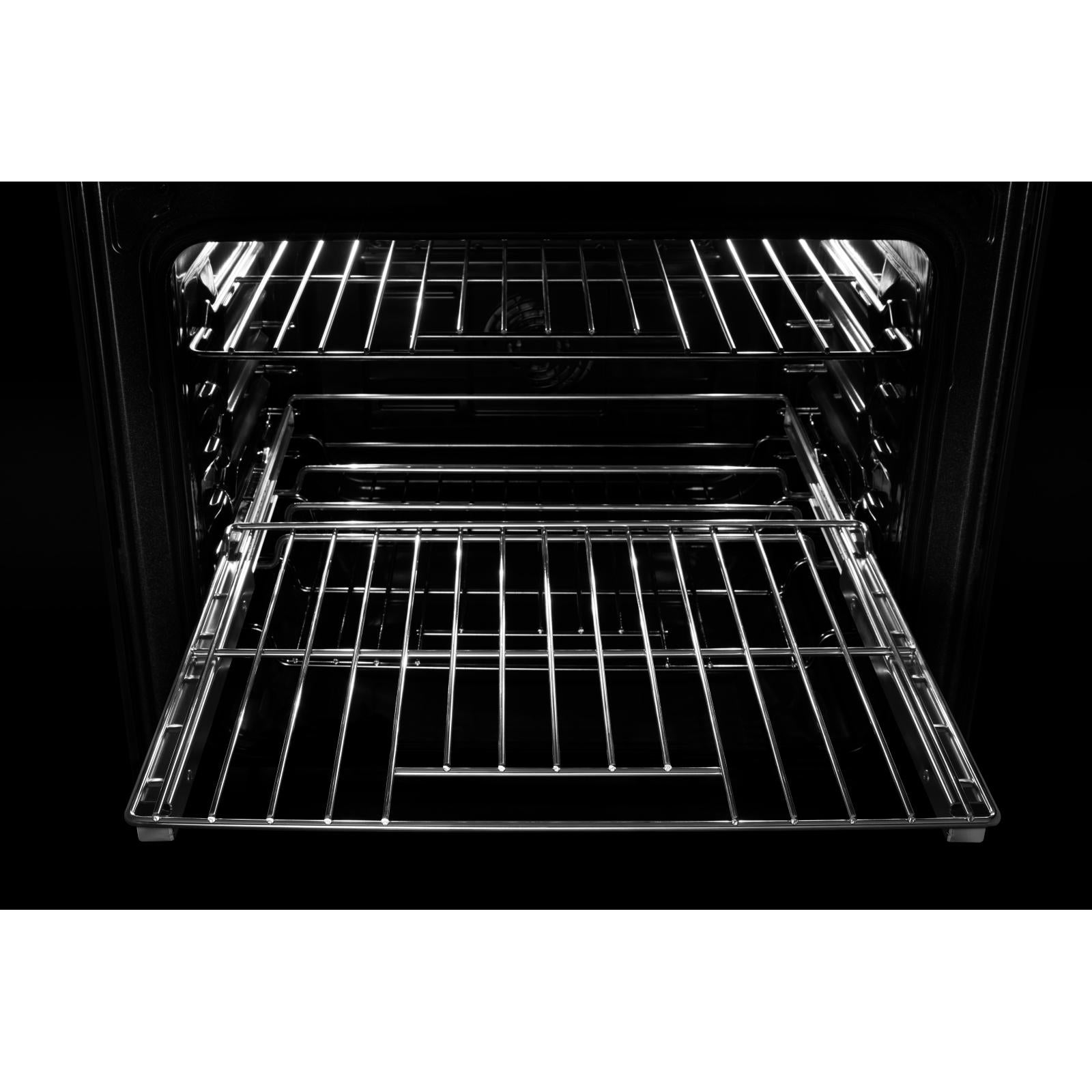

• Oven Rack Type: Gliding Roll-Out
• Heavy Duty
• Max Capacity
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Convection Element Type: Fan
• Convection Element Power: 3,200 W
• Oven Cleaning Type: Self-Clean
• Oven Control Type: Tap Touch
• Oven Control Location: Front Control
• Broiler Location: Top of Oven
• Broiler Element Power: 4,000 W
• Bake Element Power: 3,600 W
• Hidden Bake Element
• Interior Color: Black
• Number of Rack Guides: 7
• Number of Oven Racks: 3
• Oven Rack Type: Gliding Roll-Out
• Heavy Duty
• Max Capacity
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
Electrical Information
Information
• Volts: 240 V
• Amps: 40 A
• Energy Rating: 395 kWh/year
• Amps: 40 A
• Energy Rating: 395 kWh/year
Certifications and Approvals
ADA Compliant
Yes
Information
UL
Accessories
Included
Power Cord
Optional
• W10115773
• W10432544
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10748976
• W10800530
• W10432544
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10748976
• W10800530
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.81 inch(es) / 70.64 cm
Depth (Including Handles)
28.63 inch(es) / 72.71 cm
Weight
238.01 lb(s) / 107.96 kg
Additional Dimensions
• Oven Interior Width: 24.25"
• Oven Interior Depth: 20.75"
• Depth With Door Open 90 Degree: NA
• Cutout Width: 30.0"
• Oven Interior Depth: 20.75"
• Depth With Door Open 90 Degree: NA
• Cutout Width: 30.0"
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
258.01 lb(s) / 117.03 kg
Warranty
Warranty
2 Years Parts and Labor
UPC
UPC#
883049643694
