DESCRIPTION

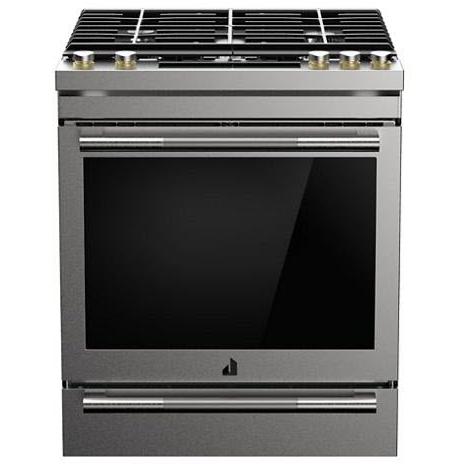

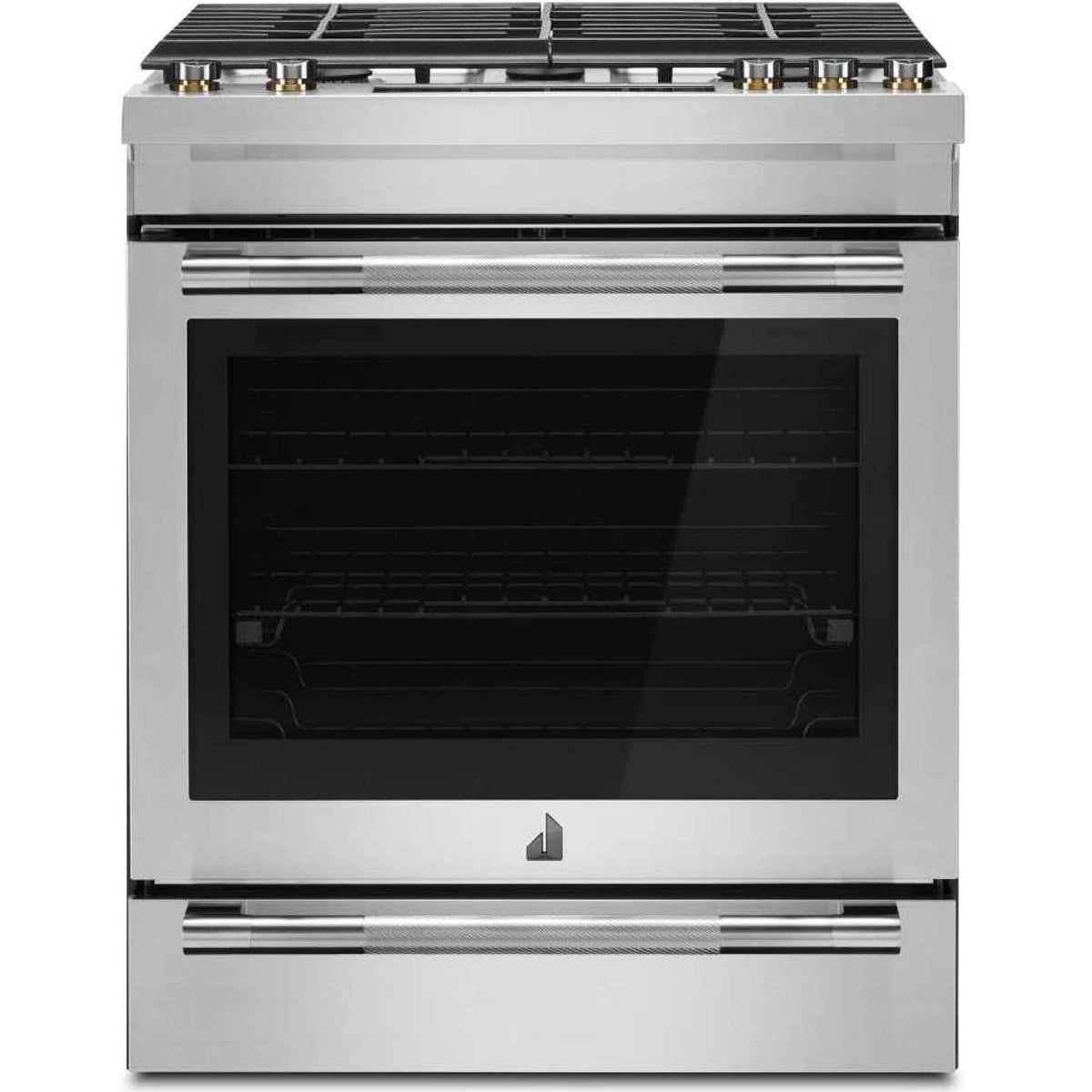

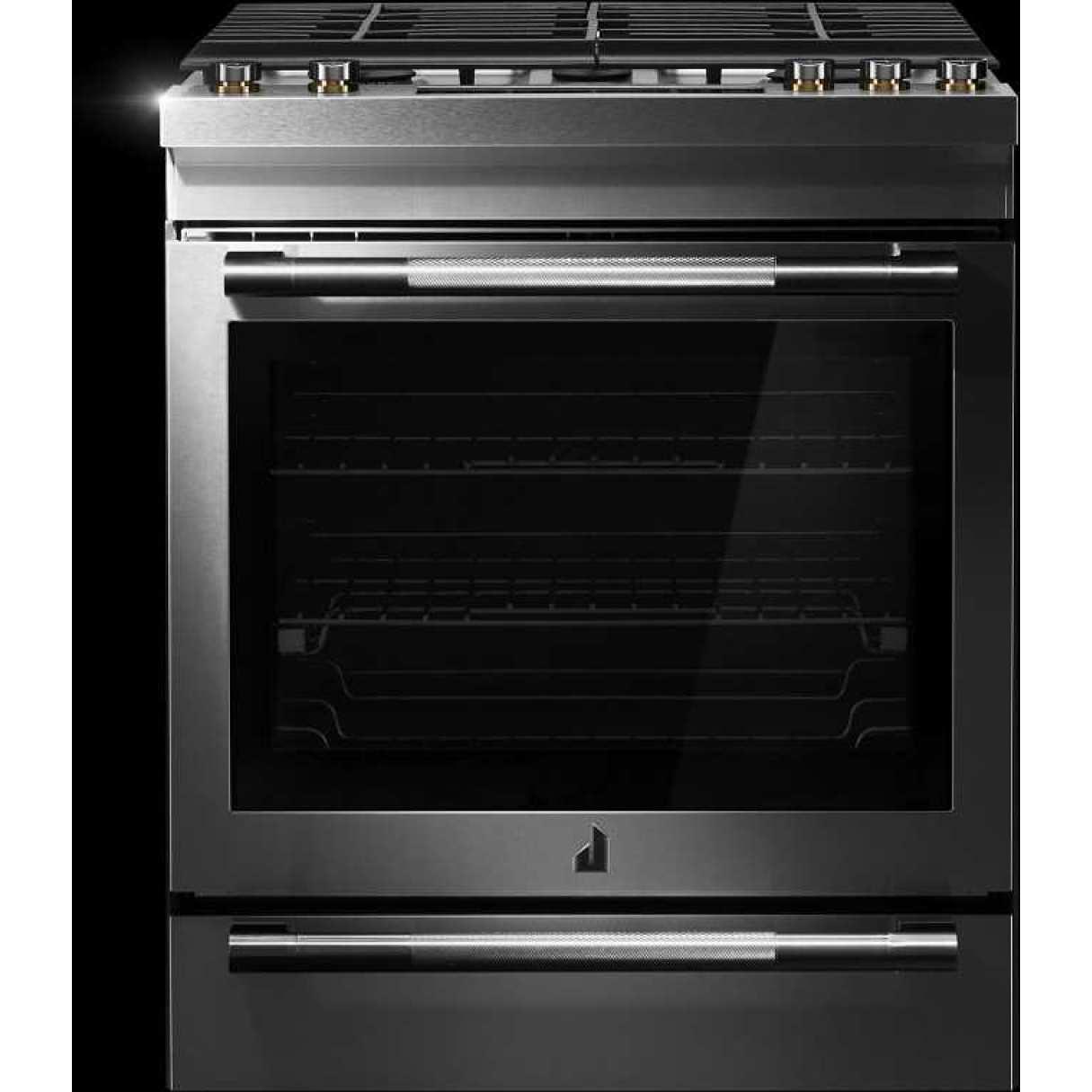

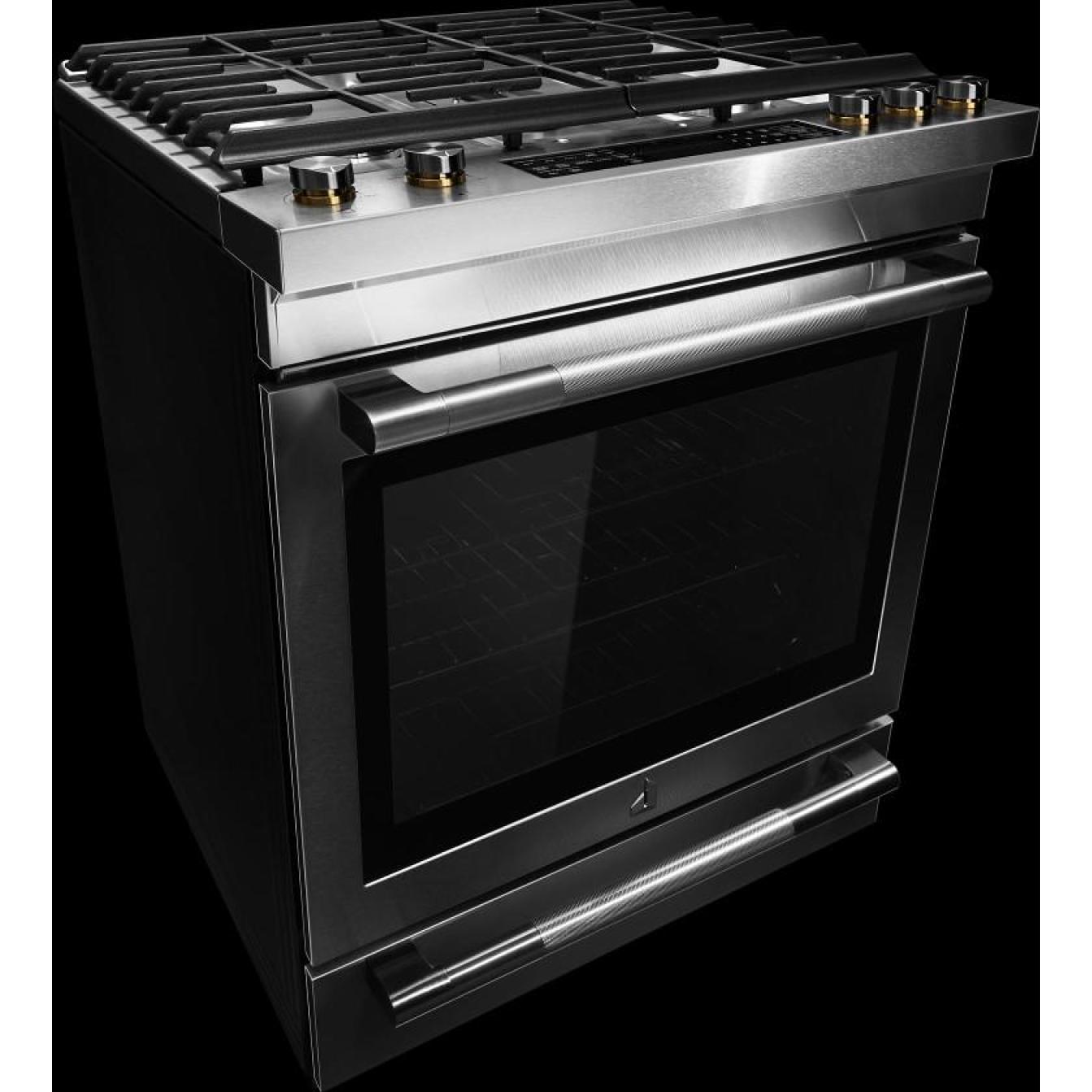

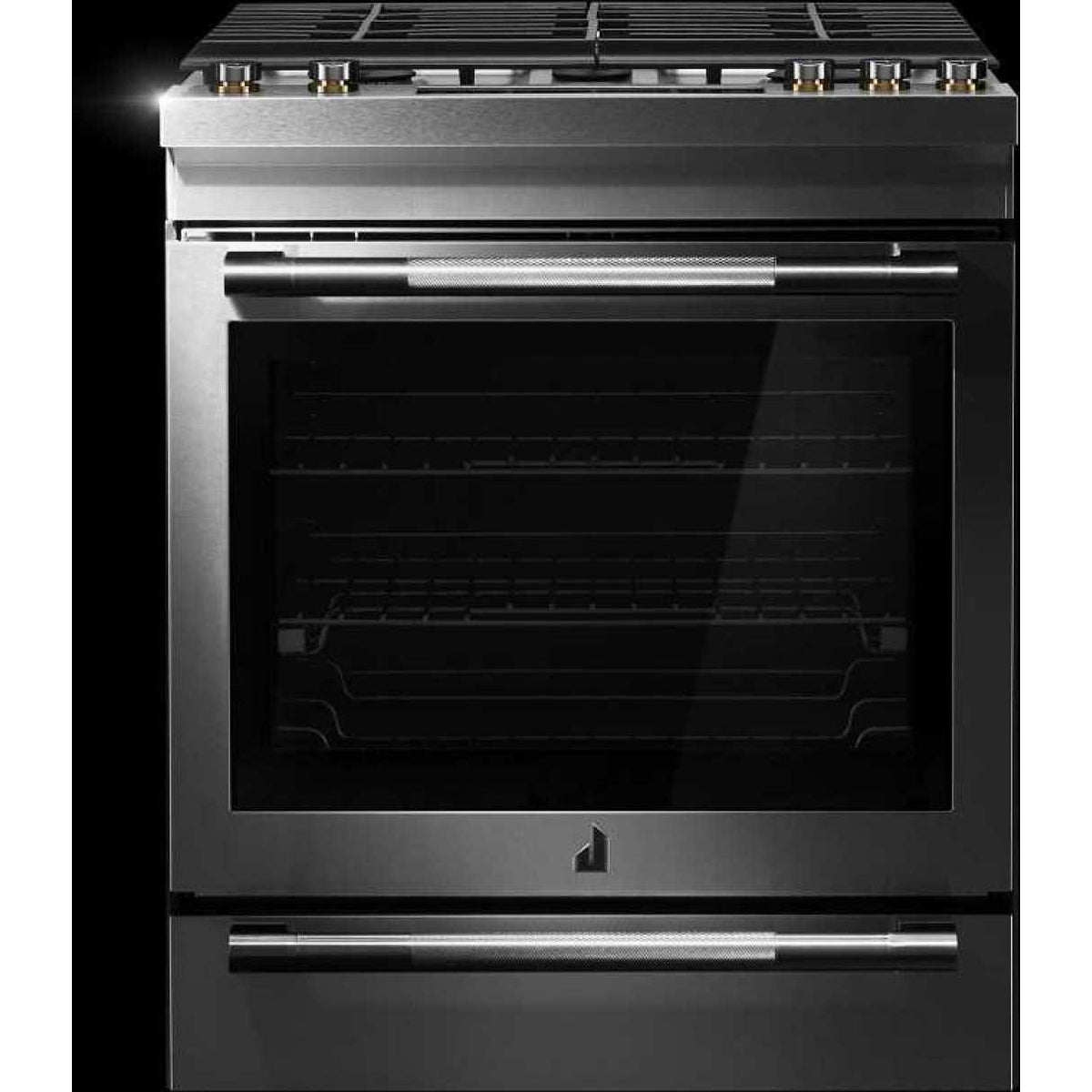

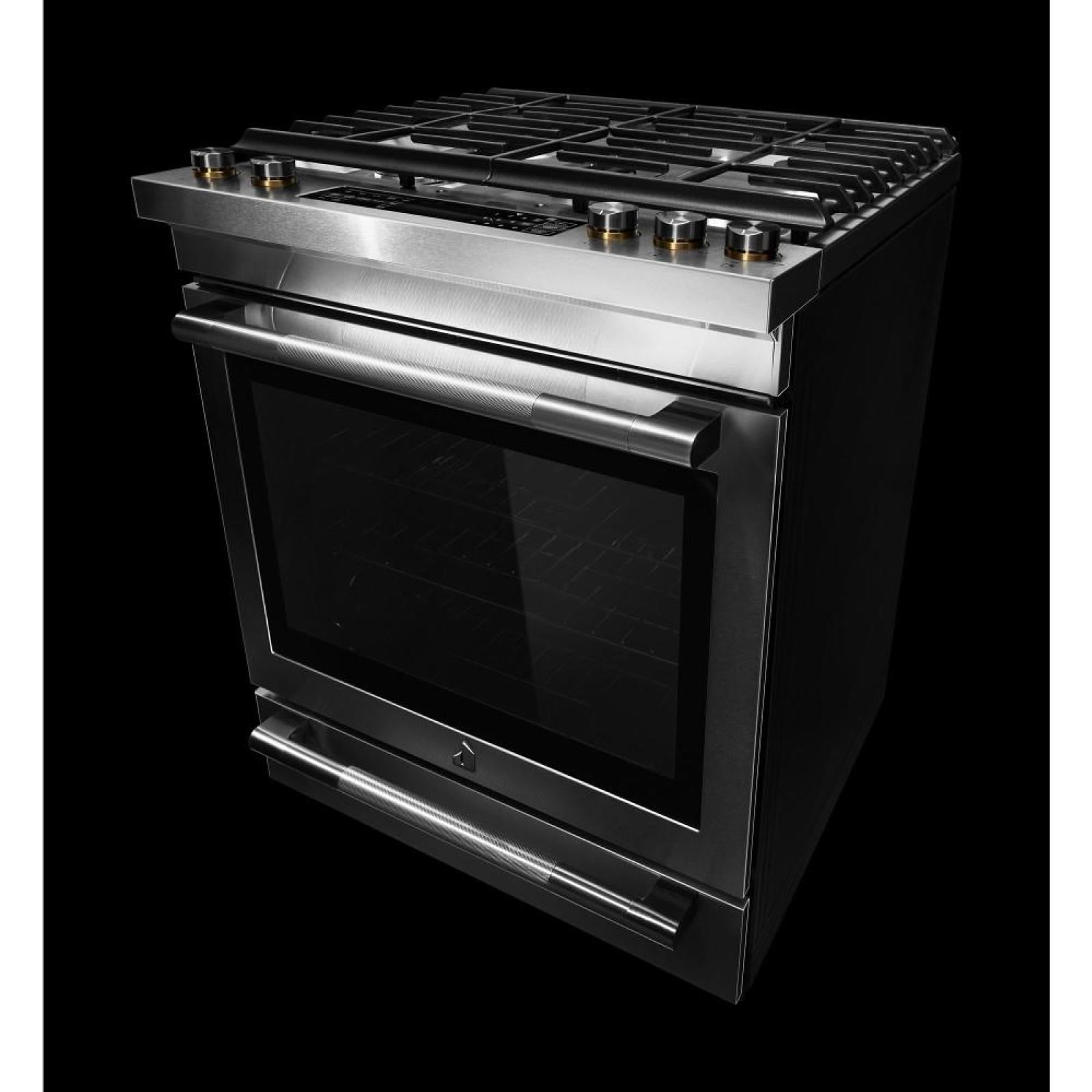

×Revel in the power and flexibility of a JennAir® gas slide-in range. Stir-fry over a Dual-Stacked PowerBurner with an output of up to 19,000 BTUs, cook multiple dishes on multiple racks in the 5.8 cu. ft. oven cavity, then slow roast or proof bread in the separate Baking Drawer.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
RISE™
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Cleaning: AquaLift® Self-Cleaning Technology

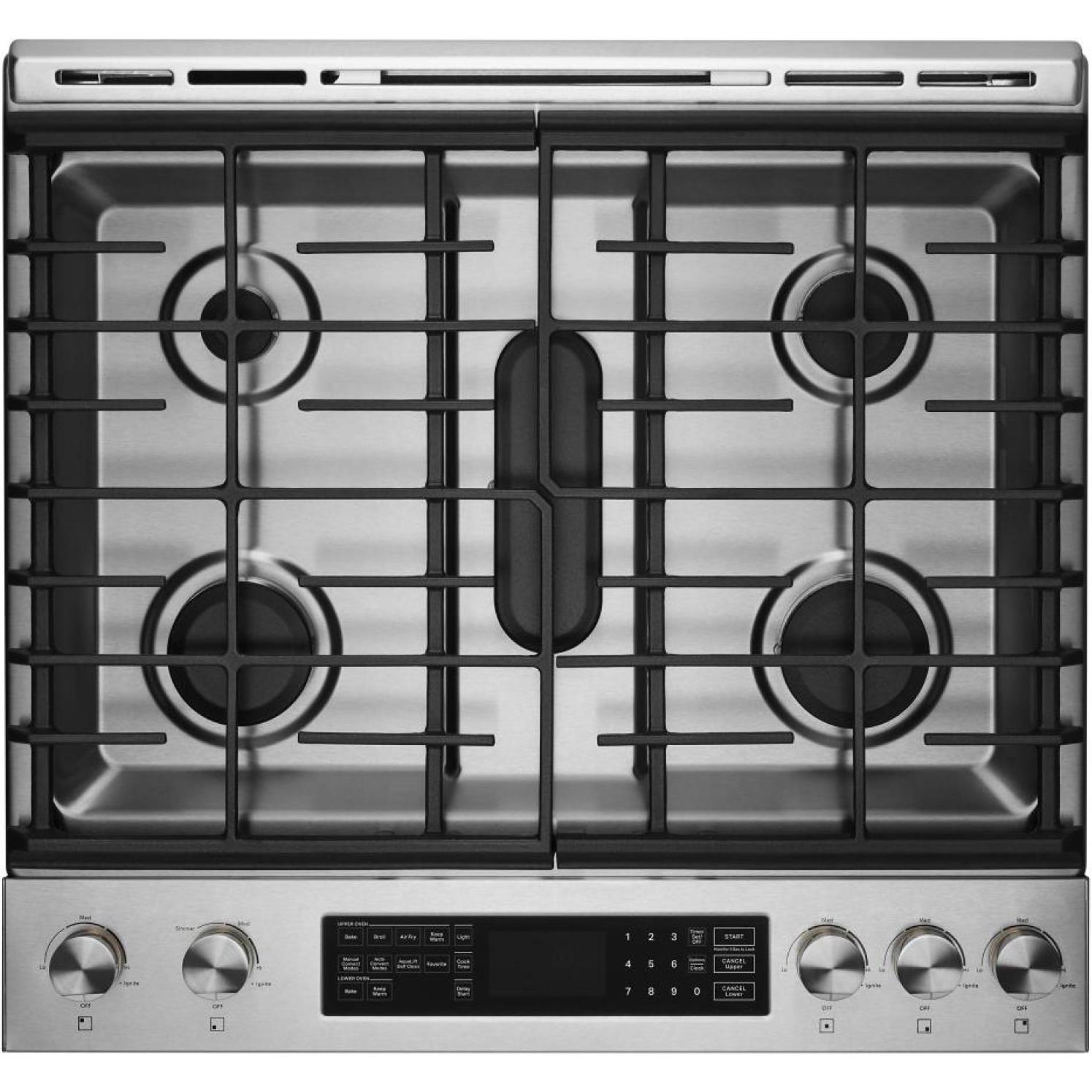

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front - 19,000 BTU
• Left Rear - 5,000 BTU
• Center Front - 8,000 BTU
• Right Front - 15,000 BTU
• Right Rear - 9,200 BTU
• Left Rear - 5,000 BTU
• Center Front - 8,000 BTU
• Right Front - 15,000 BTU
• Right Rear - 9,200 BTU
Burners
Sealed

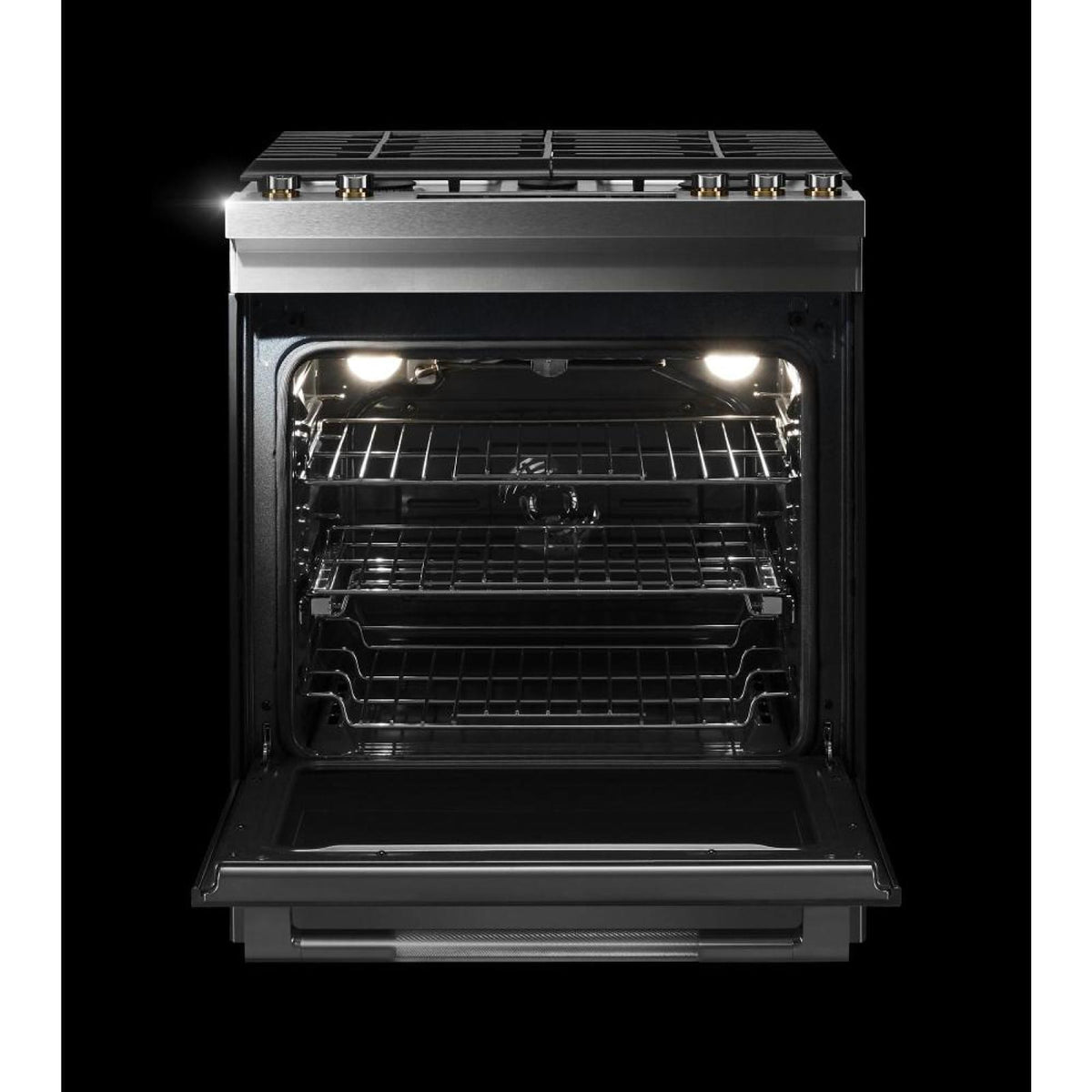

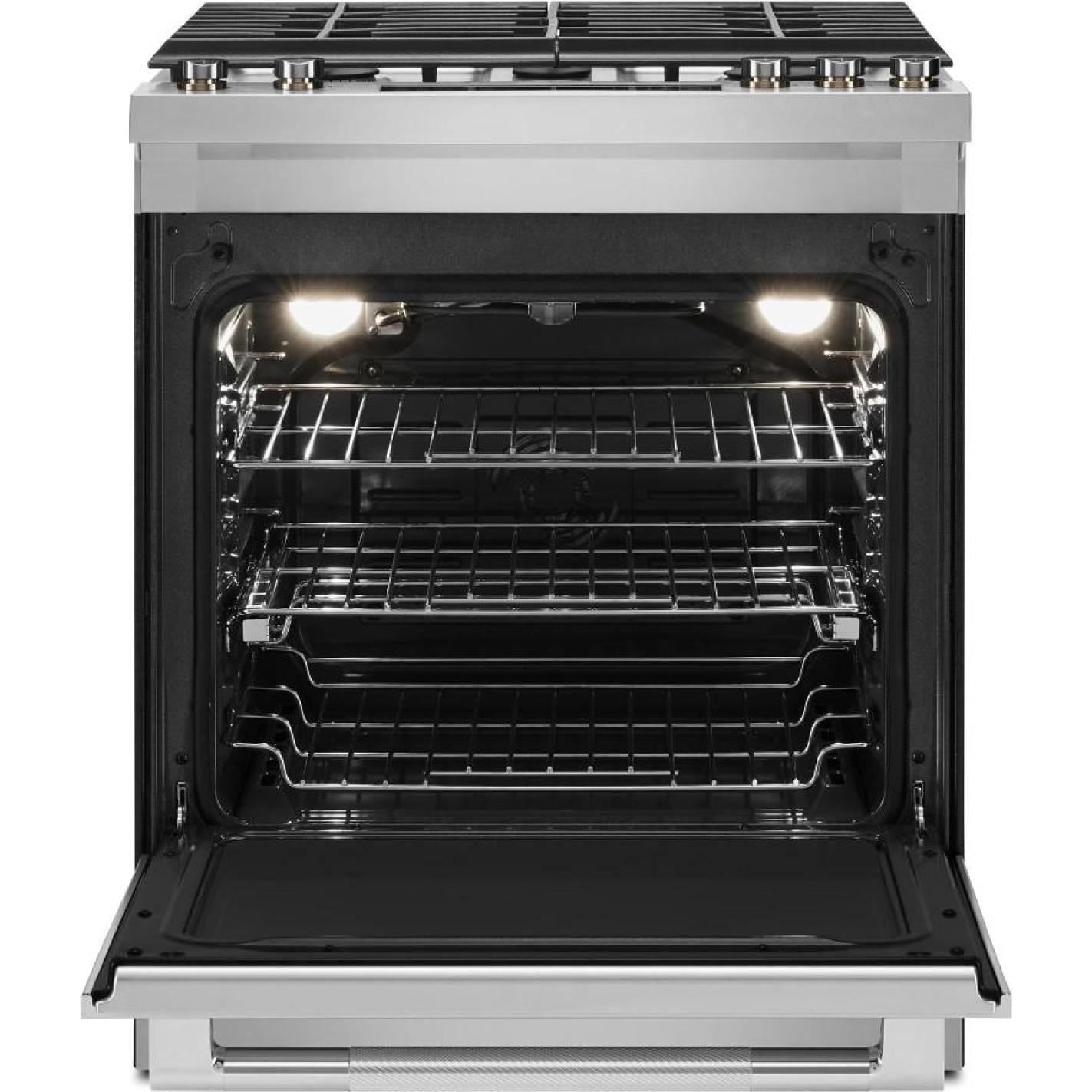

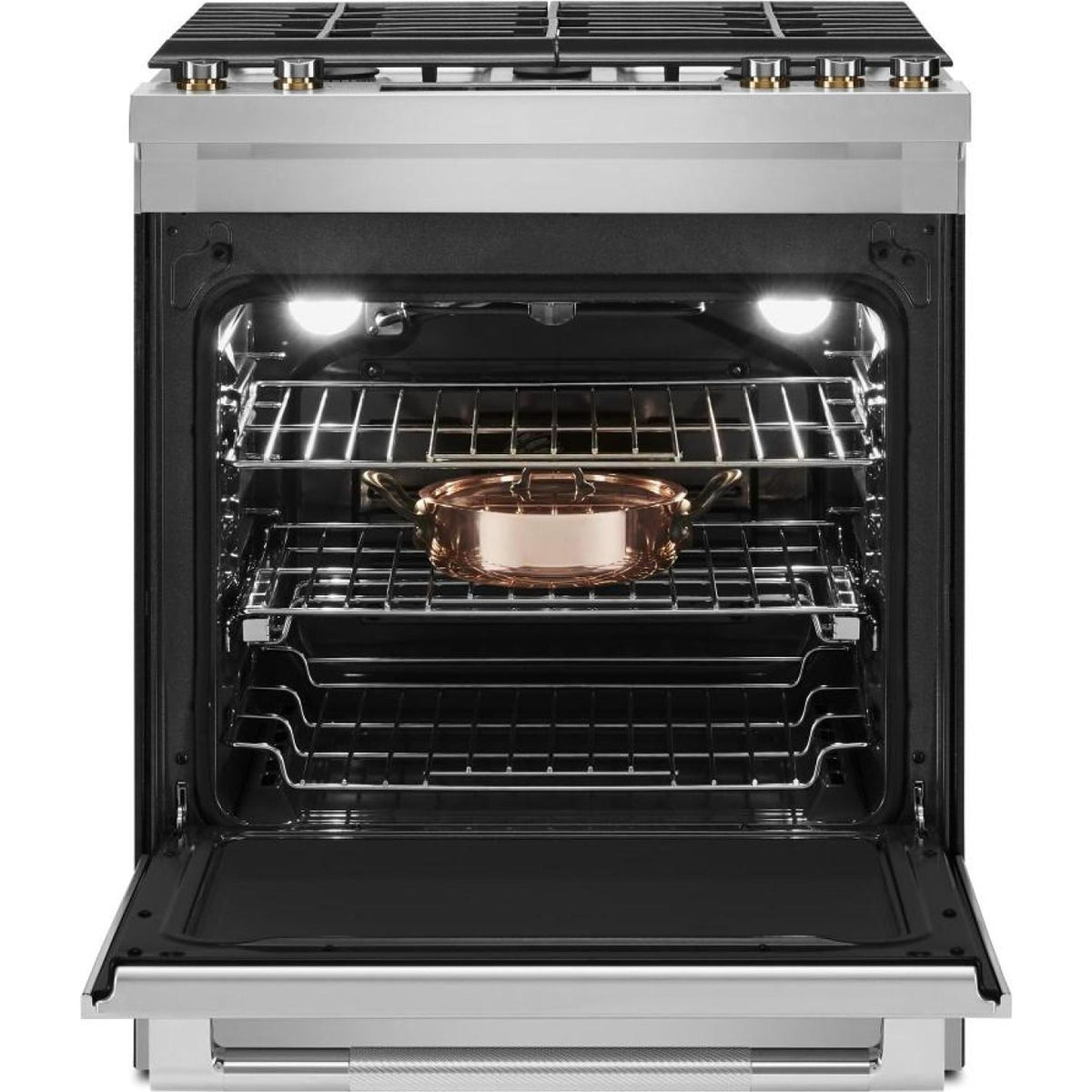

Oven
Capacity (cu. ft.)
5.8
Number of Ovens
Single
Programs
• Air Fry
• Audible Signal
• Bake
• Baking Drawer
• Baking Drawer Keep Warm
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
• Audible Signal
• Bake
• Baking Drawer
• Baking Drawer Keep Warm
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
Features
Technologies
• Convection
• Automatic Convection Conversion Temperature Adjust
• Auto Re-Ignition
• Automatic Convection Conversion Temperature Adjust
• Auto Re-Ignition
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Hidden Bake Element
• Convection Element Type - Fan
• Convection Element Power - 900 W
• Oven Cooking System - Convection
• Broiler Location - Top of Oven
• Broiler Element Power - 13,000 BTU
• Bake Element Power - 18,000 BTU
• 3 Oven Racks
• 7 Rack Guides
• 2 Oven Lights
• Incandescent Oven Lights
• Gliding Roll-Out, Heavy-Duty and Max Capacity Oven Racks
• Oven Control Type - Tap Touch
• Oven Control Location - Front Control
• Heating Element On Indicator Light
• Hidden Bake Element
• Convection Element Type - Fan
• Convection Element Power - 900 W
• Oven Cooking System - Convection
• Broiler Location - Top of Oven
• Broiler Element Power - 13,000 BTU
• Bake Element Power - 18,000 BTU
• 3 Oven Racks
• 7 Rack Guides
• 2 Oven Lights
• Incandescent Oven Lights
• Gliding Roll-Out, Heavy-Duty and Max Capacity Oven Racks
• Oven Control Type - Tap Touch
• Oven Control Location - Front Control
Drawer Features
Baking
Yes
Warming
Yes
Electrical Information
Information
• Volts - 120.0 V
• Amps - 15.0 A
• Amps - 15.0 A
Certifications and Approvals
ADA Compliant
No
Information
UL
Accessories
Included
Power Cord
Optional
Optional:
• W10115773
• W10432544
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10800530
• W10432544
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10800530
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.81 inch(es) / 70.64 cm
Depth (Including Handles)
28.63 inch(es) / 72.71 cm
Weight
242 lb(s) / 109.77 kg
Additional Dimensions
• Oven Interior Width - 24.25 "
• Oven Interior Depth - 20.75 "
• Depth With Door Open 90 Degree - Not specified
• Cutout Width - 30.0 "
• Oven Interior Depth - 20.75 "
• Depth With Door Open 90 Degree - Not specified
• Cutout Width - 30.0 "
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
262 lb(s) / 118.84 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
883049644301
