DESCRIPTION

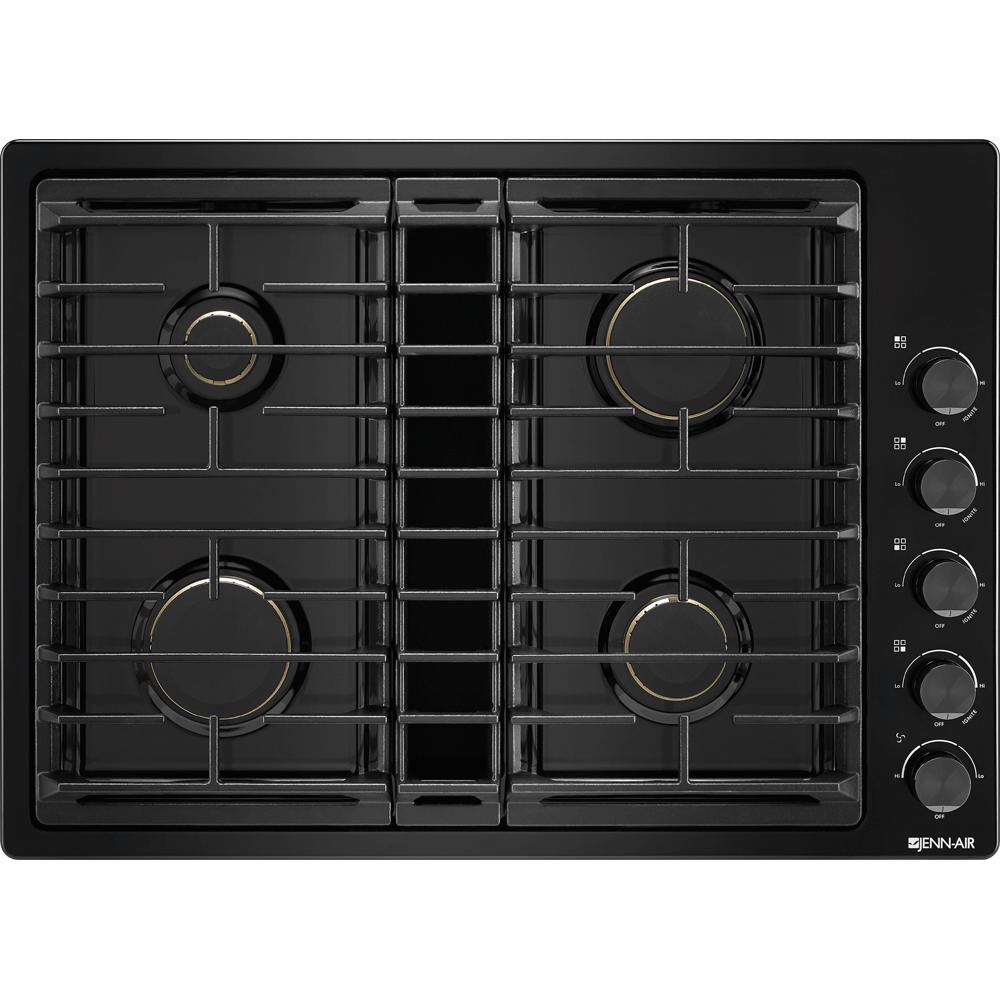

×This JennAir® luxury gas downdraft cooktop features four sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front Element-Burner Power: 17,000 BTU
• Left Rear Element-Burner Power: 5,000 BTU
• Right Front Element-Burner Power: 10,000 BTU
• Right Rear Element-Burner Power: 15,000 BTU
• Left Rear Element-Burner Power: 5,000 BTU
• Right Front Element-Burner Power: 10,000 BTU
• Right Rear Element-Burner Power: 15,000 BTU
Burners
Sealed
Surface Features
Porcelain Coated Steel
Features
Technologies
• JX3™ Downdraft Ventilation System with 3 Speeds
• DuraFinish® Protection
• DuraFinish® Protection
Downdraft Ventilation
Yes
Additional Information
• Brass Burners with Removable Base
• Convertible to Duct-Free Ventilation
• CFM Rating: 310
• Dishwasher Safe
• Convertible to Duct-Free Ventilation
• CFM Rating: 310
• Dishwasher Safe
Electrical Information
Information
• 120 V
• 40 A
• 60 Hz
• 40 A
• 60 Hz
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• LP Convertible Kit
• Power Cord
• Power Cord
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
4 inch(es) / 10.16 cm
Depth
21.5 inch(es) / 54.61 cm
Weight
46.01 lb(s) / 20.87 kg
Additional Dimensions
• Cutout Depth: 19 15/16"
• Cutout Height: 4"
• Cutout Width: 28 5/8"
• Cutout Height: 4"
• Cutout Width: 28 5/8"
Shipping Dimensions
Width
35.13 inch(es) / 89.22 cm
Height
23.81 inch(es) / 60.48 cm
Depth
26.44 inch(es) / 67.15 cm
Weight
58 lb(s) / 26.31 kg
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
883049414454
