DESCRIPTION

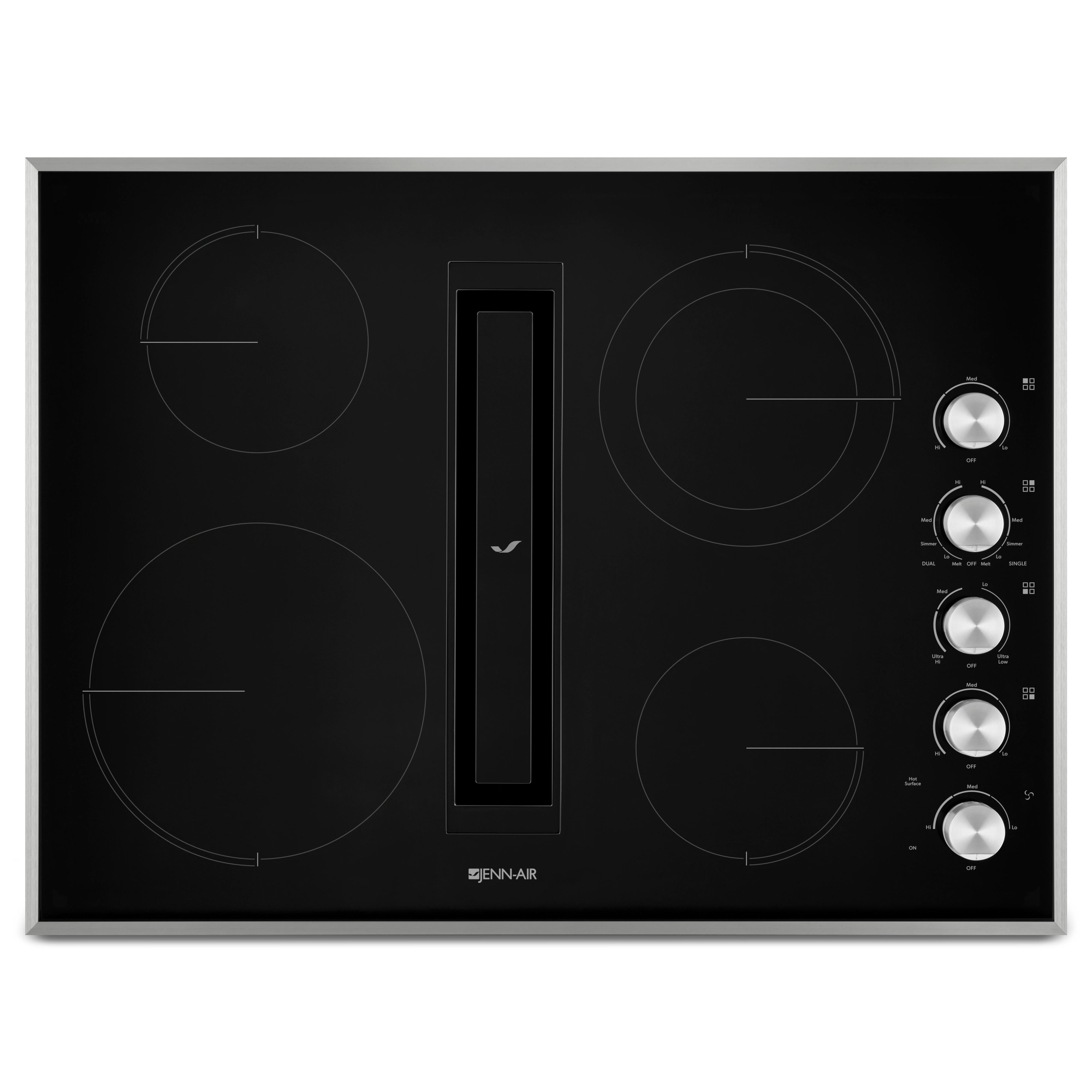

×This Jenn-Air® luxury electric radiant downdraft cooktop offers a sleek cooking surface with four radiant elements, which offer responsive performance. It also features the impressive JX3™ downdraft ventilation system, which quickly and efficiently clears the air without a hood.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Rear Element-Burner Power: 1300W
• Right Front Element-Burner Power: 1200W
• Right Rear Element-Burner Power: 3000W/1400W
• Right Front Element-Burner Power: 1200W
• Right Rear Element-Burner Power: 3000W/1400W
Elements
Smoothtop
Surface Features
Ceramic Glass
Features
Technologies
• JX3™ Downdraft Ventilation System with 3 Speeds
• 10"/6" Dual-Choice™ Element (3,000 Watt)
• DuraFinish® Glass Protection
• 10"/6" Dual-Choice™ Element (3,000 Watt)
• DuraFinish® Glass Protection
Downdraft Ventilation
Yes
Additional Information
• Color-Coordinating Die-Cast Metal Knobs
• Convertible to Duct-Free Ventilation
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Convertible to Duct-Free Ventilation
• Heating Element On Indicator Light
• Hot Surface Indicator Light
Electrical Information
Information
• 220 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
30"
Width
30.87 inch(es) / 78.42 cm
Height
3.07 inch(es) / 7.79 cm
Depth
23.25 inch(es) / 59.06 cm
Weight
70 lb(s) / 31.75 kg
Additional Dimensions
• Cutout Depth: 21 1/8"
• Cutout Width: 28 7/8"
• Cutout Width: 28 7/8"
Shipping Dimensions
Width
35.13 inch(es) / 89.22 cm
Height
23.81 inch(es) / 60.48 cm
Depth
26.44 inch(es) / 67.15 cm
Weight
81.99 lb(s) / 37.19 kg
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
883049412795
