DESCRIPTION

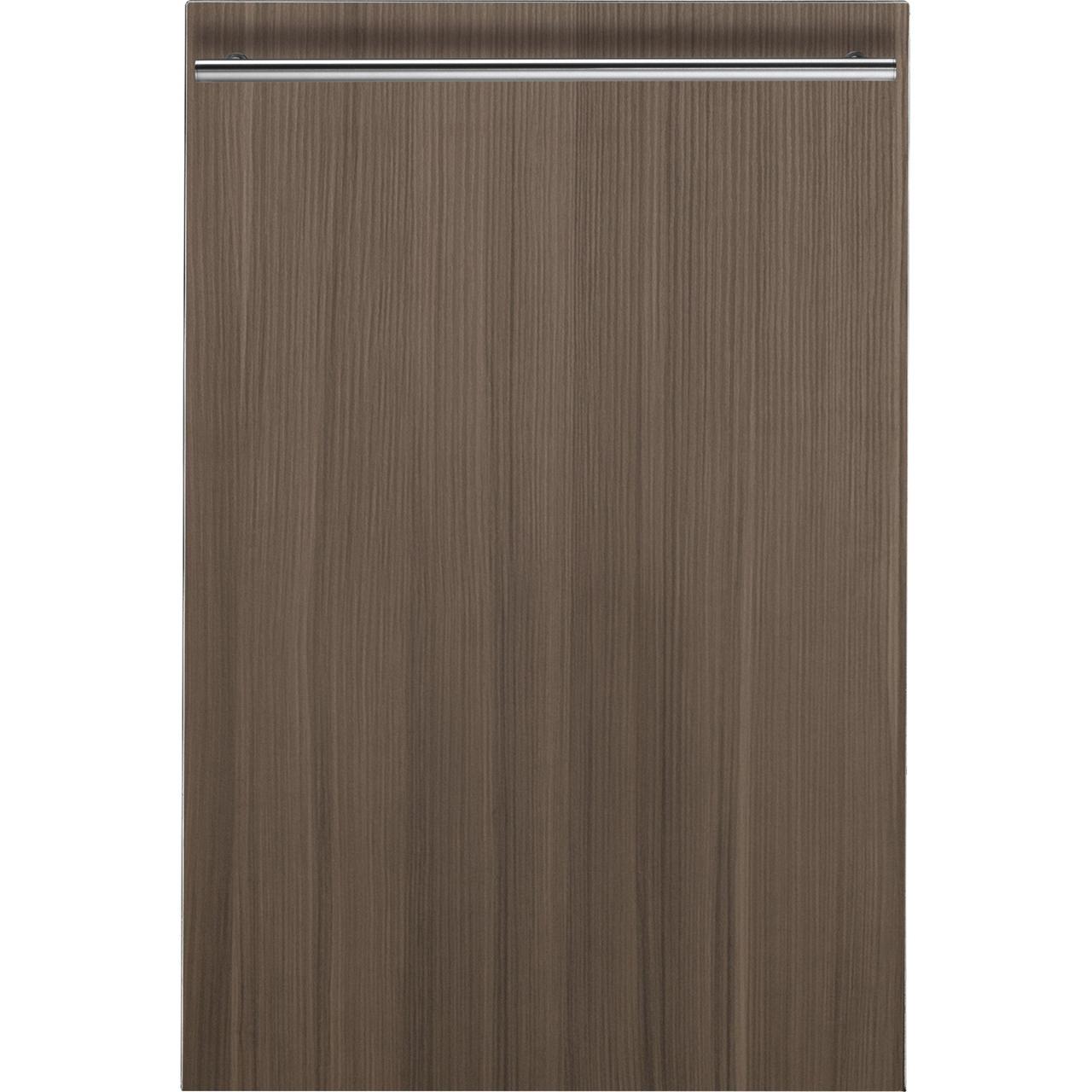

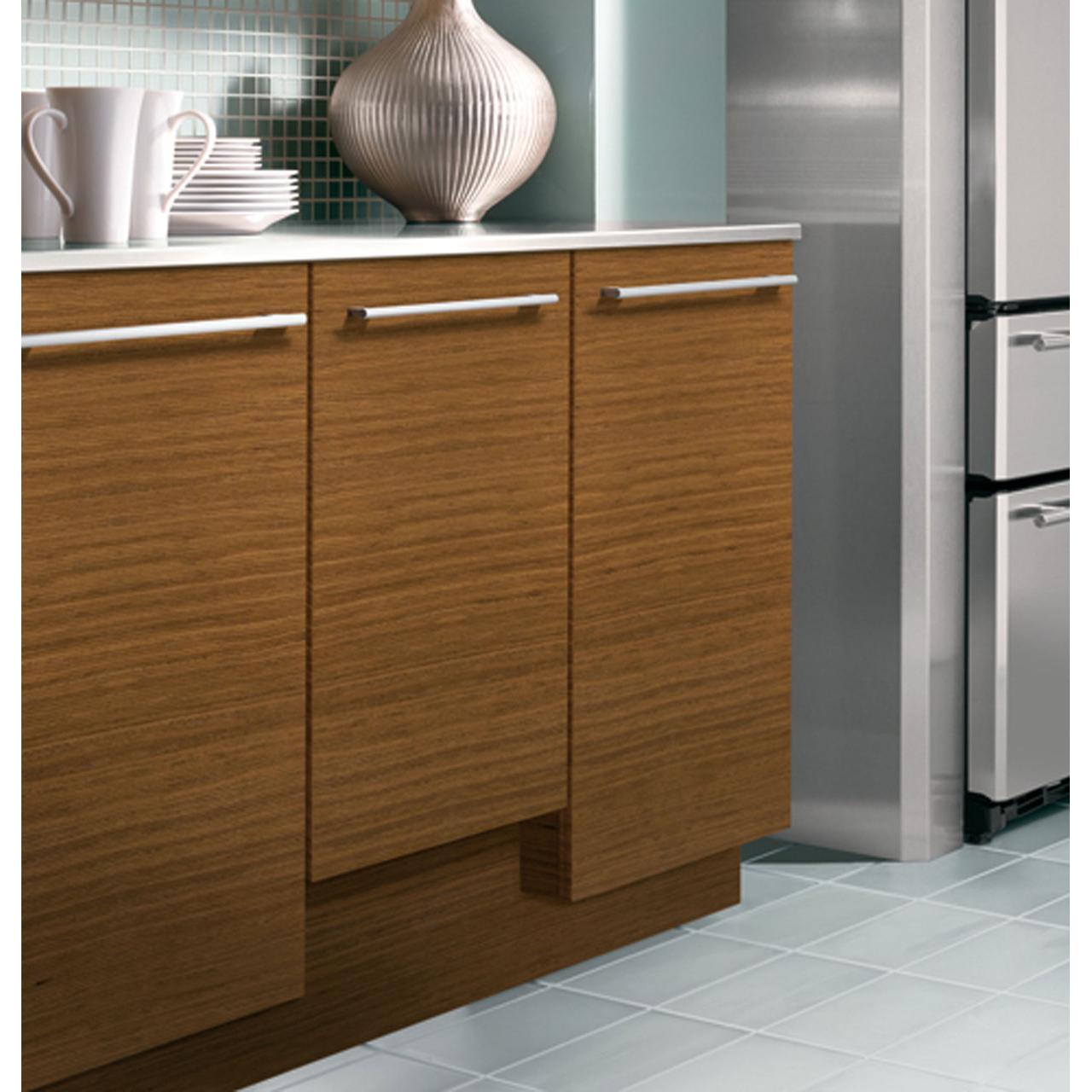

×This 18 in. built-in Tall tub dishwasher is designed for personalization with a customer-supplied cabinet-compatible panel and custom handle. Its hidden, integrated electronic controls allow easy activation of wash cycles: heavy wash, light wash and Auto Sense. *Panel kit sold separately
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Panel Ready
Manufacturer Color
Custom Panels
Place Settings
8
Tub Material
Stainless Steel
Silence Rating
47 dB
Cycle Information
Number of Cycles
3
Wash Cycles
• AutoSense
• Heavy Wash
• Light Wash
• Heavy Wash
• Light Wash
Options
• Start/Reset
• Child Lock
• Delay Start 1-12 Hr.
• TempBoost
• Sani (Certified to NSF Standard 184)
• Automatic Hot Start
• Child Lock
• Delay Start 1-12 Hr.
• TempBoost
• Sani (Certified to NSF Standard 184)
• Automatic Hot Start
Features
Technologies
Piranha™ Hard Food Disposer
Delay Start Information
1-12 Hr.
Delay Start
Yes
3rd Rack System
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Fully Integrated Electronic Top Controls (4 Pushbuttons)
• 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Cycle Countdown
• Audible End-of-Cycle Signal
• Last Cycle Memory
• Start/Reset Pad
• Condensate Dry
• Rinse Aid with Indicator and Adjustment
• Floor Protection
• Latch: Pull with Handle
• Leveling Legs
• Lower Rack: Nylon - 1 Rack handle
• Upper Rack: Nylon - Adjustable
• 1 Piece Mid Silverware Basket w/ 1 Cell Cover
• 1 Plastic Utility Shelf - Upper
• Ball-Tipped Tines
• Fold-Down Tines - Lower
• Clean Sensor
• Sabbath Mode
• Wash System: Standard - 3-Level
• 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Cycle Countdown
• Audible End-of-Cycle Signal
• Last Cycle Memory
• Start/Reset Pad
• Condensate Dry
• Rinse Aid with Indicator and Adjustment
• Floor Protection
• Latch: Pull with Handle
• Leveling Legs
• Lower Rack: Nylon - 1 Rack handle
• Upper Rack: Nylon - Adjustable
• 1 Piece Mid Silverware Basket w/ 1 Cell Cover
• 1 Plastic Utility Shelf - Upper
• Ball-Tipped Tines
• Fold-Down Tines - Lower
• Clean Sensor
• Sabbath Mode
• Wash System: Standard - 3-Level
Electrical Information
Information
• Calrod Heater: 1100 W
• Electrical Requirements: 120V ; 60Hz ; 10A
• Electrical Requirements: 120V ; 60Hz ; 10A
Certifications and Approvals
NSF® Certified
Yes
ADA Compliant
Yes
Dimensions
Class Width
18"
Width
18 inch(es) / 45.72 cm
Height (Min.)
32.52 inch(es) / 82.6 cm
Depth (Without Handle)
23.11 inch(es) / 58.7 cm
Depth (Including Handle)
23 inch(es) / 58.42 cm
Weight
71.01 lb(s) / 32.21 kg
Additional Dimensions
• Minimum Cabinet Width 17 3/4" (45.1 cm)
• Minimum Cabinet Depth 23 5/8" (60.0 cm)
• Cutout Width 17 3/4" (45.1 cm) Min 18", (45.7 cm) Max
• Cutout Height 32 1/2" (82.6 cm) Min 34, 3/4" (88.3 cm) Max
• Minimum Cabinet Depth 23 5/8" (60.0 cm)
• Cutout Width 17 3/4" (45.1 cm) Min 18", (45.7 cm) Max
• Cutout Height 32 1/2" (82.6 cm) Min 34, 3/4" (88.3 cm) Max
Shipping Dimensions
Width
20.5 inch(es) / 52.07 cm
Height
36 inch(es) / 91.44 cm
Depth
26.5 inch(es) / 67.31 cm
Weight
84 lb(s) / 38.10 kg
Warranty
Warranty
Parts & Labor: Limited 2-year entire appliance
UPC
UPC#
084691931447
