DESCRIPTION

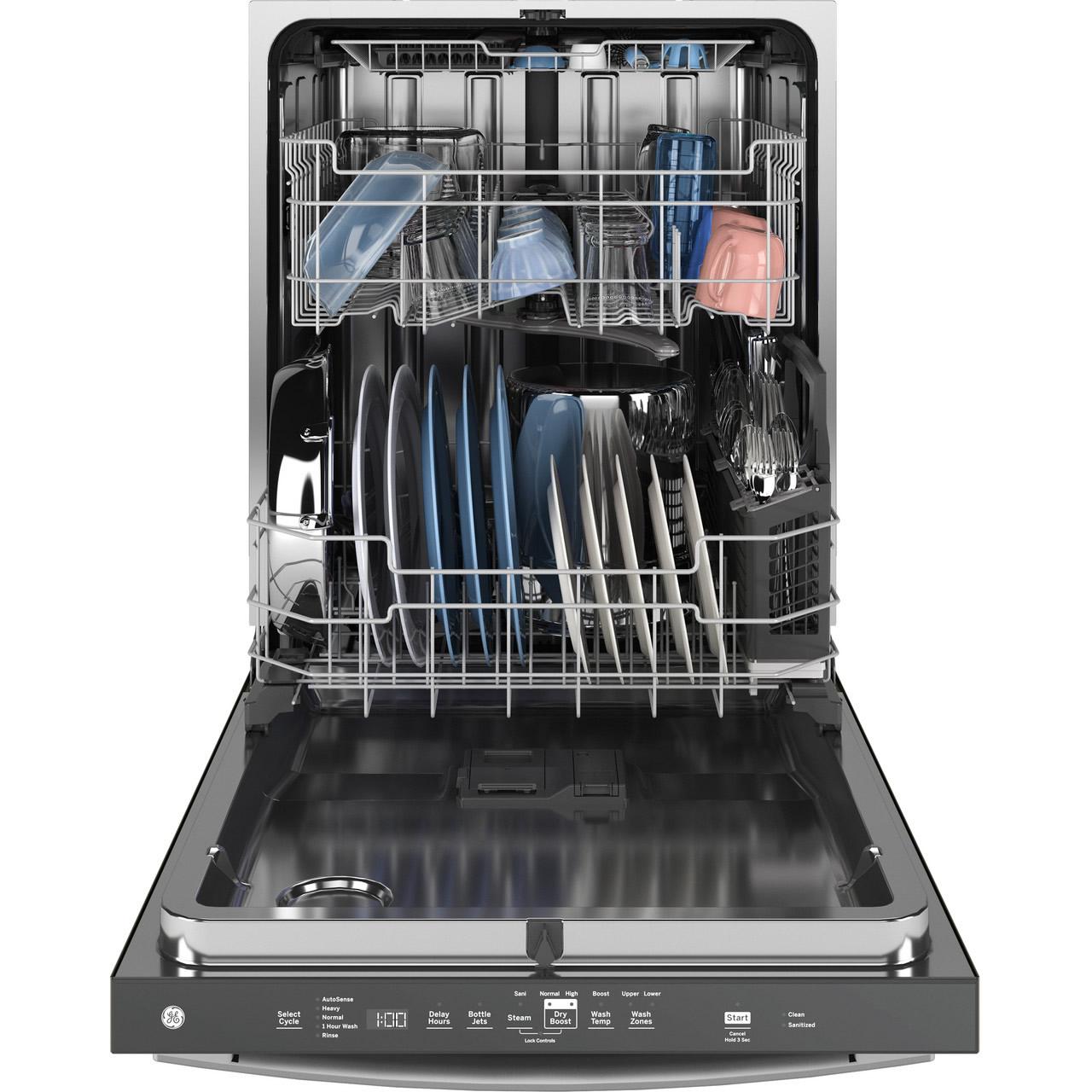

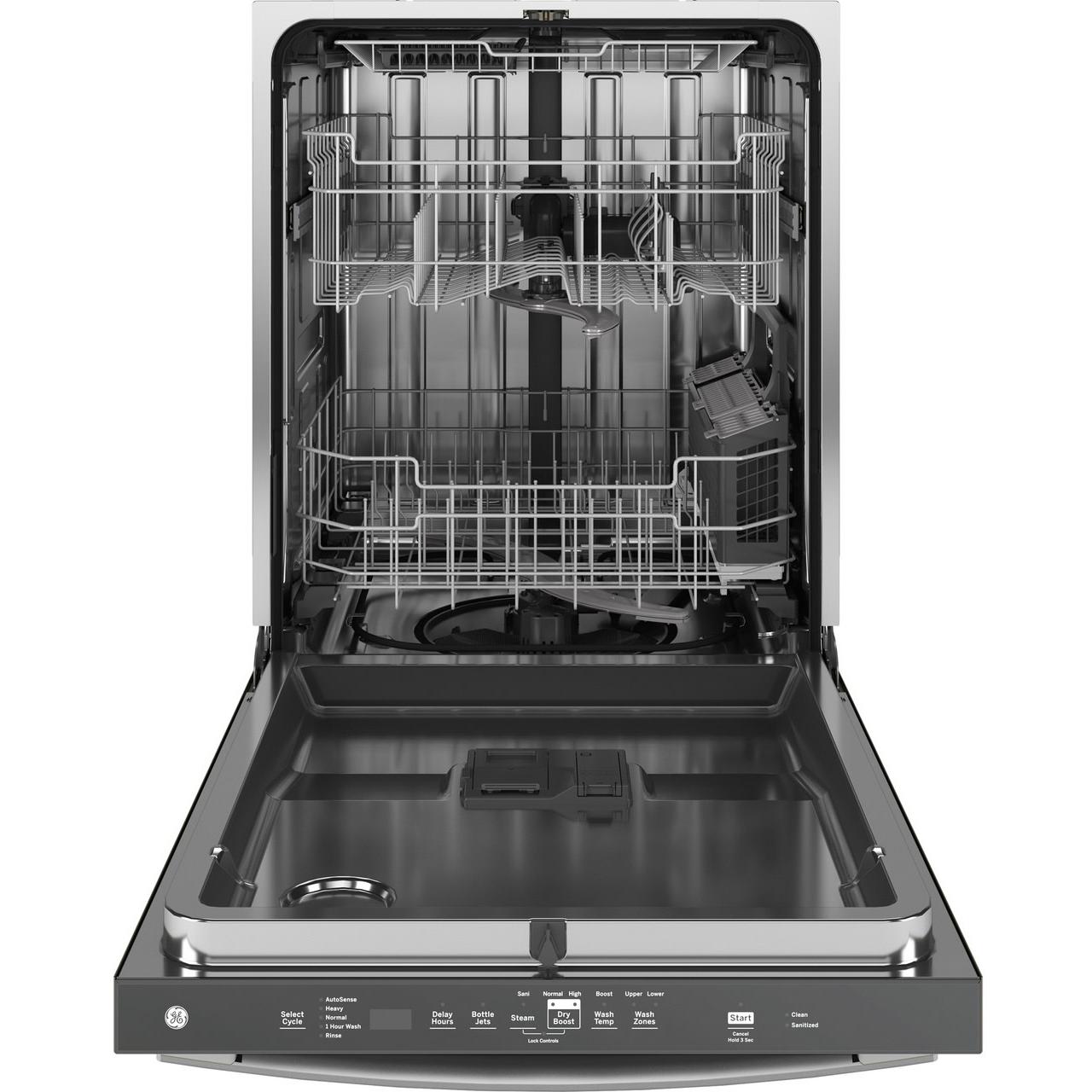

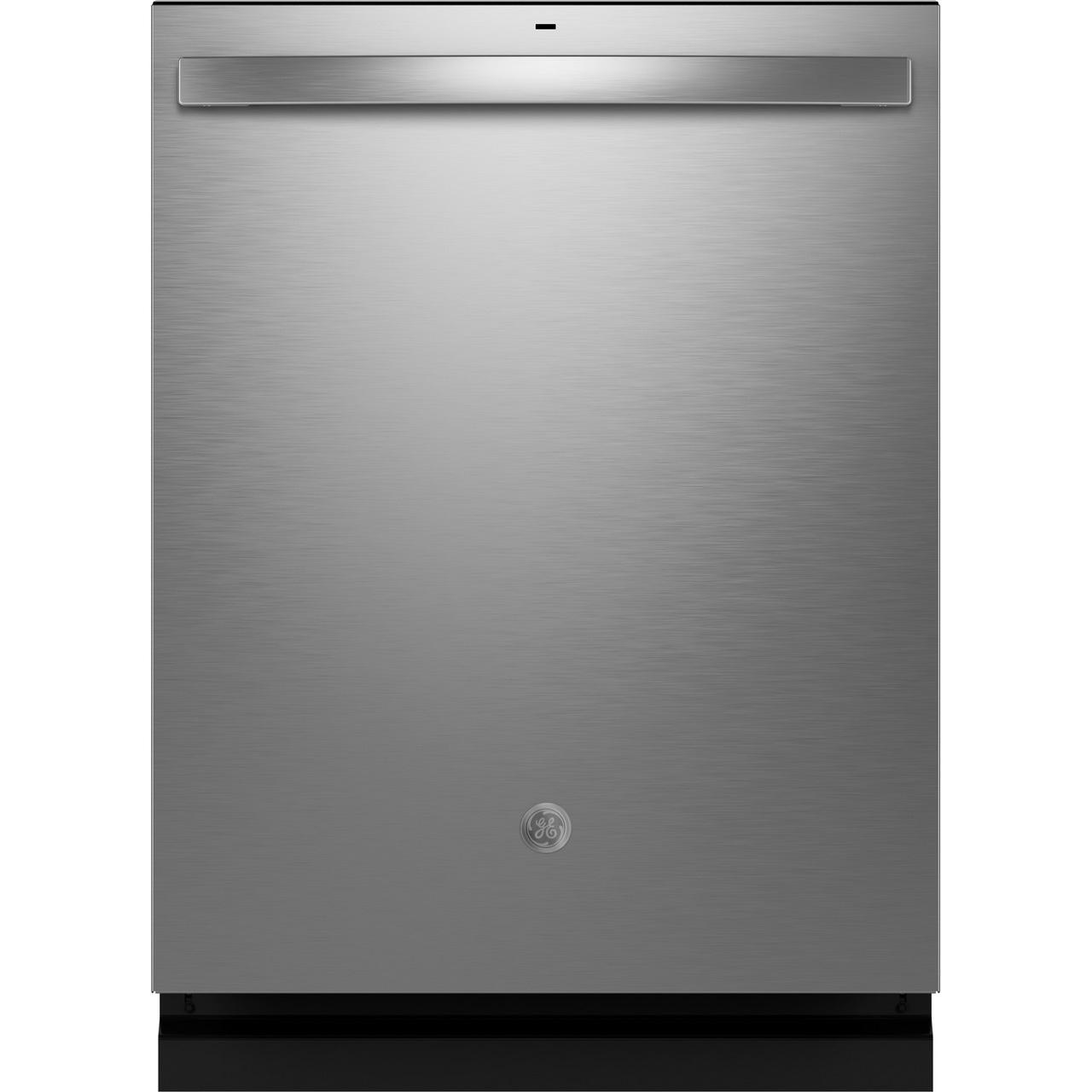

×This GE 24-inch top control dishwasher features a stainless steel tub, third rack, 4 bottle wash jets, deep clean silverware jets, and Dry Boost™ technology.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
45 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• AutoSense
• Heavy Wash
• Normal Wash
• 1 Hour Wash
• Rinse
• Heavy Wash
• Normal Wash
• 1 Hour Wash
• Rinse
Options
• Delay Start 1-12 Hr.
• Child Lock
• Start/Cancel
• Bottle Jets
• Steam + Sani (Certified to NSF Standard 184)
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Wash TempBoost
• Wash Zone Lower Only
• Wash Zone Upper Only
• Sabbath Mode
• Child Lock
• Start/Cancel
• Bottle Jets
• Steam + Sani (Certified to NSF Standard 184)
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Wash TempBoost
• Wash Zone Lower Only
• Wash Zone Upper Only
• Sabbath Mode
Features
Technologies
• Dry Boost™
• Piranha™ Hard Food Disposer with removable filter (100% water filtration)
• Piranha™ Hard Food Disposer with removable filter (100% water filtration)
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Cutlery Tray
Yes
Silverware Basket
Yes
Additional Information
• Control Panel: Storm Gray
• Door Appearance: Full-length door
• Door Style: Long Door with Top Controls
• Handle: Rounded Handle - Stainless Steel
• Handle Color: Stainless Steel w/Chrome
• Door Insulation: Insulation, Mastic
• Motor Type: Variable Speed
• Outer Wrap: Full-wrap Blanket, Bitumen
• Quiet Water Valve
• Sealed Toe Kick
• Tub Collar Trim
• Active Flood Protect

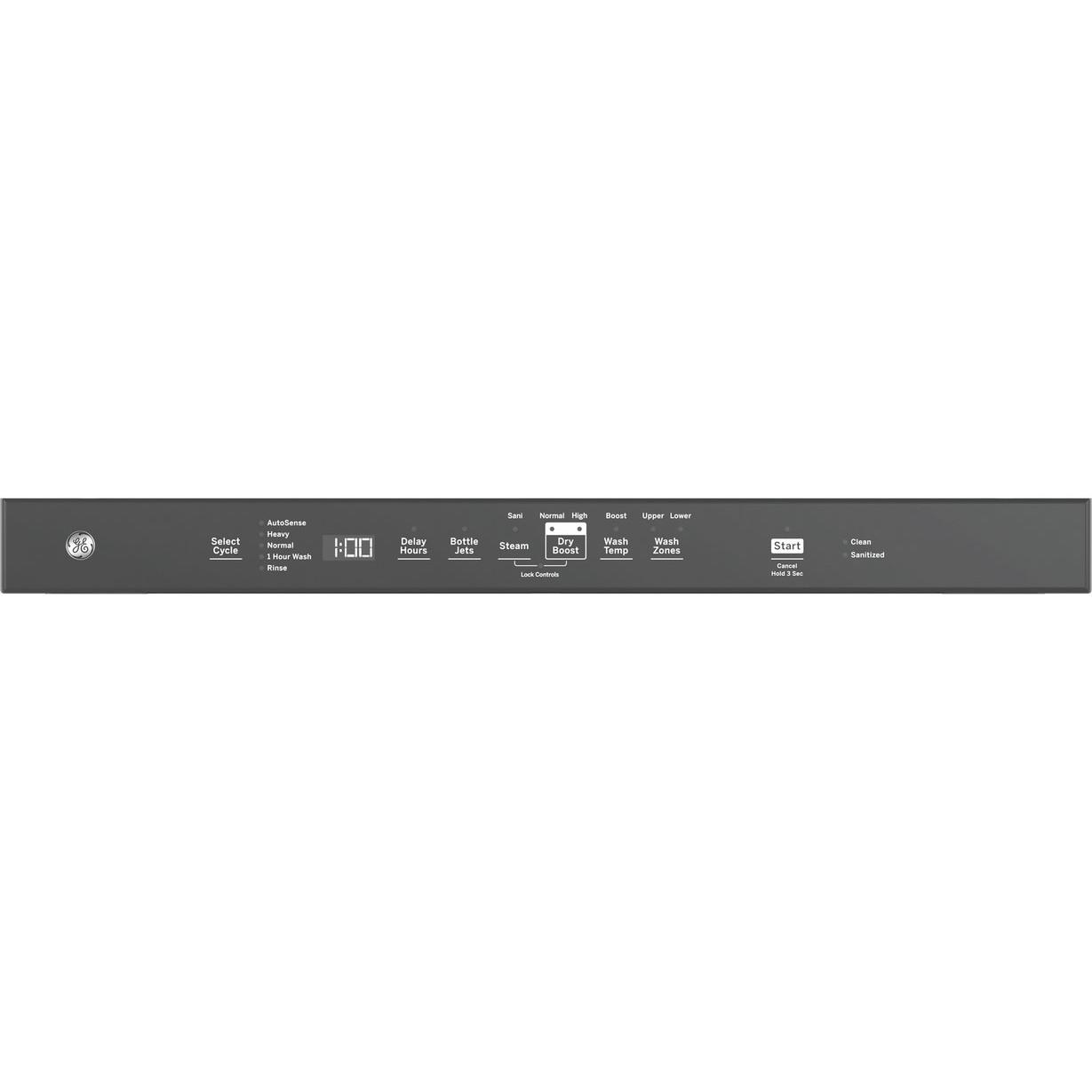

• Control Type: Top Controls, 8 Touchpads, Cap Touch Controls
• 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
• 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Control Lock with 1 Light
• Dishwasher Drying: Normal, High, Off
• Dispenser: Rinse Aid with Indicator and Adjustment
• Exterior Style: Traditional
• Latch: Pull with Handle
• Leveling System: 4 Leveling Legs
• Upper Rack: Premium Height Adjustable, Ball-Tip Tines, Smooth Glide Upper Rack
• Lower Rack: Ball-Tip Tines
• Full 3rd rack + caddy
• Rack Color: Silver
• Wash Arms: 3 Wash Levels, Lower, Middle, Upper, Bottle Jets, Bottle Wash Jets, Deep Clean Silverware Jets
• Variable Speed Dual Pumps and Motors
• Automatic Temperature Control
• Drain Pump
• Automatic HotStart
• Bottle Jets (4)
• 1 Piece Silverware Basket with 3 Cell Covers
• Racking Material: Nylon
• Clean Sensor
• Showroom Power Mode
• Tub Type: Tall Tub
• Wash System: 600 Series, 3-Level
Installation:
• Side or Top Mount Install Brackets Included
• Built-Up Floor Capable
• Flush Cabinet Installation
• Door Appearance: Full-length door
• Door Style: Long Door with Top Controls
• Handle: Rounded Handle - Stainless Steel
• Handle Color: Stainless Steel w/Chrome
• Door Insulation: Insulation, Mastic
• Motor Type: Variable Speed
• Outer Wrap: Full-wrap Blanket, Bitumen
• Quiet Water Valve
• Sealed Toe Kick
• Tub Collar Trim
• Active Flood Protect
• Control Type: Top Controls, 8 Touchpads, Cap Touch Controls
• 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
• 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Control Lock with 1 Light
• Dishwasher Drying: Normal, High, Off
• Dispenser: Rinse Aid with Indicator and Adjustment
• Exterior Style: Traditional
• Latch: Pull with Handle
• Leveling System: 4 Leveling Legs
• Upper Rack: Premium Height Adjustable, Ball-Tip Tines, Smooth Glide Upper Rack
• Lower Rack: Ball-Tip Tines
• Full 3rd rack + caddy
• Rack Color: Silver
• Wash Arms: 3 Wash Levels, Lower, Middle, Upper, Bottle Jets, Bottle Wash Jets, Deep Clean Silverware Jets
• Variable Speed Dual Pumps and Motors
• Automatic Temperature Control
• Drain Pump
• Automatic HotStart
• Bottle Jets (4)
• 1 Piece Silverware Basket with 3 Cell Covers
• Racking Material: Nylon
• Clean Sensor
• Showroom Power Mode
• Tub Type: Tall Tub
• Wash System: 600 Series, 3-Level
Installation:
• Side or Top Mount Install Brackets Included
• Built-Up Floor Capable
• Flush Cabinet Installation
Electrical Information
Information
• Calrod Heater Watts: 800/500
• 120V
• 60Hz
• 6.6A
• 120V
• 60Hz
• 6.6A
Certifications and Approvals
Information
ENERGY STAR® Qualified
Accessories
Optional
• Optional 12' Drain Hose Kit: WD24X10065
• Optional WiFi Connect: Requires part no. PBX23W00Y0
• Optional cord kit: GPFCORD - WX09X70910, WX09X70911
• Optional WiFi Connect: Requires part no. PBX23W00Y0
• Optional cord kit: GPFCORD - WX09X70910, WX09X70911
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
99.01 lb(s) / 44.91 kg
Additional Dimensions
• Height w/ Legs Retracted - Minimum Height: 33 3/8"
• Height w/Legs Extended - Maximum Height: 34 5/8"
• Overall Depth: 24"
• Overall Height: 34"
• Height w/Legs Extended - Maximum Height: 34 5/8"
• Overall Depth: 24"
• Overall Height: 34"
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.3 inch(es) / 89.66 cm
Depth
26.1 inch(es) / 66.29 cm
Weight
111.99 lb(s) / 50.80 kg
Warranty
Warranty
• Limited 1-year entire appliance (parts and labor)
• See written warranty for full details
• See written warranty for full details
UPC
UPC#
084691914464
