DESCRIPTION

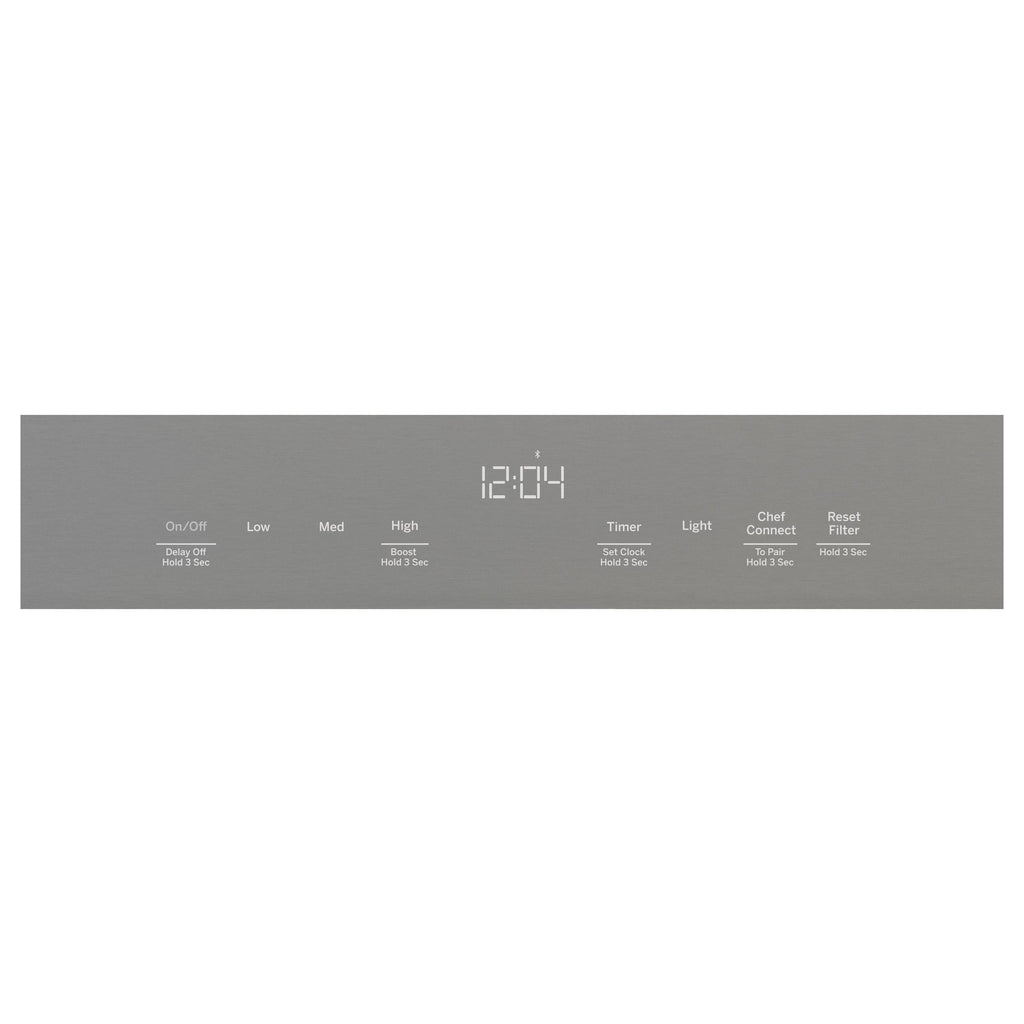

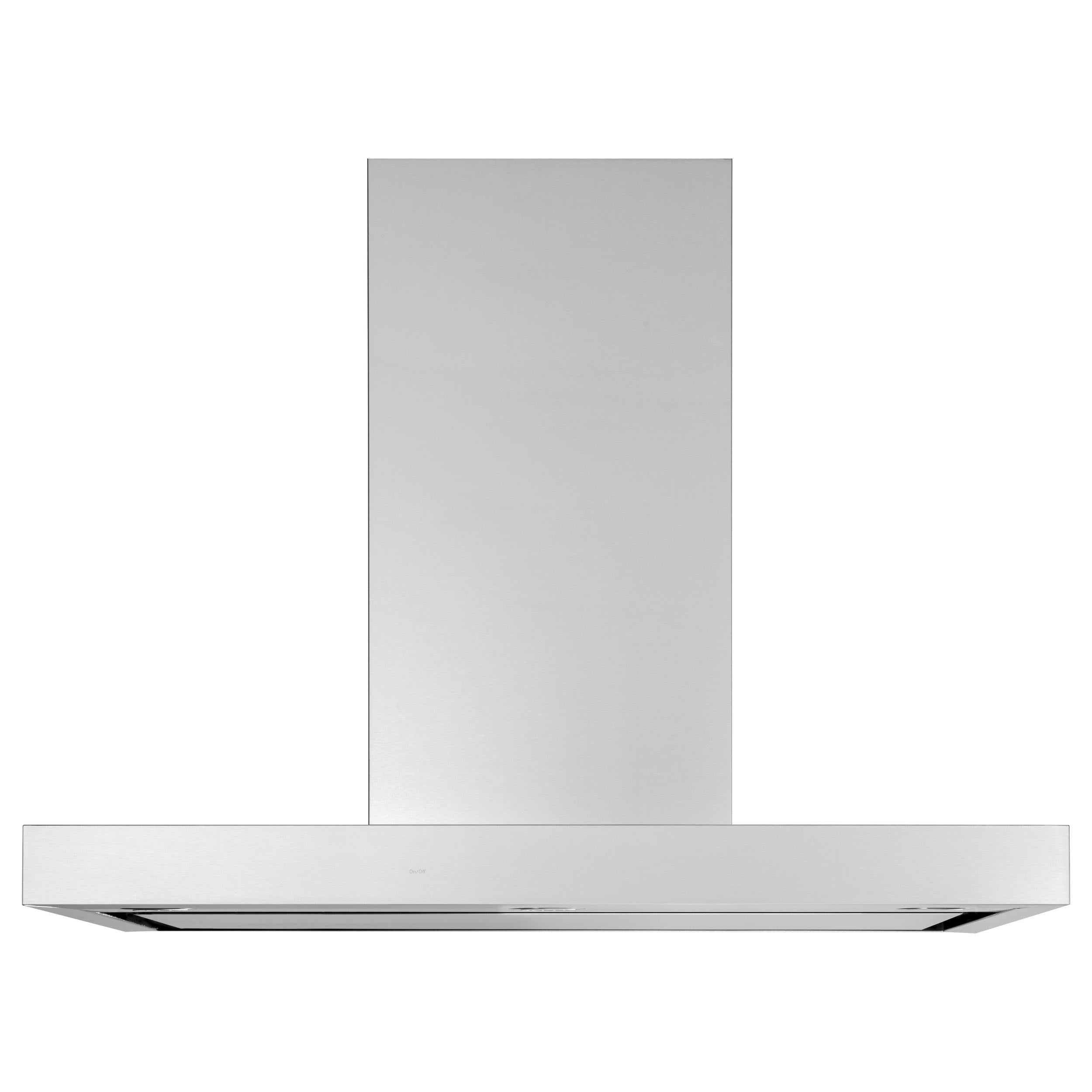

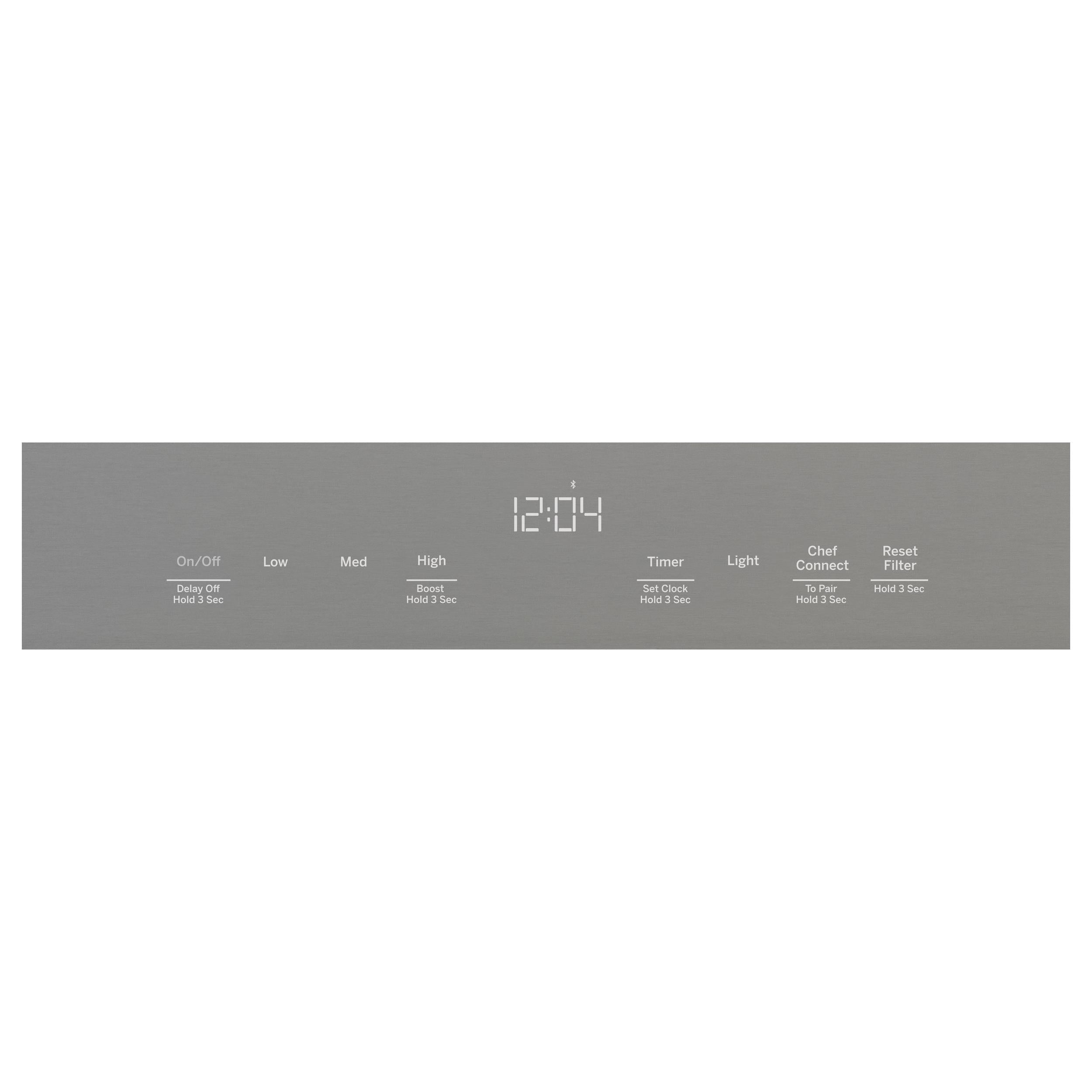

×This 36" designer wall mount hood features an adjustable CFM blower. The blower power can be adjusted between 400 and 600 CFM to accommodate installation needs. It also boasts LED backlit glass touch controls and triple LED dimmable lighting that ensures bright lighting for the entire cooking environment.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
Designer
Blower Included
Yes
Airflow
600 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Vertical Only
Speeds
4-Speed
Additional Information
• Adjustable CFM blower
• LED backlit glass touch control
• Perimeter venting

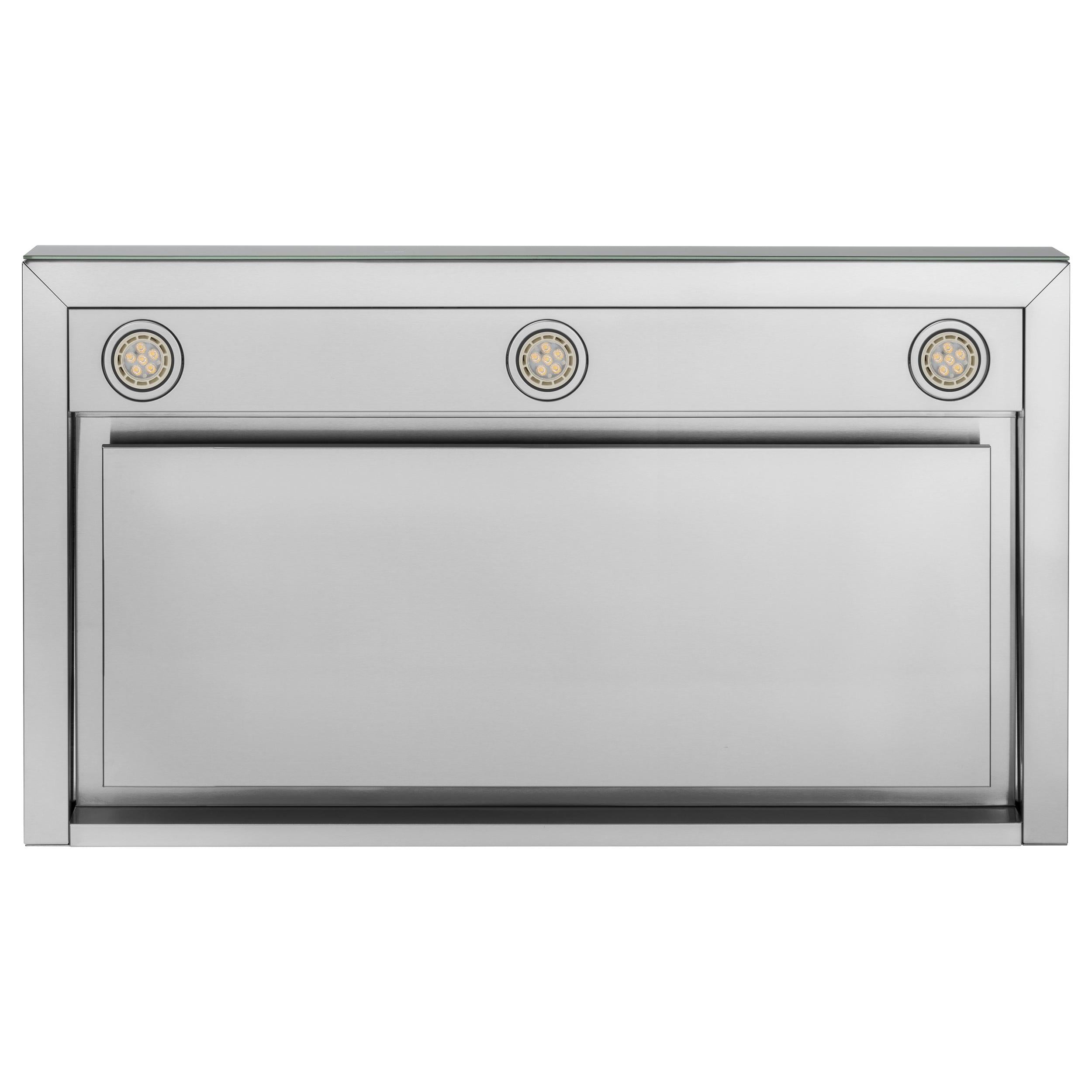

• Triple LED dimmable lighting
• 10-ft. ceiling height
• LED backlit glass touch control
• Perimeter venting
• Triple LED dimmable lighting
• 10-ft. ceiling height
Electrical Information
Information
• 120 V
• 5.3 A
• 5.3 A
Accessories
Included
Grease & Charcoal Removable Filter
Optional
• UX12DC93SS - 12' High Ceiling Duct Cover Kit
• UX14DC93SS- 14' High Ceiling Duct Cover Kit
• UX14DC93SS- 14' High Ceiling Duct Cover Kit
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
24 inch(es) / 60.96 cm
Depth
20 inch(es) / 50.8 cm
Weight
75 lb(s) / 34.02 kg
Shipping Dimensions
Weight
85.01 lb(s) / 38.56 kg
Warranty
Warranty
One years warranty on parts and labor
UPC
UPC#
84691828761
