DESCRIPTION

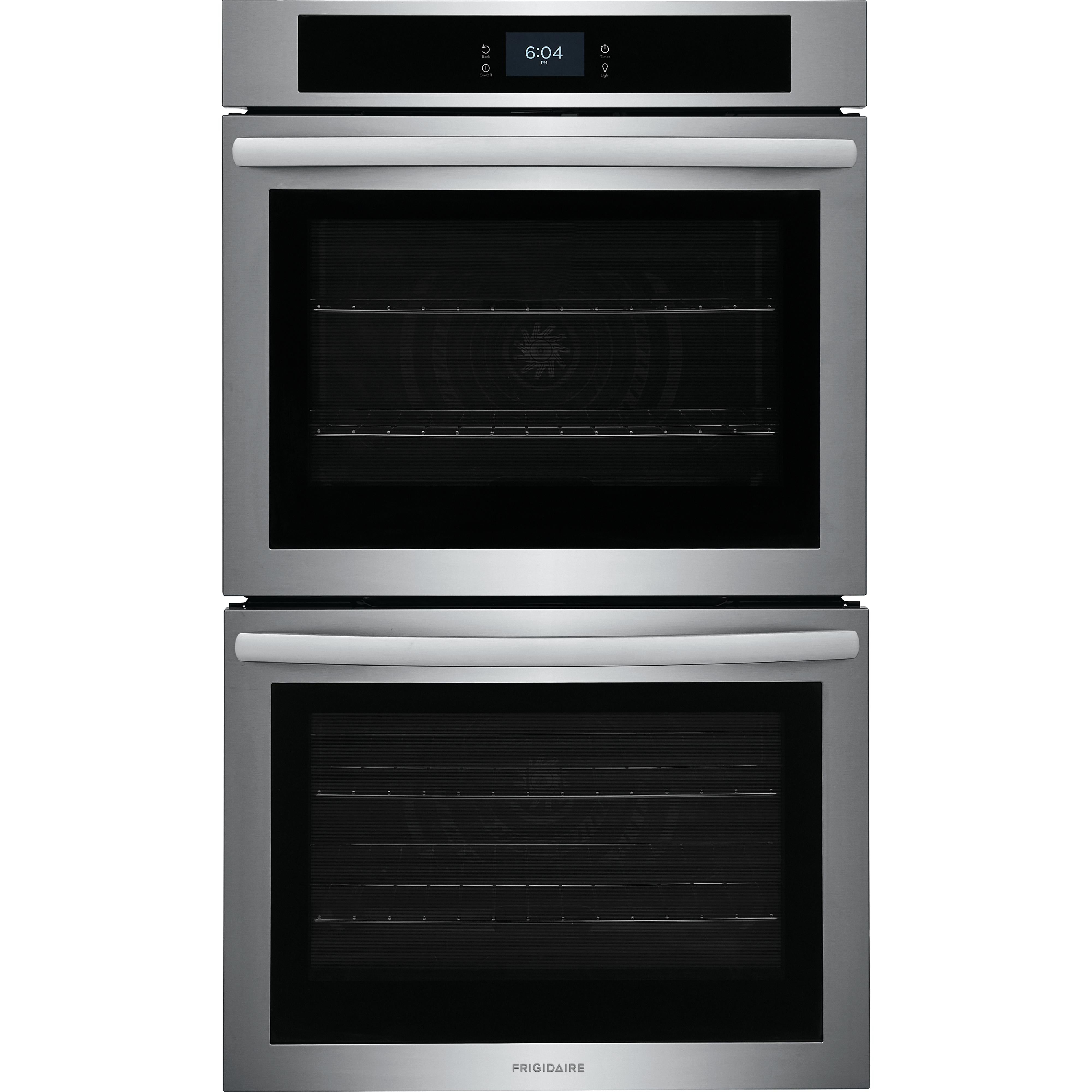

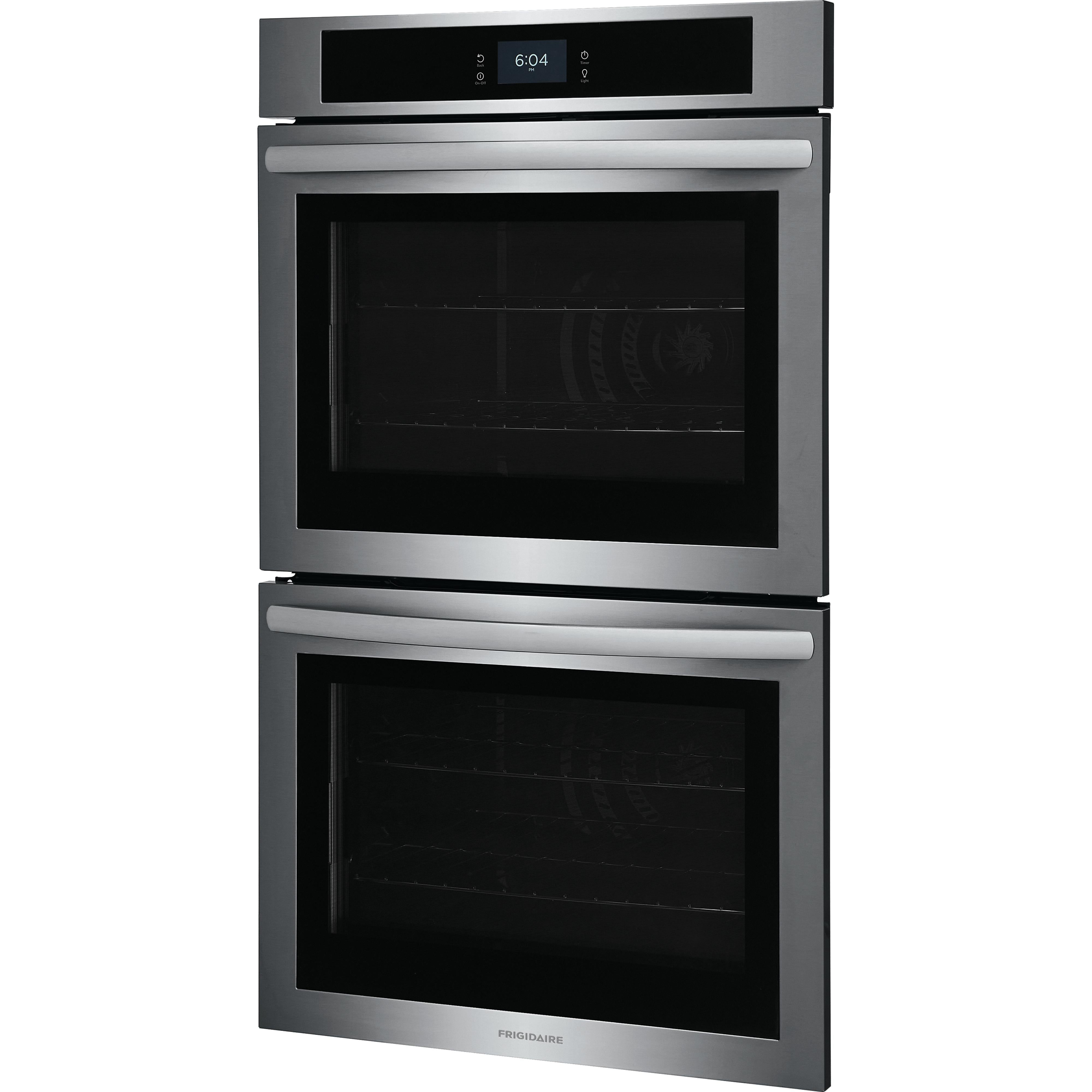

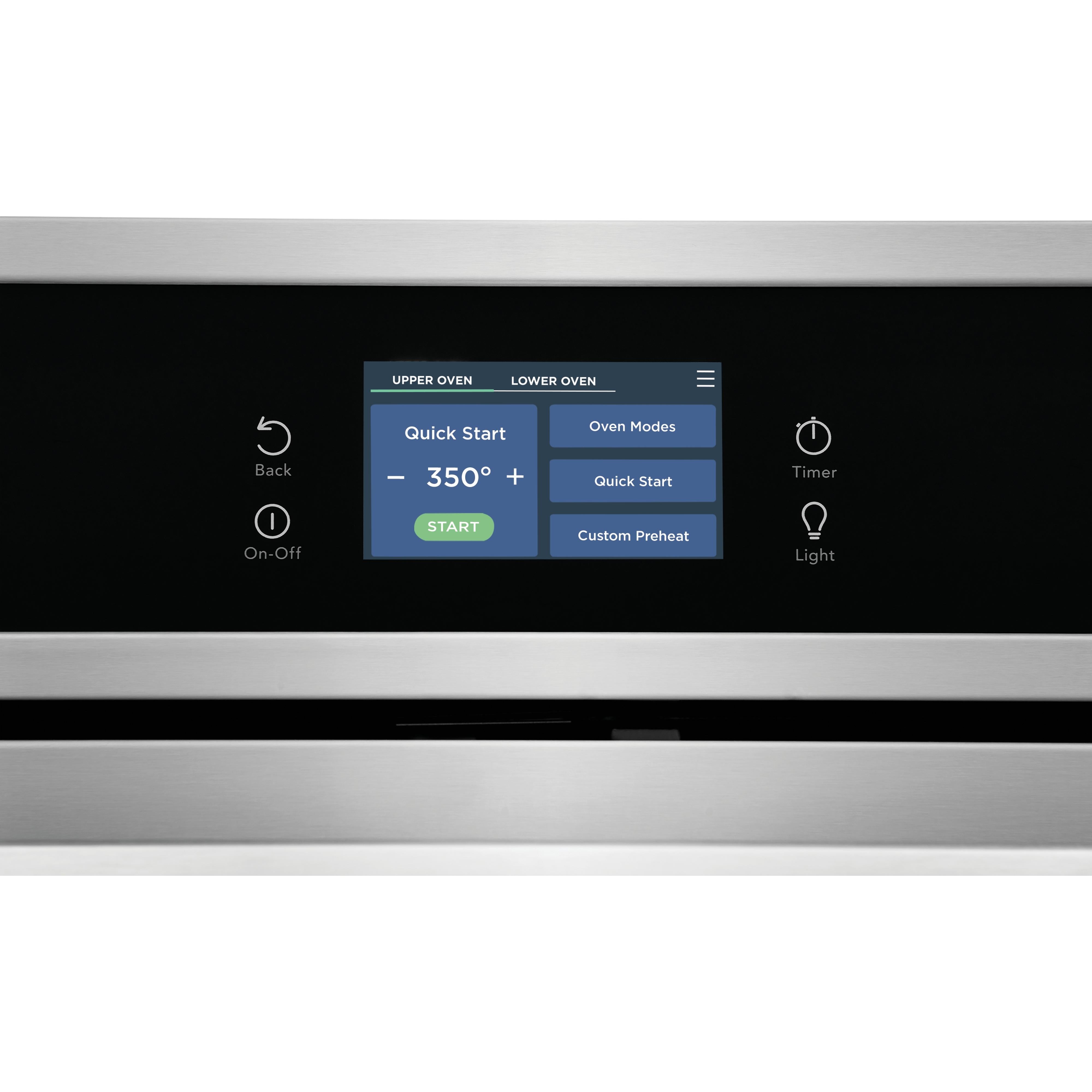

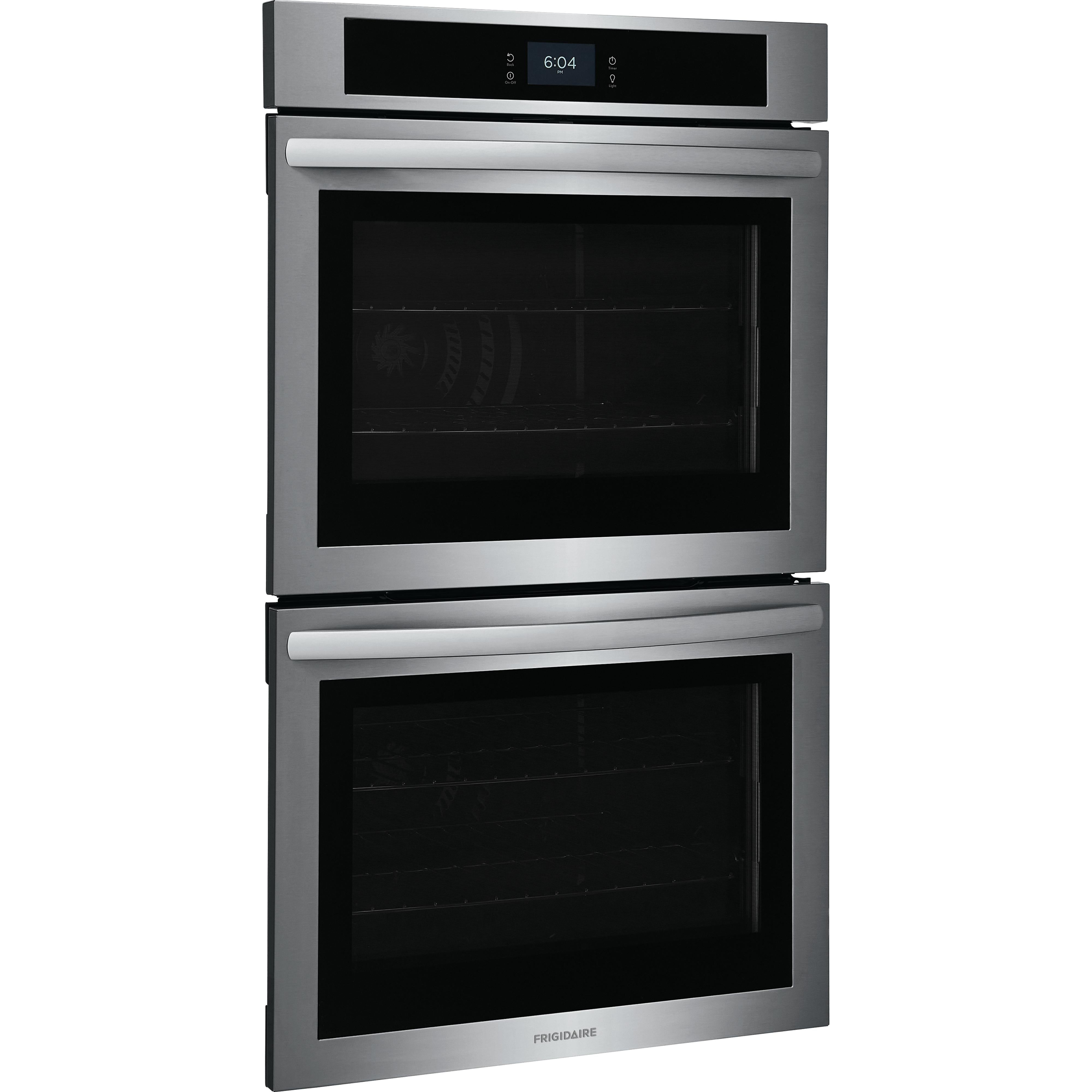

×Frigidaire 30" Double Electric Wall Oven with Fan Convection for faster, more even multi-rack baking results. It features Extra-Large Oven Capacity, customizable Broil Temperatures and a responsive 4.3 inch, full color, capacitive touch digital control panel.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Total Capacity
10.6 cu. ft.
Main Oven Capacity
5.3 cu. ft.
Secondary Oven Capacity
5.3 cu. ft.
Appliance Care
Self Clean
Oven Specifications
Programs
• Bake
• Broil
• Convection Bake
• Cook Time
• Delay Start
• Keep Warm
• Preheat
• Broil
• Convection Bake
• Cook Time
• Delay Start
• Keep Warm
• Preheat
Clock
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Display Type: Capacitive Touch
• Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
• Program Fahrenheit or Celsius
• Silent Control Panel
• Number of Rack Positions: 6
• Oven Interior Color: Midnight Black
• 1 Halogen 40W lights
• Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
• Program Fahrenheit or Celsius
• Silent Control Panel
• Number of Rack Positions: 6
• Oven Interior Color: Midnight Black
• 1 Halogen 40W lights
Certifications
Certifications
• CSA Listed
• UL Listed
• RoHS
• UL Listed
• RoHS
Electrical Information
Information
• Connected Load @ 240V: 7.4 kW
• Voltage Rating: 240 V
• Bake Element: 2,500 Watts
• Bake Element Pass: 4
• Broil Element: 4,000 Watts
• Broil Element Pass: 6
• Voltage Rating: 240 V
• Bake Element: 2,500 Watts
• Bake Element Pass: 4
• Broil Element: 4,000 Watts
• Broil Element Pass: 6
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
50.75 inch(es) / 128.91 cm
Depth
25.19 inch(es) / 63.98 cm
Additional Dimensions
• Depth With Door 90° Open: 48 3/16"
• Depth With Handle: 27 3/5"
• Lower Oven Interior Height: 18 1/8"
• Lower Oven Interior Width: 25 1/5"
• Lower Oven Interior Depth: 19 7/8"
• Upper Oven Interior Height: 18 1/8"
• Upper Oven Interior Width: 25 1/5"
• Upper Oven Interior Depth: 19 7/8"
• Minimum Cutout Height: 48 7/8"
• Minimum Cutout Width: 28 1/2"
• Maximum Cutout Height: 50 1/4"
• Maximum Cutout Width: 29"
• Depth With Handle: 27 3/5"
• Lower Oven Interior Height: 18 1/8"
• Lower Oven Interior Width: 25 1/5"
• Lower Oven Interior Depth: 19 7/8"
• Upper Oven Interior Height: 18 1/8"
• Upper Oven Interior Width: 25 1/5"
• Upper Oven Interior Depth: 19 7/8"
• Minimum Cutout Height: 48 7/8"
• Minimum Cutout Width: 28 1/2"
• Maximum Cutout Height: 50 1/4"
• Maximum Cutout Width: 29"
Weight
247.01 lb(s) / 112.04 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
012505514906
