DESCRIPTION

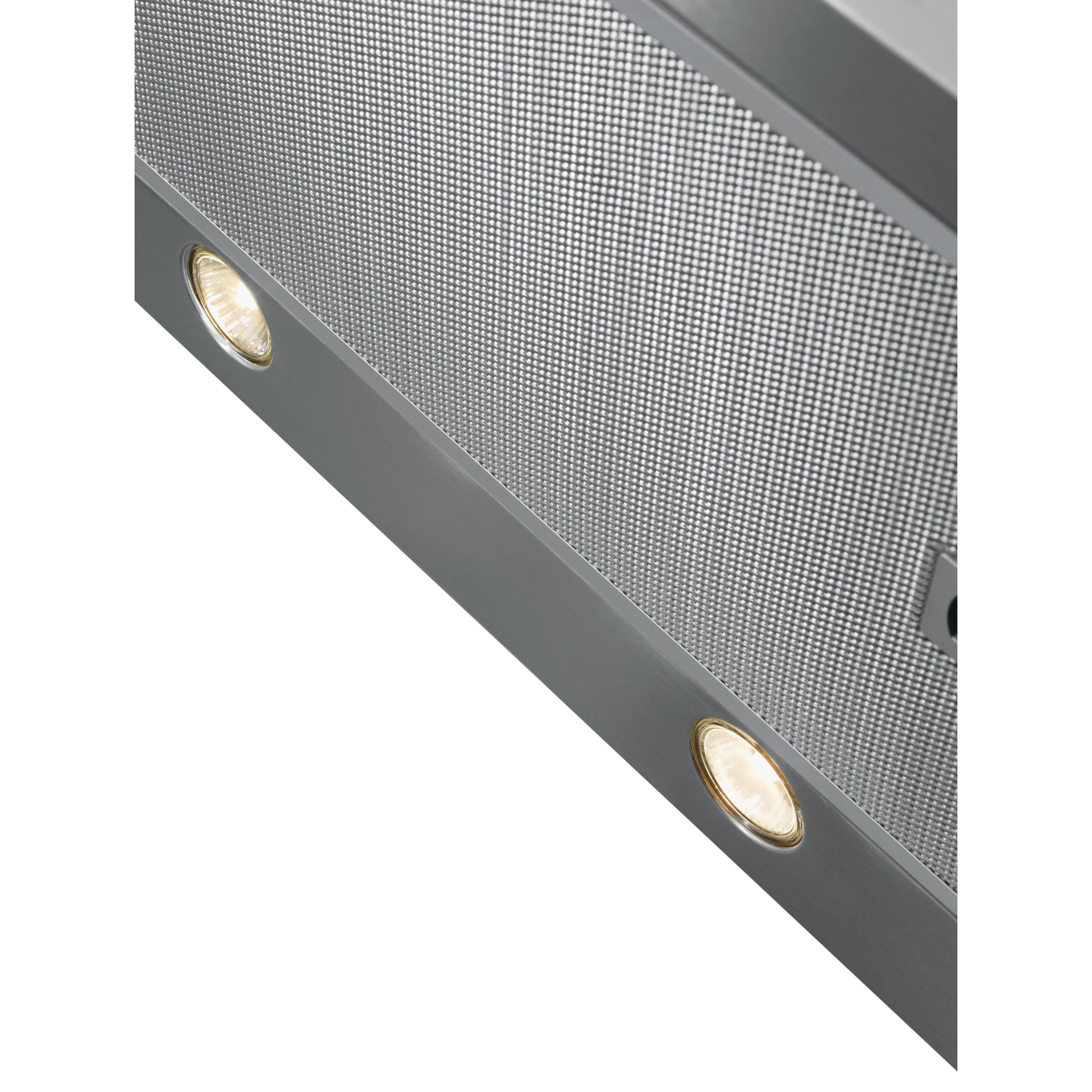

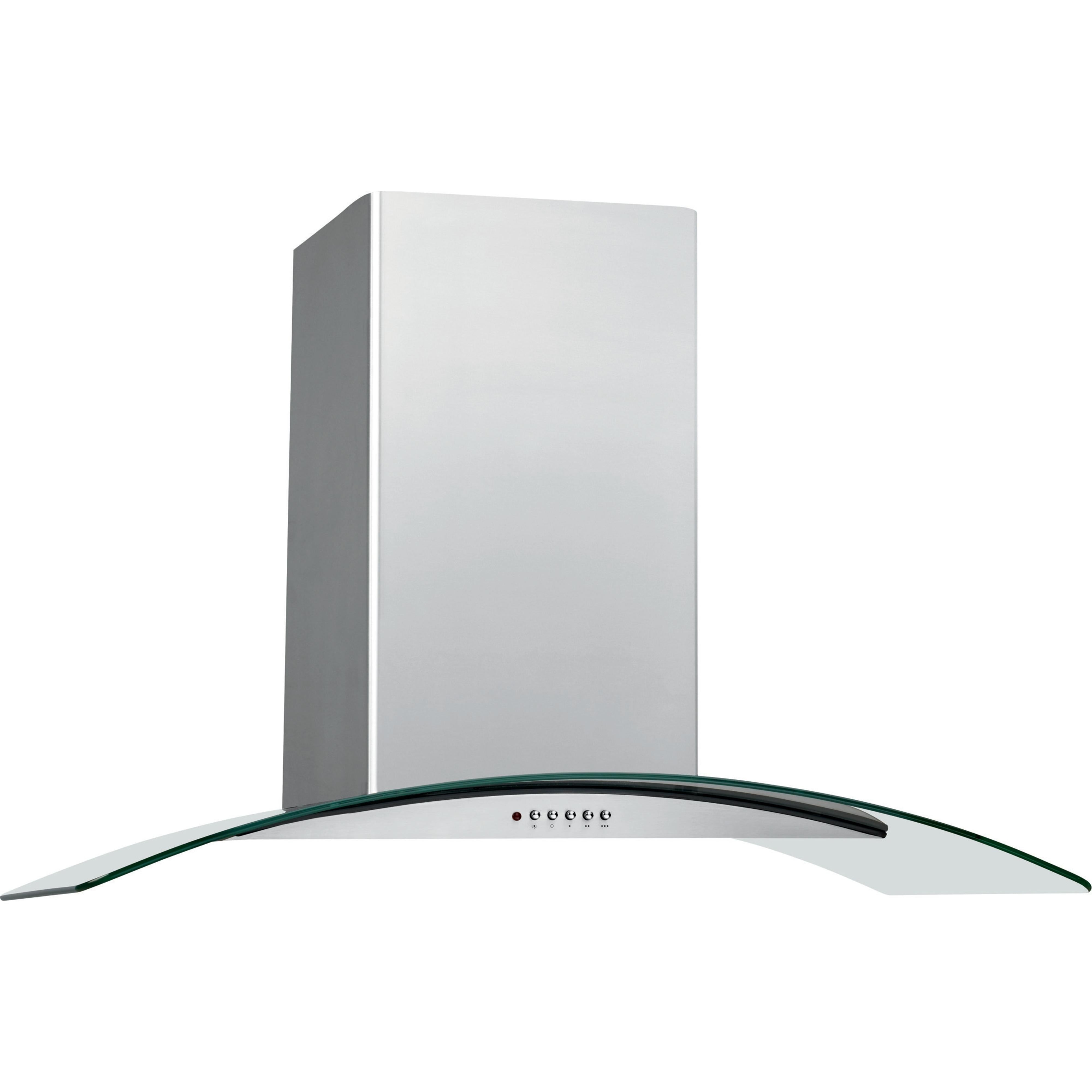

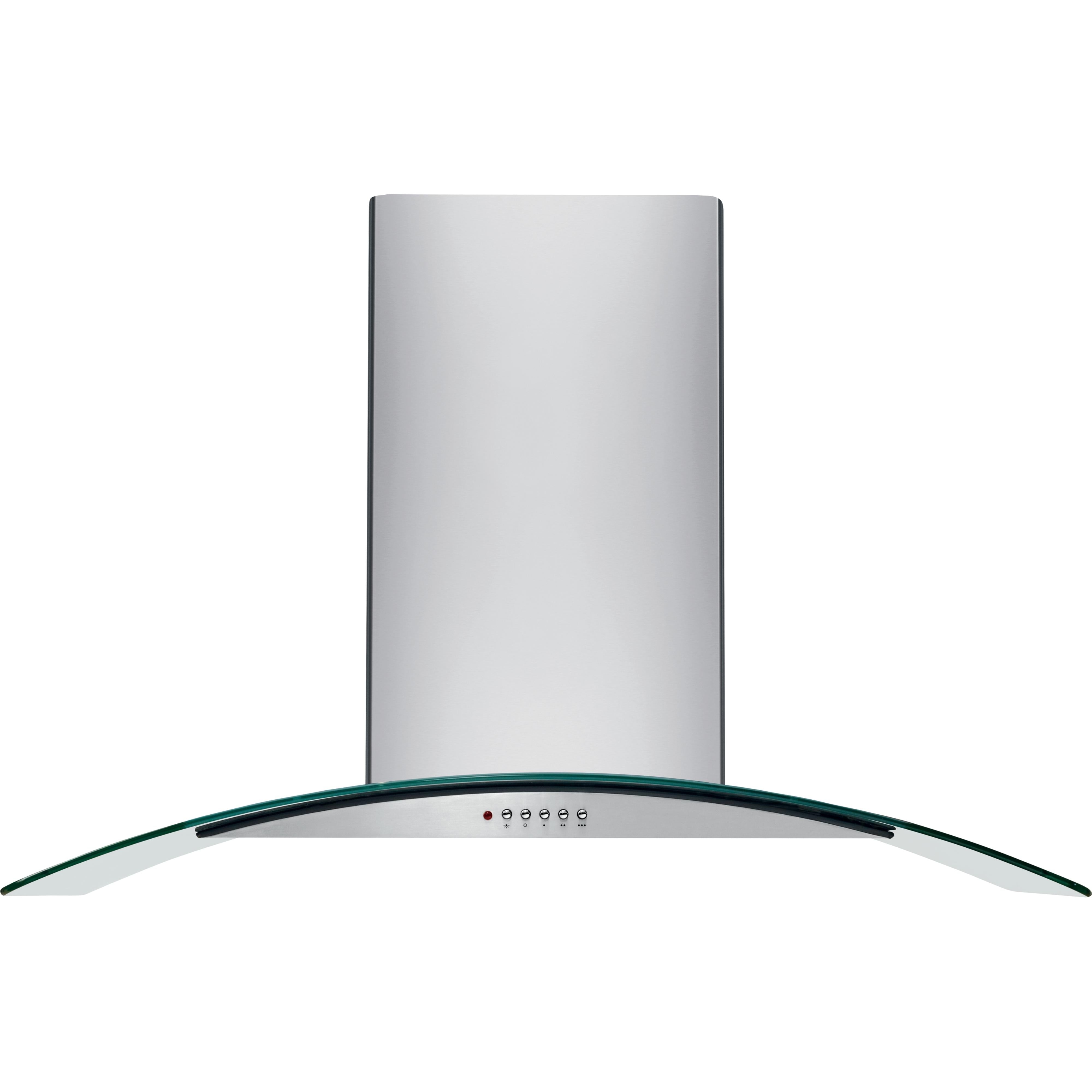

×This Frigidaire 30" glass canopy wall-mounted hood features dishwasher safe washable filters for easy cleaning and a bright halogen lighting for an efficient illumination of the cooktop surface.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Blower Included
Yes
Airflow
400 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
6" Round
Speeds
3
Additional Information
• UL/cUL approval
• Vertical air discharge
• Centrifugal blower
• Electronic push button controls
• Dual halogen lights
• Sound level: 58.7 to 67.1 dBA
• 5 control buttons
• Glass canopy design
• Vertical air discharge
• Centrifugal blower
• Electronic push button controls
• Dual halogen lights
• Sound level: 58.7 to 67.1 dBA
• 5 control buttons
• Glass canopy design
Electrical Information
Information
• 120V
• 60Hz
• 15A
• 60Hz
• 15A
Accessories
Optional
• Duct-free kit: FHWRKT60LS
• 10' flue extension kit: FHW10X60LS
• 10' flue extension kit: FHW10X60LS
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
26.5 inch(es) / 67.31 cm
Depth
19.69 inch(es) / 50.01 cm
Weight
49.49 lb(s) / 22.45 kg
Additional Dimensions
Height(with flue extension)26-1/2" min, 43-29/32" max
Shipping Dimensions
Weight
50 lb(s) / 22.68 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
012505561825
