DESCRIPTION

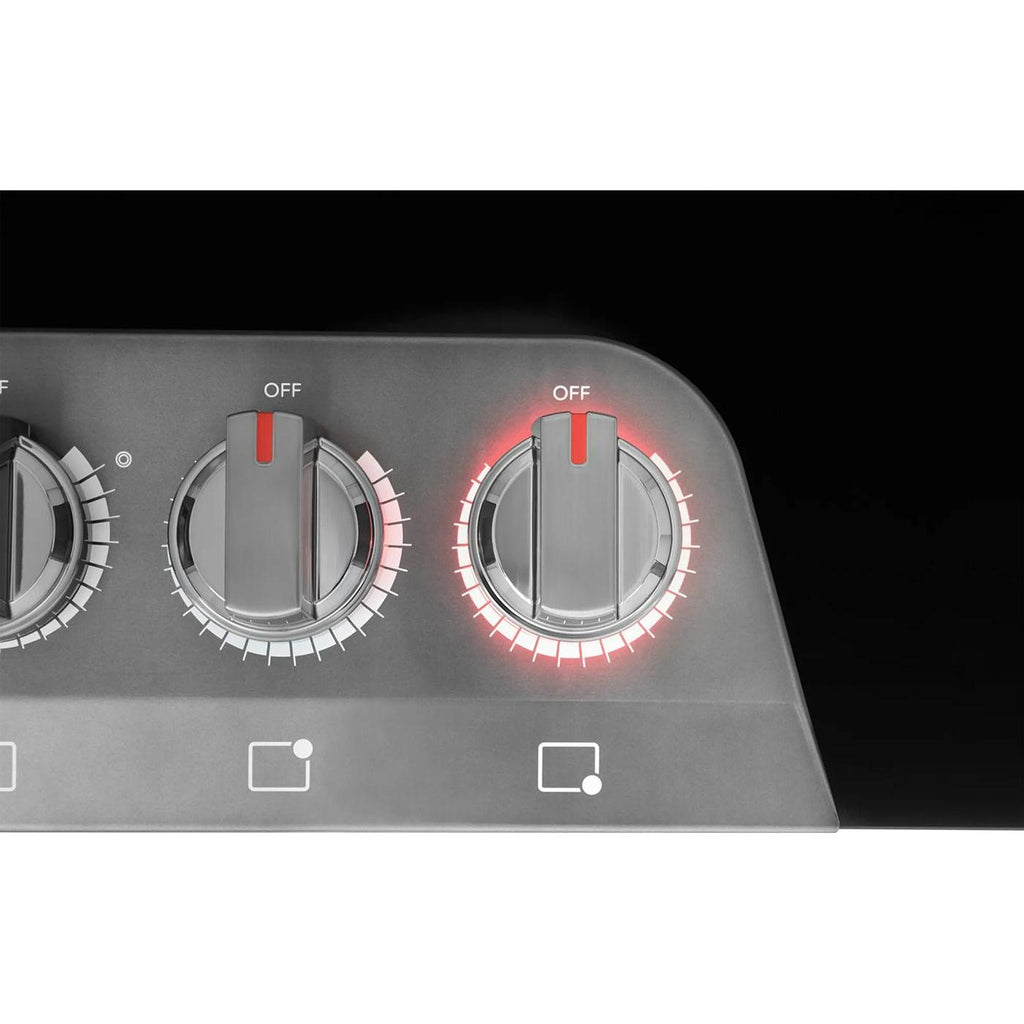

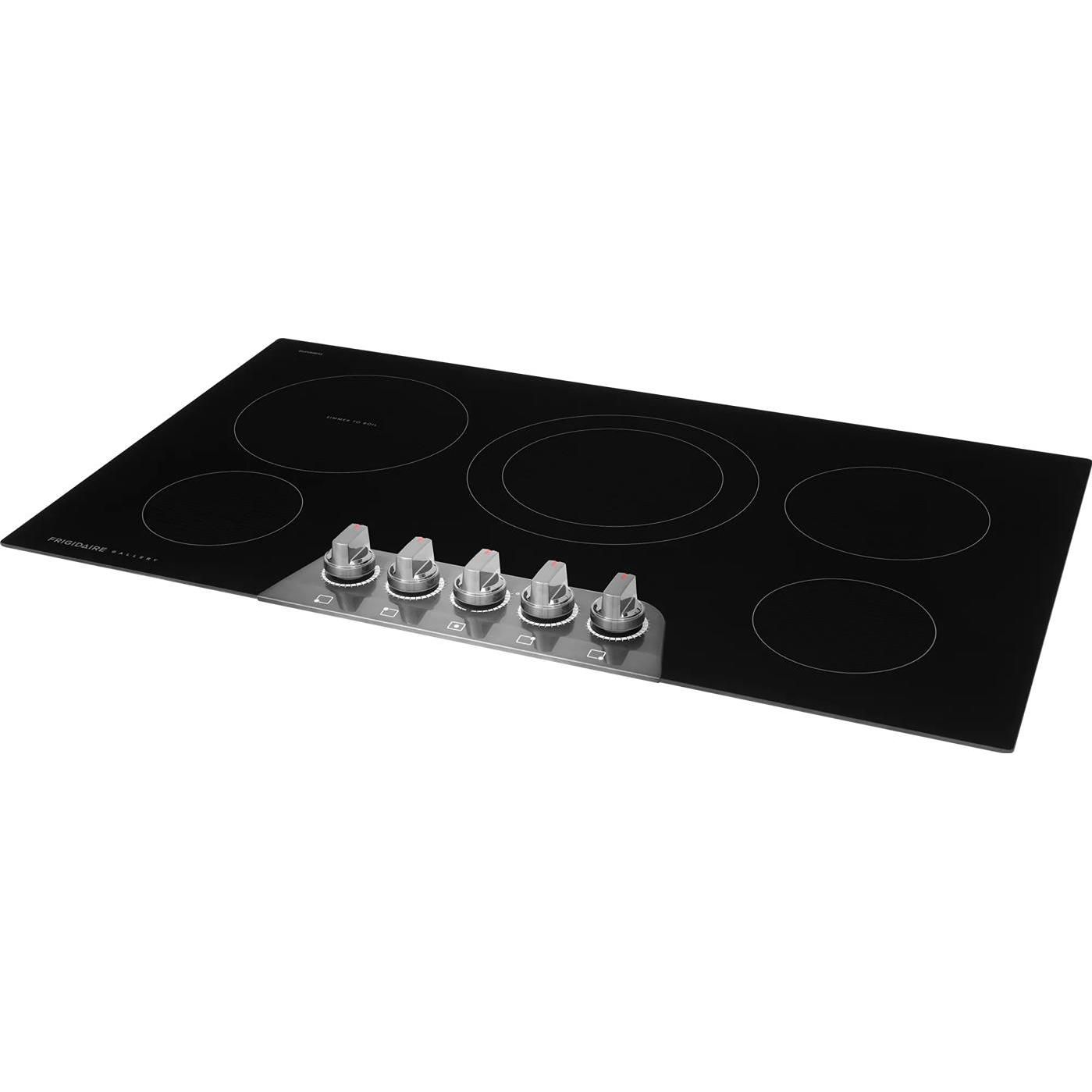

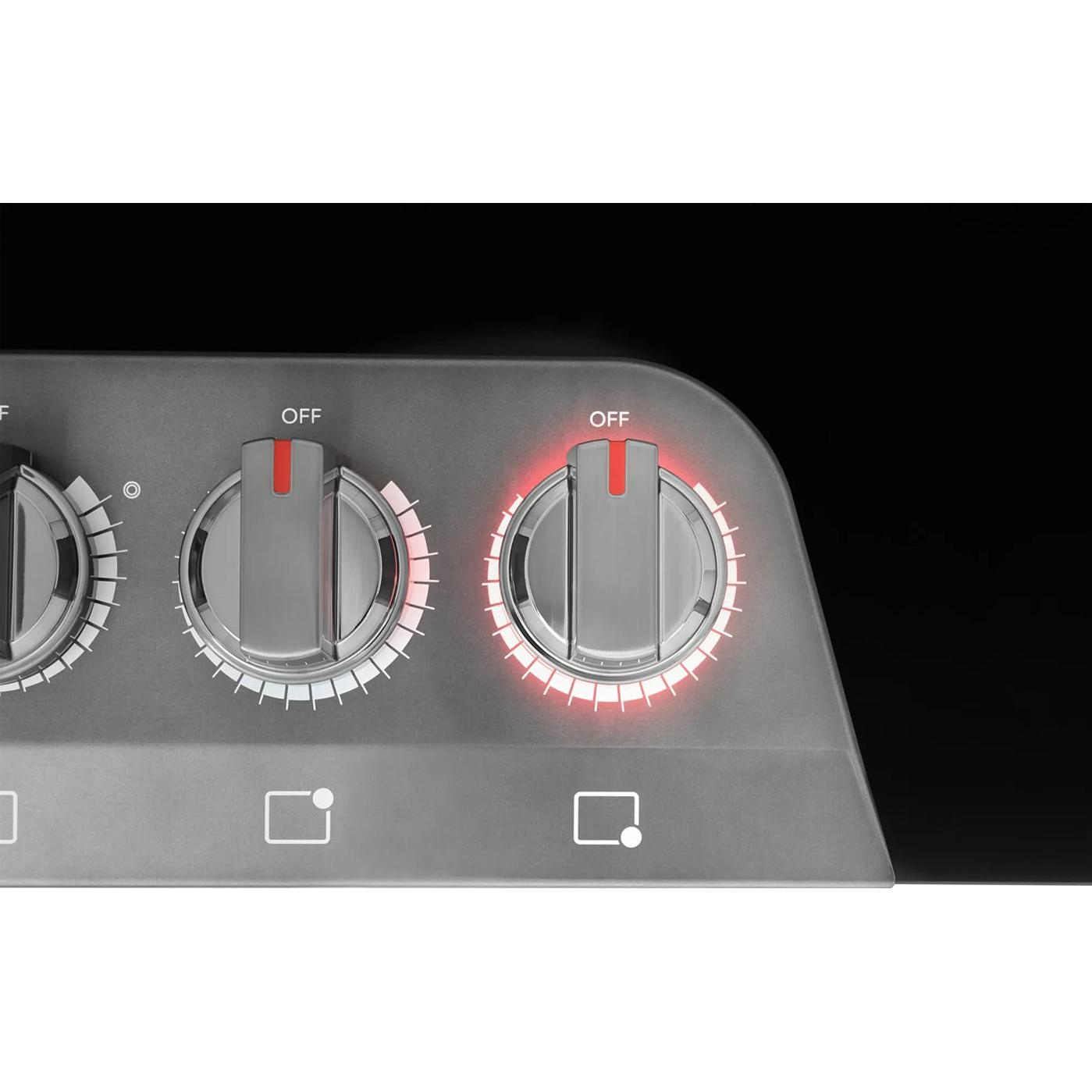

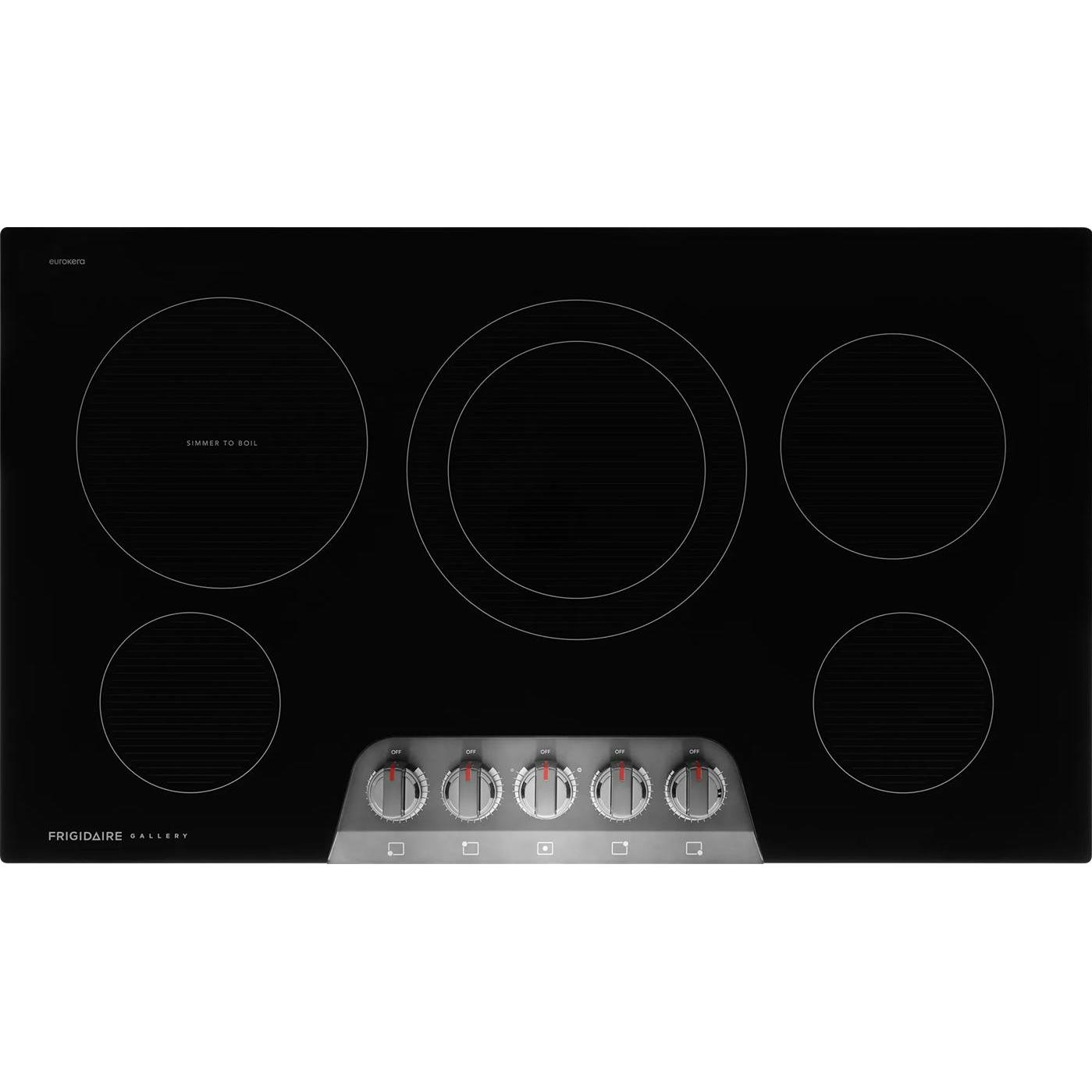

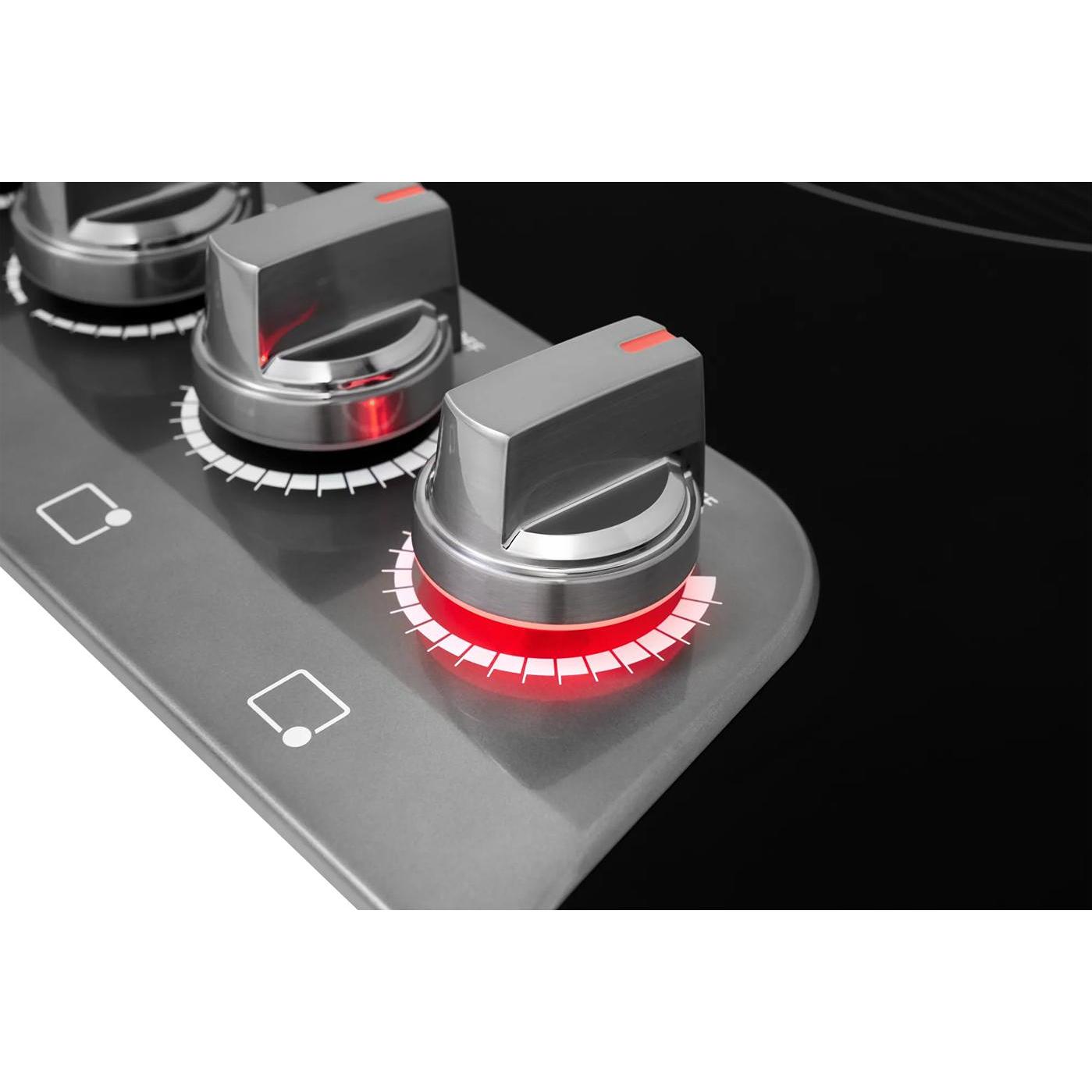

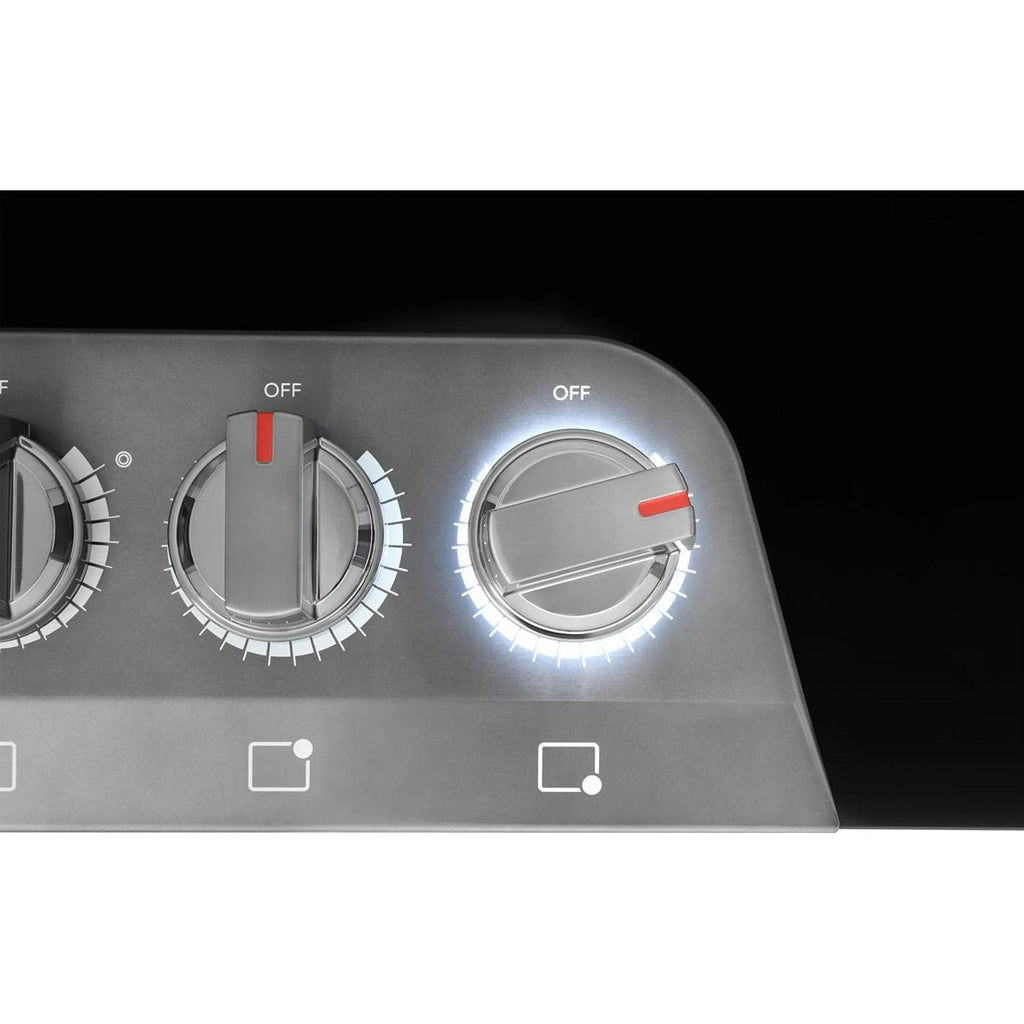

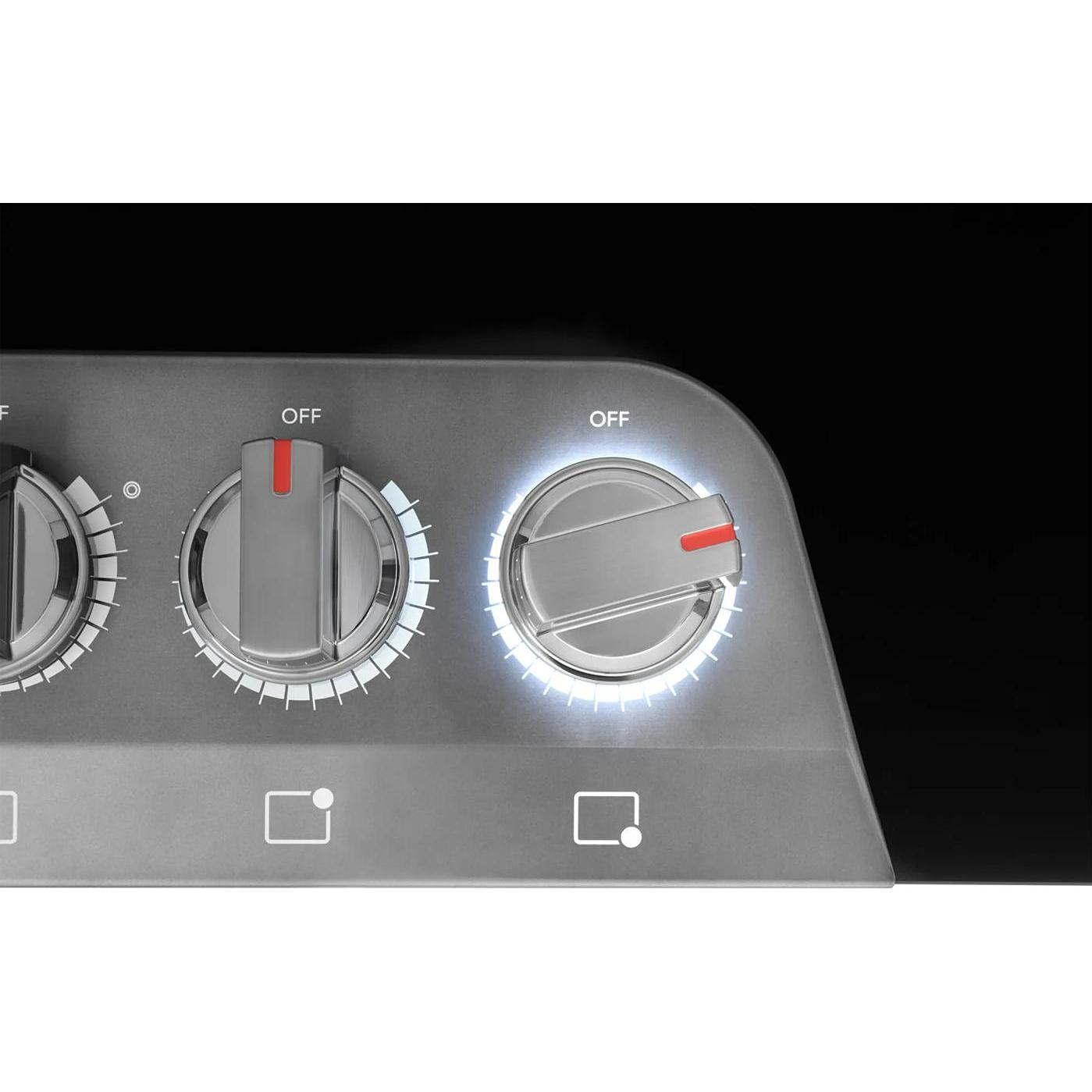

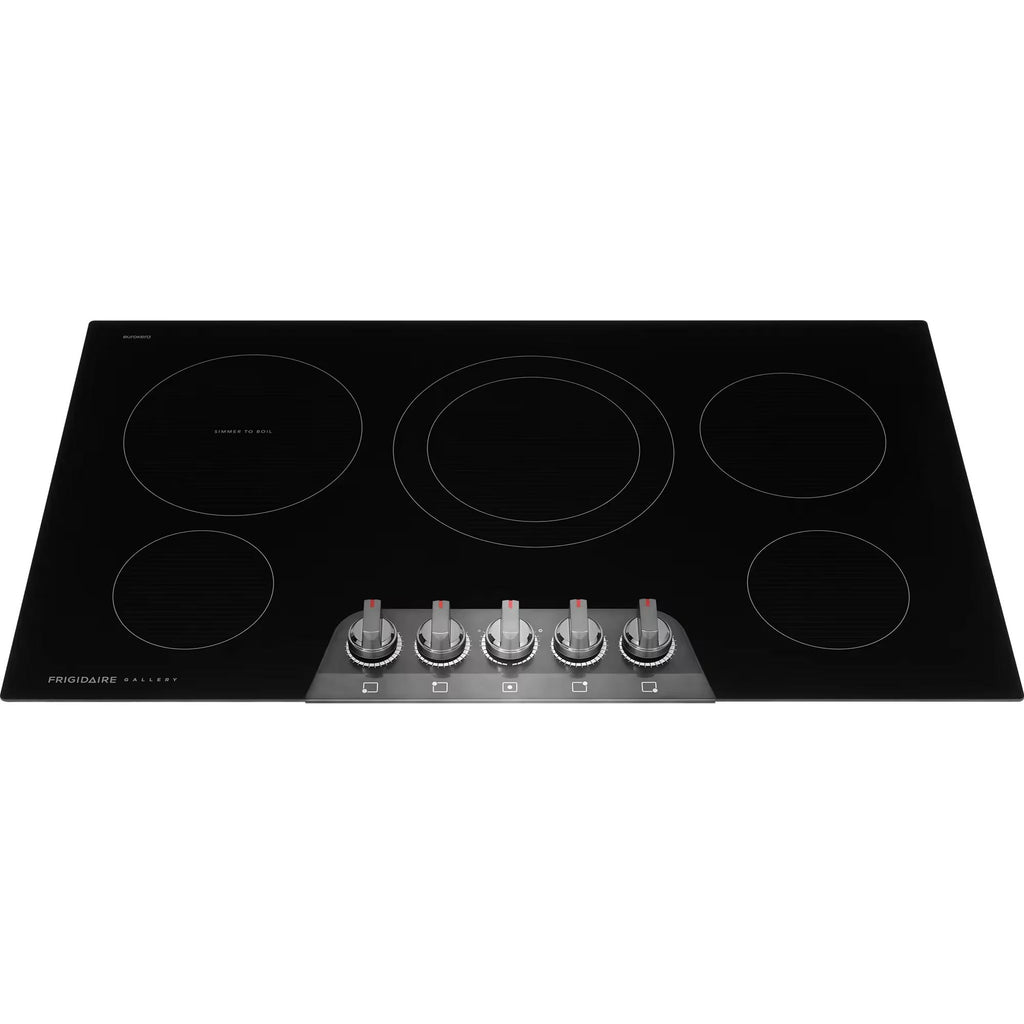

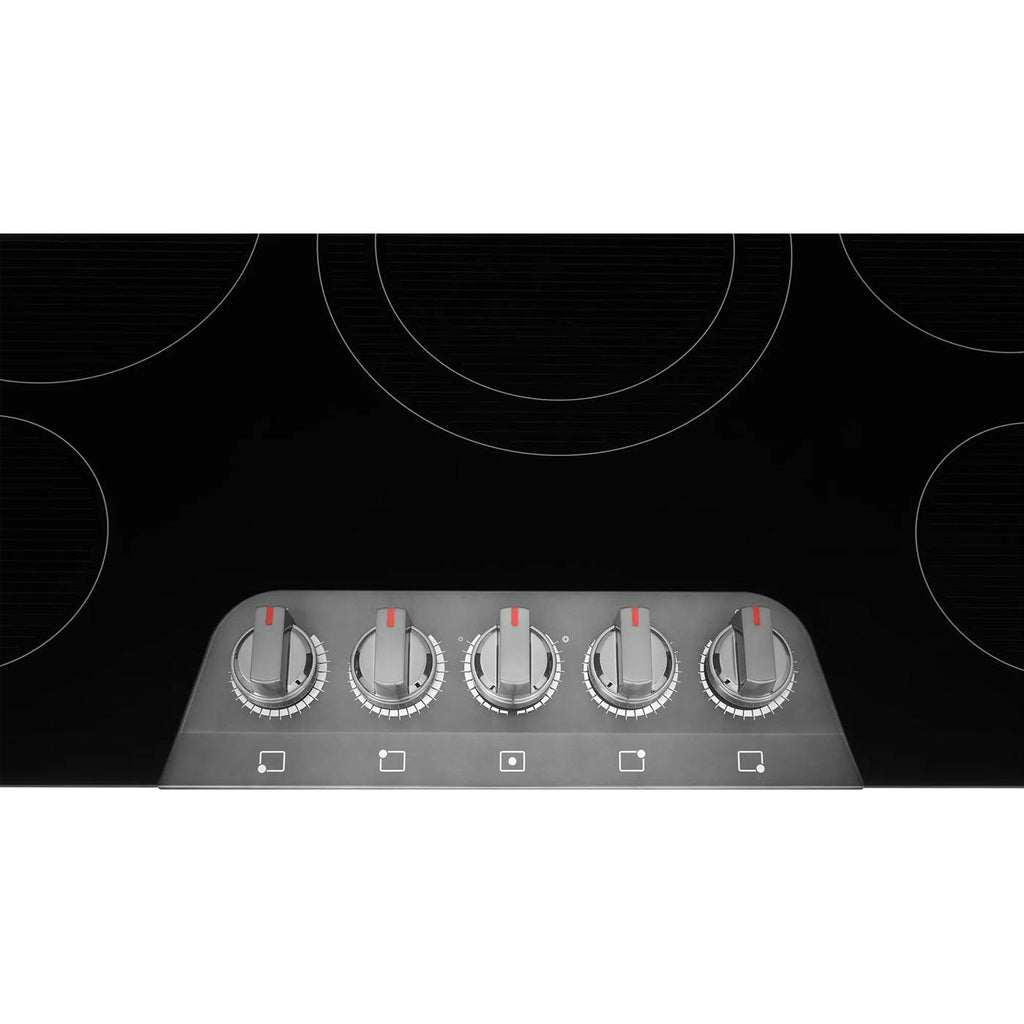

×The Frigidaire Gallery 36" Electric Cooktop offers expansive cooking versatility with five powerful elements designed to handle everyday meals and elaborate dishes alike. Featuring a 3,200-Watt EvenTemp™ element for fast, consistent heat, a flexible dual center element that expands from 9" to 12", and a convenient Keep Warm zone, it adapts to cookware of all sizes. Backlit LED knobs illuminate when in use for added safety, while the smooth ceramic glass surface and front control design ensure easy cleaning and effortless temperature control.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Front Element Burner: 1200 Watts
• Right Rear Element Burner: 1800 Watts
• Left Front Element Burner: 1200 Watts
• Left Rear Element Burner: 3200 Watts
• Center Rear Element Burner (Small): 1800 Watts
• Center Rear Element Burner (Large): 3000 Watts
• Right Rear Element Burner: 1800 Watts
• Left Front Element Burner: 1200 Watts
• Left Rear Element Burner: 3200 Watts
• Center Rear Element Burner (Small): 1800 Watts
• Center Rear Element Burner (Large): 3000 Watts
Burner/Element Size
• Right Front Element Burner Size: 6"
• Right Rear Element Burner Size: 7"
• Left Front Element Burner Size: 6"
• Left Rear Element Burner Size: 9"
• Center Rear Element Burner Size (Small): 9"
• Center Rear Element Burner Size (Large): 12"
• Right Rear Element Burner Size: 7"
• Left Front Element Burner Size: 6"
• Left Rear Element Burner Size: 9"
• Center Rear Element Burner Size (Small): 9"
• Center Rear Element Burner Size (Large): 12"
Elements
Smoothtop
Features
Additional Information
• Control Location: Front
• Power Supply Connection Location: Right Center
• Power Supply Connection Location: Right Center
Electrical Information
Information
• Amps @ 240 Volts: 43.3 Amps
• Connected Load @ 240V: 10.4 kW
• Minimum Circuit Required: 50 Amps
• Voltage Rating: 240 V
• Connected Load @ 240V: 10.4 kW
• Minimum Circuit Required: 50 Amps
• Voltage Rating: 240 V
Certifications and Approvals
ADA Compliant
Yes
Information
CSA, UL
Dimensions
Class Width
36"
Width
36.75 inch(es) / 93.35 cm
Height
2.63 inch(es) / 6.67 cm
Depth
21.37 inch(es) / 54.29 cm
Weight
35.01 lb(s) / 15.88 kg
Additional Dimensions
• Cutout Height: 5"
• Minimum Cutout Width: 33 7/8"
• Minimum Cutout Depth: 19 1/8"
• Maximum Cutout Width: 36 1/8"
• Maximum Cutout Depth: 20 1/2"
• Minimum Cutout Width: 33 7/8"
• Minimum Cutout Depth: 19 1/8"
• Maximum Cutout Width: 36 1/8"
• Maximum Cutout Depth: 20 1/2"
Warranty
Warranty
Warranty - Labor: 1 Year
