DESCRIPTION

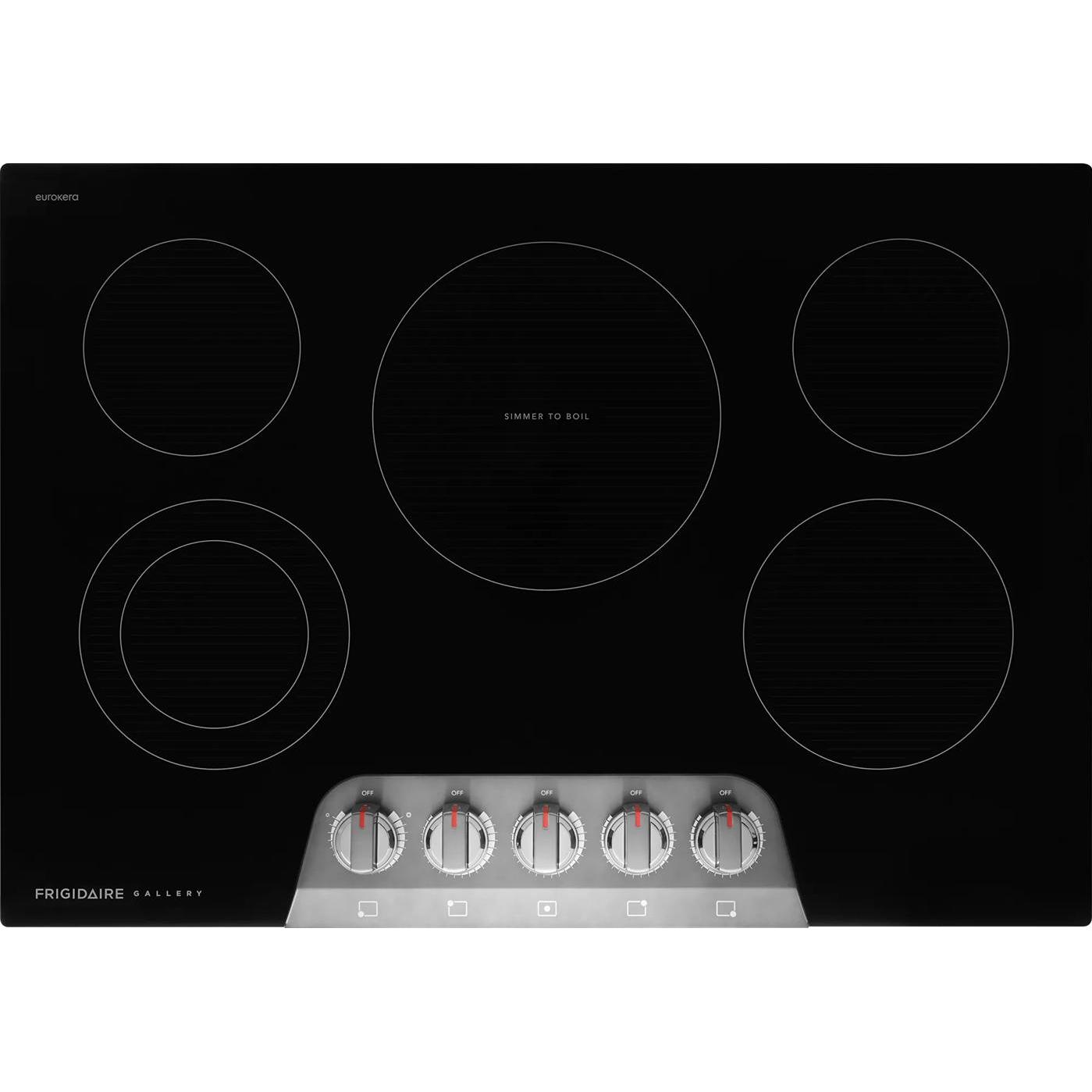

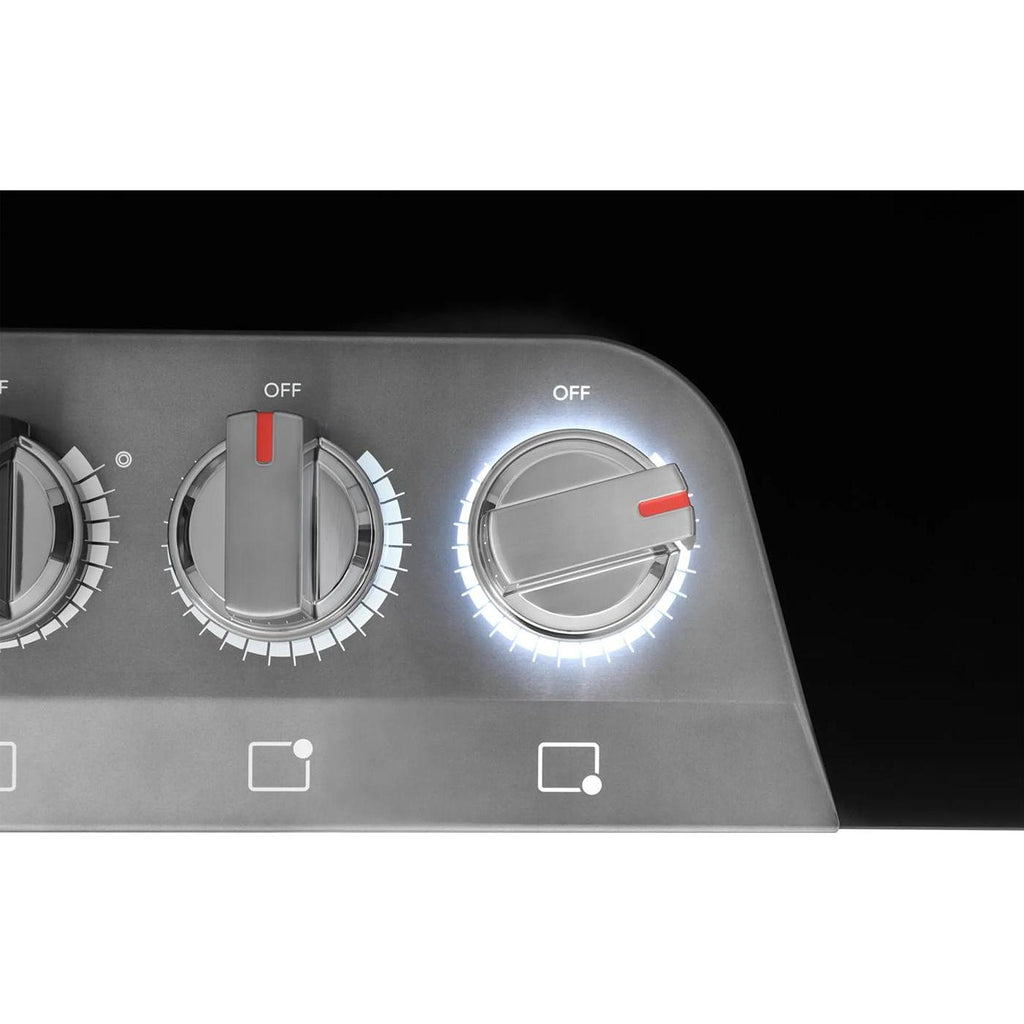

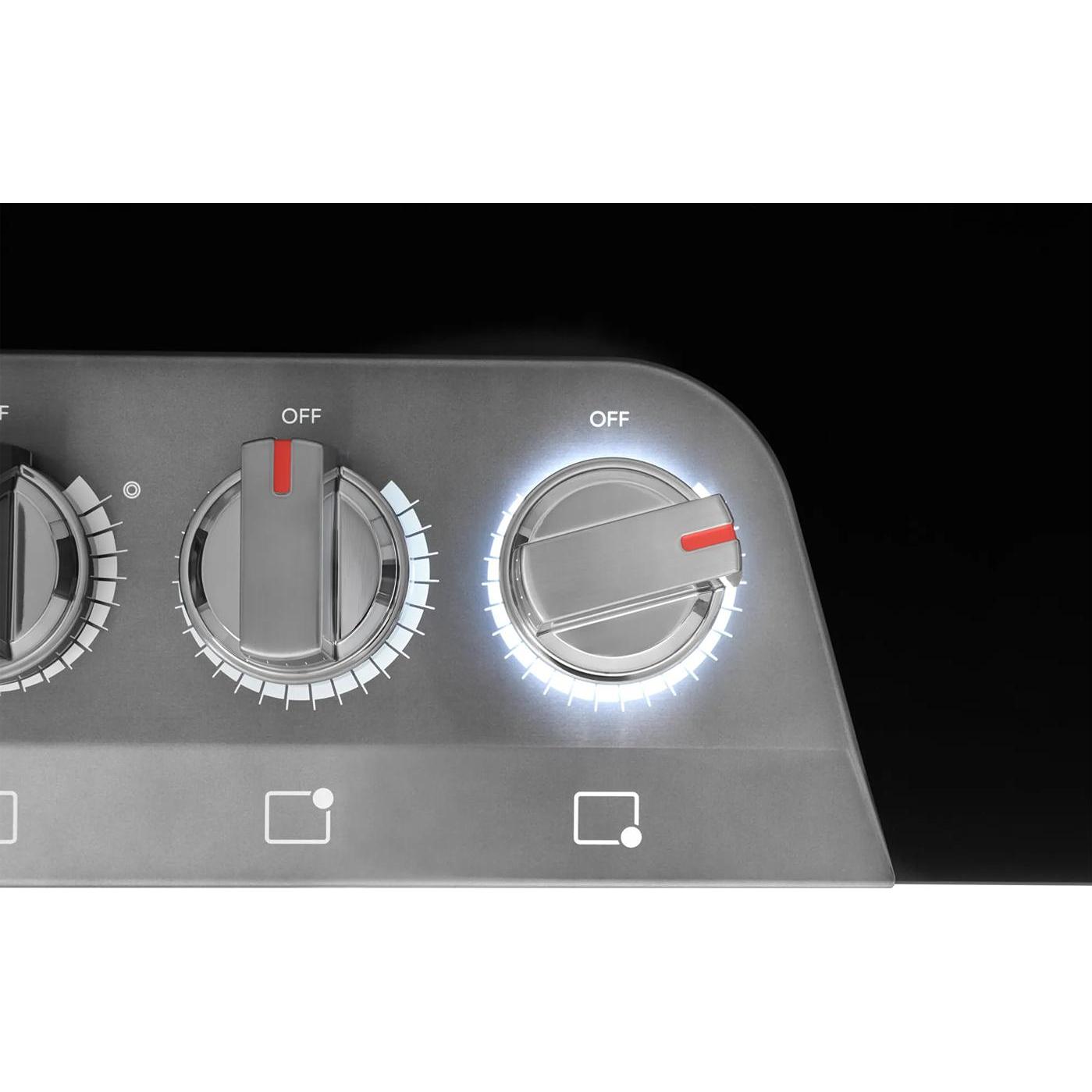

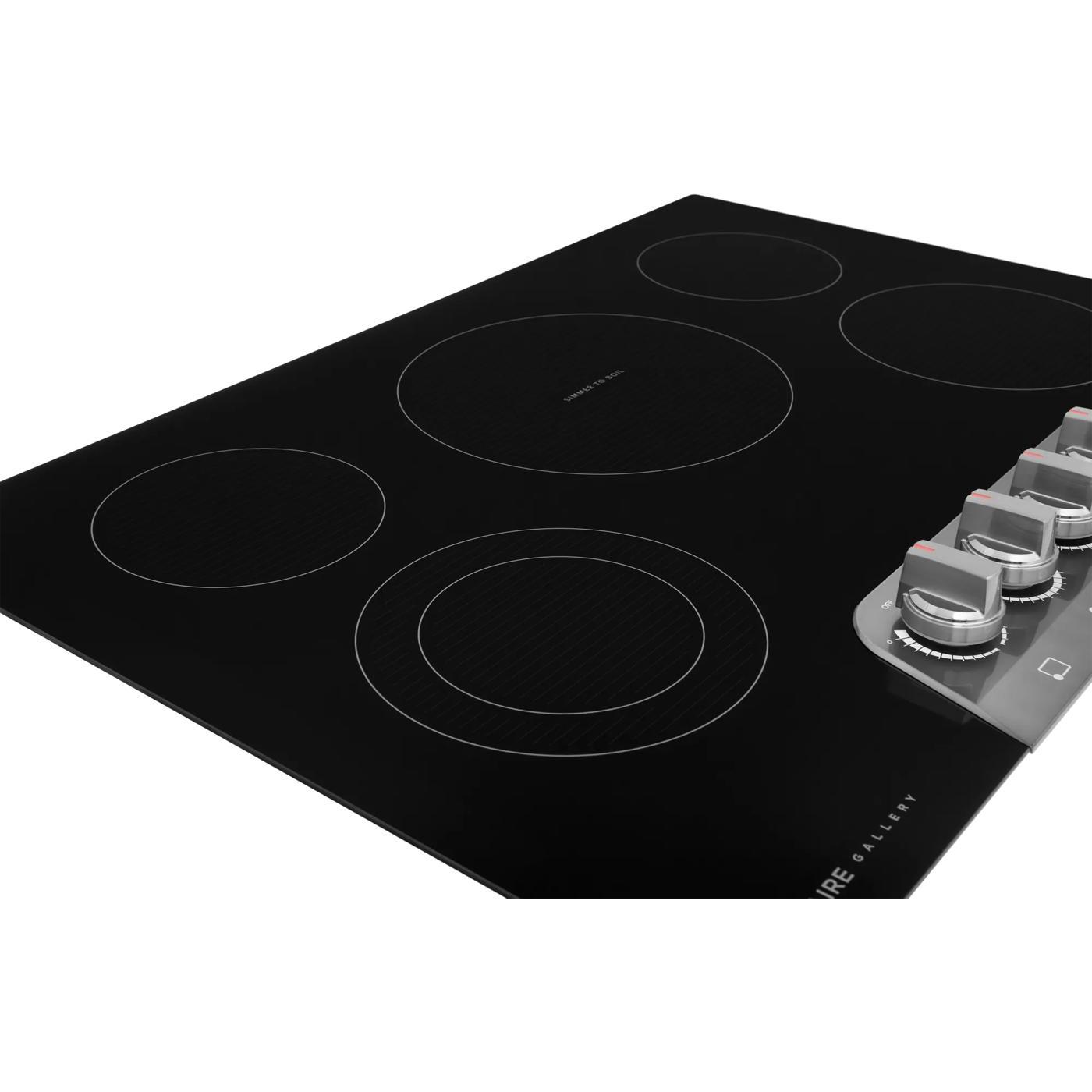

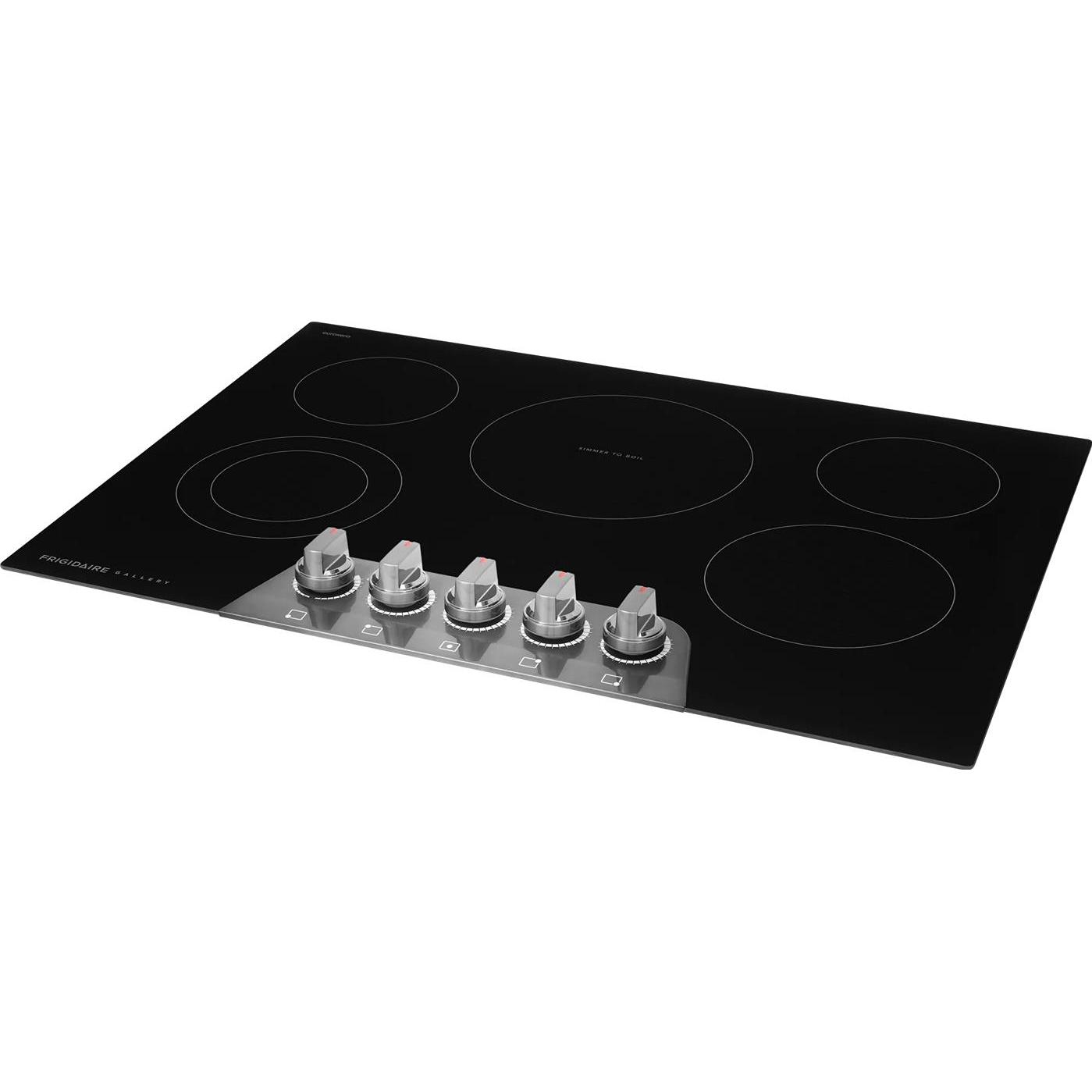

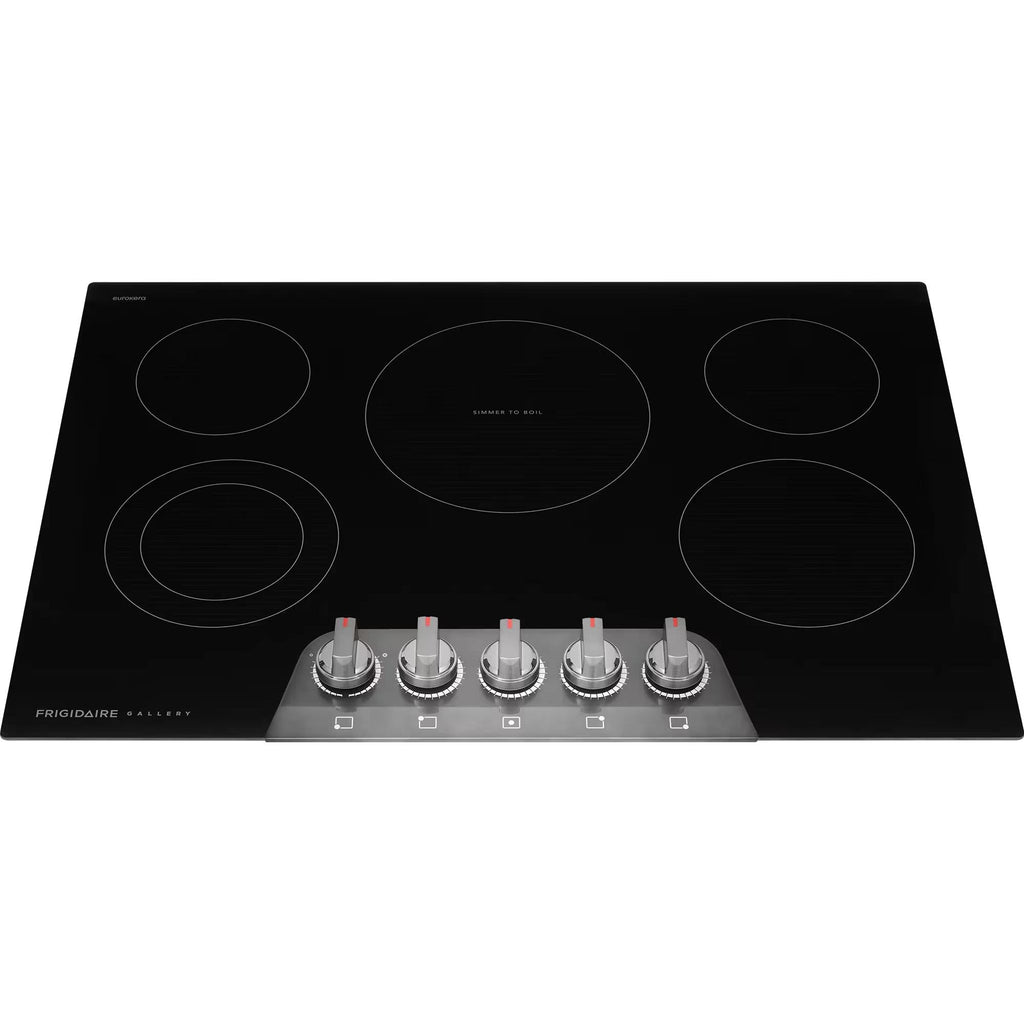

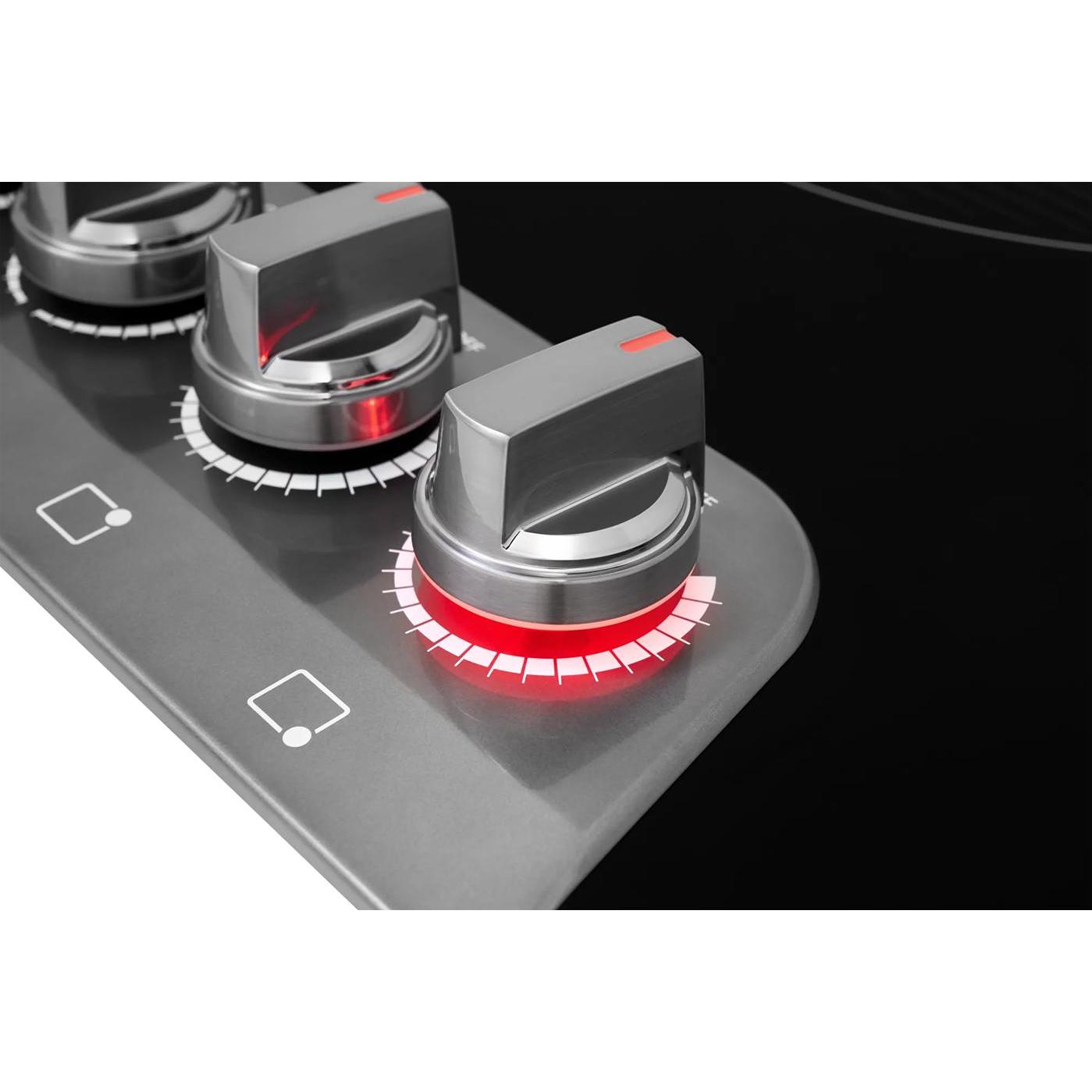

×The Frigidaire Gallery 30" five-element electric cooktop is built to handle all your cooking needs with power and precision. It features a 3,200-Watt EvenTemp™ element for fast, consistent heat, a versatile 2-in-1 dual element that expands from 9" to 12", and a convenient Keep Warm zone. Backlit LED knobs illuminate when in use for added safety, while the smooth ceramic glass surface and front control design provide both easy cleaning and convenient temperature adjustment.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Front Element Burner: 1800 Watts
• Right Rear Element Burner: 1200 Watts
• Left Front Element Burner (Small): 750 Watts
• Left Front Element Burner (Large): 1800 Watts
• Left Rear Element Burner: 1200 Watts
• Center Rear Element Burner: 3200 Watts
• Right Rear Element Burner: 1200 Watts
• Left Front Element Burner (Small): 750 Watts
• Left Front Element Burner (Large): 1800 Watts
• Left Rear Element Burner: 1200 Watts
• Center Rear Element Burner: 3200 Watts
Burner/Element Size
• Right Front Element Burner Size: 7"
• Right Rear Element Burner Size: 6"
• Left Front Element Burner Size (Small): 5"
• Left Front Element Burner Size (Large): 7"
• Left Rear Element Burner Size: 6"
• Center Rear Element Burner Size: 9"
• Right Rear Element Burner Size: 6"
• Left Front Element Burner Size (Small): 5"
• Left Front Element Burner Size (Large): 7"
• Left Rear Element Burner Size: 6"
• Center Rear Element Burner Size: 9"
Elements
Smoothtop
Features
Additional Information

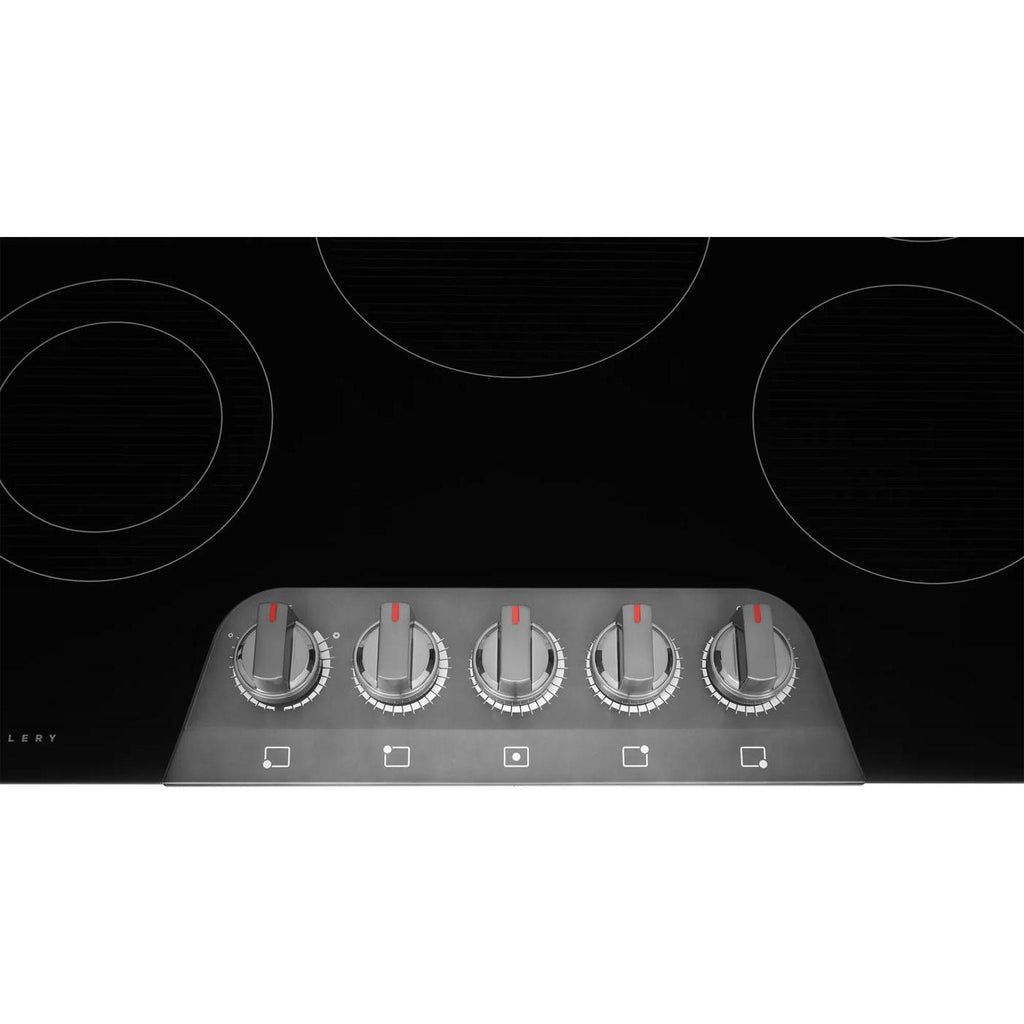

• Control Location: Front
• Power Supply Connection Location: Right Center
• Power Supply Connection Location: Right Center
Electrical Information
Information
• Amps @ 240 Volts: 38.3 Amps
• Connected Load @ 240V: 9.2 kW
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
• Connected Load @ 240V: 9.2 kW
• Minimum Circuit Required: 40 Amps
• Voltage Rating: 240 V
Certifications and Approvals
ADA Compliant
Yes
Information
CSA, UL
Dimensions
Class Width
30"
Width
28.5 inch(es) / 72.39 cm
Height
2.63 inch(es) / 6.67 cm
Depth
21.37 inch(es) / 54.29 cm
Weight
31 lb(s) / 14.06 kg
Additional Dimensions
• Cutout Height: 5"
• Minimum Cutout Width: 28 1/2"
• Minimum Cutout Depth: 19 5/8"
• Maximum Cutout Width: 29 7/8"
• Maximum Cutout Depth: 20 1/2"
• Minimum Cutout Width: 28 1/2"
• Minimum Cutout Depth: 19 5/8"
• Maximum Cutout Width: 29 7/8"
• Maximum Cutout Depth: 20 1/2"
Warranty
Warranty
Warranty - Labor: 1 Year
