DESCRIPTION

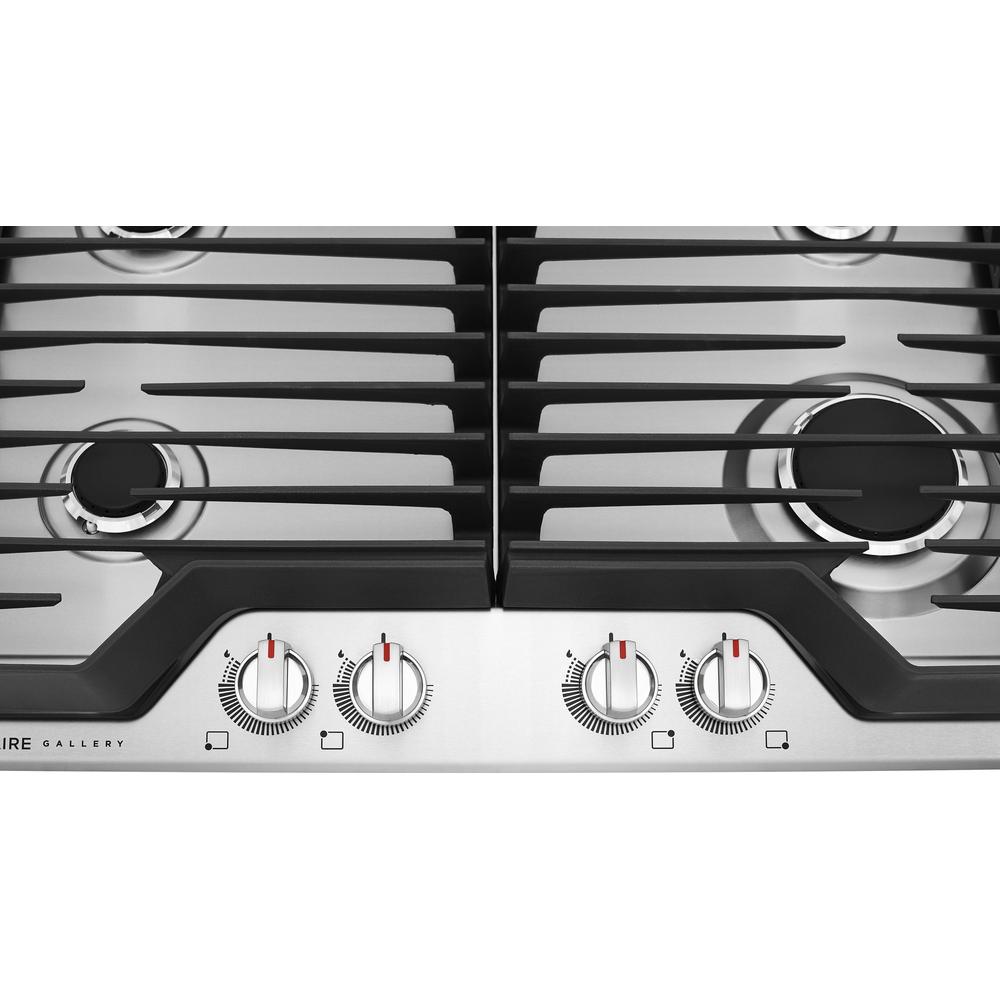

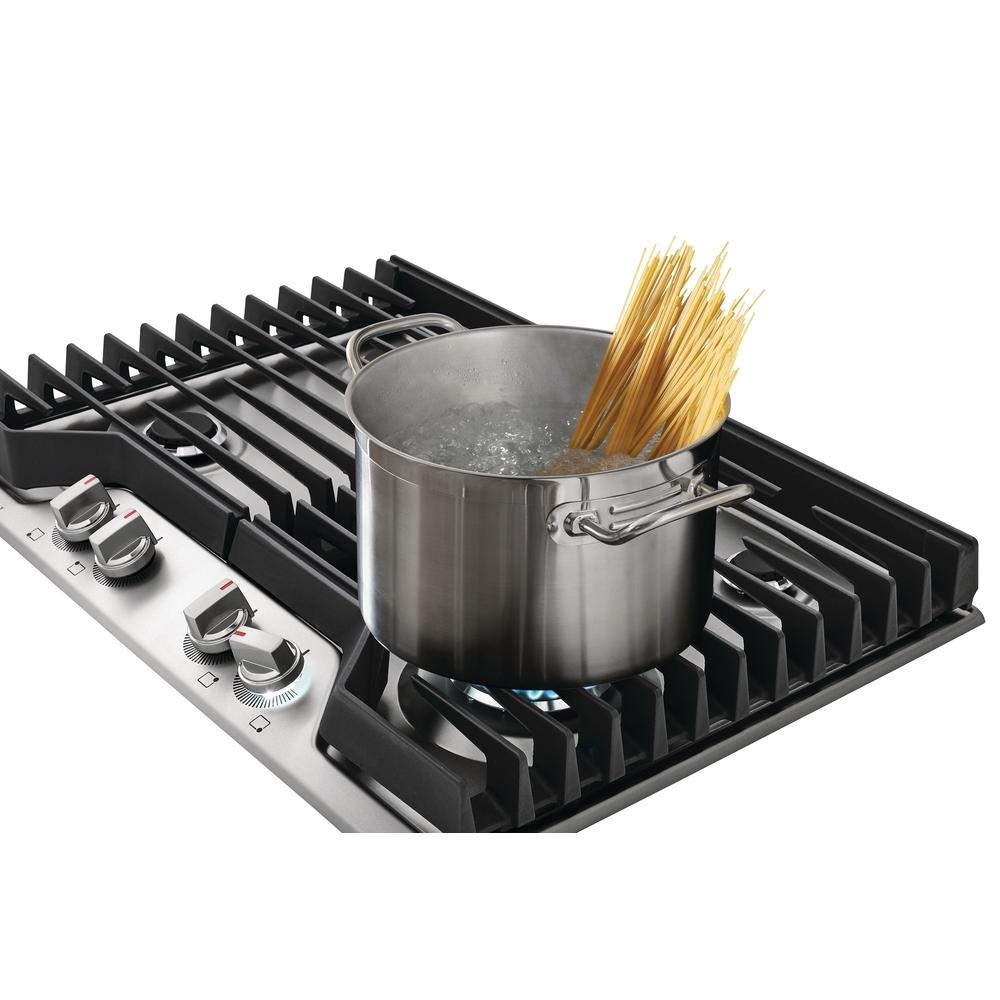

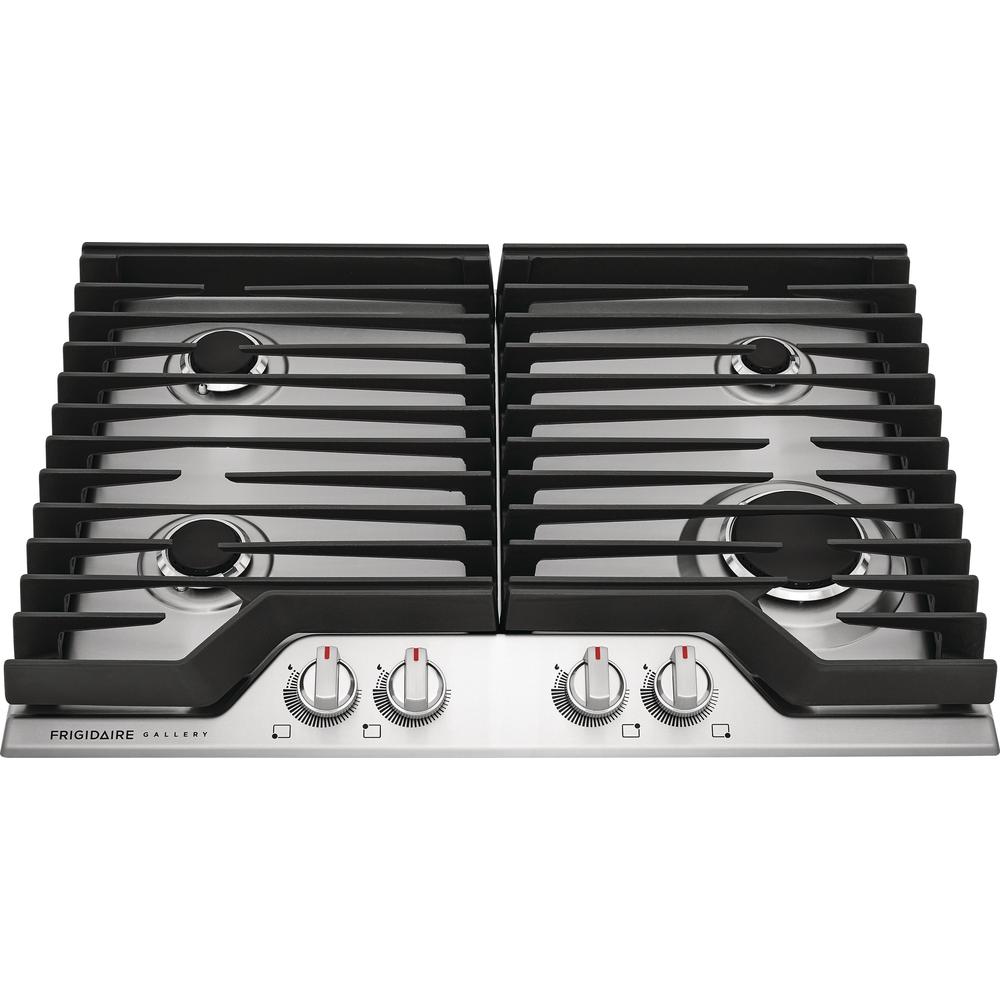

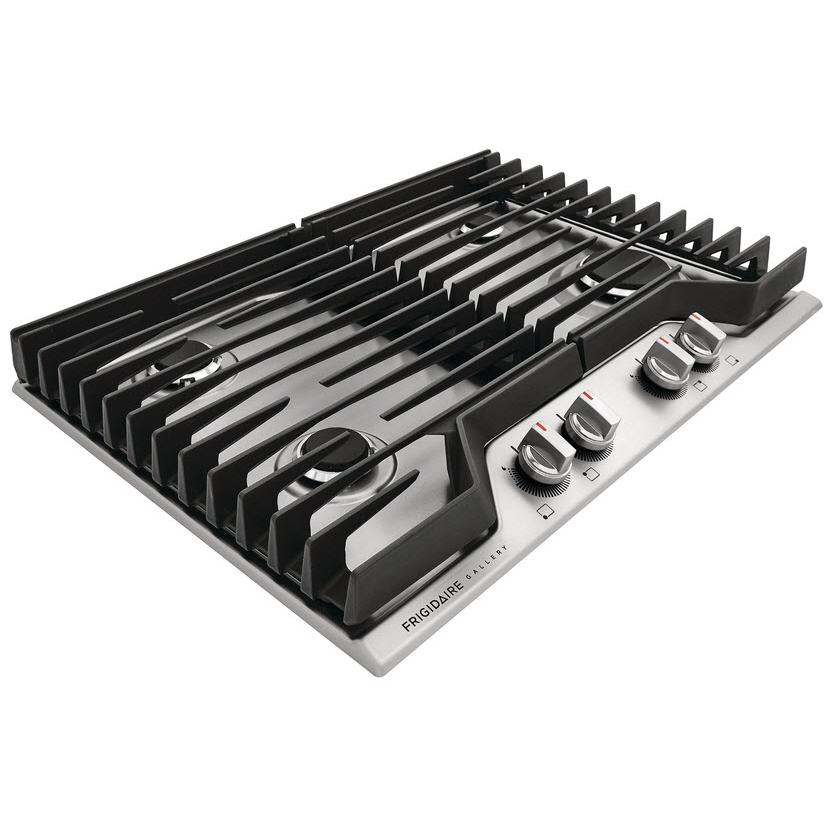

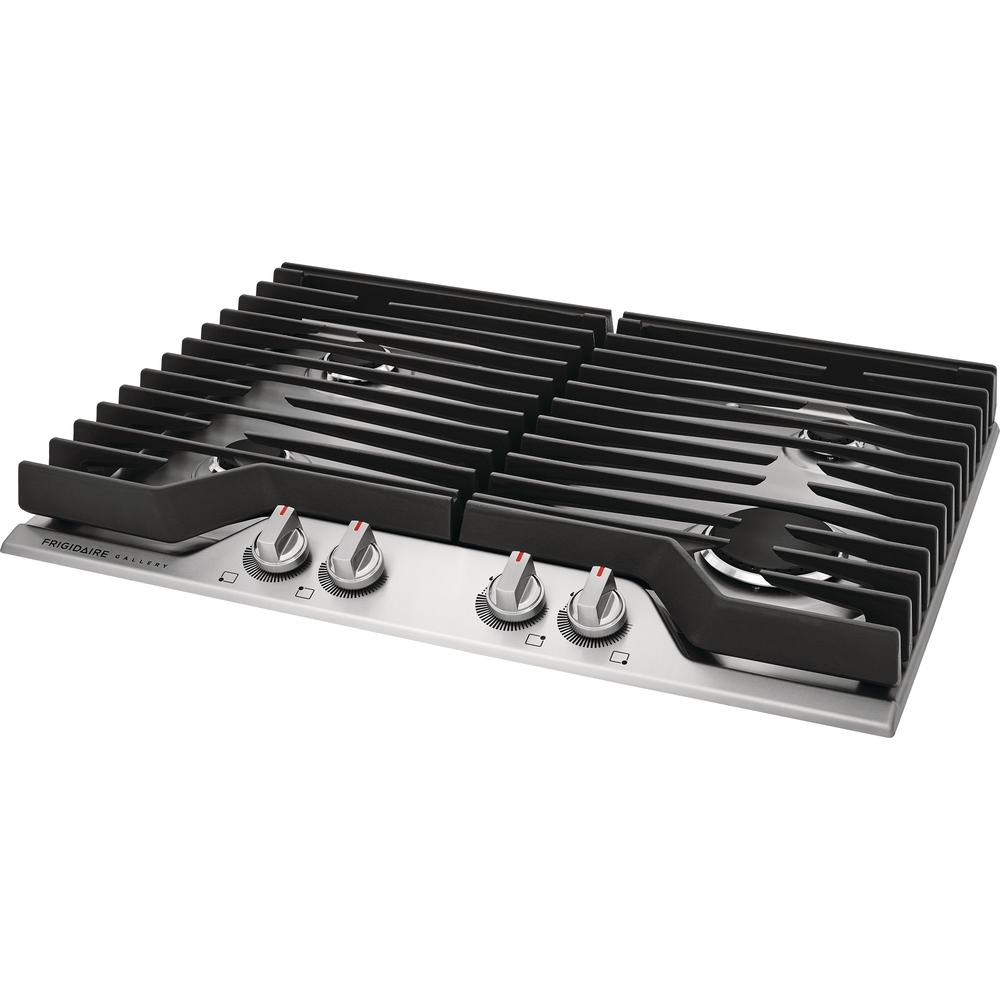

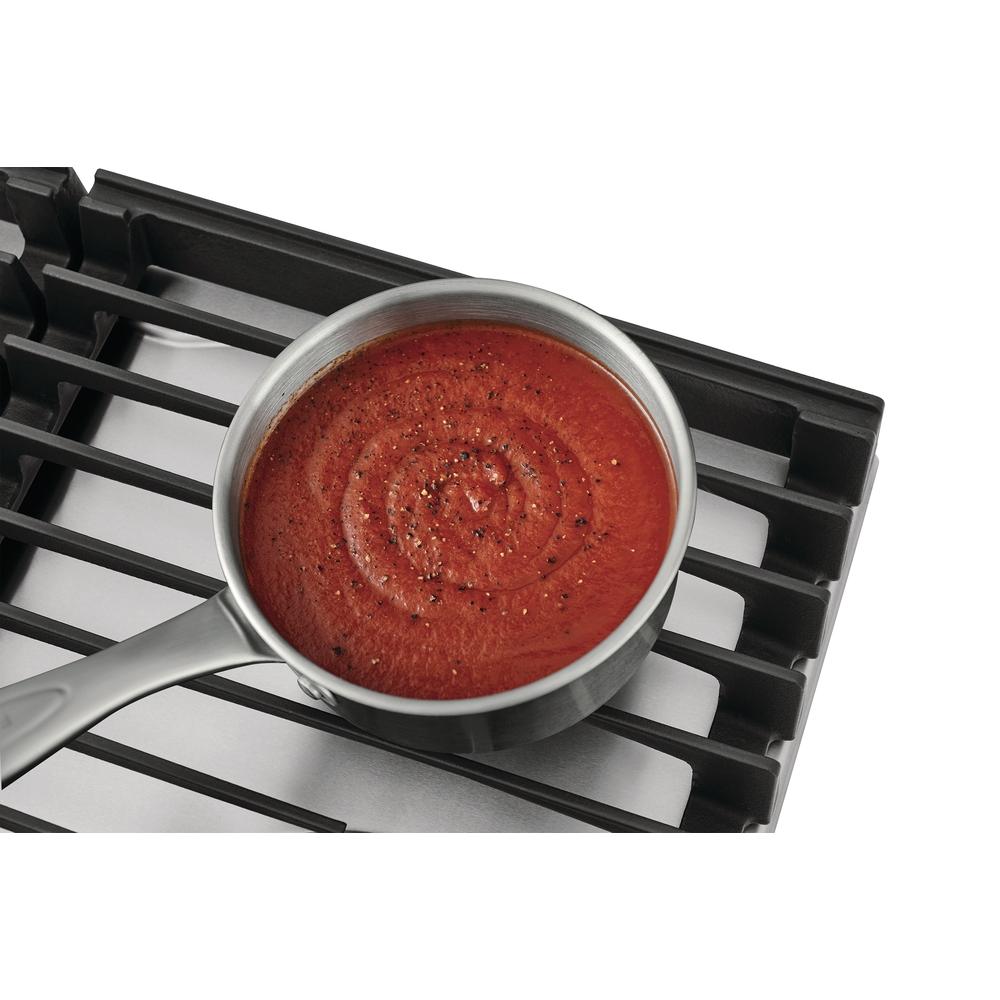

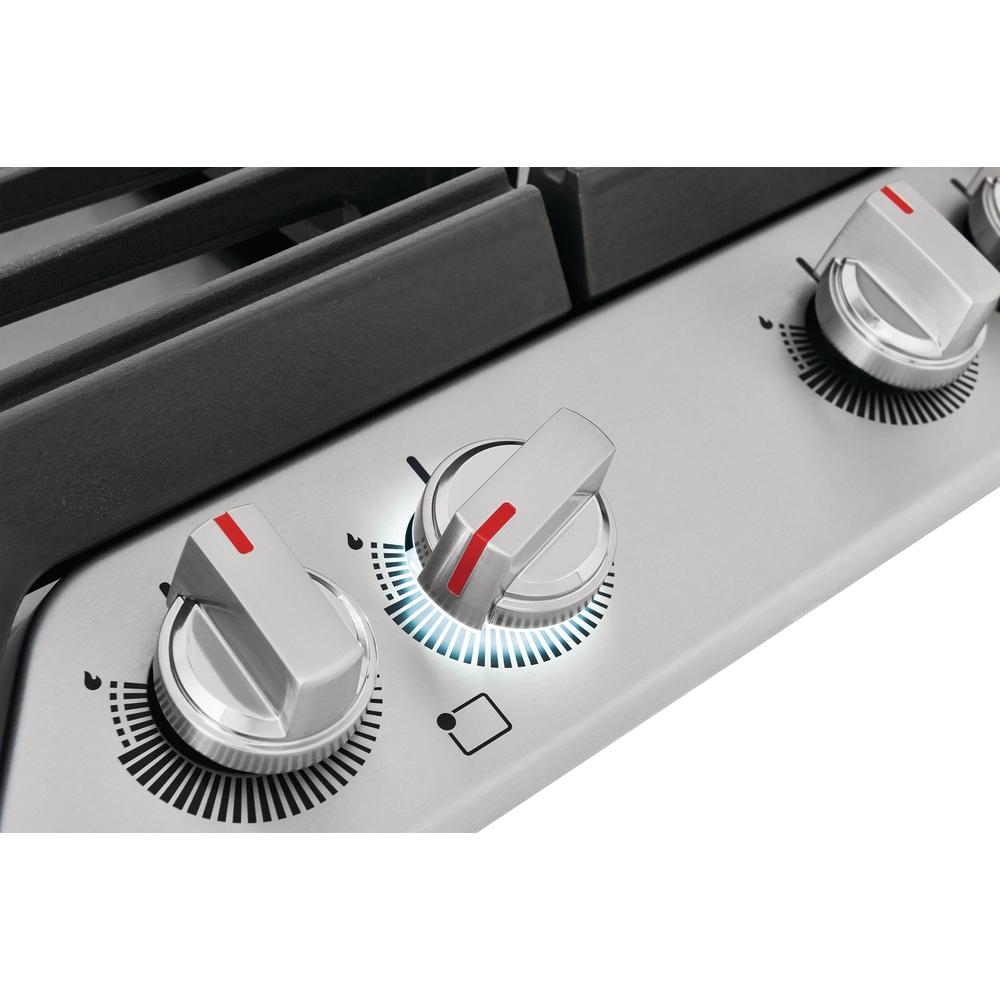

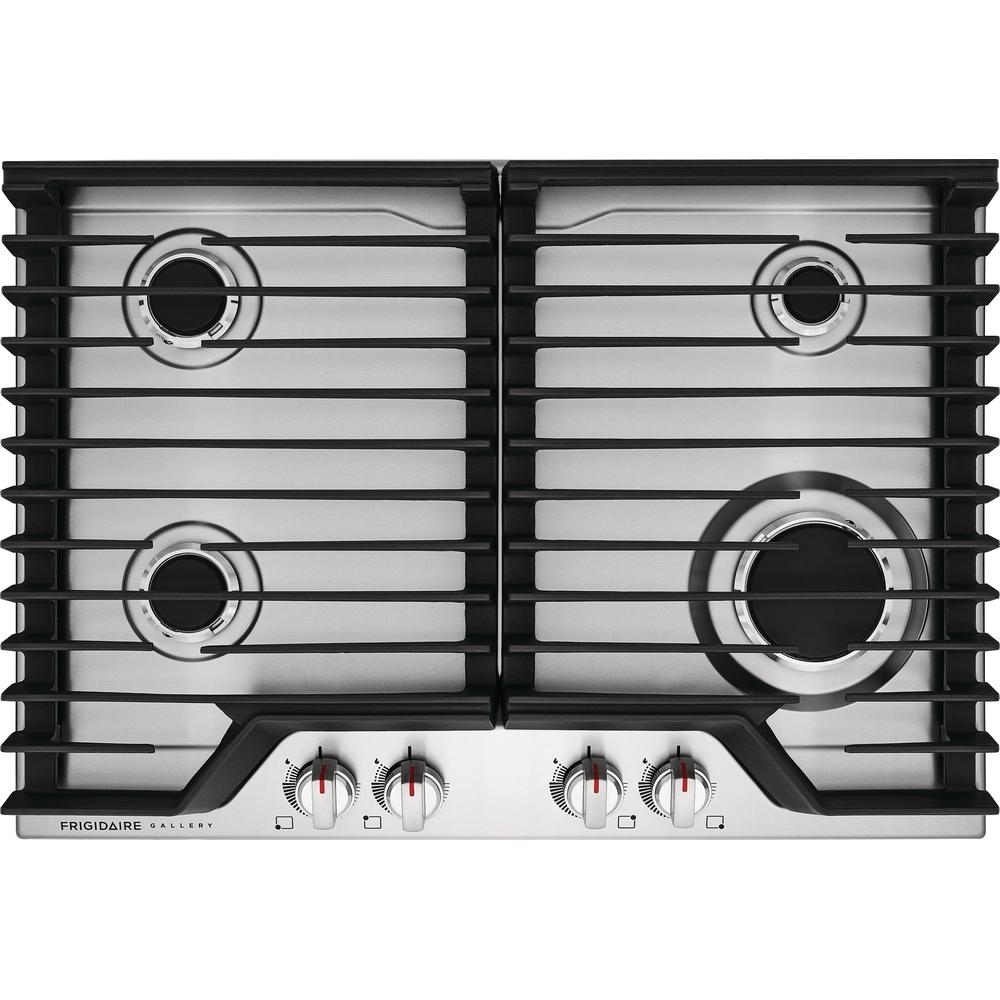

×Frigidaire Gallery 30-inch gas cooktop with 4 burners. Experience faster boil times and more powerful cooking with the 18,000 BTU burner. Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom. Backlit LED knobs light up when the cooktop is in use.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Right Front Element Burner: 18,000 BTU
• Right Rear Element Burner: 5,000 BTU
• Left Front Element Burner: 9,500 BTU
• Left Rear Element Burner: 9,500 BTU
• Right Rear Element Burner: 5,000 BTU
• Left Front Element Burner: 9,500 BTU
• Left Rear Element Burner: 9,500 BTU
Burners

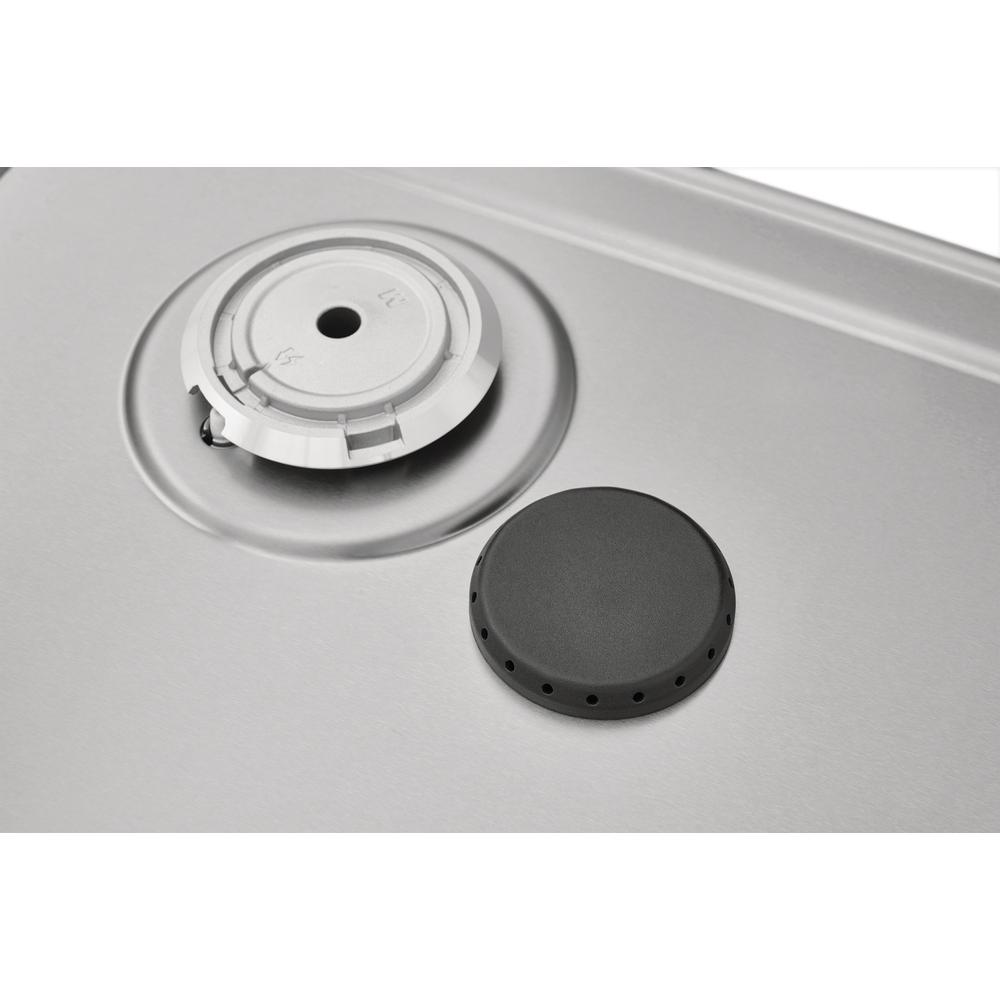

Sealed
Surface Features
• Grate Material: Cast Iron
• Grate Quantity: 2
• Grate Style: Continuous
• Grate Quantity: 2
• Grate Style: Continuous
Features
Additional Information
• Gas supply connection location: Top right
• Power supply connection location: Top right
• Backlit knobs
• Control location: Front
• Power supply connection location: Top right
• Backlit knobs
• Control location: Front
Electrical Information
Information
• Minimum Circuit Required: 5 Amps
• Voltage Rating 120 V
• Voltage Rating 120 V
Certifications and Approvals
ADA Compliant
Yes
Information
• CSA Listed
• UL Listed
• UL Listed
Accessories
Included
• Power cord included
• LP conversion kit included
• LP conversion kit included
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
2.44 inch(es) / 6.2 cm
Depth
21 inch(es) / 53.34 cm
Additional Dimensions
• Cutout Height: 7 1/2"
• Maximum Cutout Width: 29 5/16"
• Minimum Cutout Width: 27 1/4"
• Maximum Cutout Depth: 20"
• Minimum Cutout Depth: 19"
• Maximum Cutout Width: 29 5/16"
• Minimum Cutout Width: 27 1/4"
• Maximum Cutout Depth: 20"
• Minimum Cutout Depth: 19"
Warranty
Warranty
Limited warranty for parts and labor: 1 year
UPC
UPC#
12505565779
