DESCRIPTION

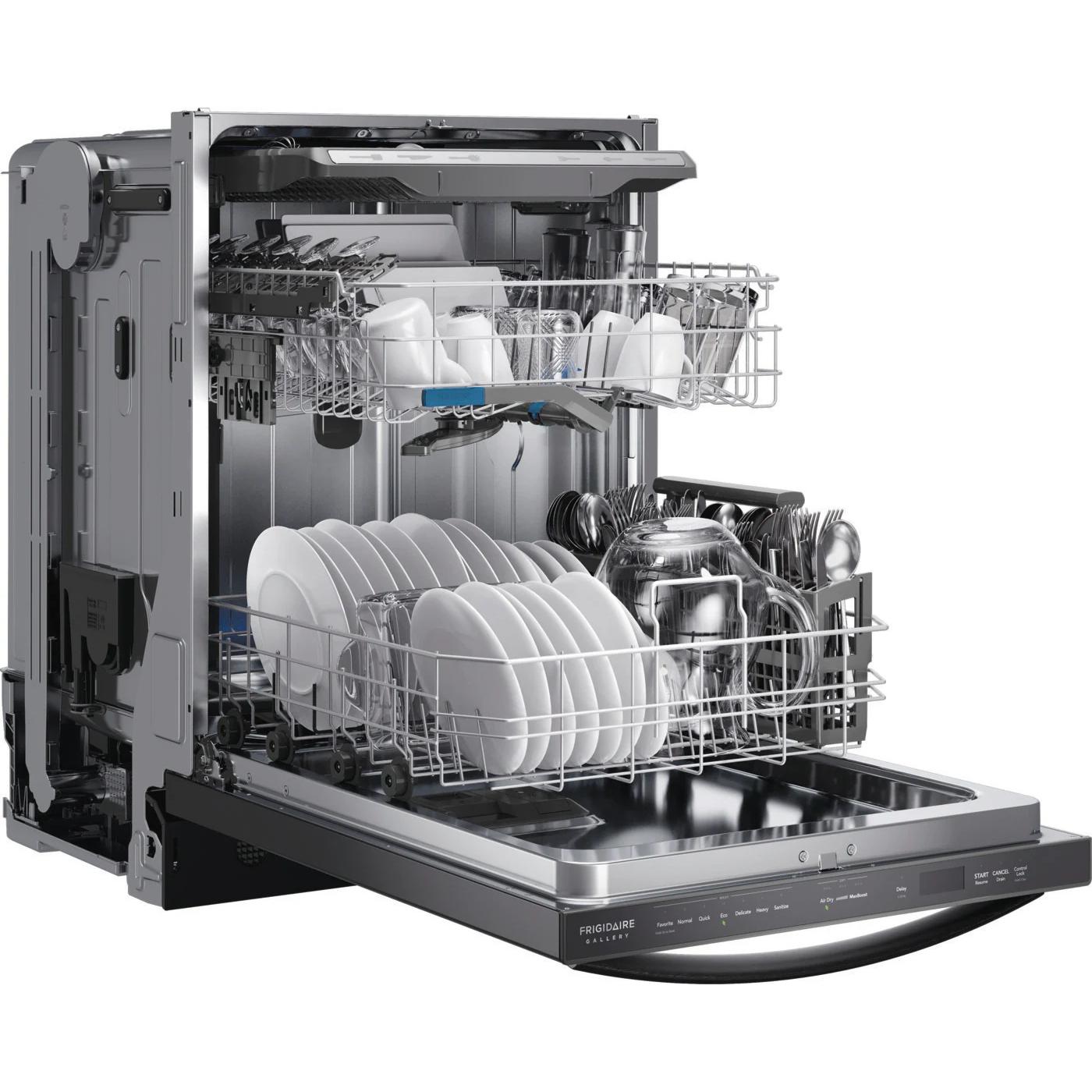

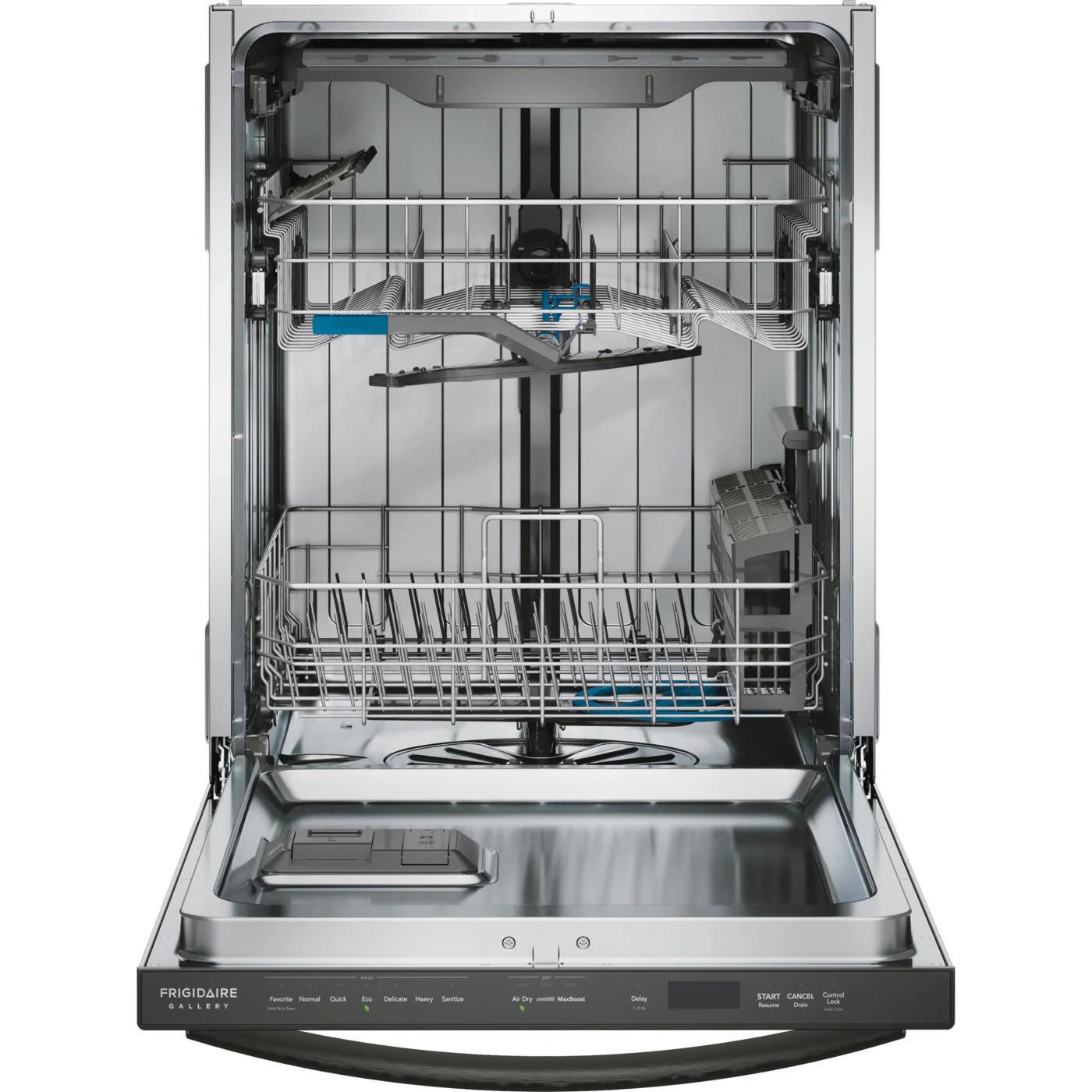

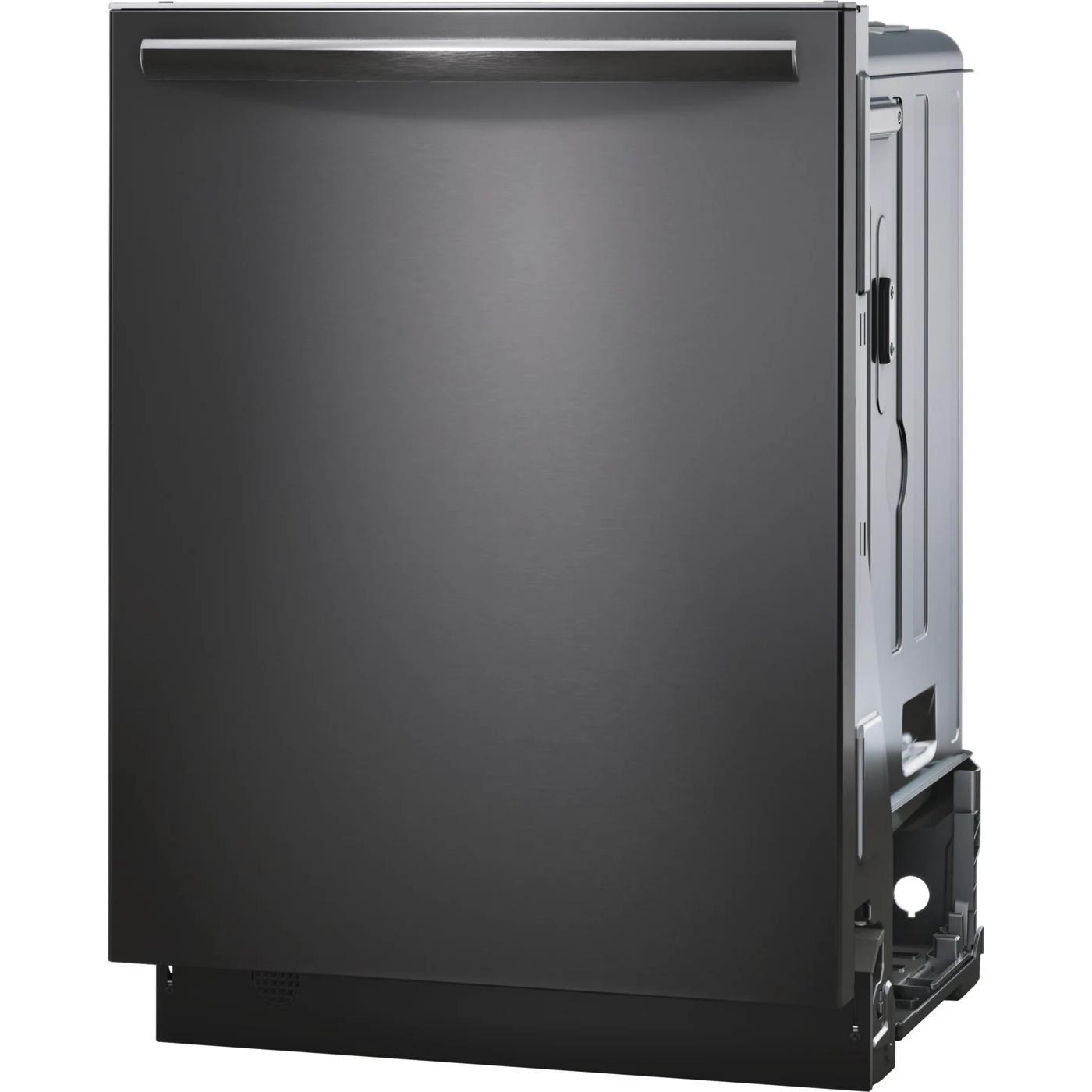

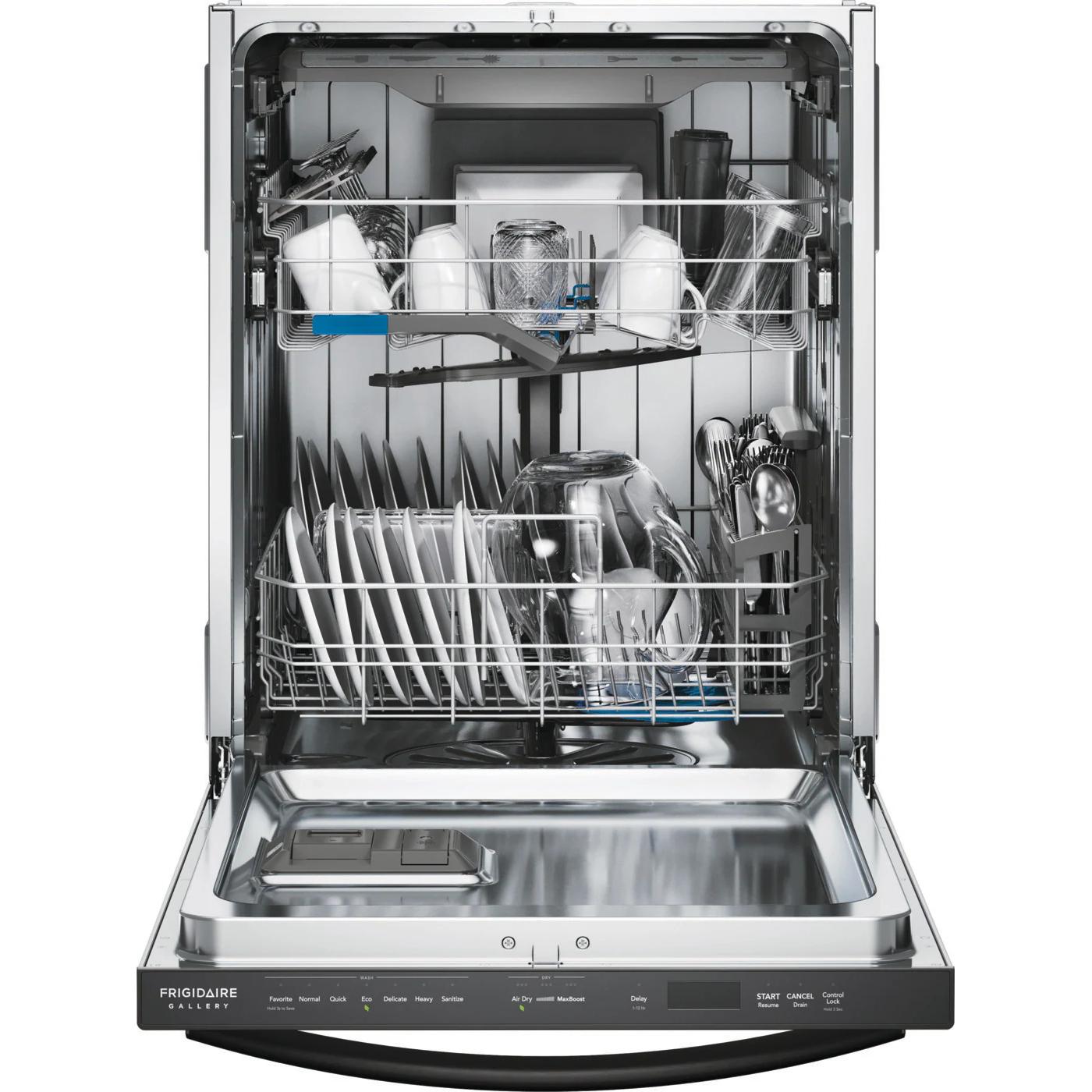

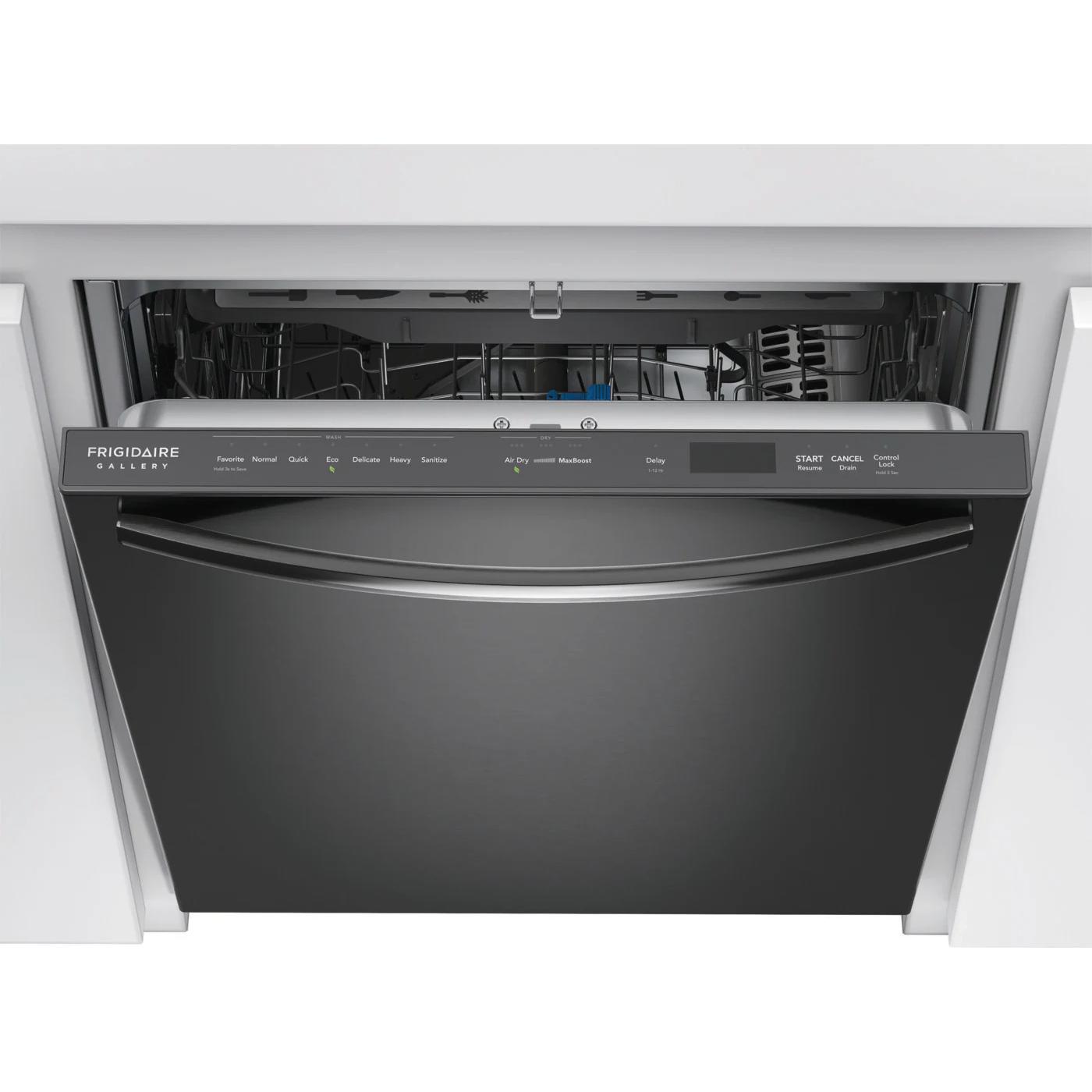

×Frigidaire Gallery 24-inch top control dishwasher features CleanBoost™ technology, sanitize option, enhanced drying results with MaxBoost Dry™ and can accommodate up to 14 place settings.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Black Stainless
Place Settings
14
Tub Material
Stainless Steel
Silence Rating
47 dB
Cycle Information
Number of Cycles
7
Wash Cycles
• China Crystal
• Energy Saver
• Favorite
• Heavy
• Normal
• Quick
• Rinse Only
• Sanitize
• Energy Saver
• Favorite
• Heavy
• Normal
• Quick
• Rinse Only
• Sanitize
Options
• Air Dry
• Dry - Air
• Dry - Heat
• Dry - Max
• Drying System Even Dry
• Heated Dry
• Start/Cancel
• Dry - Air
• Dry - Heat
• Dry - Max
• Drying System Even Dry
• Heated Dry
• Start/Cancel
Features
Technologies
• Direct Feed Wash System
• CleanBoost™ Technology
• MaxBoost Dry™
• DishSense® Sensor Technology
• OrbitClean®
• CleanBoost™ Technology
• MaxBoost Dry™
• DishSense® Sensor Technology
• OrbitClean®
Delay Start Information
1-12 Hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Additional Information
• Detergent Dispenser
• Filtered Water: 100 %
• Hard Food Disposer or Filtration
• Leak Detection System
• Multi-Speed Motor
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Status Indicator: Floor Beam
• 5 Wash Levels

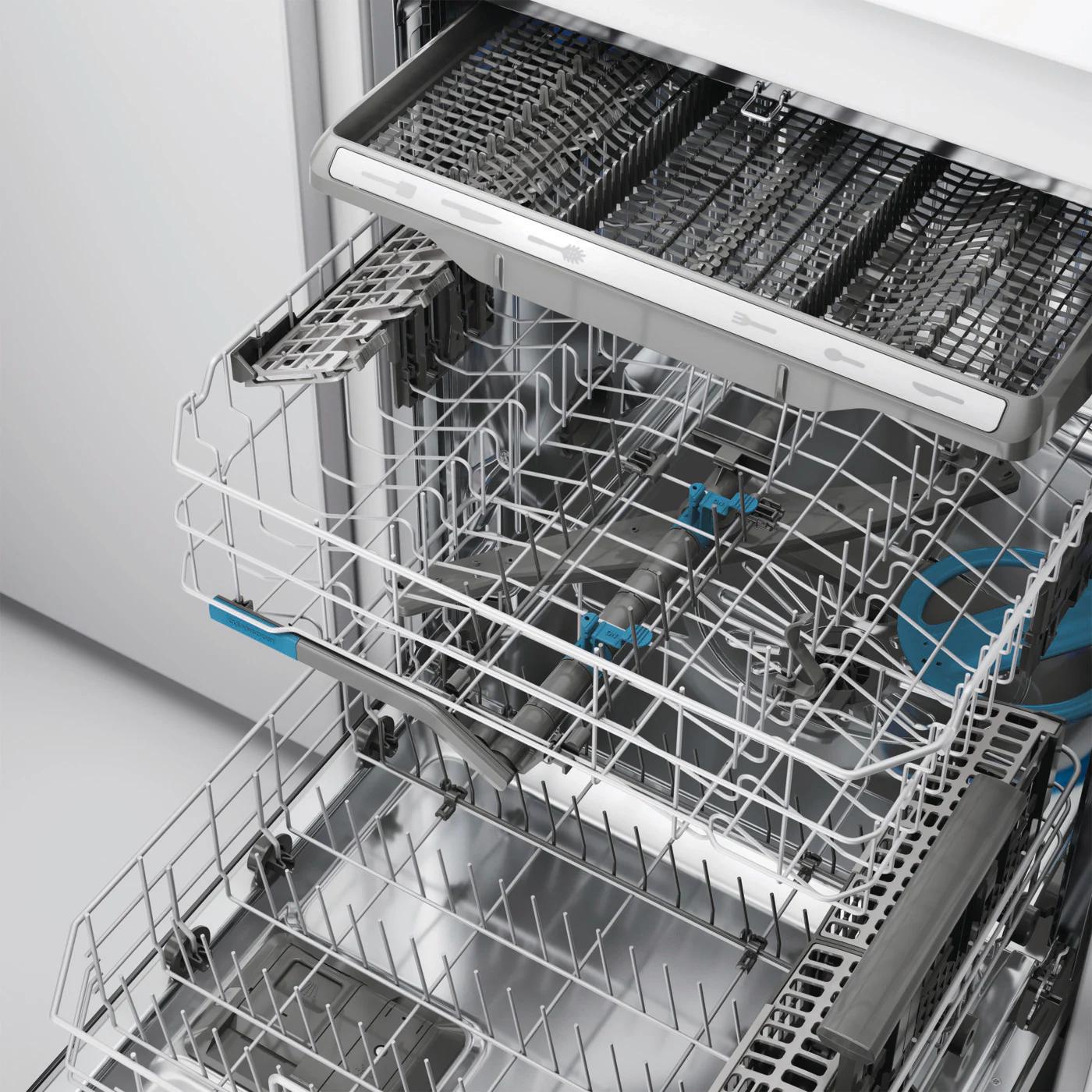

• Upper Rack:
• Cup Shelf
• Fold-Down
• Maximum Height Clearance: 10 3/8"
• Minimum Height Clearance: 8 1/2"
• Rack Coating: Nylon
• Rack Type: Adjustable
• Stemware Holder
• Targeted Wash Zone
• Lower Rack:
• Fold-Down
• Maximum Height Clearance: 13 1/4"
• Minimum Height Clearance: 11 1/4"
• Number of Silverware Basket Lids: 2
• Rack Coating: Nylon
• Rack Type: Adjustable
• Filtered Water: 100 %
• Hard Food Disposer or Filtration
• Leak Detection System
• Multi-Speed Motor
• Rinse Aid Dispenser
• Smart Soil Sensor
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Status Indicator: Floor Beam
• 5 Wash Levels
• Upper Rack:
• Cup Shelf
• Fold-Down
• Maximum Height Clearance: 10 3/8"
• Minimum Height Clearance: 8 1/2"
• Rack Coating: Nylon
• Rack Type: Adjustable
• Stemware Holder
• Targeted Wash Zone
• Lower Rack:
• Fold-Down
• Maximum Height Clearance: 13 1/4"
• Minimum Height Clearance: 11 1/4"
• Number of Silverware Basket Lids: 2
• Rack Coating: Nylon
• Rack Type: Adjustable
Electrical Information
Information
120 V, 15 A
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Information
• ETL Listed
• Meets ASSE 1006 Requirements
• Meets ASSE 1006 Requirements
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.75 inch(es) / 85.73 cm
Depth (Without Handle)
24.25 inch(es) / 61.6 cm
Depth (Including Handle)
26.69 inch(es) / 67.79 cm
Additional Dimensions
Depth With Door Open: 50 1/4"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
12505116346
