DESCRIPTION
×The Frigidaire 30-inch Gas Range with Quick Boil allows you to experience faster boil times with the 18,000 BTU Quick Boil burner and our flexible five-burner cooktop was designed to fit all your cooking needs. For easier cleanup, our Steam Clean cycle provides a quick 30-minute oven cleaning that's chemical-free, odor-free and fast.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam Clean, Delay Clean

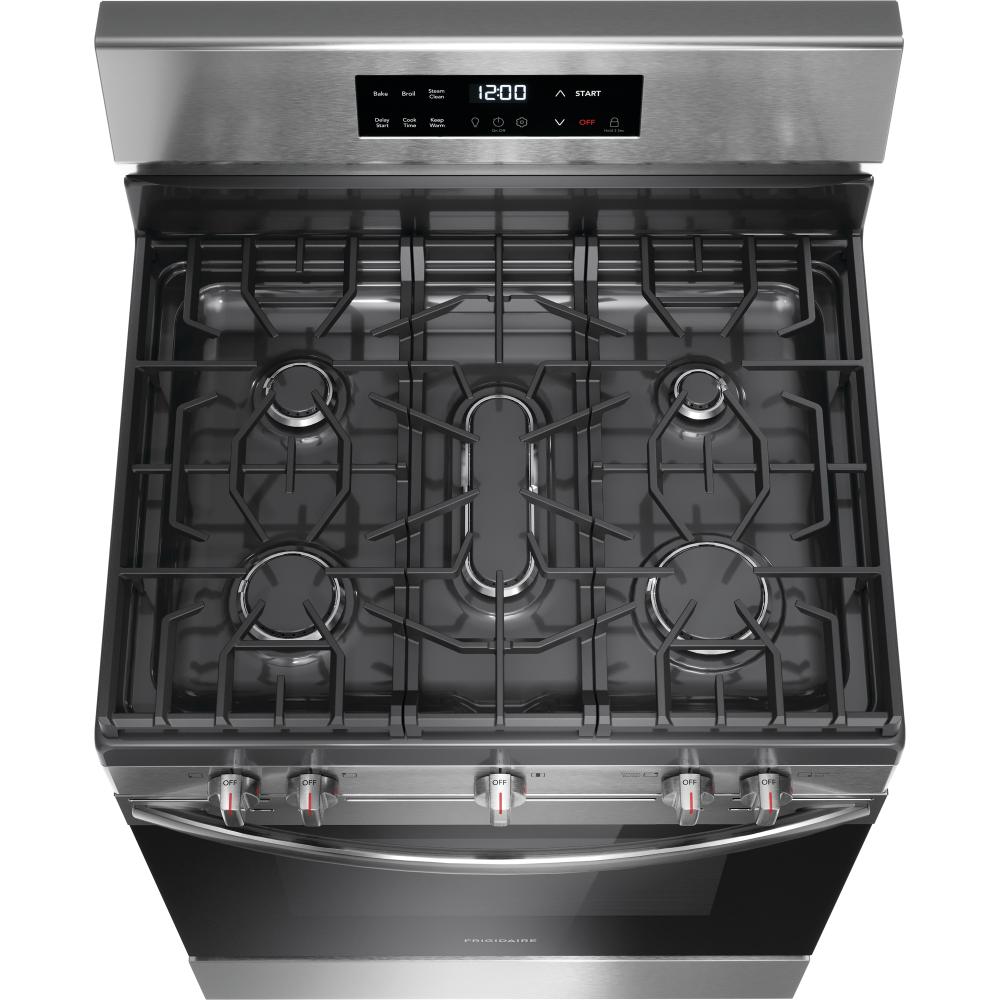

Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Front Burner: 18,000 BTU
• Right Rear Burner: 5,000 BTU
• Left Front Burner: 14,000 BTU
• Left Rear Burner: 10,000 BTU
• Center Rear Burner: 10,000 BTU
• Right Rear Burner: 5,000 BTU
• Left Front Burner: 14,000 BTU
• Left Rear Burner: 10,000 BTU
• Center Rear Burner: 10,000 BTU
Burners
Sealed

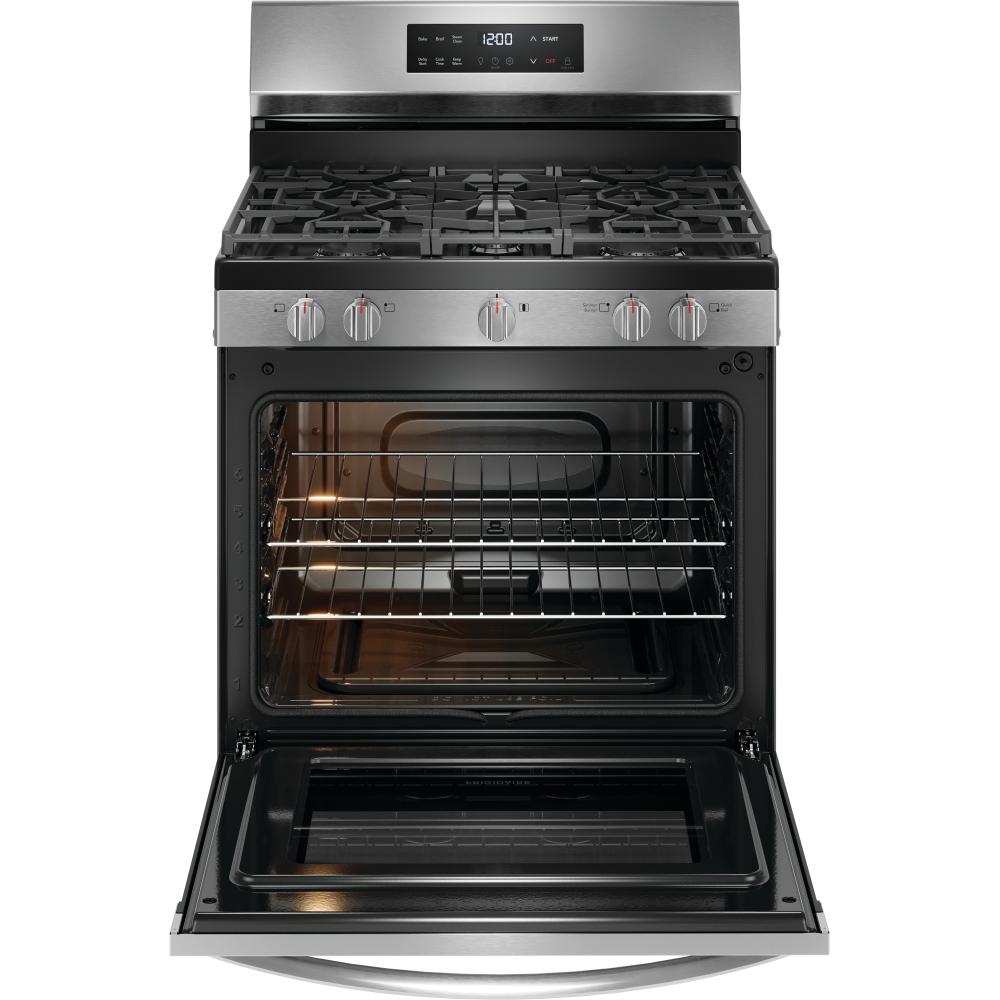

Oven
Capacity (cu. ft.)
5.1 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Keep Warm
• Broil
• Keep Warm
Features
Technologies
Even Baking Technology
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Kitchen Timer
• Bake Element: 17000 BTU
• Broil Element: 1400 Watts
• Broil Element Pass 6
• 6 Rack Positions
• Oven Interior: Color Midnight Black
• 1 Oven Light
• Oven Light Type: Halogen
• Oven Light Watts: 40 Watts
• Rack Position Type: Embossed
• Rack Type: 1 Flat
• Adjustable Volume Feedback
• Change between Continuous Bake Setting or 12-Hour
• Energy Saving Feature
• Delayed Bake
• Program Fahrenheit or Celsius
• 3 Continuous Cast Iron Grates
• Adjustable Leveling Legs
• Bake Element: 17000 BTU
• Broil Element: 1400 Watts
• Broil Element Pass 6
• 6 Rack Positions
• Oven Interior: Color Midnight Black
• 1 Oven Light
• Oven Light Type: Halogen
• Oven Light Watts: 40 Watts
• Rack Position Type: Embossed
• Rack Type: 1 Flat
• Adjustable Volume Feedback
• Change between Continuous Bake Setting or 12-Hour
• Energy Saving Feature
• Delayed Bake
• Program Fahrenheit or Celsius
• 3 Continuous Cast Iron Grates
• Adjustable Leveling Legs
Drawer Features
Storage
Yes
Electrical Information
Information
120 V, 12 A
Certifications and Approvals
Information
CSA
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
46.75 inch(es) / 118.75 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Additional Dimensions
• Maximum Height: 47 3/4"
• Depth With Door 90° Open : 47 5/16"
• Oven Interior Height: 17 5/8"
• Oven Interior Width: 25 3/16
• Depth With Door 90° Open : 47 5/16"
• Oven Interior Height: 17 5/8"
• Oven Interior Width: 25 3/16
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
12505514821
