DESCRIPTION

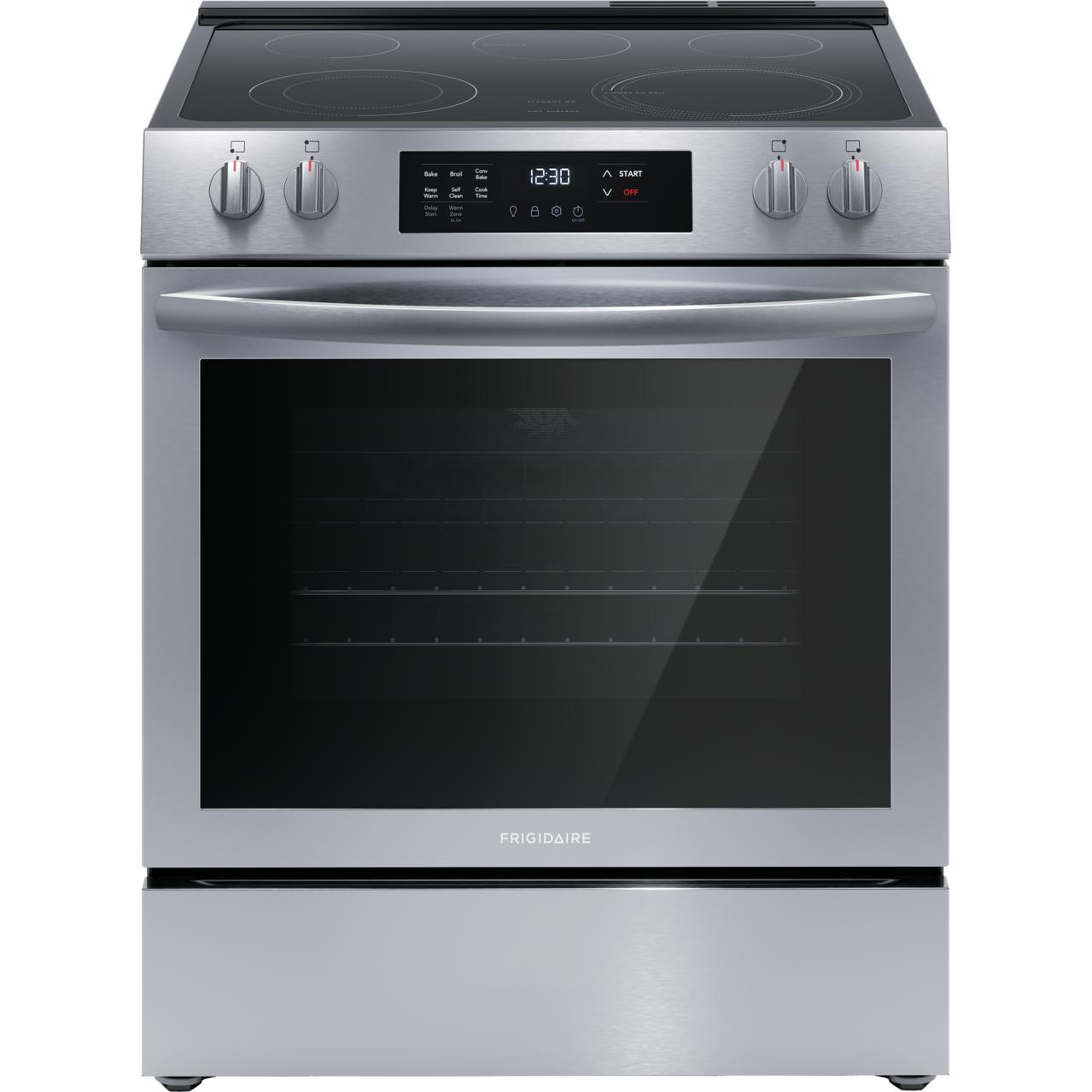

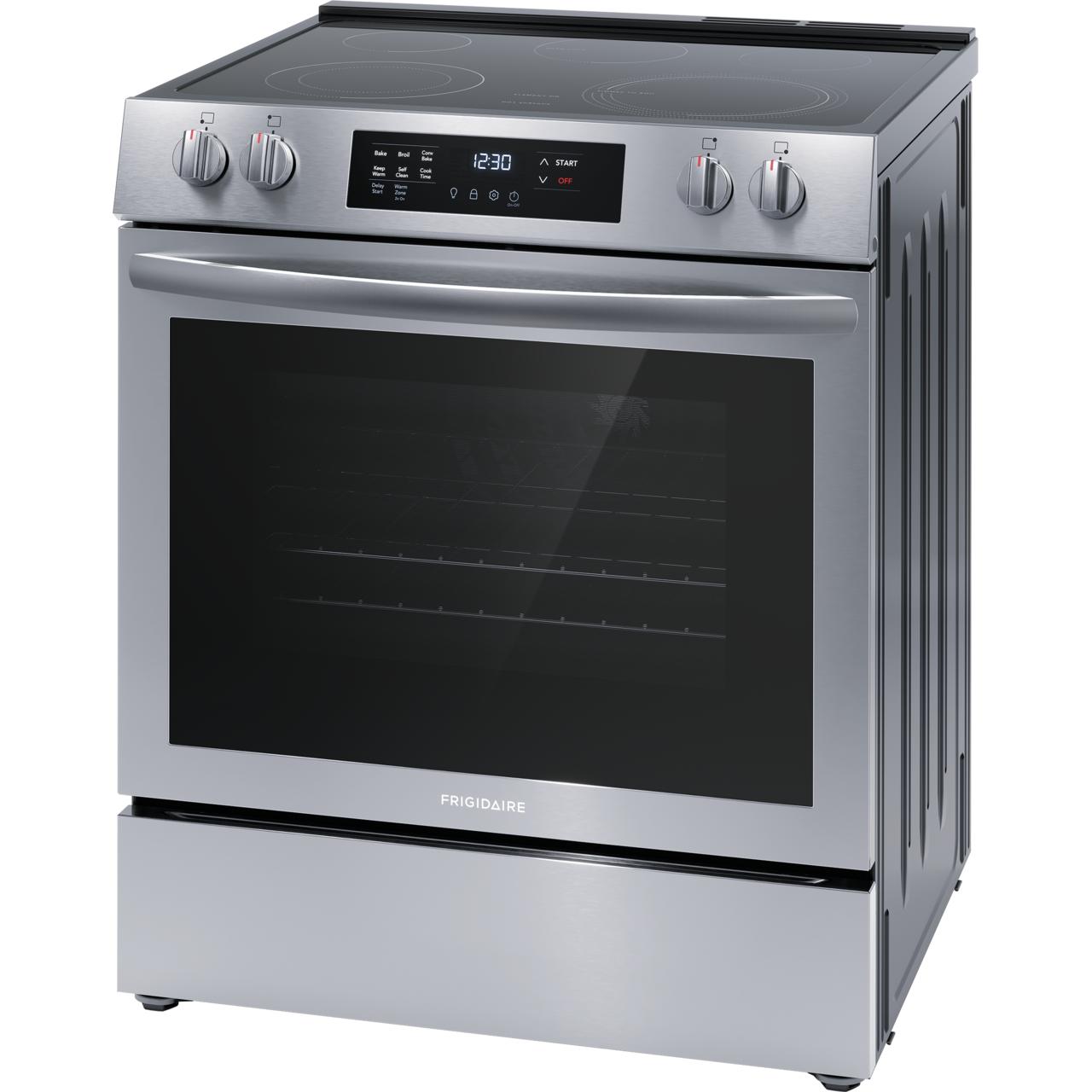

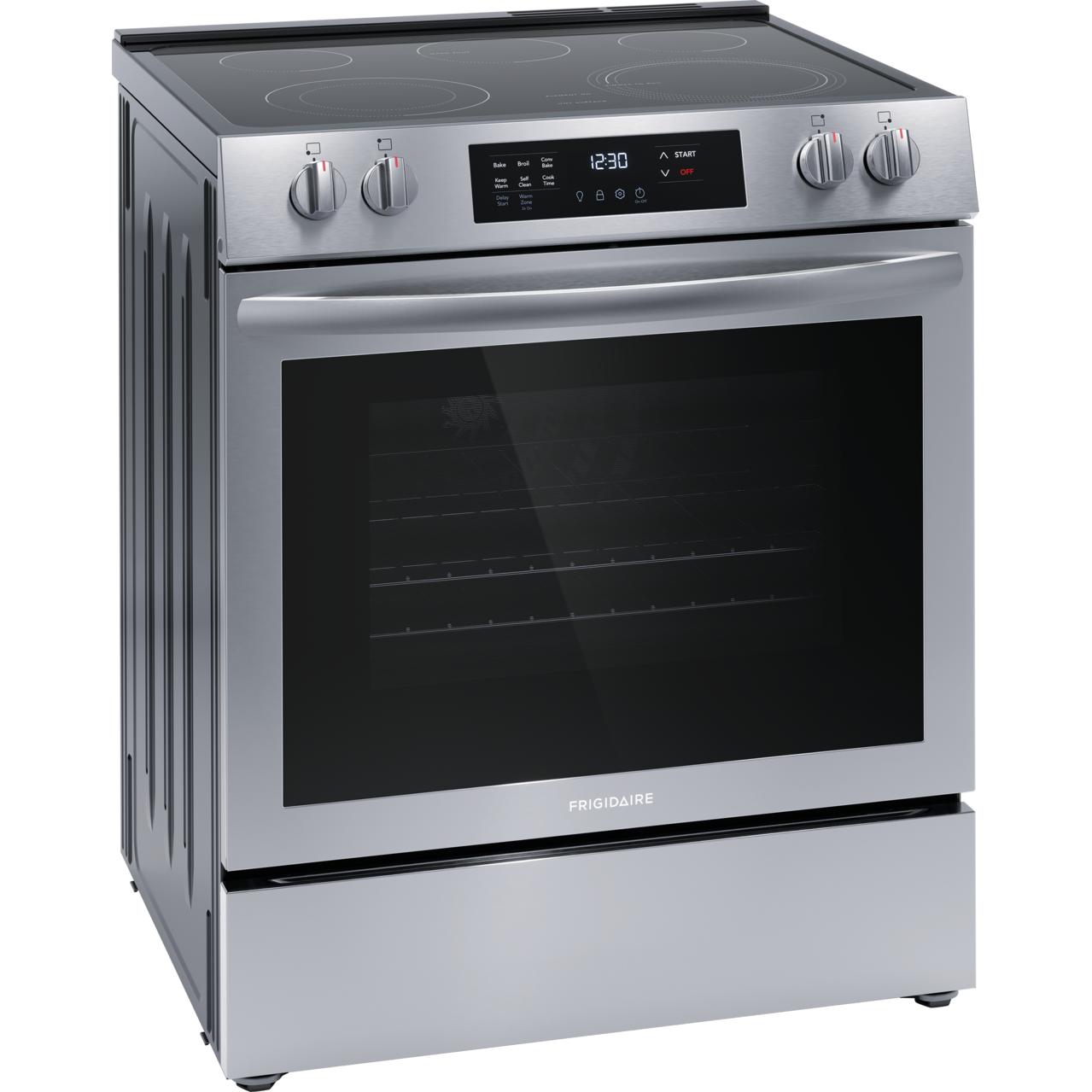

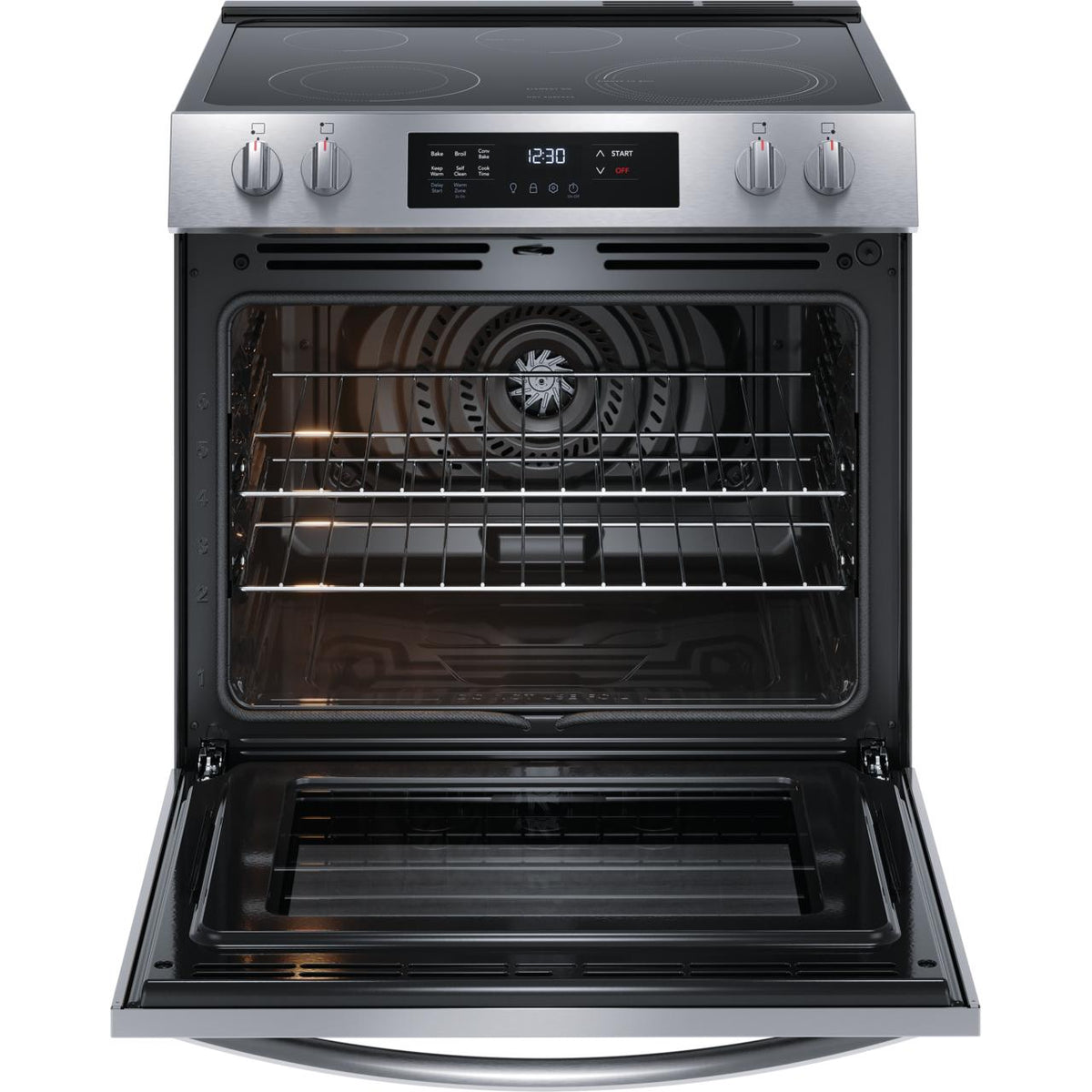

×Frigidaire 30-inch freestanding electric range features EvenTemp™ technology, 5 flexible cooktop elements, a Store-More® storage drawer and a total oven capacity of 5.3 cu. ft.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel

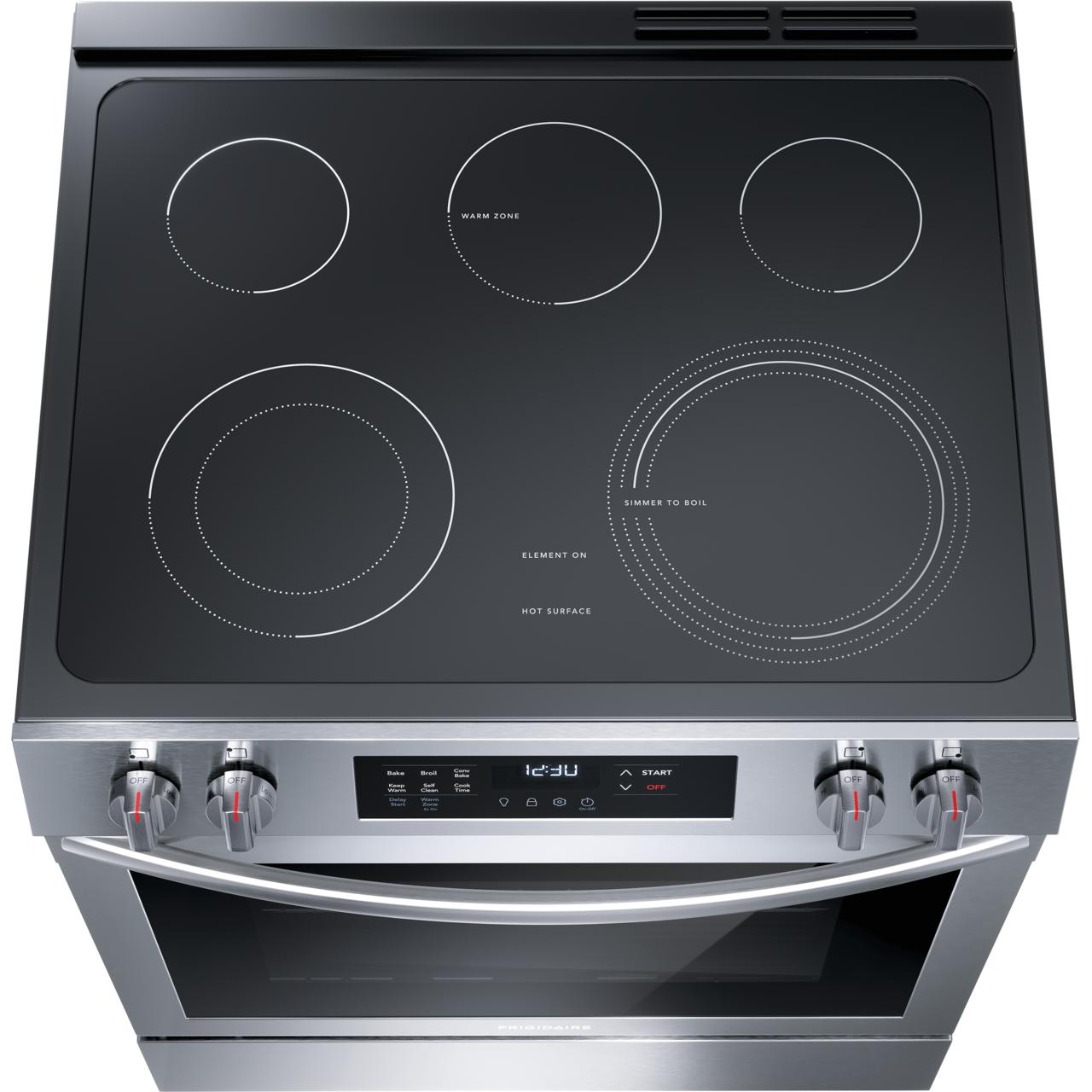

Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Front Element: 3,200 Watts
• Right Rear Element: 1,200 Watts
• Left Rear Element: 1,200 Watts
• Center Rear Element: 100 Watts
• Left Front Element (Large): 3,000 Watts
• Left Front Element (Small) 1,400: Watts
• Right Rear Element: 1,200 Watts
• Left Rear Element: 1,200 Watts
• Center Rear Element: 100 Watts
• Left Front Element (Large): 3,000 Watts
• Left Front Element (Small) 1,400: Watts
Burner/Element Size
• Right Front Element: 9"
• Right Rear Element: 6"
• Left Rear Element: 6"
• Left Front Element (Large): 9"
• Left Front Element (Small): 6"
• Right Rear Element: 6"
• Left Rear Element: 6"
• Left Front Element (Large): 9"
• Left Front Element (Small): 6"
Elements
Smoothtop

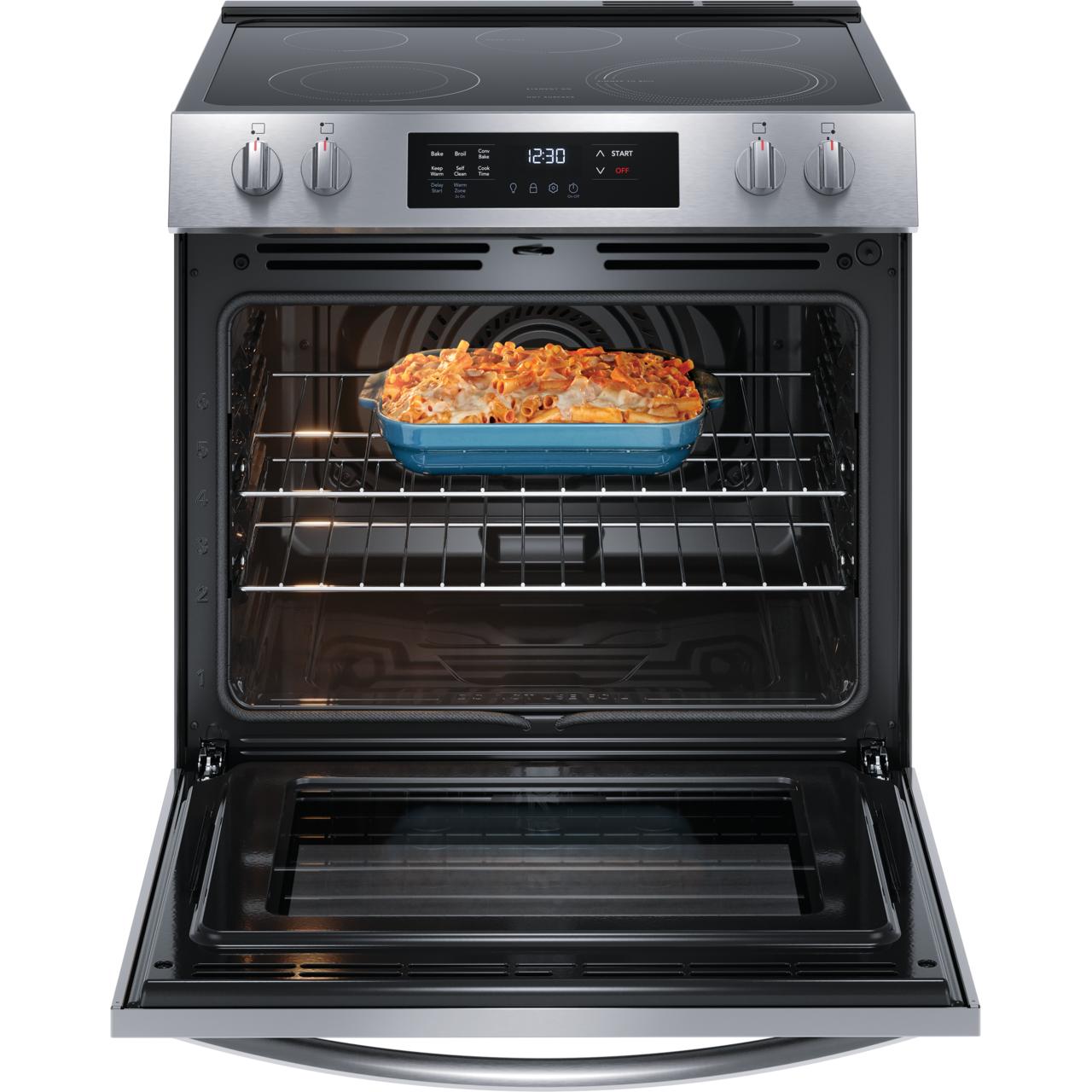

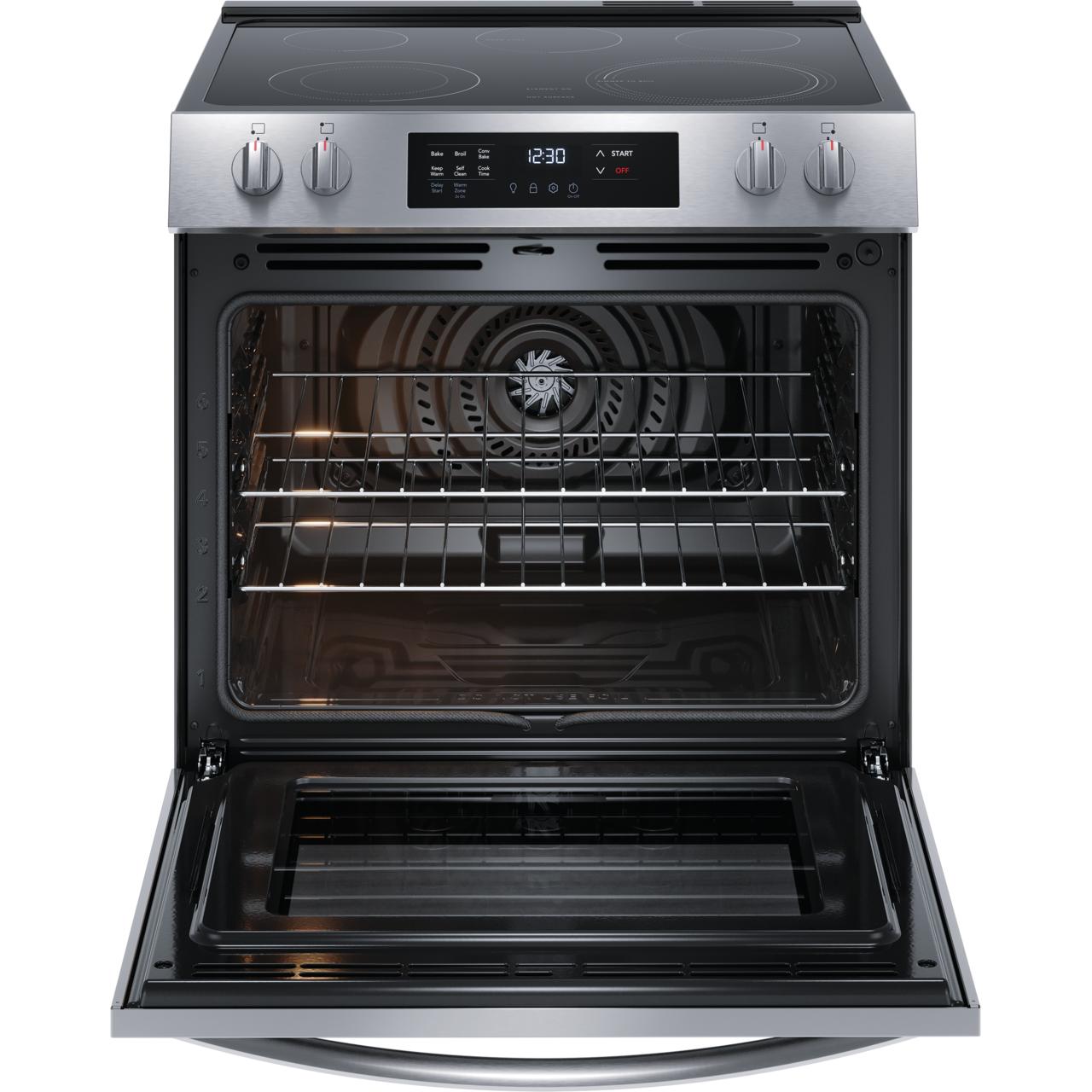

Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single

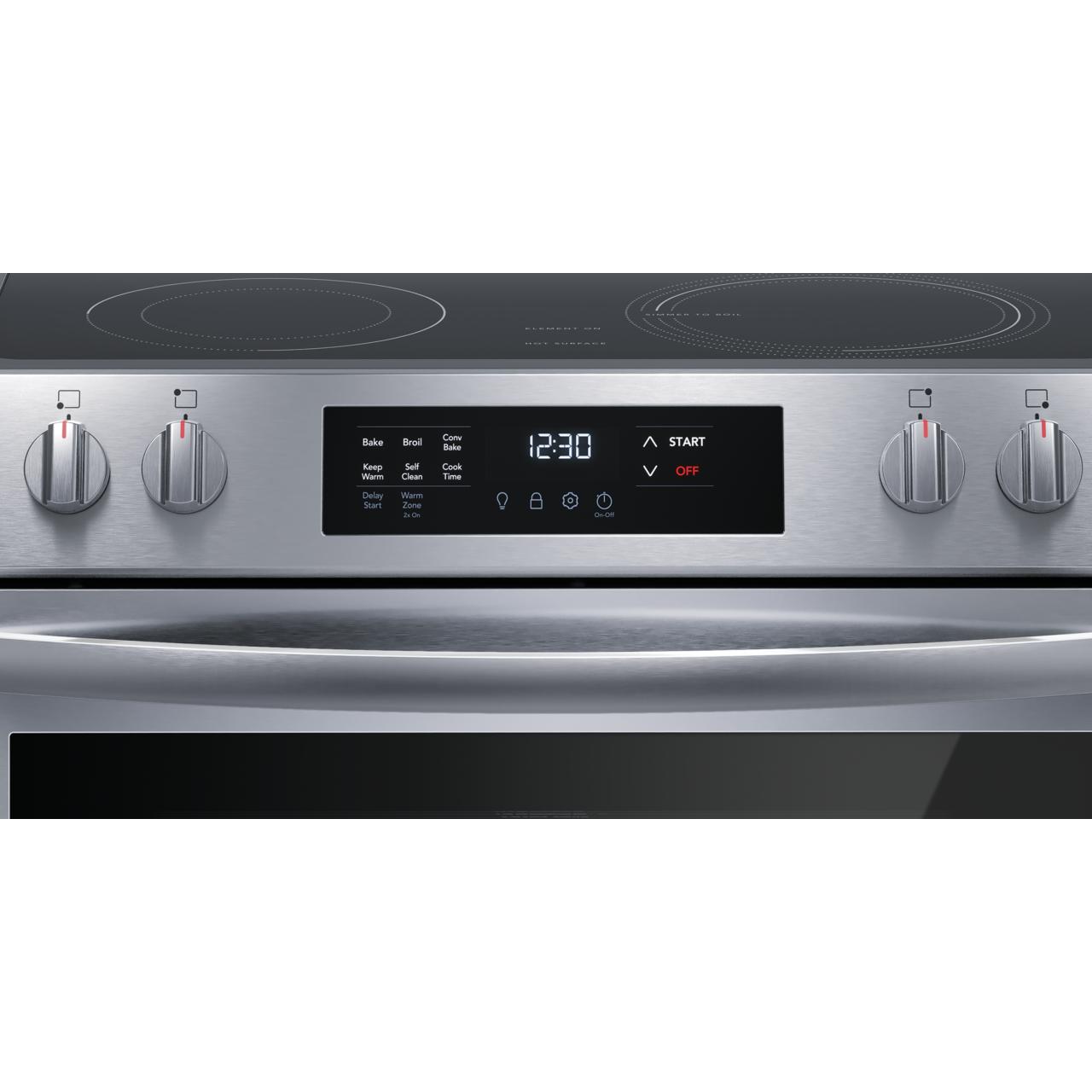

Programs
• Bake
• Bake Time
• Broil
• Convection Bake
• Cook Time
• Delay Clean
• Delay Start
• Keep Warm
• Preheat
• Bake Time
• Broil
• Convection Bake
• Cook Time
• Delay Clean
• Delay Start
• Keep Warm
• Preheat
Features
Technologies
• EvenTemp™

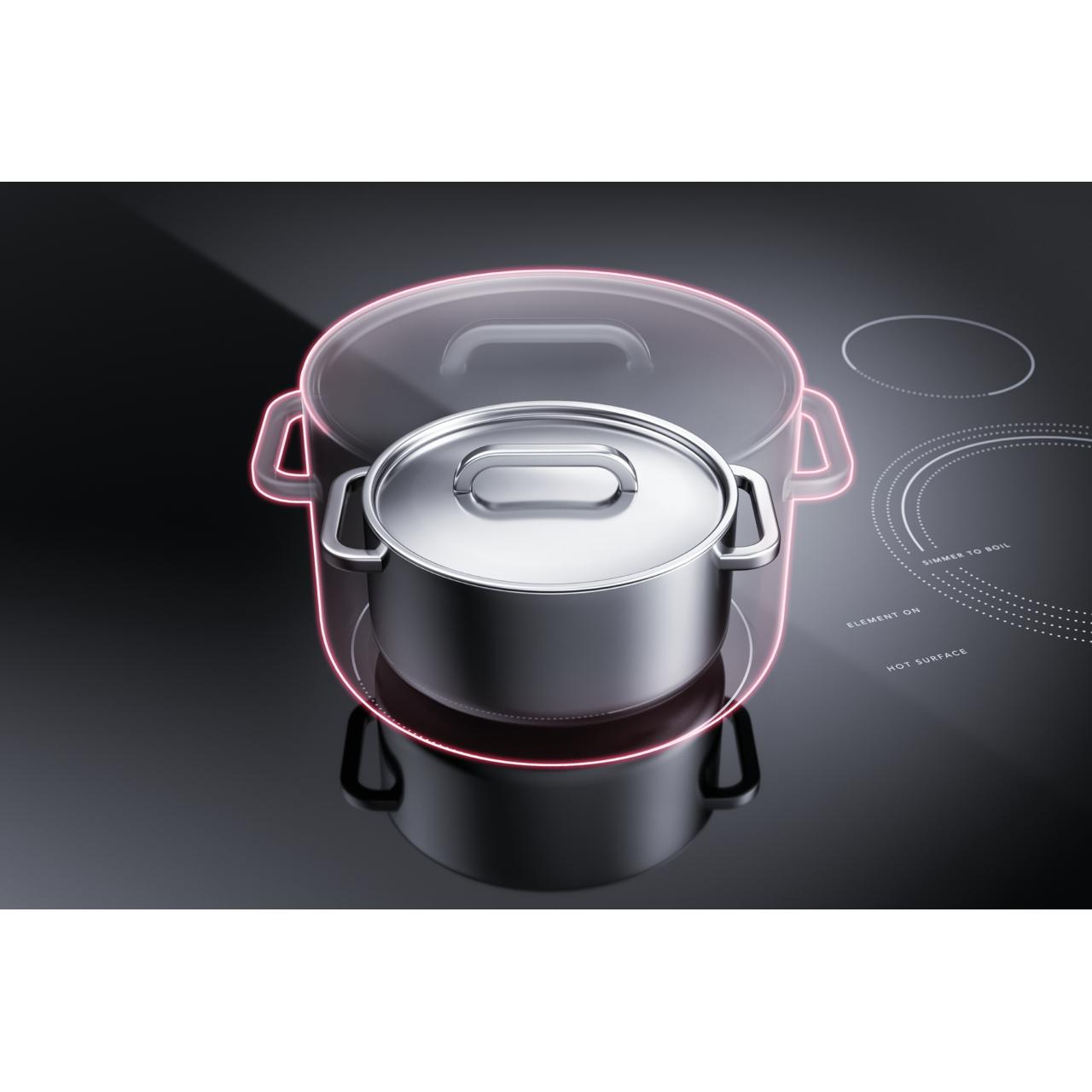

• SpaceWise® Dual Expandable Element
• SpaceWise® Dual Expandable Element
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Element On Indicator Light
• Hot-Surface Indicator Light
• Keep Warm Zone Light
• Door Lock
• Kitchen Timer
• Lockout
• Temperature Display
• LED Display
• Hot-Surface Indicator Light
• Keep Warm Zone Light
• Door Lock
• Kitchen Timer
• Lockout
• Temperature Display
• LED Display
Drawer Features
Storage
Yes
Electrical Information
Information
• Amps @ 120 Volts 10 Amps
• Amps @ 240 Volts 13 Amps
• Minimum Circuit Required 40 Amps
• Voltage Rating 240 V
• Amps @ 240 Volts 13 Amps
• Minimum Circuit Required 40 Amps
• Voltage Rating 240 V
Certifications and Approvals
Information
• UL Listed
• RoHS
• RoHS
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
35.62 inch(es) / 90.48 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Additional Dimensions
• Depth With Door 90° Open: 47 5/16"
• Oven Interior Height: 18 1/8"
• Oven Interior Width: 25 3/16"
• Oven Interior Depth: 19 7/8"
• Maximum Height: 36 3/8"
• Oven Interior Height: 18 1/8"
• Oven Interior Width: 25 3/16"
• Oven Interior Depth: 19 7/8"
• Maximum Height: 36 3/8"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
12505514371
