DESCRIPTION

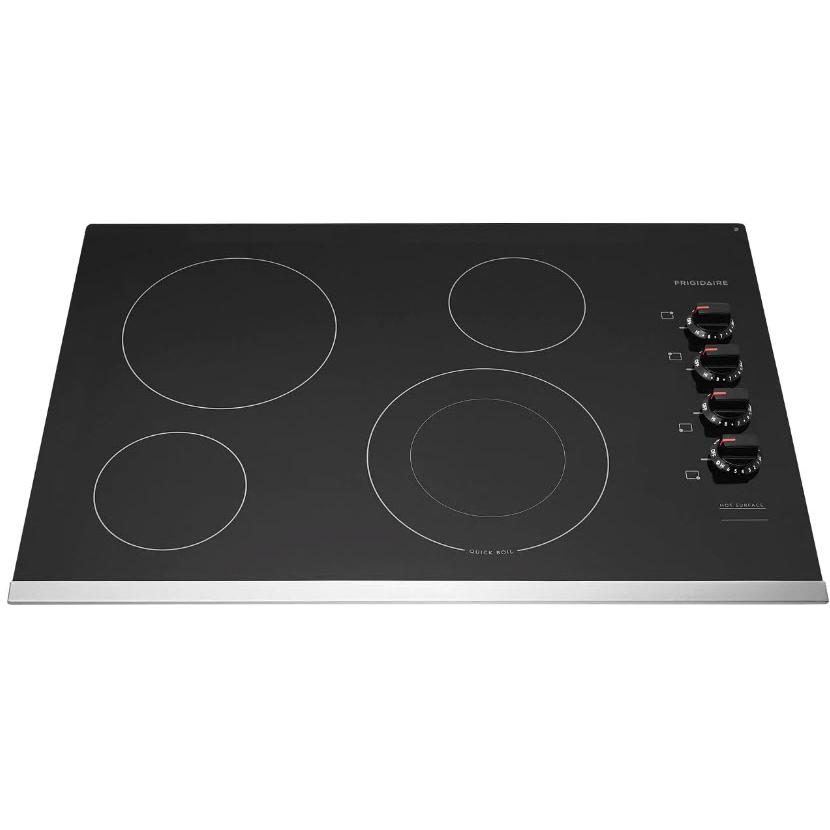

×This Frigidaire 30 inch electric cooktop has two different element sizes, and alerts you when the cooktop is on and is too hot to touch. This frameless drop-in cooktop has easy-to-use controls that make it easy to select cooking temperatures and options.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Right Front Element: 1,600/3,000 W
• Right Rear Element: 1,200 W
• Left Front Element: 1,200 W
• Left Rear Element: 2,500 W
• Right Rear Element: 1,200 W
• Left Front Element: 1,200 W
• Left Rear Element: 2,500 W
Burner/Element Size
• Right Front Element: 6"/9"
• Right Rear Element: 6"
• Left Front Element: 6"
• Left Rear Element: 9"
• Right Rear Element: 6"
• Left Front Element: 6"
• Left Rear Element: 9"
Elements
Smoothtop
Surface Features
Ceramic Glass Cooktop
Features
Technologies
• Ready-Select® Controls
• SpaceWise® Expandable Element
• SpaceWise® Expandable Element
Additional Information
• Hot Surface Indicator
• Quick Boil Element
• Quick Boil Element
Electrical Information
Information
• 240 / 208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Dimensions
Class Width
30"
Width
30.37 inch(es) / 77.15 cm
Height
2.62 inch(es) / 6.66 cm
Depth
21.37 inch(es) / 54.29 cm
Weight
49.01 lb(s) / 22.23 kg
Additional Dimensions
• Cutout Width (Min.-Max.): 28-1/2"-29-7/8"
• Cutout Depth (Min.-Max.): 19-5/8"-20-1/2"
• Cutout Height (Min.): 5"
• Cutout Depth (Min.-Max.): 19-5/8"-20-1/2"
• Cutout Height (Min.): 5"
Shipping Dimensions
Weight
49.01 lb(s) / 22.23 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
057112992280
DOCUMENTS
×
