DESCRIPTION

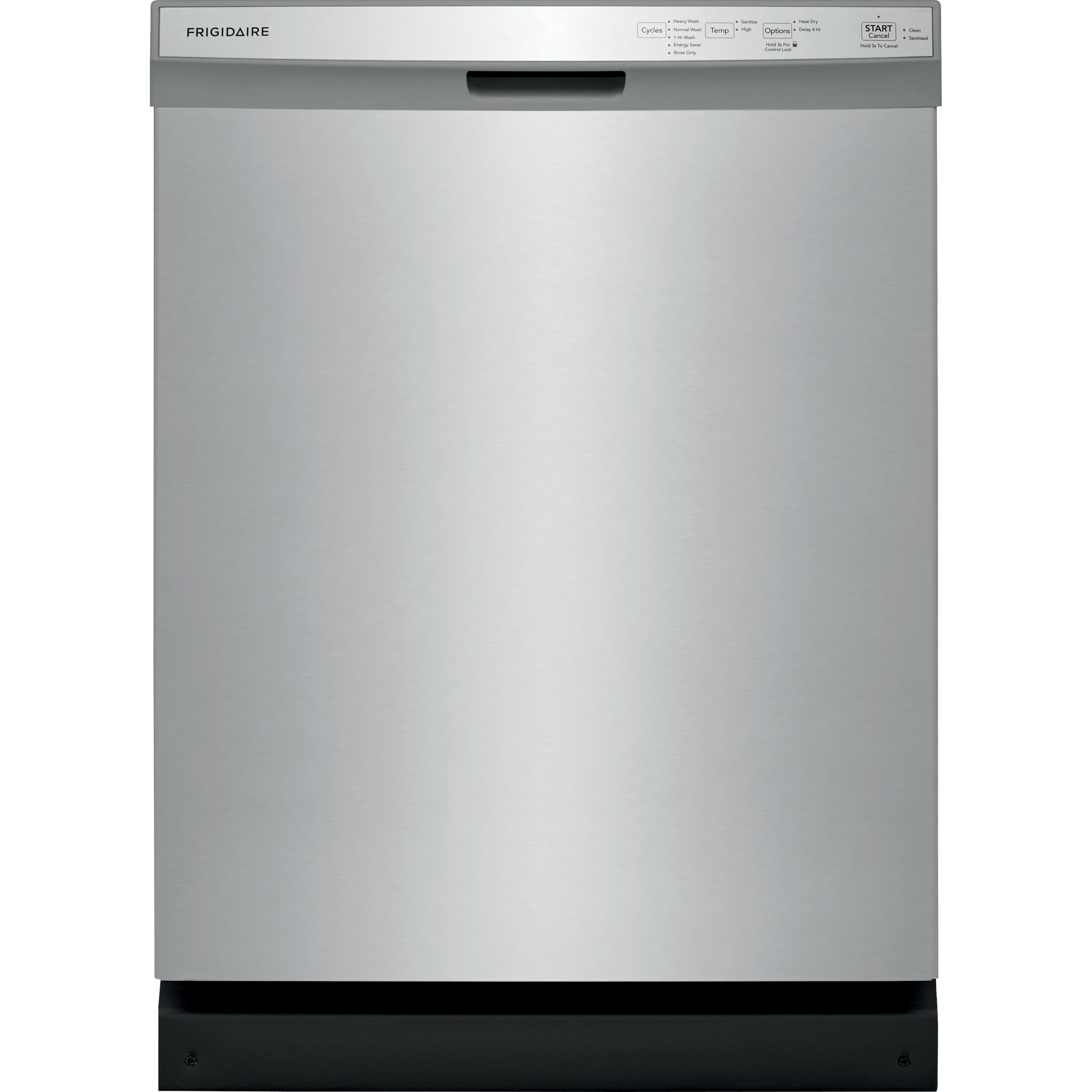

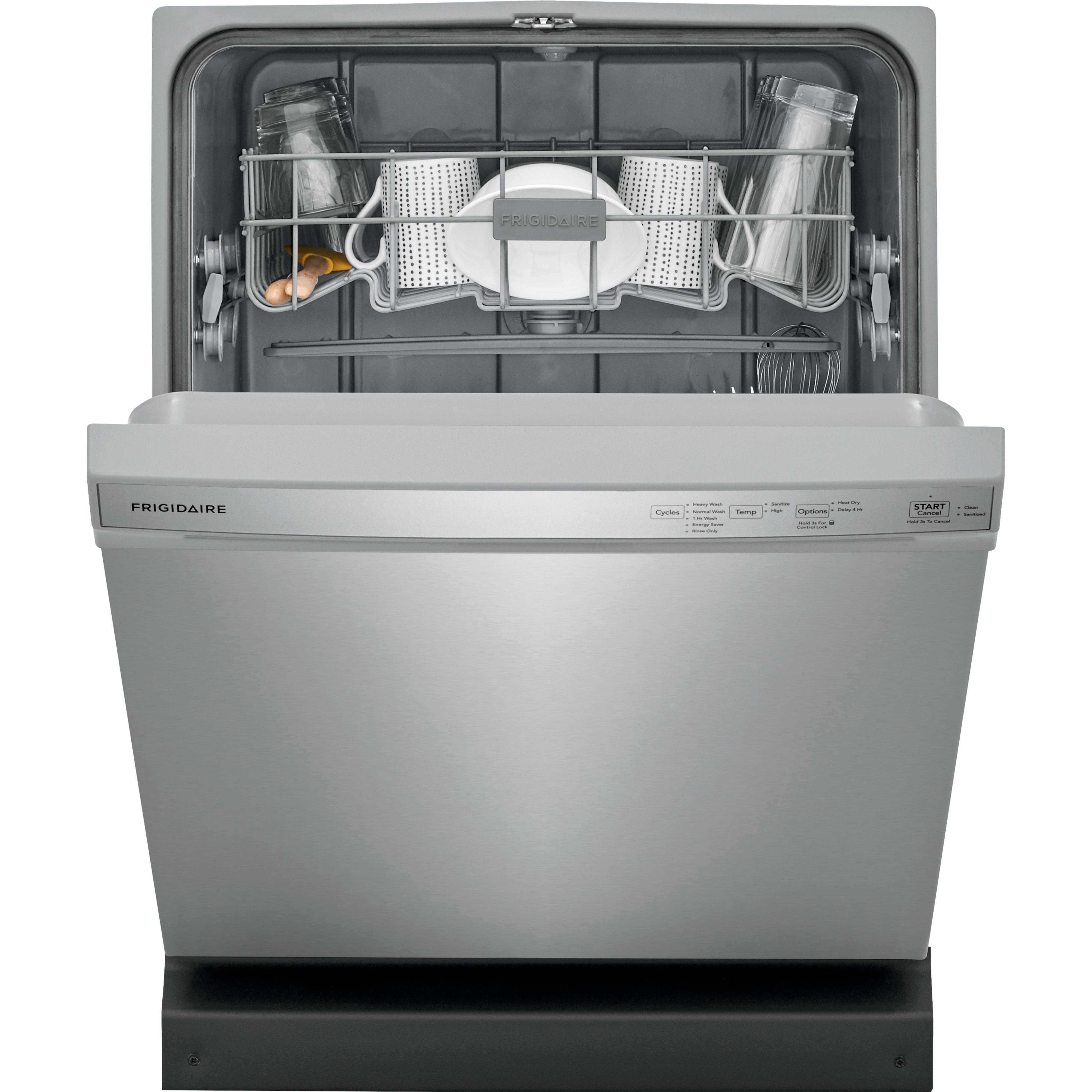

×Frigidaire 24" built-in ENERGY STAR® dishwasher with a durable polymer wash tub that supports the drying process, keeping dishes dry the first time. This dishwasher features easy-to-use cleaning cycle options for your different cleaning needs including Energy Saver, 1-Hour, Normal Wash and Heavy Wash.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
14
Tub Material
Polymer
Silence Rating
55 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• PowerPlus™ (Heavy)
• Normal
• Light (1-Hour)
• Rinse Only
• Energy Saver Plus
• Normal
• Light (1-Hour)
• Rinse Only
• Energy Saver Plus
Options
• Heat
• No heat dry
• Hi-temp wash
• NSF® certified sanitize rinse
• No heat dry
• Hi-temp wash
• NSF® certified sanitize rinse
Features
Technologies

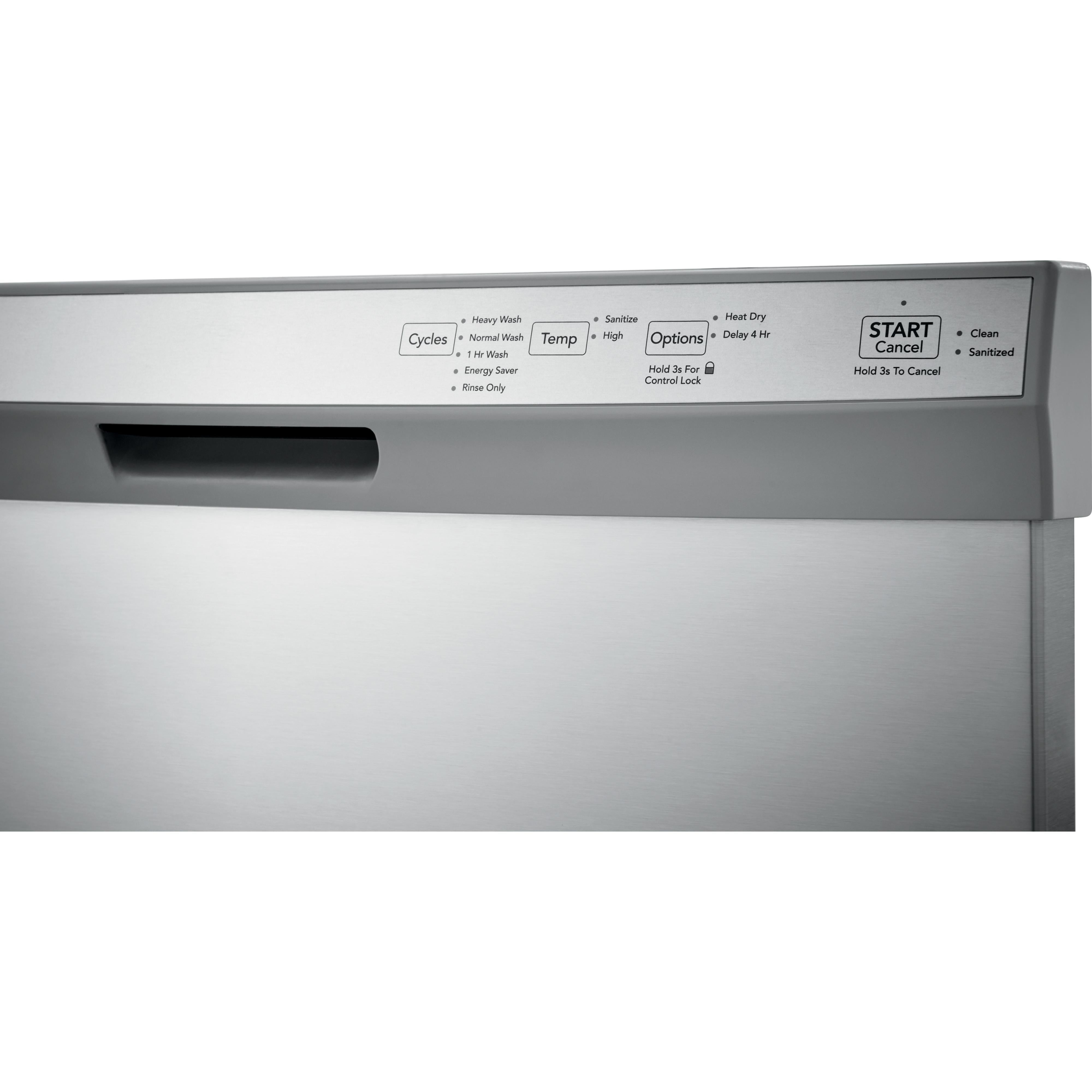

• Ready-Select® control design
• Effortless™ Dry drying system

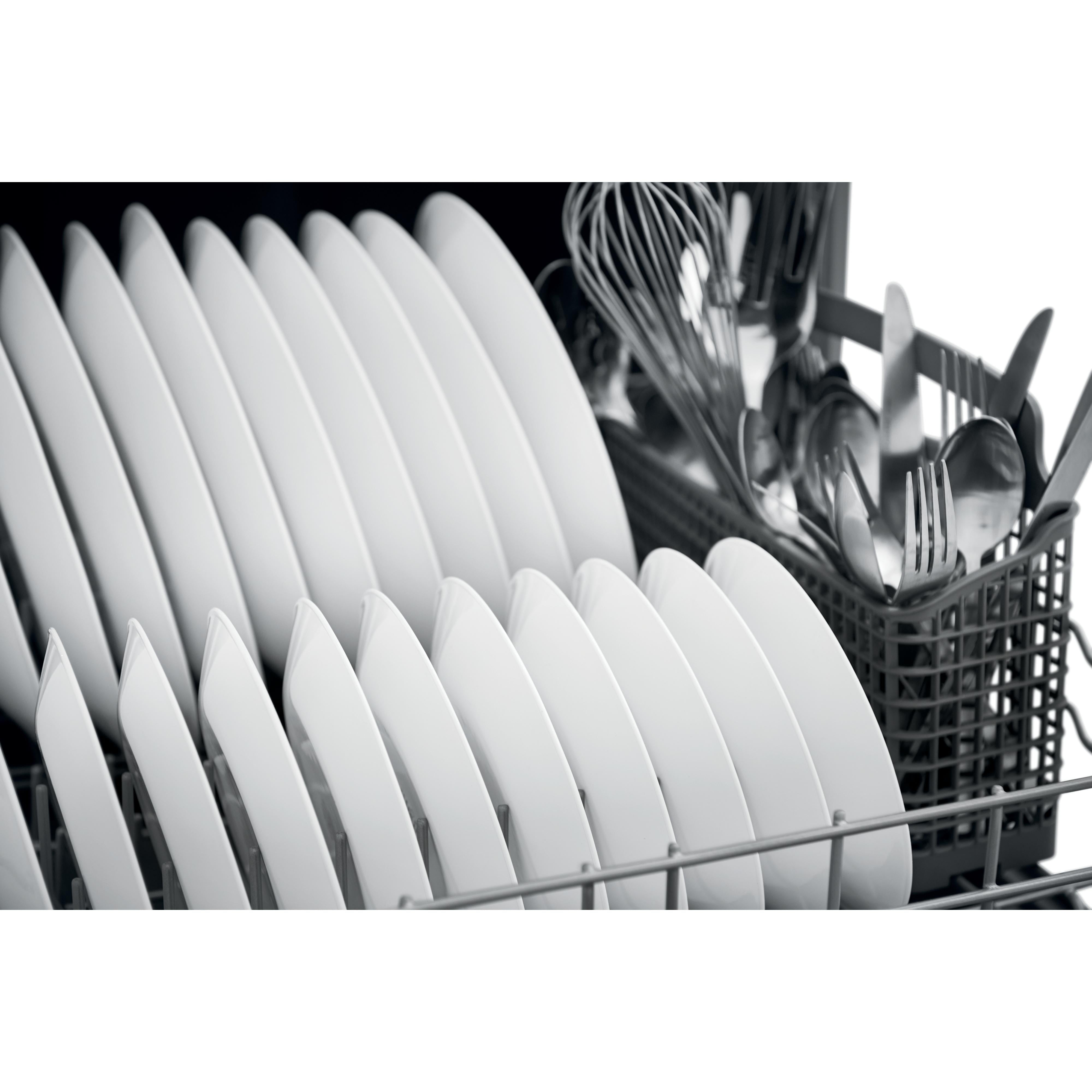

• SpaceWise® silverware basket
• UltraQuiet™ III sound package
• Effortless™ Dry drying system
• SpaceWise® silverware basket
• UltraQuiet™ III sound package
Delay Start Information
4 Hours
Delay Start
Yes
Control Lock
Yes
Silverware Basket
Yes
Additional Information
• Door latch
• Stay-put door hinge design
• Low rinse-aid indicator light
• Interior color: Greystone
• Tall tub
• Direct feed wash system
• Cycle indicator light
• Control lock
• Wash speeds: 5
• Rack coating: PVC
• Removable filter trap
• Poly filter
• Hard food disposer
• Water usage (Gallons): 6.0
• Water pressure (PSI): 20 – 120
• Integral air gap on supply
• Leveling legs
• Stay-put door hinge design
• Low rinse-aid indicator light
• Interior color: Greystone
• Tall tub
• Direct feed wash system
• Cycle indicator light
• Control lock
• Wash speeds: 5
• Rack coating: PVC
• Removable filter trap
• Poly filter
• Hard food disposer
• Water usage (Gallons): 6.0
• Water pressure (PSI): 20 – 120
• Integral air gap on supply
• Leveling legs
Electrical Information
Information
• Voltage rating: 120V / 60 Hz / 15A
• Amps @ 120 Volts: 10.0
• Connected load (kW Rating) @ 120 Volts: 1.44
• Power supply connection location: right bottom front
• Amps @ 120 Volts: 10.0
• Connected load (kW Rating) @ 120 Volts: 1.44
• Power supply connection location: right bottom front
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.5 inch(es) / 85.09 cm
Depth (Without Handle)
25 inch(es) / 63.5 cm
Weight
88.01 lb(s) / 39.92 kg
Additional Dimensions
• Depth with door open 90°: 49-1/4"
• Cutout height (min.): 33-1/2"
• Cutout height (max.): 35-1/4"
• Cutout width (min.): 24"
• Cutout depth (min.): 25"
• Cutout height (min.): 33-1/2"
• Cutout height (max.): 35-1/4"
• Cutout width (min.): 24"
• Cutout depth (min.): 25"
Shipping Dimensions
Weight
83 lb(s) / 37.65 kg
UPC
UPC#
012505115370
