DESCRIPTION

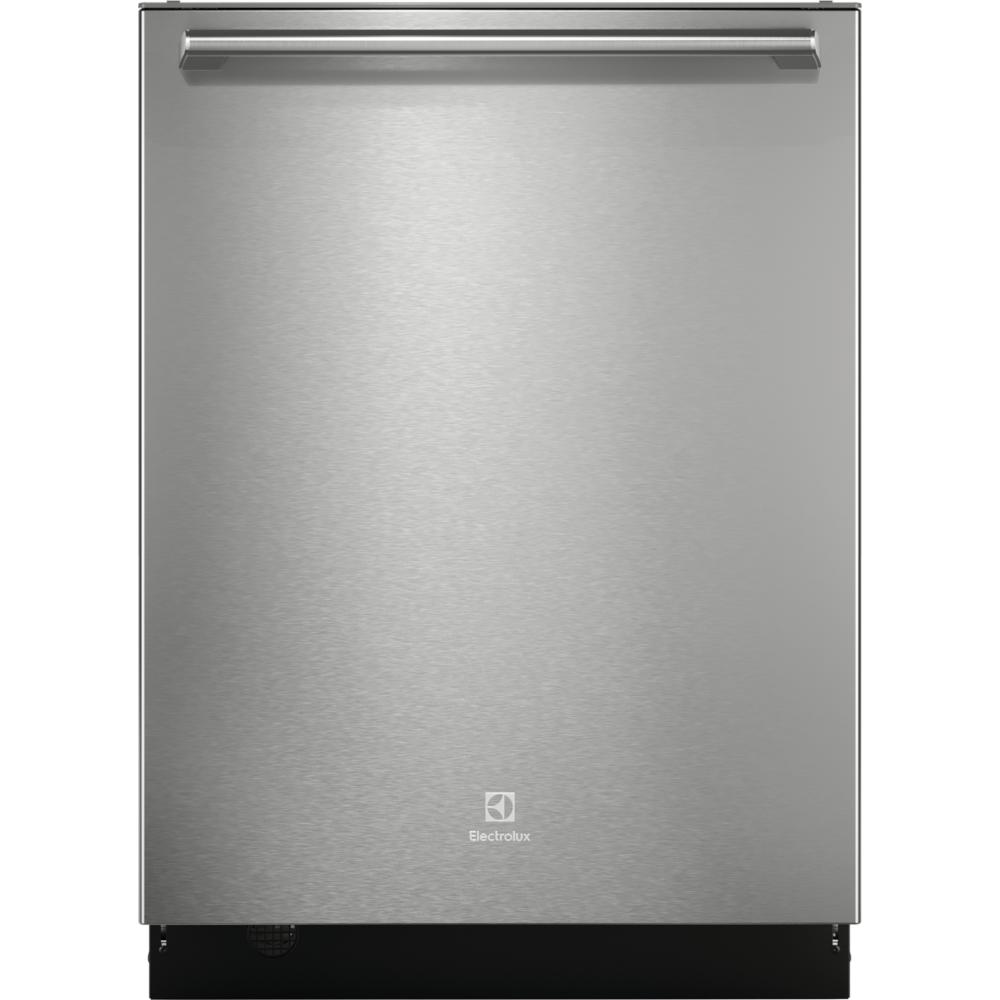

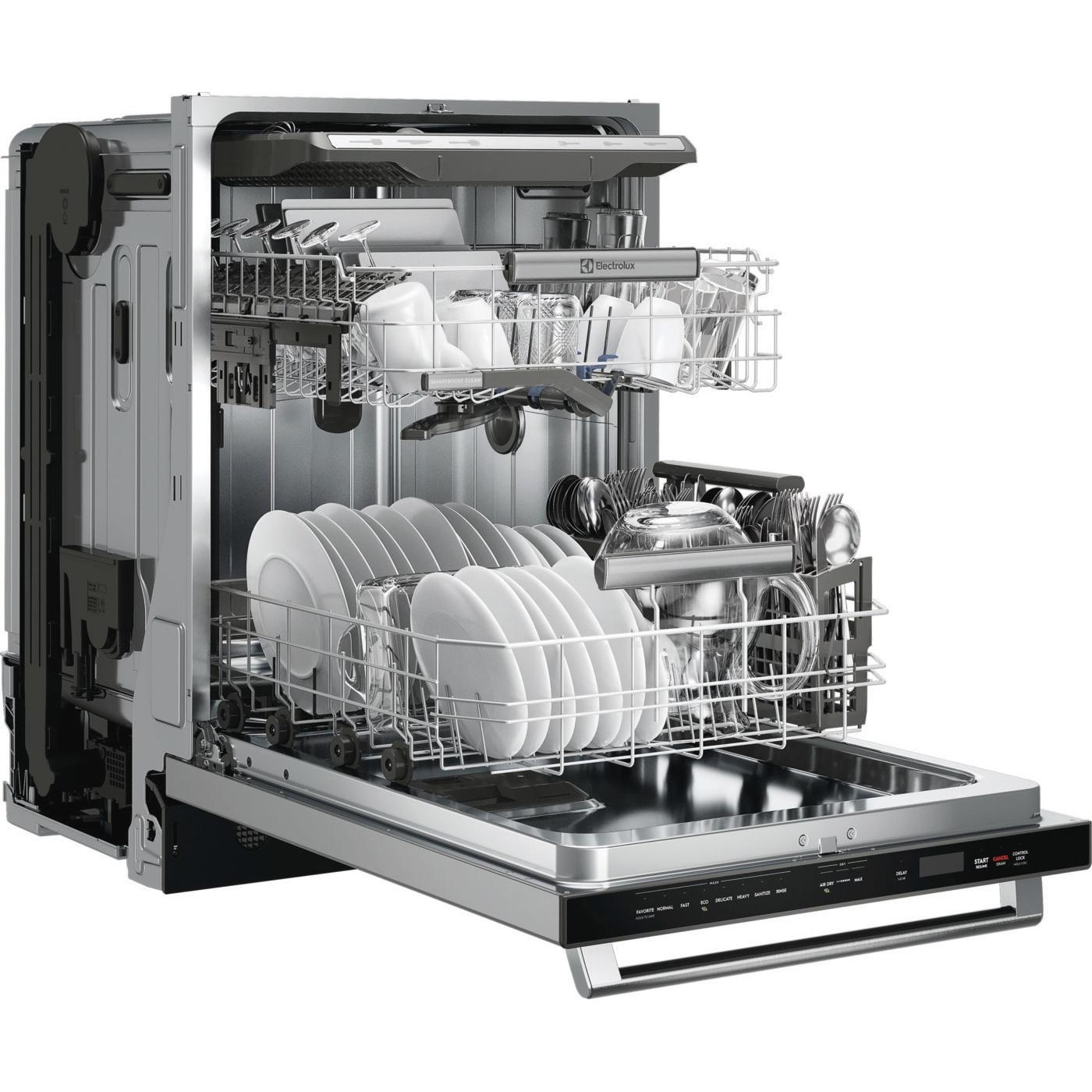

×The Electrolux 24" Stainless Steel Tub Built-In Dishwasher with SmartBoost™ Clean Technology maximizes the power of your detergent by premixing it with water before it touches your dishes delivering powerful cleaning results and helping remove tough baked-on foods. This ultra-quiet (45 dBA) dishwasher also features Max Dry, Electrolux's most powerful drying feature at the click of a button. When you're entertaining guests, dishes come out sparkling clean in between courses with the 30-Minute Clean cycle.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel

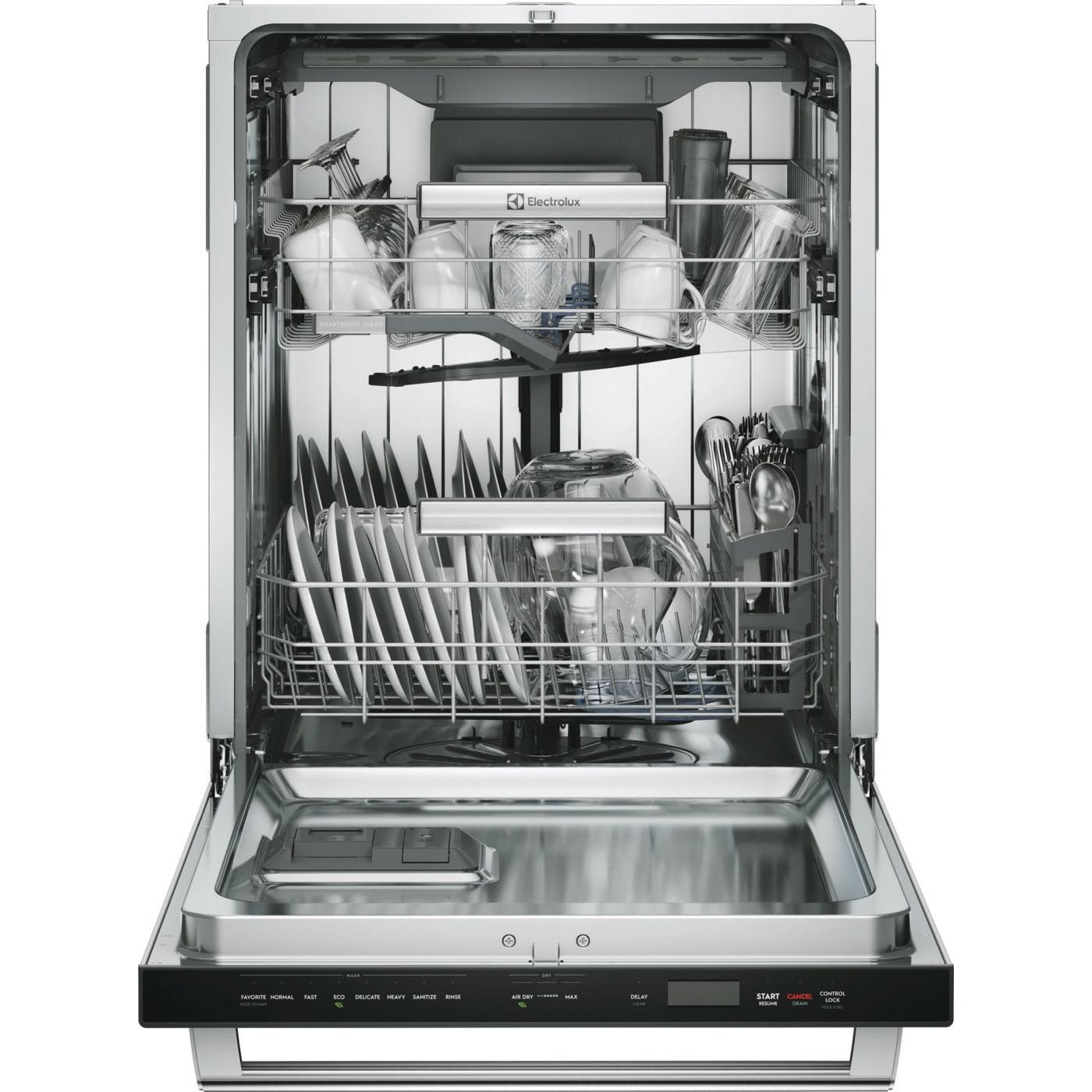

Place Settings
14
Tub Material
Stainless Steel
Silence Rating
45 dB
Cycle Information
Number of Cycles
8
Wash Cycles
• China Crystal
• Energy Saver
• Favorite
• Heavy
• Normal
• Quick
• Rinse Only
• Sanitize
• Energy Saver
• Favorite
• Heavy
• Normal
• Quick
• Rinse Only
• Sanitize
Options
• Air Dry
• Dry - Air
• Dry - Heat
• Dry - Max
• Drying System: Perfect Dry
• Heated Dry
• Start/Cancel
• Dry - Air
• Dry - Heat
• Dry - Max
• Drying System: Perfect Dry
• Heated Dry
• Start/Cancel
Features
Technologies
Smart Soil Sensor
Delay Start
Yes

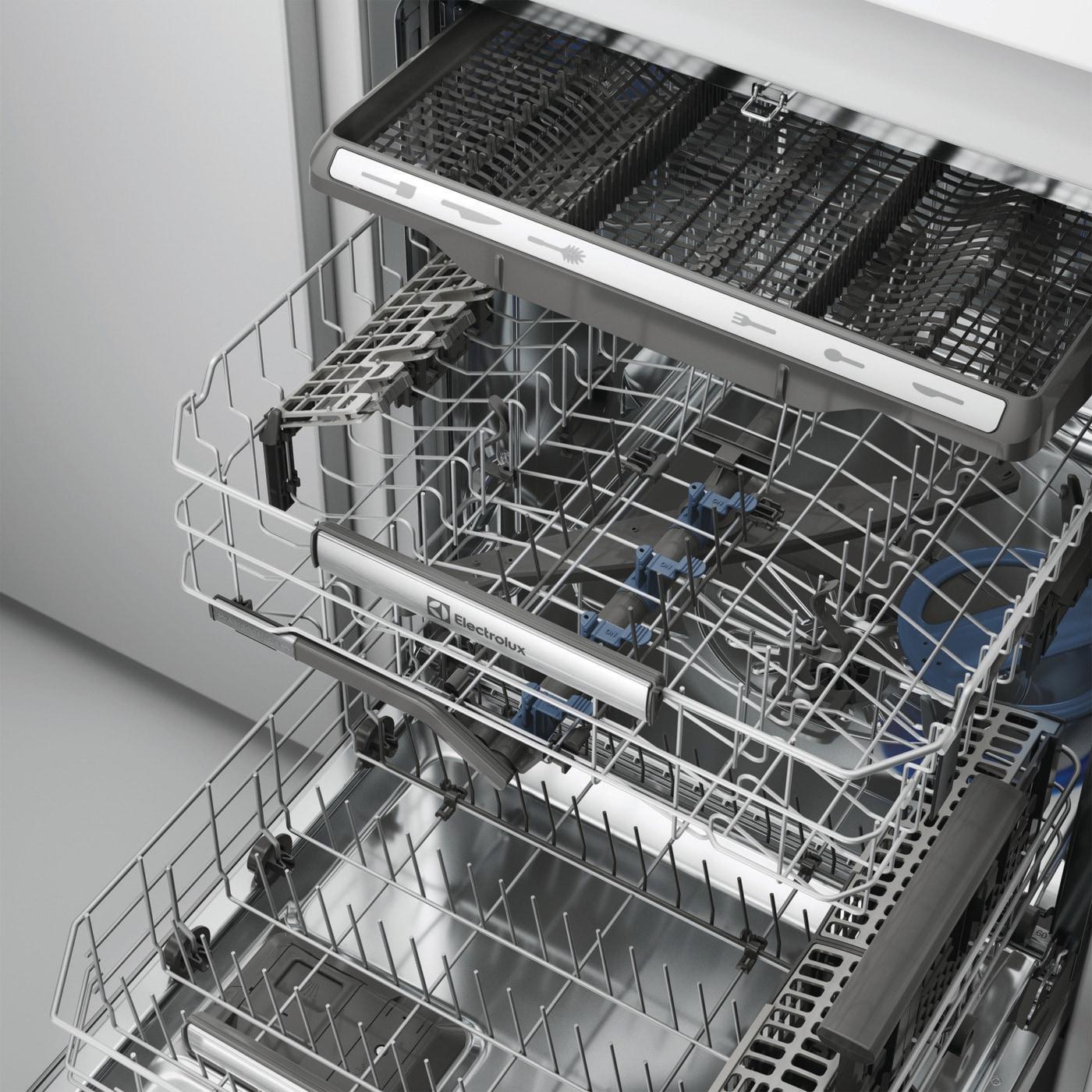

3rd Rack System
Yes
Control Lock
Yes
Cutlery Tray
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Detergent Dispenser
• Filter Material: Stainless Steel
• Filter Trap: Removable
• Filtered Water: 100 %
• Interior Light
• Leak Detection System
• Motor Speeds: Multi-Speed
• Rinse Aid Dispenser
• Rinse Aid Indicator
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Status Indicator Floor Beam
• Tub Color: Stainless Steel
• Tub Design: Tall Tub
• Door and Handle Design: Handle
• Door Latch: Pull
• Door Type: StayPut
• Delay Start Hours: 1-12 Hours
• Wash Levels: 5
• Wash System: Direct Feed
• Third Level Rack Coating: Nylon

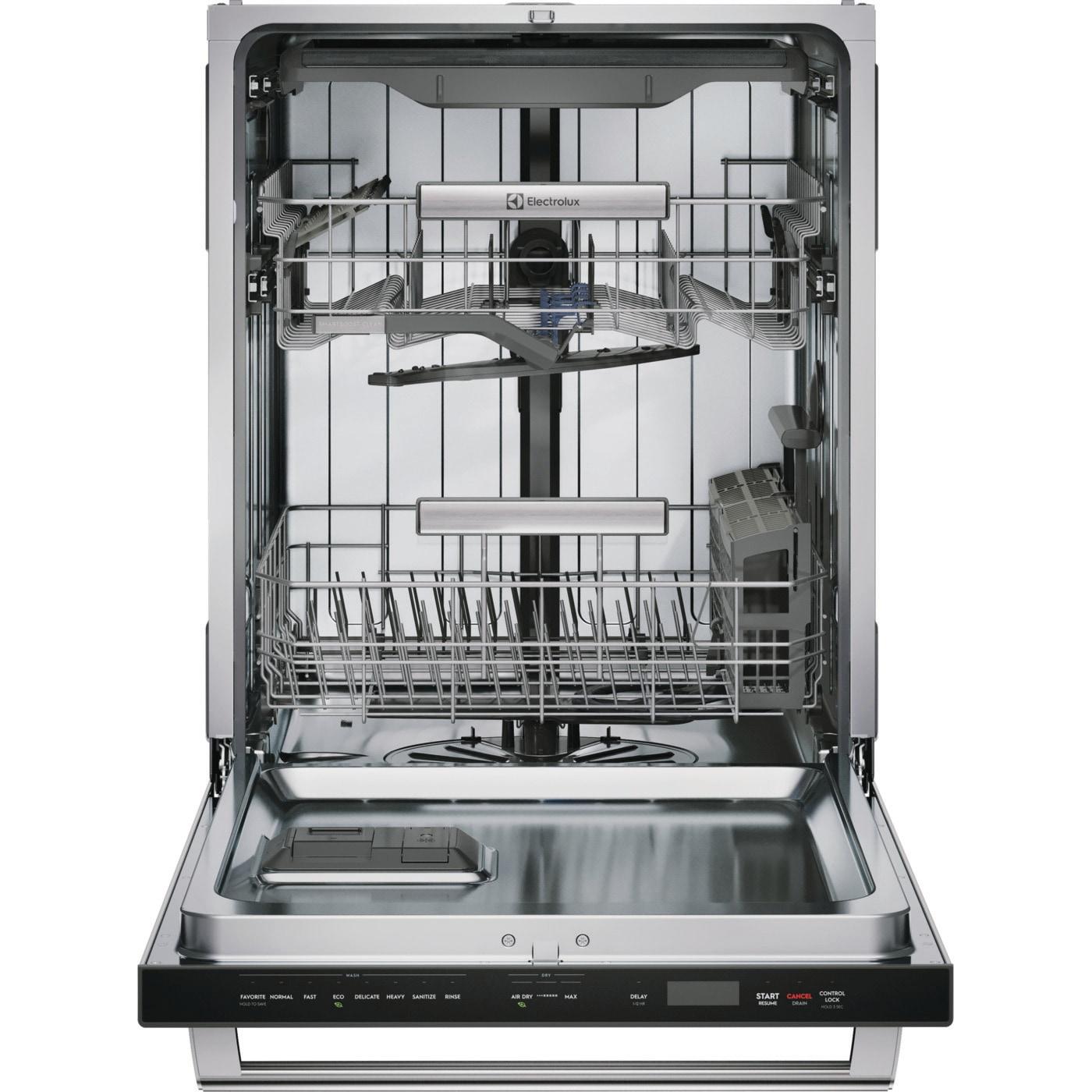

Upper Rack:
• Cup Shelf
• Fold-Down
• Maximum Height Clearance: 10 3/8"
• Minimum Height Clearance: 8 1/2"
• Rack Coating: Nylon
• Rack Handles
• Rack Type: Deluxe
• Stemware Holder
• Targeted Wash Zone
Lower Rack:
• Fold-Down
• Maximum Height Clearance: 13 1/4"
• Minimum Height Clearance: 11 1/4"
• Number of Silverware Baskets: 1
• Number of Silverware Basket Lids: 2
• Rack Coating: Nylon
• Rack Type: Deluxe
Installation:
• Connection Location: Right Bottom
• Number of Leveling: Legs 3
• Water Inlet Location: Left Bottom Front
• Filter Material: Stainless Steel
• Filter Trap: Removable
• Filtered Water: 100 %
• Interior Light
• Leak Detection System
• Motor Speeds: Multi-Speed
• Rinse Aid Dispenser
• Rinse Aid Indicator
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Spray Arm
• Status Indicator Floor Beam
• Tub Color: Stainless Steel
• Tub Design: Tall Tub
• Door and Handle Design: Handle
• Door Latch: Pull
• Door Type: StayPut
• Delay Start Hours: 1-12 Hours
• Wash Levels: 5
• Wash System: Direct Feed
• Third Level Rack Coating: Nylon
Upper Rack:
• Cup Shelf
• Fold-Down
• Maximum Height Clearance: 10 3/8"
• Minimum Height Clearance: 8 1/2"
• Rack Coating: Nylon
• Rack Handles
• Rack Type: Deluxe
• Stemware Holder
• Targeted Wash Zone
Lower Rack:
• Fold-Down
• Maximum Height Clearance: 13 1/4"
• Minimum Height Clearance: 11 1/4"
• Number of Silverware Baskets: 1
• Number of Silverware Basket Lids: 2
• Rack Coating: Nylon
• Rack Type: Deluxe
Installation:
• Connection Location: Right Bottom
• Number of Leveling: Legs 3
• Water Inlet Location: Left Bottom Front
Electrical Information
Information
• Amps @ 120 Volts: 15 Amps
• Voltage Rating: 120 V
• Annual Energy: 240 kWh
• Voltage Rating: 120 V
• Annual Energy: 240 kWh
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
ADA Compliant
No
Information
• CEE Tier: Tier 1
• cUL Listed
• Meets ASSE 1006 Requirements
• cUL Listed
• Meets ASSE 1006 Requirements
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.75 inch(es) / 85.73 cm
Depth (Without Handle)
24.25 inch(es) / 61.6 cm
Depth (Including Handle)
26.69 inch(es) / 67.79 cm
Additional Dimensions
Maximum Height: 35 3/4"
Warranty
Warranty
Parts and Labor: 1 Year
UPC
UPC#
12505116445
