DESCRIPTION

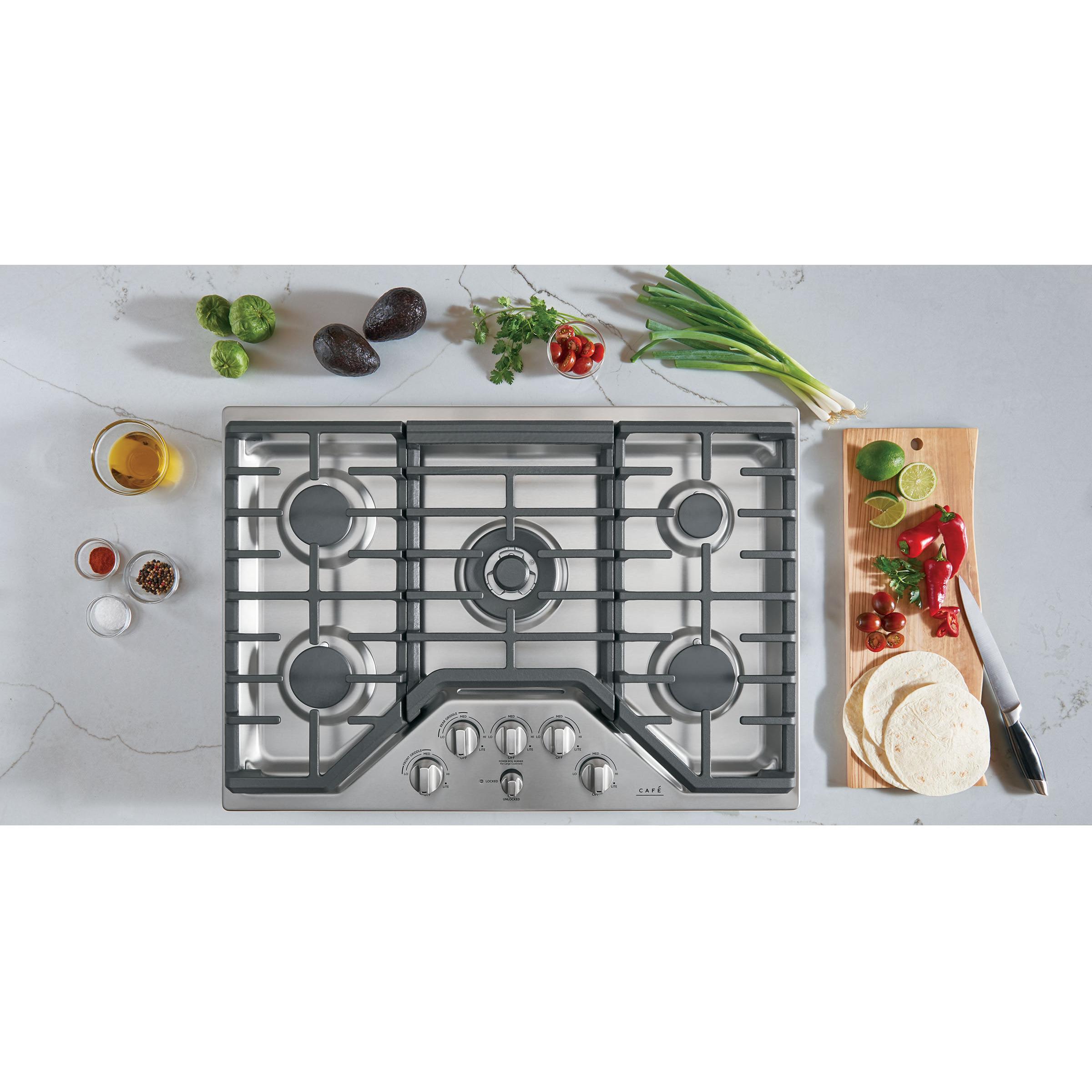

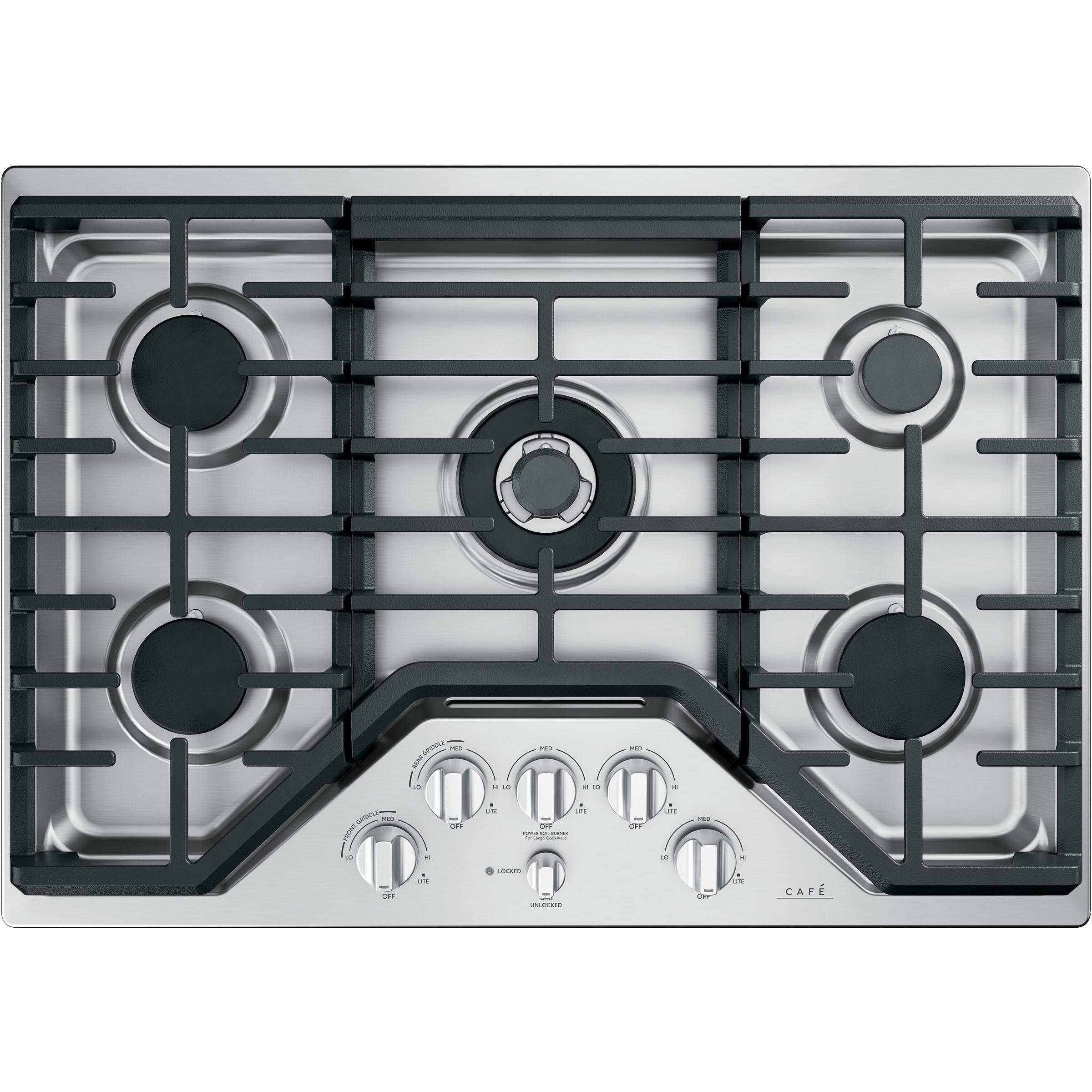

×Always have the space you need to whip up your specialties thanks to this Café™ 30" built-in gas cooktop with five sealed burners. Continuous, cast-iron burner grates let you easily move heavy cookware across the surface without worry. Get the most from your cooktop and eliminate the need for extra cookware with the extra-large, integrated cooktop griddle.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left front: 9,500 BTU
• Left rear: 9,500 BTU
• Right front: 12,000 BTU
• Right rear: 5,000 BTU
• Center: 20,000 BTU Tri-ring Power Boil
• Left rear: 9,500 BTU
• Right front: 12,000 BTU
• Right rear: 5,000 BTU
• Center: 20,000 BTU Tri-ring Power Boil
Burners
Sealed
Surface Features
Heavy cast, dishwasher safe continuous edge-to-edge matte black cooktop burner grates
Features
Wi-Fi
No
Clock
No

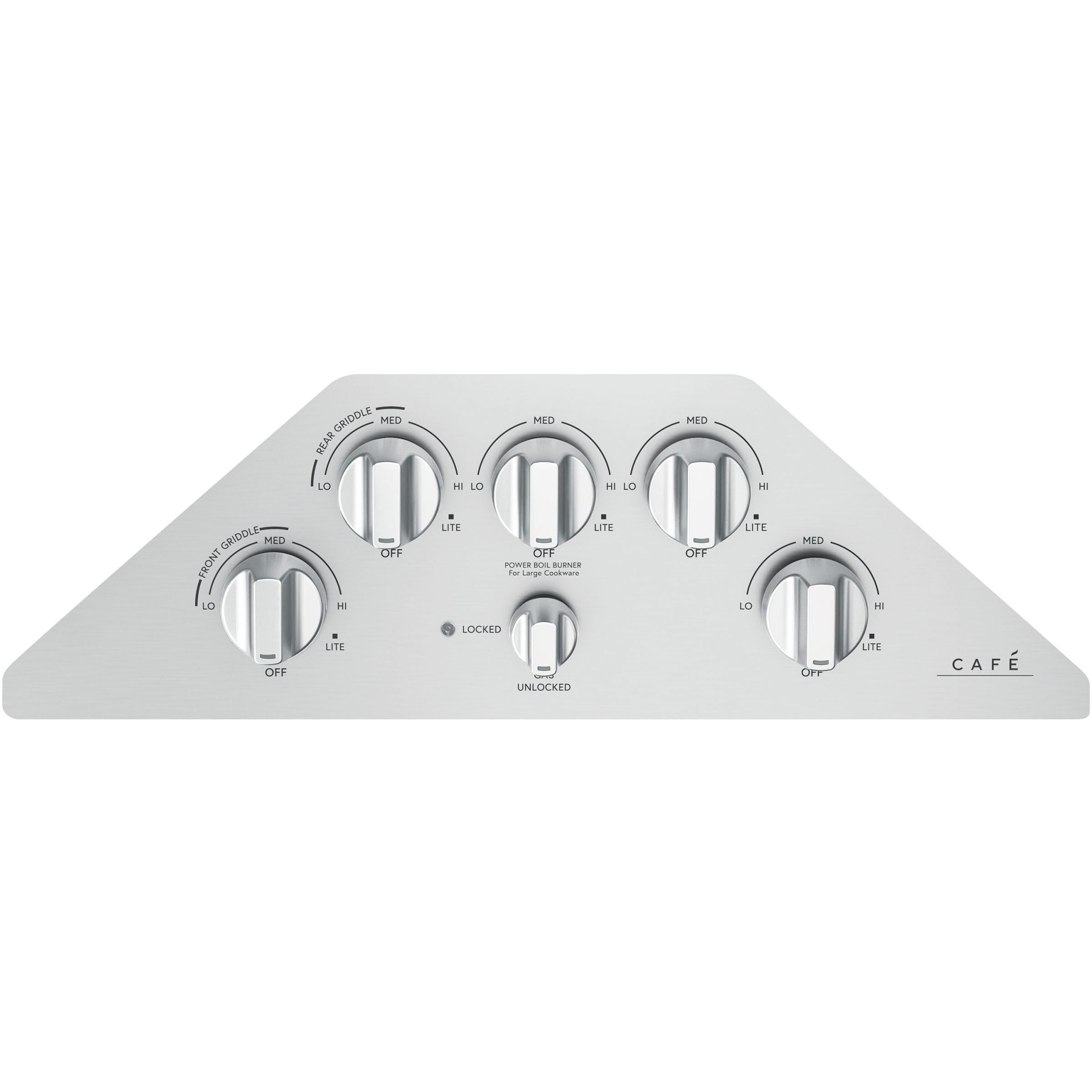

Control Lock
Yes
Digital Display
No
Downdraft Ventilation
No
Additional Information
Electronic ignition system
Electrical Information
Information
• 120V
• 60Hz
• 5A
• 60Hz
• 5A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• CXCG1K0PMSS: Brushed Stainless Steel Kit - 6 knobs
• Stainless steel cleaner
• Cast iron griddle: JXGRIDL230
• LP conversion kit
• Stainless steel cleaner
• Cast iron griddle: JXGRIDL230
• LP conversion kit
Optional
• CXCG1K0PMBZ: Brushed Bronze Kit - 6 knobs
• CXCG1K0PMBT: Brushed Black Kit - 6 knobs
• CXCG1K0PMCU: Brushed Copper Kit - 6 knobs
• CXCG1K0PMFB: Flat Black Kit - 6 knobs
• CXADTH1PMCG : Brushed Brass Kit - 1 handle
• CXCG1K0PMBT: Brushed Black Kit - 6 knobs
• CXCG1K0PMCU: Brushed Copper Kit - 6 knobs
• CXCG1K0PMFB: Flat Black Kit - 6 knobs
• CXADTH1PMCG : Brushed Brass Kit - 1 handle
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
5.5 inch(es) / 13.97 cm
Depth
21 inch(es) / 53.34 cm
Weight
45 lb(s) / 20.41 kg
Additional Dimensions
Cutout dimensions (width x depth): 28-1/2" x 19-5/8"
Shipping Dimensions
Width
27.3 inch(es) / 69.34 cm
Height
11 inch(es) / 27.94 cm
Depth
33.5 inch(es) / 85.09 cm
Weight
50.99 lb(s) / 23.13 kg
Warranty
Warranty
• Limited 1-year for entire appliance on parts and labor
• See written warranty for full details
• See written warranty for full details
UPC
UPC#
084691834489
